Smt led лампочка машины для производства линия света делая машину Монтажная машина
- Категория: Electronics Production Machinery >>>
- Поставщик: Shenzhen Eton Automation Equipment Co. Limited
Сохранить в закладки 1600355832267:
Описание и отзывы
Характеристики
Product Description
Specification

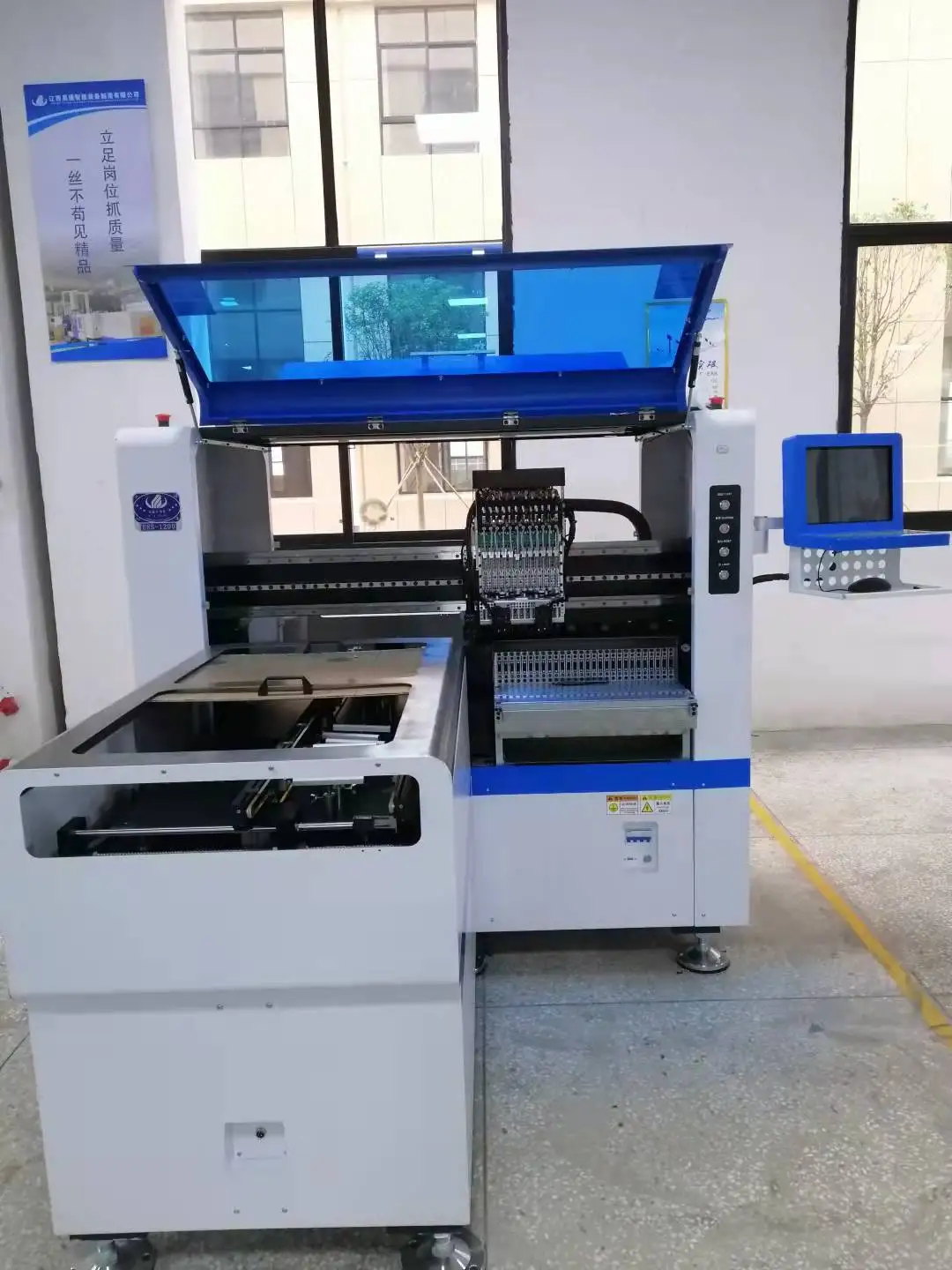

Item:Automatic highspeed pick and place machine
Feature:
1.Sinlge module magnetic linear motor multifuncational pick and place machine
2.Mounting components: LED chip ,capacitors, resistors, lens,shaped components.etc.
3.component:Min size 0402 ,Max height:15mm
1.Sinlge module magnetic linear motor multifuncational pick and place machine
2.Mounting components: LED chip ,capacitors, resistors, lens,shaped components.etc.
3.component:Min size 0402 ,Max height:15mm
4.application: power driver,lens,electric board, DOB bulb,linear bulb,household appliance.etc.
Technical parameter | ||
Model | HT-E8S-1200 | |
Dimension | ||
length | 2550mm | |
width | 1650mm | |
height | 1550mm | |
Total weight | 1700kg | |
PCB | ||
PCB length width | Max：1200*500mm Min：100*100mm | |
PCB thickness | 0.5-5mm | |
PCB clamping | Adjustable pressure pneumatic | |
Mounting mode | Group picking and separately placing, Separately picking and separately placing | |
O.S. | ||
system | ||
software | R&D indepentently | |
display | touch screen monitor | |
input device | keyboard mouse | |
vision system | ||
No.of camera | 2 sets of imported camera | |
vision for flight identification, mark correction | ||
Mounting precision | ±0.04mm | |
Mounting height | ＜15mm(Automatic changing) | |
Mounting speed | 45000CPH | |
Components | LED chip, capacitors, resistor, IC, shaped components.etc. | |
Components space | 0.2mm | |
power | 380AC 50Hz | |
power consumption | 4kw | |
operating environment | 23℃±3℃ | |
conveyor transmission | MAX length:1200mm | |
transmission speed | ≤1000mm/秒 | |
transmission direction | both direction(option) | |
transmission mode | Auto online drive | |
air supply | 0.4-0.6mpa(4-6kgf/cm²)150N/min | |
electrical control | Indepentent research and development by Eton. | |
XYZ Axis drive way | High-end magnetic linear motor + servo-motor | |
feeding system | ||
no.of.feeders system | 28PCS single module | |
no.of .head | 12PCS single module | |
feeding way | electric feeder with double motor | |
SMT line solution
ETON over 10 years experience in SMT machines, so we are very professional to provide whole line solution.
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven to be one automatic line.
Automatic line save much labor cost compared with the semiautomatic line, also with higher printing precision could produce high quality electrical products. Here are the automatic SMT line solution layout:
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven to be one automatic line.
Automatic line save much labor cost compared with the semiautomatic line, also with higher printing precision could produce high quality electrical products. Here are the automatic SMT line solution layout:
Related SMT Machine
Company Profile
Shenzhen ETON Automation Equipment Co.,Ltd.
Was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.,
* Experience:It has more thanten years of research and development experience and LED industry service experience.
* Industrial park:With an industrial park of50,000 square meters, focusing on the R&D and production of the SMT industry.
* Large market: South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil more than 20 countries.
* Experience:It has more thanten years of research and development experience and LED industry service experience.
* Industrial park:With an industrial park of50,000 square meters, focusing on the R&D and production of the SMT industry.
* Large market: South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil more than 20 countries.

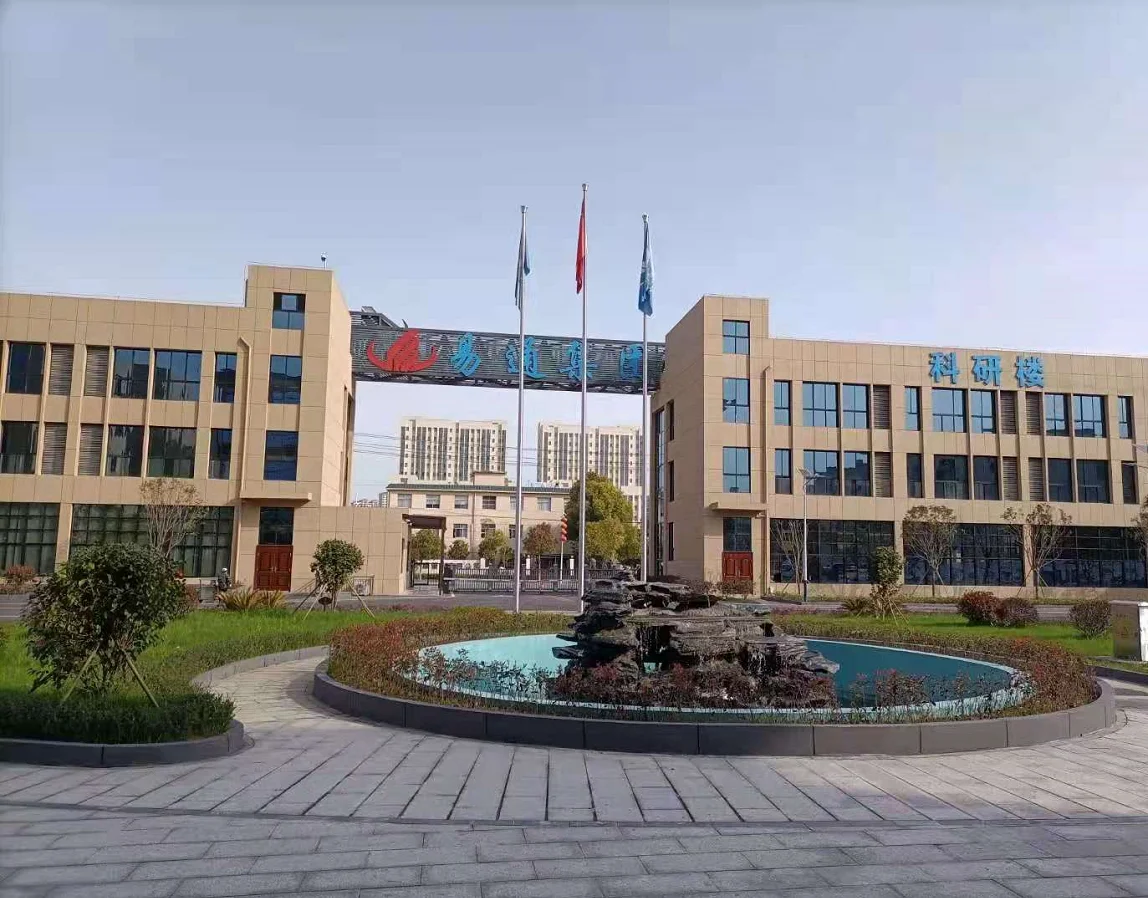

The hall of office building in Jiangxi
The hall of office building in Shenzhen
Office

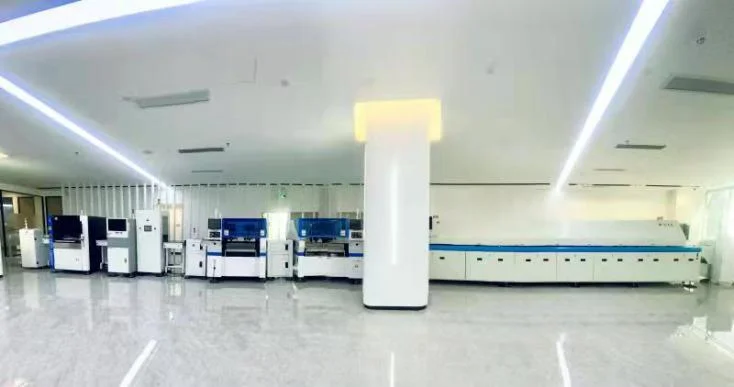

Show room
Experienced PD team
Excellent R&D team
Strict machine testing

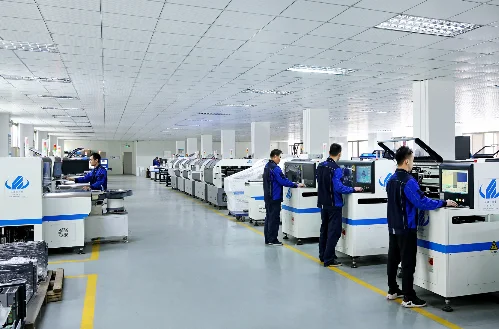

Spacious workshop
Packing & Delivery
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oiin the wood carton, effectively prevent collision and shock.
For spare parts usually we’ll pack it separately with box.
This is the packing reference for the feeders
and some spare parts .
After sales sevice
FAQ
Q1: What is your machine actual speed?
A1: The actual speed is influenced by many factors, such as the number of the components, the kind of products, the time of send board, etc. So we can’t give you the accurate actual production capacity. Such as for RT-1, the speed of led chip mainly around 23000-25000CPH. But for driver will be different.
Q2: Does the price include spare parts(nozzle and feeder)?
A2: Different client has different requirements on spare parts, it is not fair to clients to add in equivalent price for spare parts, so we don’t add the spare parts on price. And price is only for machine.
Q3: Can you support whole SMT line?
A3: Yes, we can provide whole line solution if you want. We are very professional on SMT field.
\t
Q4: What is your machines quality?
A4: We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machine quality.
Q5: What is your delivery date?
A5:The delivery date is about 20 days upon the full payment.
Q6:The products you are advertising are in stock?
A6: The delivery date is about 20 days upon the full payment.Some times we have some in stock for ship , before shipping we’ll do some machine test for clients .
Q7:How many hours does the machine can operated per day?
A7:Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
Q8:How can I buy this machine from you?
A8:
A. Consult us about this product on line or by e-mail
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
A1: The actual speed is influenced by many factors, such as the number of the components, the kind of products, the time of send board, etc. So we can’t give you the accurate actual production capacity. Such as for RT-1, the speed of led chip mainly around 23000-25000CPH. But for driver will be different.
Q2: Does the price include spare parts(nozzle and feeder)?
A2: Different client has different requirements on spare parts, it is not fair to clients to add in equivalent price for spare parts, so we don’t add the spare parts on price. And price is only for machine.
Q3: Can you support whole SMT line?
A3: Yes, we can provide whole line solution if you want. We are very professional on SMT field.
\t
Q4: What is your machines quality?
A4: We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machine quality.
Q5: What is your delivery date?
A5:The delivery date is about 20 days upon the full payment.
Q6:The products you are advertising are in stock?
A6: The delivery date is about 20 days upon the full payment.Some times we have some in stock for ship , before shipping we’ll do some machine test for clients .
Q7:How many hours does the machine can operated per day?
A7:Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
Q8:How can I buy this machine from you?
A8:
A. Consult us about this product on line or by e-mail
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
