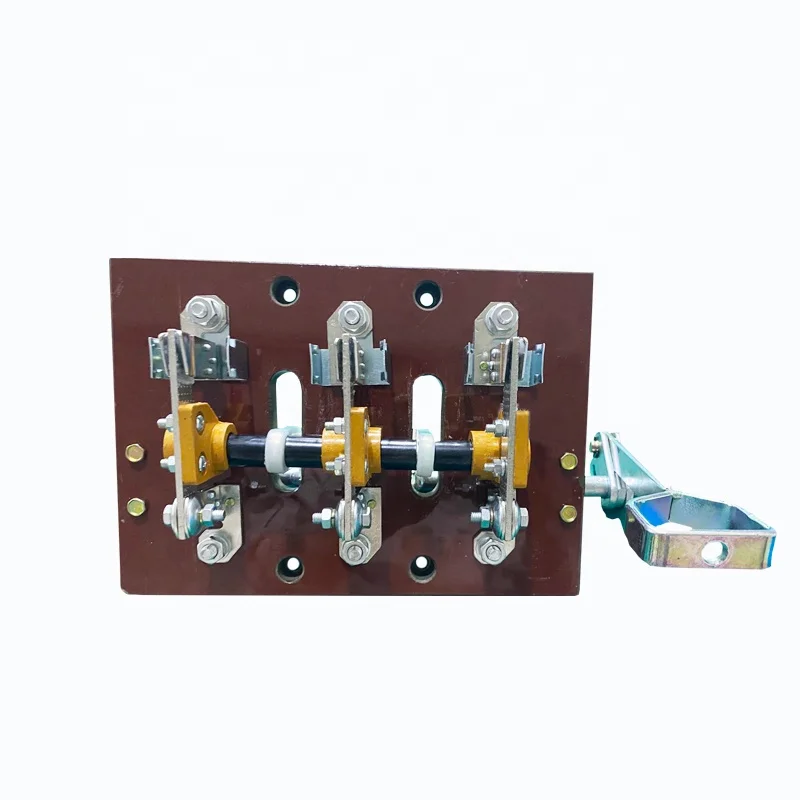

Переключение ножевой рубильник-200/31 боковой работает ножевой рубильник 380V 200A переключателем
20,00 $ - 21,50 $

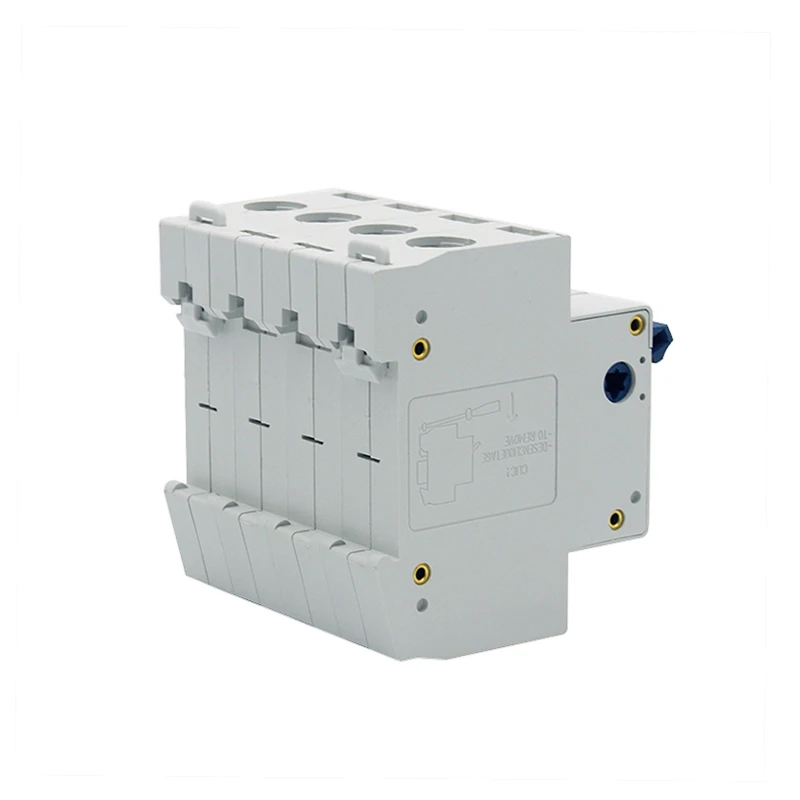

Chtai Лидер продаж партиями по 4 этап изоляция выключатель цепи тип амортизатора основные электрические авто переключатель HL30 100 P 200A переключающий переменного тока
- Категория: >>>
- Поставщик: Wenzhou Xinghe Import & Export Co. Ltd.
Сохранить в закладки 1600356474220:
Описание и отзывы
Характеристики
Products Description
Range of application
HL30-100 Series switch disconnectors with advanced structure, reliable performance, quick tripping, guide rail installation, shell and components with impact resistance and high flame retardant material composition. Long service life. Suitable in AC 50Hz, rated voltage 400V and below, rated current up to 125A power distribution and control circuit, mainly as a terminal combination electric appliance switch, as the line is not frequent conversion.
The product conforms to IEC60947-3 and GB14048.3 and other standards.
Product Paramenters

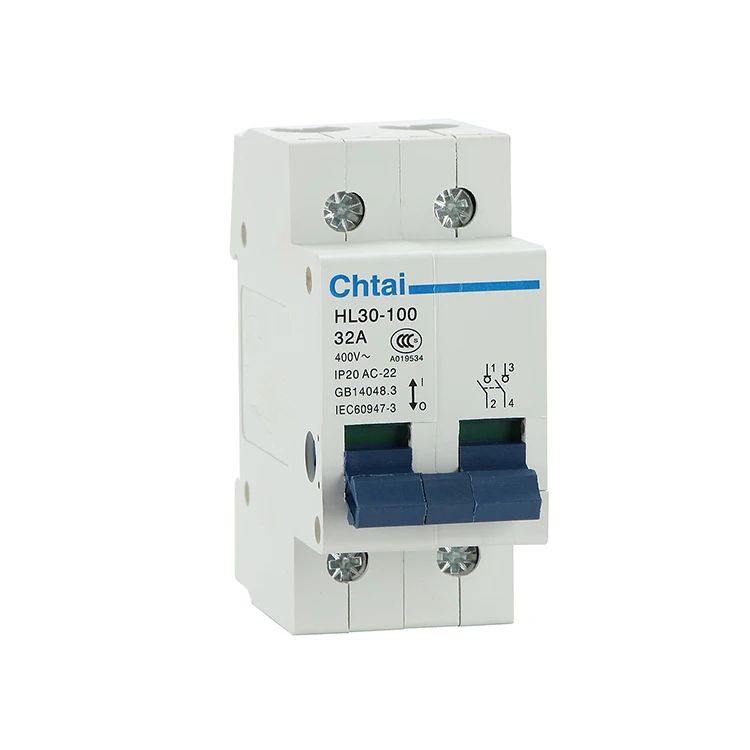

Name | Switch Disconnector |
Number | HL30-100 |
Rated current(In) | 20A,25A,32A,40A,50A,63A,80A,100A,125A |
Poles | 1P,2P,3P,4P |
Material | PA66 |
Rated voltage(Ue) | 1P: 230V 2P/3P/4P: 400V |
Rated frequency | 50/60Hz |
Rated breaking capacity | 6KA |
Rated impulse withstand voltage Uimp | ( 1.2 / 50μs ) 2KV |
Thermo-magnetic release characteristic | B C D |
Electrical Life | 15000 |
Mechanical Life | 10000 |
Installation method | 35mm standard DIN rail |
Working Temperature | -5℃ to 40℃ |
Protection degree | IP20 |
Standard | IEC60947-3/GB14048.3 |
Guarantee | 2YEARS |
OEM ODM | avaiable |

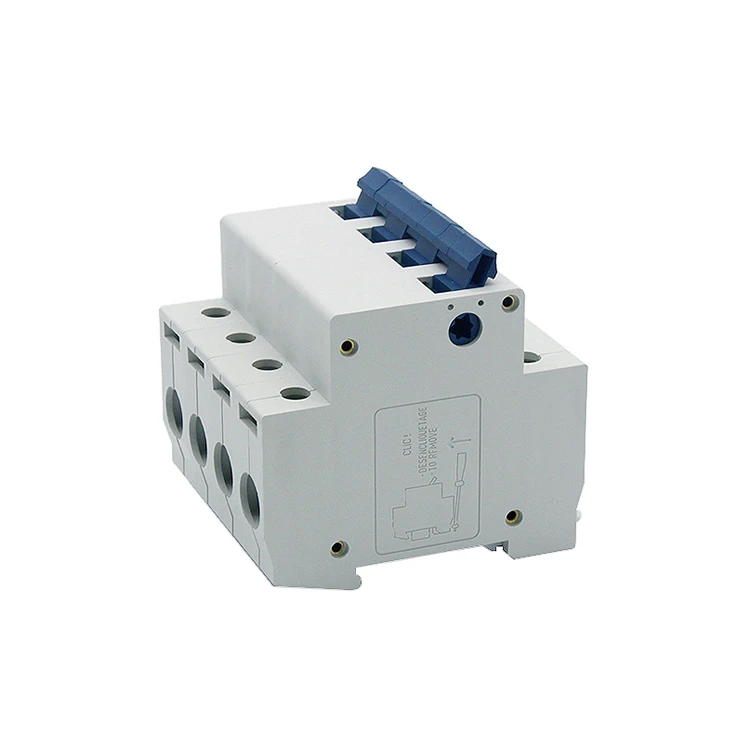

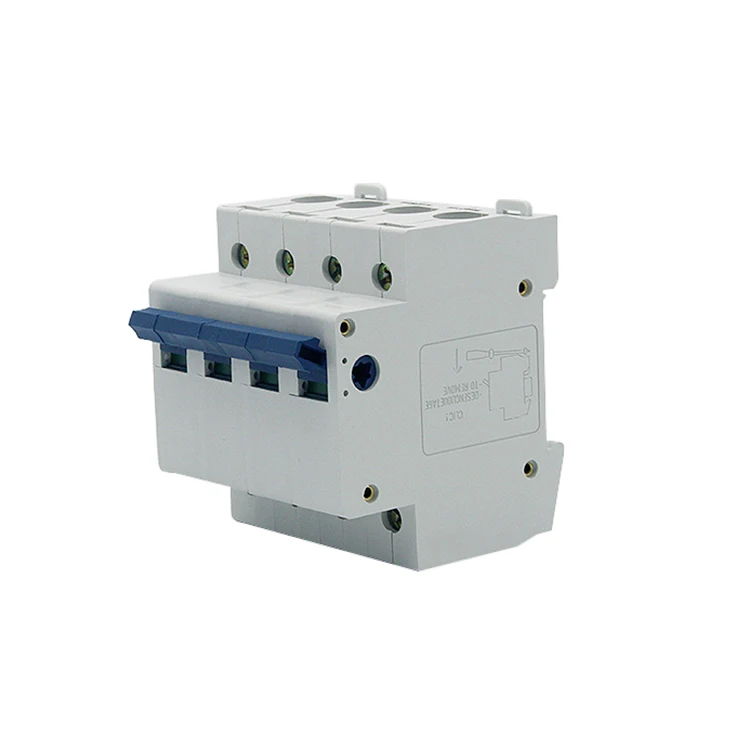

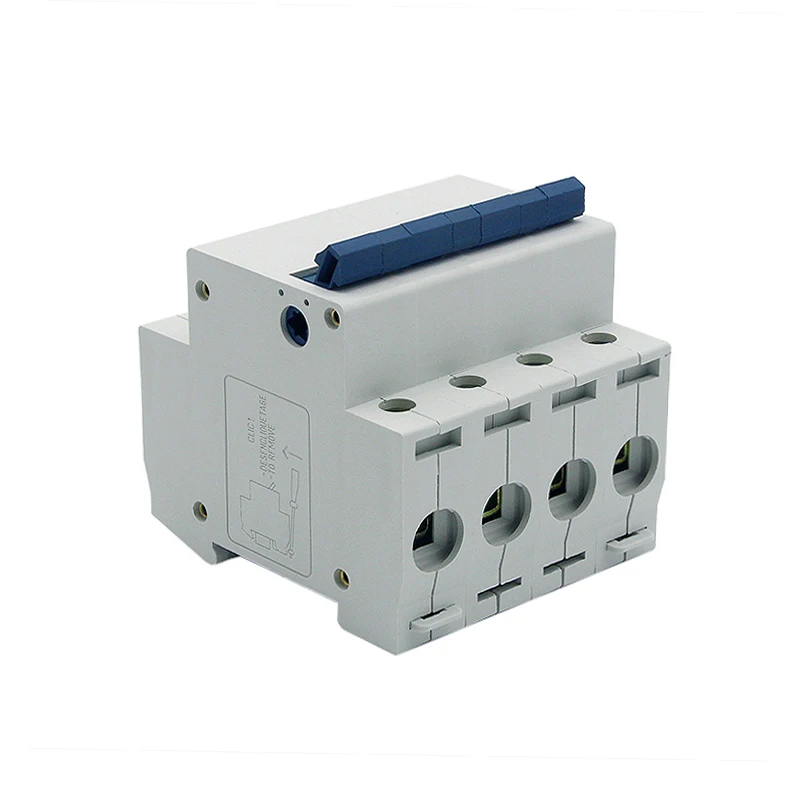

Details Images
Application
Certifications
Company Profile
Wenzhou Xinghe Import & Export Co.,Ltd. is a high-tech enterprise that engaged indesigning,developing,manufacturing and selling low-voltage air circuit breaker and socket,Surge protective device and so on. Our products have proven popular all over the world.
Xinghe Company Is a leading supplier of electrical accessories in China.We have our own factory and raw material production base in Zhejiang province. Our main products now include circuit breakers, AC contactors, timers, relays, fuses, push buttons,switches, modular sockets,industrial plugs and sockets, and multi-meters.We have a wide range of products, good quality,reasonable price and novel style, at the same time, we can provide fast delivery and efficient after-sales service.
In the fierce market competition, the company adhere to the tenet that "brand is benefit", providing our customers with quality products and enthusiastic service.
We sincerely welcome customers from home and abroad to cooperate with and create a bright future together.
Xinghe Company Is a leading supplier of electrical accessories in China.We have our own factory and raw material production base in Zhejiang province. Our main products now include circuit breakers, AC contactors, timers, relays, fuses, push buttons,switches, modular sockets,industrial plugs and sockets, and multi-meters.We have a wide range of products, good quality,reasonable price and novel style, at the same time, we can provide fast delivery and efficient after-sales service.
In the fierce market competition, the company adhere to the tenet that "brand is benefit", providing our customers with quality products and enthusiastic service.
We sincerely welcome customers from home and abroad to cooperate with and create a bright future together.
FAQ
Q1:When can I receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.
Q2: Do you provide samples ? is it free or extra ?
A: Yes,We are honored to provide you with samples of what you need before place order on free but do not pay the cost of freight.
Q3: How can I get some samples?
A: Please contact us and leave detailed contact information, we promise to keep your information confidential.
Q4:What's the delivery time?
A: Samples cost 5-7 days. Bulk order usually takes 7-15days after confirming the payment,but the specific time shall be determined according to the order quantity.
Q5:Do you accept OEM business?
A:Yes, we do.
Q6:Do you have a warranty policy?
A:Our products are warranty for two years and full lifespan aftersales service.
Похожие товары
Высокое качество три полюса двойной бросок керамический изменений по сравнению с ножевой рубильник

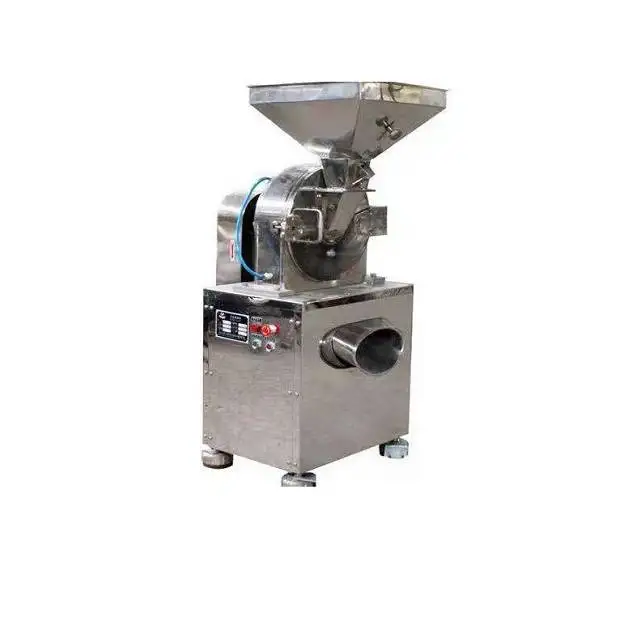

Популярный многоцелевой дезинтегратор с сертификатом Ce/Промышленный дезинтегратор
Лидер продаж фрезерный станок для риса домашнего использования электрический маленький

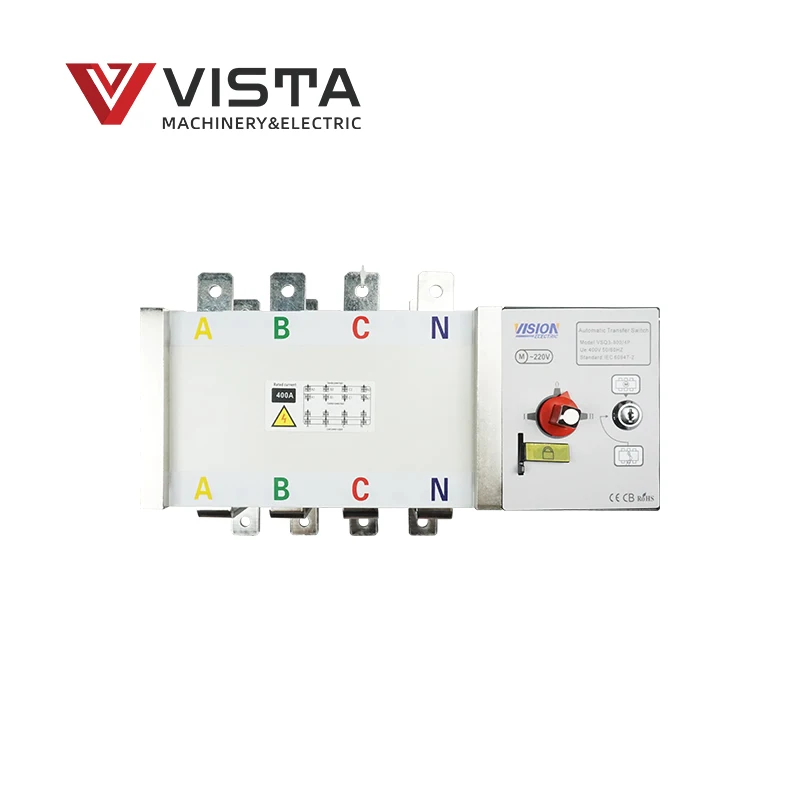

Автоматический переключатель двойного питания ATS 800A, 4 P, 4 полюса
Порошковый экстракт картофеля 90%-корм для животных

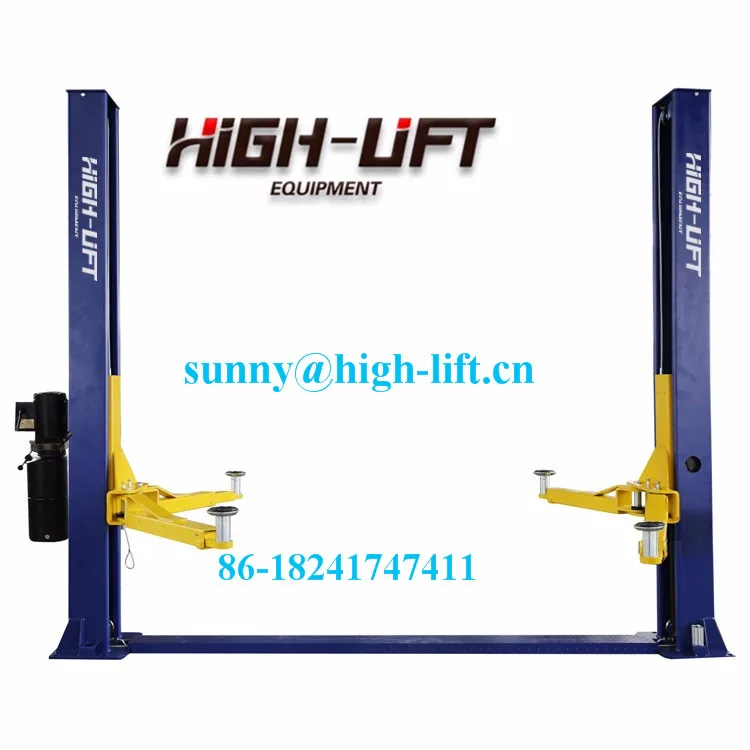

2 столба гидравлический автомобильный подъемник
