Рисунок на одежде швейная машина узор дизайн делает резки программируемая для продажи

Рисунок на одежде швейная машина узор дизайн делает резки программируемая для продажи

Категория: >>>
Поставщик: Henan Minko Machinery Co. Ltd.Henan Ltd.

Цена:1 750,00-1 850,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

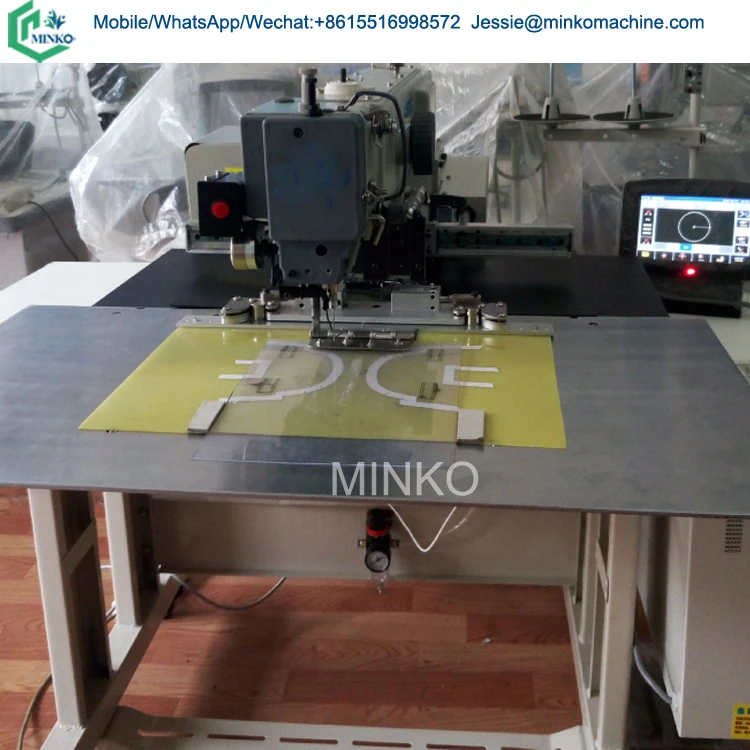

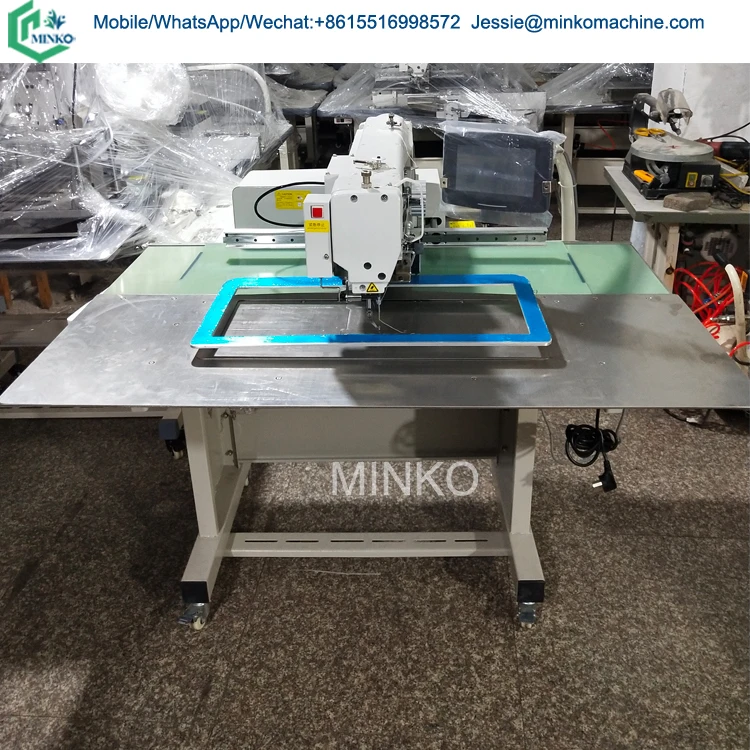

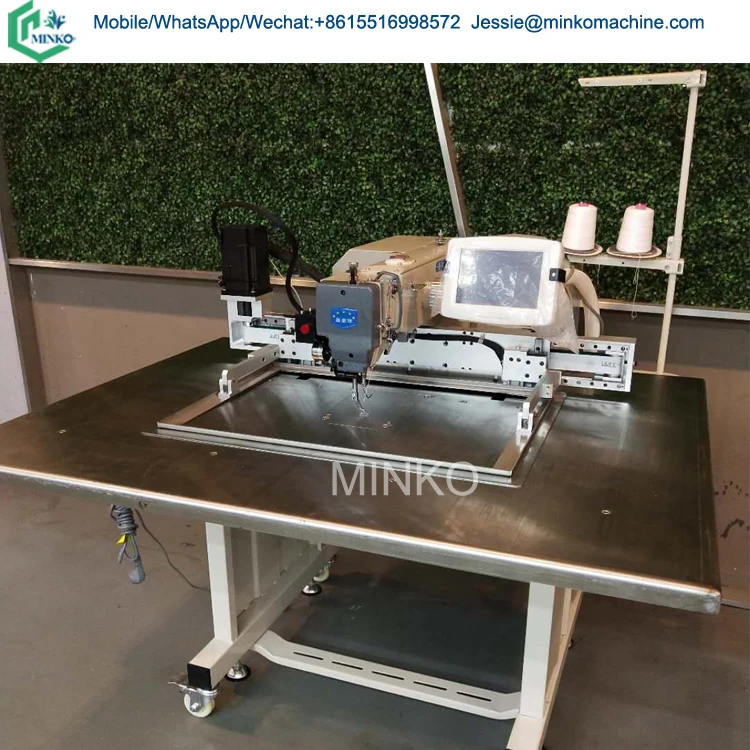

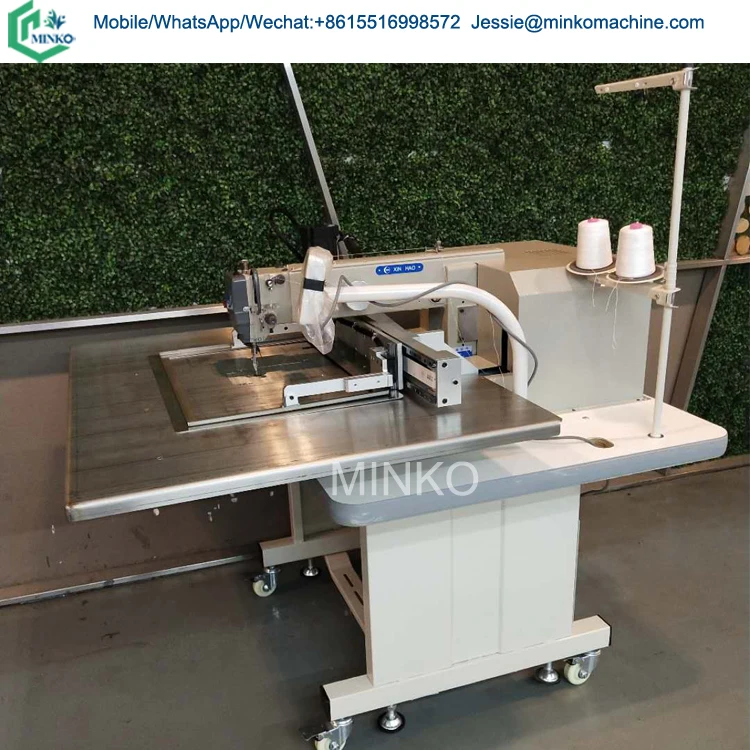

clothing pattern sewing machine pattern design making cutting programmable pattern sewing machine for sale

1.LCD large touch screen interface
LCD color liquid crystal graphic display and touch operation interface, Chinese and English bilingual operation interface, the basic operation can be executed by the illustrated button, various information can be displayed at any time through the selected language, with tacit understanding, human-machine integration. The original operation is as simple as that.
2. Easy programming and simple USB expansion interface input
The DXF and PLT graphics can be generated directly by the upper software using the garment CAD software to quickly identify the DXF\\.PLT\\.DST\\.AI format. It can also read graphics directly through the USB interface, or convert it into a runnable program using the upper software;
3. High-precision spline transmission, ultra-quiet design.

Model	Max sewing area	Model	Max sewing area
2010 model	20*10cm	2516 model	25*16cm
3020 model	30*20cm	3520 model	35*20 cm

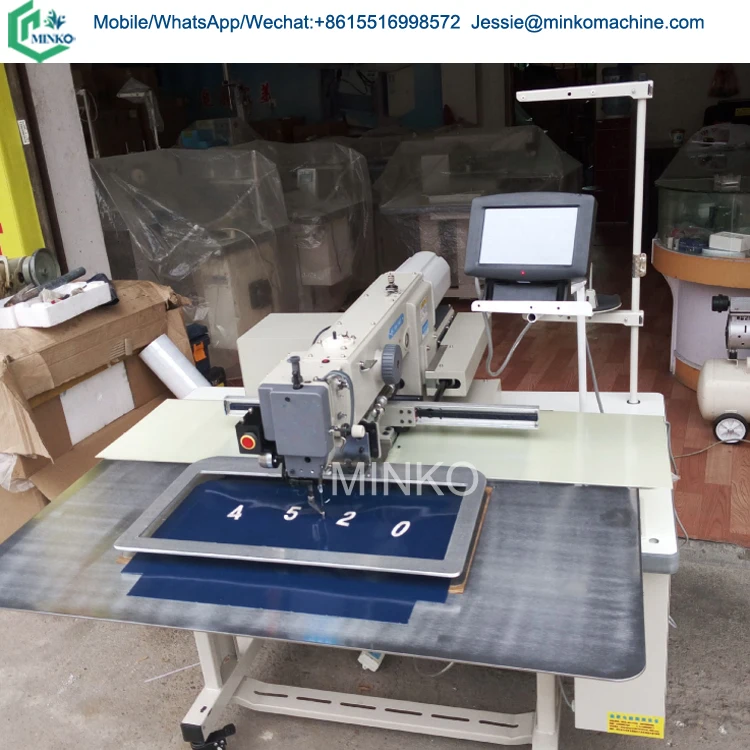

4030 model	40*30cm	4520 model	45*20cm
5030 model	50*30cm	6040 model	60*40 cm
other max sewing area	6050cm 7050cm 8050cm 9050cm 10040cm 10060cm etc
Sewing speed	2500rpm
speed setting	200-2000r/min
Stitch length	0.1-12.7mm
Max needles	8000needles/pattern
Pattern storage	Internal storage U disk storage
Presser foot	Pneumatic type
Lift of external pressure foot	32mm
Internal foot lift	20mm
inner press foot working range	4-10mm
Spindle motor	Direct drive servo motor
