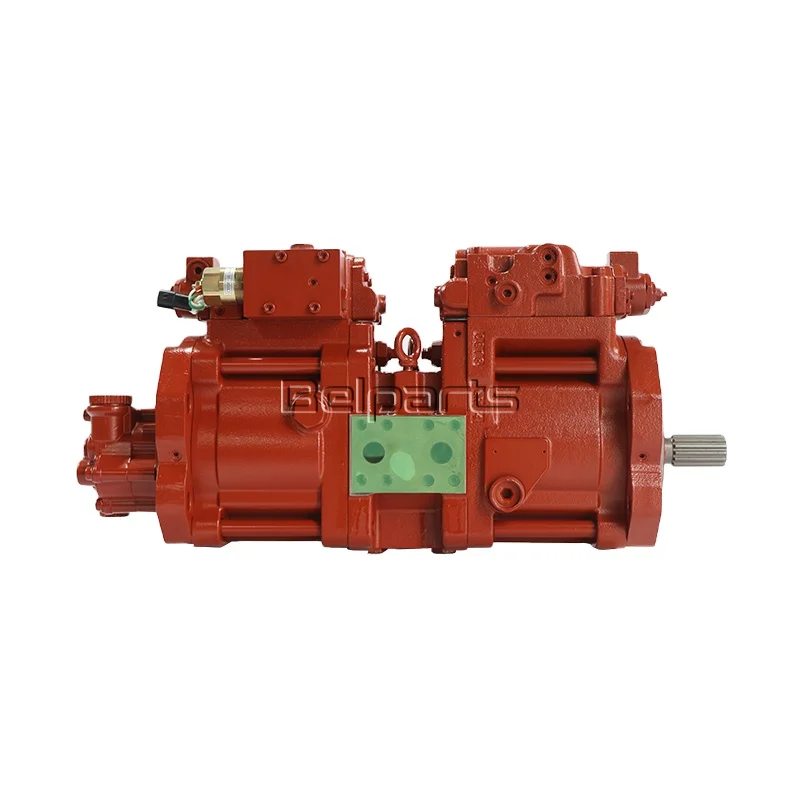

Главный насос экскаватора Belparts dh130 dh150-7 гидравлический насос для daewoo
102 389,88 ₽ - 109 626,30 ₽
Прямая Заводская цена горячая Распродажа корабльная машина M450 3024147 топливный инжектор топливная форсунка
- Категория: >>>
- Поставщик: Jining Rongtai Engineering Machinery Co. Ltd.
Сохранить в закладки 1600358534984:
Описание и отзывы
Характеристики
Product Overview

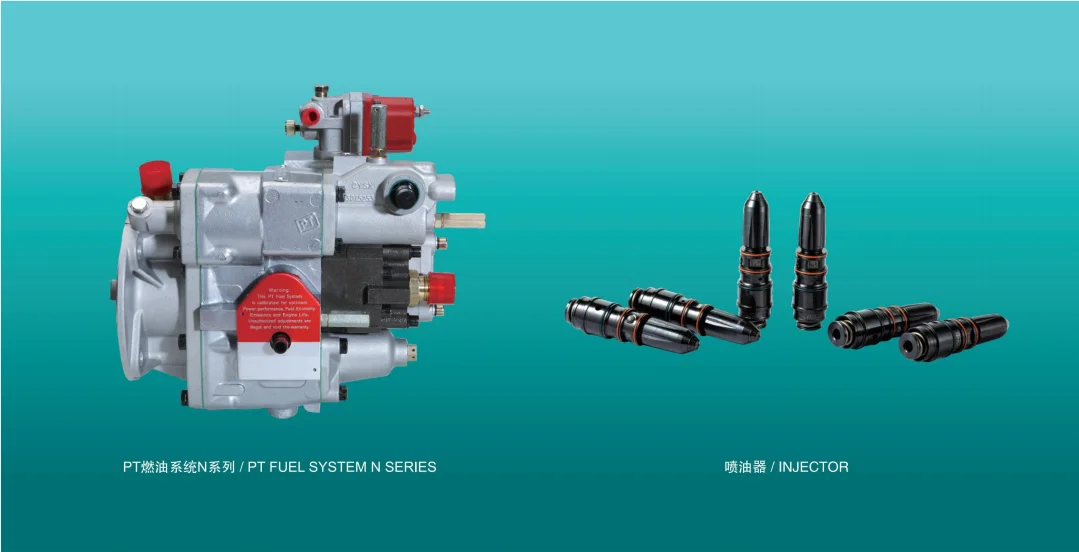

:N series:
The PT injector converts the low-pressure fuel supplied by the PT fuel pump into high-pressure (about 70-138MPa) fuel injection into the combustion chamber. This series of injectors includes three types: basic type, overhead limit type and STC type. The basic type is the PTD cylindrical injector (see the picture on the left), the plunger stroke needs to be adjusted on the engine, the overhead limit type (see the picture in the middle) and the STC type injector (see the picture on the right) plunger stroke are both in Adjust on the injector. The STC injector adopts the "fuel injection advance timing method" (referring to the earlier fuel injection in the compression cycle) under starting and light load conditions, which improves the idling characteristics in cold weather and reduces cold weather conditions. The engine emits white smoke, which improves the fuel economy of light load conditions;

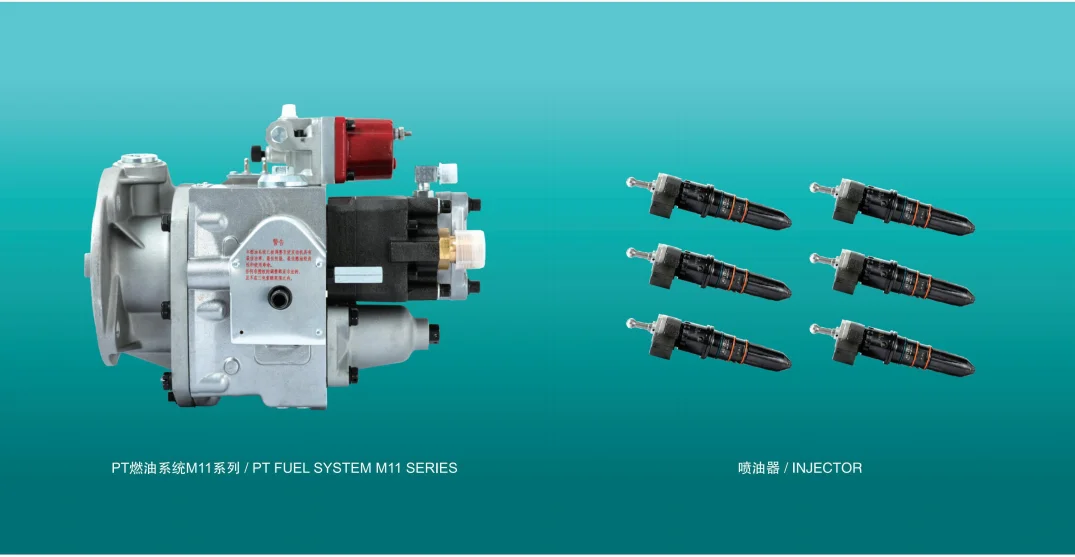

M11 series PT injector:
The PT injector converts the low-pressure fuel supplied by the PT fuel pump into high-pressure (about 70-138MPa) fuel injection into the combustion chamber. This series of injectors are of the PTD-STC type, and the basic cylindrical injector is added STC ( Step-by-step timing control) system. This type of fuel injector adopts the "fuel injection advance timing method" (referring to the earlier fuel injection in the compression cycle) under starting and light load conditions, which improves the idling characteristics in cold weather and reduces The engine emits white smoke, which improves the fuel economy under light load conditions; while under medium and heavy load conditions, the "normal timing method" (referring to the normal injection of fuel during the compression cycle) is adopted to control the maximum explosion pressure of the cylinder , Reducing NOx (nitrogen oxide) emissions.

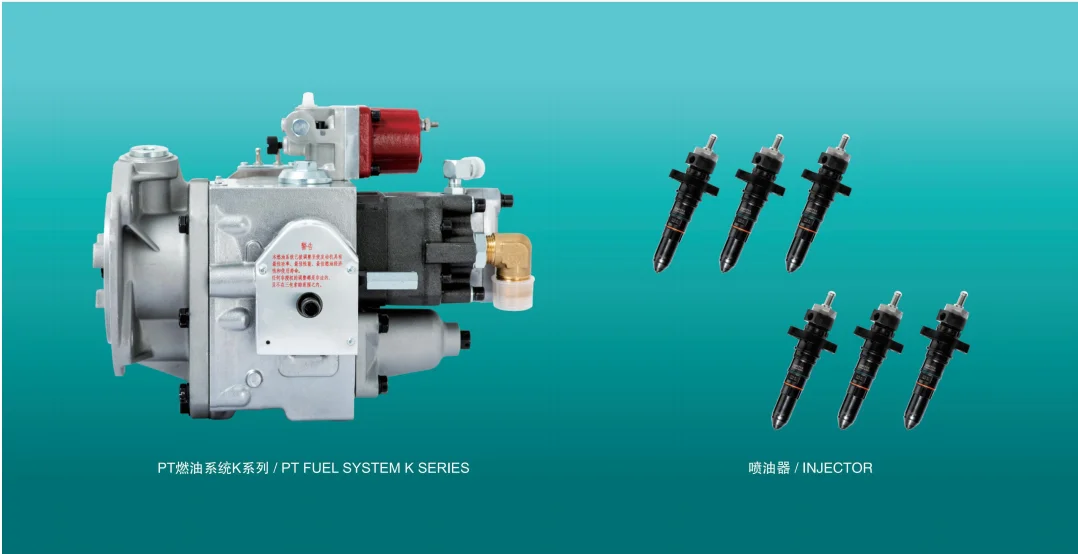

K series PT injector:
The PT injector converts the low-pressure fuel supplied by the PT fuel pump into high-pressure (about 70-138MPa) fuel and injects it into the combustion chamber. This series of injectors includes two types: basic type and STC type. The basic type is a PTD cylindrical injector (see picture on the right), and the plunger stroke needs to be adjusted on the engine. In addition to the adjustment of the injector itself, the plunger stroke of the STC type injector (see picture on the left) also needs to be adjusted after it is installed on the engine. This type of fuel injector adopts the "fuel injection advance timing method" (referring to the earlier fuel injection in the compression cycle) under starting and light load conditions, which improves the idling characteristics in cold weather and reduces The engine emits white smoke, which improves the fuel economy under light load conditions; while under medium and heavy load conditions, the "normal timing method" (referring to the normal injection of fuel during the compression cycle) is adopted to control the maximum explosion pressure of the cylinder , Reducing NOx (nitrogen oxide) emissions.
FEATURES AT A GLANCE
N series
The basic type is PTD cylindrical injector
Overhead limit type
STC type injector
Structure type: N-STC; Injection volume: 200-276mm3/stroke
Structure type: N-PTD; fuel injection volume: 100-242mm3/stroke
M11 series
PTD-STC type
Structure type: M11-PTD STC type
Injection volume: 140-200mm3/stroke
K series
Structure type: K-STC
Injection volume: 140-366mm3/stroke
Structure type: K-PTD
Injection volume: 214-286mm3/stroke
PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
Successful Project
FAQ
1. who are we? We are based in Shandong, China, start from 2015,sell to Southeast Asia(10.00%). There are total about 5-10 people
in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection
before shipment; 3.what can you buy from us? Bulldozer complete machine and parts,Excavator machine and parts,Loader machine and
parts,Motor grader machine and parts,Roller machine and parts 4. why should you buy from us not from other suppliers? Jining
Rongtai Construction Machinery Co., Ltd. is a professional comprehensive company integrating construction machinery, accessories
production, sales, after-sales service, technical consulting and maintenance, with independent import and export busines 5. what
services can we provide? Accepted Delivery Terms: FOB,CFR,CIF; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Cash,Escrow; Language Spoken:English
in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection
before shipment; 3.what can you buy from us? Bulldozer complete machine and parts,Excavator machine and parts,Loader machine and
parts,Motor grader machine and parts,Roller machine and parts 4. why should you buy from us not from other suppliers? Jining
Rongtai Construction Machinery Co., Ltd. is a professional comprehensive company integrating construction machinery, accessories
production, sales, after-sales service, technical consulting and maintenance, with independent import and export busines 5. what
services can we provide? Accepted Delivery Terms: FOB,CFR,CIF; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Cash,Escrow; Language Spoken:English
