Fence Underground Ground
308,37-513,94 ₽
SECURBAC U ANCHOR PLATE for
- Категория: Anchors >>>
- Поставщик: Shanxi Century Metal Industries Inc.Shanxi Inc.
Сохранить в закладки 1600359136348:
Описание и отзывы
Характеристики

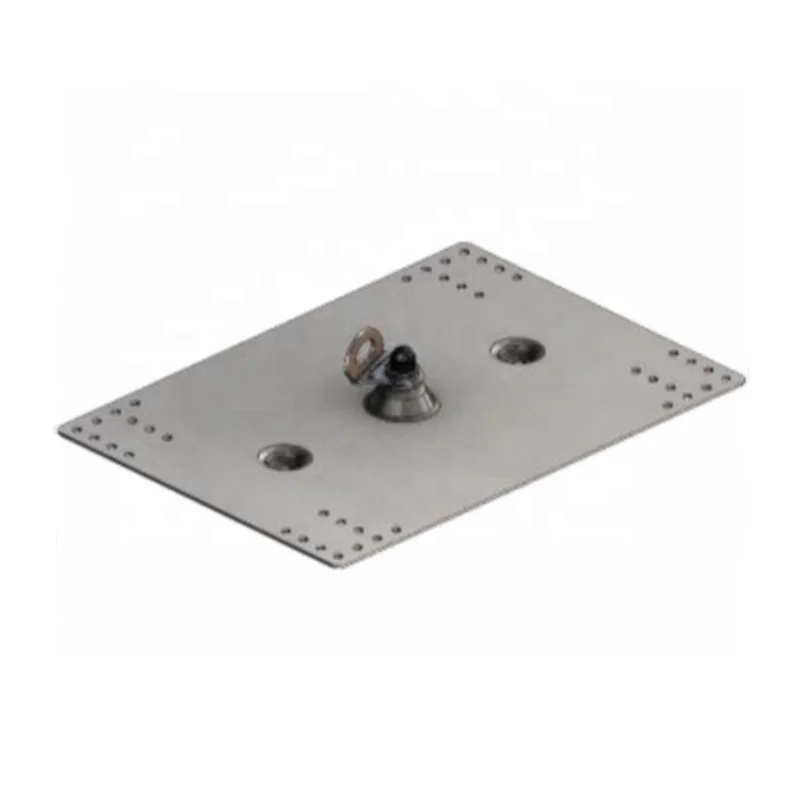

SECURBAC U ANCHOR PLATE FOR TANK
Fixing at choice by 12 rivets diam 7.7, 16 Drillnox self-drilling screws diam 6.3, for wave width 200, 250 or 333mm
highly effective and portable self-recovery anchor solution ground anchor kit
The Ground Anchor, 0.7m long, is ideal for use in unconsolidated clay, mud and sand conditions.
Each auger rod is fabricated out of 1” high tensile steel and will hold well over 2 tonnes each before starting to bend.
Each auger rod is fabricated out of 1” high tensile steel and will hold well over 2 tonnes each before starting to bend.
Product Description
percussion type ground earth anchor for marine power generations systems
The percussion earth anchor can be used for :
Anchor buoys, mooring, single buoys, pipeline floating docks, scour mats, artifical reefs, intake nets, sheet piling, retaining walls, revetment mats and geogrids., mussel frms and aquaculture, swing moorings, flating jetties & breakwaters, floating buildings, oil and gas subsea structures & outfall pipes, marine power generations systems, nagivation aids and oceanic insturments buoys.
Foundation Systems solar project earth anchor system ground screw anchor spiral pile
Ground Screw is an ideal solution for timber framed permanent buildings or temporary building foundations. From offices at the construction sites, pump stations in remote locations, small tank farms, industrial racking, tie down supports or your back yard shed. The screws can be quickly installed to take the weight required, installed level and straight for permanent use or to be taken out and ready for the next site.

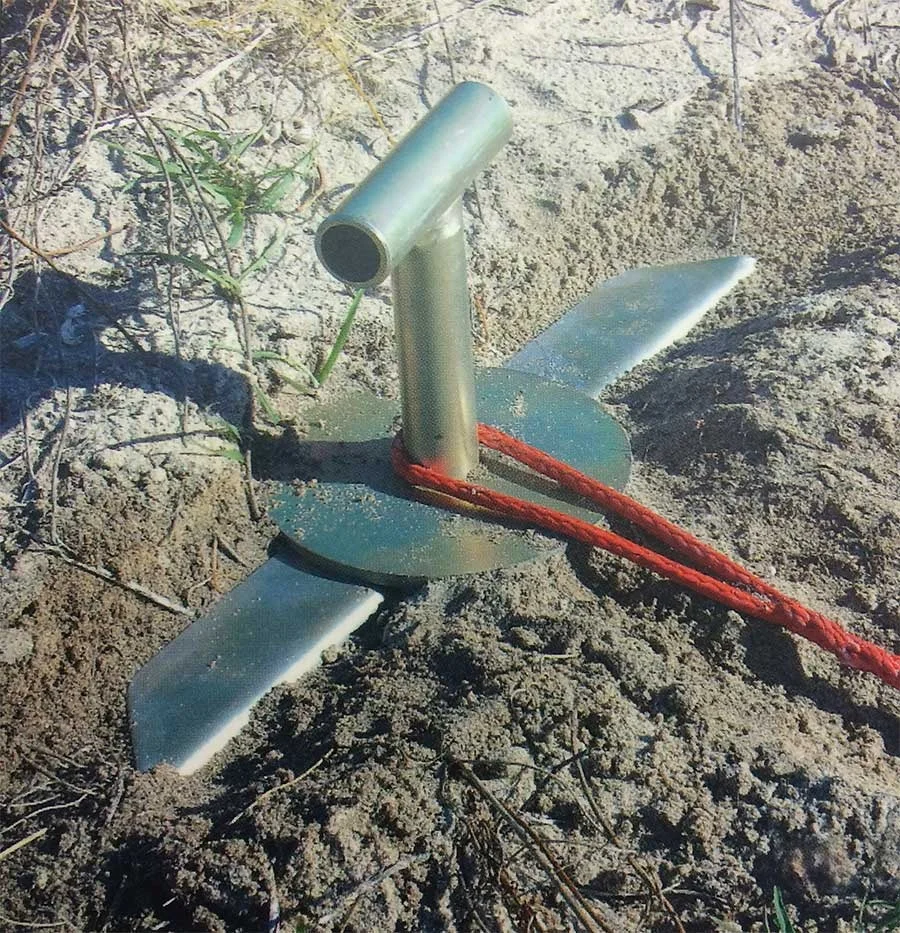

Ground Anchor Retrievable
Material: steel
Surface treatment: Zinc plating or galvanized

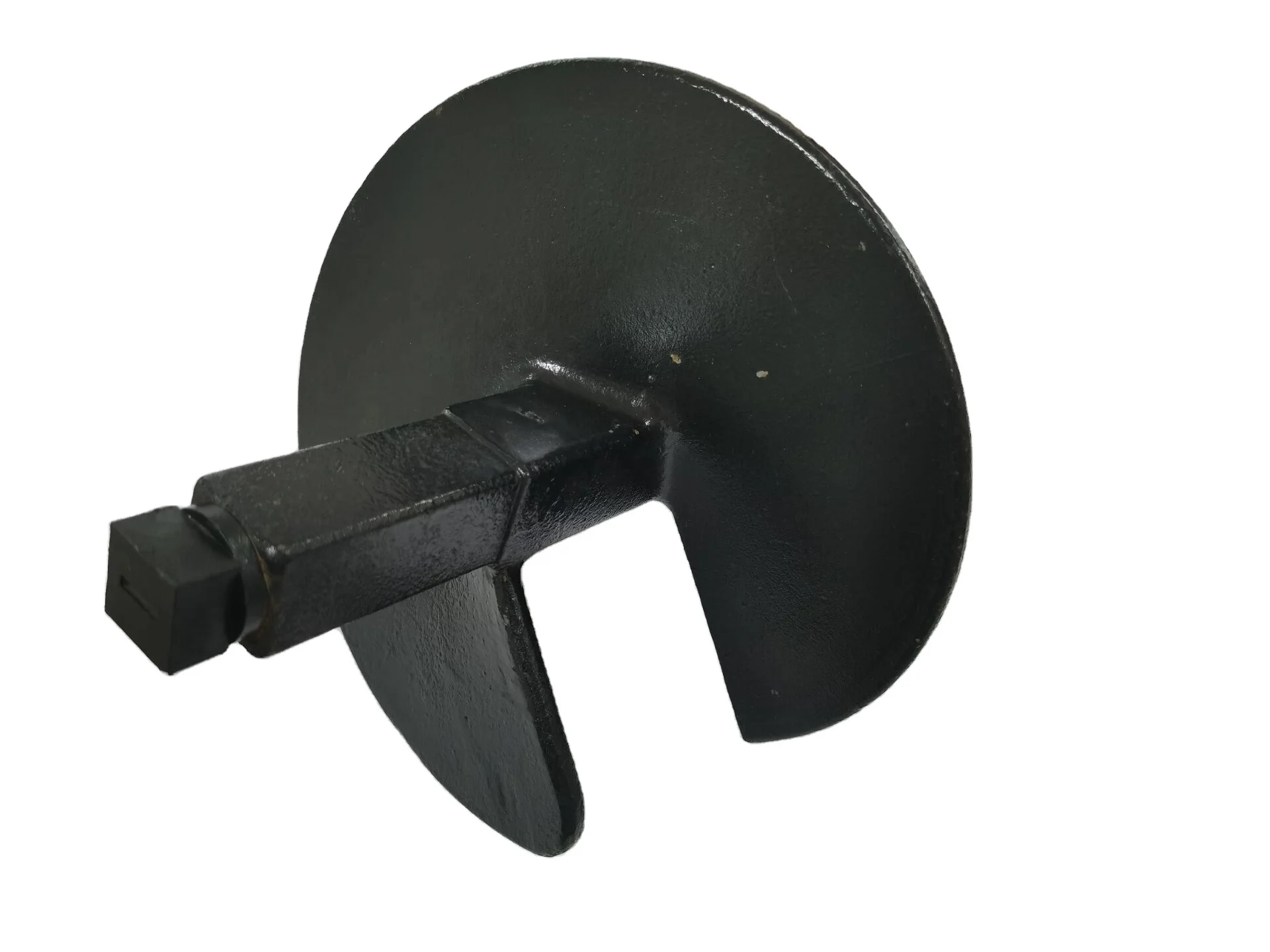

marine & shoreline using 250mm screw anchor plate
Key Specifications/Special Features:
Material: Steel
Surface treatment: Paint
Size: 8" 10" 12" 14" 16" 18"

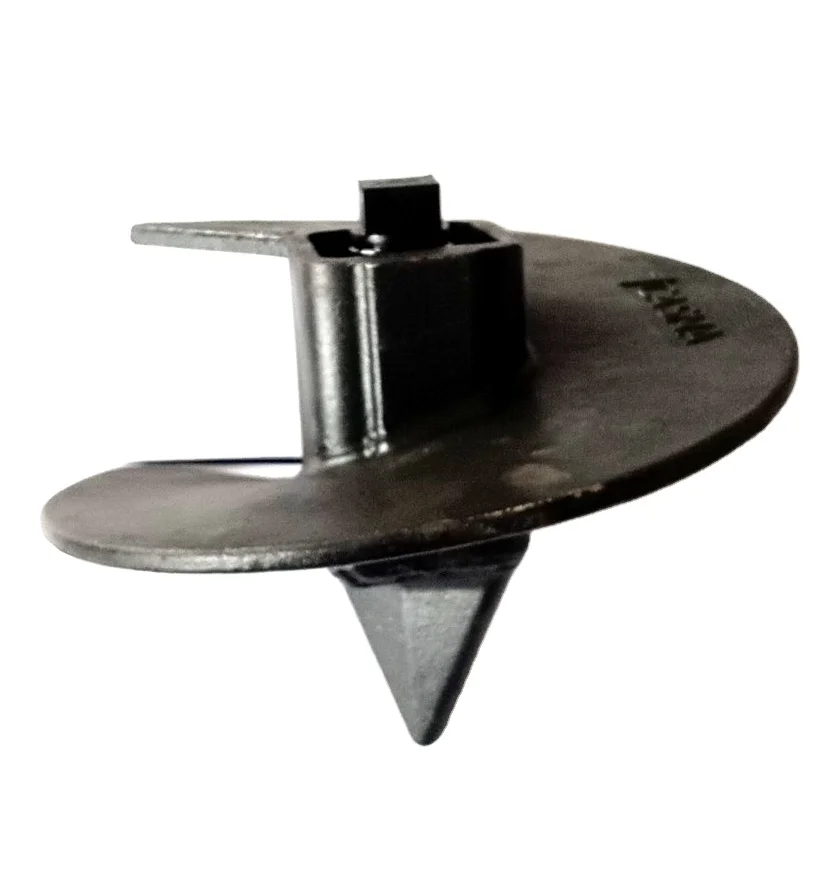

Type: Socket internal drive, power installed anchor
Process: Investment casting
The screw anchor for application through class 2 soils and to 160KN holding strength. These screw anchors also can be installed to a depth of 4m with either a boom suspended torque mortor line truck or rack type digger truck.
Screw Anchor Assembly consists of a helix-hub assembly, anchor rod, and eye nut.
The helix size (diameter) is selected for the required holding strength.
The screw anchor for application through class 2 soils and to 160KN holding strength. These screw anchors also can be installed to a depth of 4m with either a boom suspended torque mortor line truck or rack type digger truck.
Screw Anchor Assembly consists of a helix-hub assembly, anchor rod, and eye nut.
The helix size (diameter) is selected for the required holding strength.
SIZE | THREAD | RATE | TYPE |
200 8" | M16 M24 | 10000 FT.LBS TOR, 160KN ON THE THREAD | SOCKET |
250 10" | M16 M24 | 10000 FT.LBS TOR, 160KN ON THE THREAD | SOCKET |
350 14" | M24 | 10000 FT.LBS TOR, 160KN ON THE THREAD | SOCKET |
400 16" | M20 | 10000 FT.LBS TOR, 160KN ON THE THREAD | SOCKET |
450 18" | M24 | 10000 FT.LBS TOR, 160KN ON THE THREAD | SOCKET |
Detailed Images
Welding tip
Socket internal drive
Grey, black, green or as your choice paint
Testing
Gauge testing
Socket testing
Threading testing
Assemble parts
Choose your anchor size and tie with anchor rod
Single, double or triple eye nuts tie with anchor rod
M24 or designed anchor rod, galvanized
Application
For tower
Potable building
Packing
Different anchor
Contact
Name | Linda Guo |
Email | lindaguo (AT) castmachining.com |
Skype | lindaguo20142 |
Whatsapp | 008613935114760 |
Wechat | 474524449 |
Tell | 0086-351-8332806 |
