Дисплей DKE Eink отображение шкалы серого Raspberry Pi E Paper SPI E ink Screen 154
- Категория: >>>
- Поставщик: Dke Holding Company Limited
Сохранить в закладки 1600359577625:
Описание и отзывы
Характеристики
Products Description

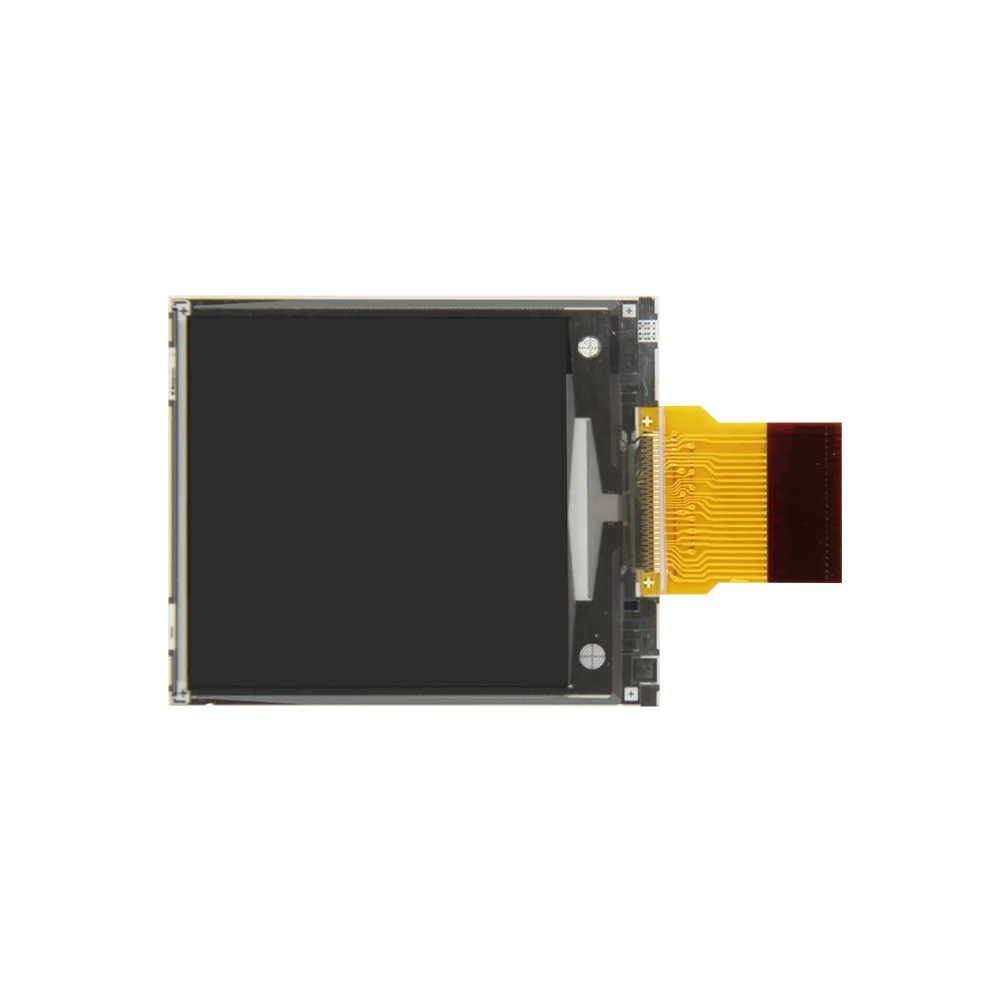

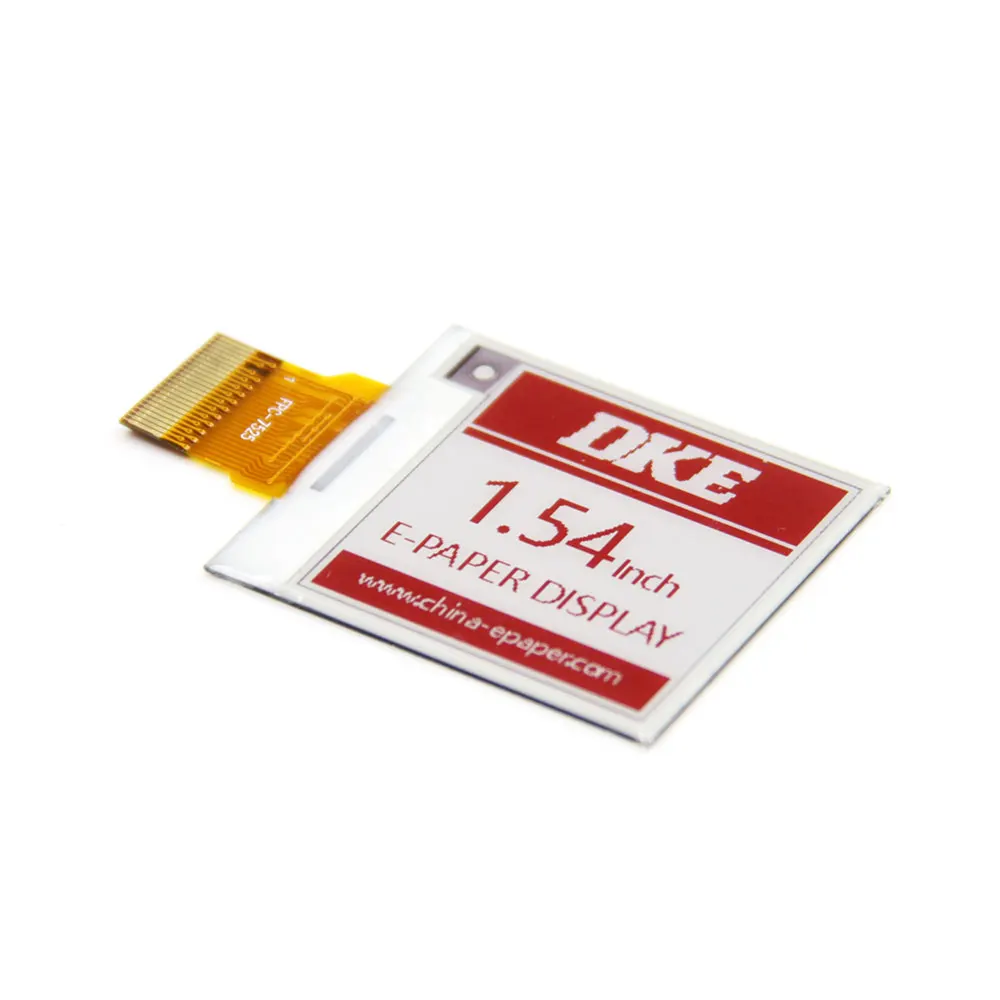

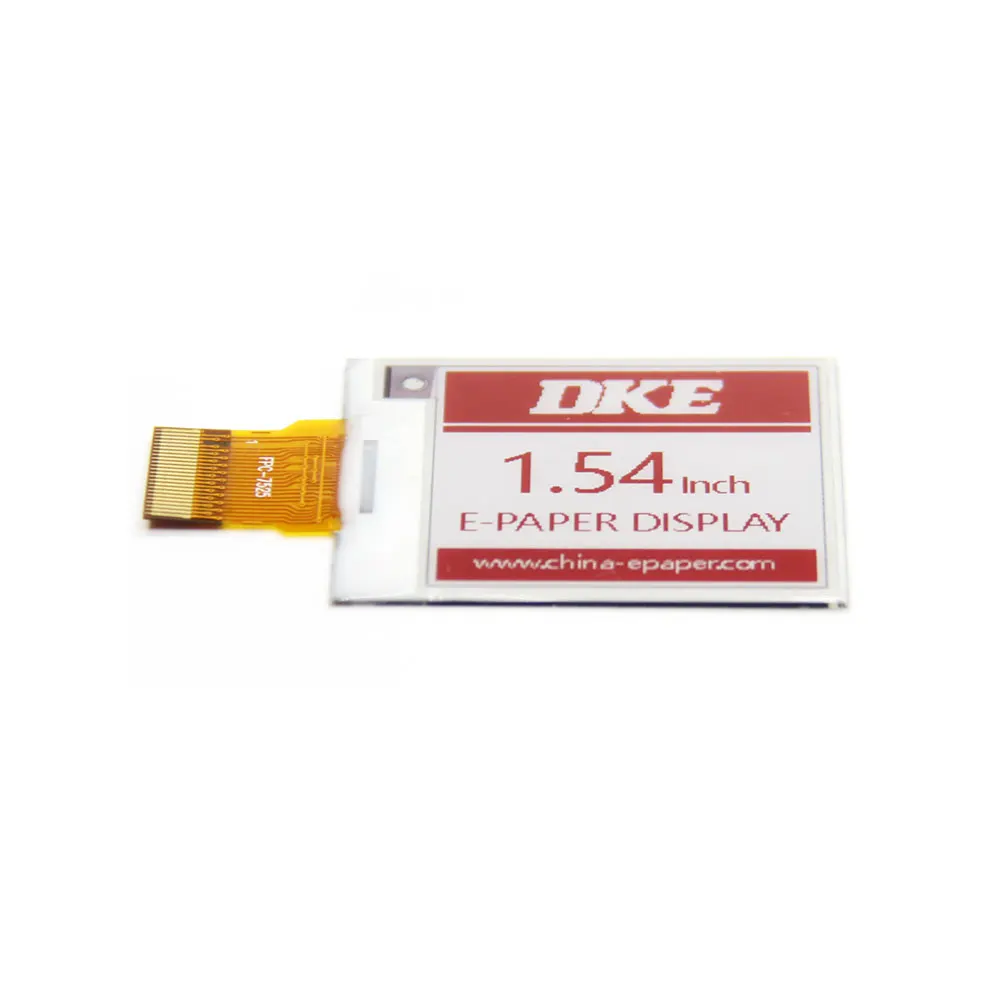

Product size
Szie | 1.54inch |
Display modes | Red,White,Black |
Operation Temp. | 0-40℃ |
Resolution(mm) | 152(H)x152(V) |
DPI | 140 |
Active Area | 27.512×27.512 |

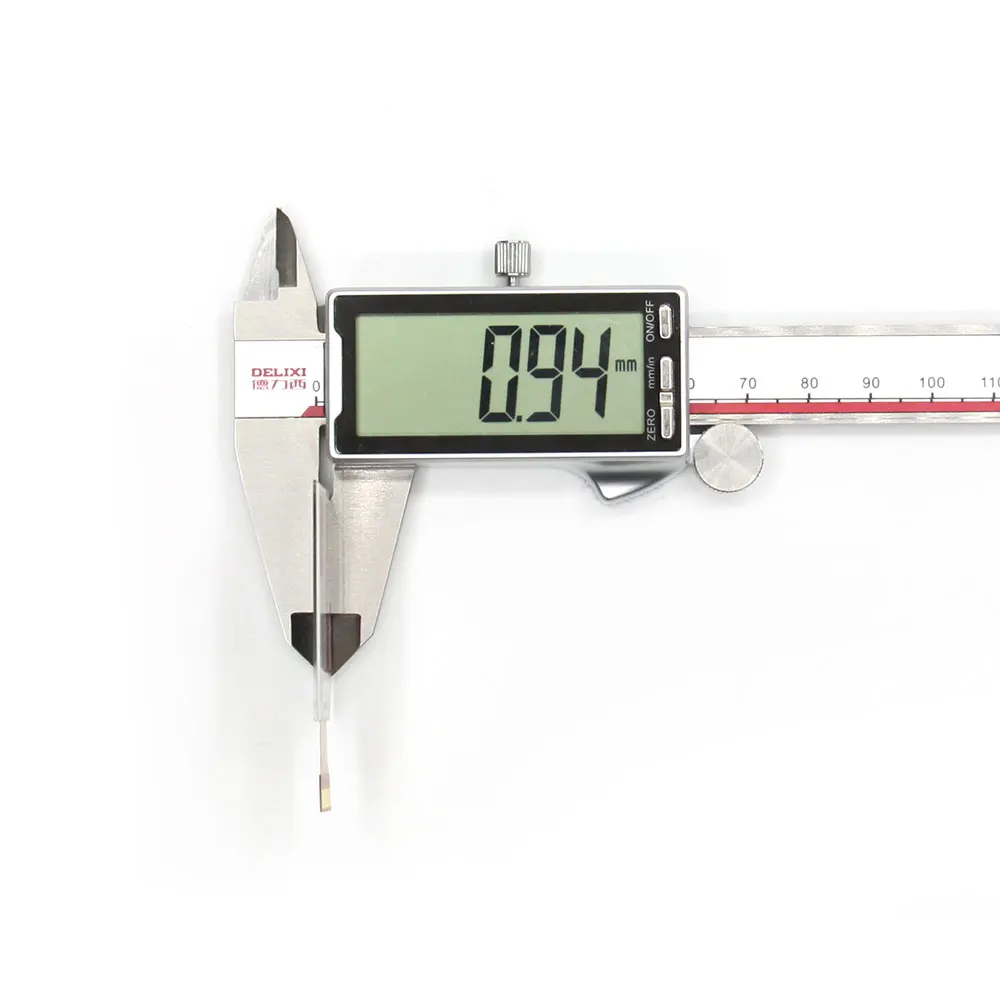

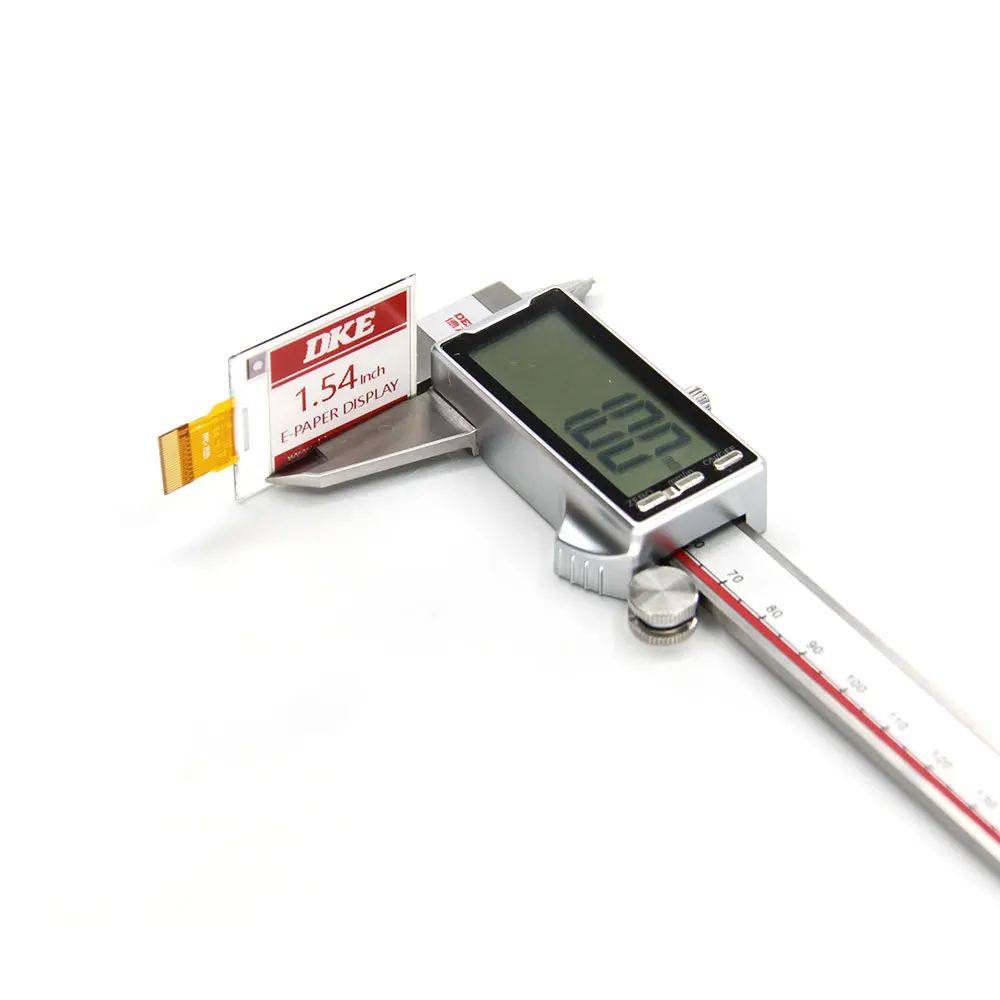

Outline size | 31.80(H)×37.32 (V) ×1.0(D) |
working voltage | -0.3 to +6.0 |
Typical peak current | 2.2~3.7v |
Typical operating current | 3.0V |
Grey level | 2Grey Level |
Advantages of E-Ink Screen
The electronic ink screen uses a technique called "microcapsule electrophoresis display" to display images. It works because charged nanoparticles suspended in a liquid are transported by an electric field and reflected under ambient light to produce a display effect similar to that of traditional printed paper. E-Ink screens can display images clearly in ambient light, natural light and so on, without backlighting, and can be seen from an angle of almost 180°. Because of its comparable display effect to traditional paper, it is often used in applications such as readers.
Application Area
The electronic paper display supports user's custom setting to display text, pictures, QR code and other information. Compared with the traditional LCD electronic price tag which is less than 120°, the visual angle of electronic paper is more than 170°. Moreover, compete with LCD products, the electronic paper display has a higher screen contrast, which brings higher use experience to customers in practical application.
Due to the screen engineering characteristics, the electronic paper price tag only generates power consumption when refreshing the screen content, and daily display does not consume energy. Longer service life adapts to all kinds of long-time standby mode working environment, supports 7*24H*365 days of uninterrupted work. As one of the major technologies of the IOT, e-paper is bound to receive more attention in the future. You're going to see more and more products based on electronic paper screens in the near future.
Why Choose Us
Product packaging
Samples:
small box :233x215x180mm
large box :205x112x158mm
Batch packaging:
Standard small box:400*341*97mm
large carton :418*360*231mm,2cartons in 1
Standard export port: Shenzhen,HongKong,Guangzhou
Payment Information: T/T Paypal
large box :205x112x158mm
Batch packaging:
Standard small box:400*341*97mm
large carton :418*360*231mm,2cartons in 1
Standard export port: Shenzhen,HongKong,Guangzhou
Payment Information: T/T Paypal
Product list
Range Name | Display Modes | Resolution(mm) | Active Area | Outline size | DPI |
DEPG-0154HIGH | BW/BWR/BWY/FREEZER | 200(H)*200(V) | 27.0(H)*27.0(V) | 31.8(H)*37.32(V)*1.0(D) | 188 |
DEPG-0154 | BW/BWR/BWY/FREEZER | 152(H)*152(V) | 27.512(H)*27.512(V) | 31.8(H)*37.32(V)*1.0(D) | 140 |
DEPG-0213HIGH | BW/BWR/BWY/FREEZER | 122(H)*250(V) | 23.71(H)*48.55(V) | 29.2(H)*59.2(V)*1.0(D) | 130 |
DEPG-0215 | BW/BWR/BWY/FREEZER | 104(H)*212(V) | 23.71(H)*48.55(V) | 29.2(H)*59.2(V)*1.0(D) | 110 |
DEPG-0260 | BW/BWR/BWY/FREEZER | 232(H)*128(V) | 58.00(H)*32.00(V) | 64(H)*42.9(V)*1.1(D) | 102 |
DEPG-0266 | BW/BWR/BWY/FREEZER | 152(H)*196(V) | 30.704(H)*60.88(V) | 36.304(H)*71.820(V)*1.0(D) | 125 |
DEPG-0270 | BW/BWR/BWY/FREEZER | 264(H)x176(V) | 30.70(H)x60.08(V) | 36.3(H)*71.82(V) | 118 |
DEPG-0290 | BW/BWR/BWY/FREEZER | 296(H)x128(V) | 66.9(H)x29.06(V) | 79.0(H)x36.7(V) | 112 |
DEPG-0310 | BW/BWR/BWY/FREEZER | 168(H)X296(V) | 38.81(H)x68.38(V) | 45.83(H)x80.78(V) | 110 |
DEPG-0370 | BW/BWR/BWY/FREEZER | 240(H) x 416(V) | 47.04(H) X 81.536(V) | 53 (H)x 92.99(V) | 130 |
DEPG-0420 | BW/BWR/BWY/FREEZER | 400 (H) x 300(V) | 84.8 (H)x63.6 (V) | 91.0 (W)x77.0(H) | 120 |
DEPG-0583 | BW/BWR/BWY/FREEZER | 648(H)X480(V) | 118.7(H)X88.22(V) | 125.4(H)x99.5 (V) | 138 |
DEPG-0584 | BW/BWR/BWY/FREEZER | 768(H)X256(V) | 140.7(H)X46.9(V) | 147.6(H)X59.58(V) | 138 |
DEPG-0750 | BW/BWR/BWY/FREEZER | 640(H) x384(V) | 163.2 (H)x97.92 (V) | 170.2(W)x111.2(H) | 124 |
DEPG-0750HIGH | BW/BWR/BWY/FREEZER | 800(H) x480(V) | 163.2 (H)x97.92 (V) | 170.2(W)x111.2(H) | 124 |
DEPG-1020 | BW/BWR/BWY/FREEZER | 960(H) x640(V) | 215.52(H)x143.68(V) | 224.00(W)x157.00(H) | 113 |
DEPG-1085 | BW/BWR/BWY/FREEZER | 1360(H) x480(V) | 259.76(H)x91.68(V) | 270.56(W)x105.92(H) | 133 |
DEPG-1160 | BW/BWR/BWY/FREEZER | 960(H) x640(V) | 244.51(H)x163.01(V) | 254.31(W)x176.35(H) | 99 |
DEPG-1248 | BW/BWR/BWY/FREEZER | 1304(H)x984(V) | 252.98(H)x190.90(V) | 261.50(H)x211.00(V) | 131 |
DEPG-1330 | BW/BWR/BWY/FREEZER | 960(H)x680(V) | 275.52(H)x195.16(V) | 286.32(H)x212.26 (V) | 88 |
FAQ
What is ｔhe resolution of EPD?
EPD production Monthly capacity for size of 2.9(KK)
What is the contrast ratio of EPD?
Min. 8:1
How thin does an EPD can reach?
The min thickness of EPD with FPC base can be 0.42mm
What's the operating temperature?
For graphic type,the operating temperature is 0~+50℃ For segment type,the operating temperature is -10C-+60℃
How thin does an EPD can reach?
The min thickness of EPD with FPC base can be 0.42mm
What's the max size can be produced?
The max size of the Customized design E-Paper in segment type is 596×396 in mm
How long is the battery life?
It is about 5 years.
Does DKE have flexible EPD?
Yes, DKE does provide flexible EPD. Normally, those are FPC based ones
Customization Size?
customization is up to 14”x16”, EPD is up to 396x596mm
How long can an EPD last?
It is about a million times of refreshing
Price reference for samples, 500-1000-2500-5000 units.
Quantity below 1K is reconsidered as samples. MOQ is 1K. (Our range is 1K to 10K, 10K to 100K, above 100K.)
Few customer want for their application to be used outdoor
For this kind of temperature ranges, we do not recommend E-paper display, as clients use EPD for its low power consumption
Extend the operating temperature as -20º + 50 ºC (60ºC)
It is not like that, E-ink supports a set of film that can work in -25℃ to 10℃ and 0℃ to 50℃
MOQ and MSQ that you want or need for a custom product?
For customized products, we allow one or two small batches to start with. Then, the MOQ will be depended on the customized products
Tooling cost for custom design for GLASS, PCB, FPC and PET
All the costs regarding customization will be mostly depended on clients’ actually requirements,
Different products have different resolution. For furthur study, please refer to specific datasheet
What is the production capacity of EPD?EPD production Monthly capacity for size of 2.9(KK)
What is the contrast ratio of EPD?
Min. 8:1
How thin does an EPD can reach?
The min thickness of EPD with FPC base can be 0.42mm
What's the operating temperature?
For graphic type,the operating temperature is 0~+50℃ For segment type,the operating temperature is -10C-+60℃
How thin does an EPD can reach?
The min thickness of EPD with FPC base can be 0.42mm
What's the max size can be produced?
The max size of the Customized design E-Paper in segment type is 596×396 in mm
How long is the battery life?
It is about 5 years.
Does DKE have flexible EPD?
Yes, DKE does provide flexible EPD. Normally, those are FPC based ones
Customization Size?
customization is up to 14”x16”, EPD is up to 396x596mm
How long can an EPD last?
It is about a million times of refreshing
Price reference for samples, 500-1000-2500-5000 units.
Quantity below 1K is reconsidered as samples. MOQ is 1K. (Our range is 1K to 10K, 10K to 100K, above 100K.)
Few customer want for their application to be used outdoor
For this kind of temperature ranges, we do not recommend E-paper display, as clients use EPD for its low power consumption
Extend the operating temperature as -20º + 50 ºC (60ºC)
It is not like that, E-ink supports a set of film that can work in -25℃ to 10℃ and 0℃ to 50℃
MOQ and MSQ that you want or need for a custom product?
For customized products, we allow one or two small batches to start with. Then, the MOQ will be depended on the customized products
Tooling cost for custom design for GLASS, PCB, FPC and PET
All the costs regarding customization will be mostly depended on clients’ actually requirements,
