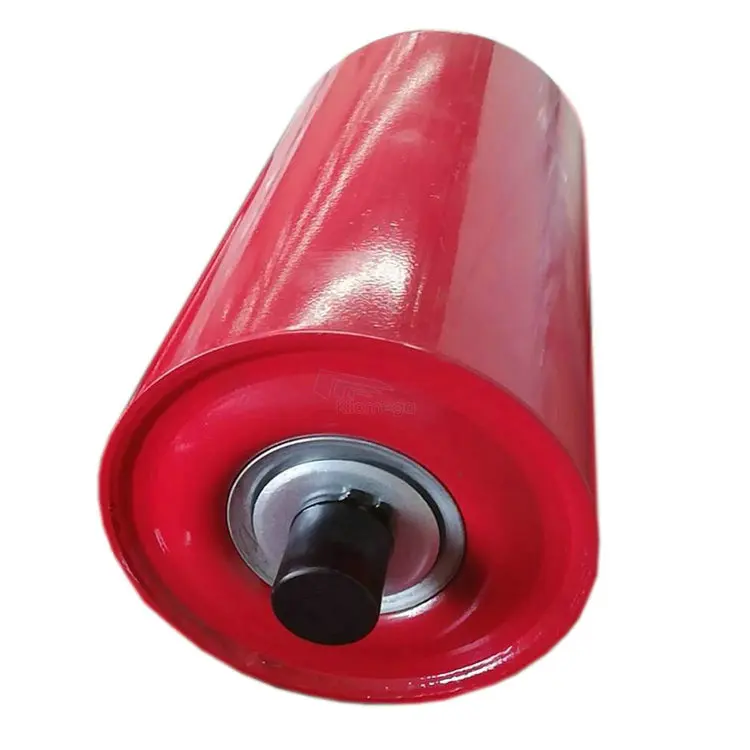

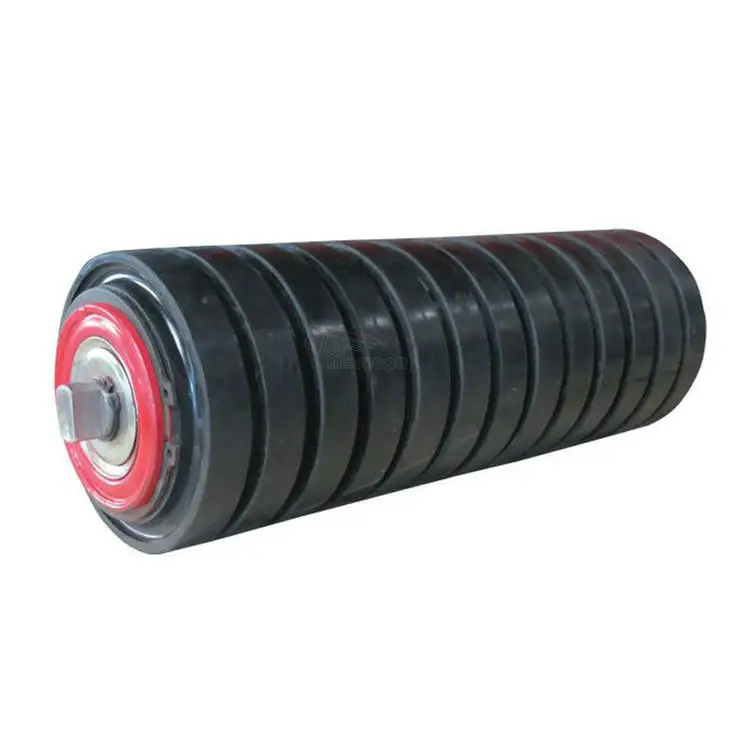

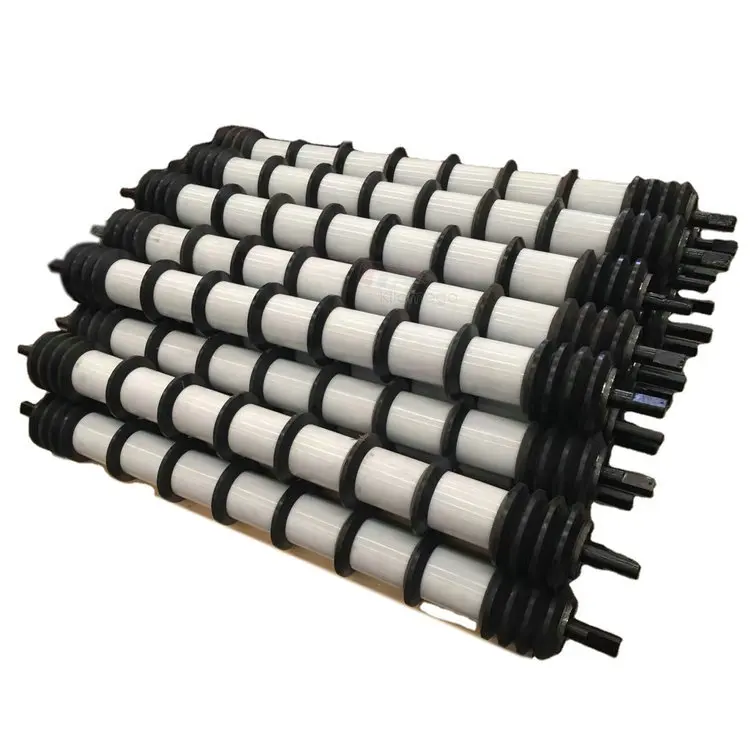

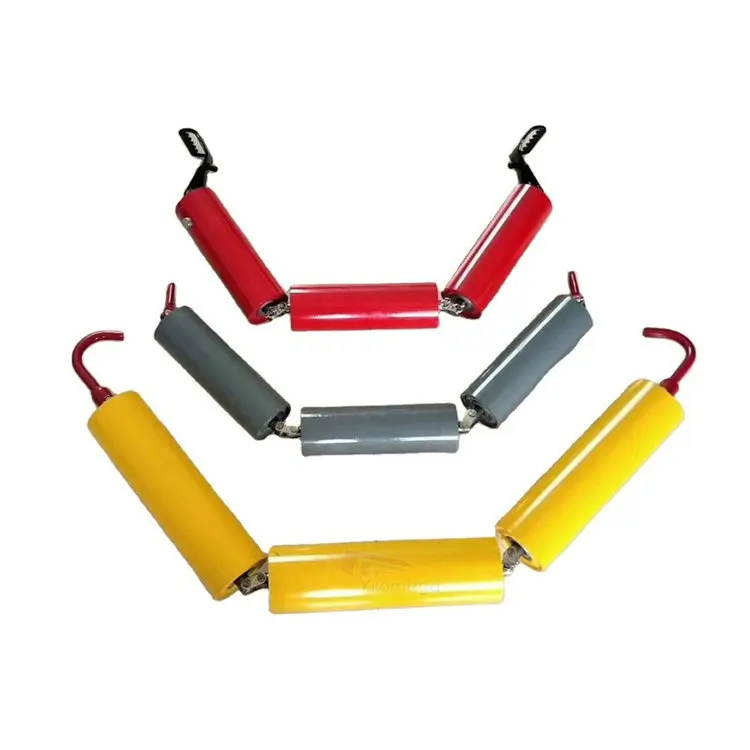

Конвейерный ролик для угольной шахты с резиновым покрытием
- Категория: >>>
- Поставщик: Ningbo Kilomega International Trade Co. Ltd
Сохранить в закладки 1600359767416:
Описание и отзывы
Характеристики
Products Description
Conveyor roller is an important component, types and large quantities. It accounts for the total cost of a conveyor 35%, to withstand more than 70% of the resistance, so the quality of roller is particularly important.
Our roller has Minimal rating inertia, reasonable structure, reliable tightness, flexible rotating, simple dismounting, easy maintained, long operational life, etc. Also we can do as customer request.
Our roller has Minimal rating inertia, reasonable structure, reliable tightness, flexible rotating, simple dismounting, easy maintained, long operational life, etc. Also we can do as customer request.
Product Details
1.Type: Carrying, return
2.Conveyor type:
DTII DTII(A) TD75
3.Application:
Used in coal mine, power plant, cement plant, port and so on
4.Details:
Pipe Material : Q235 carbon steel
Pipe Diameter : 50-219mm
Pipe Length: 150mm ~ 3500 mm
Shaft Material : A3 / 45# steel
Shaft Diameter: 20 25 mm
Shaft end type:DTII TD75 flat
2.Conveyor type:
DTII DTII(A) TD75
3.Application:
Used in coal mine, power plant, cement plant, port and so on
4.Details:
Pipe Material : Q235 carbon steel
Pipe Diameter : 50-219mm
Pipe Length: 150mm ~ 3500 mm
Shaft Material : A3 / 45# steel
Shaft Diameter: 20 25 mm
Shaft end type:DTII TD75 flat
Bearing:6204,6205,6305,6306,6307
Bearing brand: ZWZ HRB SKF NSK
Bearing brand: ZWZ HRB SKF NSK
Steel pipe:
Using roller special welding pipe, above 3.5mm using roller special seamless pipe. The wall thickness is from 2.0 mm to 5.0 mm.And the ellipticity mm from 0.25mm to 0.4mm. The Radial runout rate is from 0.5-0.7mm
Shaft:
The shaft is a smooth shaft. The roughness is 0.8 um, the diameter is 0.01 mm larger than the inner diameter of the bearing , and the interference fit ensures the shaft displacement and shaft load.
Seal:
The seal is DT-Ⅱ GB 7 seals, of which 4 are p0m,3 pieces of iron, and 2/3 of the Great Wall grease is injected in the middle,which can effectively play the role of dustproof and waterproof
Bearing:
Bearing structure smooth, fine fiber, with high cleanliness. Grease ensures long-term lubrication of bearings, clearance is c3difference, noise is 33 to 38 decibels. Dustproof and waterproof, flexible, small rotation resistance.
Brand: nsk/skf/hrb/lyo/nwh
Brand: nsk/skf/hrb/lyo/nwh
Products specification
Standard Diameter | Length Scope(mm) | Bearings Type(Min-Max) | Shell Wall Thickness | ||
mm | inch | ||||
63.5 | 2 1/2 | 150-3500 | 6204 | 2.0mm-3.75mm | |
76 | 3 | 150-3500 | 6204 205 | 2.0mm-4.0mm | |
89 | 3 1/3 | 150-3500 | 6204 205 | 2.0mm-4.0mm | |
102 | 4 | 150-3500 | 6204 205 305 | 2.0mm-4.0mm | |
108 | 4 1/4 | 150-3500 | 6204 205 305 306 | 2.0mm-4.0mm | |
114 | 4 1/2 | 150-3500 | 6204 205 305 306 | 2.5mm-4.5mm | |
127 | 5 | 150-3500 | 6204 205 305 306 | 2.5mm-4.5mm | |
133 | 5 1/4 | 150-3500 | 6205 206 207 305 306 | 2.5mm-4.5mm | |
140 | 5 1/2 | 150-3500 | 6205 206 207 305 306 | 2.5mm-4.5mm | |
159 | 6 1/4 | 150-3500 | 6205 206 207 305 306 | 2.5mm-4.5mm | |

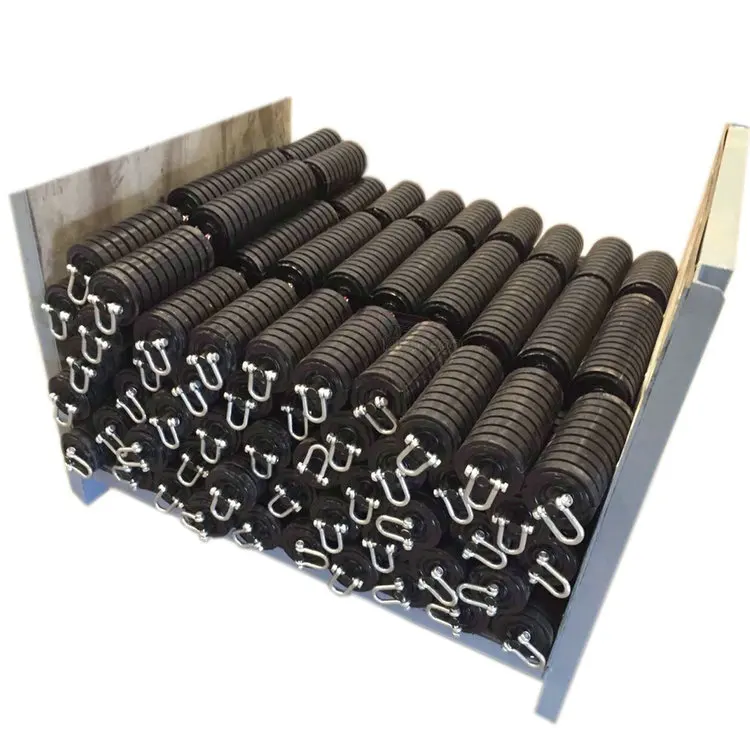

Product packaging
Company Profile
Ningbo Kilomega Company is specialized in Rubber conveyor belt, including multi-ply fabric conveyor belt, chevron conveyor belt,heat resistance conveyor belt, cold resistance conveyor belt, flame retardant conveyor belt, oil resistance conveyor belt,sidewall conveyor belt. We can produce conveyor belt with width 200-2400 mm and 3-30 mm thickness. Relative conveyor accessories are available like conveyor roller, belt fastener, v belt, roller bracket, gearbox, motors.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2009,sell to Southeast Asia(20.00%),Africa(20.00%),Mid East(20.00%),South
America(10.00%),Eastern Europe(10.00%),North America(5.00%),South Asia(5.00%),Eastern Asia(3.00%),Central
America(2.00%),Oceania(1.00%),Western Europe(1.00%),Northern Europe(1.00%),Southern Europe(1.00%),Domestic Market(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
conveyor belt,conveyor roller,conveyor pulley,conveyor accessories,roller bracket
4. why should you buy from us not from other suppliers?
Kilomega has rich experience on design, production and export in conveyor field over 20 years. We have full range of products: conveyor belt, roller idler, bracket, electric motor, speed reducer, transmission parts, bearings... OEM are accepted.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Zhejiang, China, start from 2009,sell to Southeast Asia(20.00%),Africa(20.00%),Mid East(20.00%),South
America(10.00%),Eastern Europe(10.00%),North America(5.00%),South Asia(5.00%),Eastern Asia(3.00%),Central
America(2.00%),Oceania(1.00%),Western Europe(1.00%),Northern Europe(1.00%),Southern Europe(1.00%),Domestic Market(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
conveyor belt,conveyor roller,conveyor pulley,conveyor accessories,roller bracket
4. why should you buy from us not from other suppliers?
Kilomega has rich experience on design, production and export in conveyor field over 20 years. We have full range of products: conveyor belt, roller idler, bracket, electric motor, speed reducer, transmission parts, bearings... OEM are accepted.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Похожие товары
Стеклянный подсвечник Чехлы Сделано в Китае Выпуклое стекло лампы в форме свечи в форме колпака jar колокол в форме сердца стеклянная крышка лампы в форме свечи
2,80 $ - 3,20 $
Светодиодный потолочный светильник для помещений, современная хрустальная лампа с подвесками, стеклянная лампа с абажуром
44,00 $ - 55,00 $

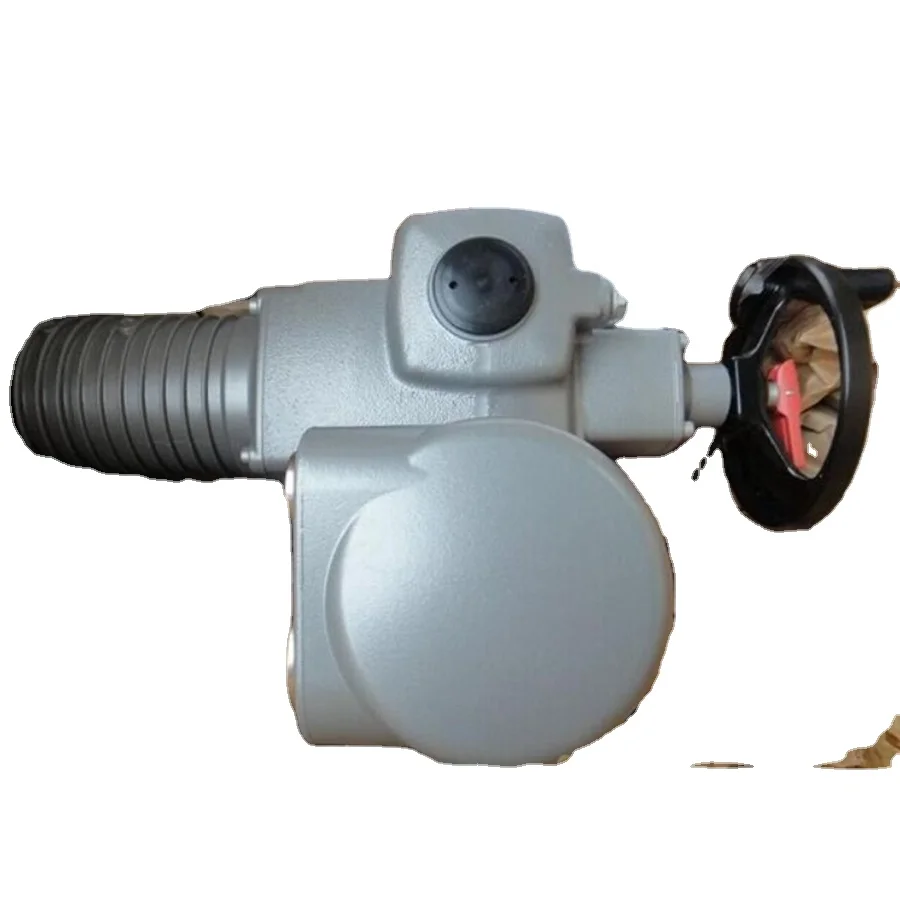

Мотор AD00 90-2/130 для привода электрического клапана
Складное Кресло-комод, медицинский прикроватный стул для горшка для пожилых людей, для беременных женщин, табурет для туалета, нескользящее сиденье

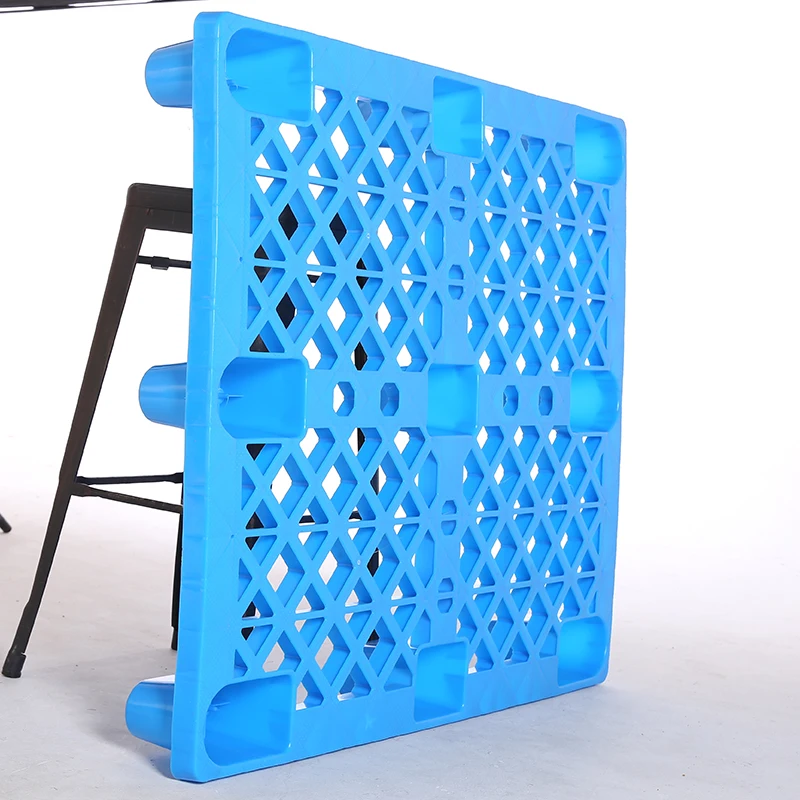

Надежный складской Штабелируемый поддон сверхпрочные пластиковые поддоны HDPE сверхпрочный пластиковый
30,00 $ - 33,00 $

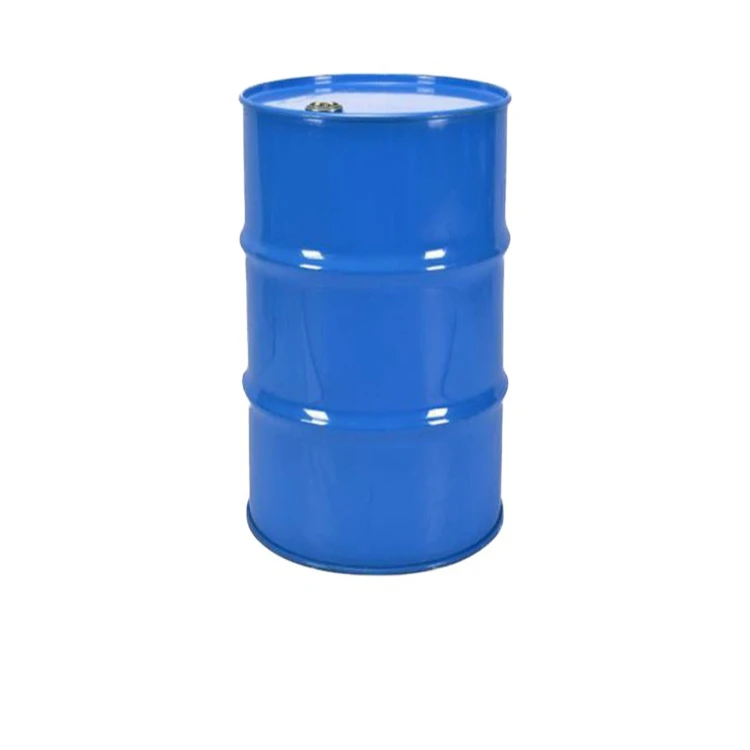

Высокое качество горячей продажи CAS14409-72-4 NP-10 НОНИЛФЕНОЛ полиоксиэтилена
