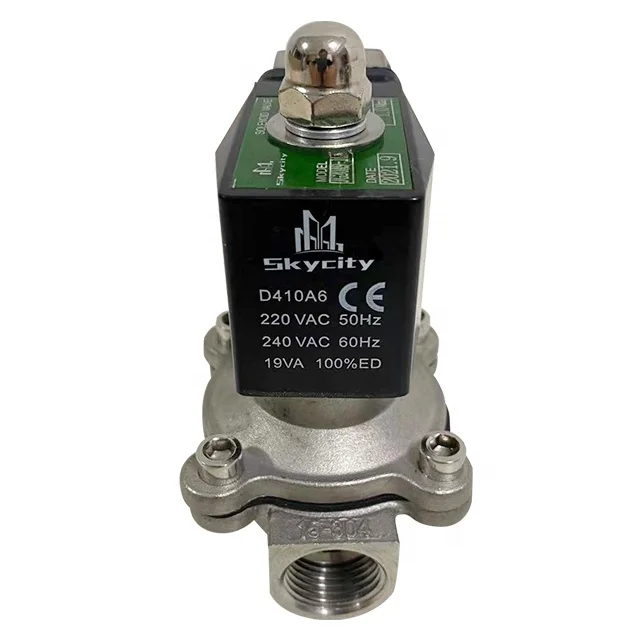

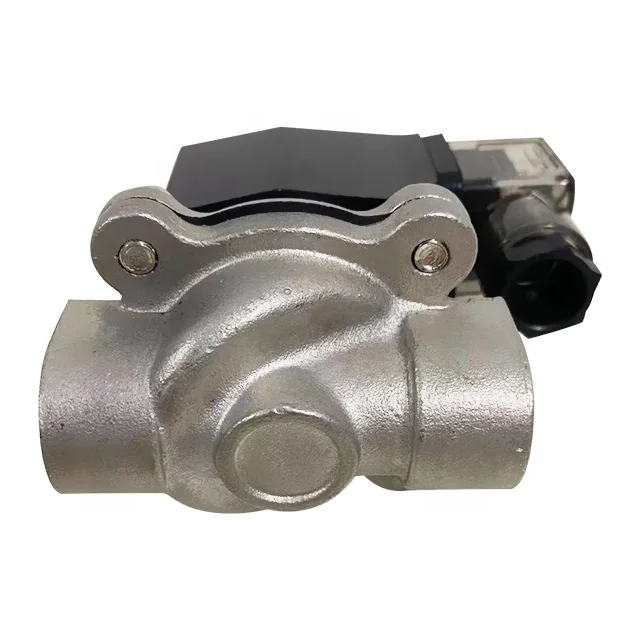

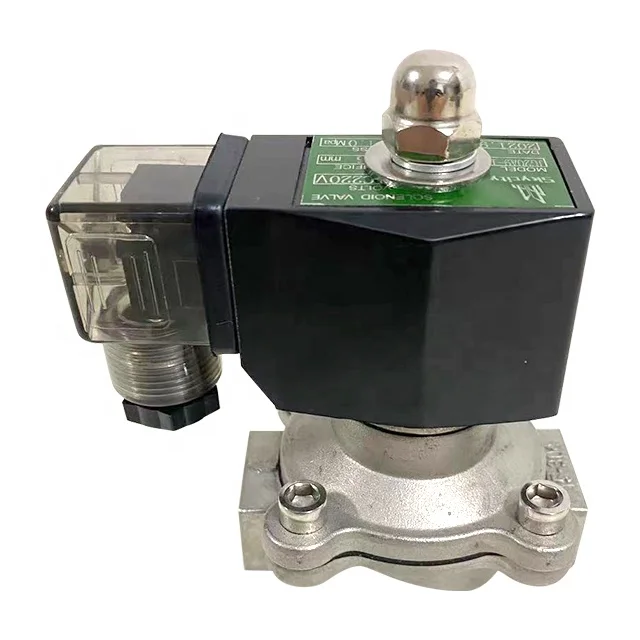

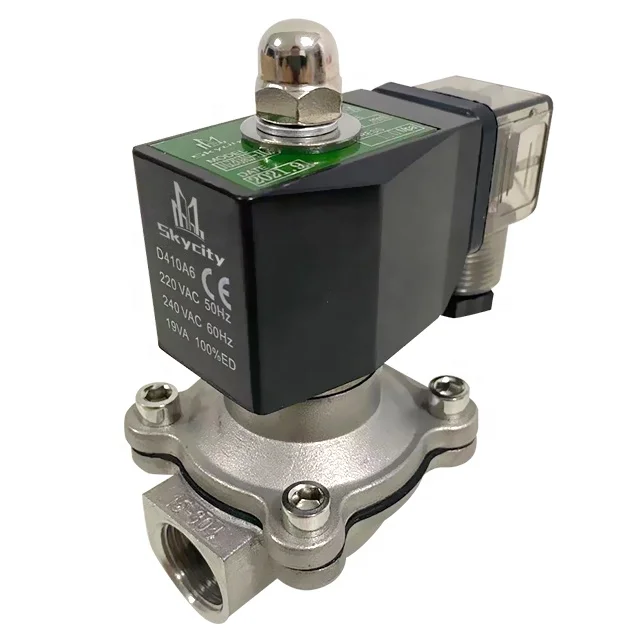

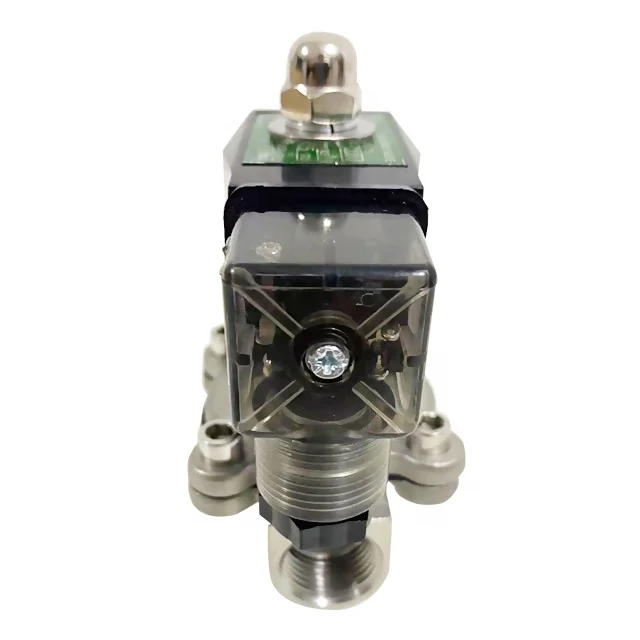

Электромагнитный клапан для запуска воздуха с нулевым давлением Размер 15 50 мм модель Skycity JG20A9 1/4
- Категория: >>>
- Поставщик: Nanjing Skycity Industrial Technology Co. Ltd.
Сохранить в закладки 1600361033302:
Описание и отзывы
Характеристики
Product Description
JG20A9 Solenoid Valve Product Parameters | ||||||||
Normally close type - Electricity on, open; Electricity off, close | ||||||||
Normally open type - Electricity on, close; Electricity off, open | ||||||||
Working medium | water, air, steam, oil, vacuum, gas etc | |||||||
Nominal diameter | 15-50mm | |||||||
Connection size | G1/2~G2 | |||||||
Pressure scale | 0~10bar | |||||||
Working voltage | AC: 220V 50Hz/60Hz • DC: 24V or 12V | |||||||
Coil selection | 1639 | 1653 | ||||||
Rated power | 18VA 11W | 22VA 18W | ||||||
Body material | 304SS, 316SS, 316L SS | |||||||
Sealing material | NBR, FKM | |||||||
Environmental Temperature | -20~60℃ | |||||||
Pipe thread and pressure scale | ||||||||||
Diameter mm | Thread G | Pressure scale(bar) | ||||||||
1639 | 1653 | |||||||||
AC | DC | AC | DC | |||||||
15 | 1/2 | 0~7 | 0~7 | 0~10 | 0~10 | |||||
20 | 3/4 | 0~7 | 0~7 | 0~10 | 0~10 | |||||
25 | 1 | 0~7 | 0~7 | 0~10 | 0~10 | |||||
32 | 1-1/4 | 0~7 | 0~7 | 0~10 | 0~10 | |||||
40 | 1-1/2 | 0~7 | 0~7 | 0~10 | 0~10 | |||||
50 | 2 | 0~7 | 0~7 | 0~10 | 0~10 | |||||
Note: Vacuum pressure is -1bar. | ||||||||||
Mounting size(mm) | ||||||
Diameter mm | Thread G | Overall size | ||||
L | H | |||||
15 | 1/2 | 69 | 117 | |||
20 | 3/4 | 72 | 123 | |||
25 | 1 | 100 | 134 | |||
32 | 1-1/4 | 110 | 170 | |||
40 | 1-1/2 | 121 | 172 | |||
50 | 2 | 155 | 209 | |||
Note: Normally open valve height: H+30mm. | ||||||
Company Introduction
Nanjing Skycity Industrial Technology Co., Ltd is a scientific and technological enterprise integrating design, manufacturing and sales of valve actuator and valve manufacturing. Large advanced CNC machining centers, CNC lathes and type test equipment at home and abroad have been introduced. The company was founded in 2008. Its production base is located in Shanghai and Anhui, with a total construction area of 10000 square meters. It has perfect inspection system and test center, rigorous and professional R & D team and fine production team, perfect quality system and after-sales service guarantee. It can organize R & D and production according to customer requirements and standards.
As one of the middle and high class brand enterprises of automatic control valves, the company has passed the manufacturing license of TS special equipment for valves, ISO9001 international quality system certification, strictly followed the ERP quality management system, implemented the industrial chain of automation system as the development direction, and made a contribution to the national chemical industry and environmental protection. The company introduces Auto CAD engineering designers, 3D Max senior designers and UG designers. With the most advanced design concept, the company standardizes, internationalizes and innovates the product R & D and design, realizes the upgrading of products and the industrialization of applicable technologies, and always remains at the forefront of science and technology in the automatic control valve industry.
Why Choose Us
Our advantages
●Rich experience and mature technology
●Advanced production lines
●Production cost control
●Detail focused when production
●Strict quality control and inspection
●On time delivery
FAQ
Nanjing Skycity Industrial Technology Co., Ltd
1.Where is the location of your company?
Our factory locates in Lishui Distrcit, Nanjing City, Jiangsu Province. The nearest airport to our factory is only 21km. It will take 3-4 hours by truck from our factory to Shanghai port. The transportation is very convenient.
2.How long have you been in the business?
Our company was founded in 2008. We have accumulated good experience during all these years.
3.How can you ensure the quality of your products?
All our products have passed ISO9001 and CE test. Before shipment, every product will be strictly tested and inspected by our inspection department. And we offer free installation and technical guiding.
4.What is the warranty of our product?
We offer one year warranty for all our products. If any breakdown occurs during this period, please contact us at the first time. Our after-sales team will help you to solve your problem.
5.What is the delivery time?
It usually will take 7-21 days after we receive your deposit. The actual delivery time depends on your order quantity.
6.Do you offer OEM or ODM service?
We welcome OEM or ODM orders. Our technical department will work out a realistic and economic plan for every order.
Our factory locates in Lishui Distrcit, Nanjing City, Jiangsu Province. The nearest airport to our factory is only 21km. It will take 3-4 hours by truck from our factory to Shanghai port. The transportation is very convenient.
2.How long have you been in the business?
Our company was founded in 2008. We have accumulated good experience during all these years.
3.How can you ensure the quality of your products?
All our products have passed ISO9001 and CE test. Before shipment, every product will be strictly tested and inspected by our inspection department. And we offer free installation and technical guiding.
4.What is the warranty of our product?
We offer one year warranty for all our products. If any breakdown occurs during this period, please contact us at the first time. Our after-sales team will help you to solve your problem.
5.What is the delivery time?
It usually will take 7-21 days after we receive your deposit. The actual delivery time depends on your order quantity.
6.Do you offer OEM or ODM service?
We welcome OEM or ODM orders. Our technical department will work out a realistic and economic plan for every order.
Похожие товары

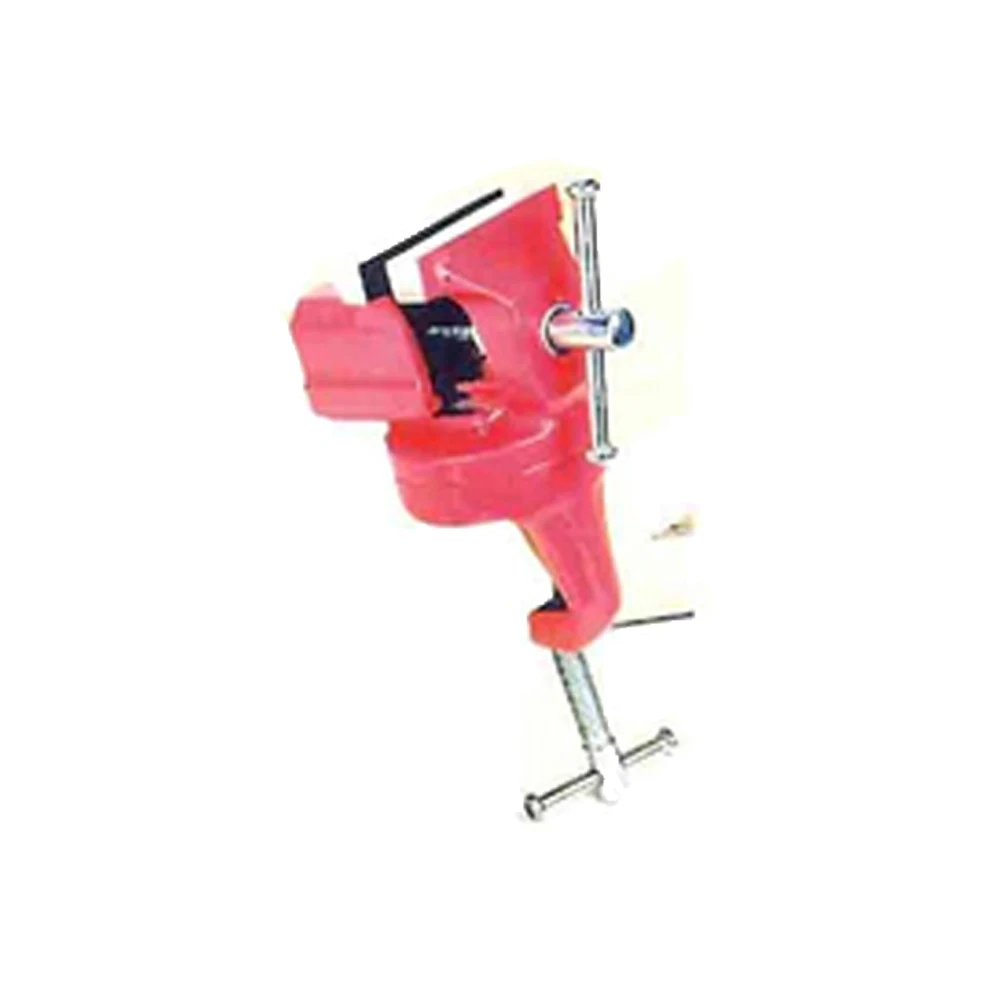

Оптовый Поставщик, поворотная основа, Детские тиски, хороший и высококачественный ручной инструмент, плоскогубцы, легко работать

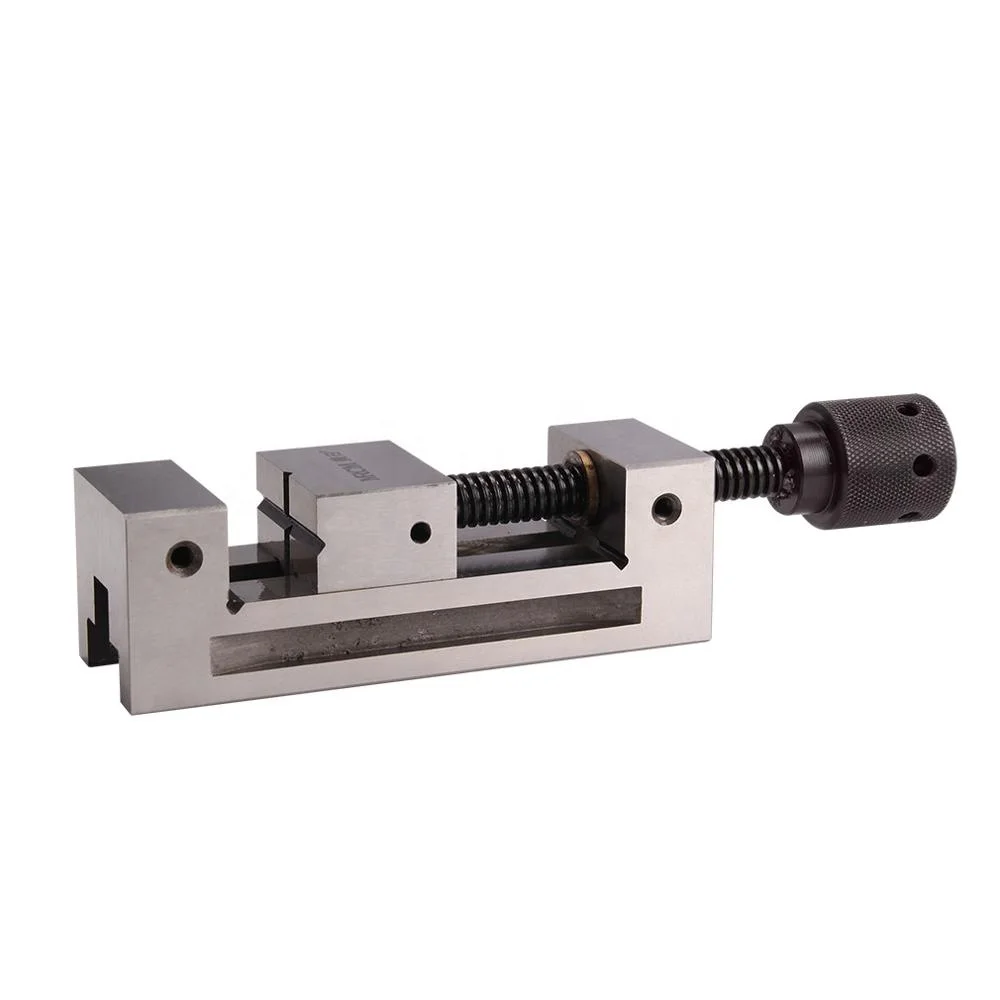

Ручной прецизионный станок тиски 3,5 дюйма фрезерный станок тиски Qgg88 для фрезерного сверлильного станка

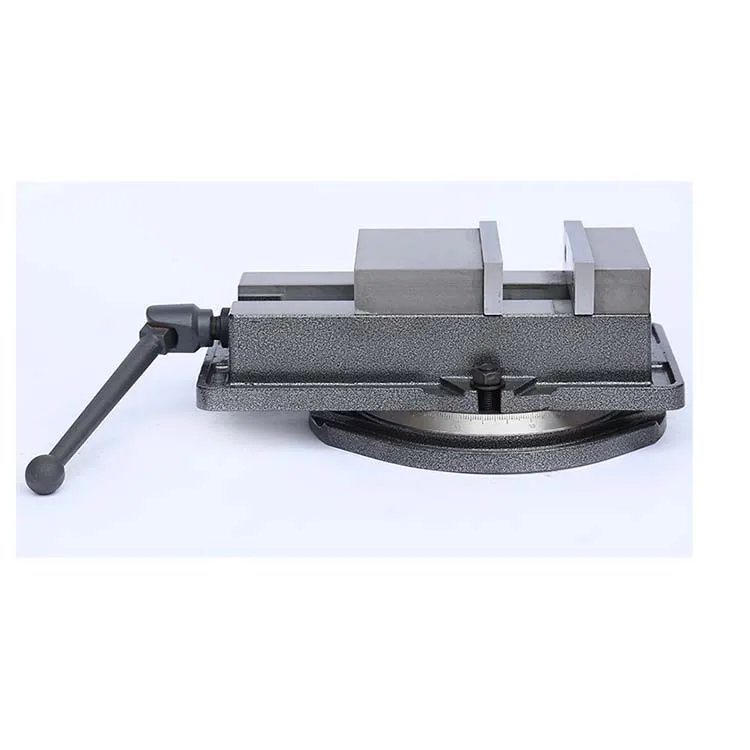

Фрезерный и сверлильный станок 160 мм accu-lock поворотный станок тиски
QGG200 точные механические ПАРАЛЛЕЛЬНЫЕ тиски, фрезерные тиски

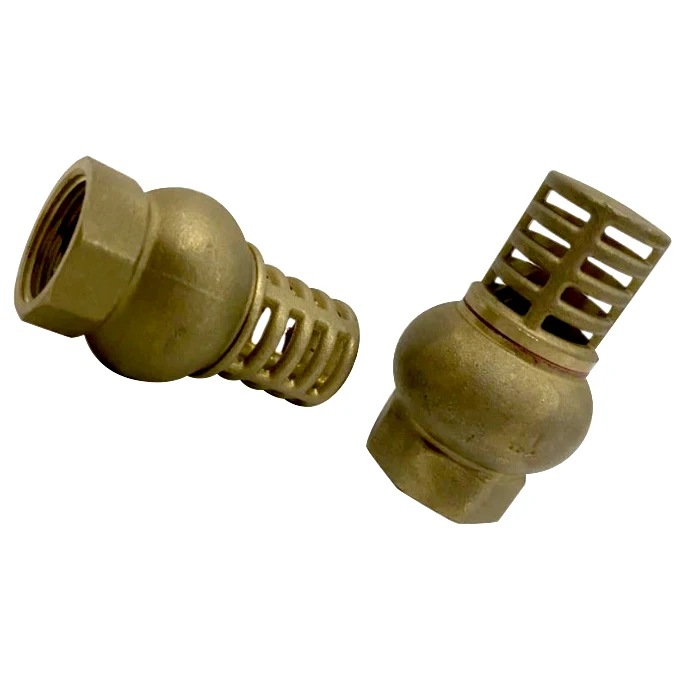

Акция 2022, высокое качество, ручной прочный широко используемый обратный клапан управления потоком из латуни

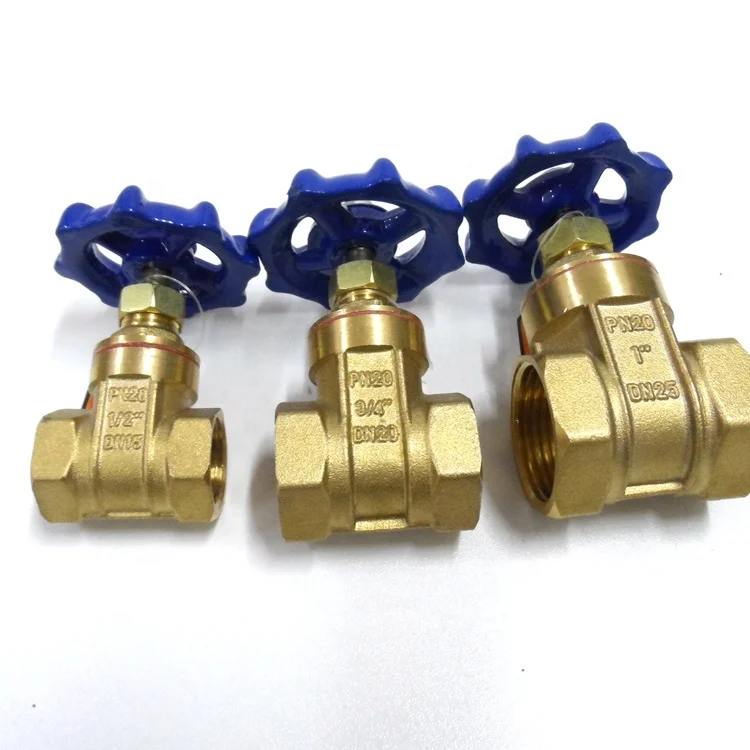

Sio9001, ручное питание и стандартный латунный затвор, экономичный клапан, затвор, низкая цена, затвор

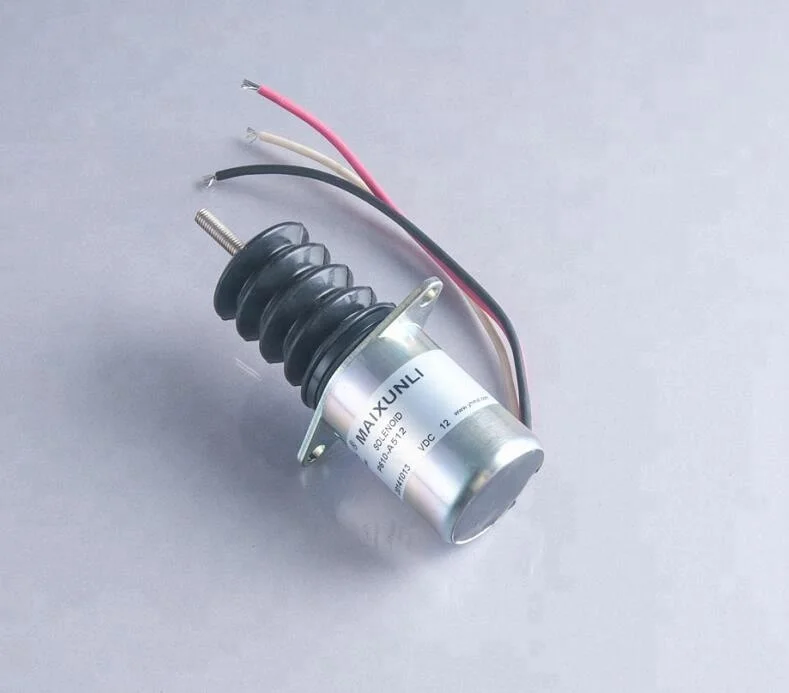

Двигатель отключение топлива электромагнитный клапан 12V P610-A1V12 топливный насос высокого давления
