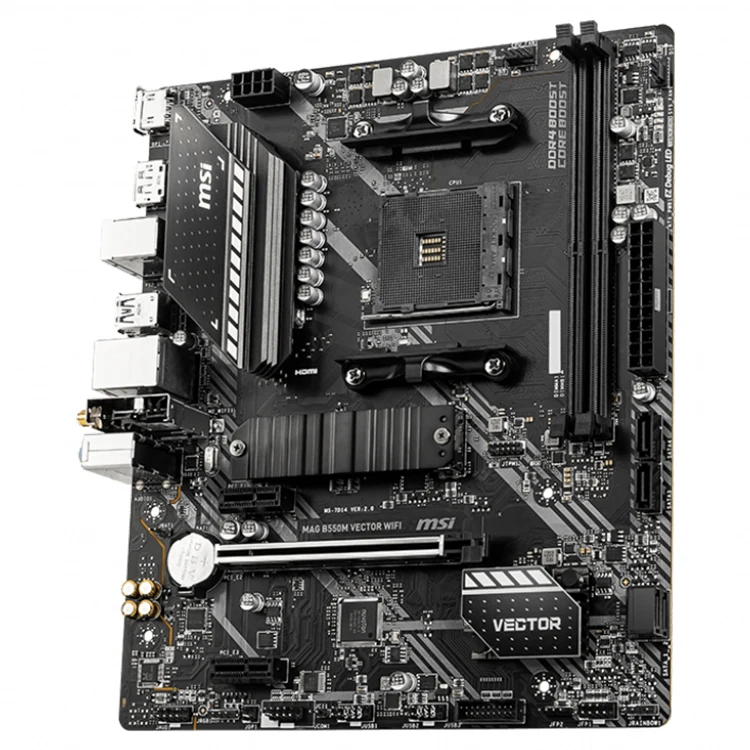

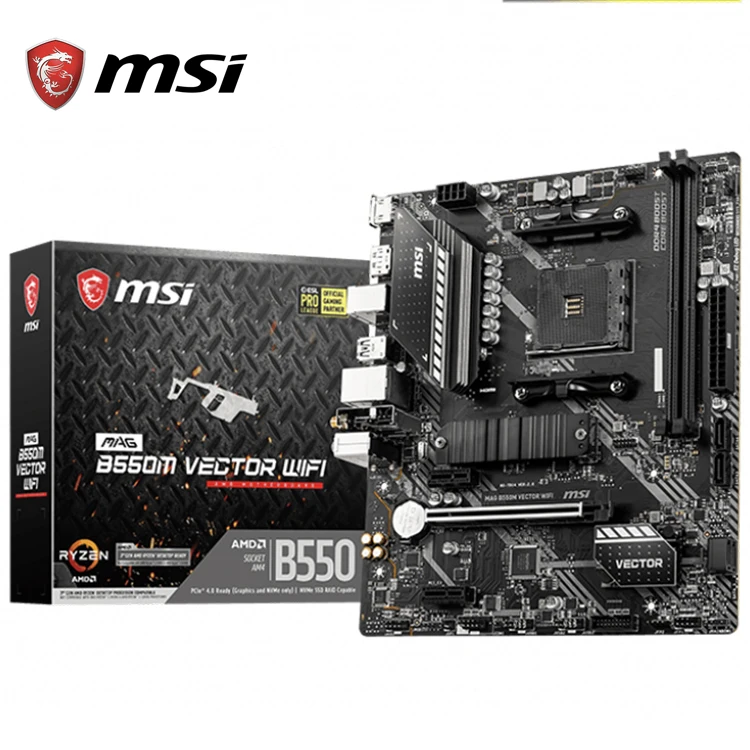

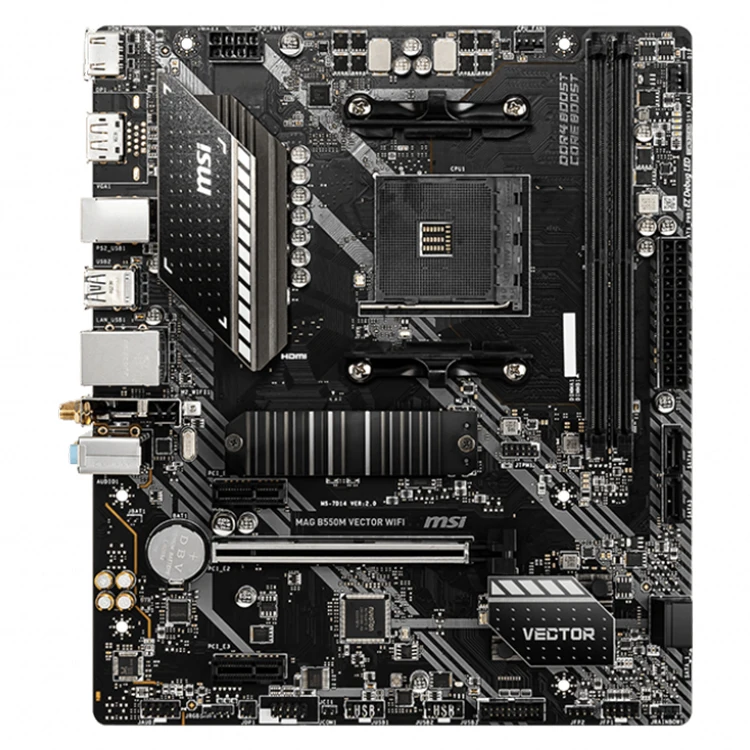

MSI MAG B550M VECTOR WIFI Gaming Motherboard With 64GB DDR4 Memory M.2 SLOT AMD B550 Chipset Supports up to 4400(OC) MHz

MSI MAG B550M VECTOR WIFI Gaming Motherboard With 128GB DDR4 Memory M.2 SLOT AMD B550 Chipset Supports up to 4400(OC) MHz

• Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors


• Supports DDR4 Memory, up to 4600(OC) MHz


• Extended Heatsink Design: Leading heatsink design, extended for maximum cooling and performance


• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr


• M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster


• Core Boost: With premium layout and digital power design to support more cores and provide better performance


• 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability


• Audio Boost: Reward your ears with studio grade sound quality


• Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface

CPU

Support 3rd Gen AMD Ryzen^™ Desktop Processors and AMD Ryzen^™ 4000 G-Series Desktop Processors

See supported processors

CHIPSET

AMD B550 Chipset

MEMORY

• 2x DDR4 memory slots, support up to 64GB ¹




• Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC


• Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE




• 1DPC 1R max speed 4600 MHz


• 1DPC 2R max speed 3866 MHz






• Dual channel memory architecture


• Supports non-ECC UDIMM memory


• Supports ECC UDIMM memory (non-ECC mode)


• Supports un-buffered memory

1. Please refer www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

• 1x PCIe x16 slot (PCI_E2)




• Supports PCIe 4.0/3.0 ¹




• 2x PCIe 3.0 x1 slots

1.  The supported specification depends on installed processor.

ONBOARD GRAPHICS

• 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz ^1 2


• 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz ¹


• Maximum shared memory of 2048 MB

1. Available for the processor with integrated graphics.


2. Graphics specifications may vary depending on the CPU installed.

STORAGE

AMD B550 Chipset

• 4x SATA 6Gb/s ports


• 1x M.2 slots (Key M)




• M2_1 slot (from AMD processor)




• Supports PCIe 4.0/ 3.0 x4 ¹


• Supports SATA 6Gb/s


• Supports 2242/ 2260/ 2280 storage devices

1. The supported specification depends on installed processor.

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB

AMD B550 Chipset

• 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)


• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

• 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek^® ALC892 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Realtek^® RTL8111H LAN controller

WIRELESS LAN & BLUE.TOOTH^®

Intel^® Dual Band Wireless-AC 3168

• Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.


• Supports Dual Mode Blue.tooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector


• 1x 8-pin ATX 12V power connector


• 4x SATA 6Gb/s connectors


• 1x Serial port connector


• 1x M.2 slot (M-Key)


• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)


• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)


• 1x 4-pin CPU fan connector


• 1x 4-pin system fan connector


• 1x Front panel audio connector


• 2x System panel connectors


• 1x Chassis Intrusion connector


• 1x 4-pin RGB LED connector


• 1x 3-pin RAINBOW LED connector


• 1x TPM module connector


• 1x Clear CMOS jumper

BACK PANEL PORTS

1. Keyboard / Mouse


2. LAN port


3. Wi-Fi Antenna connectors


4. Audio Connectors


5. HDMI


6. DisplayPort


7. USB 2.0 Ports


8. USB 3.2 Gen 1 5Gbps Type-A


9. USB 3.2 Gen 1 5Gbps Type-A

DIMENSIONS

• M-ATX Form Factor


• 9.6 in. x 8.3 in. (24.4 cm x 21 cm)

MOUNTING

6 mounting holes
