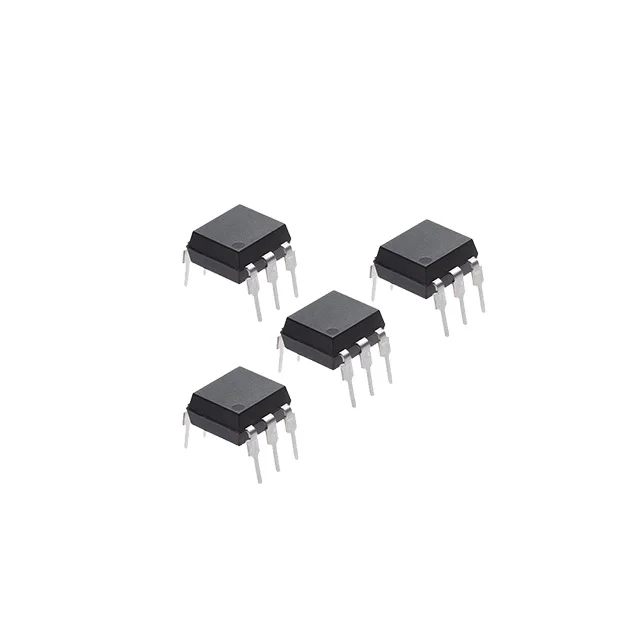

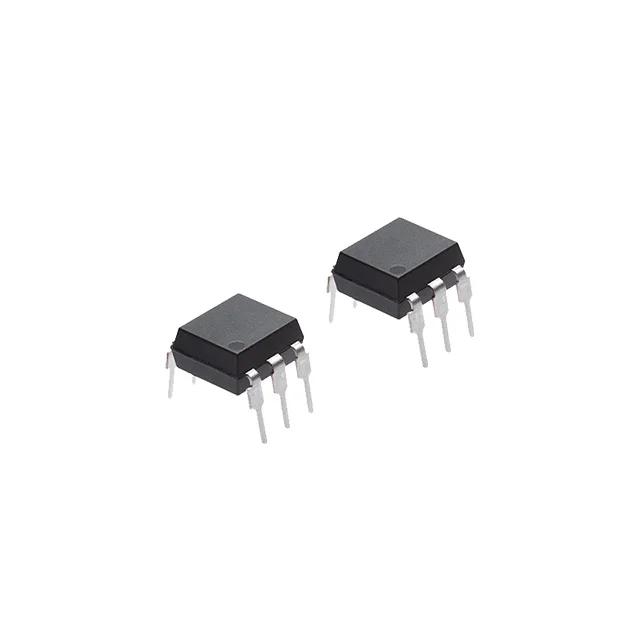

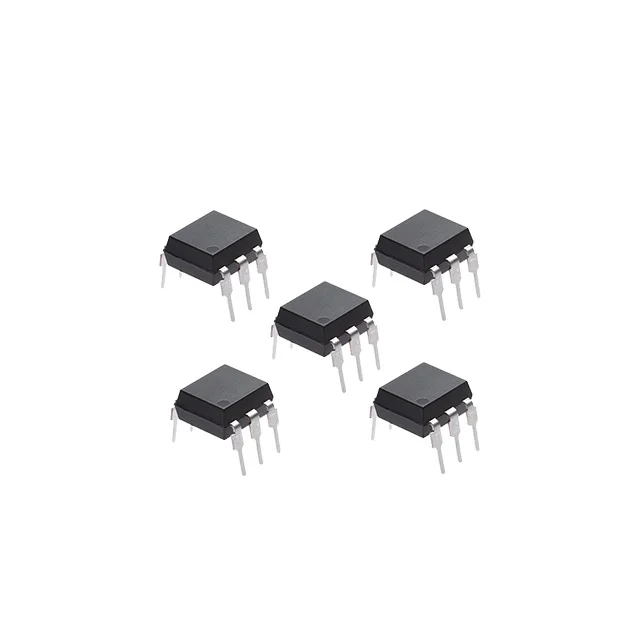

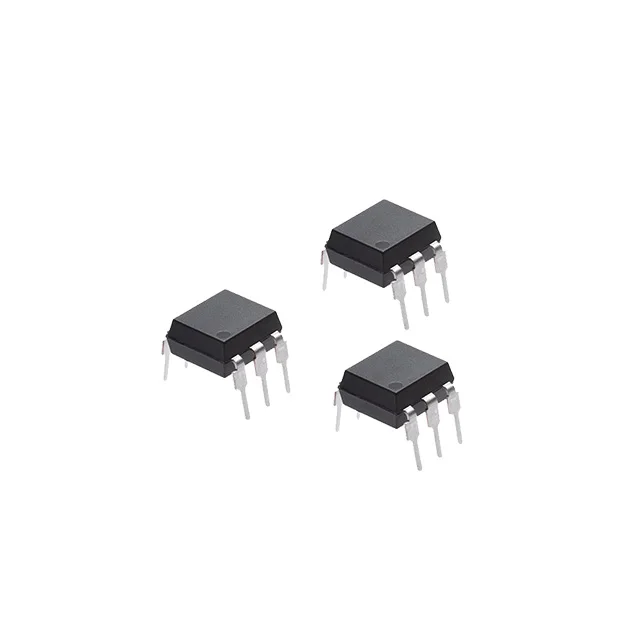

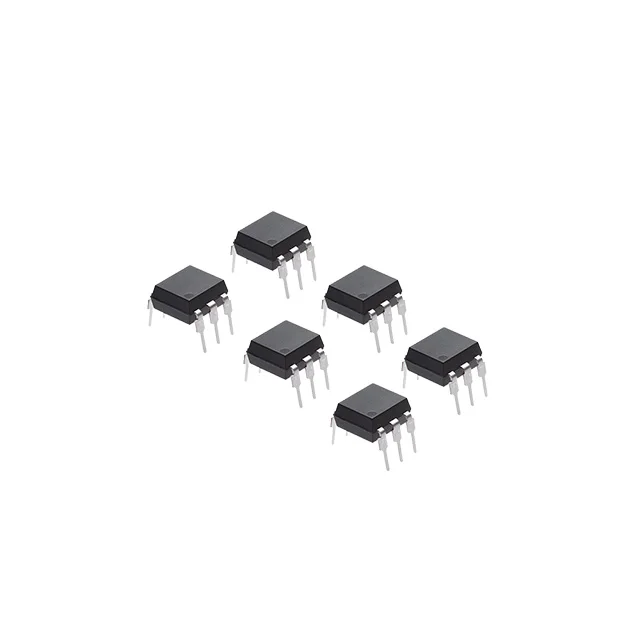

EL3052 solenoid valve controls 6 PIN DIP DC random-phase triac driver photocoupler for electric blanket
Product Description
Forward Current (Input) | 60 mA |
Storage temperature | -55 ~ 125 °C |
Peak On-state Voltage (Output) | 2.5 V |
Critical Rate of Rise off-state Voltage | 1000 V/µs |
LED Trigger Current | 10 mA |
Holding Current | 250 µA |
Product performance description
Features:
- Peak breakdown voltage.
- 600V: EL305X.
- High isolation voltage between input and output
(Viso=5000 V rms).
- Compact dual-in-line package.
- Compliance with EU REACH.
- The product itself will remain within RoHS compliant version.
- UL and cUL approved (No. E214129).
- VDE approved (No.132249).
Details Images
- The EL305X series of devices each consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon random phase photo Triac.
- They are designed for interfacing between electronic controls and power triacs.
- In order to control resistive and inductive loads for 115 to 240 VAC operations.
Product Usage
Applications:
- Lamp ballasts.
- Static AC power switch.
- Interfacing microprocessors to 115 to 240Vac peripherals.
- Incandescent lamp dimmers.
- Temperature controls.
- Motor controls.
- Washing machine.
- Fruit blender.
- Electric blanket.
- Solenoid/valve controls.
- Lamp ballasts.
- Static AC power switch.
- Interfacing microprocessors to 115 to 240Vac peripherals.
- Incandescent lamp dimmers.
- Temperature controls.
- Motor controls.
- Washing machine.
- Fruit blender.
- Electric blanket.
Applications:
- Solenoid/valve controls.
- Lamp ballasts.
- Static AC power switch.
- Interfacing microprocessors to 115 to 240Vac peripherals.
- Incandescent lamp dimmers.
- Temperature controls.
- Motor controls.
- Washing machine.
- Fruit blender.
- Electric blanket.
Related Products
Packing&Shipping
Packing Quantity Specification:
2000 PCS/1 Reel.
2000 PCS/1 Reel.
