Сцепляющая арматура параллельно с резьбой сцепляющая
- Категория: >>>
- Поставщик: Baoding Jindi Machinery Co. Ltd.
Сохранить в закладки 1600365016817:
Описание и отзывы
Характеристики
Products Description

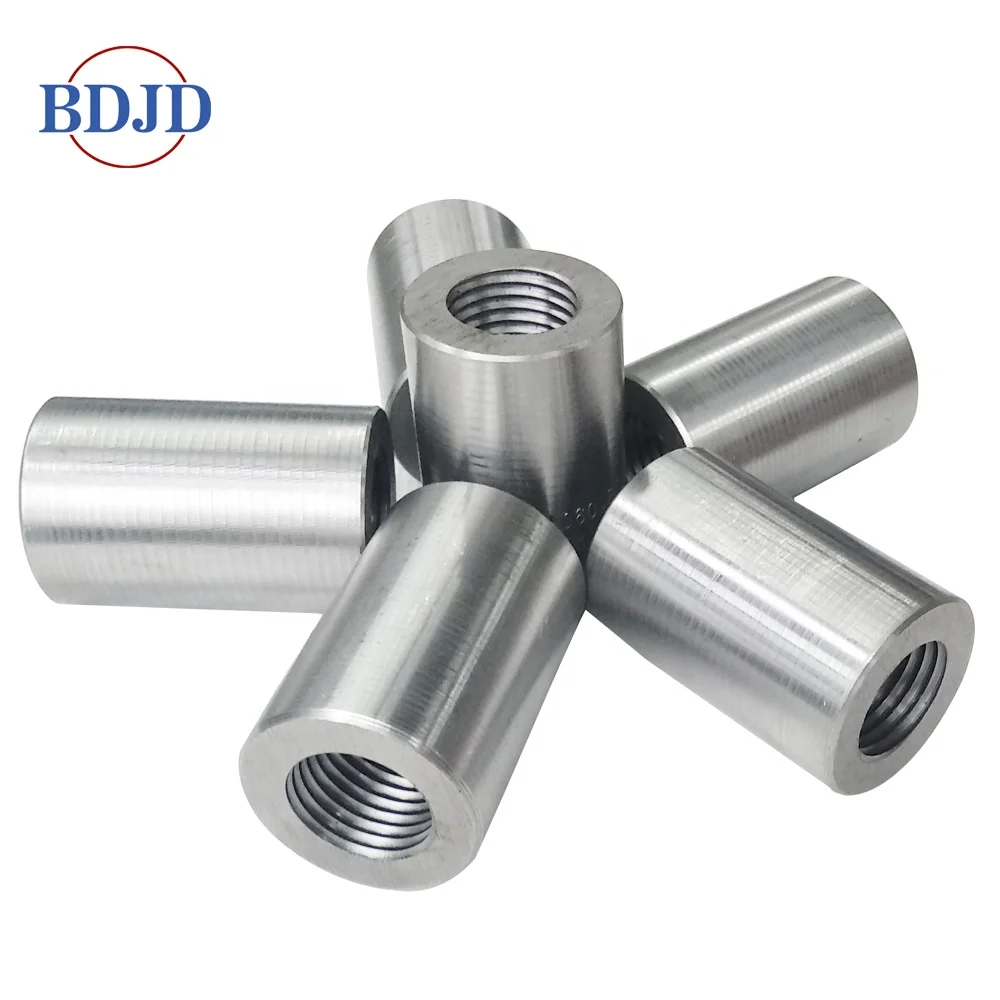

Rebar Coupler Parallel Threaded Rebar Coupler
1.It mainly connect HRB400 and HRB500 hot rolled ribbed bars with diameter 12-50mm;
2.45# high quality carbon structural steel or 40Cr as material;
3. Standard type, left-handed and right-handed type, reducing type, wide mouth type, nut locking type, altogether more than one hundred types;
4. Satisfy the rebar splicing needs of longitudinal, traverse and slant ect in project of bridge, tunnel and other construction projects;
5.Taper thread coupler, double thread coupler, weldable coupler, upsetting parallel thread coupler or other type rebar coupler as per customer’s requirement.
2.45# high quality carbon structural steel or 40Cr as material;
3. Standard type, left-handed and right-handed type, reducing type, wide mouth type, nut locking type, altogether more than one hundred types;
4. Satisfy the rebar splicing needs of longitudinal, traverse and slant ect in project of bridge, tunnel and other construction projects;
5.Taper thread coupler, double thread coupler, weldable coupler, upsetting parallel thread coupler or other type rebar coupler as per customer’s requirement.
Product Show

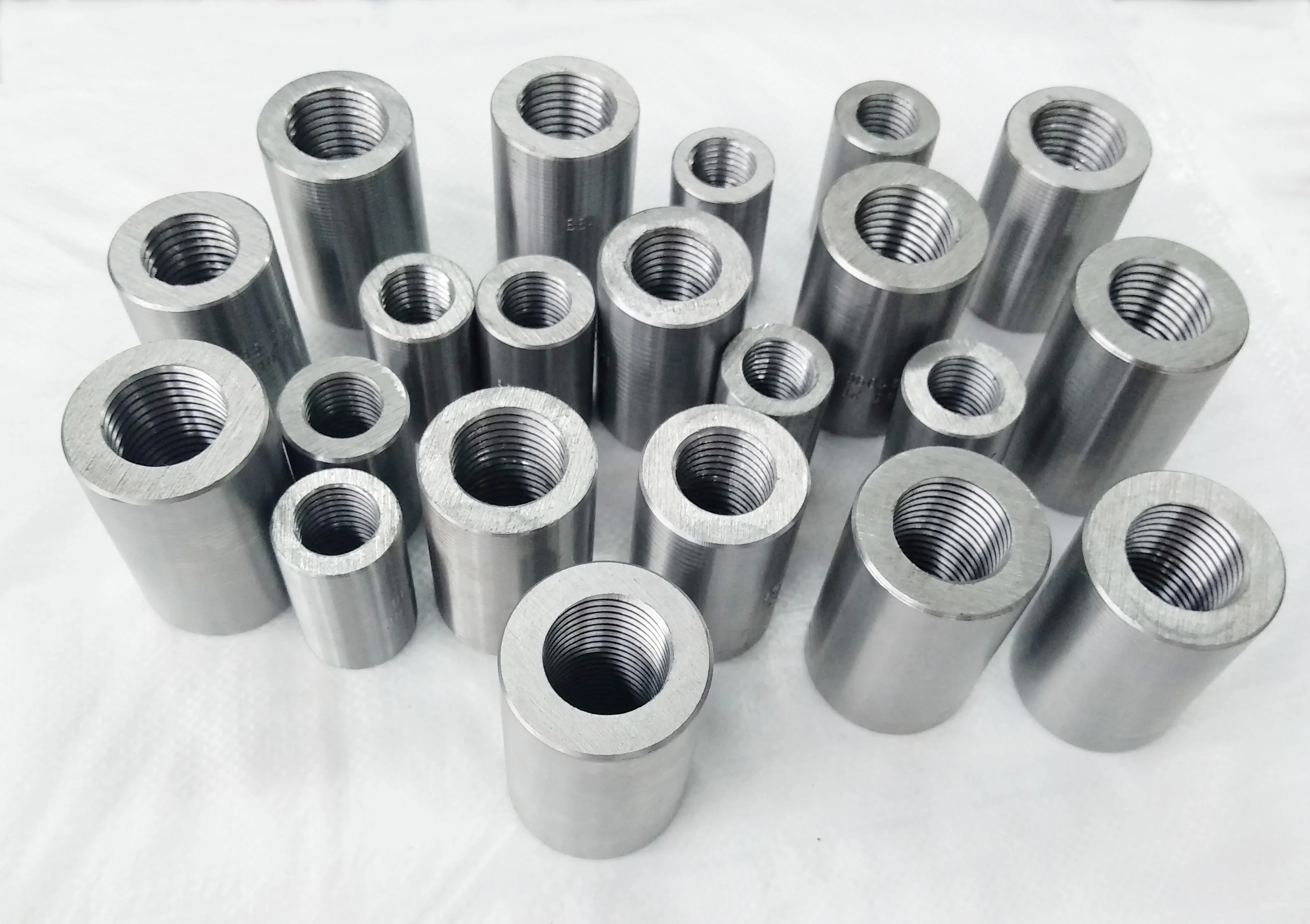

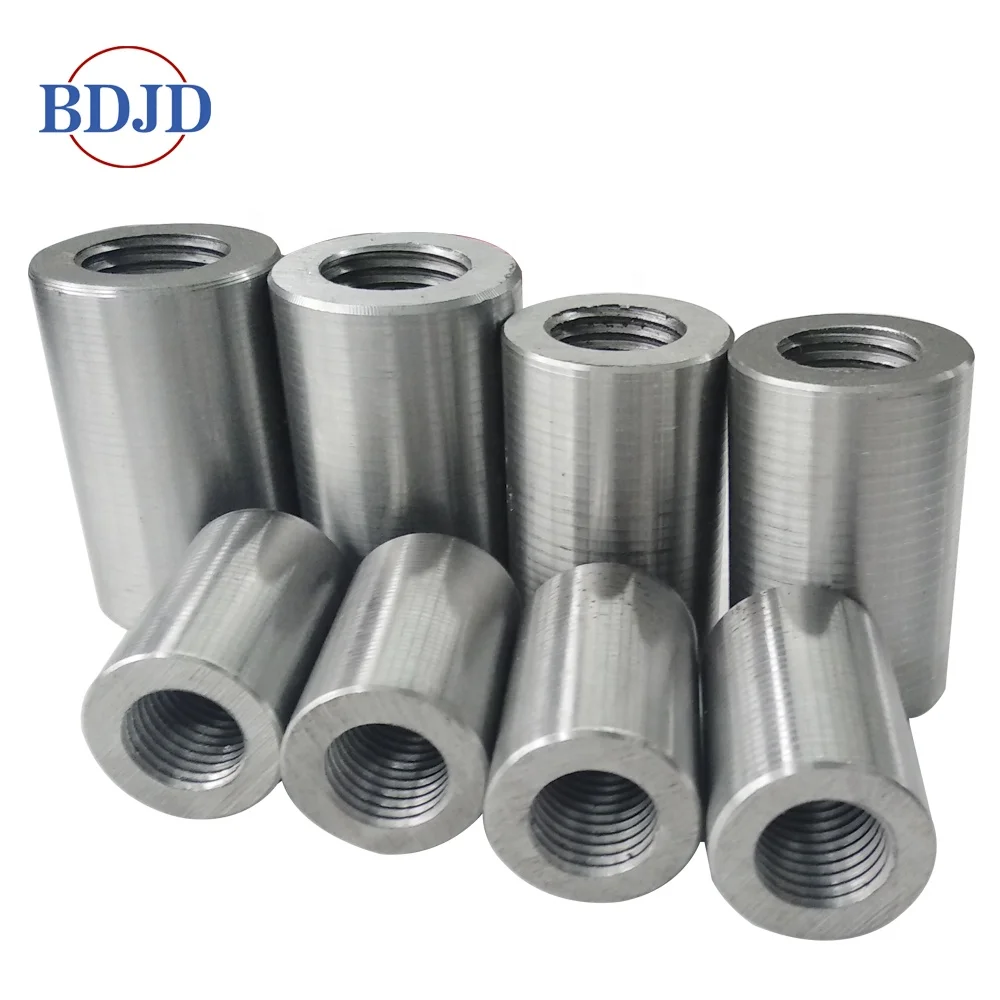

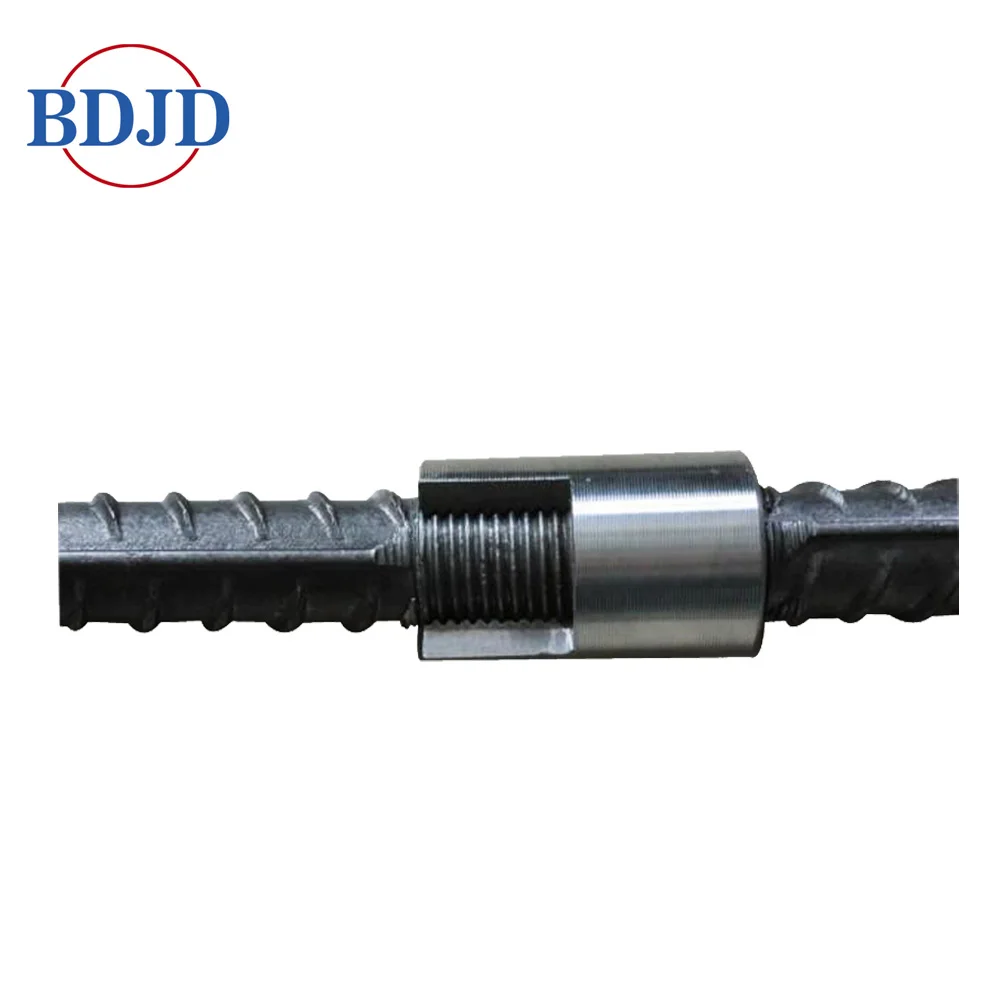

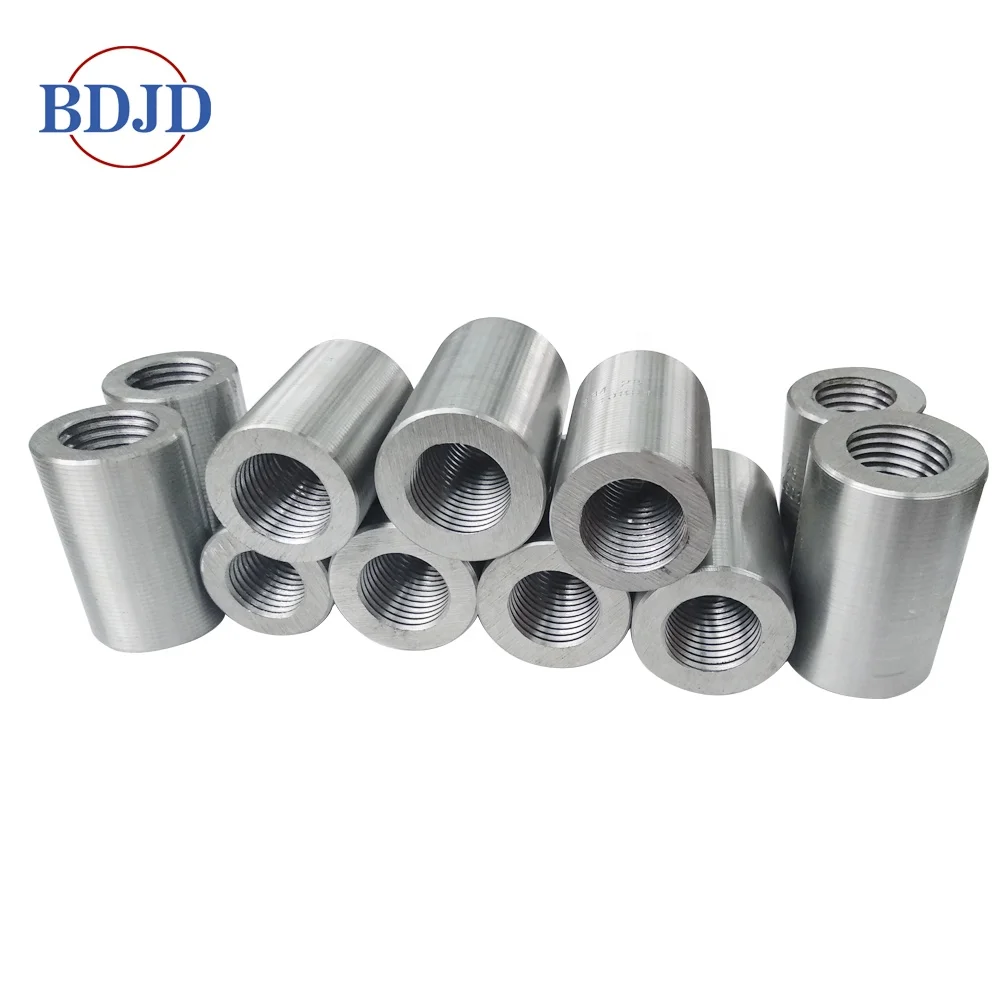

Parallel Rebar Coupler
Reducing Coupler
Hexagon Coupler
Weldable Coupler
Upsetting Coupler
UNC Coupler
Product Paramenters
Coupler Size | Outer Dia ±0.5mm | Length ±1mm | Thread Angle | Weight/Pc (kg) |
D12 | 20.5 | 35 | 60° | 0.036 |
D14 | 21.5 | 37 | 60°/75° | 0.068 |
D16 | 24.5 | 39 | 60°/75° | 0.099 |
D18 | 27.5 | 44 | 60°/75° | 0.125 |
D20 | 29.5 | 49 | 60°/75° | 0.180 |
D22 | 33 | 54 | 60°/75° | 0.205 |
D25 | 37.5 | 60 | 60°/75° | 0.317 |
D28 | 41.5 | 64 | 60°/75° | 0.399 |
D32 | 47.5 | 74 | 60°/75° | 0.640 |
D36 | 54 | 84 | 60°/75° | 0.900 |
D40 | 59 | 89 | 60°/75° | 1.099 |
D50 | 74 | 125 | 75° | 1.298 |
If the customer provides parameters or drawings, we can also customize the rebar coupler according to the requirements
The materials of rebar coupler
Generally, there are three kinds of raw materials for rebar coupler, 45C steel pipe, 45C round steel, and 40Cr round steel. According to the tensile strength and yield strength of the steel bar, choose the matching raw material.

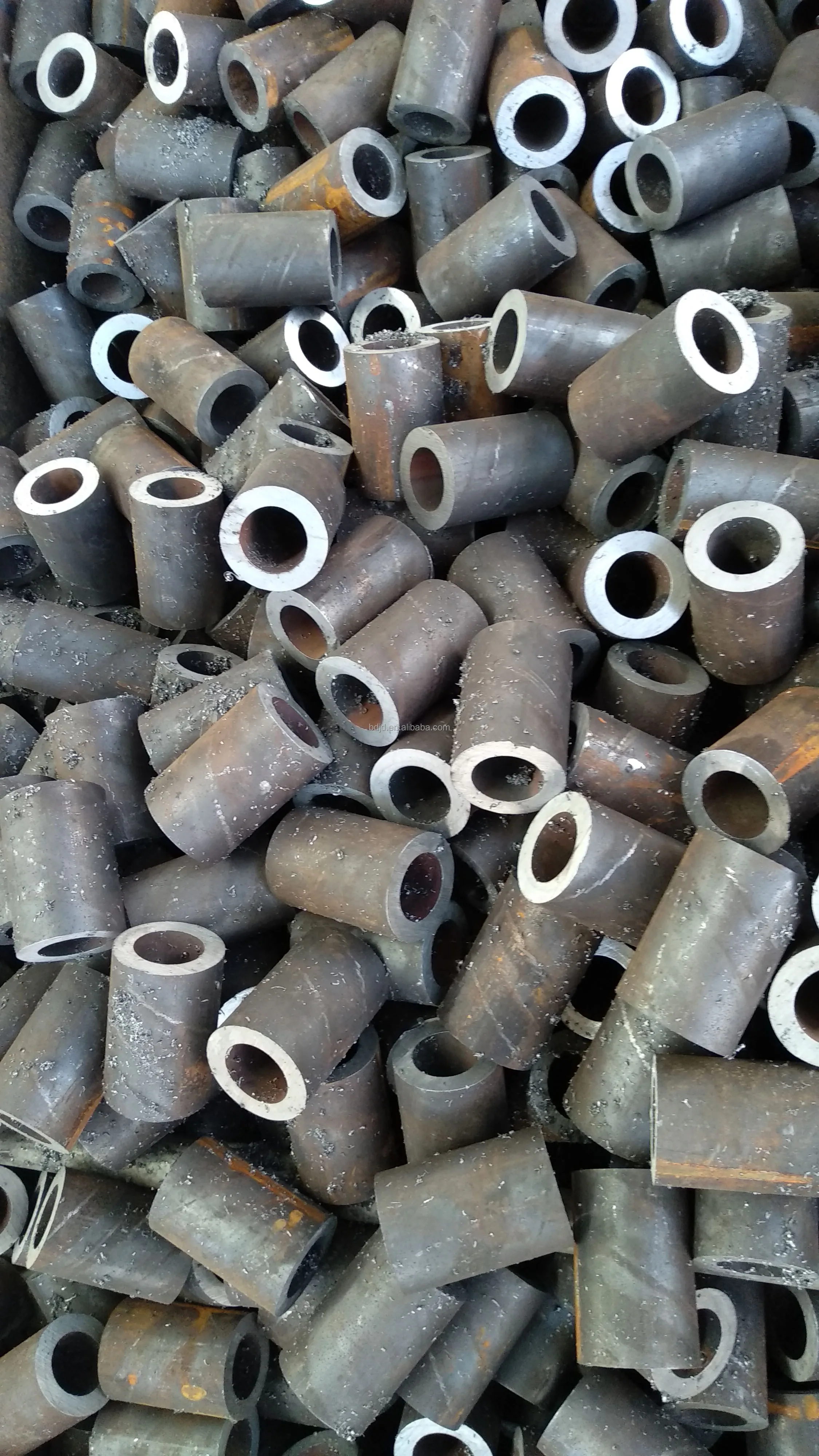

The raw material is 45C steel pipe
The raw material is 45C round steel
The raw material is 40Cr round steel
The color of the raw material itself

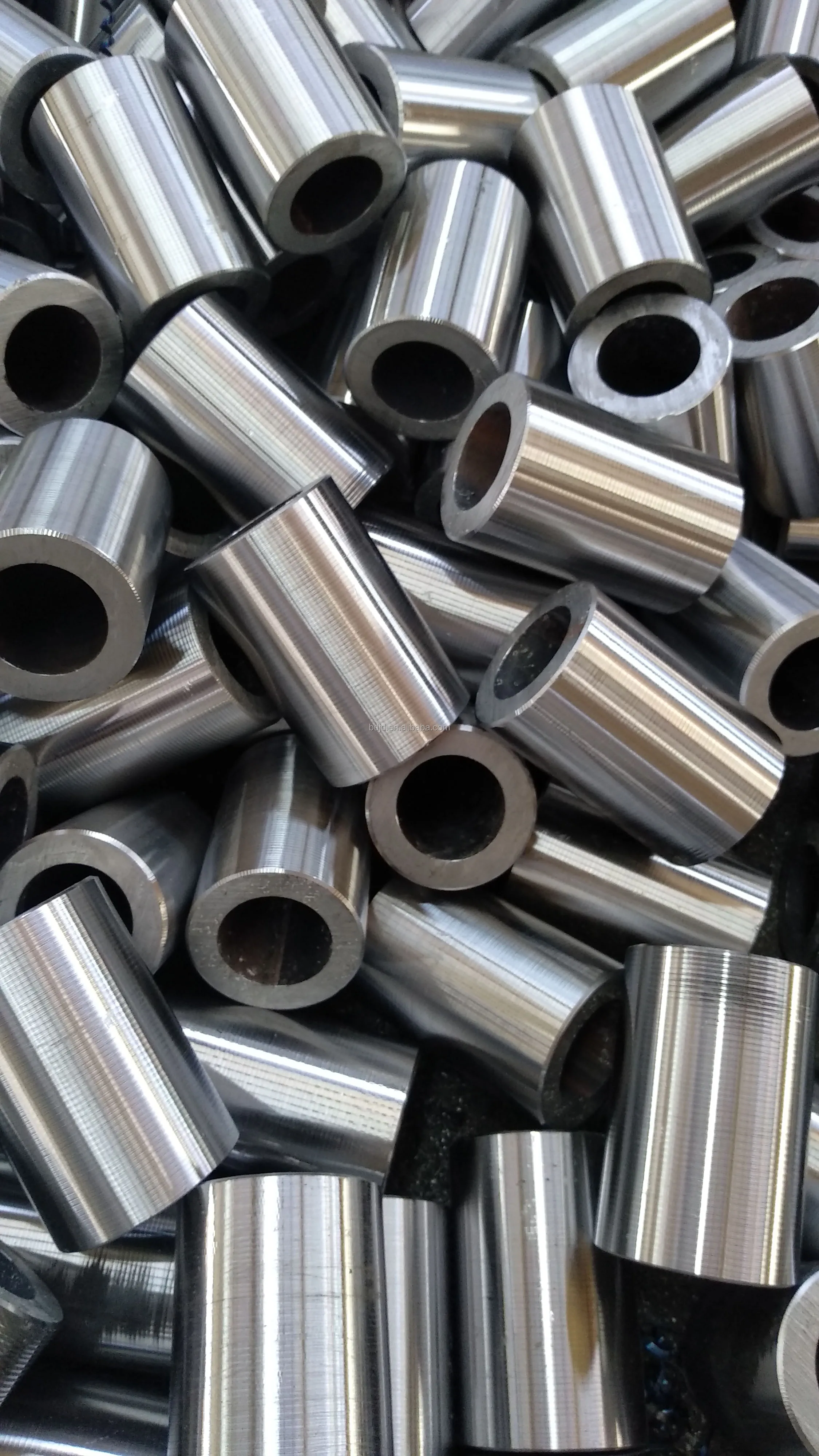

Silver after peeling process (Strip the ex-circle)

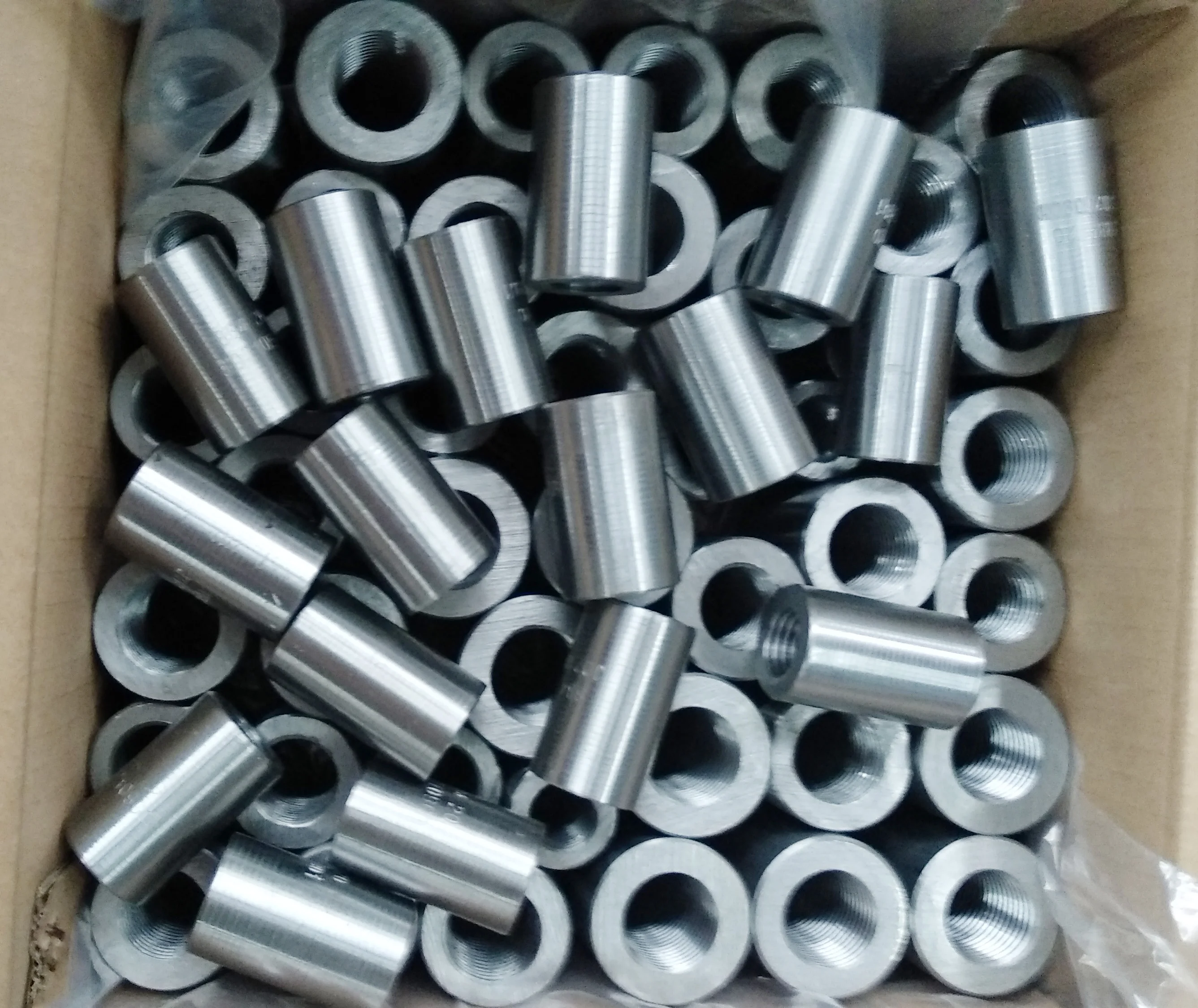

Product packaging
The packaging of our products is woven bag and carton.They are all packed on wooden pallets.
Plastic bags are also placed in the carton, so that the packaging is safe and easy to transport.
The packaging can be shipped by sea or by air
Workshop

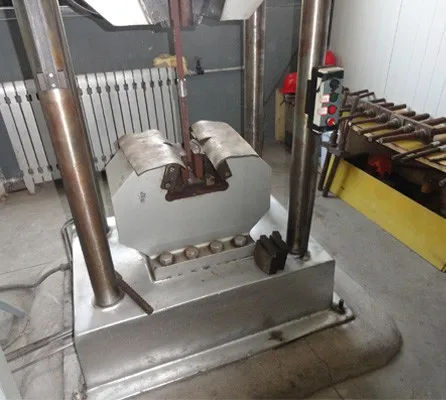

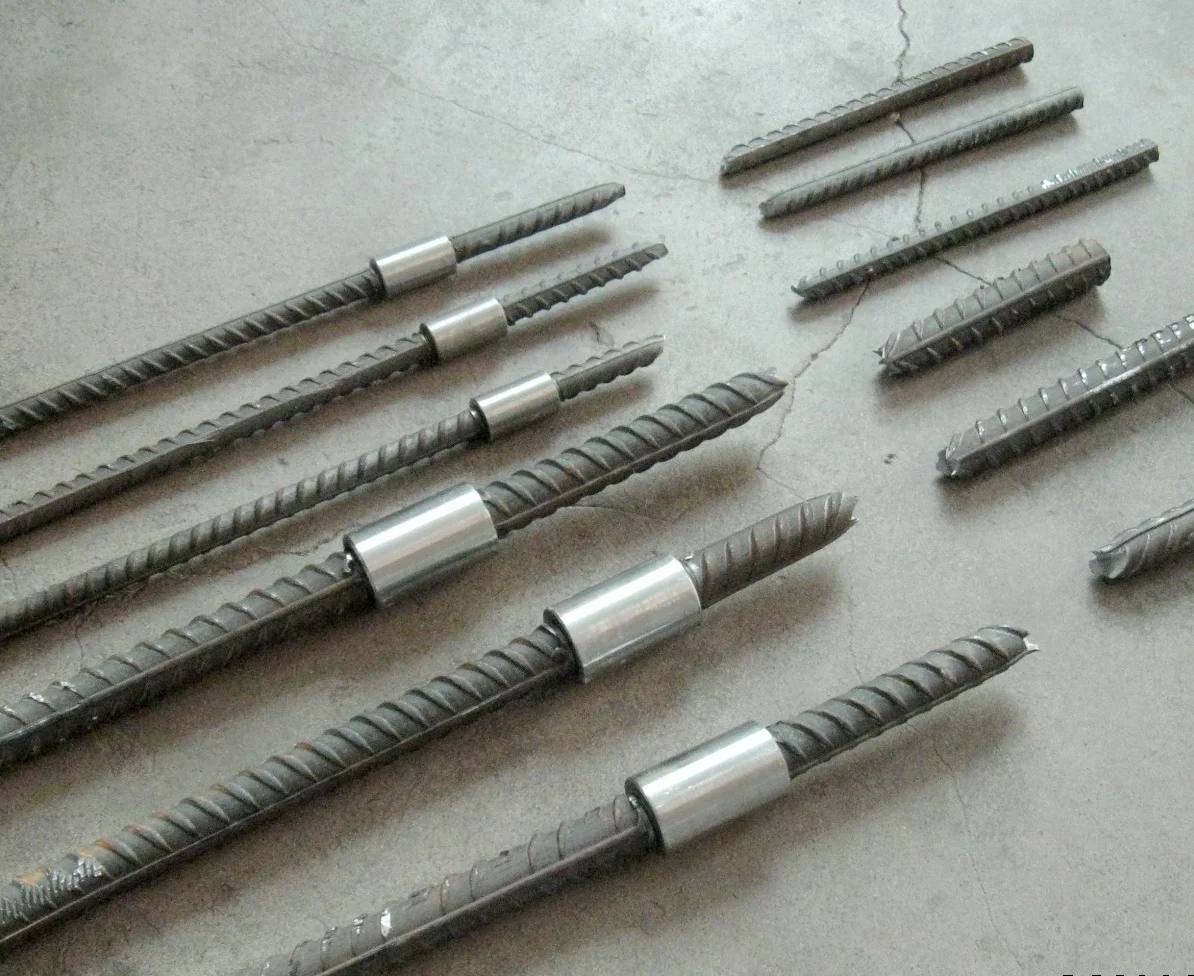

The specimens are all broken at the base material of the steel bar, and the tensile strength is greater than or equal to 1.1 times.

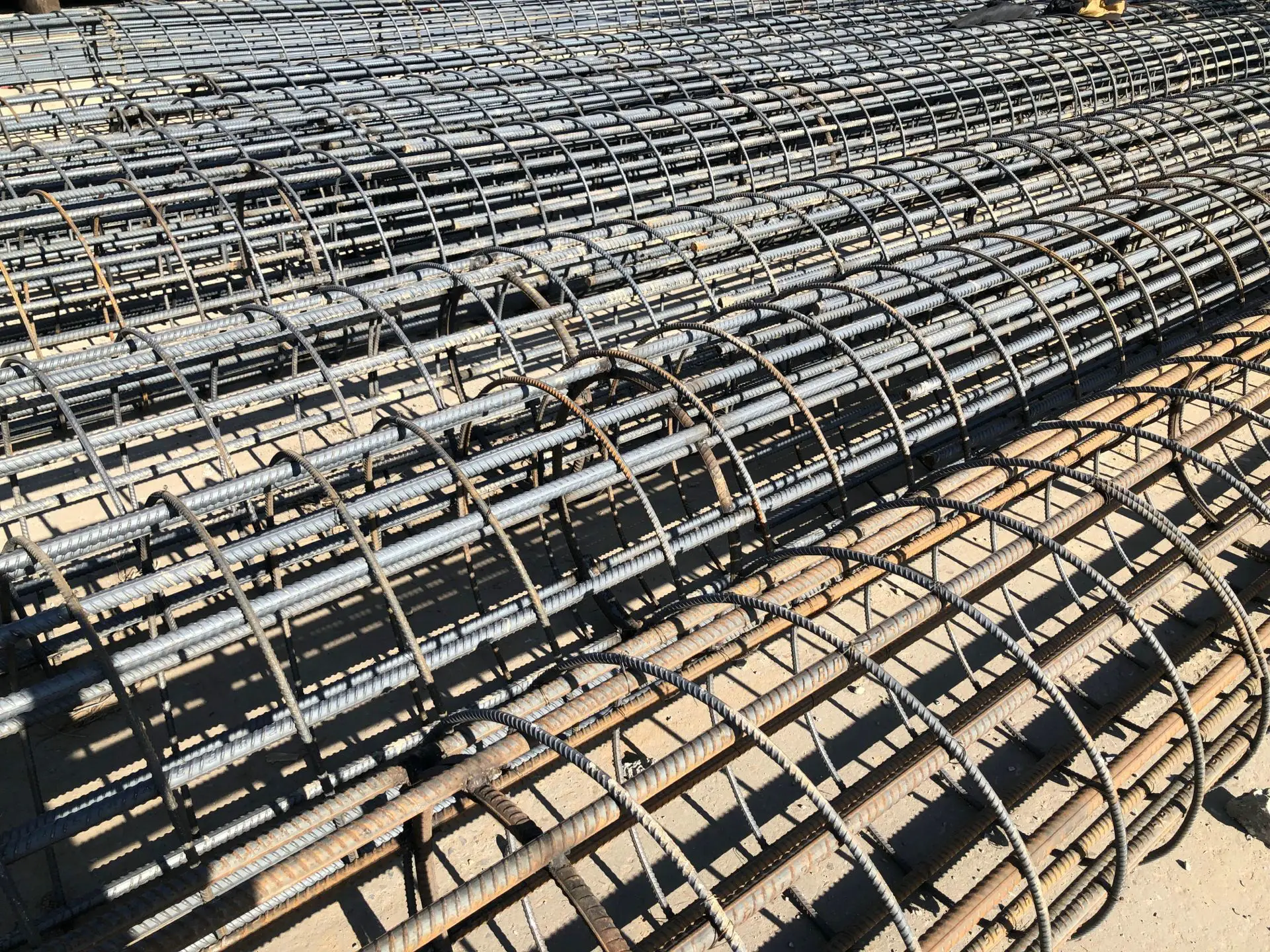

Application
Certifications
Company Profile
Baoding Jindi Machinery Co., Ltd. was established in 2002 with total assets of 80 million Yuan. As a professional manufacturer of rebar splicing equipment, we specialize in the production of rebar couplers, thread rolling machines and related products. Our products are domestically in a leading position in the same field. Now our products have passed the Certification of ISO9001 quality system. We can produce 4000 sets of various machines, and 40 million splicing couplers, which are widely used in lots of key domestic projects. In order to offer better after-sale service, we have established branches in many major cities, such as Beijing, Shanghai, and Guangzhou. In order to meet the strong construction demand (including civilian, industry, tunnel, bridge, and water construction fields), our series are getting more economical, environment-friendly, and efficient. With super quality and satisfactory after-sale service, our products have enjoyed good reputation in the world market. In the future, we will do our utmost to make work better and perfect, to build up a famous "Jindi" brand in this field.
FAQ
1.If the customer provides parameters or drawings, we can also customize the sleeve according to the requirements.
2.If you have no parameters, you can tell us your steel bar grade, tensile strength, and yield strength. We recommend suitable rebar coupler
3.We can accept OEM
4.MOQ:1000PCS
5.The packaging of our products is woven bag and carton. They are all packed on wooden pallets.
6. The goods can be transported by sea, and both FCL and LCL are accepted. From Tianjin ,Qingdao ,Shanghai ,Guangzhou any port of China.
7.The goods can be transported by air. From Beijing, Shanghai,Guangzhou...any airport of China.
7.The goods can be transported by air. From Beijing, Shanghai,Guangzhou...any airport of China.
