Высококачественный инновационный 2021 датчик приближения Npn индуктивный

Высококачественный инновационный 2021 датчик приближения Npn индуктивный

Категория: >>>
Поставщик: Toky Electrical Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

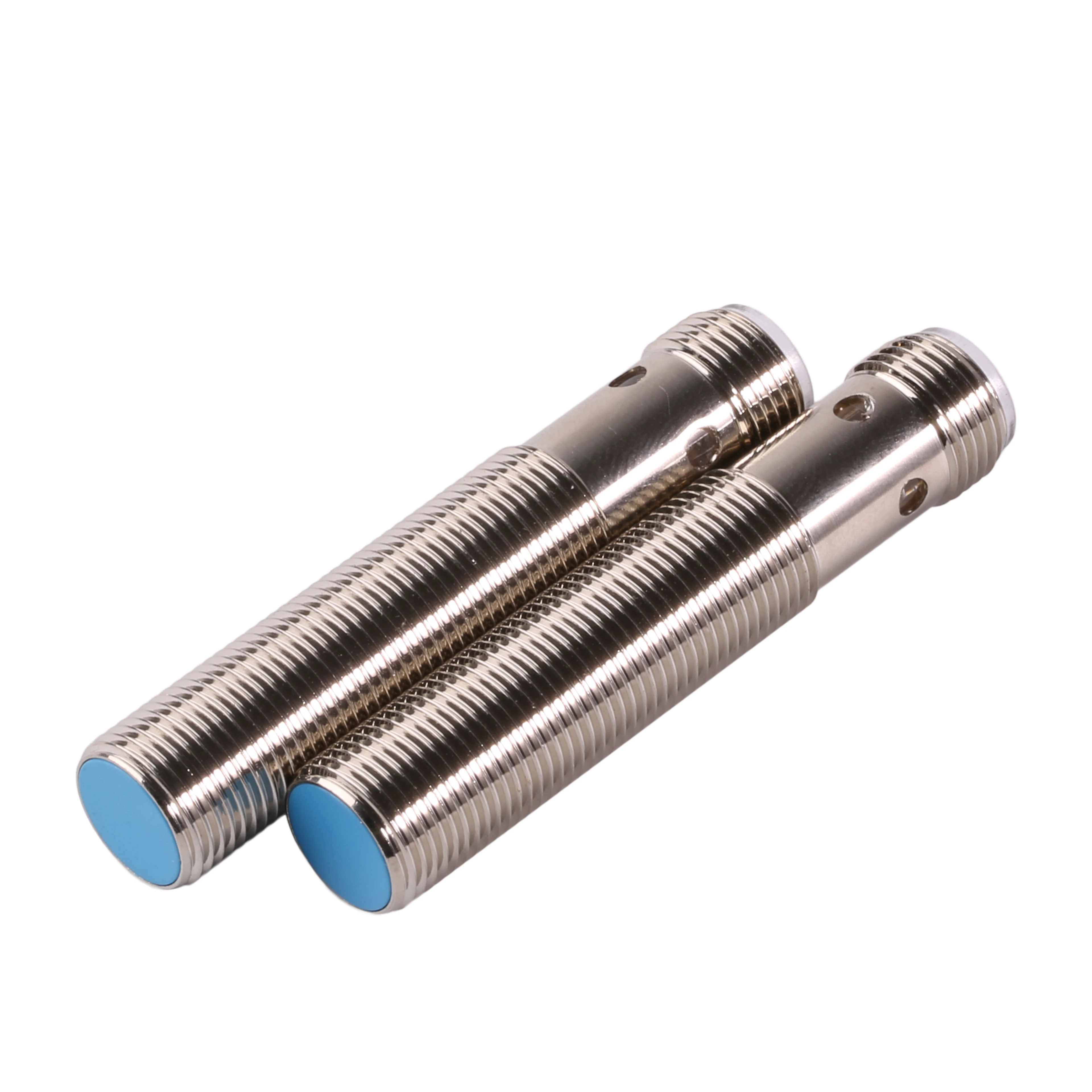

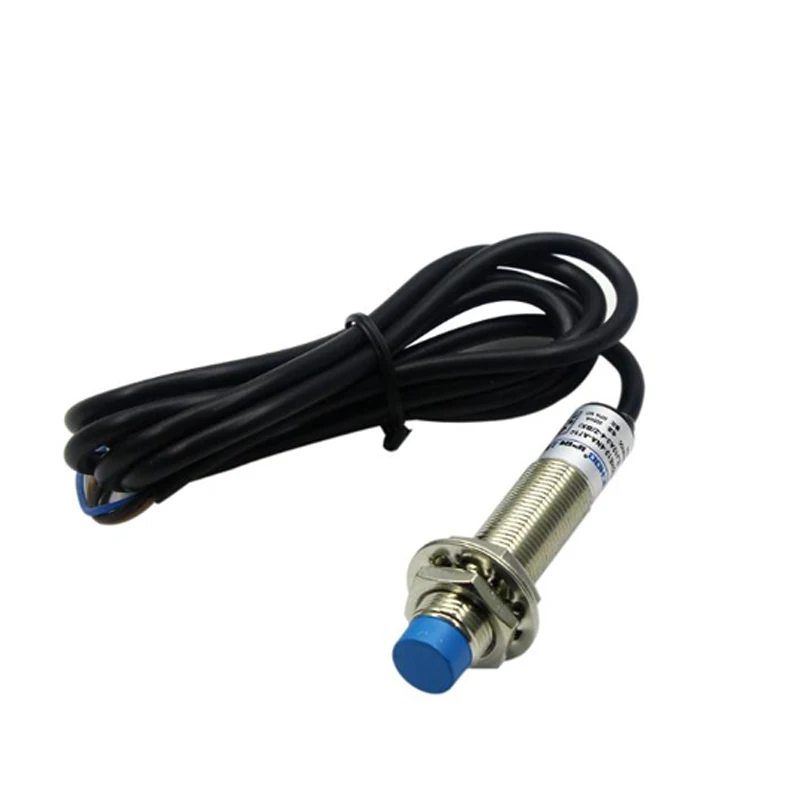

New Innovation 2021 Proximity Sensor Npn Proximity Sensor Inductive Proximity Sensor

Product Description

Model		Output type	Mounting type	Sensing	Effective	Frequency	Load	Protection	Code


TL-12N(NC)4B		NPN NO(NC)	Non-flush	4mm	3.2mm	400Hz	100mA	IP66(IEC)	C0021TL01
TL-12P(PC)4B		PNP NO(NC)	Non-flush	4mm	3.2mm	400Hz	100mA	IP66(IEC)	C0021TL01
TL-18N(NC)5B		NPN NO(NC)	Flush	5mm	4mm	400Hz	100mA	IP66(IEC)	C0026TL01
TL-18P(PC)5B		PNP NO(NC)	Flush	5mm	4mm	400Hz	100mA	IP66(IEC)	C0026TL01
TL-18N(NC)8B		NPN NO(NC)	Non-flush	8mm	6.4mm	200Hz	100mA	IP66(IEC)	C0028TL01
TL-18P(PC)8B		PNP NO(NC)	Non-flush	8mm	6.4mm	200Hz	100mA	IP66(IEC)	C0028TL01
TL-30N(NC)10B		NPN NO(NC)	Flush	10mm	8mm	200Hz	100mA	IP66(IEC)	C0038TL01
TL-30P(PC)10B		PNP NO(NC)	Flush	10mm	8mm	200Hz	100mA	IP66(IEC)	C0038TL01
TL-30N(NC)15B		NPN NO(NC)	Non-flush	15mm	12mm	100Hz	100mA	IP66(IEC)	C0040TL01
TL-30P(PC)15B		PNP NO(NC)	Non-flush	15mm	12mm	100Hz	100mA	IP66(IEC)	C0040TL01

Type	DC 3-wire
Type	Flush	Non-flush	Flush	Non-flush	Flush	Non-flush
Model	TL-12N(C)2B	TL-12N(C)4B	TL-18N(C)5B	TL-18N(C)8B	TL-30N(C)10B	TL-30N(C)15B
Model	TL-12P(C)2B	TL-12P(C)4B	TL-18P(C)5B	TL-18P(C)8B	TL-30P(C)10B	TL-30P(C)15B
Dimension	M12×43mm		M18×48mm		M30×58mm
Detected object	Magnetic metal (detection distance decreases when it’s non-magnetic metal)
Stipulate distance	2mm	4mm	5mm	8mm	10mm	15mm
Sensing distance	0~1.6mm	0~3.2mm	0~4.0mm	0~6.4mm	0~8.0mm	0~12.0mm
Frequency	≤600Hz	≤400Hz	≤400Hz	≤200Hz	≤200Hz	≤100Hz
Output current	≤100mA
Power supply	DC 10~30V
Hysteresis	Less than 10% of the stipulate distance
Control output	Pure resistance load≤100mA, induction load≤50mA
Voltage drop	≤2V (At DC 24V 100mA)
Leakage current	≤0.5mA(At DC 24V)
Insulation	100MΩ (At DC 500V)
Insulation	100MΩ (At DC 500V)
Dielectric	AC 1000V 1min (At 50/60Hz)
LED	Yellow
Protection	IP66(IEC)
Working	-25℃~70℃
Working	-25℃~70℃
Cable length	Standard 2m

Product Overviews

Company Information

Related Products

FAQ

FAQ

Q1.Can you produce according to the samples or drawings?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2.What is your terms of payment?
Usually,we accept T/T, irrevocable L/C at sight. For regular orders, Terms of payment 30% deposit, full payment before delivery the goods.

Q3.What is the lead time?
For standard models, lead time is about 3~5 days after order confirmed and payment received.

For OEM orders, the delivery is about 2~3 weeks after data confirmed and payment received.

Q4.What is your terms of packing?
Under TOKY brand, the standard packing is 1pc item in a colour box or brown inner box, then into standard export carton.

For OEM order, usually 1pc item in a brown inner box, then into standard export carton.

Q5.What is your terms of delivery?
We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.

Q6.How to solve the quality problems after sales?
Take photos or videos of the problems and send to us.
We will make a satisfied solution for you within 24 hours after we confirm the problems.

Q7.Do you have any MOQ limit for the order?

Low MOQ, 1pc for sample checking is available.

Q8.Is it OK to print my logo on the product?
Yes, OEM service is available.
Please confirm with our sales team formally before production and confirm the design firstly based on our sample.

Q9.Are you manufacturer or trading company?
We are manufacturer for over 30 years. Welcome to visit our factory at anytime.
