Автоматическая двухваловая клейкая медицинская машина для резки тканой ленты с отличным качеством
- Категория: >>>
- Поставщик: Ruian Bili Trading Co. Ltd.
Сохранить в закладки 1600366847006:
Описание и отзывы
Характеристики
Products Description

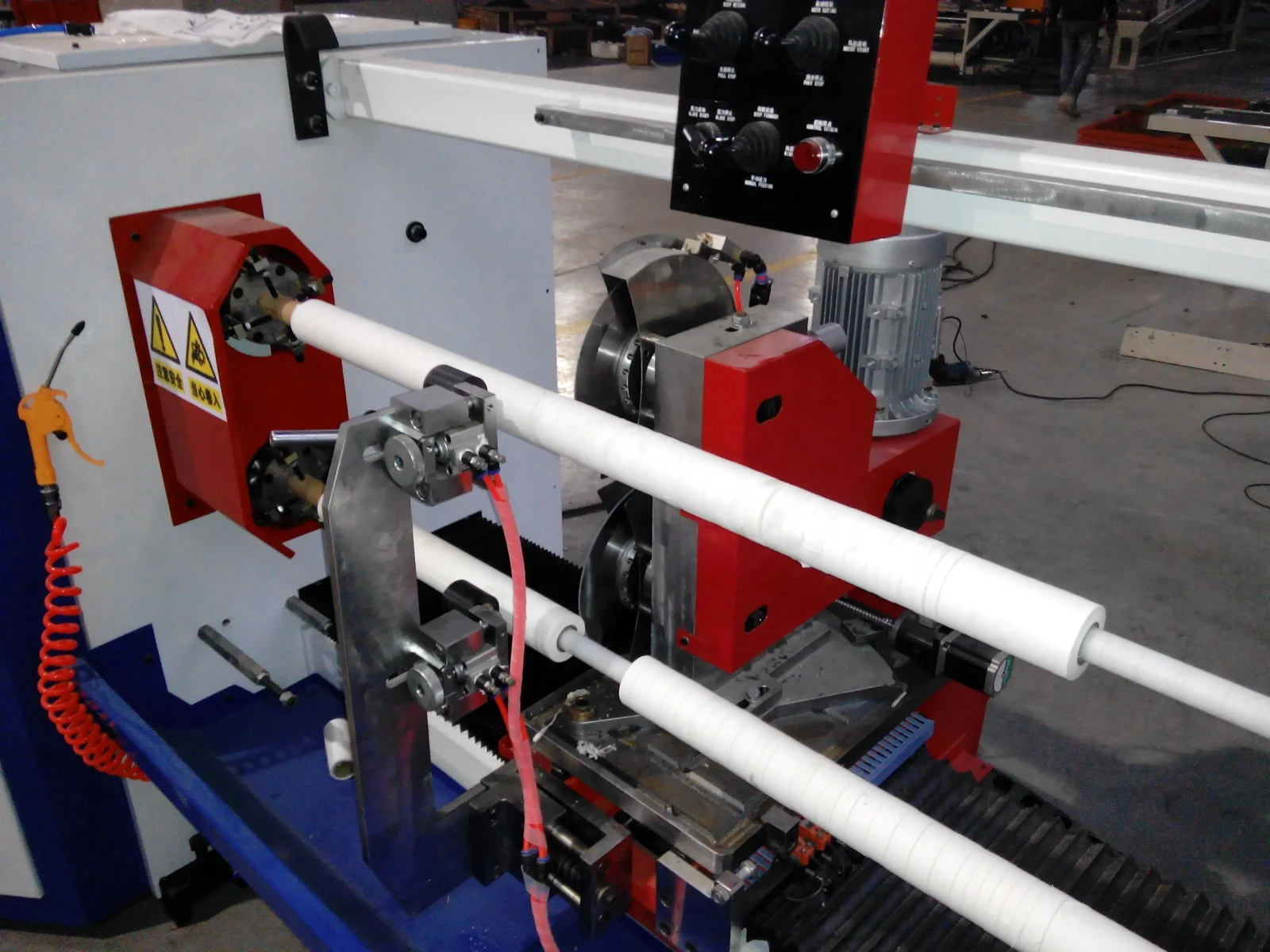

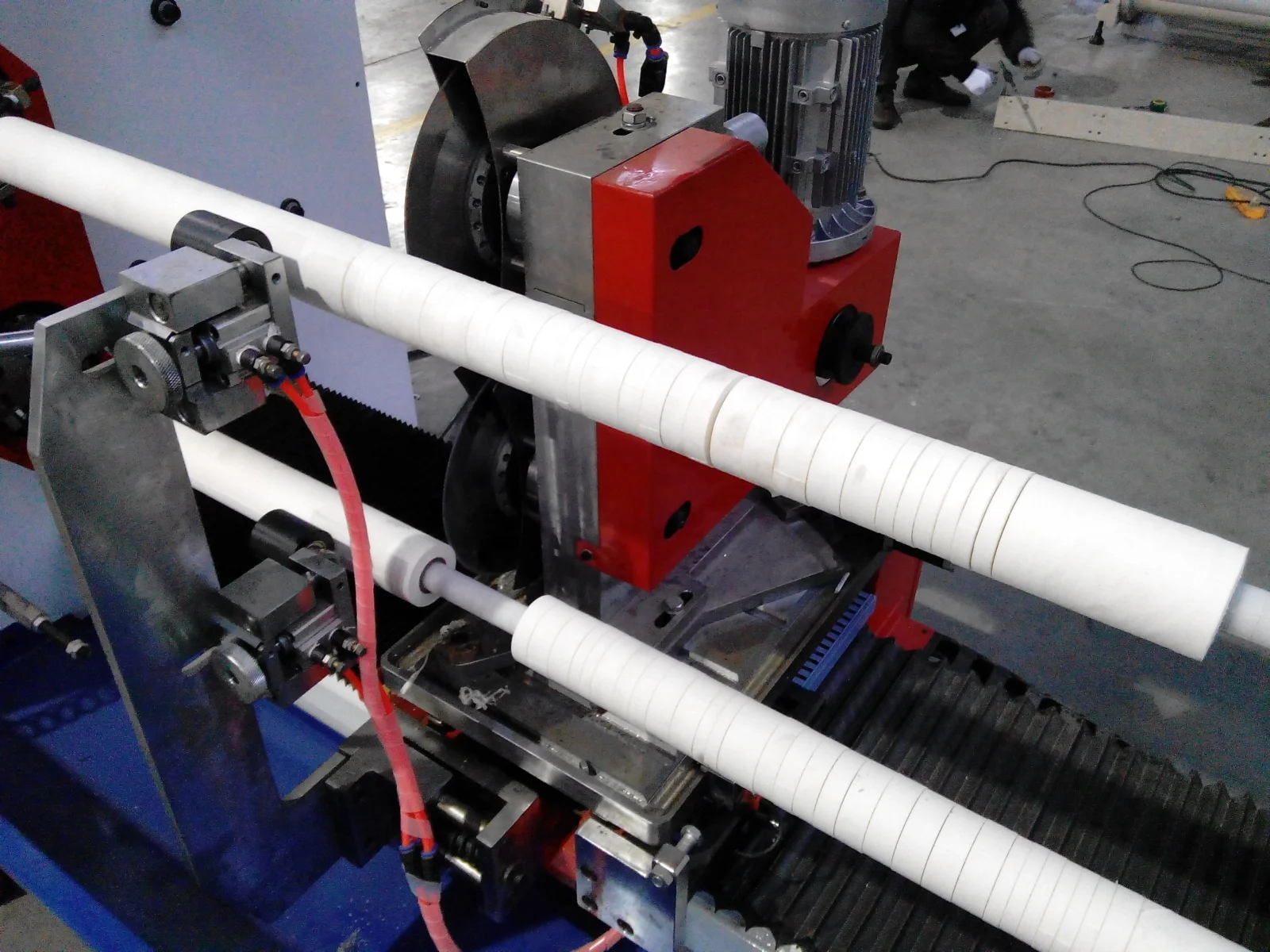

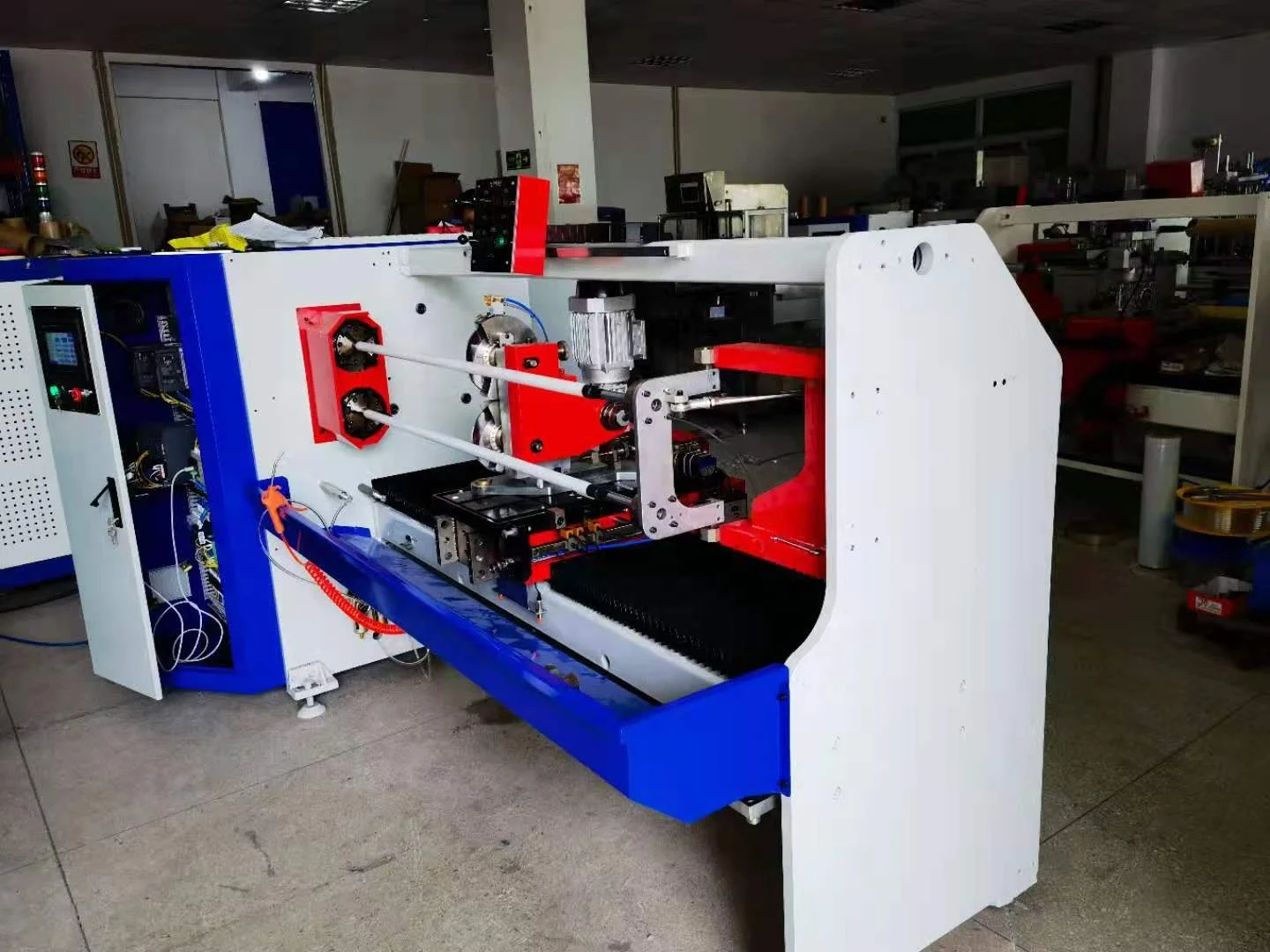

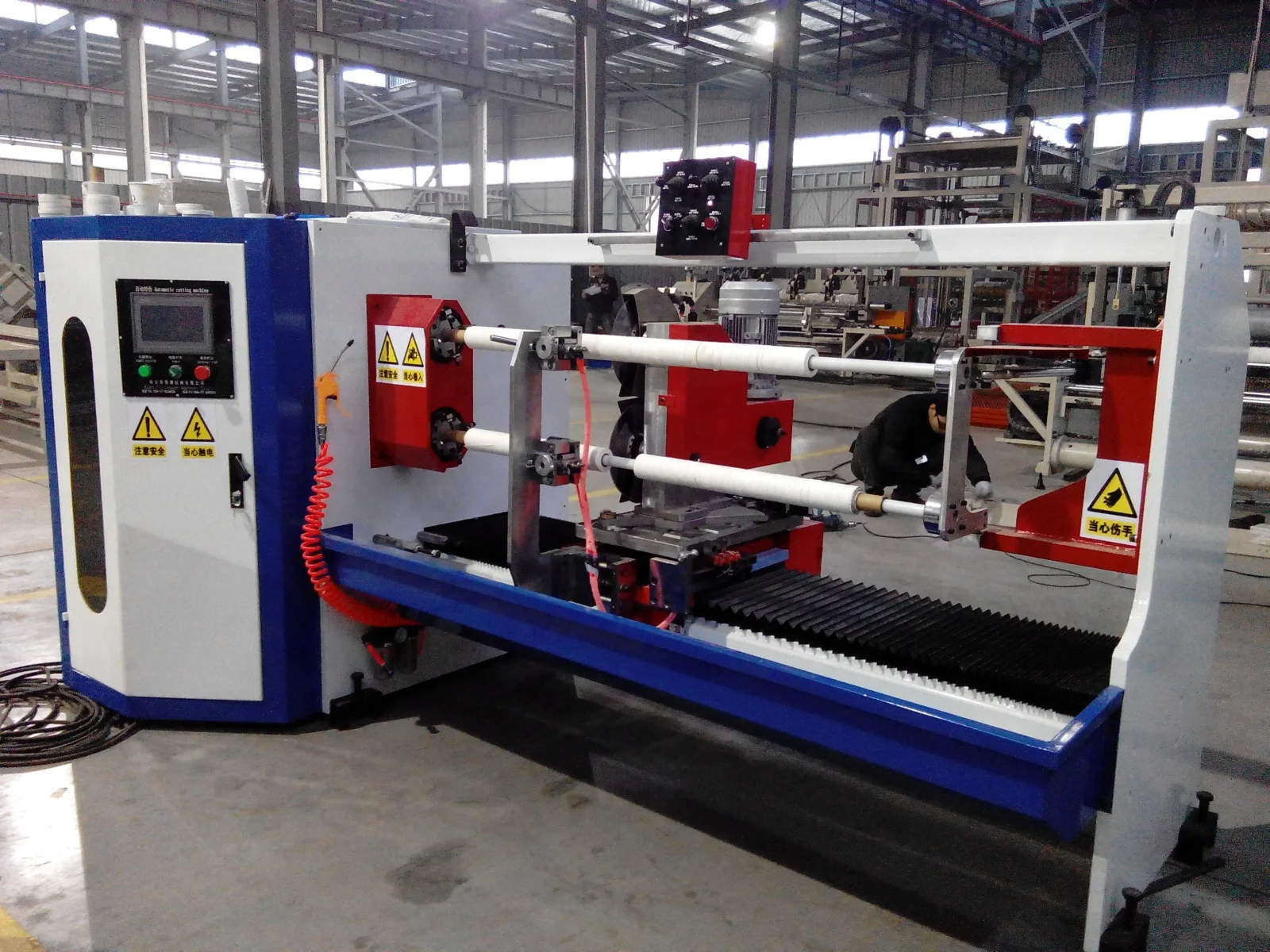

BLQ-1200/600 Two Shafts Adhesive Masking BOPP gum Tape Cutting Machine
Application:
—This machine is for cutting adhesive tape. Especially, it has a good performance in cutting tapes which request high-precision cutting, such as electricity industries and automobile industry tapes.
—Such as, TAC-TAPE, Kapton tape, aluminum tape, double-side tape, masking tape, fabric tape, polyester tape, PE film, PVC insulated tape, PET tape, foam tape, 3M series, and so on.
Characteristic:
1. Blade Feeding: Use hydraulic system for feeding blade which makes the cutting stable. The feeding speed can be adjusted.
2. Precise Cutting Position Fix: Use servo motor driving, linear guide rail and ball screw bar to fix position; all these devices are very precise and stable so as to assure the precise cutting.
3. Security System: There are many mechanical devices and electromagnetic inductors adopted on the machine for protecting the user and the machine itself and, once the air pressure is out of safe value and the clamp opened accidently, the machine will automatically start the protection system and alarm so as to protect the user.
4. Lubricating and Cooling System: When cutting, the machine can lubricate and cool down the blade automatically so as to get a smooth cutting and never melt the tape.
5. Control System and Function Input: Use PLC for data processing and functions controlling. All the operations are centralized to the control panel; there are two control panels on the machine, one is the touch screen and the other one is the operating panel. It is very convenient because the user can control the machine from both these two places. Besides, all the setting is on the touch screen and can set 10 different sizes at a working cycle.
6. Main Motor Driving: The shaft motor and the blade motor are driven by the vector inverter (frequency converter); they work stable. The speed of the motors can be adjusted conveniently from the control panel so as to suit different materials. Besides, the speed reducer is adopted to the blade motor so as to assure that the blade cuts on the roll with a strong torsion and, and the blade will work more stable.
7. Cutting Shaft and Blade: Adopt two shafts and two blades system for cutting; it has a higher efficiency than the single shaft cutting machine.
Application:
—This machine is for cutting adhesive tape. Especially, it has a good performance in cutting tapes which request high-precision cutting, such as electricity industries and automobile industry tapes.
—Such as, TAC-TAPE, Kapton tape, aluminum tape, double-side tape, masking tape, fabric tape, polyester tape, PE film, PVC insulated tape, PET tape, foam tape, 3M series, and so on.
Characteristic:
1. Blade Feeding: Use hydraulic system for feeding blade which makes the cutting stable. The feeding speed can be adjusted.
2. Precise Cutting Position Fix: Use servo motor driving, linear guide rail and ball screw bar to fix position; all these devices are very precise and stable so as to assure the precise cutting.
3. Security System: There are many mechanical devices and electromagnetic inductors adopted on the machine for protecting the user and the machine itself and, once the air pressure is out of safe value and the clamp opened accidently, the machine will automatically start the protection system and alarm so as to protect the user.
4. Lubricating and Cooling System: When cutting, the machine can lubricate and cool down the blade automatically so as to get a smooth cutting and never melt the tape.
5. Control System and Function Input: Use PLC for data processing and functions controlling. All the operations are centralized to the control panel; there are two control panels on the machine, one is the touch screen and the other one is the operating panel. It is very convenient because the user can control the machine from both these two places. Besides, all the setting is on the touch screen and can set 10 different sizes at a working cycle.
6. Main Motor Driving: The shaft motor and the blade motor are driven by the vector inverter (frequency converter); they work stable. The speed of the motors can be adjusted conveniently from the control panel so as to suit different materials. Besides, the speed reducer is adopted to the blade motor so as to assure that the blade cuts on the roll with a strong torsion and, and the blade will work more stable.
7. Cutting Shaft and Blade: Adopt two shafts and two blades system for cutting; it has a higher efficiency than the single shaft cutting machine.
Model | BLQ-1200 | BLQ-600 |
Max Width of Mother Roll | 1200mm | 600 |
Max Diameter of Mother Roll | 120mm | 120mm |
Range of Slitting Width | 0.5-1200mm | 0.5-600mm |
Slitting Precision | ±0.03-±0.08mm | ±0.03-±0.08mm |
Blade Feeding | Hydraulic | Hydraulic |
Speed | 0-1400r/min | 0-1400r/min |
Voltage | 380V 50HZ | 380V 50HZ |
Power | 8kw | 6kw |
Size | 2400×1250×1400mm | 1800×1250×1400mm |
Company Profile
RUIAN BILI TRADING CO.,LTD
Since the establishment of Ruian City Zhonghong Machinery Co.,Ltd in 2012, we have been engaged in designing, manufacturing and selling slitting machines, die cutting machines, hot stamp machines, coating machines and other mechanical equipment, which has won a good reputation among users in mainland China. In 2021, Zhonghong Company and Laker established Ruian Bili Trading Co.,ltd. Now we have accumulated more than 10 years of rich experience in the production and sales of the whole line in the industries of labels, tapes, medical dresses, waterproof tapes, packaging materials and so on. BILI will spare no effort to transfer the mature production line equipment, experience and formula from China to overseas customers.
Why choose us?
1. Company: 10 years of experience in design, manufacturing, sales and export
2. People: We are passionate, enthusiastic, professional, responsible and friendly
3. Concept: To be a company with faith and live up to customers' expectations.
4. After-sales service: respond within 24 hours, provide solutions within 48 hours, except holidays, send technicians within one week after the epidemic.
5. Quality: Each equipment is shipped after actual operation and testing.
6. Guarantee: One year warranty, lifetime maintenance.
7. Payment terms: 30% deposit before production, 70% balance before delivery.
3. Concept: To be a company with faith and live up to customers' expectations.
4. After-sales service: respond within 24 hours, provide solutions within 48 hours, except holidays, send technicians within one week after the epidemic.
5. Quality: Each equipment is shipped after actual operation and testing.
6. Guarantee: One year warranty, lifetime maintenance.
7. Payment terms: 30% deposit before production, 70% balance before delivery.
My dear customers
Product packaging&shipping
FAQ
1. Are you manufacturer or trading company?
We are manufacturer and trading company.
2.How about your after sales service?
We can respond within 24 hours, provide solutions within 48 hours, except holidays, send technicians within one week after the epidemic, one year warranty, lifetime maintenance.
3.How about your equipment quality?
Each equipment is shipped after actual operation and testing.
4.What’s the payment terms?
Payment terms: 30% deposit before production, 70% balance before delivery.
5.What is the shipping method?
It could be shipped by sea,by air ect, Usually by sea, if by air, depend to machine size.
Please confirm with us before placing orders
6.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit
We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
We are manufacturer and trading company.
2.How about your after sales service?
We can respond within 24 hours, provide solutions within 48 hours, except holidays, send technicians within one week after the epidemic, one year warranty, lifetime maintenance.
3.How about your equipment quality?
Each equipment is shipped after actual operation and testing.
4.What’s the payment terms?
Payment terms: 30% deposit before production, 70% balance before delivery.
5.What is the shipping method?
It could be shipped by sea,by air ect, Usually by sea, if by air, depend to machine size.
Please confirm with us before placing orders
6.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit
We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Похожие товары

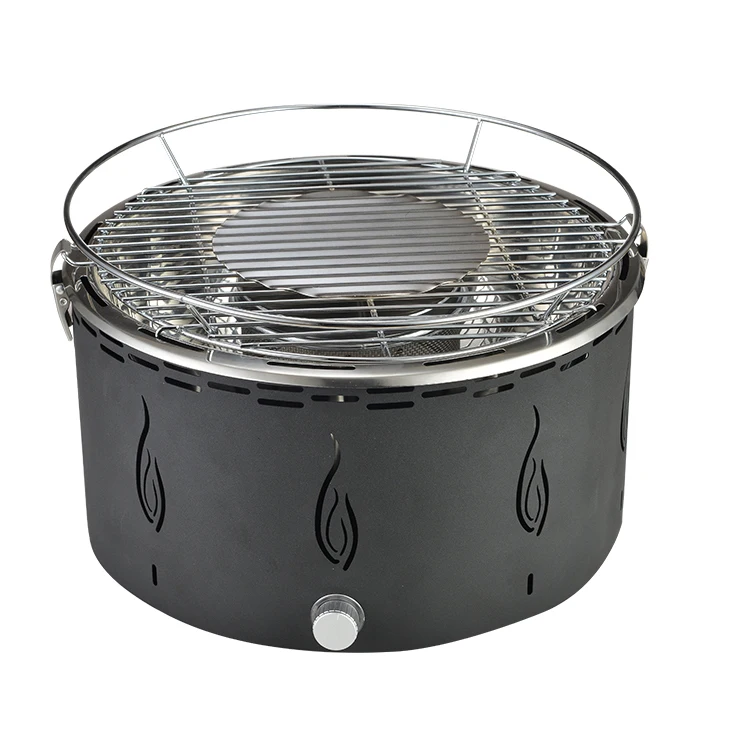

Корейский сковорода для барбекю для кемпинга, простой уголь, маленький уголь, нержавеющая сталь, барбекю, быстрый запуск, угольный гриль, распродажа
38,50 $ - 78,00 $

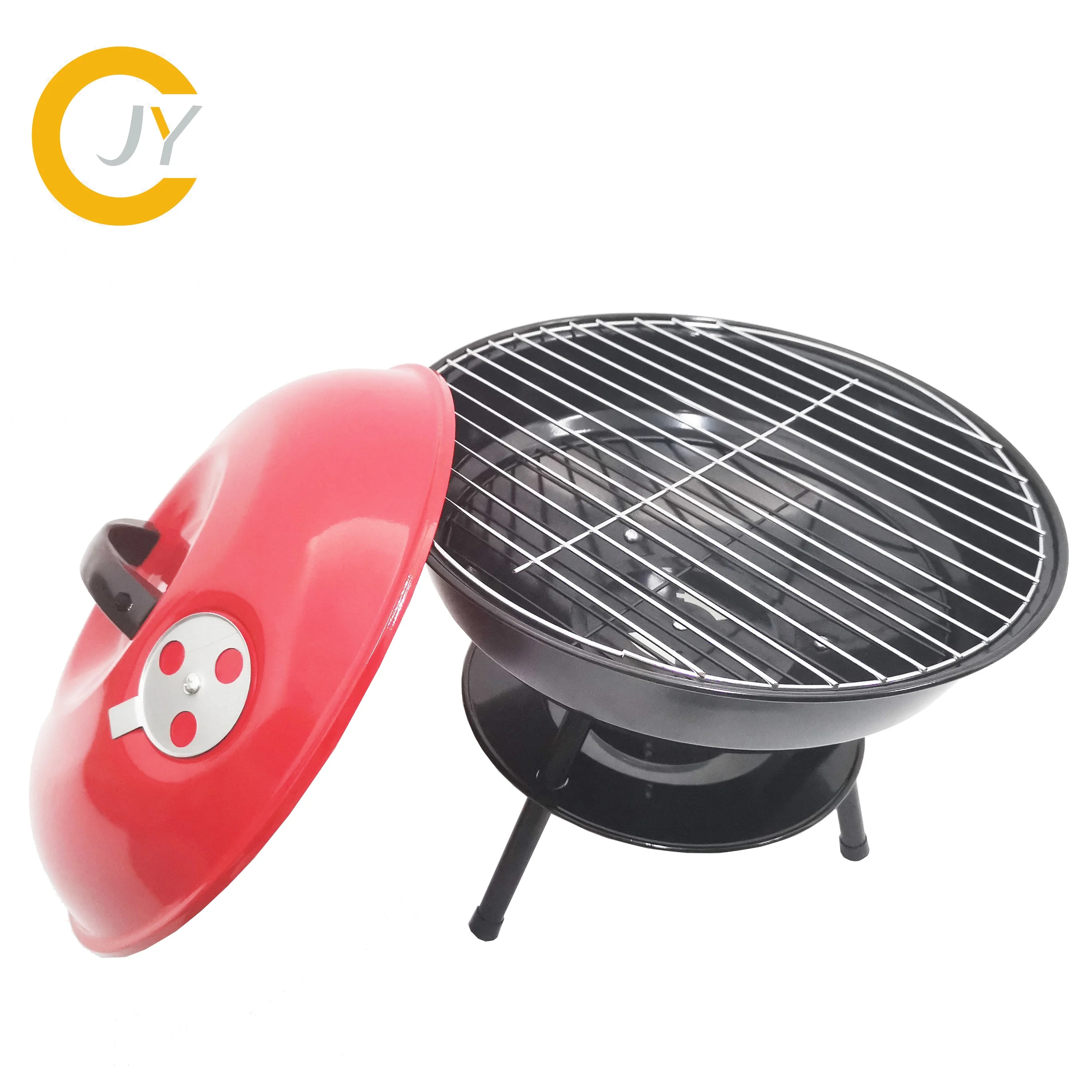

Чайник гриль открытый портативный уголь гриль
7,00 $ - 7,30 $
Стандартное оборудование Toten, система сдерживания горячего/холодного прохода для интернет-центра обработки данных, серверной комнаты
3 000,00 $ - 5 000,00 $

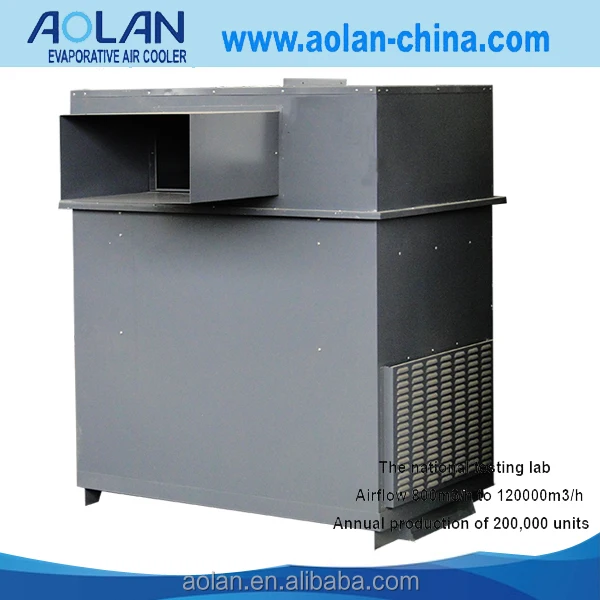

Отсутствие влажности при высокой эффективности охлаждения, непрямой испарительный охладитель точки росы
