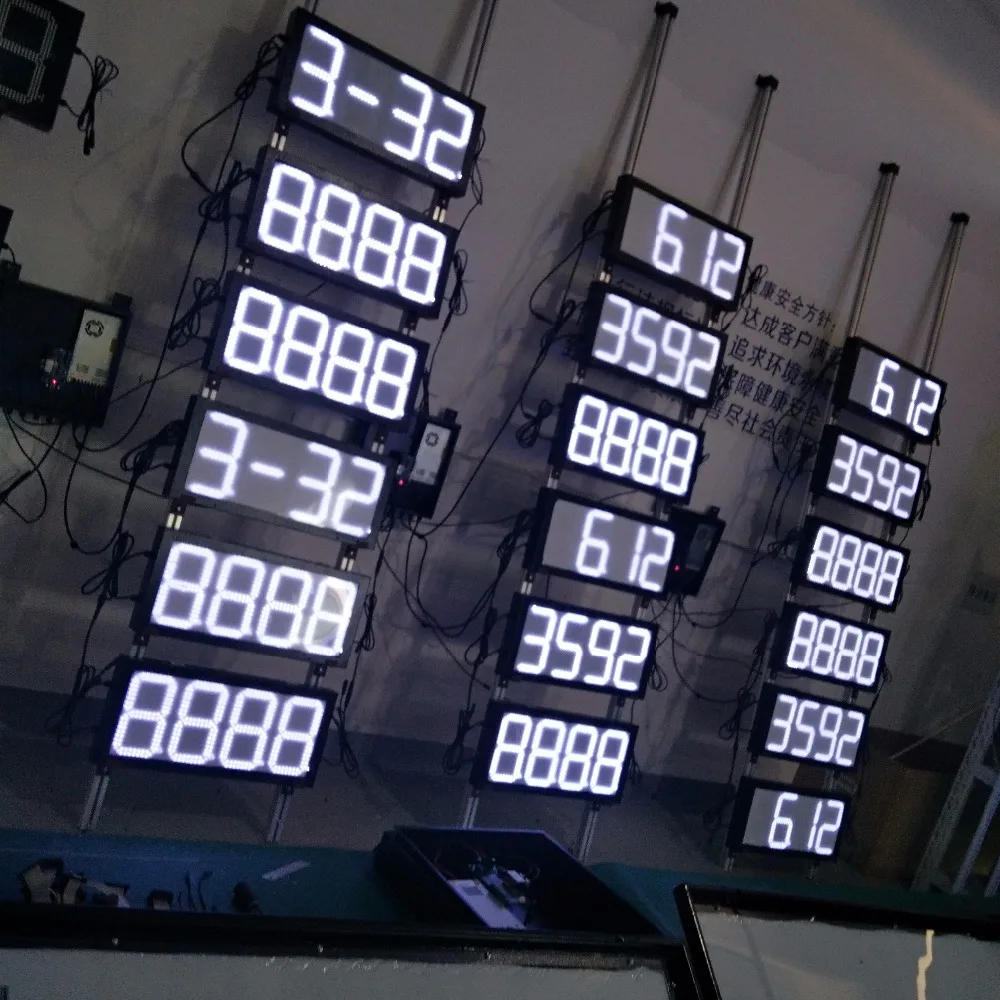

7 8 10 12 16 18 20 22 24 32 дюйма большой цифровой 7-сегментный светодиодный знак цены на автозаправочные
326,00 $ - 346,00 $
Оптовая продажа высококачественный измеритель плотности вилки для дизельного шлама
- Категория: >>>
- Поставщик: Shandong Aipuxin Automation Instrument Co. Ltd.
Сохранить в закладки 1600367027183:
Описание и отзывы
Характеристики
Products Description
The plug-in density meter can perform density detection online in real time. It can be used for process control of products with density as the basic parameter or quality control with reference to concentration percentage. It is used for interface detection in multi-industry and multi-product pipelines, density detection of stirred mixtures, end-point monitoring of reactors, and interface detection of separators.
Tuning fork density transmitter can display together: density, mass percentage, temperature
Tuning fork density transmitter can display together: density, mass percentage, temperature
Tuning fork density meter parameter specification table | ||
model | APX301 | |
Measuring range | 0 – 2.5 g /cc (0 – 2500 kg/m3),0~100.0% | |
Calibration range | 0 – 2.5 g /cc (0 – 2500 kg/m3),0~100.0% | |
measurement accuracy | ± 0.001 g /cc (± 1 kg/m3),±0.1% | |
Operating temperature range | 20-80℃ | |
Working pressure | 2mpa | |
Fluid viscosity range | 0 – 600 cP | |
Built-in temperature sensor | Digital sensor | |
Sensor material | 316L/316 stainless steel sprayed PTFE | |
Material of connecting rod and flange | 316L/316 stainless steel sprayed PTFE | |
Power supply | 24VDC,≥50 mA | |
Analog signal output | 4-wire system/4 -20 Ma/Modbus485 | |
Process connection | DN50 PN16 20592 | |
Protection level | IP65 | |
Electrical Interface | M20*1.5 | |
shell | Aluminum alloy | |
length | 150MM | |
Explosion-proof grade | Exd IICT6 Gb | |
Explosion-proof certificate number | SYEx20.03186 | |
Installation requirements | The minimum is DN150, the flow velocity is less than 5m/S, and the measuring position is full without bubbles | |
Product Display
Details Images
Product Application
Tuning fork density meter application: measuring the density of lime slurry, low-corrosion liquid industries, such as: oil field refining, food and beverage, paper industry, chemical acid and alkali solutions. Liquor, salt, printing and dyeing industries. Lime slurry, desulfurization circulating slurry, oil tank density measurement, salt pond density measurement, sewage density measurement, alcohol density measurement, battery sulfuric acid density measurement, cutting fluid density measurement, electroplating pool density measurement. According to different media, choose the corresponding material 316 stainless steel, 2205 two-way stainless steel, PTFE sprayed PTFE, titanium alloy, Hastelloy alloy
Packaging & Shipping
Company Profile
Jining aipuxin automation instrument co., LTD is a domestic emerging automation enterprise specialized in the development, design and production of material level instrument products. In recent years, it has been conducting academic discussions and research projects with relevant research institutions at home and abroad. At present, the international advanced technology, combined with the market demand, has developed a series of tuning fork level switch, radio frequency capacitor level switch, magnetostrictive level meter, radio frequency capacitance level meter, microwave material level switch, radar level meter, tuning fork density meter and other products, product performance has reached or close to the domestic advanced level.The company's products are mainly for dealers and end users all over the country, suitable for all kinds of modern industrial enterprises. With the core value of "quality first, service with heart" over the years, apletter has met the needs of customers, shaped the good reputation of the enterprise and promoted the sustainable development of the enterprise and the continuous growth of the team through professional technology and unremitting efforts. At the same time, a perfect after-sales service system has been established, which can quickly solve the problems encountered by partners and terminal operators when using the products. We believe that through our continuous efforts and pursuit, epson will continue to develop and grow.The company's products in the continuous innovation, upgrading, has passed the ISO9001 quality system recognition, SIL safety certification, explosion-proof certification. Research, development, design, production are strictly in accordance with international standards, each link has strict operating procedures, to ensure that different products in different industries demand.
FAQ
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Похожие товары

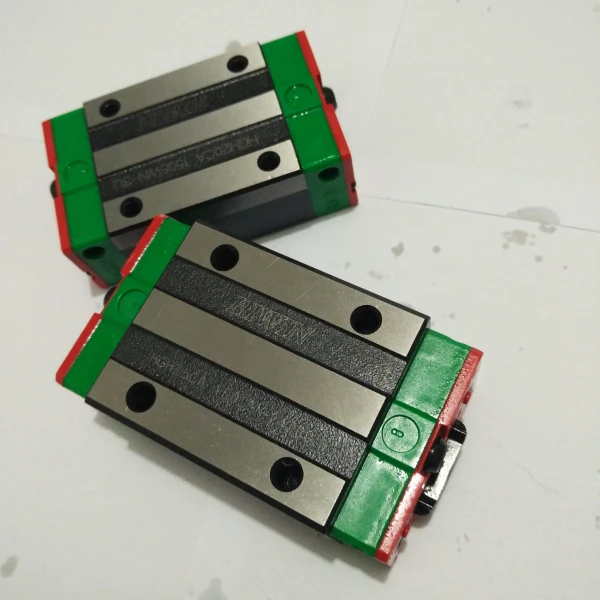

Тайвань 100% оригинал линейным направляющим hiwin CGH25CA

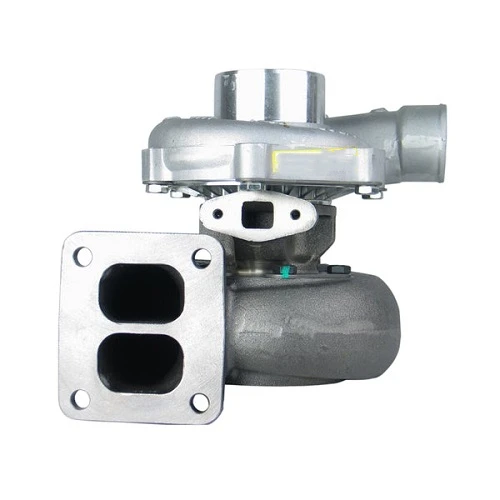

Турбокомпрессор T04B Turbo 705739-0001 для Hitachi 705739-5001S 705739-0001 705739-1 114400-1070

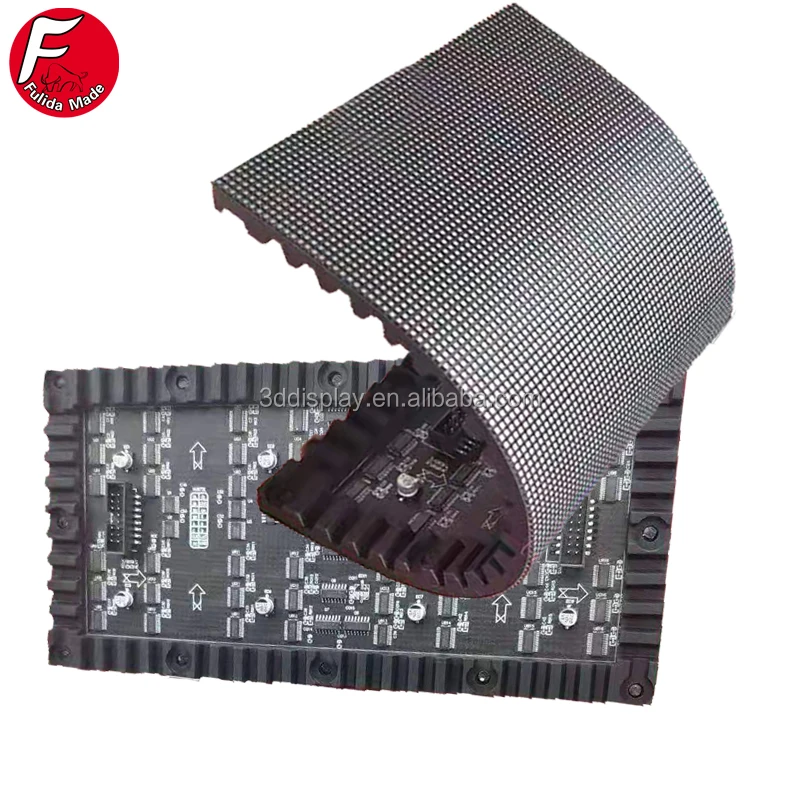

Цена по прейскуранту завода-изготовителя P1.5-P4 гибкий круг светодиоидная видеопанель светодиодный модуль изогнутый закруглённый Мини экран для

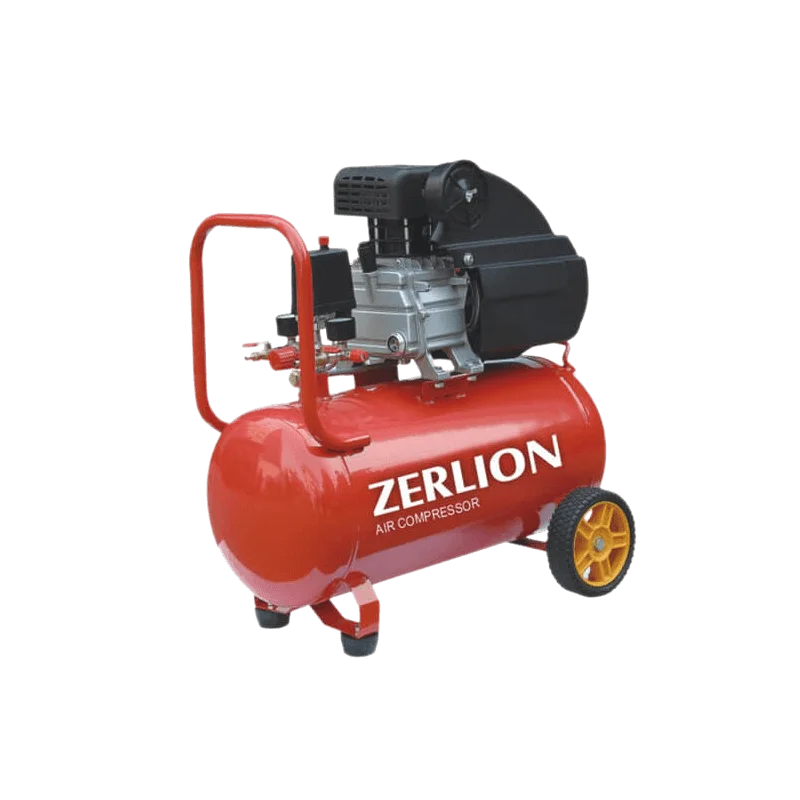

Винт Vsd жидкое кольцо Hitachi Ac цена в Индии поршневой воздушный компрессор
71,00 $ - 78,00 $

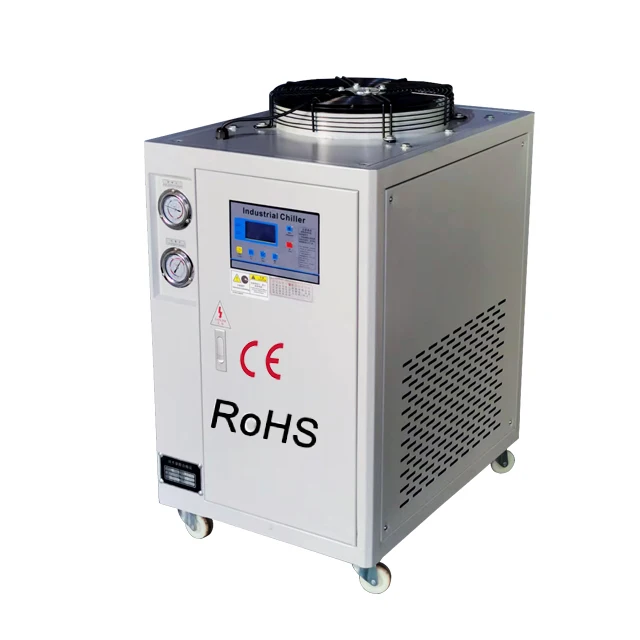

8 кВт, небольшой охладитель Гликоля с компрессором hitachi

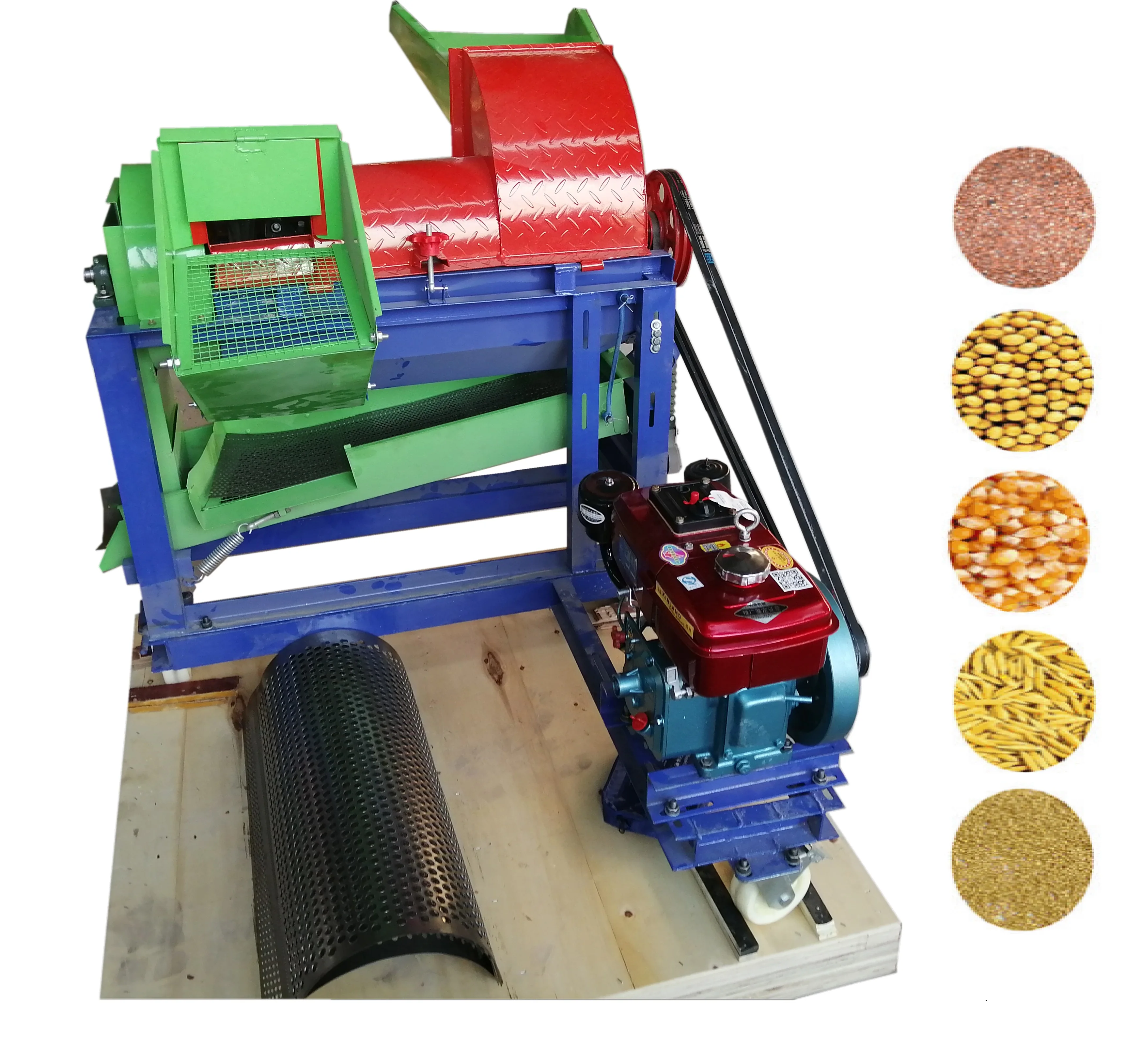

Дизельное сельскохозяйственное оборудование маленькая молотилка для пшеницы и риса молотильная машина
270,00 $ - 275,00 $

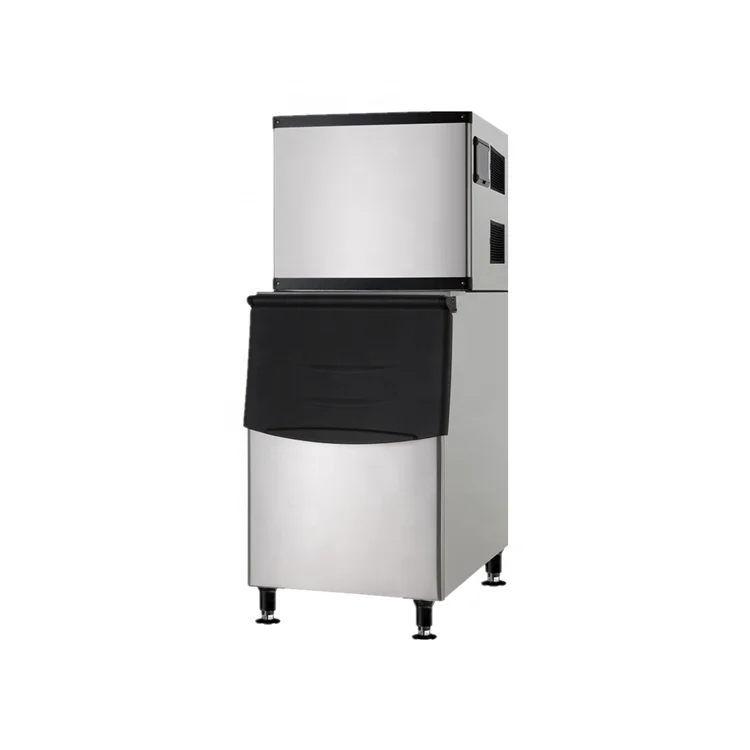

Коммерческий 227 кг/24 ч известный компрессор квадратный Кубик Льда машина (JSK-500P)
