Машина для изготовления сигарет бумажная коробка складная склеивание пищи торт пицца 4 6 углов тарелка крышка соломенная чашка папка склеивающая бумага En

Code

Description

Model

AS-800

SPEED

Max liner speed 260m/min

Paper material

Cardboard 210-800gsm, E, F, N corrugated

Way of folding

Fold 1 and fold 3 are 180°and 135°

Fold 2 and fold 4 are 180°

Length x Width x Height

15.5x1.45x1.3m

Net Weight

3.8T

Way of transmission

Timming belts

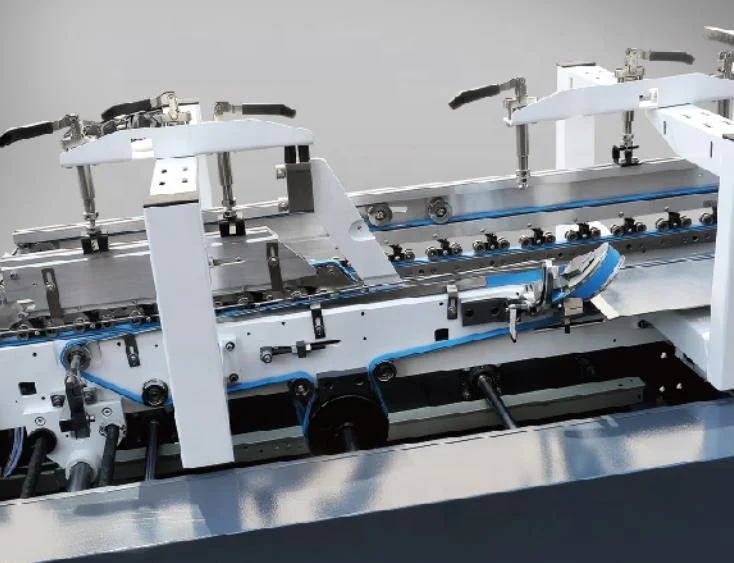

AS Series automatic folder-gluer for the processing of linear boxes with pre-breaking, double-skinned boxes, boxes with self-closing bottom and boxes. Suitable for compact cardboard from 210 to 800 gr / m2 and corrugated E, F, N waves.

OPTIONAL

Gluing device complete with 4-channel programmer, 3 cold glue dispensers

complete with PLC and touch screen

Remote maintenance

OPTIONAL

,

Motorized carrier adjusting function

GENERAL CONDITIONS

PAYMENT:

T/T

a) 30% DOWN PAYMENT TO THE ORDER

b) 70% MACHINE NOTICE READY TO DEPART FROM CHINA

WARRANTY

Guarantee:

12 months from the date of testing, the guarantee is not liable for parts of normal wear and is related only to spare parts and does not include labor for disassembly and reassembly of the same.

The warranty does not cover improper use of the machine by the operator, all direct and indirect damages will be borne by the buyer, with precise indemnity from the seller.

PACKAGING:

In wooden pallets 1x40GP

INSTALLATION

INSTALLATION: of the machine will be done by our engineer.

a.Spare parts guarantee for one year in machine arrival.

b.Send the technician for installation & training. Buyer bears the cost (Visa,round trip tickets,accommodation and USD 80 per day allowance for technician)

Payment: As indicated above

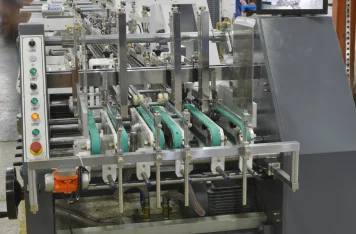

 Feeding Section:

2. With Vibrator

3. With Button for control machine working

4. Box feeding length adjustable

5. Blank stacking width up to 400mm

 6.Feeding & folding belts: Nitta Japan

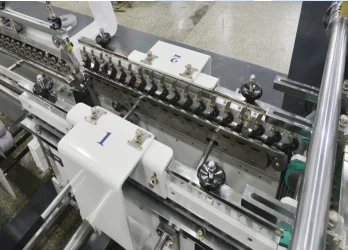

Pre-breaking 1st and 3rd lines of blanks, which make box easier to be opened manully or machanically.

Crash Lock Bottom Function

With upper glue tank,

Folding bottom by hooks

Lower gluing tank

With two lower gluing tank at left and right side for strightline box gluing.

Folding & Closing Section

Fold the glued blanks.
