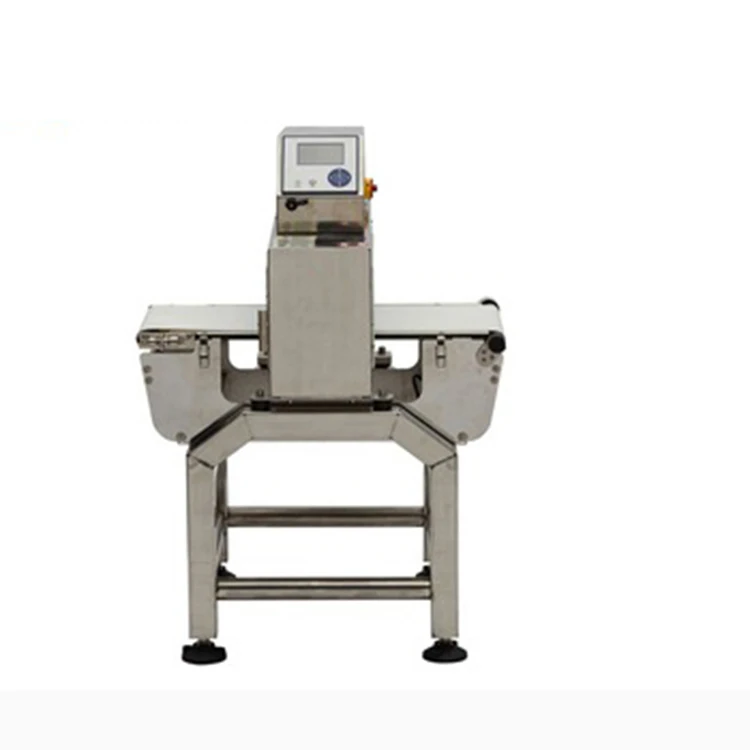

Высокая чувствительность Бестселлер молочных продуктов для пищевого металлоискателя для мяса
4 600,00 $ - 5 000,00 $
Автоматизированный 3D станок с ЧПУ DMC5040 ценовой диапазон
- Категория: >>>
- Поставщик: Jinan Hankui International Trade Co. Ltd.
Сохранить в закладки 1600367358412:
Описание и отзывы
Характеристики
Product Description

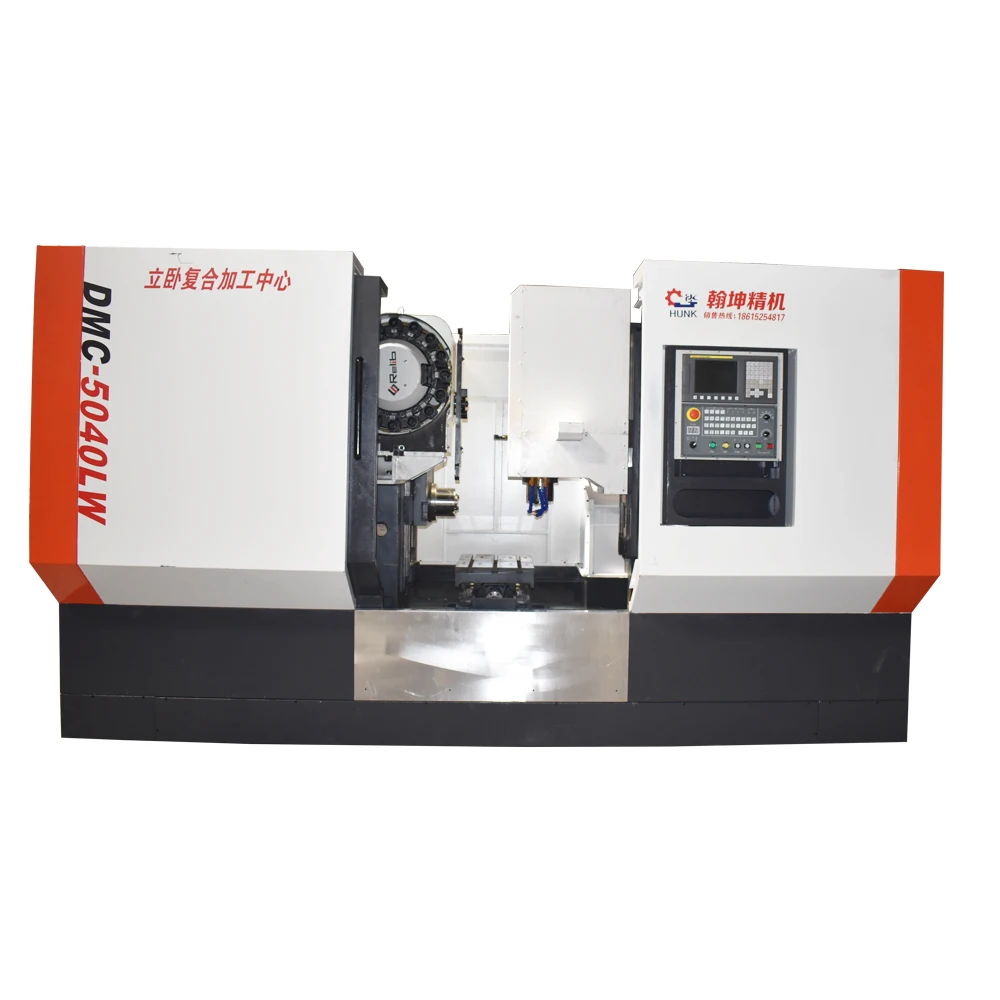

Introduce of DMC5040

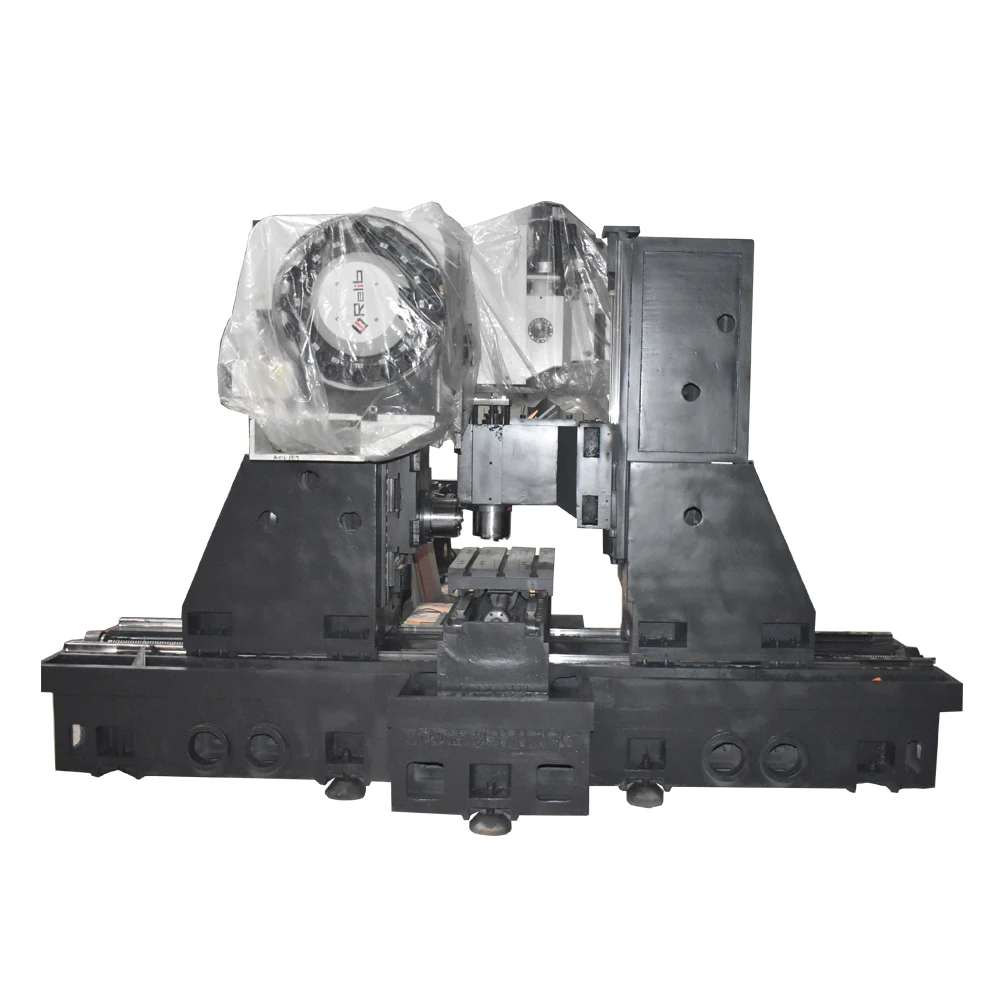

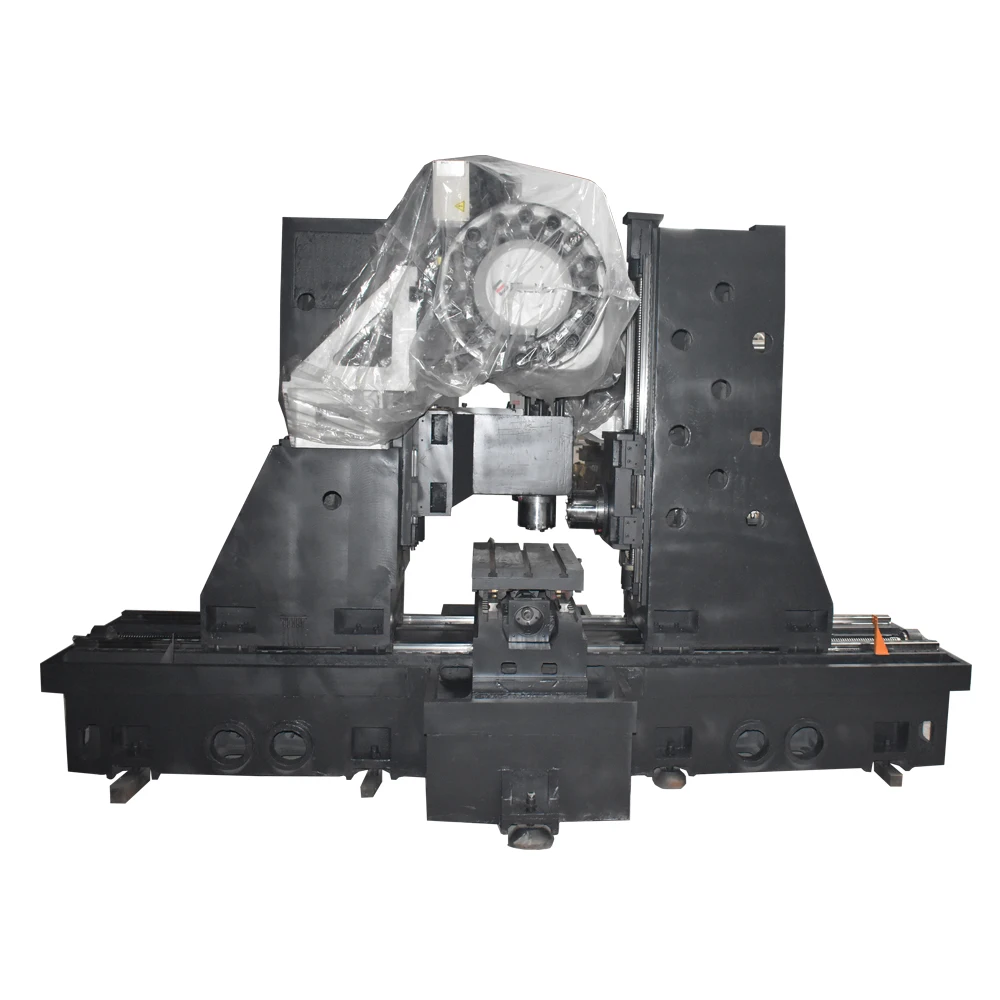

The vertical-horizontal composite machining center is a fully enclosed protection, AC servo drive, and can be controlled by a dual-channel system for five-axis control. It can cut straight lines, arcs, and spatial irregularities. It has tool diameter, screw clearance, and pitch errors. Equal compensation function; equipped with 20/30 tool magazine and automatic tool change manipulator, and equipped with the function of vertical and horizontal machining at the same time, which can reduce auxiliary time and improve work efficiency.
This product has the characteristics of high speed, precision, high rigidity, and high reliability. It is suitable for the efficient processing of complex shapes and special-shaped parts and small and medium-sized box parts in the mechanical processing fields of aerospace and military industry, IT industry, precision instruments, mold manufacturing etc.
This product has the characteristics of high speed, precision, high rigidity, and high reliability. It is suitable for the efficient processing of complex shapes and special-shaped parts and small and medium-sized box parts in the mechanical processing fields of aerospace and military industry, IT industry, precision instruments, mold manufacturing etc.
Vertical type
X/Y/Z axis travel 500mm/500mm/650mm
16 tools Automatic tool change
5.5KW/7.5KW BT40
Horizontal type
X/Y/Z axis travel 500mm/650mm/500mm
16 tools Automatic tool change
5.5KW/7.5KW BT40
5.5KW/7.5KW BT40
Rotary table can turning 0°~360°
working table: 500mm*500mm
The machine adopt siemens828D, you can use make double program in this system, and be used for vertical type and horizontal type of machine.
Specification
Item | model | DMC5040 | ||
Turntable | working table | 500*500mm | ||
type | vertical type | horizontal type | ||
Travel | X/Y/Z moving range | 500/500/650mm | 500/650/500mm | |
Distance from the center line of the center axis to the center line of the worktable | -200~300mm | 100-750mm | ||
Distance from spindle head to worktable | 90-740mm | 75-575mm | ||
Spindle | Spindle taper | BT40 | ||
Spindle power | 5.5KW/7.5KW | |||
Speed range of spidnle | 6000RPM/8000RPM (option） | |||
Tool magazine | Tool shank | BT40 | ||
Speed of change tool | 2 sec | |||
Tool magazine capacity | 16 tools or 20 tools(option) | |||
Other | Air pressure | 4~6kgf/cm² | ||
N.W | 8000kgs | |||
Packing & Delivery
Company Profile
Jinan Hankui International Trade co., LTD. is a high tech enterprise and also an exporter, integrated with manufacturing, processing and sales of machine tools, which has more than 10 years experience in machine tools production. As the strategic partner of Jinan First Machine Tool Co., Ltd, we have mastered the advanced machine tool technology and dedicated to customers domestic and abroad and made an excellent achievement.
The main products are machine tools and metal parts, the production base locates in Qingzhou, Shandong province. Have a strong technical force and rich experience, the designers, R&D and engineering technicians have taken part in the design and production of advanced level machine tools in China, such as general utility horizontal machining center,vertical machining center, CNC vertical lathe, CNC slant bed lathe, etc.
With more than 10 years development, our products have occupied a large share in domestic and overseas market. Sales and services network have been established in many provinces and cities. With superior equipment, advanced technology, detection devices, we can take over all sort of standard and non-standard products manufacturing of all specifications in good quality. Our products have been sold to European countries, America, South East Asia and Middle East countries with high reputation.
In line with the purpose of "customers' demand is our goal" and dedicated to provide high quality CNC products and metal products for foreign customers, we warmly welcome customers at home and abroad to visit our factory. Sincerely hope to cooperate with you.
The main products are machine tools and metal parts, the production base locates in Qingzhou, Shandong province. Have a strong technical force and rich experience, the designers, R&D and engineering technicians have taken part in the design and production of advanced level machine tools in China, such as general utility horizontal machining center,vertical machining center, CNC vertical lathe, CNC slant bed lathe, etc.
With more than 10 years development, our products have occupied a large share in domestic and overseas market. Sales and services network have been established in many provinces and cities. With superior equipment, advanced technology, detection devices, we can take over all sort of standard and non-standard products manufacturing of all specifications in good quality. Our products have been sold to European countries, America, South East Asia and Middle East countries with high reputation.
In line with the purpose of "customers' demand is our goal" and dedicated to provide high quality CNC products and metal products for foreign customers, we warmly welcome customers at home and abroad to visit our factory. Sincerely hope to cooperate with you.
FAQ
1. who are we?
We are based in Shandong, China, start from 2015,sell to North America(30.00%),Mid East(22.00%),South America(20.00%),Northern Europe(12.00%),Southeast Asia(6.00%),Eastern Europe(6.00%),South Asia(4.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Flat Bed CNC Lathe,Slant Bed CNC Lathe,CNC Vertical Machining Center,CNC Horizontal Machining Center,Double Column CNC Machining Center
4. why should you buy from us not from other suppliers?
Jinan Hankui International Trade Co., Ltd. as a long-term partner with Jinan first Machine Tool Co., Ltd. , has more than 10 years experience of machine tools production .With good quality and pretty competitive price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2015,sell to North America(30.00%),Mid East(22.00%),South America(20.00%),Northern Europe(12.00%),Southeast Asia(6.00%),Eastern Europe(6.00%),South Asia(4.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Flat Bed CNC Lathe,Slant Bed CNC Lathe,CNC Vertical Machining Center,CNC Horizontal Machining Center,Double Column CNC Machining Center
4. why should you buy from us not from other suppliers?
Jinan Hankui International Trade Co., Ltd. as a long-term partner with Jinan first Machine Tool Co., Ltd. , has more than 10 years experience of machine tools production .With good quality and pretty competitive price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
Похожие товары

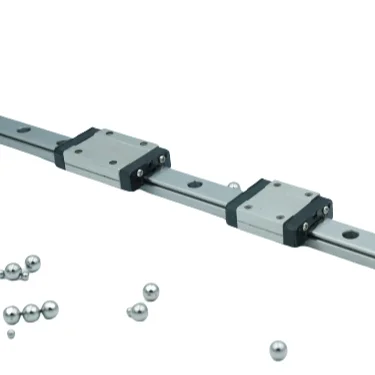

MGW9 линейная направляющая рельса для 3D-принтера и станков с ЧПУ

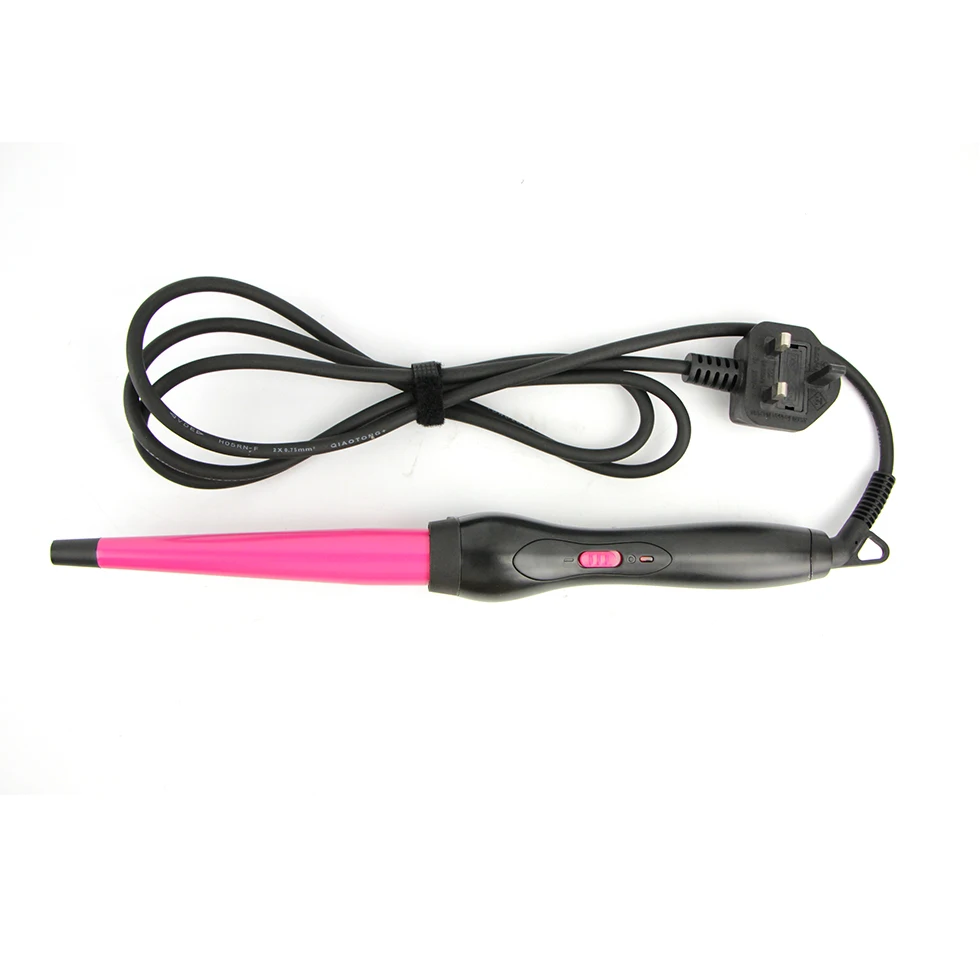

40 Вт новая электрическая Беспроводная профессиональная керамическая Волшебная бигуди для
4,20 $ - 4,50 $

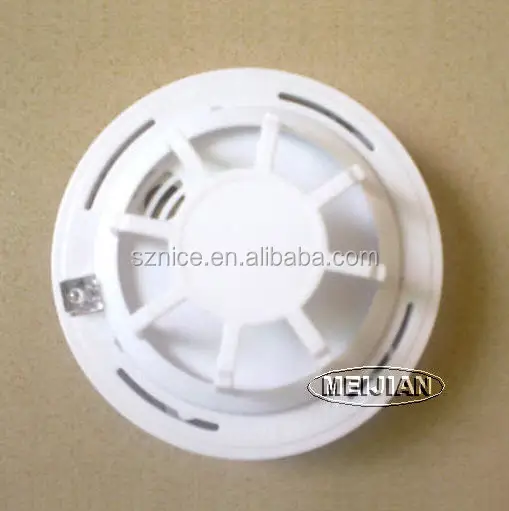

Высокочувствительный Термодетектор на батарейках 9 В для

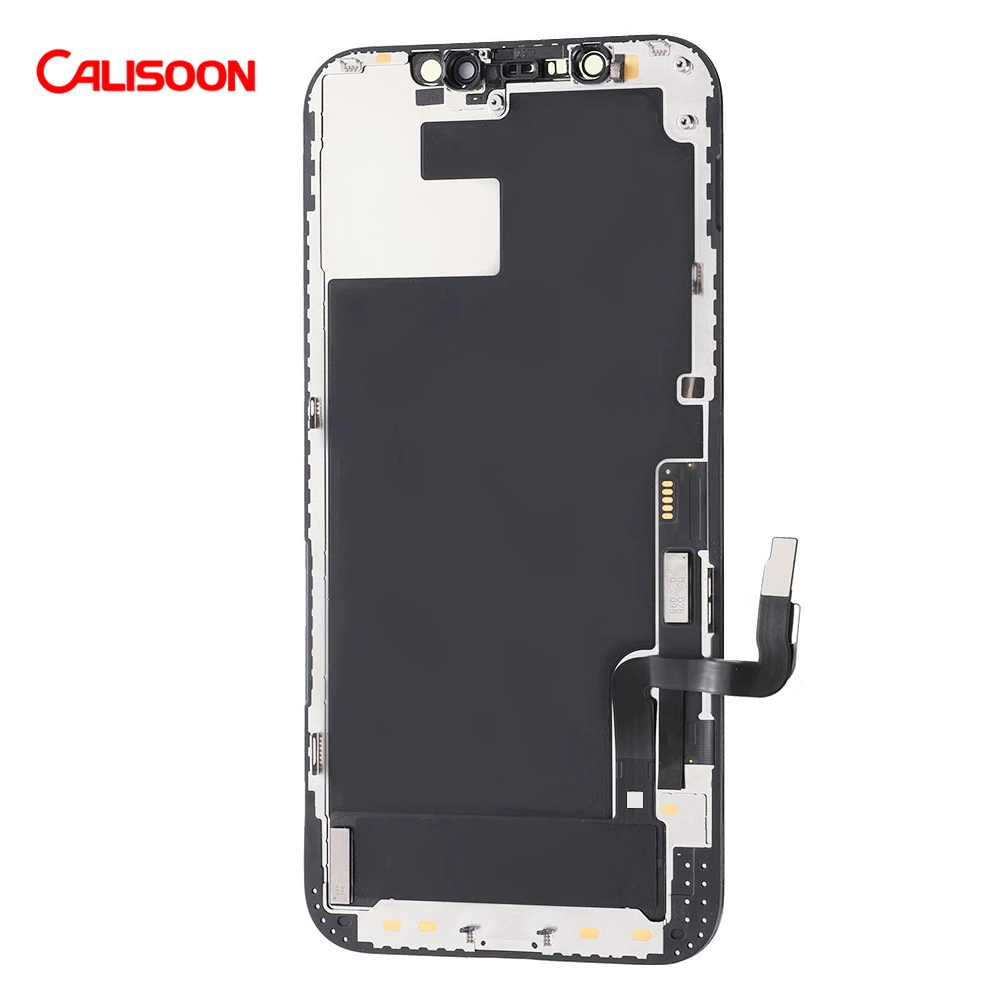

Экран tft для мобильного телефона, ЖК-экран для IPHONE 12 pro, ЖК-экран для телефона
8,00 $ - 20,00 $
Черный бархат Challah Крышка для шаббат с серебристый металлик Вышивка challah Крышка для еврейских свадебный подарок с декоративной отделкой

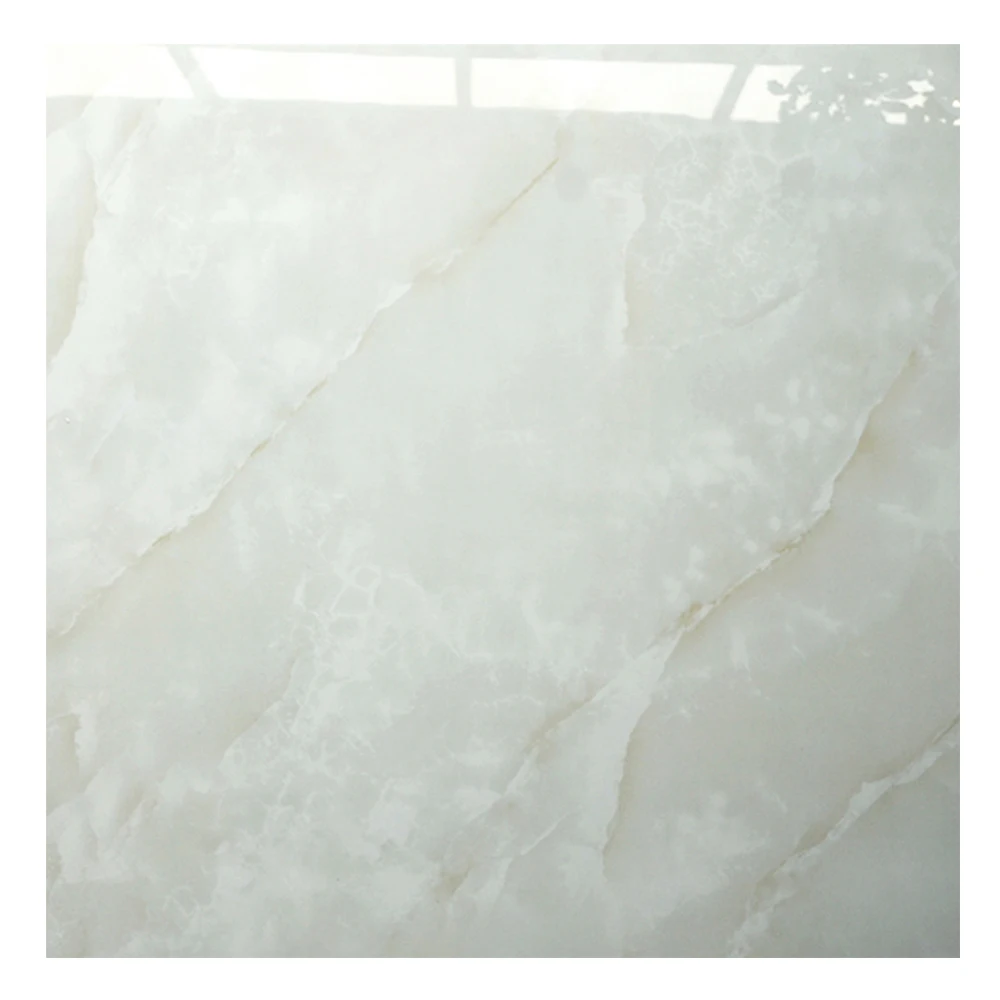

Оригинальный стиль выпрямленная белая глянцевая фарфоровая напольная плитка Майами рома 600x600
