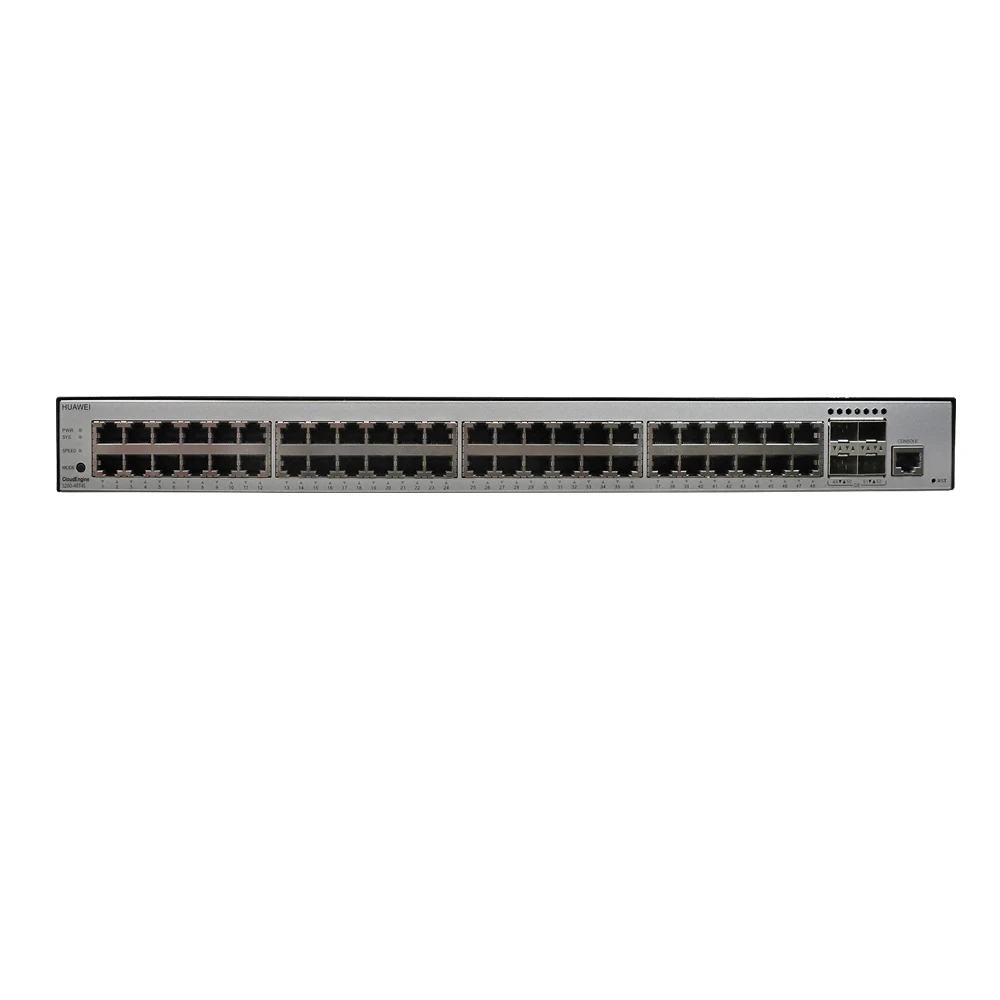

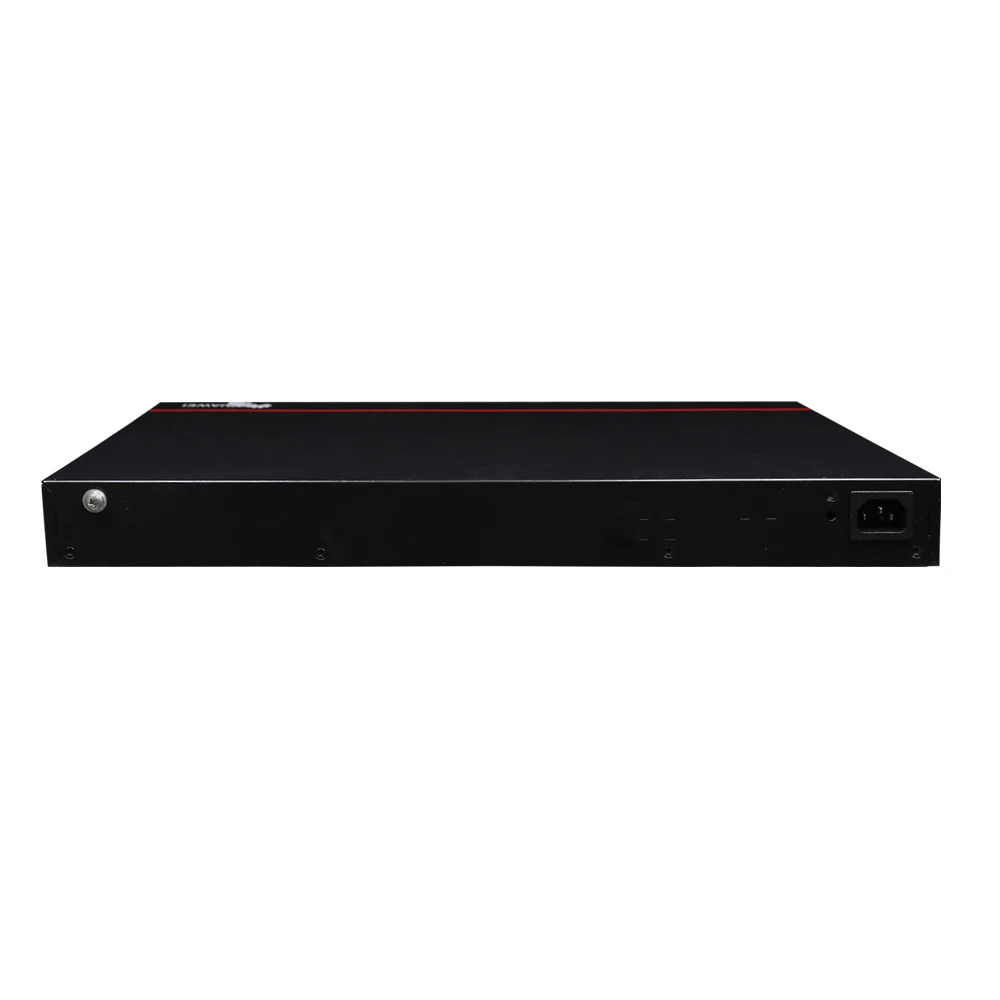

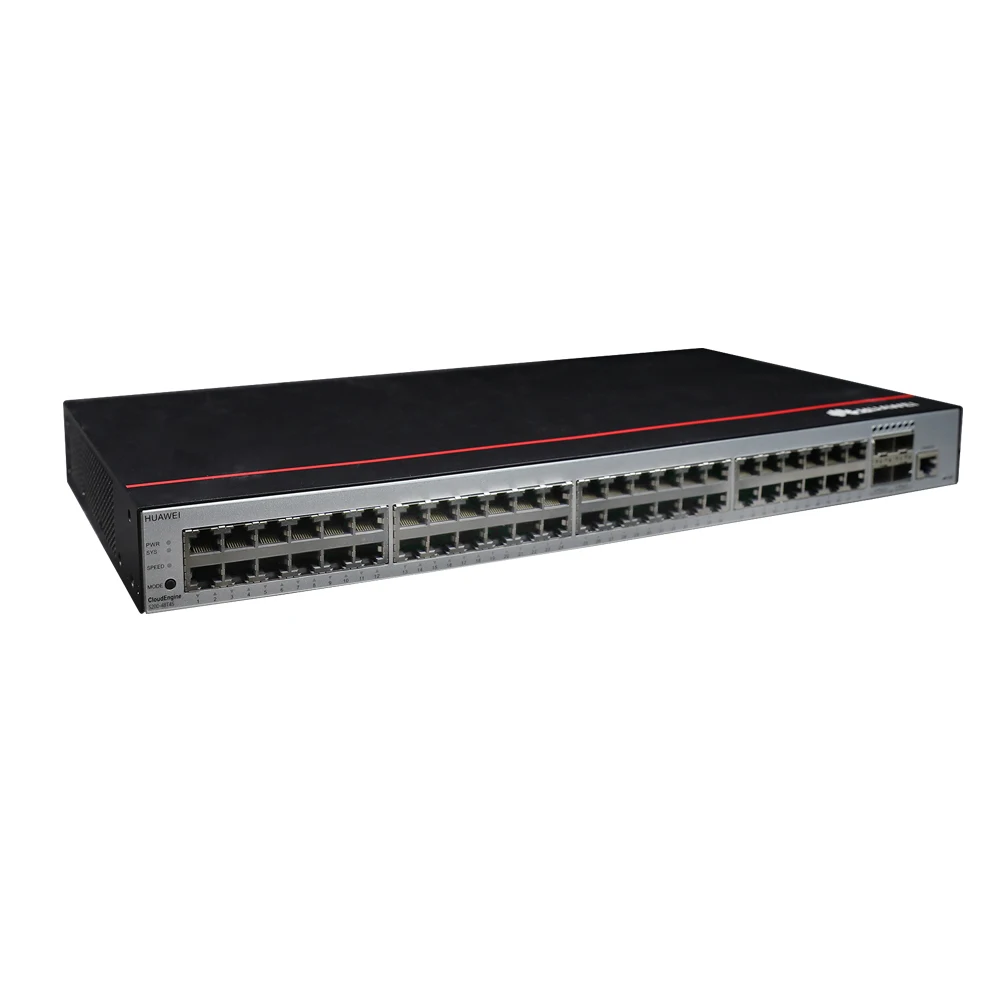

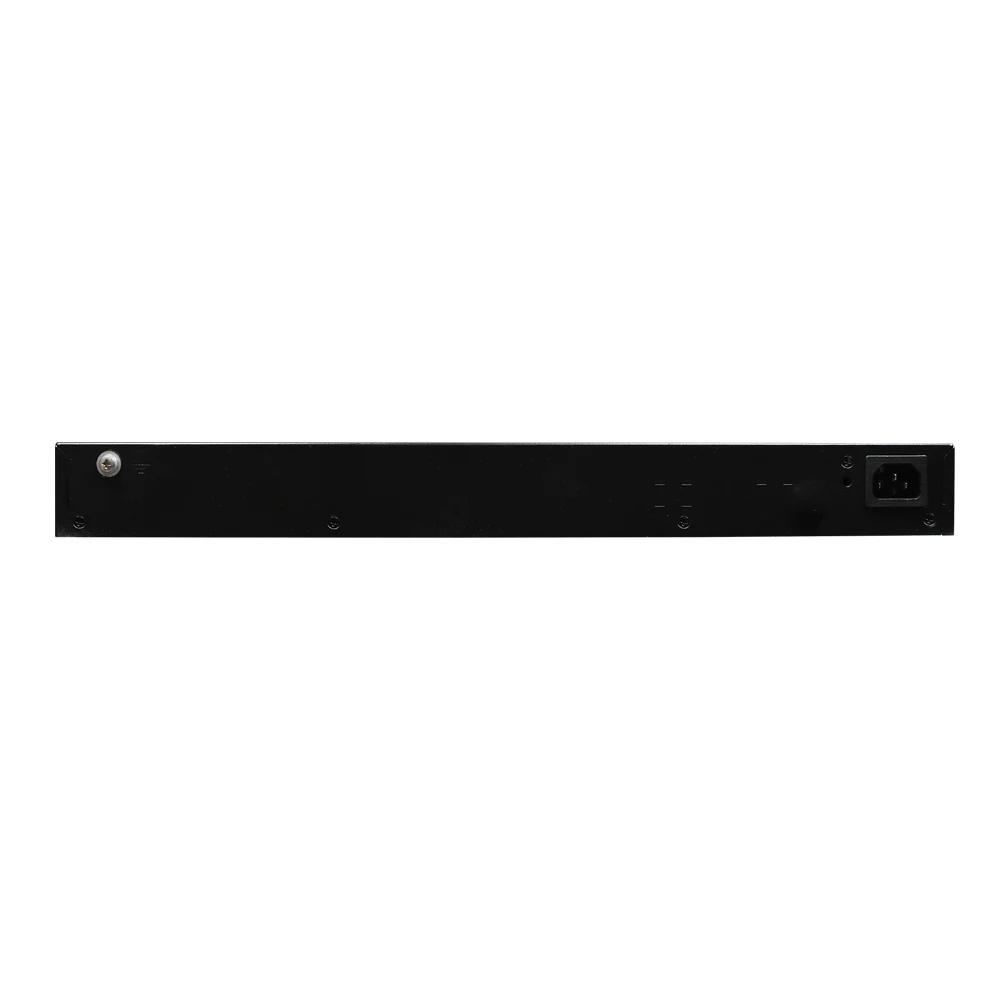

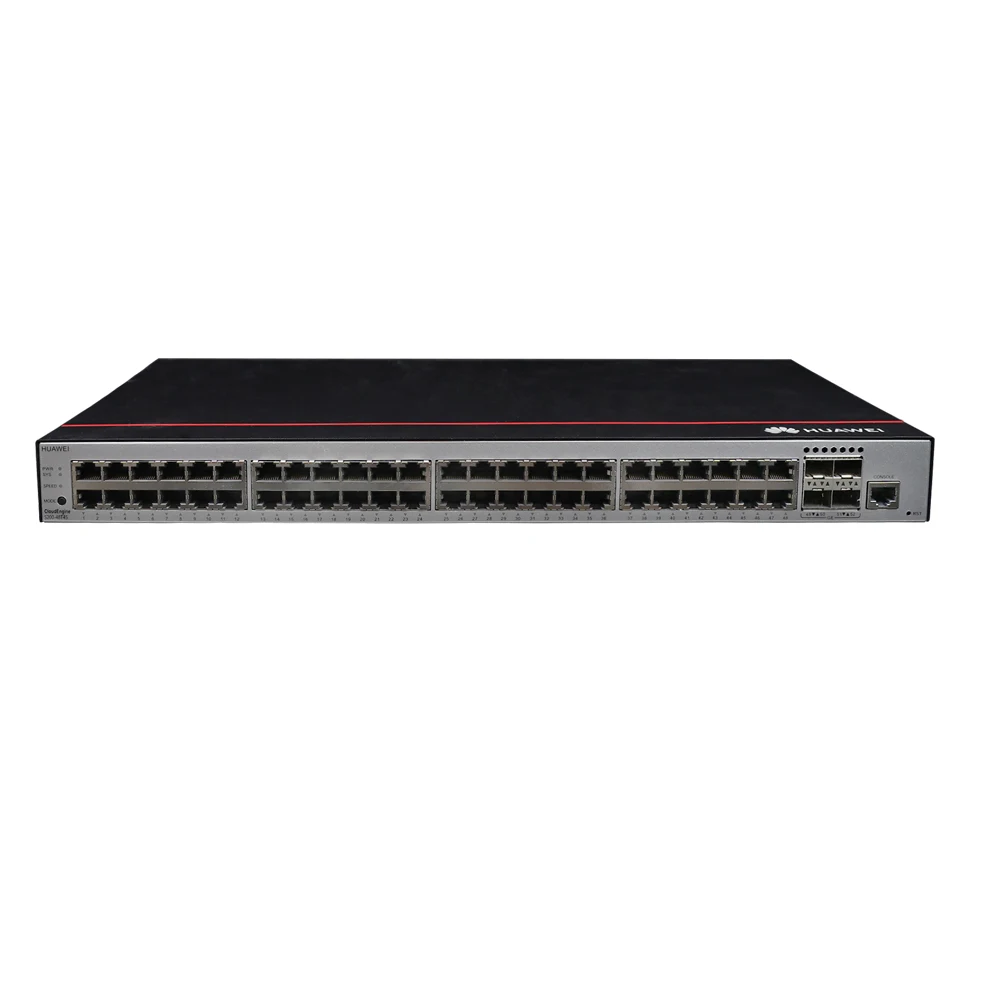

CloudEngine S200 48T4S Huawei 48 порт Gigabit Ethernet уровня 2 коммутатор доступа
- Категория: >>>
- Поставщик: Beijing Fengyuan Tengda Technology Co. Ltd.
Сохранить в закладки 1600367656861:
Описание и отзывы
Характеристики
Product Description
S200-48T4S
Overview
Table 1 Basic information about the S200-48T4S
Table 1 Basic information about the S200-48T4S
Item | Details |
Description | S200-48T4S (48*10/100/1000BASE-T ports, 4*GE SFP ports, AC power) |
Part Number | 98011342 |
Model | S200-48T4S |
First supported version | V200R020C10 |
Specification
Technical Specifications
Table 2 Technical specifications of the S200-48T4S
Table 2 Technical specifications of the S200-48T4S
Item | Specification |
Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) |
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) | |
Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
Chassis height [U] | 1 U |
Weight without packaging [kg(lb)] | 2.76 kg (6.09 lb) |
Weight with packaging [kg(lb)] | 3.74 kg (8.25 lb) |
Typical power consumption [W] | 43.3 W |
Typical heat dissipation [BTU/hour] | 147.74 BTU/hour |
Maximum power consumption [W] | 50.4 W |
Maximum heat dissipation [BTU/hour] | 171.97 BTU/hour |
MTBF [year] | 56.7 year |
MTTR [hour] | 2 hour |
Availability | >0.99999 |
Noise at normal temperature (acoustic power) [dB(A)] | 48 dB(A) |
Number of card slots | 0 |
Number of power slots | 0 |
Number of fans modules | 1 |
Redundant power supply | Not supported |
Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
Short-term operating temperature [°C(°F)] | -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.) |
Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
The operating temperature ranges from -5°C to +45°C (23°F to 113°F) when optical modules with transmission distances greater than or equal to 70 km are used. | |
The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: | |
The equipment operates at a temperature of over 50°C (122°F) consecutively for at most 96 hours in one year. | |
The equipment operates at a temperature of over 50°C (122°F) for a total of no more than 360 hours in one year. | |
The equipment operates at a temperature of over 50°C (122°F) for no more in 15 times in one year. | |
The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. | |
The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km. | |
Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
Power supply mode | AC built-in |
Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
Input voltage range [V] | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz |
Maximum input current [A] | 2 A |
Memory | 512 MB |
Flash memory | 512 MB |
Console port | RJ45 |
Eth Management port | Not supported |
USB | Not supported |
RTC | Not supported |
RPS input | Not supported |
Service port surge protection [kV] | Common mode: ±7 kV |
Power supply surge protection [kV] | ±6 kV in differential mode, ±6 kV in common mode |
Types of fans | Built-in |
Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
Airflow direction | Air intake from left and front, air exhaustion from right |
PoE | Not supported |
Certification | EMC certification |
Safety certification | |
Manufacturing certification | |
Certification | EMC certification |
Safety certification | |
Manufacturing certification |
Packing & Delivery
Company Profile
FAQ
Any Problems, Pls feel free to contact me
Wechat : 1032906002
Skype : shangyanli1
Whatsapp : 00 8615311706072
Email : cisco-niki@fytda.cn
