Полуавтоматическая система готовый пакет на молнии упаковка деревянные чипсы куски стоячий мешочек упаковочная машина для барбекю и курения
- Категория: >>>
- Поставщик: Top Y Machinery Co. Ltd.
Сохранить в закладки 1600367795085:
Описание и отзывы
Характеристики
premade zipper bag wood chips packing machine
Packing Machine Description
Semi-automatic system premade zipper bag packaging wood chips chunks stand up pouch packing machine for BBQ smoking
Flexible and reliable,MDP is a fully automatic premade pouch filling and sealing packing machine that provide a wide variety of packaging options in one base machine.The machine is available for multi bags such as:daypack with zipper, ¾ side seal pouch,stand-up pouches,flat pouch,gusset bags,side spout bag,etc...
Working principle:
Pouch bag picking-up→Positioning Bag to the filling station→Open Bag→Material Filling→Bag Sealing →Bag Outfeed
Standard Feature:
-Complete manufacture in stainless steel,suitable for food or non-food industry.

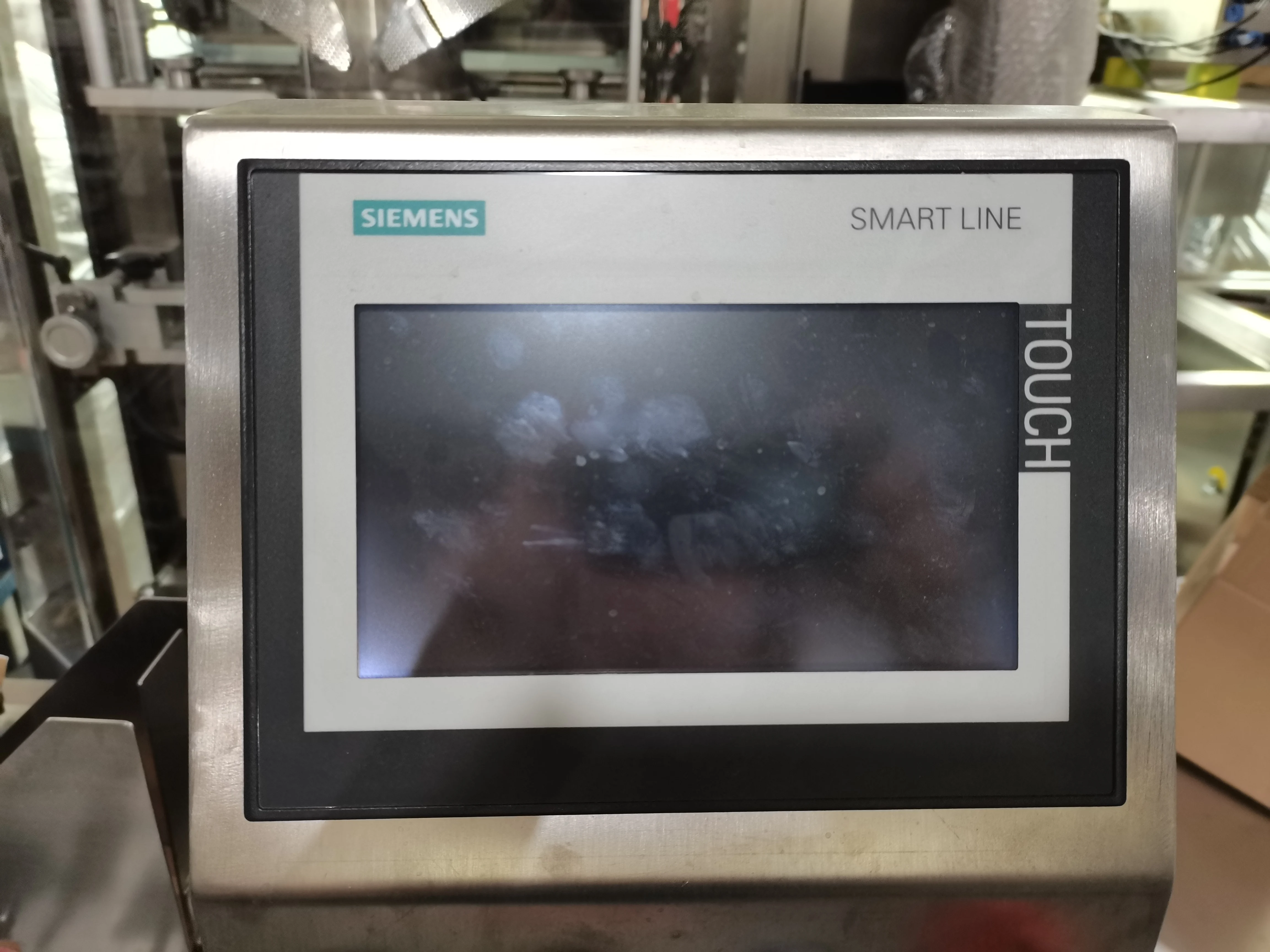

-Siemens PLC control system combined with 7″ colorful touch screen control panel, can easily set and change packing parameters,display production data and self-diagnostic machine error can be viewed directly from the screen.
-English and Chinese HMI,other languages are acceptable as optional.
-Fully pneumatic operating system, easy operation and maintenance.
-PID temperature controller monitors heat sealing temperature within ±1°C.
Optional Device:
-Linear weigher or Multi-heads weigher for granule
-Date code printer
-Zipper opener
-Bag tapper
-Vacuum device
-Gas flush device for Nitrogen or Carbon Dioxide
Working principle:
Pouch bag picking-up→Positioning Bag to the filling station→Open Bag→Material Filling→Bag Sealing →Bag Outfeed
Standard Feature:
-Complete manufacture in stainless steel,suitable for food or non-food industry.
-Siemens PLC control system combined with 7″ colorful touch screen control panel, can easily set and change packing parameters,display production data and self-diagnostic machine error can be viewed directly from the screen.
-English and Chinese HMI,other languages are acceptable as optional.
-Fully pneumatic operating system, easy operation and maintenance.
-PID temperature controller monitors heat sealing temperature within ±1°C.
Optional Device:
-Linear weigher or Multi-heads weigher for granule
-Date code printer
-Zipper opener
-Bag tapper
-Vacuum device
-Gas flush device for Nitrogen or Carbon Dioxide
APPLICATION:GRAINS AND GRANULES
Packaging Machine Overview
Machine Series | Premade Pouch Packing Machine | ||||
Model No. | TOPY-MDP1 | TOPY-MDP2 | TOPY-MDP3 | ||
Bag Length | L80-320mm | L80-440mm | L80-440mm | ||
Bag Width | W70-280mm | W70-280mm | W70-330mm | ||
Packing Speed | 6-16 bags/min | ||||
Bag Type | daypack with zipper, ¾ side seal pouch, stand-up pouches,flat pouch, gusset bags,side spout bag,etc... | ||||
Power Supply | Standard 220V,50/60HZ Optional:110/380/415V ,50/60HZ | ||||

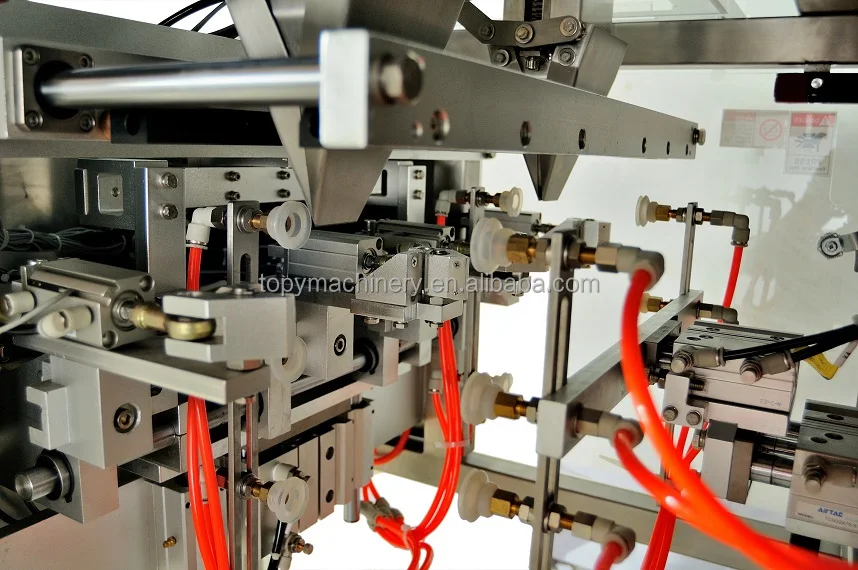

Pneumatic Parts | PIAB Vacuum generator , AirTac Pneumatic component | ||||
Certification | CE, CSA, UL, ROHS, ISO9001 | ||||
Packaging Machine System Including:

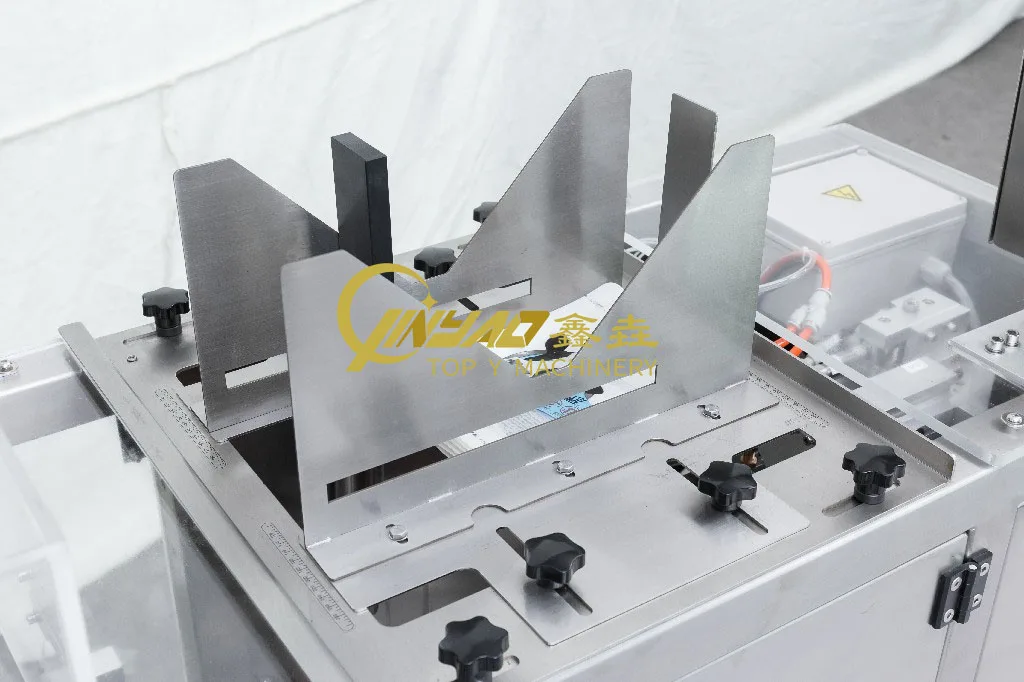

Premad Pouch Packing Machine

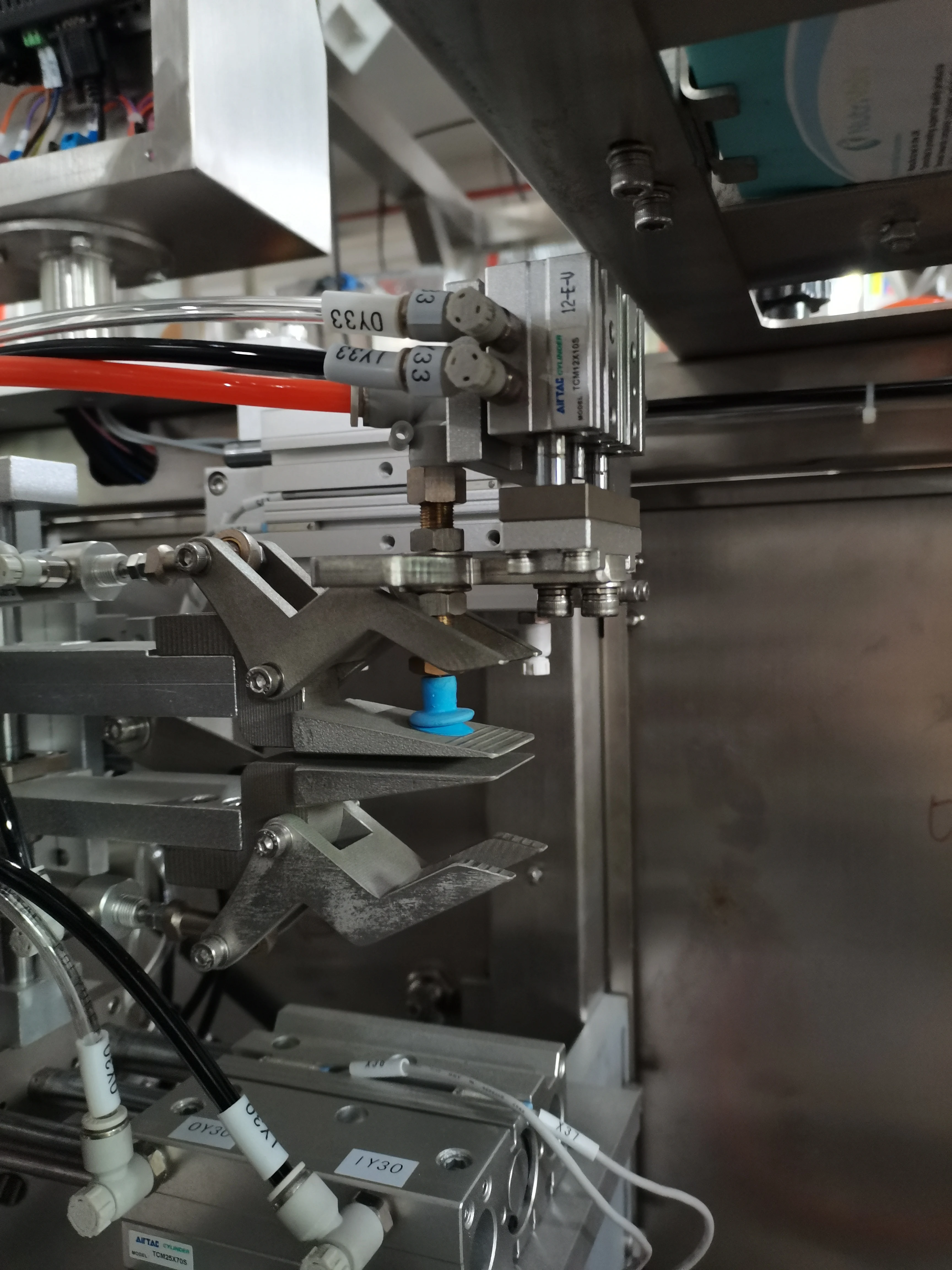

*Vacuum generator for bag pick up and opening*Acrylic door for prevent dust
*Easy operating & adjusting
*Enable to check the parameter during machine is running
*Easy operating & adjusting
*Enable to check the parameter during machine is running

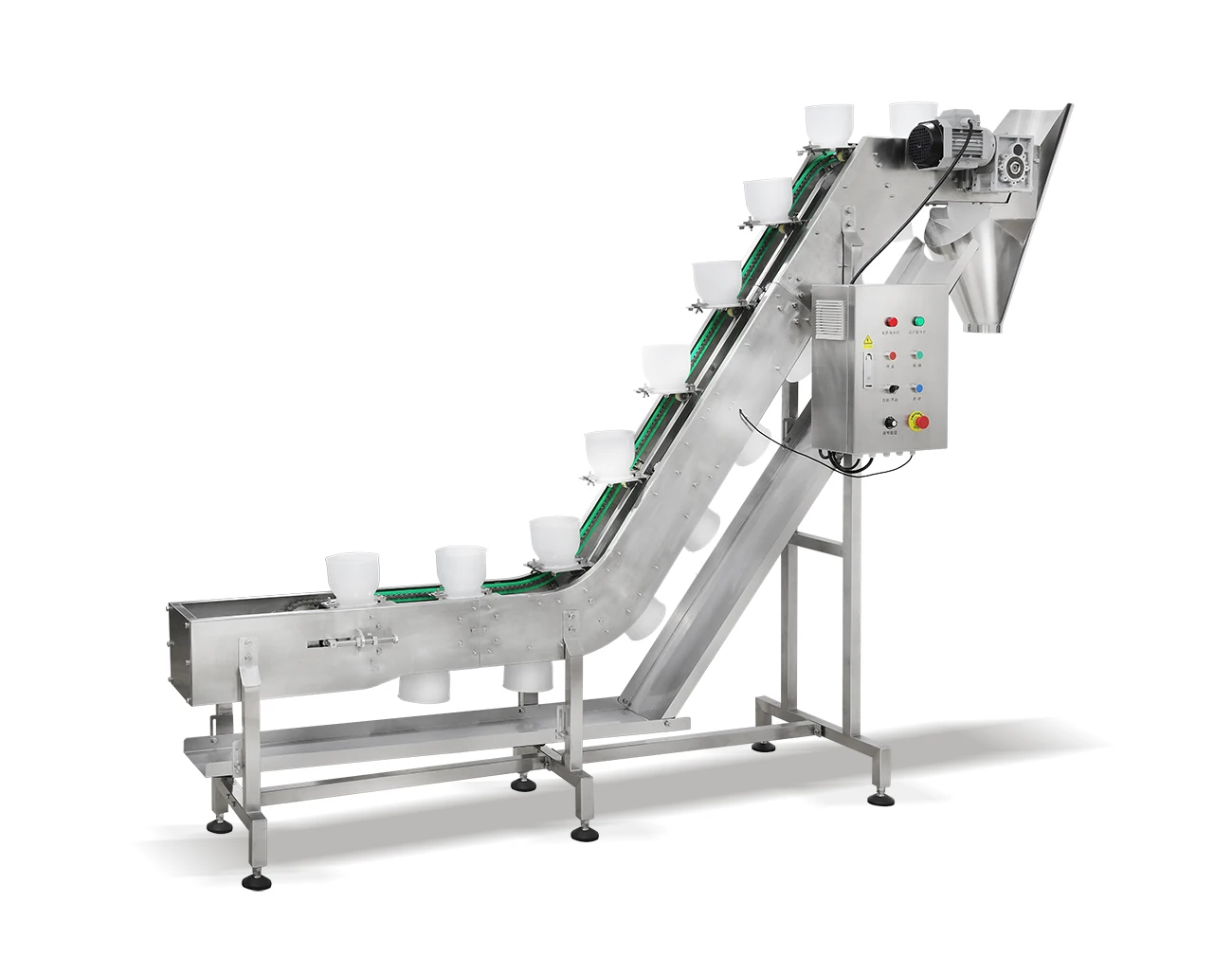

Bowl Conveyor
The bowl conveyor is an independent machine, the main function is related to the transportation of product to the packing machine.It needs worker weighing the product first,then put it to the bowl,and deliver to packing machine for packing.This is also called as semi-automatic system
Take-away Conveyor
The take away conveyor is for deliver the finished packing products out of the packing machine
Buying Guide (Click the photo for more details)
About TOP Y
Brief Introduction for TOP Y Machinery
TOP Y MACHINERY CO., LTD located at Foshan city,Guangdong province of south part of China.1 hour to Guangzhou and 1.5 hour to Shenzhen by car.TOP Y is specialized in all kinds of packing machine more than 15 years in overseas markets and mainly engaged in R&D, customized services,marketing, and after-sale services.The packing machines are widely used in foods, medicals, chemicals, toys, ironware and many different kinds of industries.
90% of the TOP Y customers coming from North America,European,Oceania,South America that TOP Y knows the standard in these markets very well.To offer the superior products to the customer,all the control components of the packing machine are used imported brands.Those parts have CE,CSA,UL and RoHS certificate.At the same time,TOP Y could provide whole production system with different
solutions.
Base on different requirements of the customer,TOP Y could offer after-sales service by on-site installation,video guide and online instruction.All the after-sales technician can communicate with customer in fluently English.
90% of the TOP Y customers coming from North America,European,Oceania,South America that TOP Y knows the standard in these markets very well.To offer the superior products to the customer,all the control components of the packing machine are used imported brands.Those parts have CE,CSA,UL and RoHS certificate.At the same time,TOP Y could provide whole production system with different
solutions.
Base on different requirements of the customer,TOP Y could offer after-sales service by on-site installation,video guide and online instruction.All the after-sales technician can communicate with customer in fluently English.
Why TOP Y?
-More than 12 years experience in overseas market: know the standard of different markets
-With CE,UL,CSA,RoHS: meets different requirement of customers
-After-sales can speak fluently English: shorten the time during communication
-Packing machine system: could offer the whole production line solution,simplify the purchasing time
-After-sales can speak fluently English: shorten the time during communication
-Packing machine system: could offer the whole production line solution,simplify the purchasing time
Customer Feedback
FAQ
Q1, Do you need the packing machines for premade bags or bags from roll of film?
For roll film we advise VFFS packing machines VP420, VP500, VP620, VP800, VPL1000 and VPL1200. For premade bags we advise doypack machine working on bags with or without ziplock.
Q2, What products do you pack, solid, granule, flake, powder or liquid?
For liquid we advise piston or motor pump, for powders we advise auger filler or volumetric cup filler, for solid, flake and granules we advise multihead weigher, linear weigher or volumetric cup filler.
Q3, What are the bag sizes and target weight in each pack?
For VFFS packing machine the minimum film width we work on is 120mm, the maximum film width we work on is 1200mm. For doypack machine the bag width working on is minimum 70mm and maximum bag width 4550mm.
Q4, Does your company work on OEM?
Yes, we have a professional design and technical team to do
the customization Q5, What’s the delivery time after the order is placed? We arrange the shipment in 30-35days for standard machine. It takes us more days for customized machines.
the customization Q5, What’s the delivery time after the order is placed? We arrange the shipment in 30-35days for standard machine. It takes us more days for customized machines.
Q6, How about the warranty?
The warranty is two years and we provide lifelong maintenance.
Q7, What can you provide after service?
We provide machine running video, instruction manual in English, spare parts and tools for installation. Also our engineers are available to clients’ factory and technical training.
Похожие товары

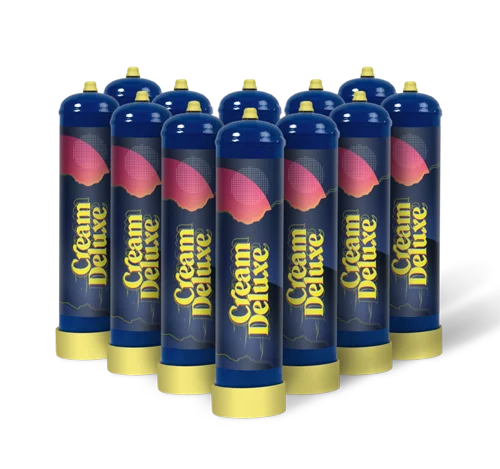

Best Sale on Standard Grade Cream Deluxe N2O Gas Whip Cream Charger for Glo-bal Buyers
Ведущий поставщик N2O, Бензобак 580 г, быстрое зарядное устройство
Лучшее качество, столовый десерт, инструмент 580 г n2o, взбитые крема, зарядные устройства
8,00 $ - 9,50 $

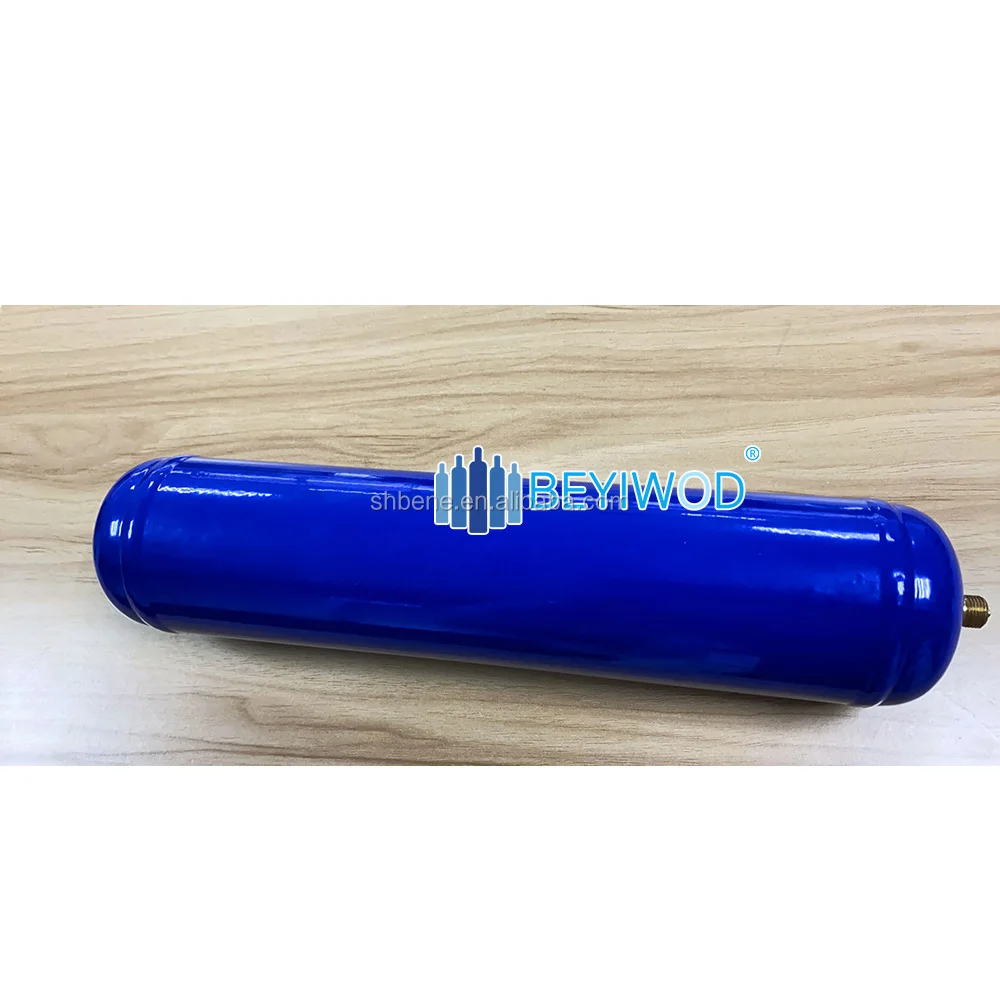

Б/у одноразовые газовые стальные баллоны N2O, баллон, шары для кухни, десертный инструмент, взбитые крема, 1000 г
