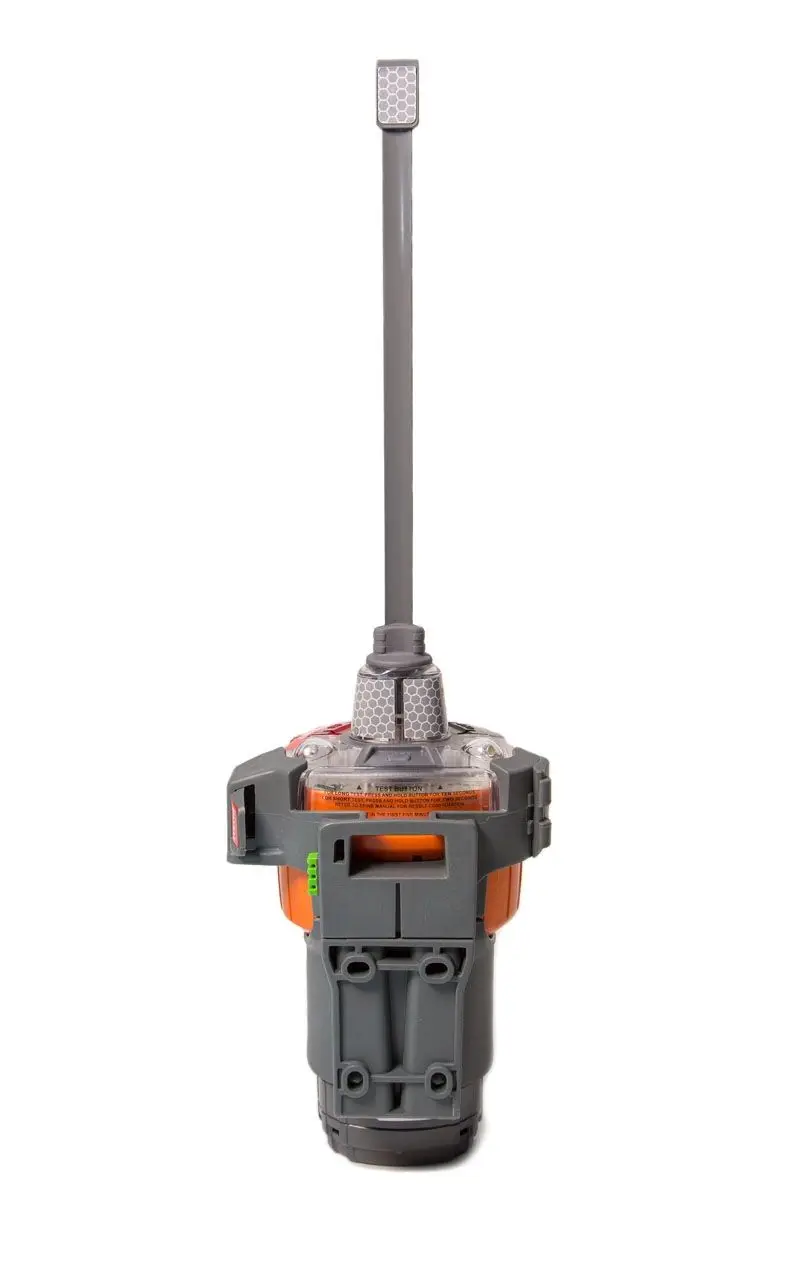

McMurdo G8 SmartFind AIS EPIRB (автоматический блок

McMurdo G8 SmartFind AIS EPIRB (автоматический блок

Категория: >>>
Поставщик: Global Telesat Communications Limited

Цена:792,99 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

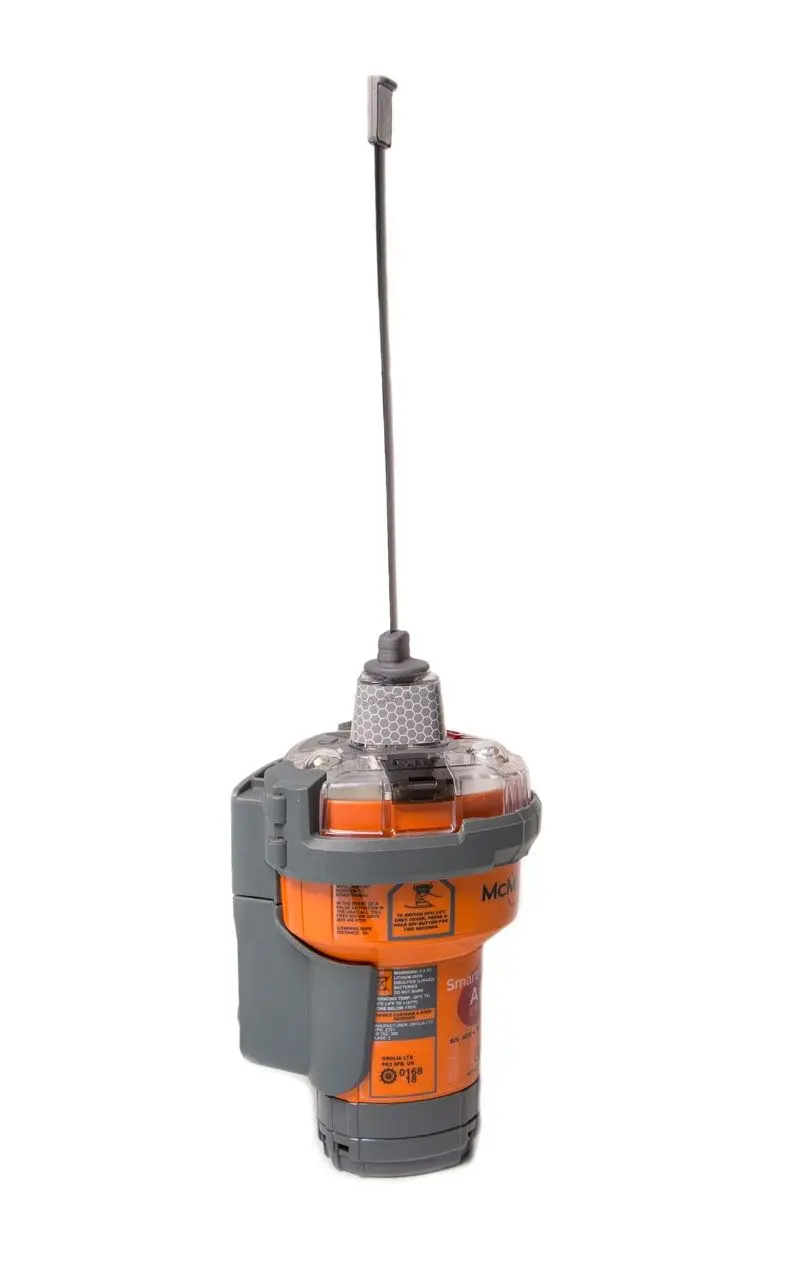

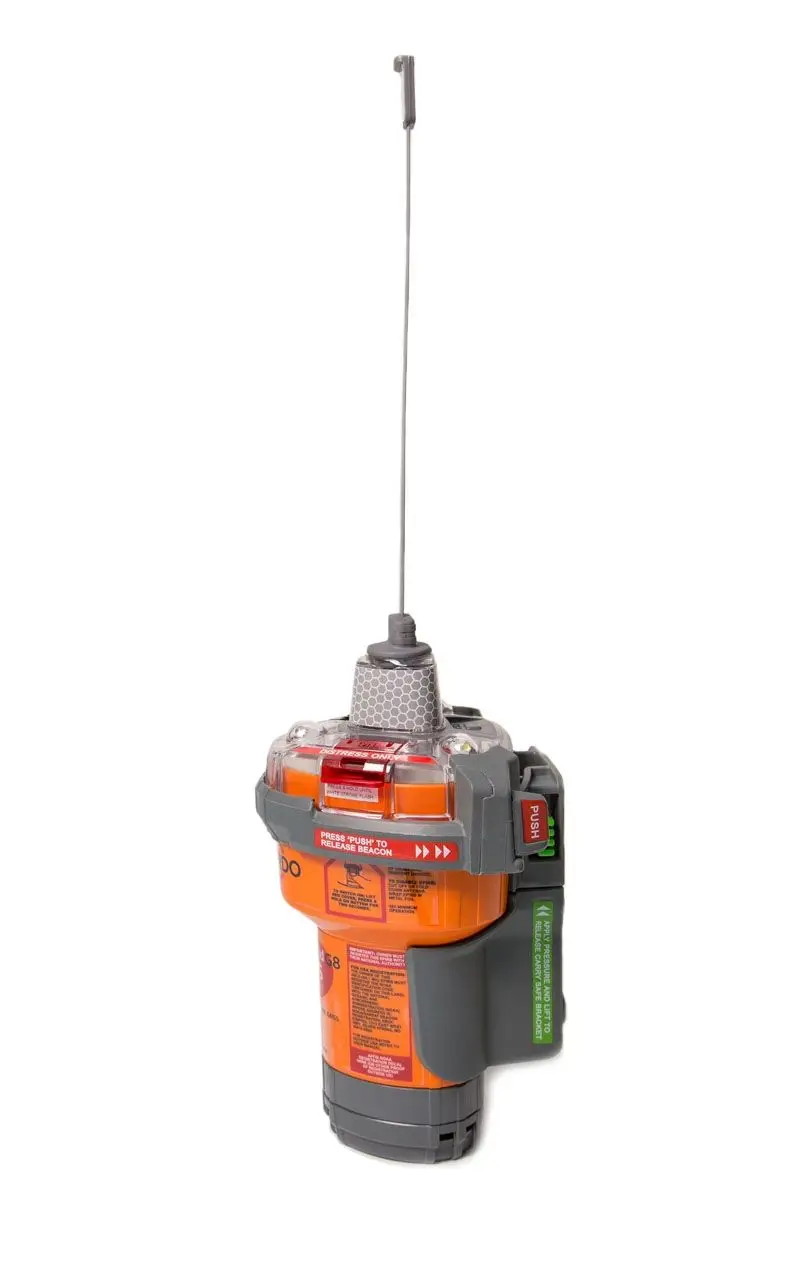

McMurdo’s SmartFind G8 AIS EPIRB is the world's first Emergency Position Indicating Radio Beacon to feature AIS. This device is a Category 2 EPIRB that will alert authorities that a rescue is required, once it has been manually deployed or activated in contact with water.

In an emergency, the SmartFind G8 EPIRB draws from multiple satellite constellations, to relay a coded message on the 406 MHz distress frequency, monitored by the Cospas-Sarsat satellite system. This alert is sent to the nearest Rescue Coordination Centre (RCC) and provides a pinpoint accurate location for all authorities at sea.

The SmartFind G8, with a 10-year battery life, is an ideal long-term subscription free solution, that is excellent value for money.

McMurdo SmartFind G8 AIS EPIRB Key Features:

GPS Transmission
Upon initiation of a distress call, the McMurdo SmartFind built-in GPS will fix your position to within a few meters and then utilizes a powerful 406 MHz signal to relay your distress call to orbiting satellites. When triggered, broadcast a unique registered distress signal that not only tells rescuers where you are, but who you are. T

An additional feature is the 121.5 MHz secondary homing transmitter which means that once Search and Rescue teams have been deployed, they are able to home in on your exact location.

AIS Transmission
In addition to GPS transmission, the McMurdo SmartFind has an AIS capability to send distress alerts to nearby AIS equipped vessels for an increased chance at a fast rescue.

Strobe Light

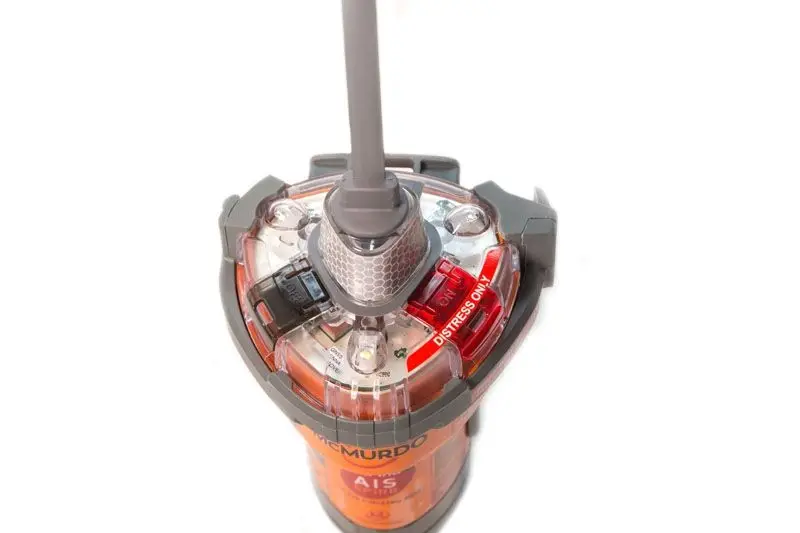

This McMurdo EPIRB has a high brightness flashing LED strobe light to enhance visibility in low light environments or night rescues.

Battery Life
The McMurdo G8 SmartFind AIS EPIRB has a storage battery life of up to 10 years! Upon activation, the McMurdo SmartFind EPIRB will operate for a minimum of 48 hours.

Self-Test
It is necessary to self-test your McMurdo EPIRB to ensure that the beacon functions correctly. The G8 SmartFind EPIRB offers a comprehensive self test facility with battery use indicator.

Activation
The McMurdo SmartFind G8 (Automatic) can be activated when in contact with water as well as when a manual release bracket is deployed, in the event of an emergency, to provide authorities at sea with a precise pinpoint location to send to rescue co-ordination centres (RCC) and nearby AIS equipped vessels.

Registration
Registering your EPIRB is required by law in most countries. Registering is very important because should your beacon ever be activated, it is how Search and Rescue Teams will know who you are, and contacts provided may be able to supply information about your specific travel plans. In the absence of this information, it may take longer for a search-and-rescue operation to begin.

Some national authorities require a completed registration application form to be submitted by letter or fax, others offer an online registration. For more information, visit the emergency beacon registration database IBRD at www.406registration.com and also www.cospas-sarsat.org. The addresses of the national authorities are listed on these sites.

All PLBs and EPIRBs sold by GTC are pre-programmed with the UK country code. Whilst they will function anywhere around the world, the initial point of contact during an emergency situation would be the UK Search & Rescue authorities with whom the device would be registered. Please contact us if you wish to have your EPIRB shipped with configuration for use in a country other than UK.

This EPIRB should only be used in situations of grave and imminent danger to life. False alerts endanger lives and cause expensive disruption to Search & Rescue services. Deliberate misuse of the device could result in a penalty.

McMurdo G8 SmartFind AIS EPIRB (Automatic Release Unit) Features

SOS
Once the emergency button is pressed on your beacon, your location will be sent to a rescue coordination centre via satellite. This SOS is then diverted to emergency services near to your location to aid rescue. The location will be continuously sent for a minimum of 24 hours.

406MHz Frequency

A 406MHz beacon enables the Search and Rescue agencies to quickly and accurately identify and locate an individual so that they can effect a successful rescue.
General Specification
Dimensions\t42.3 x 10.4 x 10.3 cm
Weight\t710g
Operating Temperature\t-20°C to +55°C (-4° F to +131° F)
Storage Temperature\t-30°C to +70°C (-22° F to +158° F)
Automatic Release Depth\t4 metres max. (13 feet)

Battery Specification

Type\tLithium iron disulphide
Operating Life\t48 hours minimum
Shelf Life (In service life)\t10 years typical in service (recommended health check every 5 years)

406 MHz Transmitter
Operating Frequency\t406.040 MHz + 1 kHz
Power Output\t 5W typical
Modulation\t Phase (16K0GID)

121.5 MHz Homer
Operating Frequency\t121.5 MHz +3.5 kHz
Power Output\t 100 mW radiated typical
Modulation\t Swept tone AM (3K20A3X)

Strobe Light
Type\t3 high intensity LEDs
Light Output\t0.2 cd minimum
Flash Rate\t23 flashes per minute

GNSS Receiver
Constellations\tGPS, GLONASS, Galileo
Frequencies\t1575.42 Mhz (GPS, Galileo); 1602.00 Mhz (GLONASS)
Sensitivity\t-167 dBm minimum
Satellites Tracked\t72 channel

Specification

item	value
Place of Origin	United Kingdom
Brand Name	McMurdo
Model Number	G8 SmartFind AIS
Feature	SOS, 406MHz Frequency
Function	SOS Beacon, GPS Transmission, Strobe Light
Positioning Mode	GPS, Satellite
Dimensions	42.3 x 10.4 x 10.3 cm (incl. antenna)
Weight	710g
Operating Temperature	-20°C to +55°C (-4° F to +131° F)
Storage Temperature	-30°C to +70°C (-22° F to +158° F)
Automatic Release Depth	4 metres max. (13 feet)
Type	Lithium iron disulphide
Operating Life	48 hours minimum
Shelf Life (In service life)	10 years typical in service (recommended health check every 5 years)
Operating Frequency	406.040 MHz + 1 kHz
Power Output	5W typical
Internal SKU	665878757533
