AOTAI MZ-1250 Inverted Constant Voltage Constant Current Submerged Arc Welder Carbon arc gouging
1. Characteristic of constant current and voltage
2. High current output can be achieved by parallel connection of multiple welders
3. With protection functions such as overheating, breaking, short circuit, etc.
4. Digital communication interface makes it easy to assemble a special welding machine for PLC and touch screen
5. Can increase group control function
6. External potentiometers and switches, current/voltage setting and power start-stop control
2. High current output can be achieved by parallel connection of multiple welders
3. With protection functions such as overheating, breaking, short circuit, etc.
4. Digital communication interface makes it easy to assemble a special welding machine for PLC and touch screen
5. Can increase group control function
6. External potentiometers and switches, current/voltage setting and power start-stop control
Product Paramenters
Product Model: | MZ-1250 | |||
Product Description: | Carbon arc gouging/Constant Current Output/Inverter Energy Saving/Air Cooling/DC Output/Adjustable Current/Adjustable Backgas Time | |||
Scope of application: | Heavy industrial equipment, widely used in ship, boiler manufacturing, pipe processing, steel structure, bridge, construction machinery and other fields; suitable for flat welding, flat fillet welding, etc. without thickness plates | |||
Rated Input Voltage: | 380V | |||
Rated input capacity: | 69KVA | 5.7KVA | ||
Frequency: | 50-60Hz | |||
No-load Voltage: | 92V | |||
Load duration rate: | 80% | |||
Welding wire： | 2.0-6.0mm | |||
Insulation class: | Class F | |||
Protection level: | IP21S | |||
Output current: | 50-1250A | 10-180A | ||
Size and weight: | Product Dimension: | 785*360*855mm | ||
Poduct Weight: | 108.7kg | |||
Package Dimension: | 900*440*1010mm | |||
Package Weight: | 132.8kg | |||

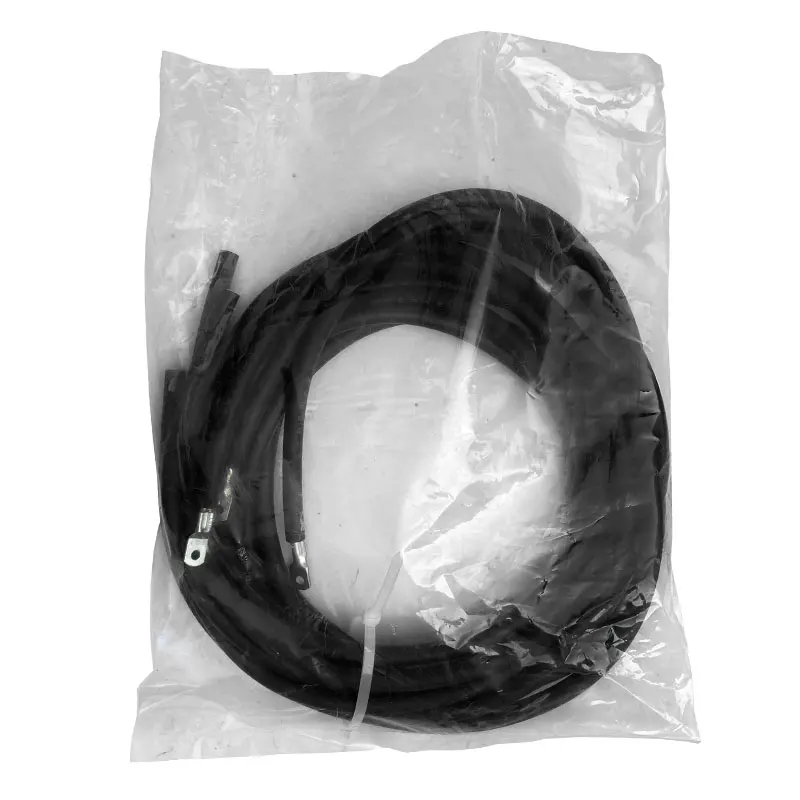

Accessories: | Standard accessories: | Control cable | ||
Optional accessories: | ||||
Particular attention: the optional accessories is required extra cost, if you need them, please inquiry factory before placing order | ||||
Details Images
Submerged arc welding trolley
Horizontal adjustment is more stable, vertical adjustment is more convenient, wire feed reduction motor and cantilever are integrated design, column lifting range is large, conductive rod can be arbitrarily lengthened, flexible operation;

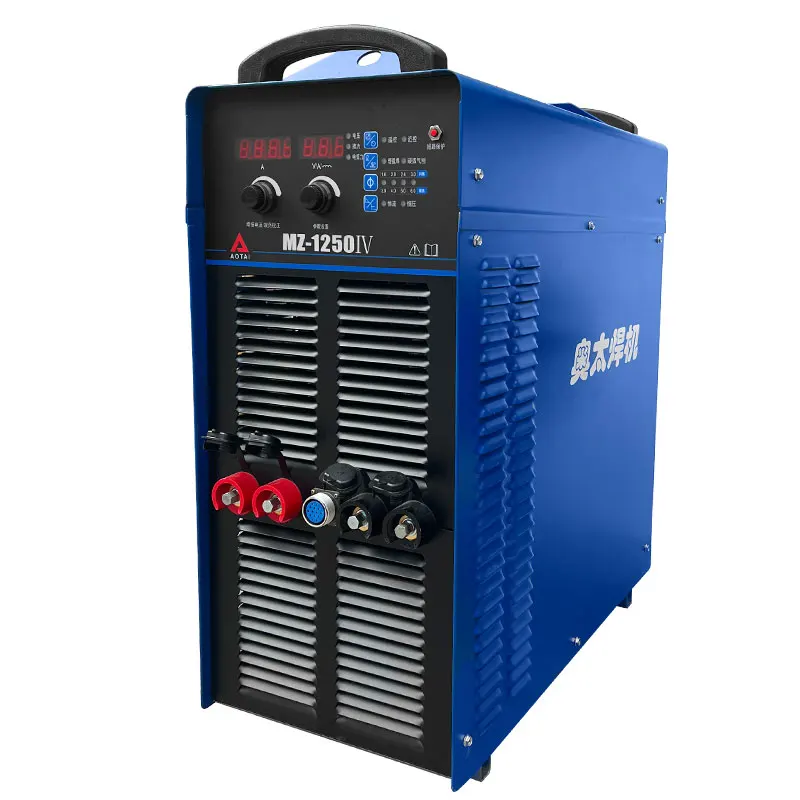

Front Function Panel
Adjustable arc-striking current, current thrust and welding current knobs.Independent dual control system, realizing manual welding and carbon arc gouging at two workstations.Voltage and current can be displayed and the operation is intuitive and convenient.Remote/near control is possible.
Internal design of power supply
Built-in IGBT module ensures stable welding current and attractive weld formation.Built-in protection circuits, such as overheating, overcurrent, overvoltage and closure, ensure safe operation.Optimized design of three air ducts for various harsh environments, greatly improving service life
After-sale Service
Perfect after-sales service system
1. 24h online customer service, timely reply.
2. The product is guaranteed for 12 months and the core parts are guaranteed for three years.
3. Video online technical support.
4. Free spare parts.
2. The product is guaranteed for 12 months and the core parts are guaranteed for three years.
3. Video online technical support.
4. Free spare parts.
FAQ
1.Q:Are you a factory or a trading company？
We are a modern company integrating industry and trade.
Our company specializes in the production of welding and cutting equipment, including MIG/TIG/MMA arc welders, and plasma cutting machines in 4 categories.
Note: if you need other mechanical and electrical equipment, we can also recommend professional supply to you.
Note: if you need other mechanical and electrical equipment, we can also recommend professional supply to you.
2.Q:Where is your factory and how can we get there?
Our factory is located in Linyi Economic and Technological Development Zone, Shandong Province.
Linyi Qiyang Airport:5mins by car
High speed railway station:45mins by car
Train station:20mins by car
3.Q:What is your delivery time?
Normally, we will deliver the goods within 45 days after confirming the sales contract and product details.
4.Q:What payment terms do you accept?
T/T or L/C at sight.
5.Q:Does your product support OEM?
Yes, we support OEM/ODM.
6.Q:How about your warranty?
Complete goods are guaranteed for one year and core parts for three years. We also offer free spare parts.
