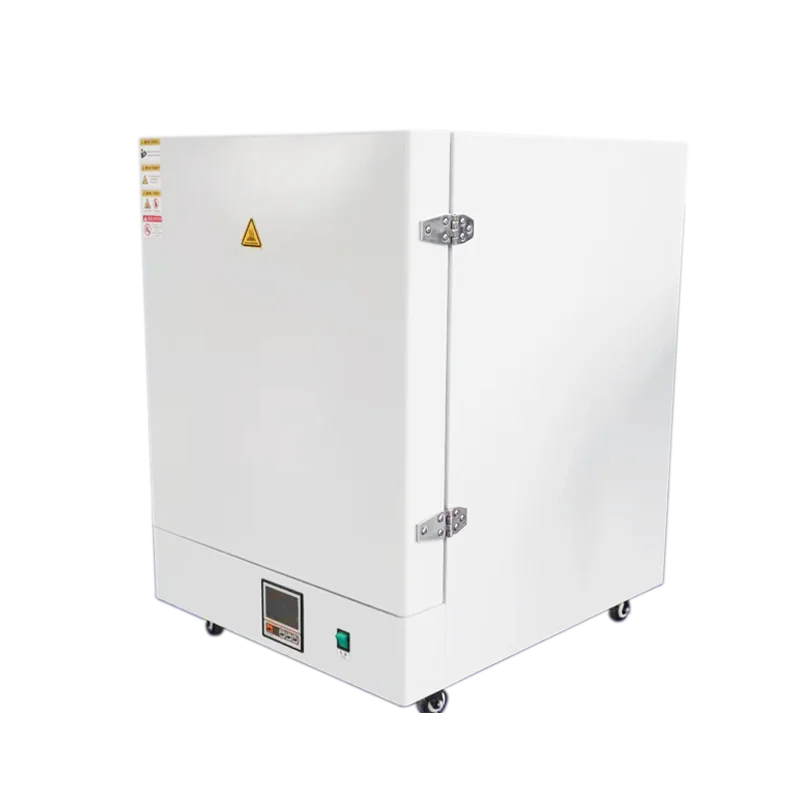

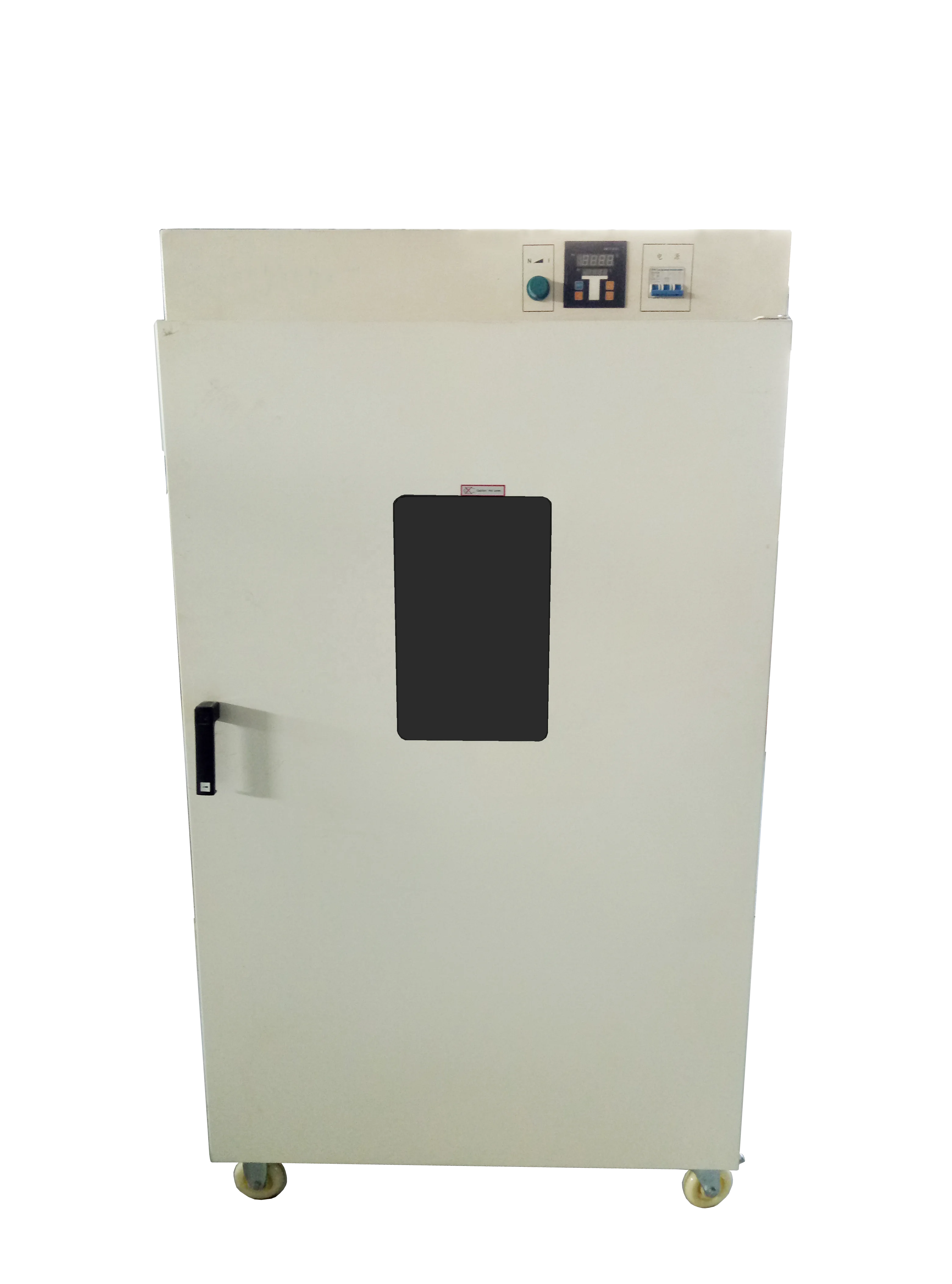

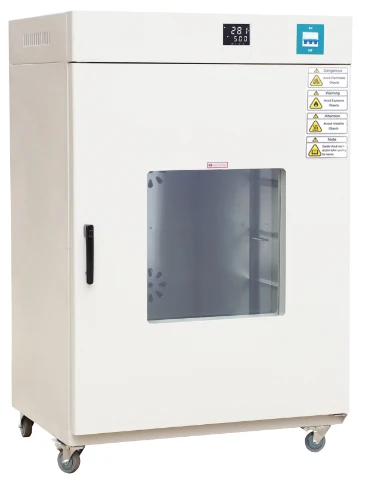

Лабораторная промышленная сушильная печь с высокой температурой
- Категория: >>>
- Поставщик: Qingdao Yosion Intelligent Technology Co. Ltd.
Сохранить в закладки 1600370297321:
Описание и отзывы
Характеристики
Product Description
Product Description
As a device for removing moisture and testing the temperature characteristics of products, the electric blast drying oven is widely used in enterprises and institutions and various testing laboratories. The blast drying oven has the advantages of strong temperature control, air convection, and low temperature fluctuation.
Features
1. Using digital microcomputer temperature controller, the control is accurate and reliable, and the accuracy is 0.1℃ (display range).
2. With timing function, temperature control protection function, and fan stop switch.
3. The inner tank is made of high-quality mirror stainless steel plate by argon arc welding.
4. The shell is made of high-quality steel plate material and sprayed with plastic, which is beautiful and novel in appearance.
5. Use high-quality double-layer tempered glass large observation windows and doors for observing the conditions of the studio.
6. The hot air circulation system is composed of an imported fan that can continuously operate at high temperatures and an air duct with advanced design.
7. Vertical: Vertical forced convection to ensure uniform temperature in the working room.
8. Independent temperature limit alarm system, automatically interrupts when the temperature exceeds the limit, to ensure that the experiment runs without accidents (optional).
9. The thermal insulation system uses ultra-fine glass fiber to fill the thermal insulation area, and the connecting parts of the inner and outer tanks are made of non-metallic high temperature resistant materials, which can effectively reduce high temperature conduction.
2. With timing function, temperature control protection function, and fan stop switch.
3. The inner tank is made of high-quality mirror stainless steel plate by argon arc welding.
4. The shell is made of high-quality steel plate material and sprayed with plastic, which is beautiful and novel in appearance.
5. Use high-quality double-layer tempered glass large observation windows and doors for observing the conditions of the studio.
6. The hot air circulation system is composed of an imported fan that can continuously operate at high temperatures and an air duct with advanced design.
7. Vertical: Vertical forced convection to ensure uniform temperature in the working room.
8. Independent temperature limit alarm system, automatically interrupts when the temperature exceeds the limit, to ensure that the experiment runs without accidents (optional).
9. The thermal insulation system uses ultra-fine glass fiber to fill the thermal insulation area, and the connecting parts of the inner and outer tanks are made of non-metallic high temperature resistant materials, which can effectively reduce high temperature conduction.
Specification
Model | YH-9023A | YH-9053A | YH-9123A | YH-9203A | YH-9423A | YH-9623A | YH- 9960A | YBH-3100A | |||||||
Voltage | ~220V50Hz | ~380 or 220V 50Hz | 380V50Hz | ||||||||||||
volume | 25L | 53L | 108L | 200L | 430L | 630L | 960L | 3100L | |||||||
Power | 0.5KW | 1KW | 1.5KW | 2KW | 3KW | 5KW | 8KW | 24KW | |||||||
Temperature | RT10-250ºC | ||||||||||||||
Temperature Resolution | 0.1ºC | ||||||||||||||
Temperature fluctuation | ±0.1ºC | ||||||||||||||
Temperature uniformity | ±2% | ±3% | ±2.5% | ||||||||||||
Timing range | 1-9999min | ||||||||||||||
Heating mode | Heating tube | ||||||||||||||
Studio size | 300×300×275 | 415×370×345 | 540×330×550 | 600×500×540 | 800×600×1000 | 800×600×1300 | 1000×600×1600 | 1600×1200×1600 | |||||||
( mm) | |||||||||||||||
Oven Size | 570×460×450 | 710×510×540 | 810×540×720 | 720×770×930 | 930×790×1400 | 930×790×1700 | 1340×820×1880 | 2192×2150×1960 | |||||||
( mm) | |||||||||||||||

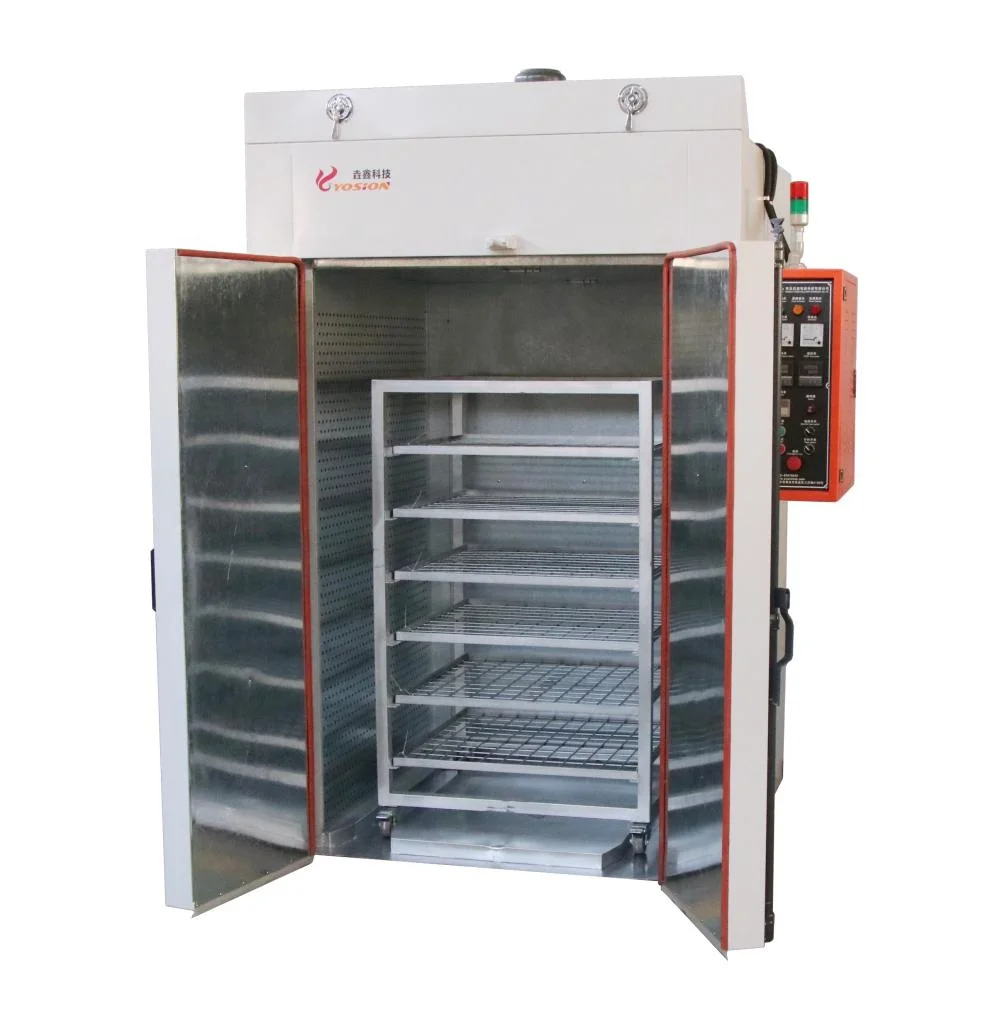

Plate QTY | 2 | 2 | 2 | 2 | 3 | 4 | 5 | Walk-in | |||||||
Project References
Packing & Delivery
Company Profile
QINGDAO YOSION INTELLIGENT TECHNOLOGY CO., LTD. is a comprehensive laboratory service provider integrating research &development, production, sales and service.Yosion specialize in automated sampling & preparation system, sample preparation equipment, containerized laboratory, fire assayequipment & consumable,chemical analysis instrument etc.
Yosion team step by step, focusing on customer needs, actively implement the "going out" strategy, participate in the construction of global mineral laboratories, and have customers in Southeast Asia, Africa, Mid East, North America,South America ,Europe and so on.
Payment
FAQ
Q1. Are you a factory?
A:Yes, we are a factory, a manufacturer.
Q2. Can the product be customized according to my requirements?
A:Yes, we have our own R&D team. You can communicate your requirements with us, our engineers will give you a drawing
confirmation, and then the production department will complete the product.
Q3. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q4. What about the lead time?
A:Because we have a wide range of products, some commonly used equipment and consumables are in stock, and we can ship them when we receive the payment. Some customized products have a delivery period of 2-6 weeks depending on the production cycle.
Q5. What kind of warranty can you provide?
A:For equipment, we provide a one-year warranty period for the main parts after commissioning.But consumables are not covered by the warranty.If the product is damaged due to the transportation process, please contact us within 7 days after receiving the product.
Q6. Do you have experience in foreign projects?
A:Yes,we have.We have participated in the design and construction of sample preparation laboratories and fire assay laboratories in many countries.
For example,full set of fire assay equipment and tools, consumables for AZANA Lab in Ethiopia;containerized lab of fire assay for AHK lab in South Korea ;containerized lab of sample preparing for AHK lab in Chile;containerized lab of sample preparing in Zambia etc.You can communicate with us for more details.
A:Yes, we are a factory, a manufacturer.
Q2. Can the product be customized according to my requirements?
A:Yes, we have our own R&D team. You can communicate your requirements with us, our engineers will give you a drawing
confirmation, and then the production department will complete the product.
Q3. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q4. What about the lead time?
A:Because we have a wide range of products, some commonly used equipment and consumables are in stock, and we can ship them when we receive the payment. Some customized products have a delivery period of 2-6 weeks depending on the production cycle.
Q5. What kind of warranty can you provide?
A:For equipment, we provide a one-year warranty period for the main parts after commissioning.But consumables are not covered by the warranty.If the product is damaged due to the transportation process, please contact us within 7 days after receiving the product.
Q6. Do you have experience in foreign projects?
A:Yes,we have.We have participated in the design and construction of sample preparation laboratories and fire assay laboratories in many countries.
For example,full set of fire assay equipment and tools, consumables for AZANA Lab in Ethiopia;containerized lab of fire assay for AHK lab in South Korea ;containerized lab of sample preparing for AHK lab in Chile;containerized lab of sample preparing in Zambia etc.You can communicate with us for more details.
Похожие товары
Лабораторию высокотемпературные Электрический форсированного дизеля воздушного доменная печь
397,10 $

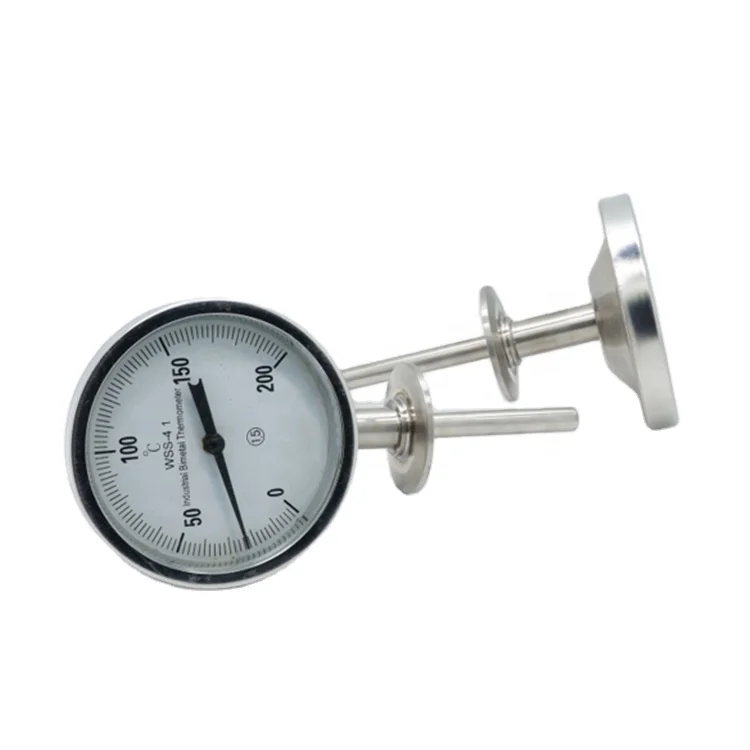

Заднее соединение Haichen WSS 401 биметаллический термометр циферблатного типа с гигиеническим фланцем
30,00 $ - 60,00 $
Высокая температура 500 градусов Цельсия сушильная печь для фармацевтических и лабораторных
Большая высокотемпературная сушильная печь, лабораторная печь, две промышленные сушильные коробки горячего воздуха, цена
HTM-7F высокой температуры с циркуляцией горячего воздуха сушильная печь с электрическим подогревом для механической и электротехнической продукции

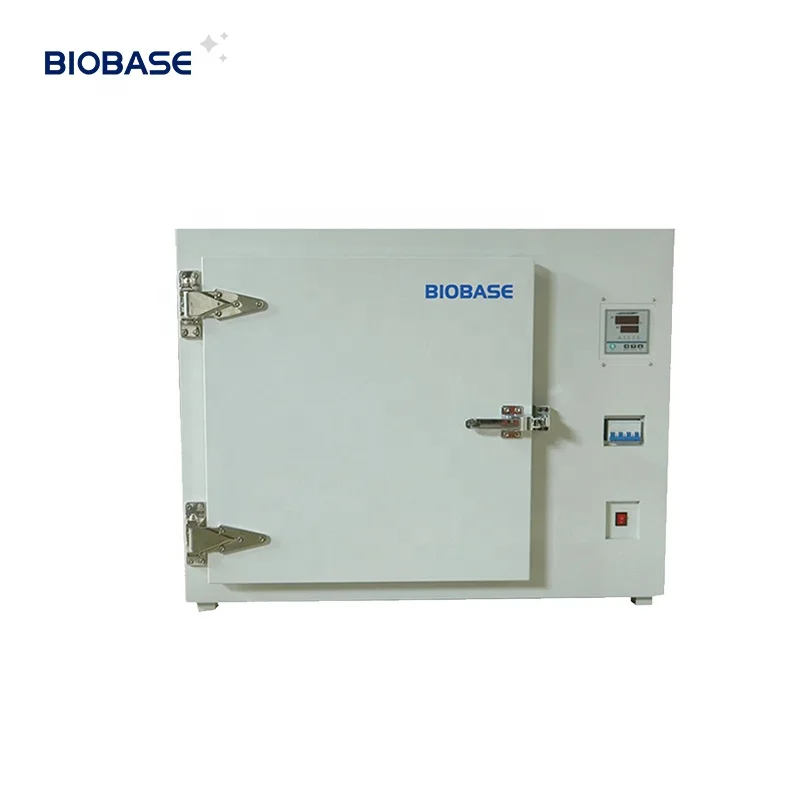

Biobase китайская лабораторная Высококачественная маленькая электрическая сушильная печь высокой температуры 100 л

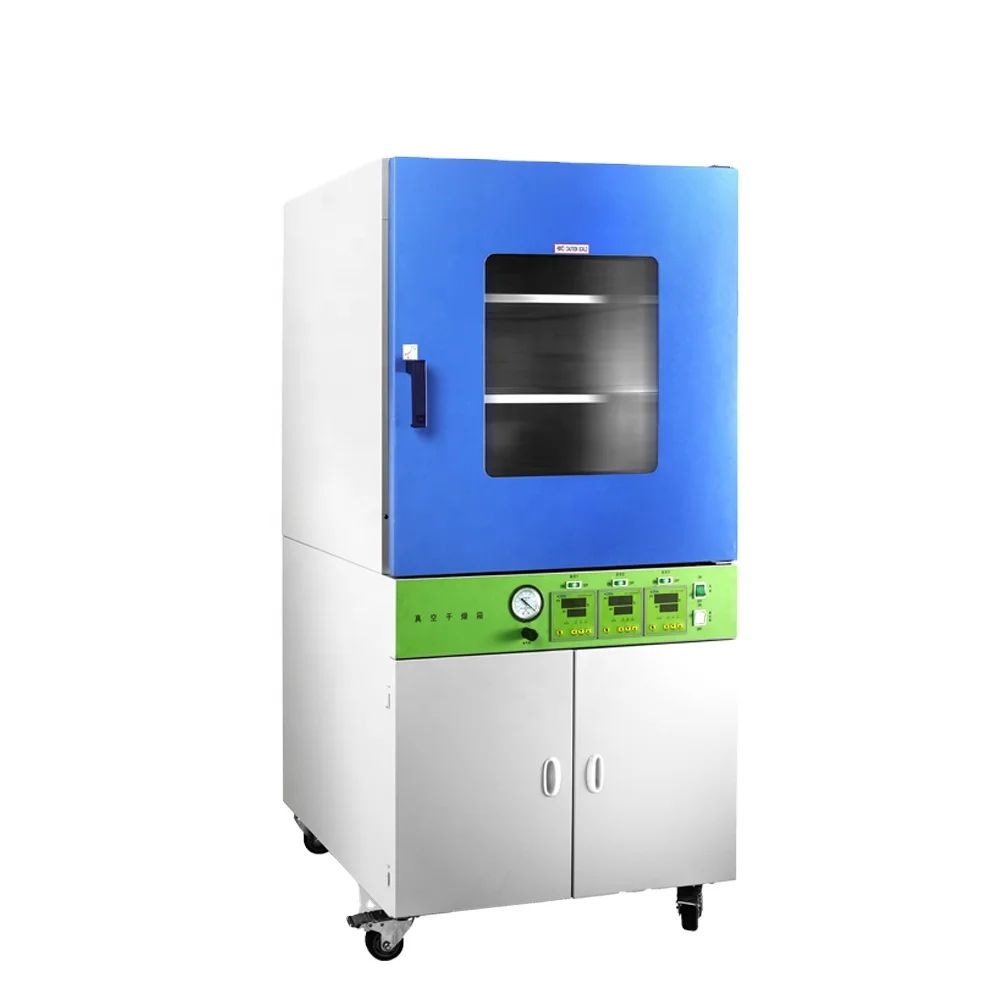

Лабораторная вакуумная сушильная печь, цена, высокотемпературная вакуумная печь 54L
