MI машина для зачистки кабеля и пилинг машина термопара машина
- Категории: Cable Manufacturing Equipment >>>
- Поставщик: Shanghai,Chenghan,Mechanical,And,Electrical,Equipment,Co.,Ltd.
Сохранить в закладки:
Описание и отзывы
Характеристики
Product Description

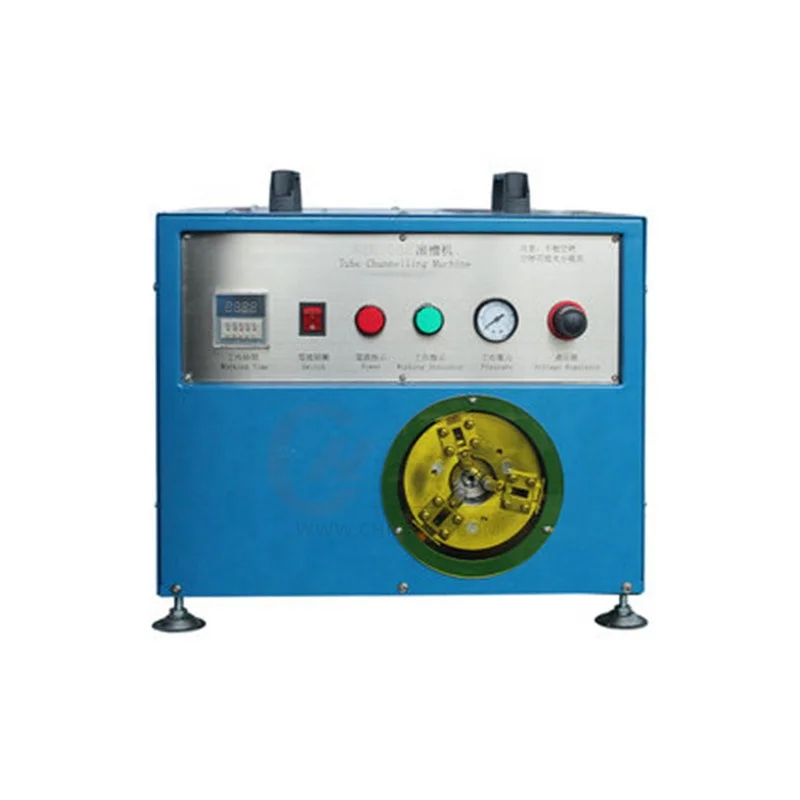

Product name: Thermocouple groove rolling machine
Product model: NZK-088
Weight: 45 kg
Voltage/power: 220V/130W
Processing material: stainless steel, copper, aluminum
Processing outer diameter size: double groove 3, 4, 5, 6mm, single groove, three groove to customize
Working principle: The use of pneumatic rotary chuck, motor rotation mold, so that the workpiece surface groove
Product model: NZK-088
Weight: 45 kg
Voltage/power: 220V/130W
Processing material: stainless steel, copper, aluminum
Processing outer diameter size: double groove 3, 4, 5, 6mm, single groove, three groove to customize
Working principle: The use of pneumatic rotary chuck, motor rotation mold, so that the workpiece surface groove
Operating instructions
1. Connect the air pressure tube2. Plug in the power cable
3. Install foot switch
4. Install the mold size required
5. Turn on the power switch and set the working time (3S by default)
6. Adjust the air pressure to 2-3kGF (pull out the regulating valve, clockwise pressurization, counterclockwise decompression)
7. Adjust the rear position adjustment lever (clockwise shallow/short, counterclockwise deep/long) to the desired length of the
product
8. Test the depth of the groove and adjust it by using the depth locating screw on the working area (counterclockwise groove is
deep, clockwise groove is shallow)
3. Install foot switch
4. Install the mold size required
5. Turn on the power switch and set the working time (3S by default)
6. Adjust the air pressure to 2-3kGF (pull out the regulating valve, clockwise pressurization, counterclockwise decompression)
7. Adjust the rear position adjustment lever (clockwise shallow/short, counterclockwise deep/long) to the desired length of the
product
8. Test the depth of the groove and adjust it by using the depth locating screw on the working area (counterclockwise groove is
deep, clockwise groove is shallow)
Parameter
Product name: Powder shaker
Power: 500 w
Voltage: 220 v
Power consumption: 150W
Electrical frequency: 50/60Hz
Control mode: foot control
Features: Quick removal of 3.0-8.0 armoring cable shell and internal magnesium oxide
Power: 500 w
Voltage: 220 v
Power consumption: 150W
Electrical frequency: 50/60Hz
Control mode: foot control
Features: Quick removal of 3.0-8.0 armoring cable shell and internal magnesium oxide
Parameter
Product name: Metal shielded wire stripper
Model: HZ - ZHJ - 2010
Working voltage: 220V
Dimensions: 230*300*300mm
Power: 2500 w
Weight: 22.5 KG
Model: HZ - ZHJ - 2010
Working voltage: 220V
Dimensions: 230*300*300mm
Power: 2500 w
Weight: 22.5 KG
Q1:How can I get more information about your product?
A1:You can send us an email or ask our online representatives and we can send you the latest catalog and price list.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.please contact us directly.
Q3:What is the payment way of your company?
A3:T/T,sight L/C,Paypal,Western Union,Alibaba trade assurance,Escrow,Etc.
Q4:What is the shipping way?
A4:By sea,air,Fedex,DHL,UPS,TNT etc.
Q5:How long for manufacturing once we place order?
A5:It's about 7-15 days after payment or disposit.
A1:You can send us an email or ask our online representatives and we can send you the latest catalog and price list.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.please contact us directly.
Q3:What is the payment way of your company?
A3:T/T,sight L/C,Paypal,Western Union,Alibaba trade assurance,Escrow,Etc.
Q4:What is the shipping way?
A4:By sea,air,Fedex,DHL,UPS,TNT etc.
Q5:How long for manufacturing once we place order?
A5:It's about 7-15 days after payment or disposit.
