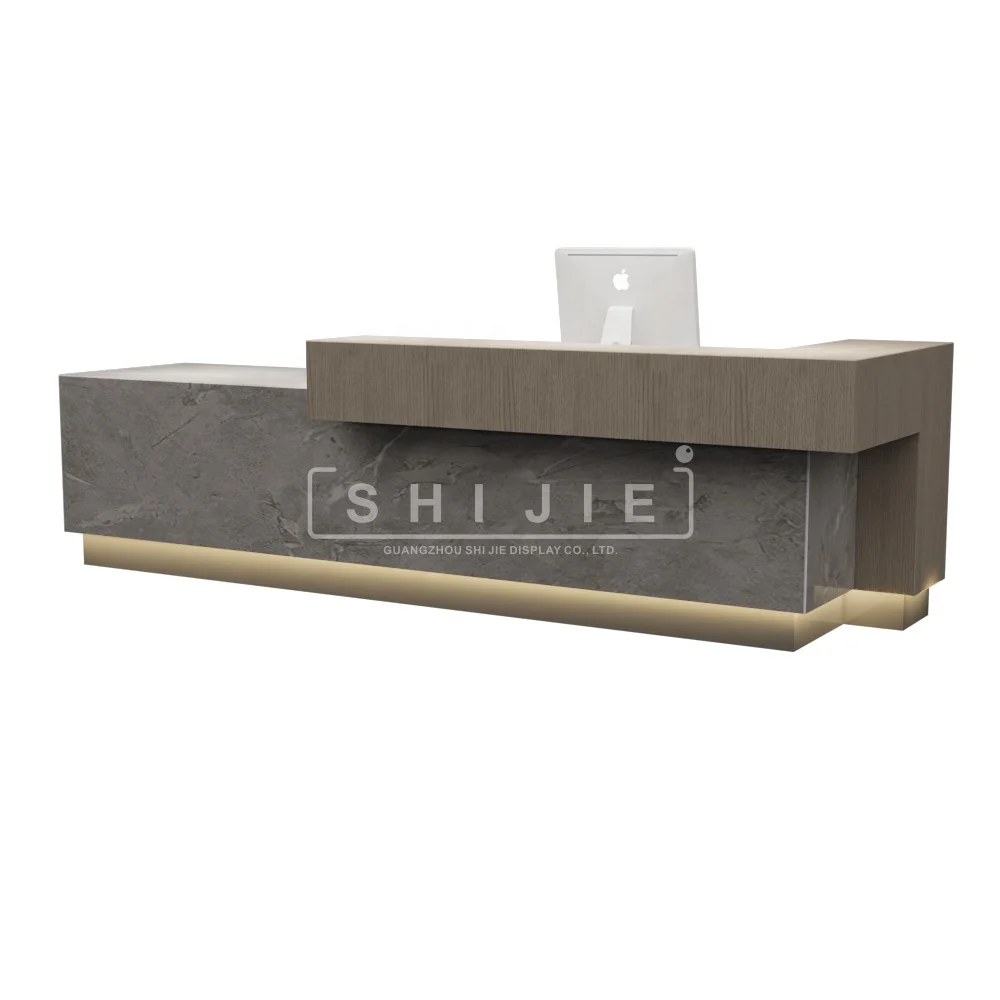

SHIJIE 2021 Новейший Современный парик магазин мраморная стойка регистрации белый салон офис стойка впереди
250,00 $ - 450,00 $

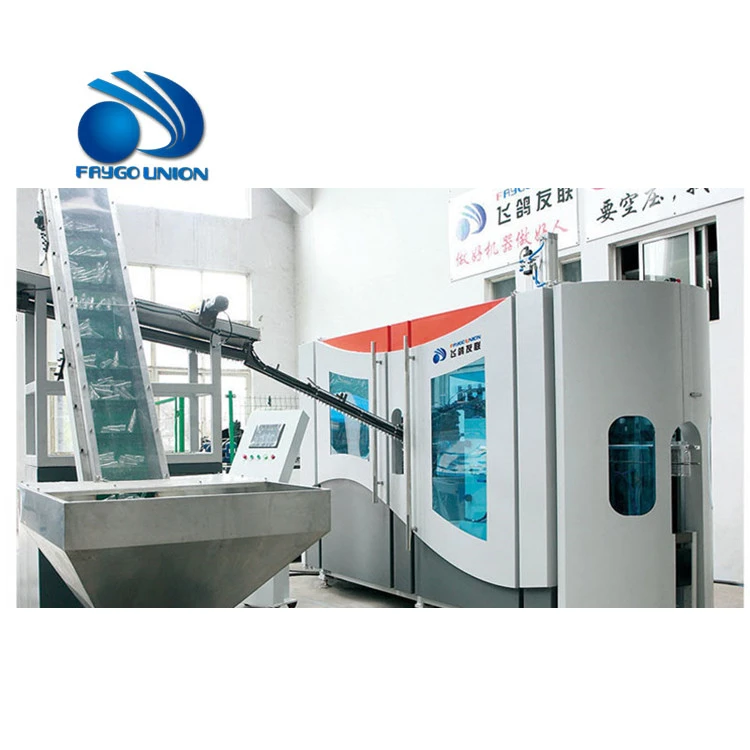

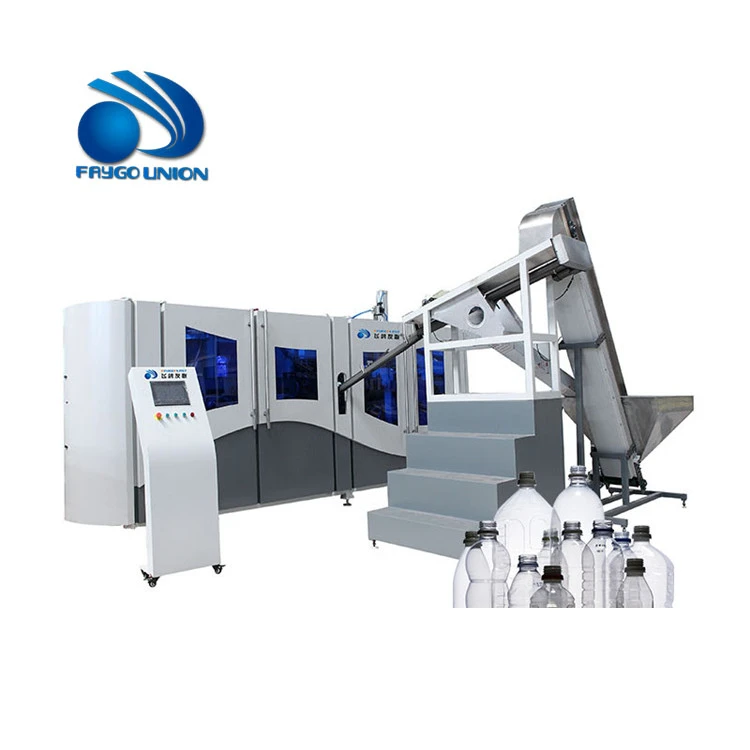

Faygo union Высококачественная пластиковая машина для выдувания ПЭТ и дешевая цена бутылок
- Категория: >>>
- Поставщик: Jiangsu Faygo Union Machinery Co. Ltd.
Сохранить в закладки 1600370454446:
Описание и отзывы
Характеристики
production Introduction
Expert in energy saving and high speed blowing machine
2.In view of this situation, Faygo Union Machinery developed China first high speed linear blowing machine: FG4. The single mold speed can reach 2000 BPH. FG4 has 4 cavities, production capacity is 8000BPH. It is developed completely independently, has our own intellectual property rights, and has obtained more than 13 national patents.
3.FG4 is completely new generation of linear machine, distinguished by its high speed, low power and low compressed air
comsumption, featured by the excellent structure design, small space occupation, less noise and excellent stability, meanwhile conforms to national beverage sanitary standards. It symbolizes the highest level of national linear blowing machine. It is the ideal bottle making equipment for beverage enterprises.
3.FG4 is completely new generation of linear machine, distinguished by its high speed, low power and low compressed air
comsumption, featured by the excellent structure design, small space occupation, less noise and excellent stability, meanwhile conforms to national beverage sanitary standards. It symbolizes the highest level of national linear blowing machine. It is the ideal bottle making equipment for beverage enterprises.
In our blower，preform distance is only 38mm，with fewer lamps，you can heat more preforms
2.Up to 20 mins change mold
What if you change mold like open & close a drawer?
With our special quick-mold-change design，mold can find position itself， and be changed within 20 minutes.
3.Up to 30% less by air
This machine is fully driven by servo motor，no need low pressure air
We also decrease the dead volume in the blowing station to reduce high pressure air consumption
4.Up to 80% less maintain cost
Changing new air cylinders and seal rings is main maintain cost in blower
We adopt servo motors， It is more reliable and almost no need maintain cost
Detail
Heater distance in the heating oven is minimized to 38.1mm, compared with the conventional heating oven, it saves more than 30% electricity consumption.
Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature in the heating zone.
Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature in the heating zone.
To change mold only need 30 minutes.
Equipped with remote monitoring system, engineers in China headquarter can check the data collected and sent by the PLC anytime with the mobile, feedback will be informed to the client' s site if something abnormal,give the machine 24 hours' baby care in the cradle.
The unique cam linking system integrates mold-opening, mold-locking and bottom mold-elevating in one movement, equipped with high speed servo driving system which greatly shortens the blowing cycle and accelerates the speed.
Our Advantages
1.Our new design PET bottle machine with below high-tech can save 130000kwh electric one year for customer compare with normal
linear 4 cavity blowing machine. 2.Our PET bottle blowing machine is a completely new generation of linear blowing machine, distinguished by its high speed, low
power and low compressed air consumption, featured by the excellent structure design, small space occupation, less noise and high
stability, meanwhile conforms to national beverage sanitary standards.
3.This machine symbolizes the highest level of national linear blowing machines. It is the ideal bottle making equipment for medium
power and low compressed air consumption, featured by the excellent structure design, small space occupation, less noise and high
stability, meanwhile conforms to national beverage sanitary standards.
3.This machine symbolizes the highest level of national linear blowing machines. It is the ideal bottle making equipment for medium
and large enterprises.
Each Year, We Guarantee Your Bottle Making Factory:
1) Output increased by 50%2) Waste bottle rate below 0.3%
3) 20,000USD saved by power consumption
4) blowing machine maintain cost below 800USD
Technical Parameter

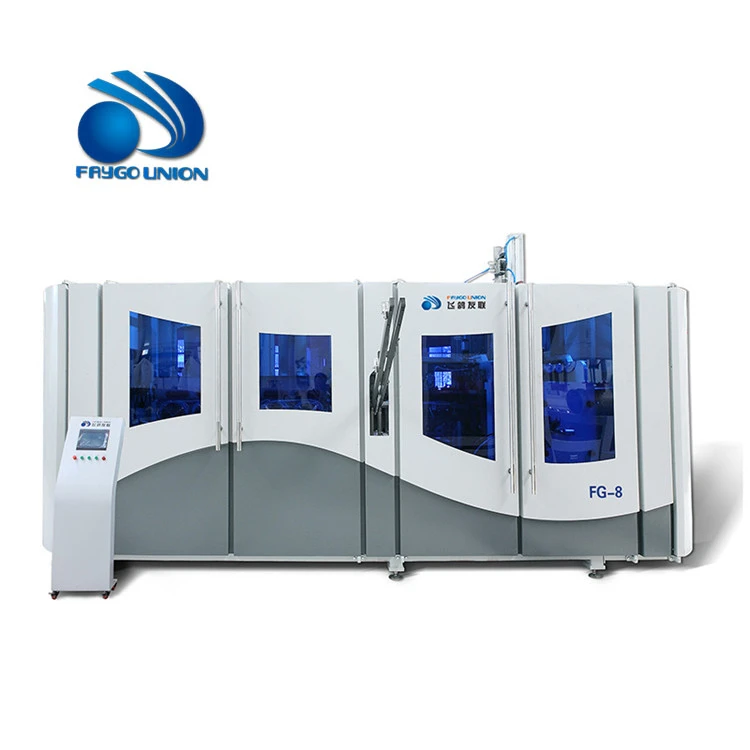

PET BLOWING MACHINEModel | FG4 | FG6 | FG8 |
Cavity number | 4 | 6 | 8 |
Operation Speed (bph) | 8000 | 12000 | 16000 |
Max volume(ml) | 2000 | 2000 | 750 |
Heating oven Power (kw) | 22 | 26 | 38 |
Total installation power (kw) | 51 | 51 | 97 |
Air consumption (m3/min) | 4 | 6 | 8 |
Machine weight (kg) | 3500 | 4000 | 4500 |

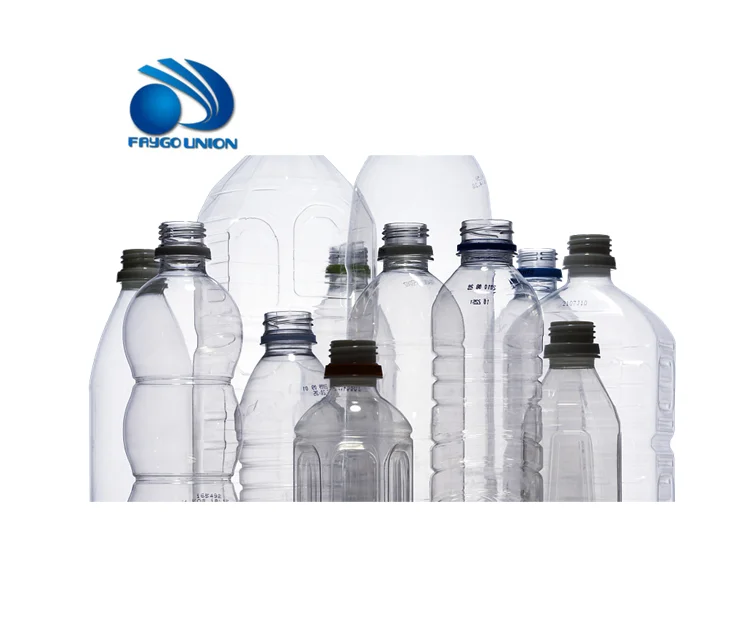

Application
Delivery: 30-45 working days
Port: Shanghai port
related peoudct
Three in one filling machine
Compressor
bottle cutting machine
Capping machine
Blow can spin
Injection molding machine
Customer Photos
Our company
Plastic profile/pheet extrusion lineWood plastic composite extrusion line
Plastic pipe extrusion line Plastic recycling pruduction line
Plastic pipe extrusion line Plastic recycling pruduction line
Faygo is a new high-tech entreprise covering 20000㎡, which specializes in reserching and manufacturing blowing blowing machines.
2.PRODUCTS
PVC/HDPE/PP-R pipe extrusion line, plastic sheet production line and relative auxiliary machines,PE film/PETbottles recycling line and pelletizing line.
3.MARKETING
Our products have been exported to Middle East, Southeast Asia, South America and Europe etc. We've received universal
confirmation and trust from our customers.
4.IDEA
Making good machine, Bing good person.
2.PRODUCTS
PVC/HDPE/PP-R pipe extrusion line, plastic sheet production line and relative auxiliary machines,PE film/PETbottles recycling line and pelletizing line.
3.MARKETING
Our products have been exported to Middle East, Southeast Asia, South America and Europe etc. We've received universal
confirmation and trust from our customers.
4.IDEA
Making good machine, Bing good person.
OUR SERVICE
1.High-quality equipment and highly competitive market prices can bring you more profits.
2.We have a one-year warranty and can provide long-term technical support.
24hours one line after sale service, all life technical support
3.Years of experience in the reserch of plastic extruders enable us to solve most of the problems and improve efficiency.
4.Send Your Inquire Details In The Below Click "Send" Now!
3.Years of experience in the reserch of plastic extruders enable us to solve most of the problems and improve efficiency.
4.Send Your Inquire Details In The Below Click "Send" Now!
RFQ
Q:Are you machinery factory or trading company?
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q:Installation and stuff training available from you?
A:Yes, our engineers will guide machine installation and train your workers.
Q:How can we visit your company and machines?
A:We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory,we will pick up you at the airport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
Q:How long is the warranty?
A:1 year
Q:How long is the delivery time?
A:Under normal conditions, products are delivered within 45 working days.
Q:How can I know the stauts of my order?
A:We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q:Installation and stuff training available from you?
A:Yes, our engineers will guide machine installation and train your workers.
Q:How can we visit your company and machines?
A:We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory,we will pick up you at the airport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
Q:How long is the warranty?
A:1 year
Q:How long is the delivery time?
A:Under normal conditions, products are delivered within 45 working days.
Q:How can I know the stauts of my order?
A:We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
Похожие товары

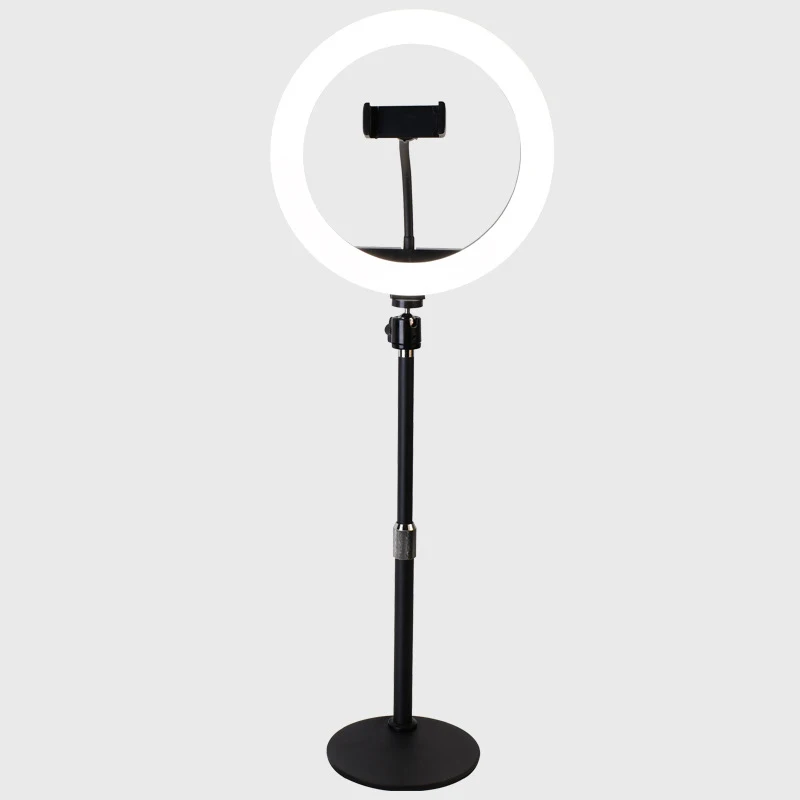

10 дюймов Круглая Светодиодная лампа с регулируемой яркостью кольцо свет 3200K-5600K для макияжа, кольцевая лампа
7,00 $ - 8,50 $

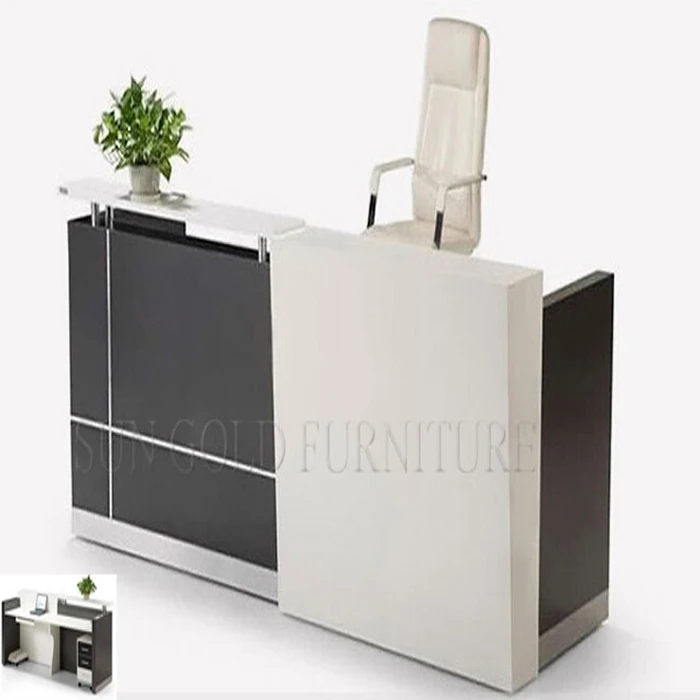

SZ-RTB044 хорошего качества спереди стол деревянный офисный счетчик кассовых аппаратов конструкции
HaiDa, высокое качество, HD330PET, 300 тонн, 350 тонн, литьевая машина для литья под давлением, специально для ПЭТ, машина для изготовления бутылок с большим винтом
62 000,00 $ - 75 000,00 $

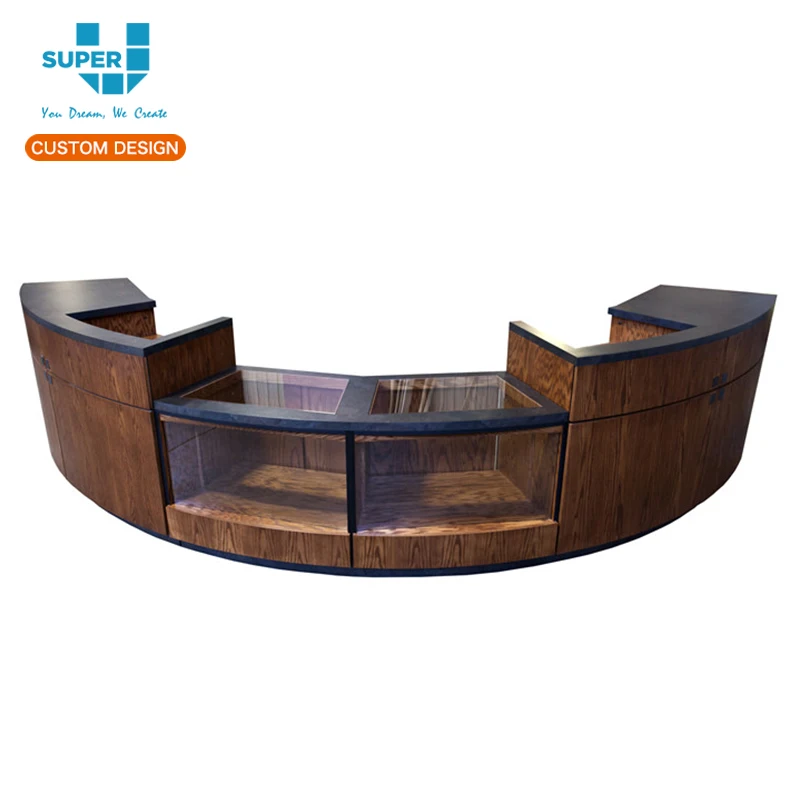

Индивидуальный дизайн кассового стола для продажи
468,00 $ - 598,00 $

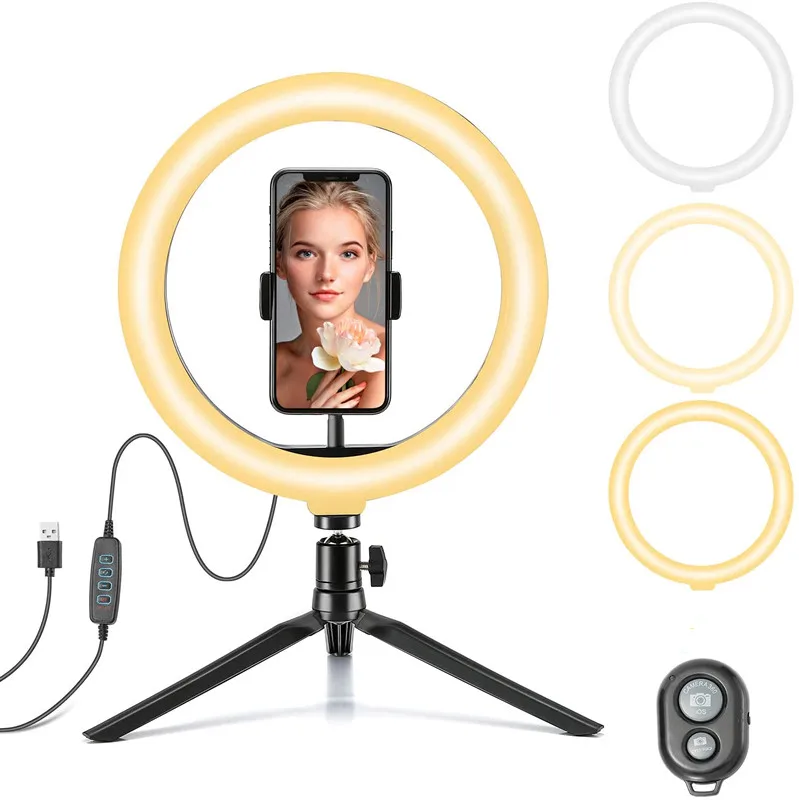

Портативный перезаряжаемые Кольцевая вспышка для камеры телефона (10 дюймов светодиодная кольцевая лампа с подставкой для трансляции комнаты
2,70 $ - 3,10 $
Современный дизайн розничного магазина дисплей Счетчик кассовых аппаратов для офиса шоу-рум стойка регистрации

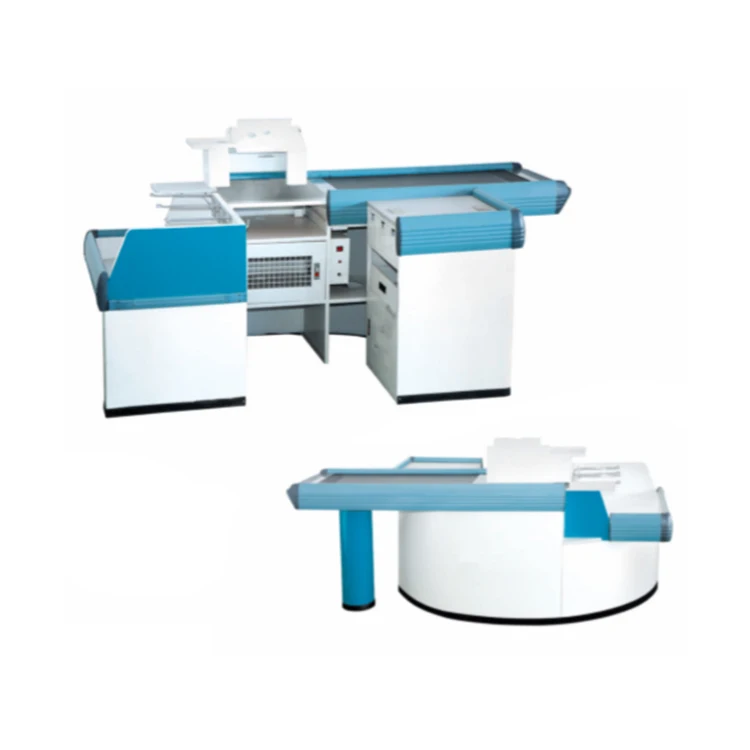

Высокое качество электрический стол для дизайн касса кассовый Прилавок с конвейерной ленты
