 SINGLE MODE DUEL FIBER fiber media converter 10/100/1000M 20KM optic ethernet media converters from Shenzhen manufacturer

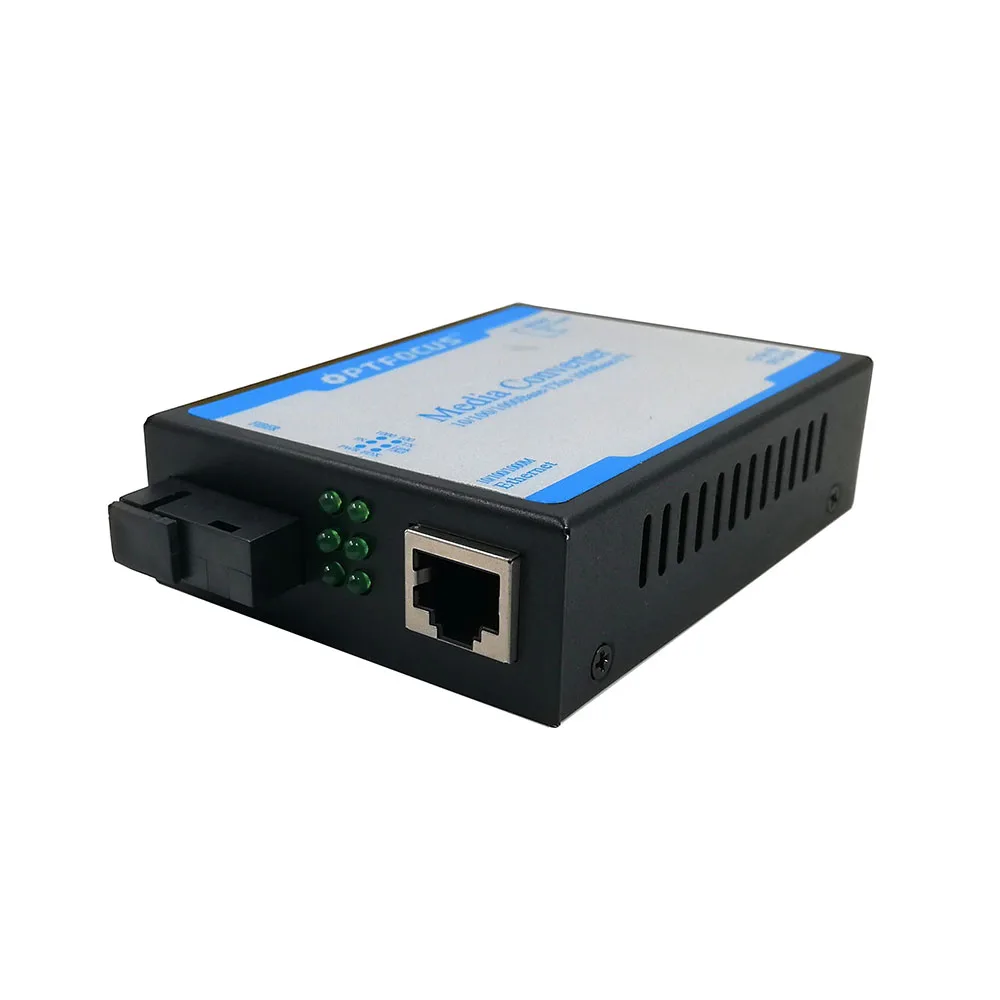

Media Converter(1).jpg


OFS-GWS03A/B Series Fiber Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100/1000M UTP interface (TX) and 1000M Fiber interface (FX). The traditional 10/100/1000M Fast Ethernet can be extended to the distance of 3km through optical fiber link. The performance and quality of the products are excellent because of adopting latest IC. 6 Groups LED indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe the network operations. The converters can be used as a stand-alone unit or as a slide-in module to the Media Converter Chassis, RACK-14. As the other
OFS-Series media converters, they're hot swappable in MC-Chassis.






Product Description






































































Product Name


10/100/1000M Media Converter


Product Model


OFS-GWS03A/B


Connector


Fiber: 1* 1000Mbps


RJ45: 1*10/100/1000Mbps,Auto MDI/MDI-X


Fiber port


LC,SC,ST,FC Optional


Network Media


10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)


Fiber Media


Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km) Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max
distance up to 120km)


Forwarding Mode


Store-and-Forward


Forwarding Rate


1488000pps/port


Operating standard


EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x


Power


 Input:AC 110~240VOutput:DC 5V(default)


Power consumption


2.5W


LED


Power,Link/Act, TX 1000,100,FDX, Link/Act.


Working Environment


Working temperature: 0~55℃ ;
Storage temperature: -20~75℃
Relative Humidity: 5%~95 %( no condensation)





Company Information


Shenzhen Optfocus Technology Co.,Ltd was established in 2009, which is a High -tech enterprise, professional R & D, production and sales of Fiber to the Home (FTTH), Fiber to the Building (FTTB) & FTTx,


Fiber access network equipment and terminal equipment & cabling system products. It is committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrators.




Production Workshop




Production Lines




Products Test Machine










Exhibitions








FAQ


1.    What is your main products?


G/EPON ONU, Fiber Optic/ POE/ Industrial Switch, Media Converter, Optical Transceiver, FTTH/FTTx Series, Optic Fiber Cables/Cords, MPO/MTP data center, Splice Closure.


2.     Is it safe on the payment for me as we are the first cooperation?


We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.


3.     What is your terms of payment?


It depends. Payment Terms: we mainly accept prepayment by Alibaba, L/C, T/T, Western Union/ MoneyGram/ Paypal or cash. You can select the terms of payment which is more convenient for you.


Price Terms: EXW Shenzhen etc


4.    Do you test all your goods before delivery?


Yeah, we have professional engineers to test all devices before shipping. Our product inspection also conforms to ISO9001/CE/FCC/SGS.


5.     How about the shipping?


We Ship to Worldwide. Delivery time depends on destination and other factors.


6.    OEM & ODM service is available?


Sure, OPTFOCUS has a very strong ability to offer OEM & ODM products. If there is a certain order quantity, we can do including printing, logo, and customized model for you.


7.     What is your terms of packing?


Well, we pack our goods in neutral brown cartoons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.


8.    What about the lead time?


It depends.


For usual products, we keep stock, could ship 3-5 days after receiving your advance payment. For big quanity and special products, please check lead time with me.


9.     Can I have a sample order?


Yes. We welcome sample order to test and check the quality. But there is a fee to pay.
