Product Information
Aerial workingheight21m,23m,26m,27m,28m
The boom rotation is designed as a one-piece swivel ( 360-degree rotation)to avoid assembly gaps during reassembly in
production, and increases the space of the platform
production, and increases the space of the platform
truck chassis is famous brand
Upper arm limit device, when the upper arm exceeds the safety angle, the boom will be in a self-locking state to ensure the safety
of the operator
of the operator
The outrigger operation box is equipped with a lighting device to facilitate work at night and
configure the vehicle's
bidirectional level to ensure the vehicle's level and ensure safety.
Up and down steps are equipped on the side(aluminum alloy platform optional )
Front V and rear H-shaped legs, good stability, can be operated simultaneously or individually, standard washing boxes for all models
The thickened cylinder seat and the boom cylinder block are all specially thickened to ensure the stability of the boom
Our Advantage
Others
Us
Platform and coaming basket:
Low cost alloy coaming platform, non rust proof, low toughness, not safe enough
Low cost alloy coaming platform, non rust proof, low toughness, not safe enough
Platform and coaming basket:
high strength aluminum alloy coaming and anti-skid walking platform, anti rust, light weight, high strength, high toughness, more safe and reliable
Working arm:
Double section working arm, unable to expand synchronously, low working efficiency and small working range.
Working arm:
Four section hexagonal working arm, synchronous expansion, compact structure, high operation efficiency and large operation range.
Built in telescopic oil cylinder and double chain telescopic mechanism make it easier to observe the fault point and facilitate maintenance.
3-section full steel wire rope telescopic structure with built-in fracture protector makes the work safer and more stable.
Four section hexagonal working arm, synchronous expansion, compact structure, high operation efficiency and large operation range.
Built in telescopic oil cylinder and double chain telescopic mechanism make it easier to observe the fault point and facilitate maintenance.
3-section full steel wire rope telescopic structure with built-in fracture protector makes the work safer and more stable.
Intelligent working arm leveling system：
Small rotation range,It cannot be automatically adjusted to the horizontal position
Intelligent working arm leveling system :
the working arm can rotate continuously for 360 degrees and automatically adjust to the horizontal position
Outrigger:
Without intelligent self-regulation system, the operator can not find the danger in time in case of inclination
Outrigger:
shape likes front V and rear H, each leg can be adjusted separately
When the support of one leg is unstable, the machine will automatically control the basket to work within the safe range
shape likes front V and rear H, each leg can be adjusted separately
When the support of one leg is unstable, the machine will automatically control the basket to work within the safe range
Mechanical control system,
slow response, low cost and difficult operation
Control system \t
We have introduced advanced can bus control system, which is more efficient and fast
You can use the wireless remote control to realize continuously variable speed regulation
You can use the wireless remote control to realize continuously variable speed regulation
Main supporting hydraulic and electrical components
Component brand unknown, unreliable
Main supporting hydraulic and electrical components:
our imported load sensitive proportional valve, balance valve and CAN bus control system are international famous brands
Intelligent security system | ||
Automatic interlock device for loading and unloading | It is used for loading and unloading interlock to prevent the risk of misoperation | |
Hand-operated emergency pump | When the engine and main pump fail, it can be brought back to the surface by the emergency system.The car was put back into driving mode | |
Emergency stop device for working platform | Used for emergency stop operation and restricted boom operation | |
Automatically limit work range | When the working range reaches the specified value, the dangerous direction is automatically restricted | |
Incomplete ground support limits work | When the leg is not fully supported (soft leg), the lifting boom will limit the dangerous direction of work | |
Night safety warning device | There are engineering strobe lights and LED lights on the vehicle | |
Engine ignition and flameout | The controller can control ignition and flameout of the engine | |
We are a professional manufacturer of aerial platform trucks in china, and we can provide our customers various configuration trucks with different prices .Aerial platform truck is ideal for maintenance of traffic lights, street lights, landscaping trees, clearing of high window and other high aerial works. Aerial Operating Vehicle is mainly designed to solve the new lightweight aerial operating vehicle with large outrigger span, large area, and poor pass ability (inability to enter the small alleys of the old city).Working height can be 21m, 23m ,26m ,27m ,28m
Aerial operating vehicles are widely used in engineering construction, plant maintenance, plant construction, municipal
administration, electricity, street lights, communications, gardens, transportation, mining, industrial installation, equipment
maintenance, three-dimensional warehouses, billboard installation, film and television advertising shooting, high-altitude
pipelines Laying, laying of various pipelines, maintenance of various venues, construction and painting of expensive bridges, etc.
Aerial operating vehicles are widely used in engineering construction, plant maintenance, plant construction, municipal
administration, electricity, street lights, communications, gardens, transportation, mining, industrial installation, equipment
maintenance, three-dimensional warehouses, billboard installation, film and television advertising shooting, high-altitude
pipelines Laying, laying of various pipelines, maintenance of various venues, construction and painting of expensive bridges, etc.
Product Paramenters
model | 21m | 23m | 26m | 28m | 45m |
Chassis | JMC Shunda JX1041TG25 | JMC Shunda JX1041TG25 | JMC Kairui | JMC Kairui | |
Fuel tank volume | 92L | 92L | 92L | 92L | |
Hydraulic oil tank volume | 91L | 91L | 91L | 91L | |
Drive way | Rear drive | Rear drive | Rear drive | Rear drive | rear drive |
Number of front tires | 2 | 2 | 2 | 2 | 2 |
Number of rear tires | 4 | 4 | 4 | 4 | 4 |
Tyre type | Radial tire | Radial tire | Radial tire | Radial tire | raditail tire |
Tire size | 7.00 R16 LT 10PR | 7.00 R16 LT 10PR | 7.50 R16 LT 14PR | 7.50 R16 LT 14PR | |
Braking method | Oil brake | Oil brake | automatically air-cut brake | automatically air-cut brake | |
capacity of cabin | 2 people for a single row | 2 people for a single row | 3 people for a single row | 3 people for a single row | 3 people for a single row |
Steering assist | power-assisted steering | power-assisted steering | power-assisted steering | power-assisted steering | |
Temperature regulation | Air conditioning | Air conditioning | Air conditioning | Air conditioning | |
Engine | Isuzu Engine | Isuzu Engine | Isuzu Engine | Isuzu Engine | |
Engine power | 85KW | 85KW | 211KW | 211KW | |
Engine horsepower | 115 | 115 | 156 | 156 | |
Emission | China VI vehicle emission standards | China VI vehicle emission standards | China VI vehicle emission standards | China VI vehicle emission standards | |
Length | 5995mm | 5995mm | 7740mm | 8350mm | |
Width | 2050mm | 2000mm | 2240mm | 2230mm | |
Height | 2900mm | 3000mm | 3200mm | 3250mm | |
Weight | 4495kg | 4495kg | 7595kg | 7600kg | |
Front overhang | 1065mm | 1065mm | 1155mm | 1155mm | |
Rear overhang | 1440mm | 1440mm | 2260mm | 2260mm | |
wheelbase | 3360mm | 3360mm | 3815mm | 3815mm | |
Maximum travel speed | 99Km/h | 99Km/h | 115Km/h | 115Km/h | |
Approach angle | 27° | 27° | 20° | 20° | |
Departure angle | 11° | 11° | 10° | 10° | |
Rated load | 260kg | 200kg | 260kg | 260kg | |
Maximum working height | 21m | 23m | 26m | 28m | |
Maximum operating height | 3m | 3m | 5m | 5m | |
Maximum operating range | 9m | 12m | 15m | 16m | |
Jib | Four-section hexagonal working arm, synchronously telescopic | Four-section hexagonal working arm, synchronously telescopic | Four-section hexagonal working arm, synchronously telescopic | Four-section hexagonal working arm, synchronously telescopic | |
Slewing device | 360 degree continuous rotation | 360 degree continuous rotation | 360 degree continuous rotation | 360 degree continuous rotation | |
Control voltage | 12V | 12V | 12V | 12V | |
Maximum working wind speed | Class 4 wind | Class 4 wind | Class 4 wind | Class 4 wind |

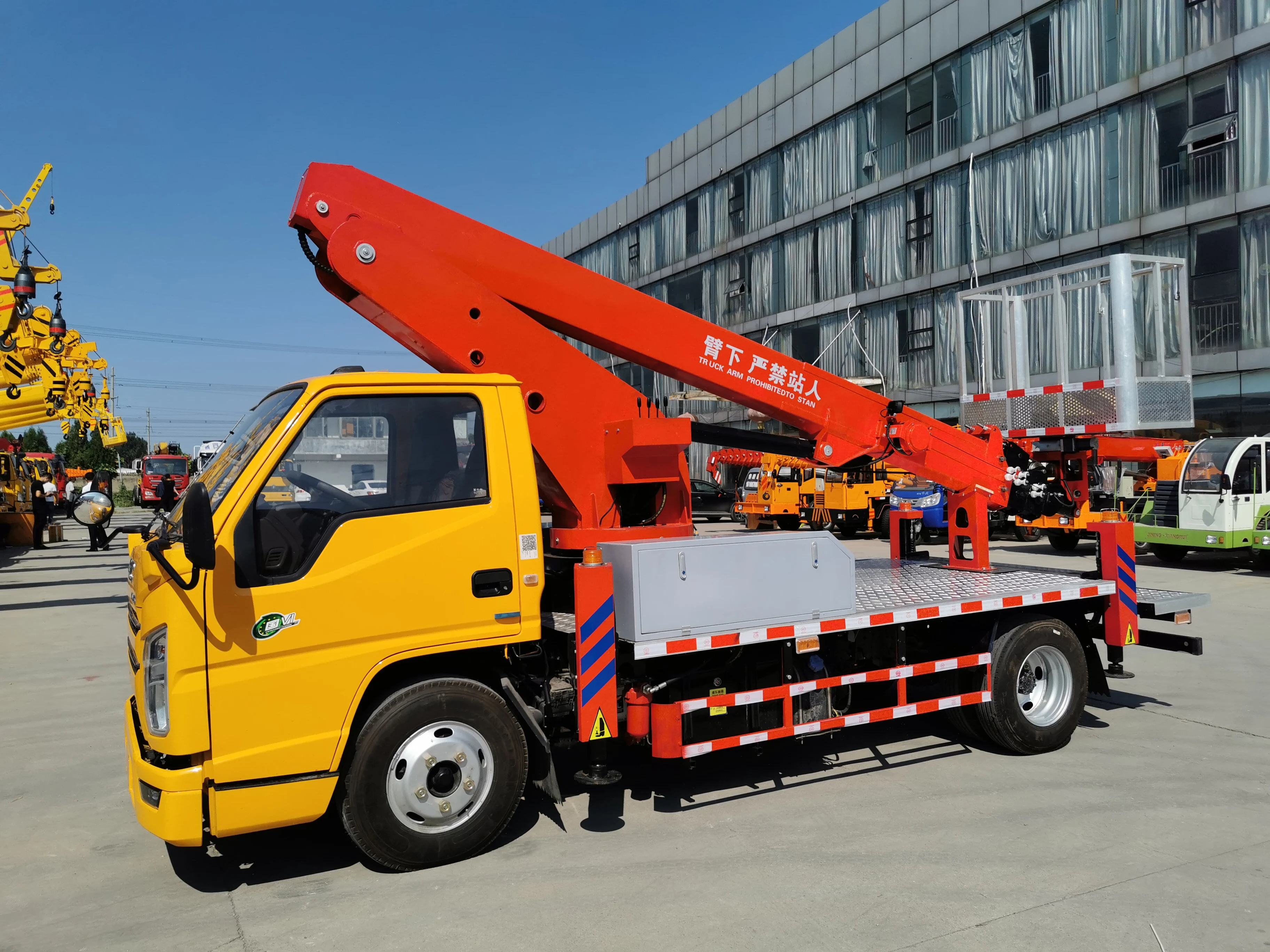

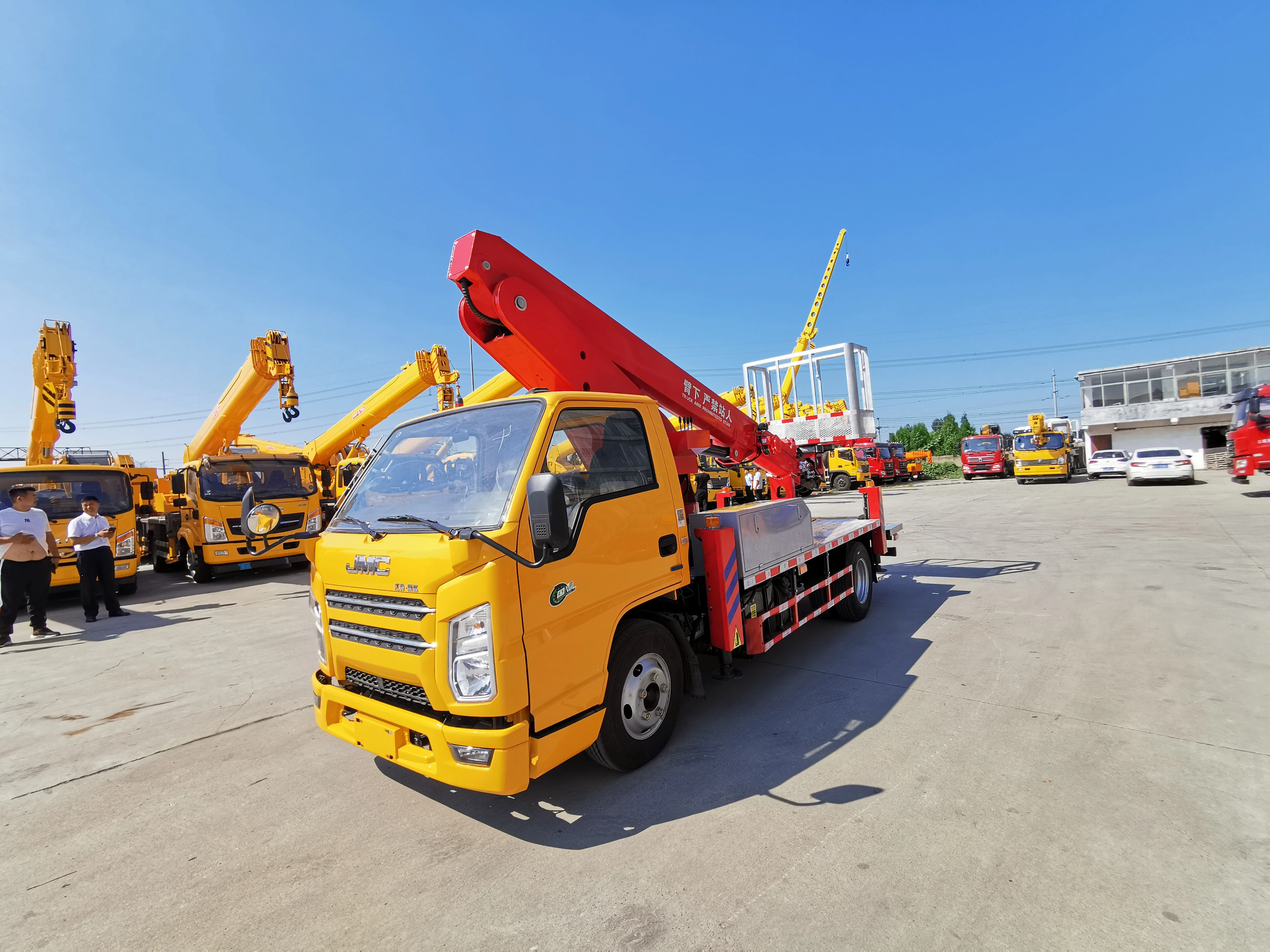

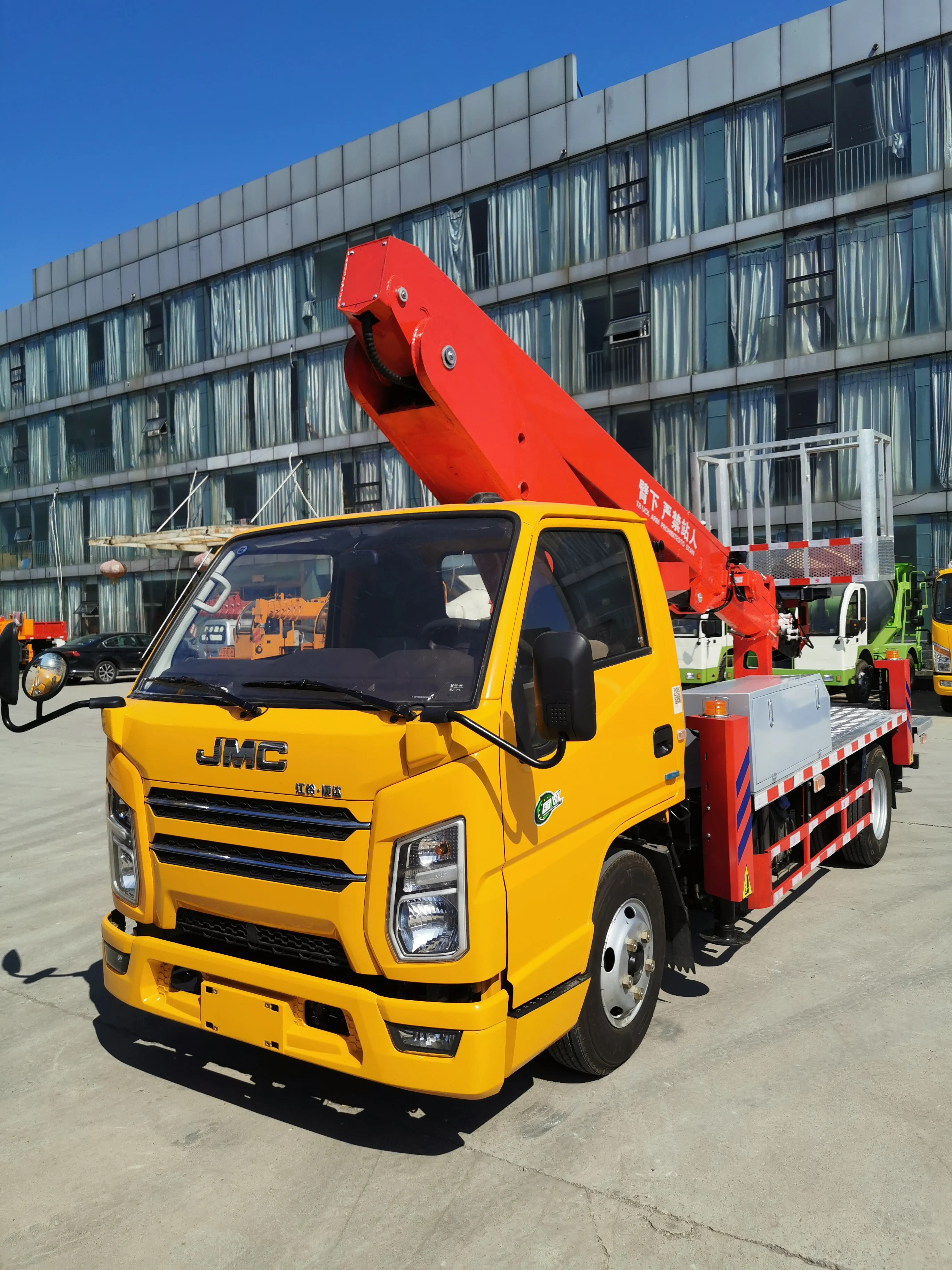

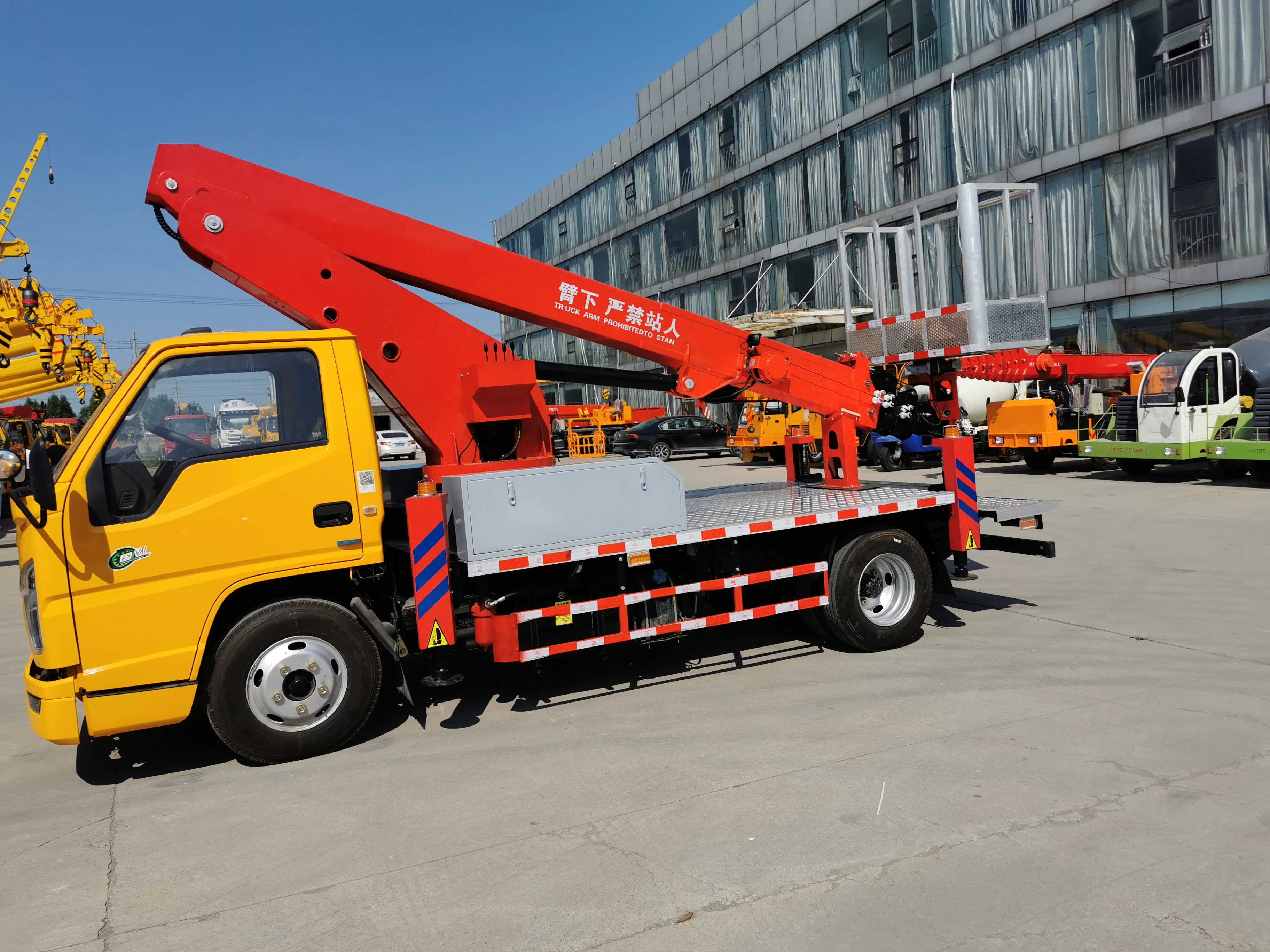

Product details
Customer Photos faceback
Packing & Delivery
Packing: Container, nude or according to your request
Delivery:within 15-20days after confirming the payment
Delivery:within 15-20days after confirming the payment
Company Profile
Jining Jiubang Construction Machinery Equipment Co., Ltd. is a professional company for aerial work trucks and ladders, and an enterprise of heavy machinery manufacturing in Shandong Province. The company is located inJining Economic and Technological Development Zone, with CNC cutting machines, bending machines, and digital processing centers.
Jiubang Heavy Industries is committed to developing high-tech products, introducing German Rexroth, German Hawe, German Siemens, and French Schneider The company, the technical product of Japan's Mitsubishi Electric Corporation, and cooperates to develop a series of products of 30-63-meter boom ladder truck and aerial work truck.
The company has always pursued the concept of "quality is about survival, and details determine success or failure". The company always adheres to the business policy of "honesty and trustworthiness, mutual benefit and win-win", based on the principle of survival by quality, development by science and technology, and reputation by service. With good technology, excellent product quality and perfect after-sales service, All kinds of products of the company sell well all over the country, get unanimous praise from users, and enjoy a high reputation in the market. Adhering to the principle of "constantly deny yesterday, organize today scientifically, and create tomorrow bravely", we have launched generations of products that are more suitable for today's engineering construction, and provide construction units with better quality and more reliable construction machinery!
The company has always pursued the concept of "quality is about survival, and details determine success or failure". The company always adheres to the business policy of "honesty and trustworthiness, mutual benefit and win-win", based on the principle of survival by quality, development by science and technology, and reputation by service. With good technology, excellent product quality and perfect after-sales service, All kinds of products of the company sell well all over the country, get unanimous praise from users, and enjoy a high reputation in the market. Adhering to the principle of "constantly deny yesterday, organize today scientifically, and create tomorrow bravely", we have launched generations of products that are more suitable for today's engineering construction, and provide construction units with better quality and more reliable construction machinery!
