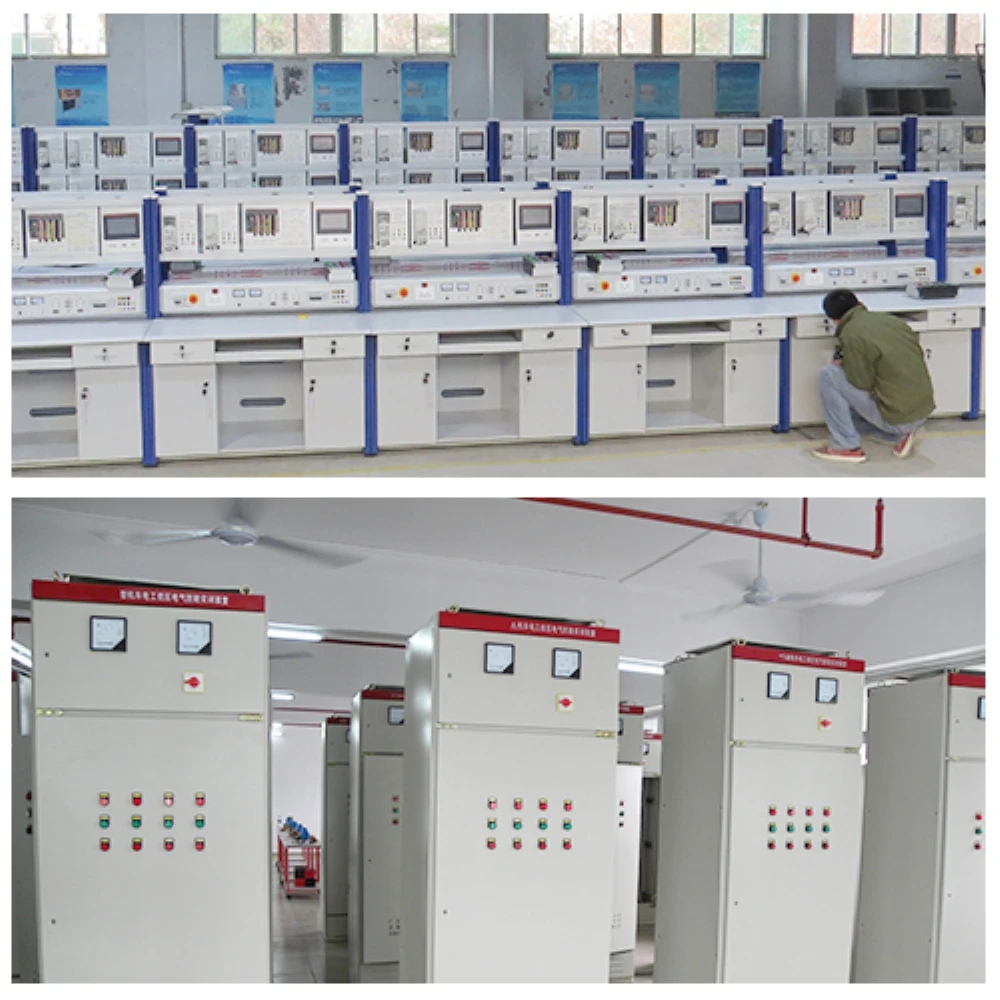

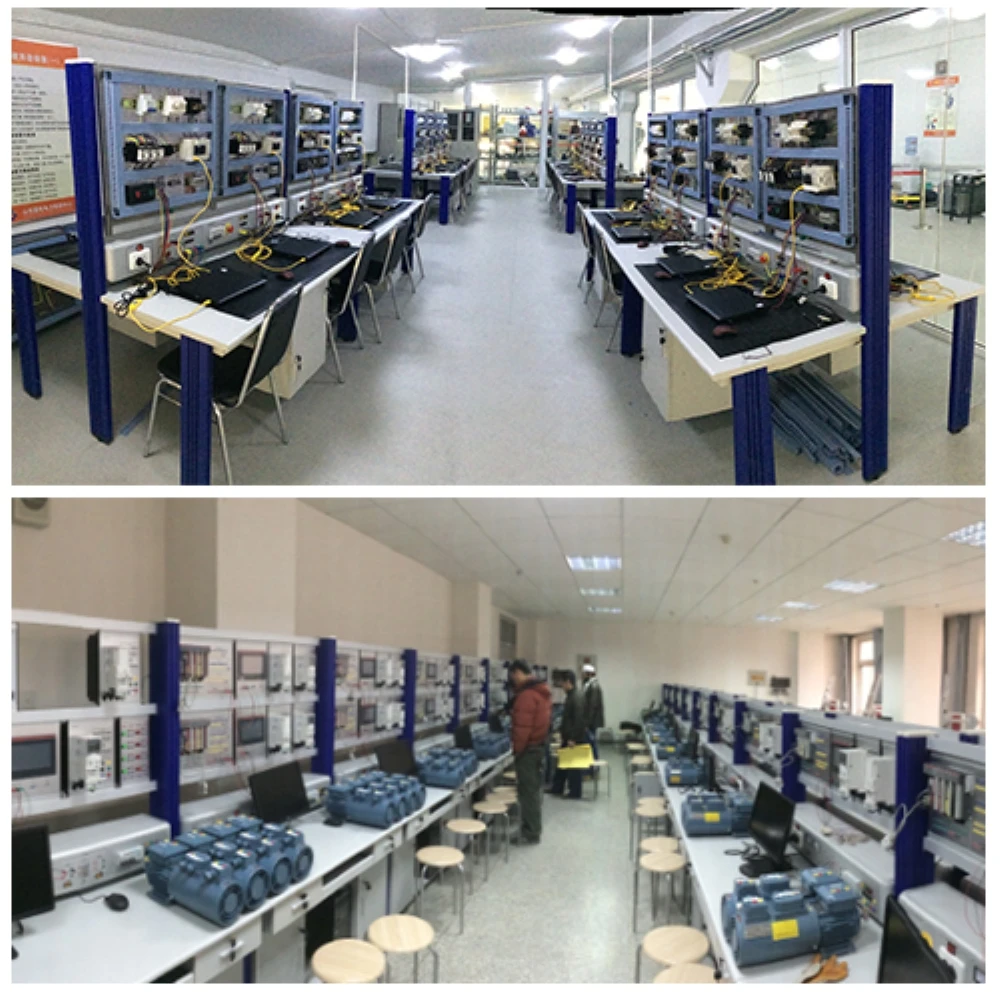

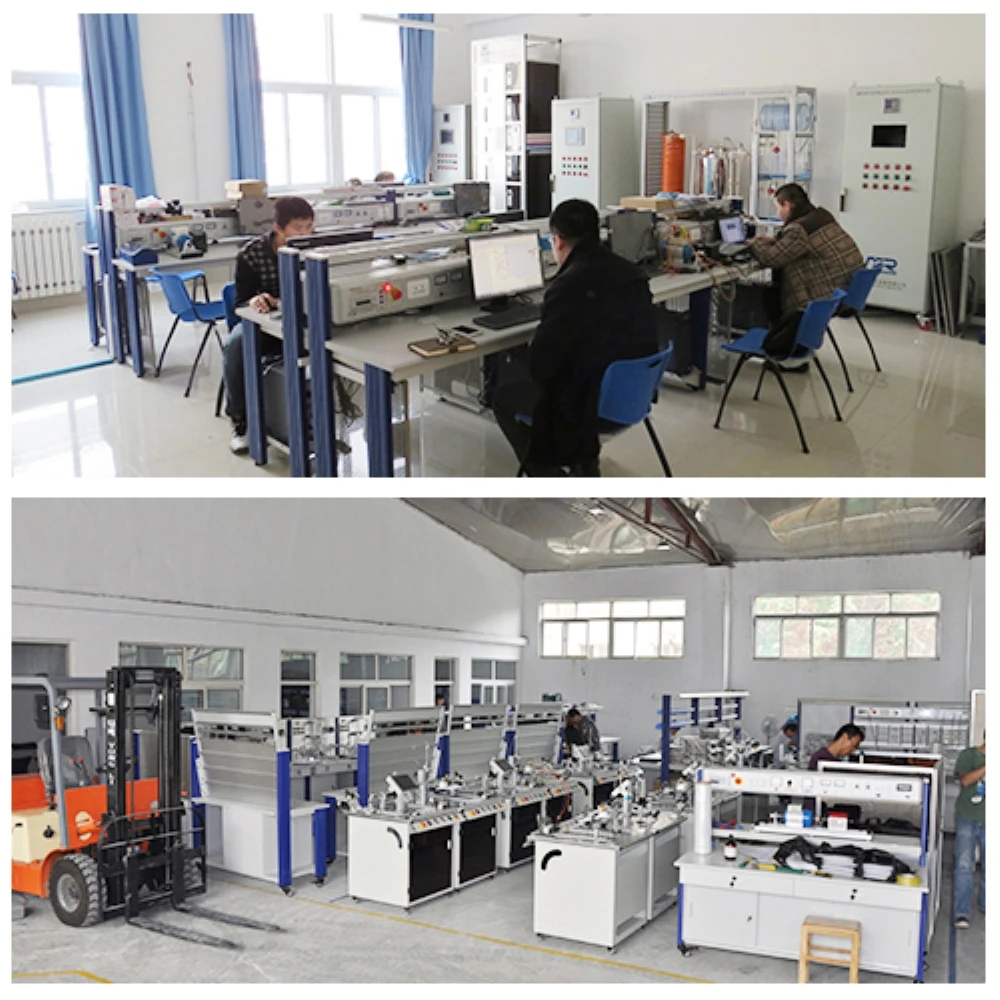

Company Profile
Recommended Products
Certifications
Products Description
MR-HM 150.20 Operating Principle of a Francis Turbine Educational Equipment Vocational Training Equipment
Description
• model of a reaction turbine
• transparent operating area
• turbine with adjustable guide vanes
• loading by band brake
Water turbines are turbomachines utilising water power. The Francis turbine is a type of reaction turbine which converts the pressure energy of the water into kinetic energy in the distributor and in the rotor. The water is fed in the distributor by means of a spiral housing.
The flowing water is accelerated in the distributor by the adjustable guide vanes and directed onto the blades. The redirection and further acceleration of the water in the rotor generates an impulse which is transmitted to the rotor.
MR-HM 150.20 is the model of a Francis turbine demonstrating the function of a reaction turbine.
The experimental unit consists of the rotor, the distributor with adjustable guide vanes, a band brake for loading the turbine and a housing with a transparent front panel. The transparent cover enables to observe the water flow, the rotor and the guide vanes during operation. The angle of attack and thus the
power of the rotor are modified by adjusting the guide vanes.
The turbine torque is determined by force measurement on a band brake and is read on spring balances. For measuring the rotational speed, a noncontact speed sensor, e.g. MR-HM 082, is required. A manometer shows the water pressure at the turbine inlet.
• model of a reaction turbine
• transparent operating area
• turbine with adjustable guide vanes
• loading by band brake
Water turbines are turbomachines utilising water power. The Francis turbine is a type of reaction turbine which converts the pressure energy of the water into kinetic energy in the distributor and in the rotor. The water is fed in the distributor by means of a spiral housing.
The flowing water is accelerated in the distributor by the adjustable guide vanes and directed onto the blades. The redirection and further acceleration of the water in the rotor generates an impulse which is transmitted to the rotor.
MR-HM 150.20 is the model of a Francis turbine demonstrating the function of a reaction turbine.
The experimental unit consists of the rotor, the distributor with adjustable guide vanes, a band brake for loading the turbine and a housing with a transparent front panel. The transparent cover enables to observe the water flow, the rotor and the guide vanes during operation. The angle of attack and thus the
power of the rotor are modified by adjusting the guide vanes.
The turbine torque is determined by force measurement on a band brake and is read on spring balances. For measuring the rotational speed, a noncontact speed sensor, e.g. MR-HM 082, is required. A manometer shows the water pressure at the turbine inlet.
Product Paramenters
Input power | three phases, five wires, 380V±10% 50Hz | ||||||
Dimension | 1100x680x900mm | ||||||
Inner diameter of test tube | 90mm | ||||||
Weight | 28kg | ||||||
Environment temperature | -10℃～+40℃ | ||||||
MR-HM 150.20 Operating Principle of a Francis Turbine Educational Equipment Vocational Training Equipment
The experimental unit is positioned easily and securely on the work surface of the MR-HM 150 base module. The water is supplied and the flow rate measured by MR-HM 150. Alternatively, the experimental unit can be operated by the laboratory supply.
Learning objectives/experiments
• design and function of a Francis turbine
• determination of torque, power and efficiency
• graphical representation of characteristic curves for torque, power and efficiency
Specification
[1] function of a Francis turbine
[2] transparent front panel for observing the operating area
[3] loading the turbine by use of the band brake
[4] adjustable guide vanes for setting different angles of attack
[5] marking on brake drum for non-contact speed measurement
[6] instruments: spring balances for determining the torque, manometer shows pressure at turbine inlet
[7] flow determination by base module MR-HM 150
[8] water supply using the base module MR-HM 150 or via lab supply
Learning objectives/experiments
• design and function of a Francis turbine
• determination of torque, power and efficiency
• graphical representation of characteristic curves for torque, power and efficiency
Specification
[1] function of a Francis turbine
[2] transparent front panel for observing the operating area
[3] loading the turbine by use of the band brake
[4] adjustable guide vanes for setting different angles of attack
[5] marking on brake drum for non-contact speed measurement
[6] instruments: spring balances for determining the torque, manometer shows pressure at turbine inlet
[7] flow determination by base module MR-HM 150
[8] water supply using the base module MR-HM 150 or via lab supply
Product packaging
MR-HM 150.20 Operating Principle of a Francis Turbine Educational Equipment Vocational Training Equipment
Technical data
Turbine
• output: 12W at n=1100min-1, approx. 40L/min,H=8m
• rotor
• 7 blades
• blade width: 5mm
• external Ø: 50mm
• guide vanes
• 6 vanes, adjustable (20 stages)
Measuring ranges
• force: 2x 0…10N
• pressure: 0…1,0bar
LxWxH: 400x400x630mm
Weight: approx. 17kg
Required for operation
MR-HM 150 (closed water circuit) or water connection,drain
Scope of delivery
1 experimental unit
1 set of instructional material
Turbine
• output: 12W at n=1100min-1, approx. 40L/min,H=8m
• rotor
• 7 blades
• blade width: 5mm
• external Ø: 50mm
• guide vanes
• 6 vanes, adjustable (20 stages)
Measuring ranges
• force: 2x 0…10N
• pressure: 0…1,0bar
LxWxH: 400x400x630mm
Weight: approx. 17kg
Required for operation
MR-HM 150 (closed water circuit) or water connection,drain
Scope of delivery
1 experimental unit
1 set of instructional material
Похожие товары
Топливный инжектор 3047973 3030445 части дизельного двигателя для NH/NT855 NT495 NT743 NTA855
90,00 $ - 100,00 $
Насадка для мойки высокого давления, регулируемый угол, сопло для распылителя холодной воды
Ювелирные изделия на день матери, подвески для браслета, подвески на день матери, распродажа подарков

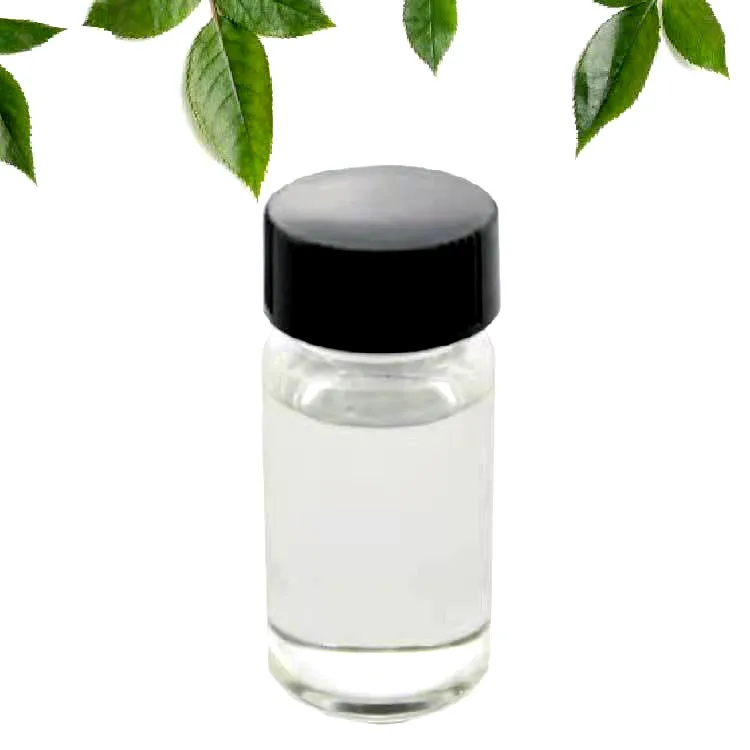

Распродажа, 1,2-пентандиол/пентиленгликоль с небольшим минимальным заказом CAS 5343-92-0

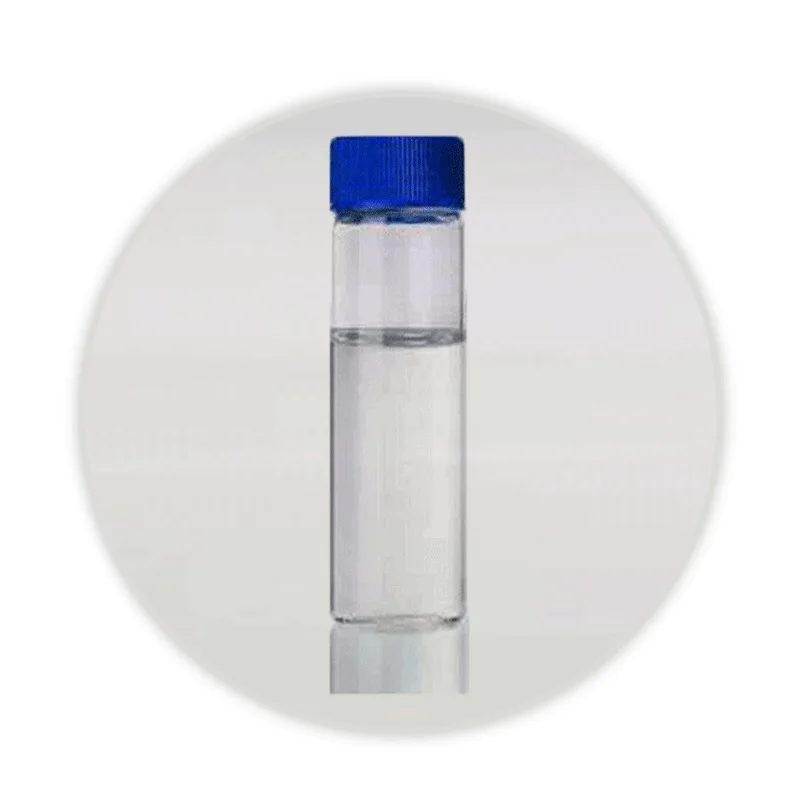

1,2-пентандиол/пентиленгликоль высокой чистоты CAS 5343-92-0, поставка в наличии

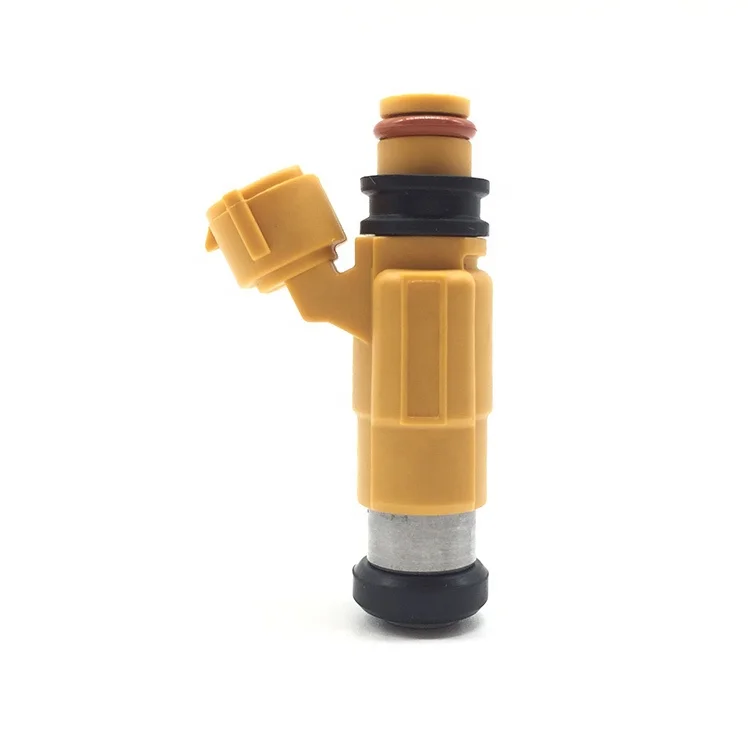

Топливный инжектор CDH275 для Mitsubishi Jeep V31 4G64 Freeca 4G63 MD319792
5,19 $ - 9,00 $

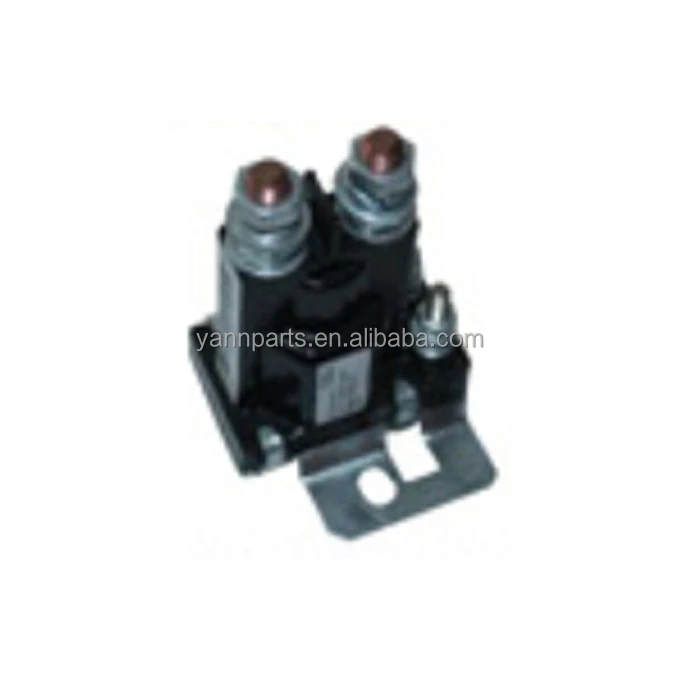

3916301 3916302 12V 6CT дизельный двигатель Магнитное реле для экскаватора
