10 Вт/м труба нагревательный кабель со встроенным термостат для подогрева труб
- Категория: >>>
- Поставщик: Anhui Huanrui Heating Manufacturing Co. Ltd.
Сохранить в закладки 1600372355509:
Описание и отзывы
Характеристики
Product Description
PHC pre-fabricated with thermostat and power plug,maintain the temperature on the range from 3℃ to 10℃ automatically to prevent the pipe from defrosting.It can be applied to plastic pipes and metal pipes.

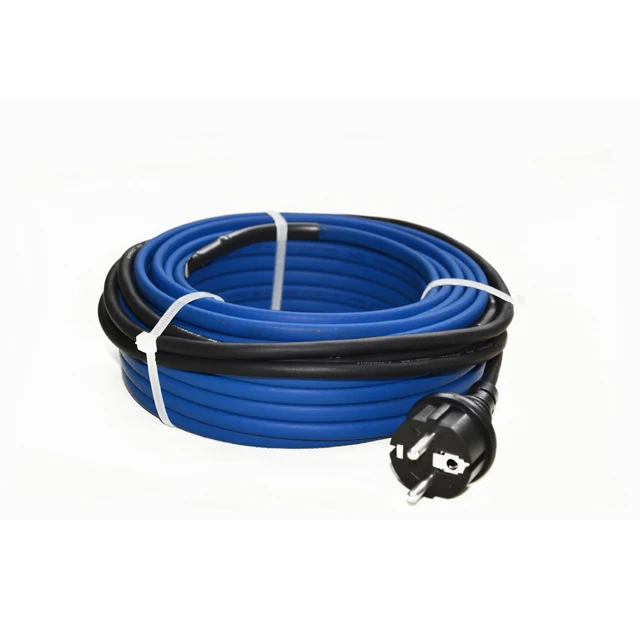

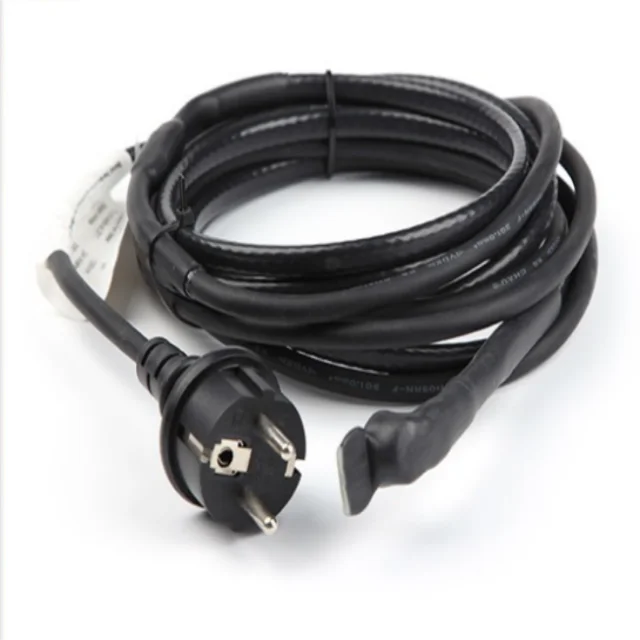

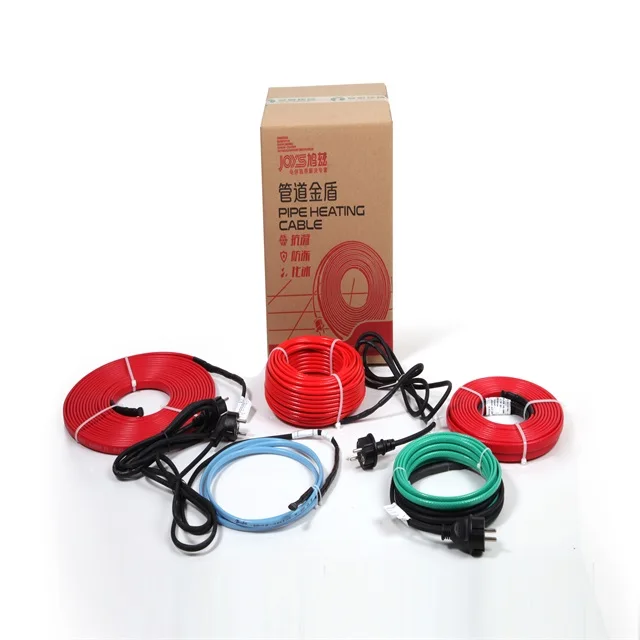

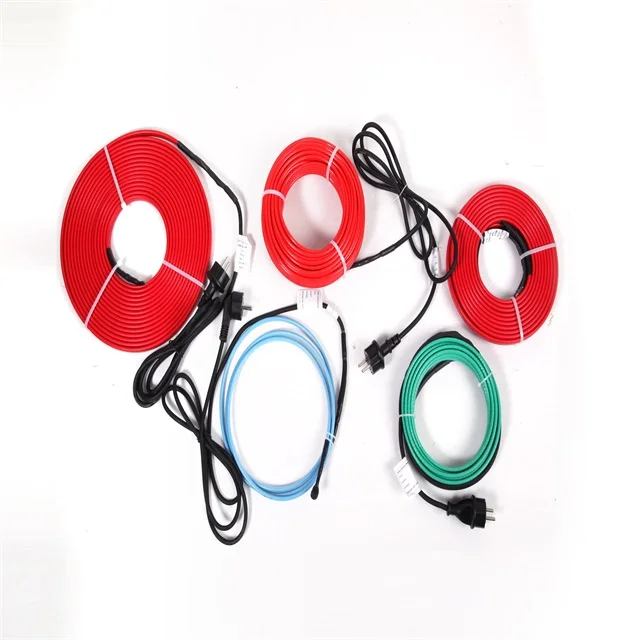

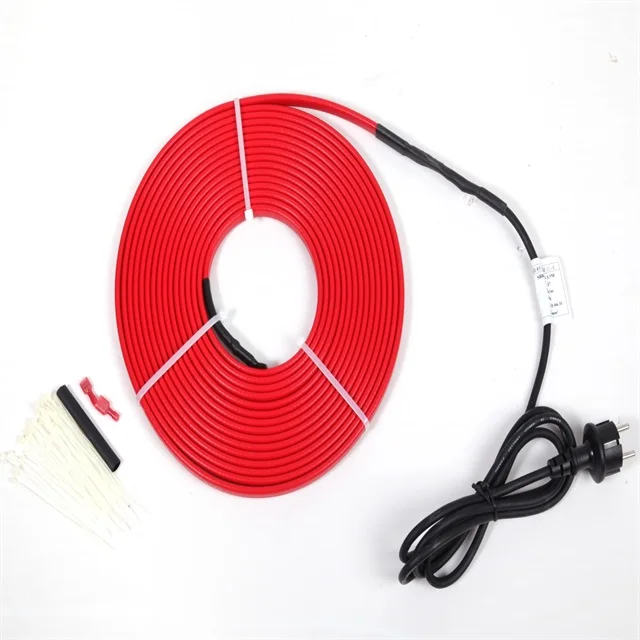

10W/m pipe heating cable with built-in thermostat pipe heat cable
MOQ: 10 Sets or 100 meters
OEM and ODM available
OEM and ODM available
Product Parameters
Date&Certification
Application: Residential water pipe antifreeze
Rated voltage：110-120V/220-230V
Power output: 10w/m,12w/m,15w/m,23w/m(7w/ft)
Min installation temperature: -10℃
Certification: CE,EAC,TUV
Item number | Rated voltage /V | Length/m | Power output w/m | Total power /W | Current/Amps | Resistance/Ω |
PHC10-2 | 230 | 2 | 10 | 20 | 0.09 | 2645.00 |
PHC10-4 | 230 | 4 | 10 | 40 | 0.17 | 1322.50 |
PHC10-6 | 230 | 6 | 10 | 60 | 0.26 | 881.67 |
PHC10-8 | 230 | 8 | 10 | 80 | 0.35 | 661.25 |
PHC10-10 | 230 | 10 | 10 | 100 | 0.43 | 529.00 |
PHC10-15 | 230 | 15 | 10 | 150 | 0.65 | 352.67 |
PHC10-20 | 230 | 20 | 10 | 200 | 0.87 | 264.50 |
PHC10-25 | 230 | 25 | 10 | 250 | 1.09 | 211.60 |
PHC10-30 | 230 | 30 | 10 | 300 | 1.30 | 176.33 |
Item number | Rated voltage /V | Length/m | Power output w/m | Total power /W | Current/Amps | Resistance/Ω |
PHC15-2 | 230 | 2 | 15 | 30 | 0.13 | 1763.33 |
PHC15-4 | 230 | 4 | 15 | 60 | 0.26 | 881.67 |
PHC15-6 | 230 | 6 | 15 | 90 | 0.39 | 587.78 |
PHC15-8 | 230 | 8 | 15 | 120 | 0.52 | 440.83 |
PHC15-10 | 230 | 10 | 15 | 150 | 0.65 | 352.67 |
PHC15-14 | 230 | 14 | 15 | 210 | 0.91 | 251.90 |
PHC15-16 | 230 | 16 | 15 | 240 | 1.04 | 220.42 |
PHC15-20 | 230 | 20 | 15 | 300 | 1.30 | 176.33 |
PHC15-24 | 230 | 24 | 15 | 360 | 1.57 | 146.9 |
PHC15-25 | 230 | 25 | 15 | 375 | 1.63 | 141.1 |
PHC15-30 | 230 | 30 | 15 | 450 | 1.96 | 117.6 |
PHC15-40 | 230 | 40 | 15 | 600 | 2.61 | 88.2 |
PHC15-50 | 230 | 50 | 15 | 750 | 3.26 | 70.5 |
PHC15-60 | 230 | 60 | 15 | 900 | 3.91 | 58.8 |
Item number | Rated voltage /V | Length/ft | Power output w/ft | Total power /W | Current/Amps | Resistance/Ω |
PHC-21-1 | 120 | 3 | 7 | 21 | 0.2 | 685.7 |
PHC-42-1 | 120 | 6 | 7 | 42 | 0.4 | 342.9 |
PHC-63-1 | 120 | 9 | 7 | 63 | 0.5 | 228.6 |
PHC-84-1 | 120 | 12 | 7 | 84 | 0.7 | 171.4 |
PHC-105-1 | 120 | 15 | 7 | 105 | 0.9 | 137.1 |
PHC-126-1 | 120 | 18 | 7 | 126 | 1.1 | 114.3 |
PHC-168-1 | 120 | 24 | 7 | 168 | 1.4 | 85.7 |
PHC-210-1 | 120 | 30 | 7 | 210 | 1.8 | 68.6 |
PHC-280-1 | 120 | 40 | 7 | 280 | 2.3 | 51.4 |
Packaging and Shipping
Recommend Products
Underfloor heating mat
Underfloor heating cable diameters from 3.6mm to 5.8mm, available for in-concrete heating, for bathroom and little rooms
Certifications
Company Profile
COMPANY PROFILE
Anhui Huanrui Heating Manufacturing Co., ltd. is a consolidated factory with the R&D, production, marketing and services in self-regulating heating cable and constant wattage heating cable, as well as one expert producer and an enterprise of National high-tech award. Huanrui located in Hefei city with registered capital of RMB 50.8 million and with factory covered area 26640sqm and project investment of RMB 80 million. Annual output volume is 50 million meters of different kinds of heating cable. R&D team is leaded by Professors from University of Science and Technology of China major in State key scientific and technological breakthrough plan, established for more than 10 years devoting to becoming the high-class heating cable supplier. Company invested RMB 120 million in 2014-2015, factory covering area 16500sqm.
* Total 38000sqm of production base, dozens of automatic production lines, annual output 50 million meters of heating cable.
* China patented technique of 3-layer extrusion, patent NO., ZL 2010 2 0236973.2；
* Bring in foreign production and test equipment, scientific quality management system to ensure quality.
* Owning more than 50 patents and more than 100 state certificates of honor.
Product Workshop
Laboratory
Showroom
Our Team
Q1: - Are you manufacturer?
- Yes, our company focus on heating cable manufacturing since 2004, located in Hefei City, Anhui Province, China.
Welcome to visit our company!
Q2: - What's the MOQ?
- MOQ for self-regulating heating cable is 1000m. MOQ for electric underfloor heating mat is 2000 sqm.
The less quantity can be negotiated.
Q3: - How long the warranty will be?
- The limited warranty for self-regulating heating cable is 10 years.
Warranty for electric underfloor heating mat & cable is 25 years.
We provide warranty against all defects in factory's material, design and workmanship.
We provide warranty against all defects in factory's material, design and workmanship.
Q4: - How long the delivery time will be?
- Normally within 7-15 days, big order should be negotiated.
Q5: - What is the Payment Term?
- T/T, L/C, Western Union, PayPal, Alibaba Secure Payment, D/P, etc.
Usually by T/T 30% as deposit in advance and the balance 70% should be paid when goods ready to ship or pay against the copy of B/L.
Похожие товары
FADA2018 новый стиль чайник термостат тостер термостат и регулятор температуры
Термостатическая головка клапана радиатора Doz, латунная головка клапана, полотенце, головка клапана радиатора
Guangzhou CX smart collection духовой насос, обжимное оборудование
Персонализированная картонная витрина-транспортер, витрина-транспортер

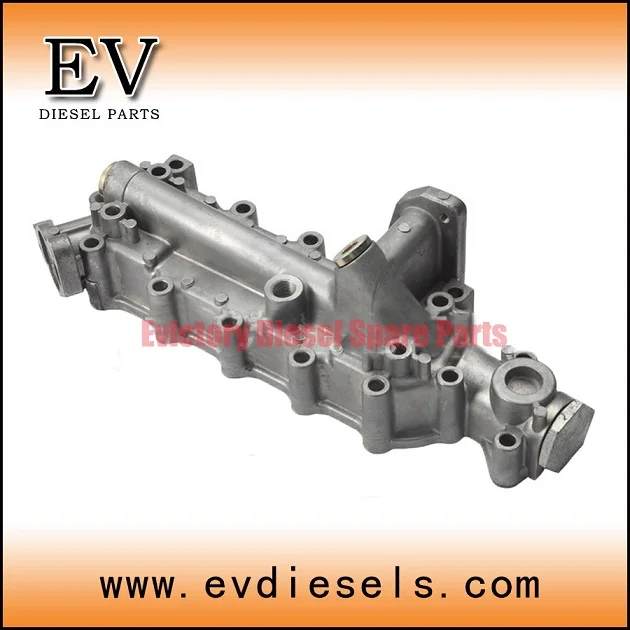

Масляный радиатор J08E J08C, масляный радиатор/сердечник подходит для грузовиков HINO diesel
1,00 $

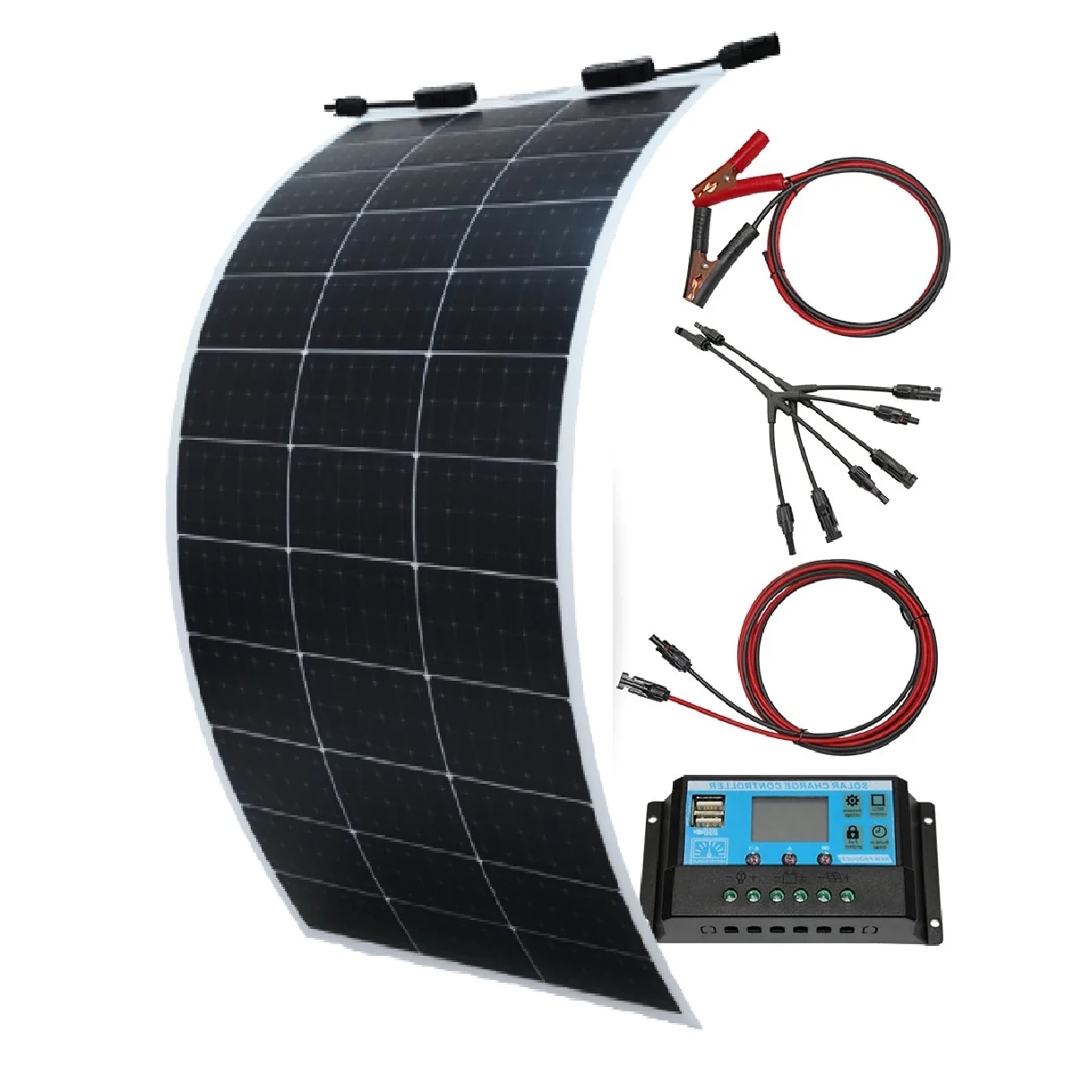

100W 200W 300W 600W солнечное зарядное устройство батареи 12V 24V подходит для солнечной системы солнечных панелей

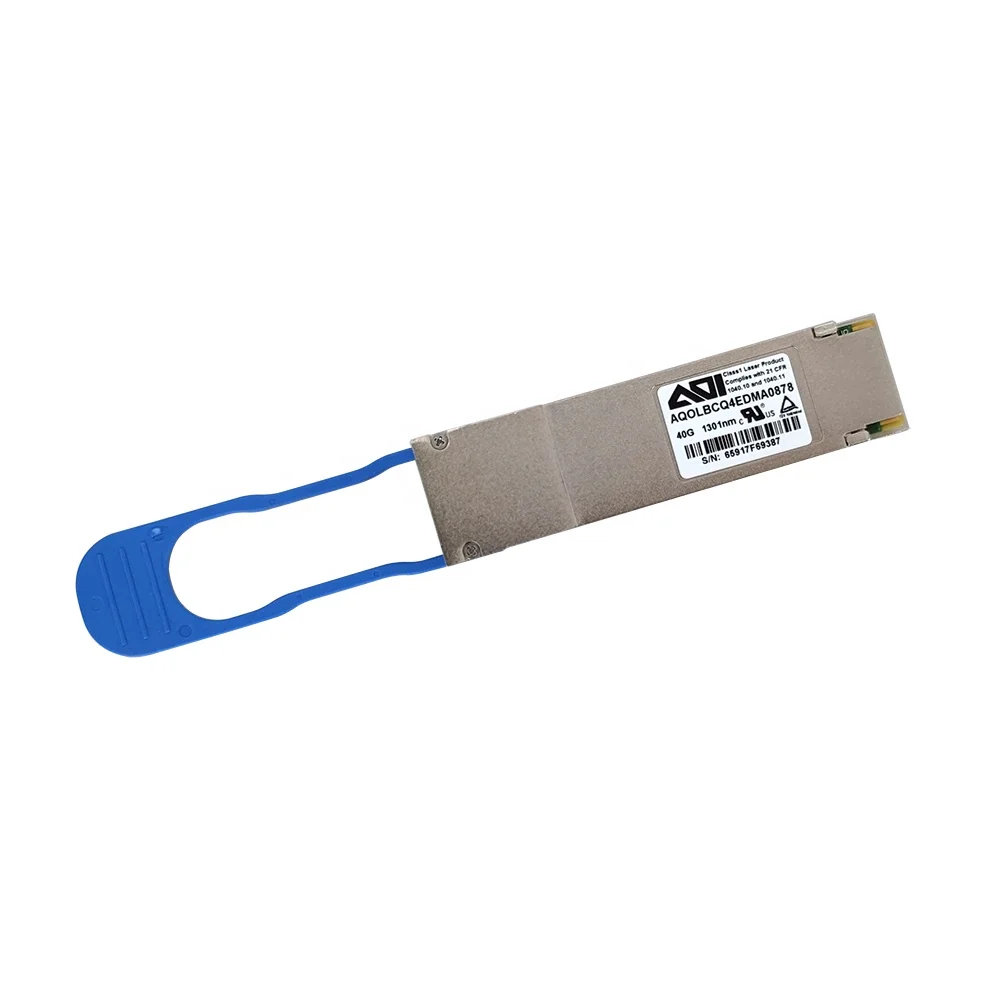

Оригинальный AOI AQOLBCQ4EDMA0878 40G 1301nm LR4 Lite 2km QSFP + волоконный модуль приемопередатчика
