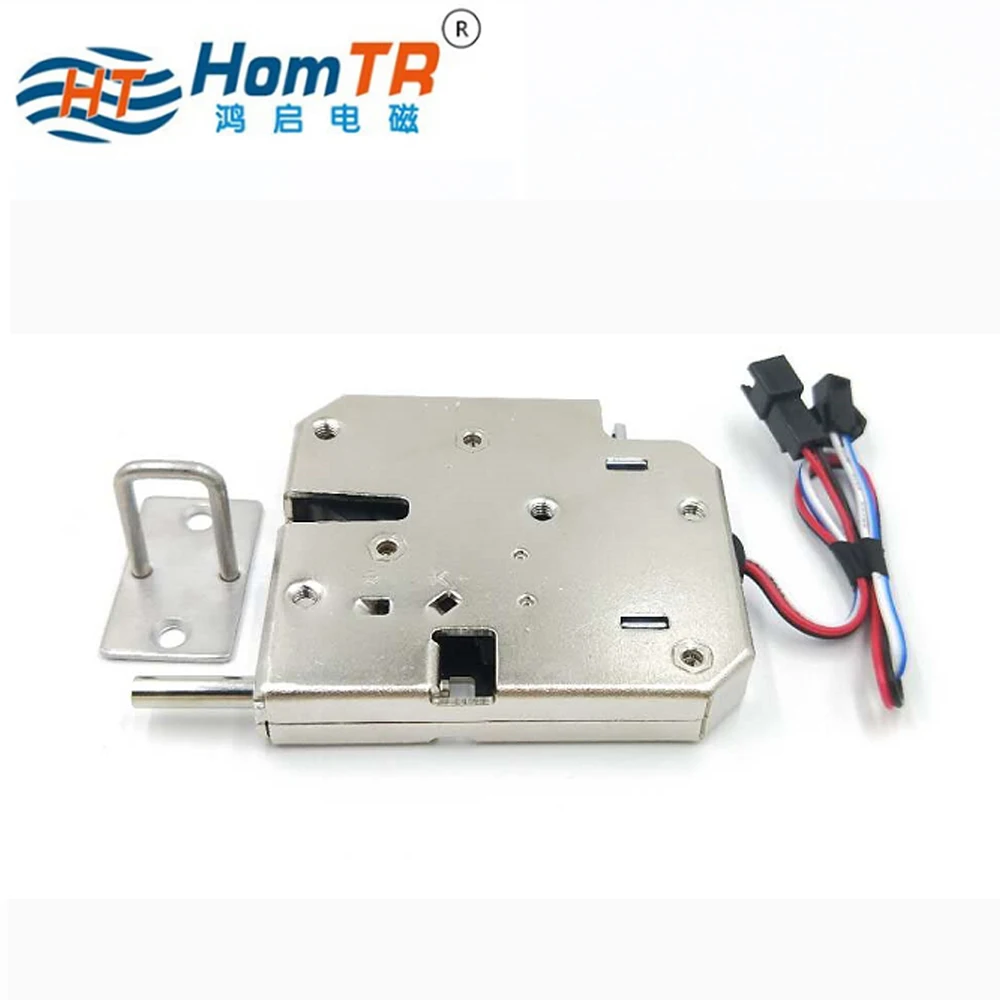

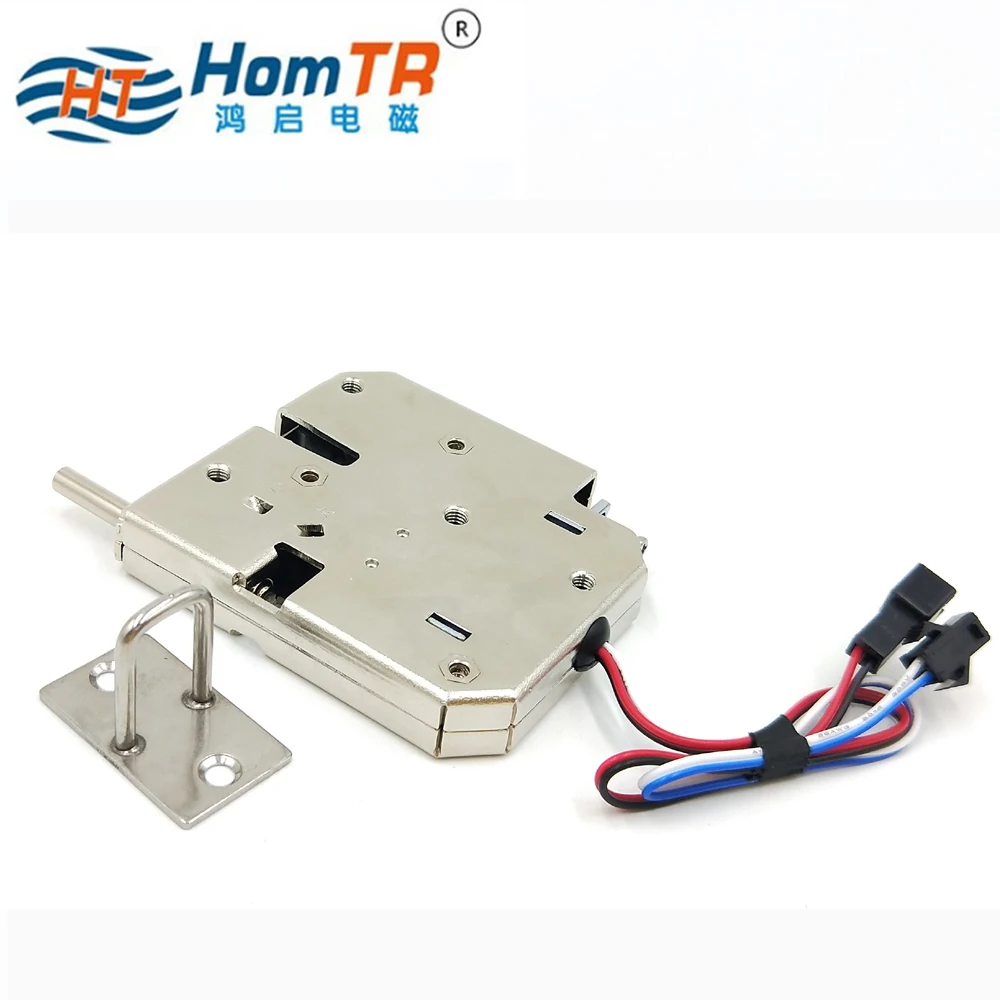

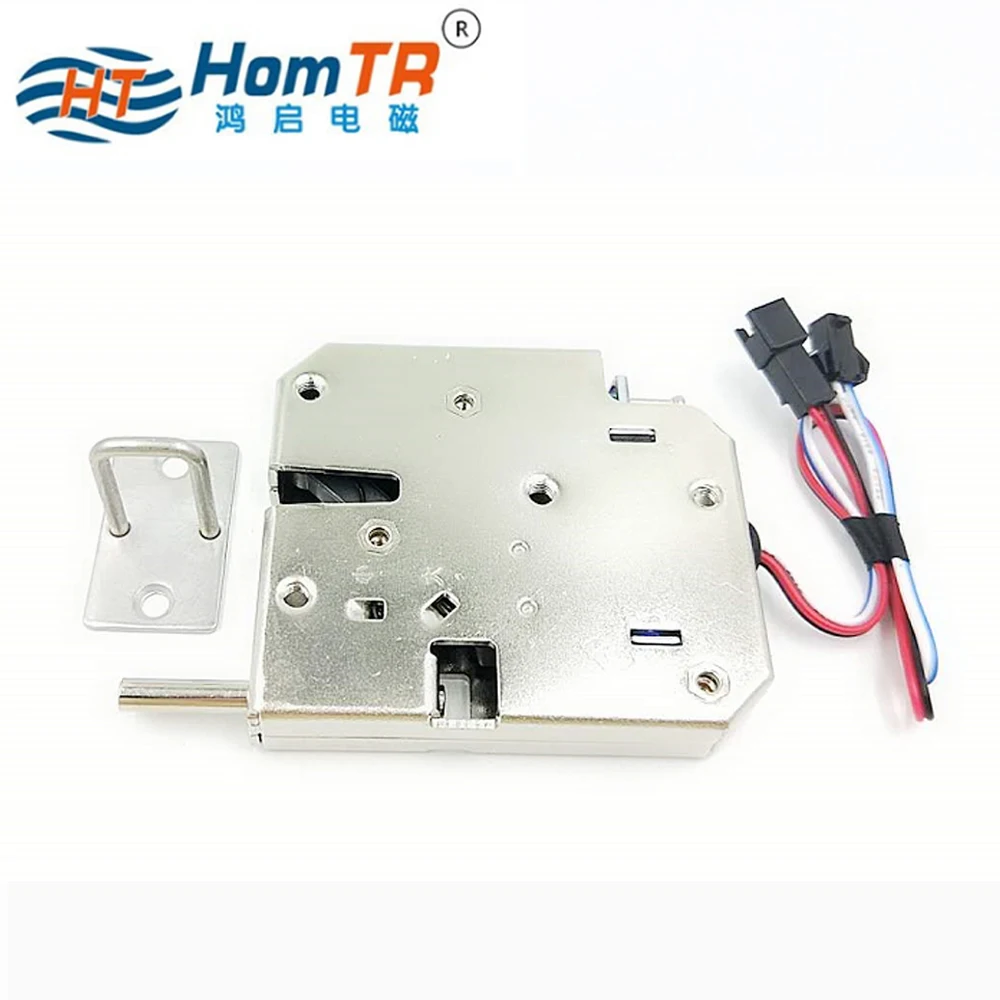

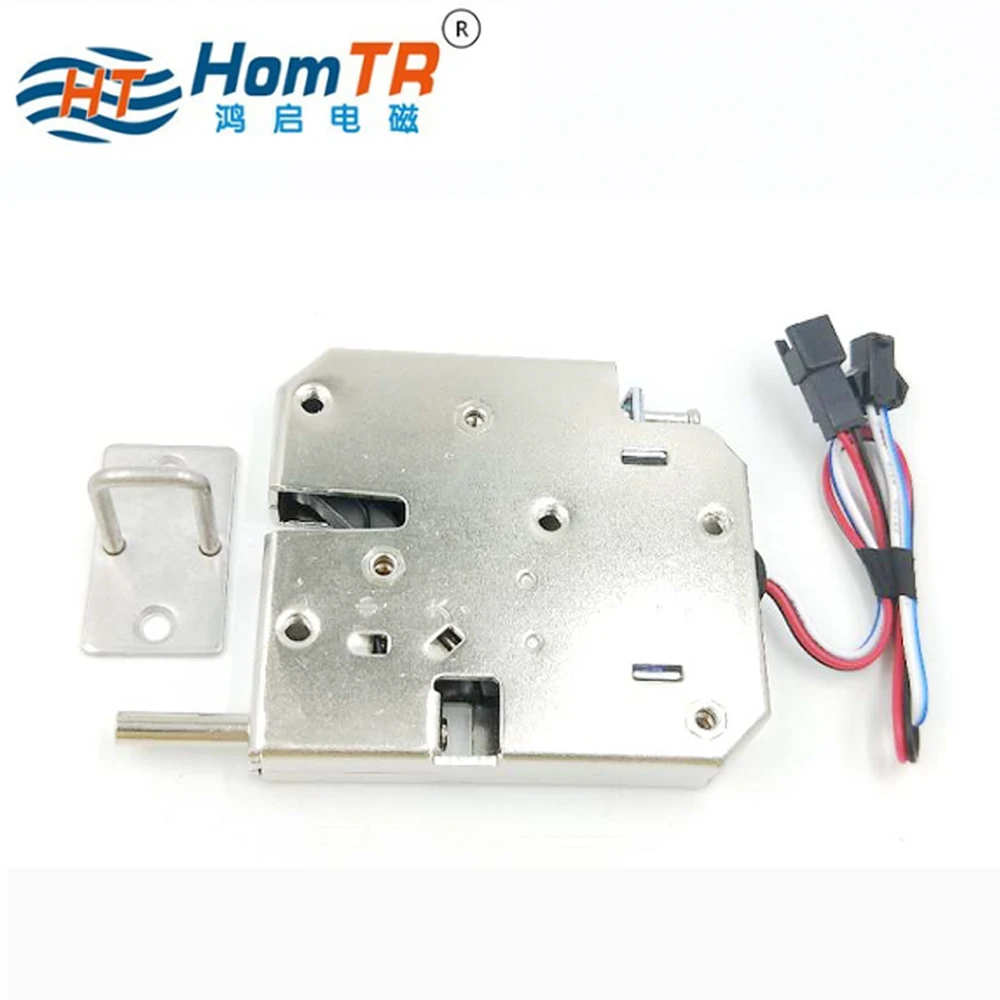

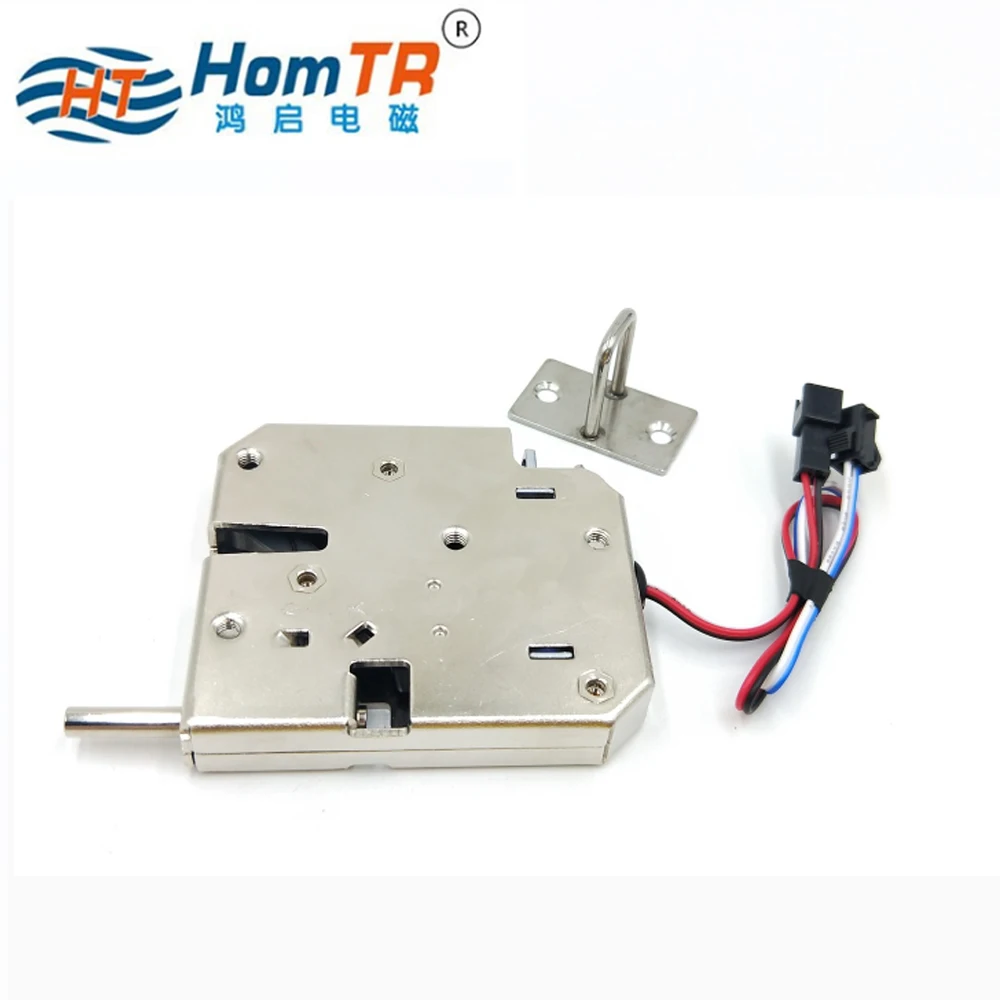

Электрический металлический замок HomTR соленоид 12 В смарт замки без ключа для торговых автоматов в
- Категория: >>>
- Поставщик: Shenzhen Hongqi Electromagnetic Technology Co. Ltd.
Сохранить в закладки 1600373334603:
Описание и отзывы
Характеристики
Product Description
This is a high-quality electric solenoid lock with steel-made case and steel casting parts. It adopts solid and durable latch hook which assured a long usage life over 500 thousands times. Pure copper electromagnetic valve coil, stable performance and temperature tolerance. Plug in external power to unlock it. The electric lock comes with signal feedback by which you can check the state of the lock easily. Use it with other controllers and fittings to realize more functions such as intelligent control lock, IoT(Internet of Things), etc.
Specification
Model | HTS-6673 |
Color | Black |
Rated Voltage | DC12V & DC24V |
Resistance | 9 Ω ± 10% @20°C |
Currency | 2A |
Power | 16w |
Size | 73*66*13mm |
Features:
1. Size: 73*66*13mm can be customized small size.
2. Working method: independent function (lock when power off,unlock immediately when power on).
3. Voltage: 12V/2A, ,24V/1A customizable.
4. Mechanical lifespan: over 500,000 times.
5. Electromagnet lifespan: over 1,000,000 times under rating conditions.
6. Unlock test: Build-in test.
7. Can be used for self bounced off (customizable).
8. Material: SPCC Cold rolled sheet
9. Surface :Electroplating paint (Neutral smoke experiment time: over 48 hours)
10. Security: The hook can withstand 150kg of tension without obvious permanent deformation,
with shockproof and anti-pry function.
11. Environment temperature: can working in range over 60 degrees to 10 degrees below zero.
12. Installation: Reserved mechanical emergency unlock position,Easy install.
With microswitch
Without microswitch
There are some options:
1. Option A-1:
with micro switch, and show signal feedback once open the door ( mostly our lock used for cabinet door )
Example of feedback: " welcome to use " " please save your belongs to XXX" " door opened left "
Option A-2:
with micro switch, and show signal feedback once close the door .
Example of feedback: " Thank you" " welcome to use next time" " please close the door" .
Option B:
without micro switch .
Note:
1. Before the installation of power (less than 0.8S time) to detect the operation of electronic control lock is flexible, check
the door to monitor the switch status is normal, confirm the working status are normal and then the actual installation
2. In the repeated continuous power test, the power rate must follow the 5% limit, otherwise it will burn the coil, such as
instantaneous power 0.8S, every 16S can only power once.
3. In the smart control lock tail leads to two two-core connector: connect the red and black two-wire connector for the
electromagnet power supply terminal; connect the white and blue two-wire connector for the closed monitoring terminal, two connectors Are both positive and negative.
Details
Packing & Delivery
100PCS/CTN
G.W.: 17KG
N.W.: 16.5KG
Carton Size: 330*360*130mm
Company Profie
HOMTR SOLENOID VALVE is the High quality China solenoid manufacturer for innovative electromagnetic actuators to fulfil the specific requirements and needs of our customers in a variety of different industries. Speed of response to our customers is one of the key factors to our success. This is true in all aspects of our business including prototype development, pre-series and series production. Our lean organisation ensures fast un-bureaucratic decision making, short processing times and highly flexible manufacturing.
We providing both ODM/OEM services for our customers. We would be happy to discuss with you and provide more details for your inquiry upon your confirmation. More......
We providing both ODM/OEM services for our customers. We would be happy to discuss with you and provide more details for your inquiry upon your confirmation. More......
FAQ
Q: Are you a factory or trading company?
A: We are factory.
Q: What is your sample policy?
A: Free samples could be sent to test as request. We can arrange sample by DHL or TNT, but the courier fee would be paid by customer.
Q:How many days do you need for prepare samples?
A: If without extra demand, it will be sent within 7days.
Q: How many days for mass producing? A: It depend on the order quantity.If order quantity is less than 1000pcs, delivery would be within 3 working days.
Q: What payment terms do you do?
A: We can accept T/T, ali payment .
Q:What's package do you use for the products?
Q: What is your sample policy?
A: Free samples could be sent to test as request. We can arrange sample by DHL or TNT, but the courier fee would be paid by customer.
Q:How many days do you need for prepare samples?
A: If without extra demand, it will be sent within 7days.
Q: How many days for mass producing? A: It depend on the order quantity.If order quantity is less than 1000pcs, delivery would be within 3 working days.
Q: What payment terms do you do?
A: We can accept T/T, ali payment .
Q:What's package do you use for the products?
A: We have standard package for the products. Accept Customized package .
Q:Can I print my own brand logo on your product? and custom solenoid product ?
A: OEM orders are highly welcome. Please send us solenoid requires before you send us inquiry. In this way we can offer you most accurate answer at the first time.
Q:Can I print my own brand logo on your product? and custom solenoid product ?
A: OEM orders are highly welcome. Please send us solenoid requires before you send us inquiry. In this way we can offer you most accurate answer at the first time.
ODM/OEM Order Notes
1. How much the solenoid lock voltage/current?
2. Is there a limit to the form factor?
3. Is there any requirement for the connector of the wire, standard wire 2468/#26 (standard connector SM2.54/2P), is there any requirement for the outer leakage of the wire length?
4. Is the built-in test switch selected to be open or closed?
5. Is there a requirement for a salt spray test for appearance (standard time 8 hours)?
6. What is the total height of the latch (26mm/29mm as standard)?
7. Are the switches made of Omron or conventional switches (Dewey brand)?
8. Is there a requirement for the strength of the pop-up of the door?
9. What is the unhooking force after the lock is energized?
10. If you have any other requests? Please contact us !
(Standard production cycle 3 days / 1 week or longer depending on the actual situation, our daily capacity is 7K/day.)
2. Is there a limit to the form factor?
3. Is there any requirement for the connector of the wire, standard wire 2468/#26 (standard connector SM2.54/2P), is there any requirement for the outer leakage of the wire length?
4. Is the built-in test switch selected to be open or closed?
5. Is there a requirement for a salt spray test for appearance (standard time 8 hours)?
6. What is the total height of the latch (26mm/29mm as standard)?
7. Are the switches made of Omron or conventional switches (Dewey brand)?
8. Is there a requirement for the strength of the pop-up of the door?
9. What is the unhooking force after the lock is energized?
10. If you have any other requests? Please contact us !
(Standard production cycle 3 days / 1 week or longer depending on the actual situation, our daily capacity is 7K/day.)
Recommend Products
Похожие товары
Спойлер 14-NOW STI STYLE ABS глянцевый черный для SUBARU WRX IMPREZA
44,00 $ - 48,00 $
Пуленепробиваемая пластина, пуленепробиваемый жилет, броня, пуленепробиваемая пластина NIJ IIIA ICW PE, военная армия, безопасность, боевые действия
20,00 $ - 30,00 $
Tuoxin 60 мм замок с защитой от кражи водонепроницаемый для садовых ворот
3,20 $ - 3,30 $
Безопасный Прочный металлический ящик почтовый цилиндрический замок трубчатый Электрический для игрового шкафа камеры
0,67 $ - 0,70 $

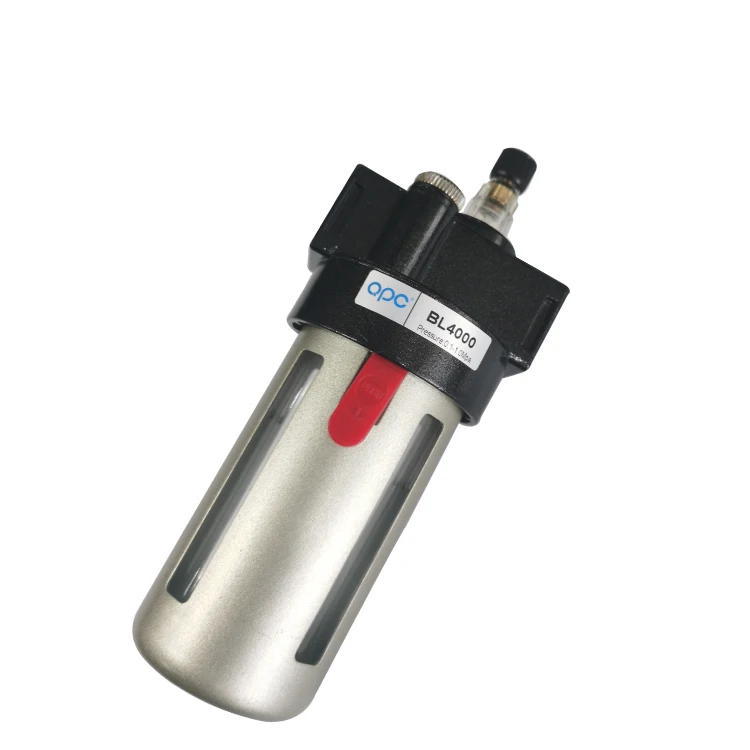

Пневматический воздушный фильтр серии AL & BL, смазка G1/8 'G1/4' G3/8 'G1/2', пневматический фильтр-смазка
