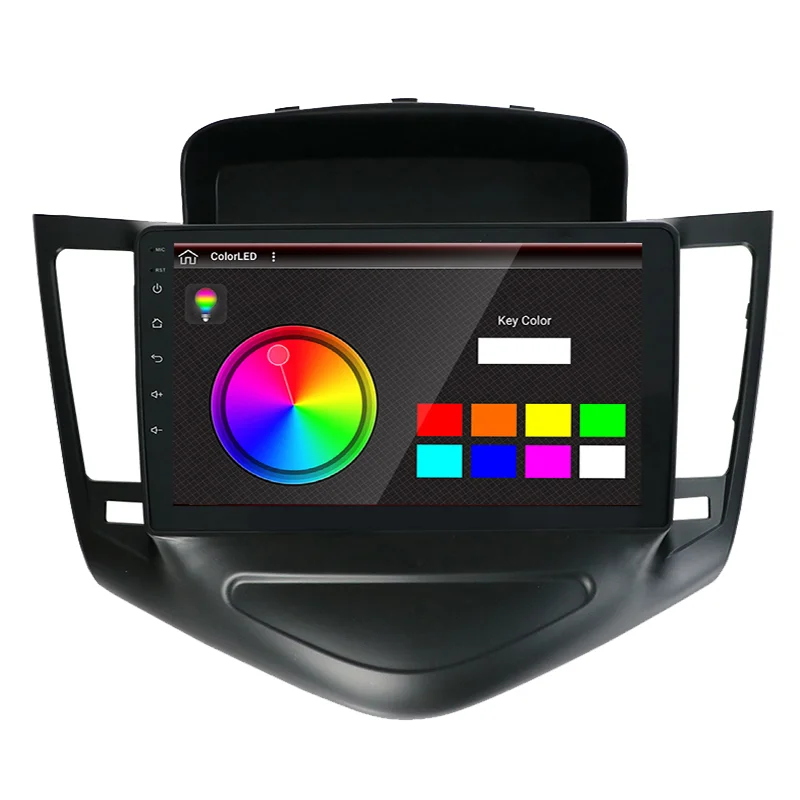

9-дюймовый автомобильный стерео для Chevrolet Cruze 2009-2014 CANBUS автомобильный FM модулятор MP5 GPS отслеживание автомобиля
110,00 $ - 115,00 $
1 тонна Ручной пресс для нержавеющей стали Лом ручной Арбор
- Категория: >>>
- Поставщик: Jiangsu Yishou Machinery Technongy Co. Ltd.
Сохранить в закладки 1600374040711:
Описание и отзывы
Характеристики
Product Introduction
Arbor Press Details & Function:
1. Hand press is mainly used for the disassembly of tight fittings such as gears and bushings and the correction of deformed
parts. It is a kind of mechanical equipment widely used in the assembly and maintenance of products.
2. The press is a compact and versatile press. With wide application and high production efficiency, the press can be widely used
in cutting, punching, blanking, bending, riveting and forming processes.
3. Machining into parts by applying strong pressure to the metal blank to plastically deform and break the metal.
4. The manual press has a simple structure and convenient operation, and has a toothed rod type and a screw type. The working
pressure is generally 1-5 tons, which is often used to correct workpieces with a diameter of 5-10 mm.
5. The hand press consists of a frame, a work table, a block and a hydraulic head. The workbench is moved along the column column
by the lifting device on the beam. The column has support for supporting the fixed table; the hydraulic head clamped on the bottom
surface of the frame beam has an oil passage inside and an oil storage tank externally. The cylinder and two different plunger oil
pumps and other components form a relatively complete hydraulic system.
6. The device is concentrated, the volume is small, no power is required, and the manual operation completes the pressure
processing task.
7. Hand pressing machine is a light and small stamping equipment. It has the characteristics of exquisite structure, superior
performance, convenient operation, stable precision, safety and reliability. The closed height and stroke length are adjustable,
the structure is exquisite and the operation is convenient.
8. Hand press, the general working pressure is relatively small, suitable for small parts such as press-in, molding, assembly,
riveting, printing, punching, cutting, chamfering, bending, bronzing, printing and other light load precision requirements.
9. Hand press is suitable for watches, instruments, electronics, jewelry, zippers, hardware and clothing, shoes and hats, etc.,
can punch, bend, rive and press the workpiece.
10. It can process metal, non-metal sheets, strips and coils by cutting, punching, blanking, bending, shallow drawing, crimping,
riveting and forming.
parts. It is a kind of mechanical equipment widely used in the assembly and maintenance of products.
2. The press is a compact and versatile press. With wide application and high production efficiency, the press can be widely used
in cutting, punching, blanking, bending, riveting and forming processes.
3. Machining into parts by applying strong pressure to the metal blank to plastically deform and break the metal.
4. The manual press has a simple structure and convenient operation, and has a toothed rod type and a screw type. The working
pressure is generally 1-5 tons, which is often used to correct workpieces with a diameter of 5-10 mm.
5. The hand press consists of a frame, a work table, a block and a hydraulic head. The workbench is moved along the column column
by the lifting device on the beam. The column has support for supporting the fixed table; the hydraulic head clamped on the bottom
surface of the frame beam has an oil passage inside and an oil storage tank externally. The cylinder and two different plunger oil
pumps and other components form a relatively complete hydraulic system.
6. The device is concentrated, the volume is small, no power is required, and the manual operation completes the pressure
processing task.
7. Hand pressing machine is a light and small stamping equipment. It has the characteristics of exquisite structure, superior
performance, convenient operation, stable precision, safety and reliability. The closed height and stroke length are adjustable,
the structure is exquisite and the operation is convenient.
8. Hand press, the general working pressure is relatively small, suitable for small parts such as press-in, molding, assembly,
riveting, printing, punching, cutting, chamfering, bending, bronzing, printing and other light load precision requirements.
9. Hand press is suitable for watches, instruments, electronics, jewelry, zippers, hardware and clothing, shoes and hats, etc.,
can punch, bend, rive and press the workpiece.
10. It can process metal, non-metal sheets, strips and coils by cutting, punching, blanking, bending, shallow drawing, crimping,
riveting and forming.
Product Overview
PRODUCT SPECIFICATIONS
Model | NO.0.5 | NO.1 | NO.2 | NO.3 | NO.5 |
Body height(mm) | 263 | 298 | 363 | 565 | 808 |
Pressure(kn) | 5 | 10 | 20 | 30 | 50 |
Rack size(mm) | 18*18*180 | 25*25*240 | 30*30*320 | 38*38*440 | 50*50*680 |
Base size(mm) | 235*140 | 248*114 | 400*168 | 460*200 | 665*242 |
Table diameter(mm) | φ90 | φ90 | φ170 | φ170 | φ247 |
Rack stroke(mm) | 114 | 140 | 215 | 310 | 460 |
Weight(kg) | 8.5 | 11.5 | 30 | 44 | 118 |
Dimensions(mm) | 235*160*263 | 248*180*298 | 400*245*363 | 460*337*555 | 665*333*808 |
Product Display
Product Features
It is widely used in home appliance industry, electronic industry, clock industry, camera, micro motor and other manufacturing and
parts assembly.
parts assembly.
Company Profile
Jiangsu Yishou Machinery Technology Co., Ltd., as a subsidiary, established in 2020, locates in Yangzhou. It is specialized in manufacturing extensive kinds of metal or wood cutting machine tools from different fields, including Lathe machines, Drilling and Milling Machines, CNC machines etc.
Product packaging
Wooden Packing
It is packed in wooden cases, which effectively ensure the safety of the machine during transportation.
SIMILAR PRODUCTS
FAQ
Q1. Are you a factory or trading Company?
A1.We are a factory, factory direct sales, the price will be more favorable.
Q2.What kind of package do you offer? A2.Normally in wood case to make sure all goods in good condition Q3.What is the MOQ for
your production? A3.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the
MOQ is 1 set. Q4.Do you have CE certification？ A4.Yes, we have CE certification, machine quality is one year guaranteed. Q5.What
are the terms of payments you offer?
A5.We accept payment of T/T.
A1.We are a factory, factory direct sales, the price will be more favorable.
Q2.What kind of package do you offer? A2.Normally in wood case to make sure all goods in good condition Q3.What is the MOQ for
your production? A3.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the
MOQ is 1 set. Q4.Do you have CE certification？ A4.Yes, we have CE certification, machine quality is one year guaranteed. Q5.What
are the terms of payments you offer?
A5.We accept payment of T/T.
Похожие товары
Бульонные Кубики со вкусом креветок 10 г/4 г, кубики для приправ

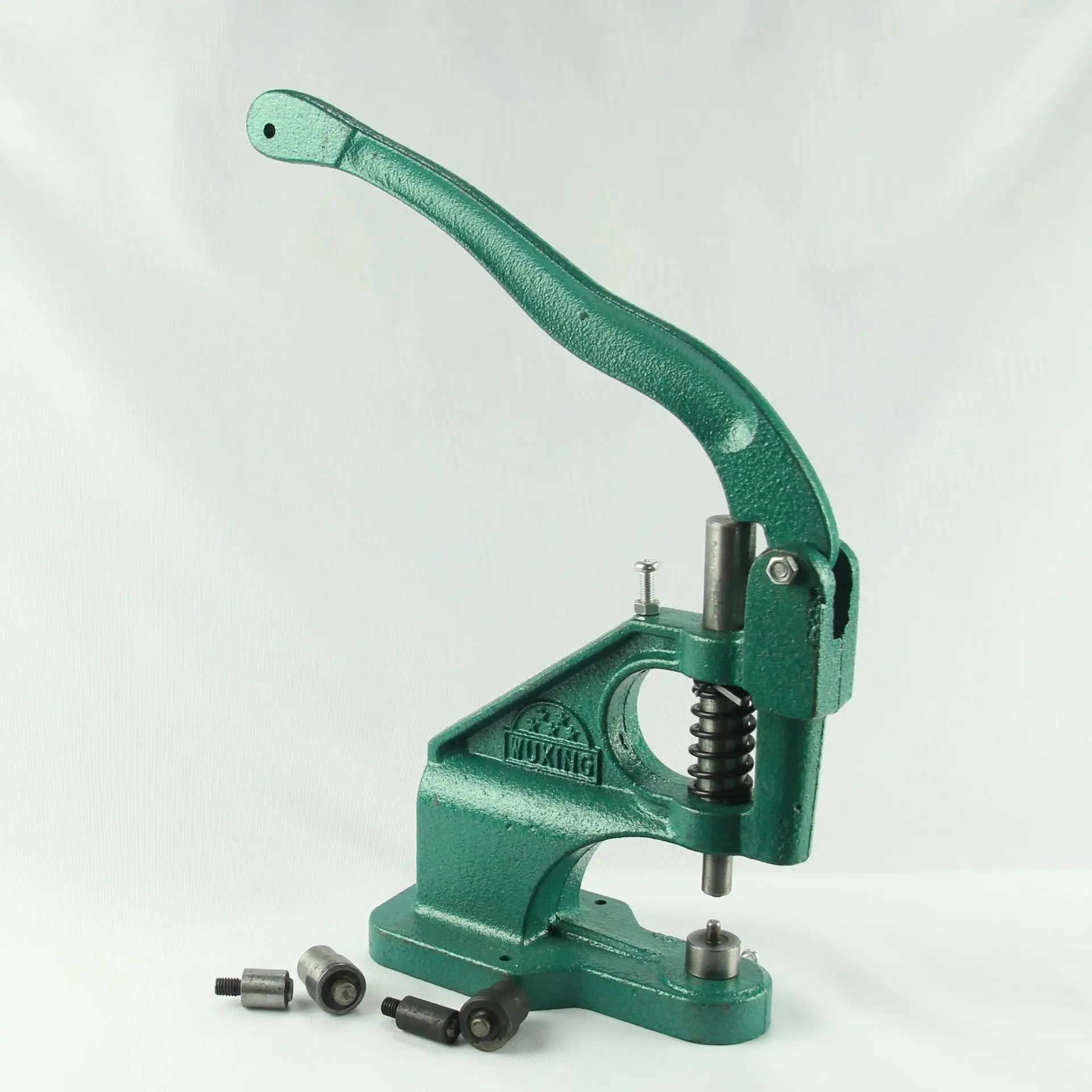

Небольшой пресс для раб, Ручной пресс для раб
70,00 $ - 100,00 $
Модное свадебное обручальное Золотое Хрустальное драгоценное камни бриллиант циркониевое кольцо на палец
Многофункциональный тяжелый бронированный Краб молярные зубы чистка зубов аксессуары для собак товары для домашних животных жевательная игрушка
3,15 $ - 7,00 $
Китайская фабрика, услуги печати книг и рассказов для детей

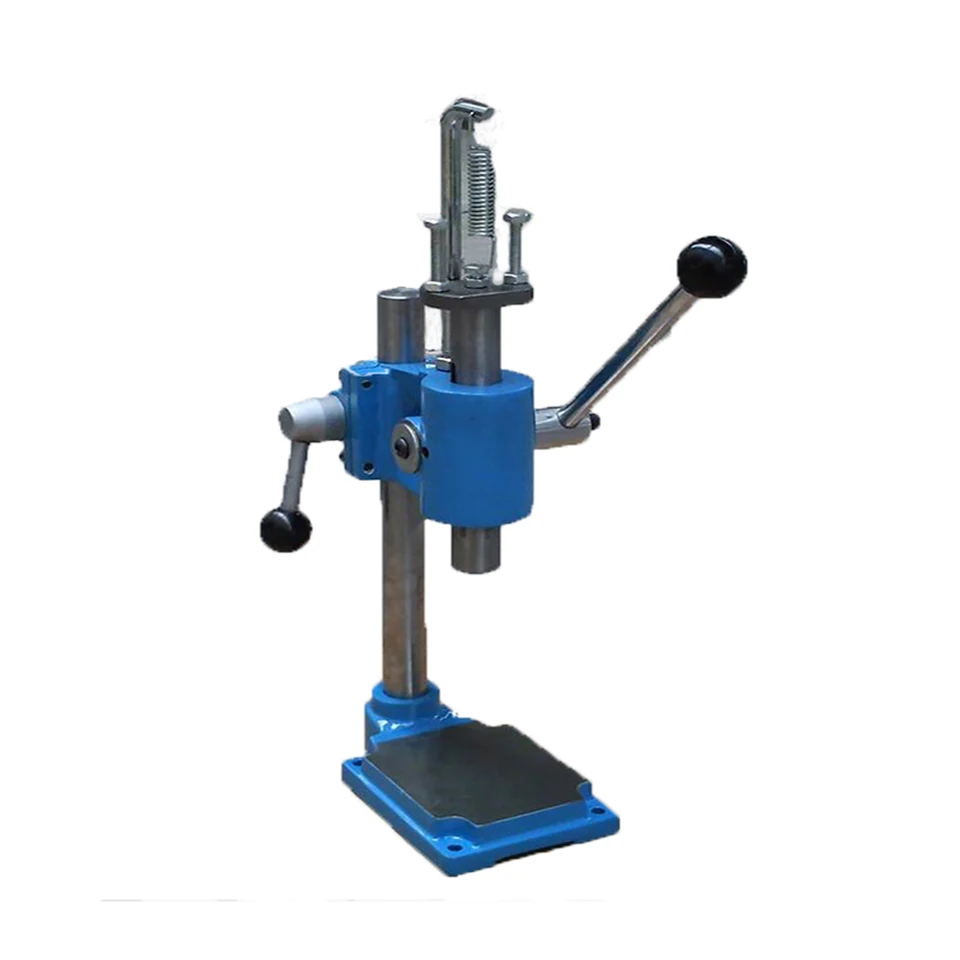

Высококачественный пресс для arbor, ручной пресс для arbor, ручной пресс для arbor, пресс для arbor
