ALION оптовая продажа высокое качество как тип автоматическое фото освещение уличное электрическое
- Категория: >>>
- Поставщик: Alion Holding Group Zhejiang Imp.& Exp. Co. Ltd.
Сохранить в закладки 1600374194088:
Описание и отзывы
Характеристики
Products Description
Focus On Time Control For 24 Years

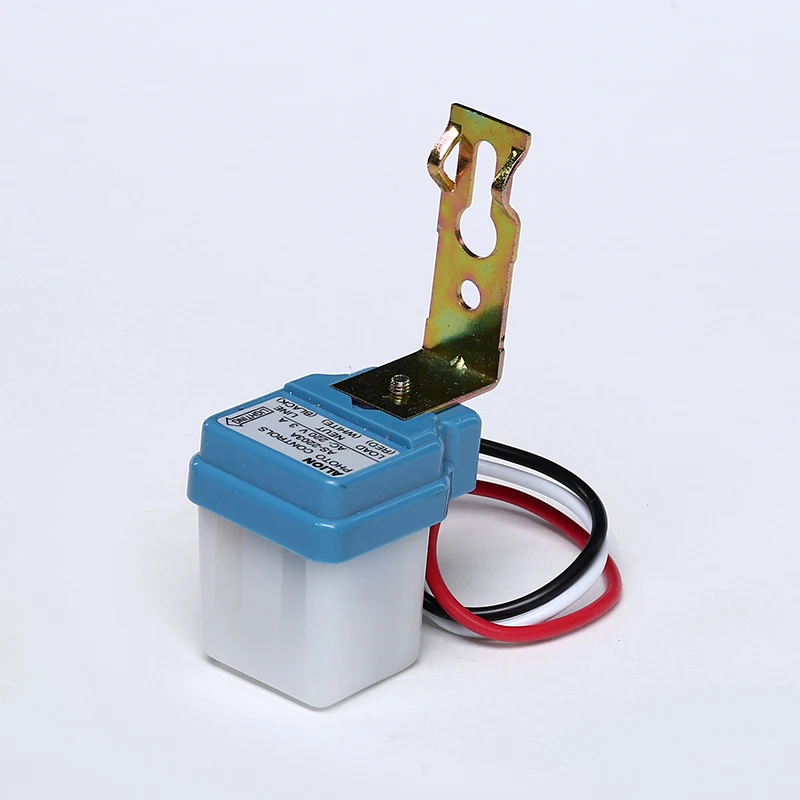

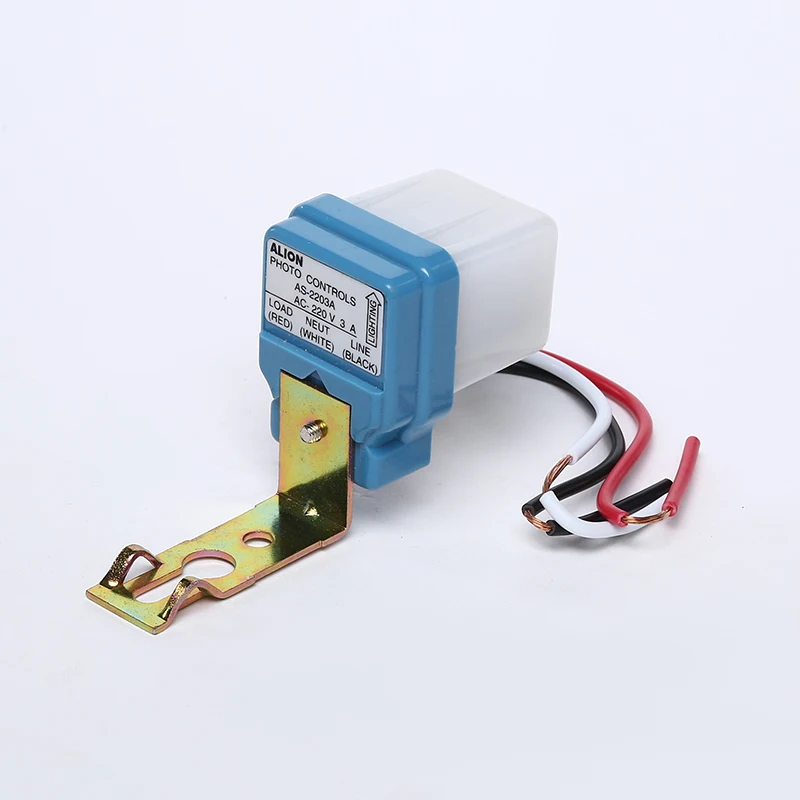

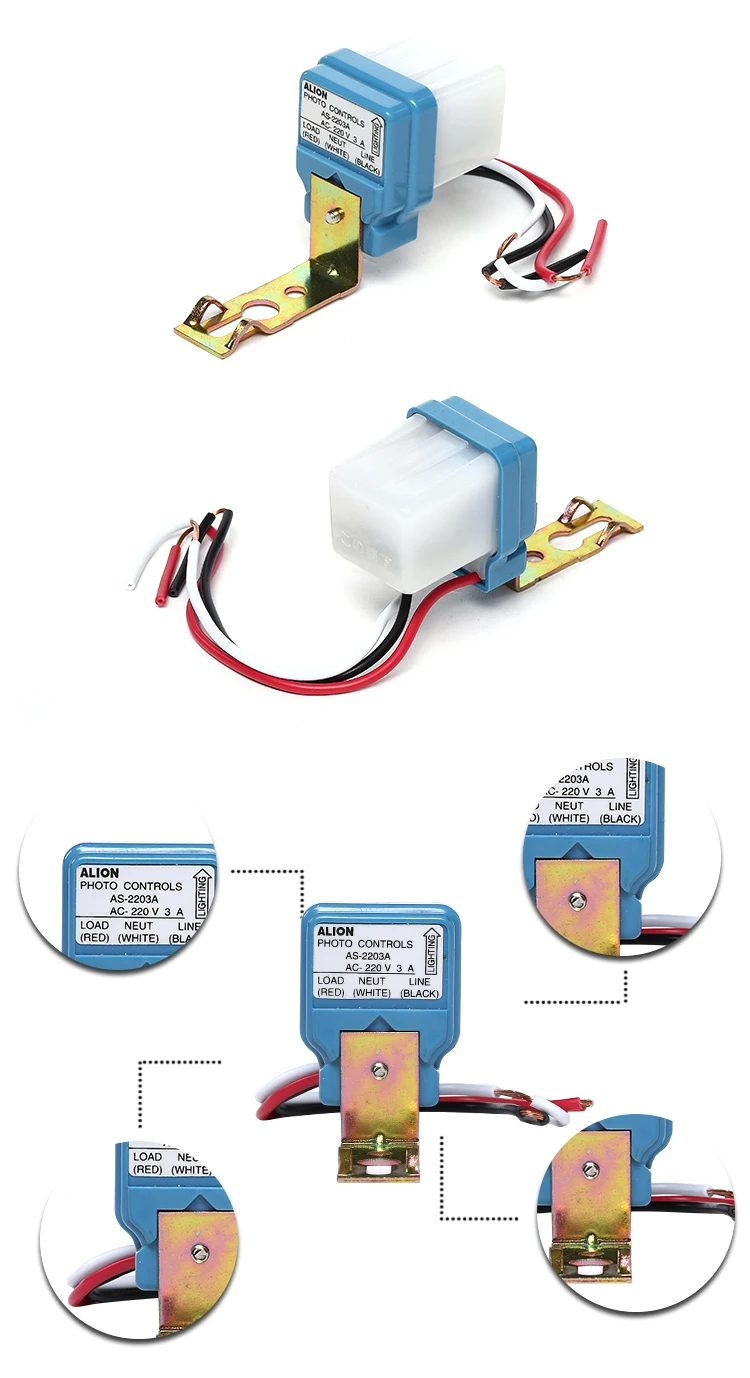

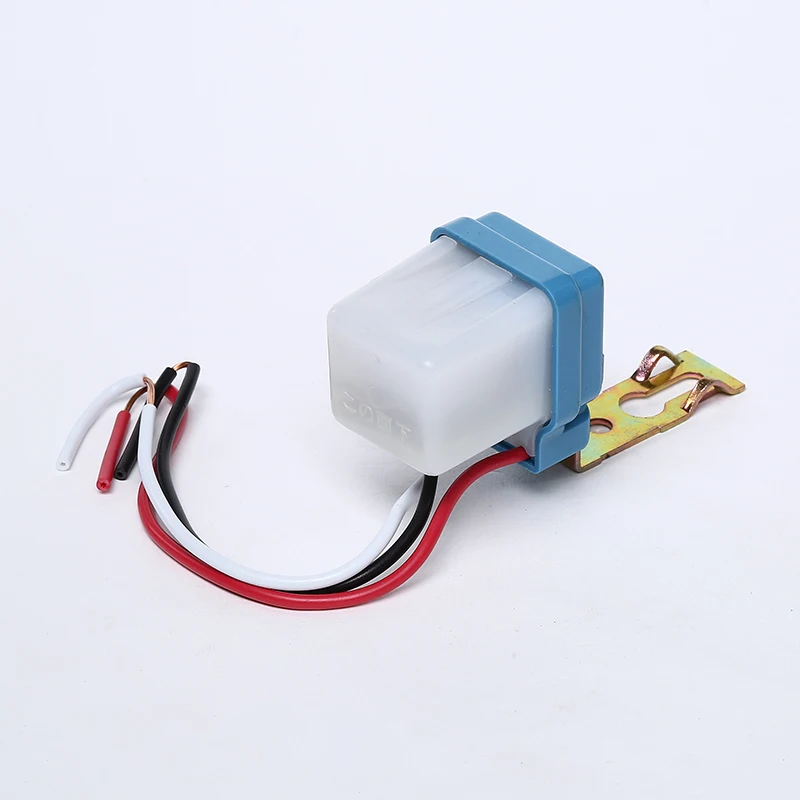

The AS Photo-electric lighting control consists of a sealed CDS photocell and a Snap action bimetallic relay. The unit automatically turns on or off the lighting according to the light intensity changes.
Description
- Electic light control swtich
- Suitable for street lighting, factories, gardens, ports, airports, farms, parks,any other place which needs to automatically
control the lighting.
- Automatically turn on or off the load circuit according to changes in light intensity
- CDS photocell
- Delay function can resist interference according to the short-term ambient light intensity changes.
- Action parameters
- When the ambient light intensity 80Lux-150Lux, Photo-electric switch within 10min Close
- When the ambient light intensity 3Lux-5Lux, Photo-electric switch is turned within 10min.
- Suitable for street lighting, factories, gardens, ports, airports, farms, parks,any other place which needs to automatically
control the lighting.
- Automatically turn on or off the load circuit according to changes in light intensity
- CDS photocell
- Delay function can resist interference according to the short-term ambient light intensity changes.
- Action parameters
- When the ambient light intensity 80Lux-150Lux, Photo-electric switch within 10min Close
- When the ambient light intensity 3Lux-5Lux, Photo-electric switch is turned within 10min.
Product selection
Product Type | Rated current | Rated voltage |
AS-2203 | 3A | 220VAC |
AS-2206 | 6A | |
AS-22010 | 10A | |
AS-1103 | 3A | 110VAC |
AS-1106 | 6A | |
AS-11010 | 10A |
Technical data
Product Type | AS |
Rated voltage | AC(V) 110/220 |
Frequency | 50Hz |
Contact form | SPST |
Power Consumption | AS-2203-22015: 5VA |
AS-22020: 10VA | |
Contact resistance | ≤ 50mΩ |
Life | Electrical 1×105times |
Mechanical 5×106times | |
Dielectric strength | Between open contacts :1000VAC rms |
Insulation resistance | ≥ 100MΩ(DC 500V) |
Mounting | Screw mounting bracket |
Type of protection | IP 53 |
Ambient temperature | -10℃~+50℃ |
Ambient humidity | 35~85%RH |
Weight | 68g |

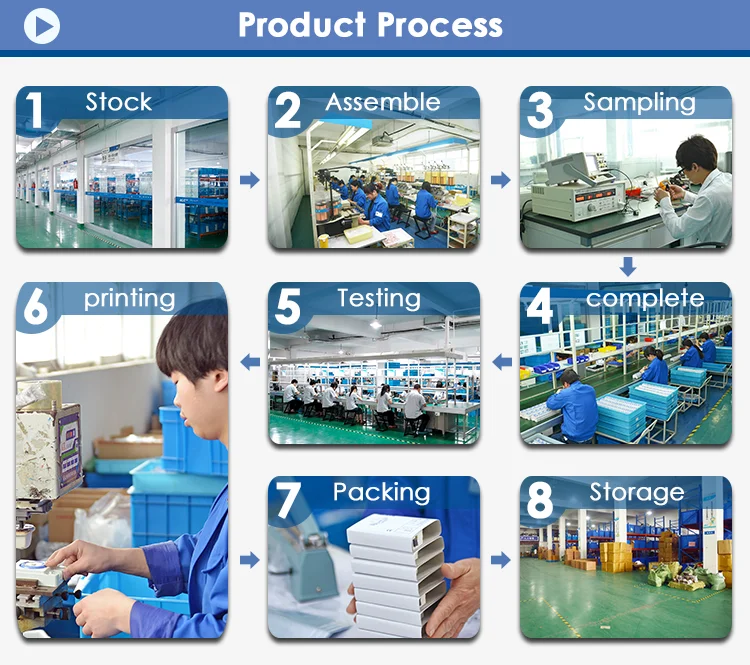

Production Process

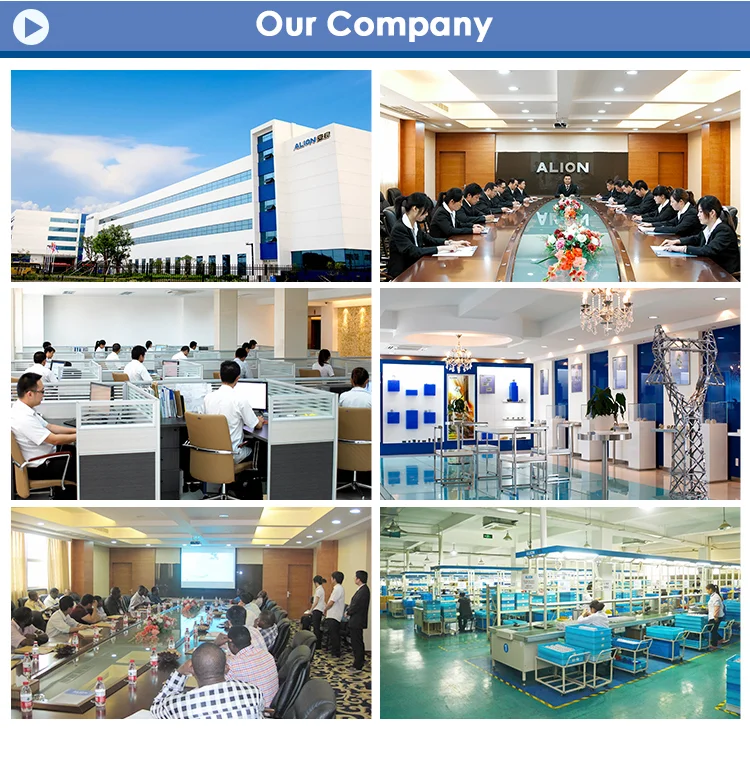

Company Profile
Certifications
Product packaging
Our Services
1. Exclusive service-a professional Support Team will be in charge of your order.
2. Inquiry processing-data sheet,price,picture,manual and certificate will be provided.
3. The product will be accurately according to your requirement-function,printing,sticker,manual and box.
4. Order progress tracking-photo of your order will be sent to you to keep abreast of progress about producing,testing, packaging
and storing.
5. Shipping-a professional Logistics Department is in charge of shipping arrangement.
6. Stable delivery-quantity below 200 pieces will be delivered in 7 days.
7. Quality assurance-all of products have to be tested by our Quality Department before leaving factory. We will provide full
coordination to your QC testing if necessary.
8. After-sale service-a professional Customer Service Team will be able to help with your questions of product.
9. Warranty-one years.
2. Inquiry processing-data sheet,price,picture,manual and certificate will be provided.
3. The product will be accurately according to your requirement-function,printing,sticker,manual and box.
4. Order progress tracking-photo of your order will be sent to you to keep abreast of progress about producing,testing, packaging
and storing.
5. Shipping-a professional Logistics Department is in charge of shipping arrangement.
6. Stable delivery-quantity below 200 pieces will be delivered in 7 days.
7. Quality assurance-all of products have to be tested by our Quality Department before leaving factory. We will provide full
coordination to your QC testing if necessary.
8. After-sale service-a professional Customer Service Team will be able to help with your questions of product.
9. Warranty-one years.
FAQ
Q1: Why choose ALION?
1.ALION is a professional manufacturer that has focused on time control for 20 years.
2.ALION provides complete certification, such as CE, ROHS, ISO and so on.
3.ALION is strict accordance with the following points.
High quality -all of our products are produced according to international standard, we will provide full coordination to your QC testing if necessary.
Great service - a professional Service Team will be in charge of your order and help to solve your questions timely
whether before or after you purchase.
Q2: How will you do the OEM?
We have own R&D team that involves 2 experienced structural engineers, 1 software engineer and 2 circuit engineers.
The OEM product will be accurately according to your requirement about
function, printing, sticker, manual and box.
After the product has entered the market, you can send your feedback to our after-sale service team. Our R&D team will adjust and improve the product according to your feedback.
Q3: What is the MOQ for OEM?
Our MOQ for OEM is 1000 pcs.
Q4: Can I have a sample order?
YES, we can provide a sample for FREE to test or check quality, you only need to pay the freight cost.
Q5: What is the MOQ for ALION product?
There is no MOQ, we deal with any quantity of your order.
Q6: What is the payment term?
We accept T/T, L/C, Western Union and paypal.
Q7: What is the delivery time?
It depends on the quantity.
7 days, below 200 pcs.
10 days, below 500 pcs.
15 days, below 1000 pcs.
1.ALION is a professional manufacturer that has focused on time control for 20 years.
2.ALION provides complete certification, such as CE, ROHS, ISO and so on.
3.ALION is strict accordance with the following points.
High quality -all of our products are produced according to international standard, we will provide full coordination to your QC testing if necessary.
Great service - a professional Service Team will be in charge of your order and help to solve your questions timely
whether before or after you purchase.
Q2: How will you do the OEM?
We have own R&D team that involves 2 experienced structural engineers, 1 software engineer and 2 circuit engineers.
The OEM product will be accurately according to your requirement about
function, printing, sticker, manual and box.
After the product has entered the market, you can send your feedback to our after-sale service team. Our R&D team will adjust and improve the product according to your feedback.
Q3: What is the MOQ for OEM?
Our MOQ for OEM is 1000 pcs.
Q4: Can I have a sample order?
YES, we can provide a sample for FREE to test or check quality, you only need to pay the freight cost.
Q5: What is the MOQ for ALION product?
There is no MOQ, we deal with any quantity of your order.
Q6: What is the payment term?
We accept T/T, L/C, Western Union and paypal.
Q7: What is the delivery time?
It depends on the quantity.
7 days, below 200 pcs.
10 days, below 500 pcs.
15 days, below 1000 pcs.
Contact Us
Похожие товары
Лаурилсульфат натрия, 70% производство, промышленный класс 2EO AES SLES 70%
800,00 $

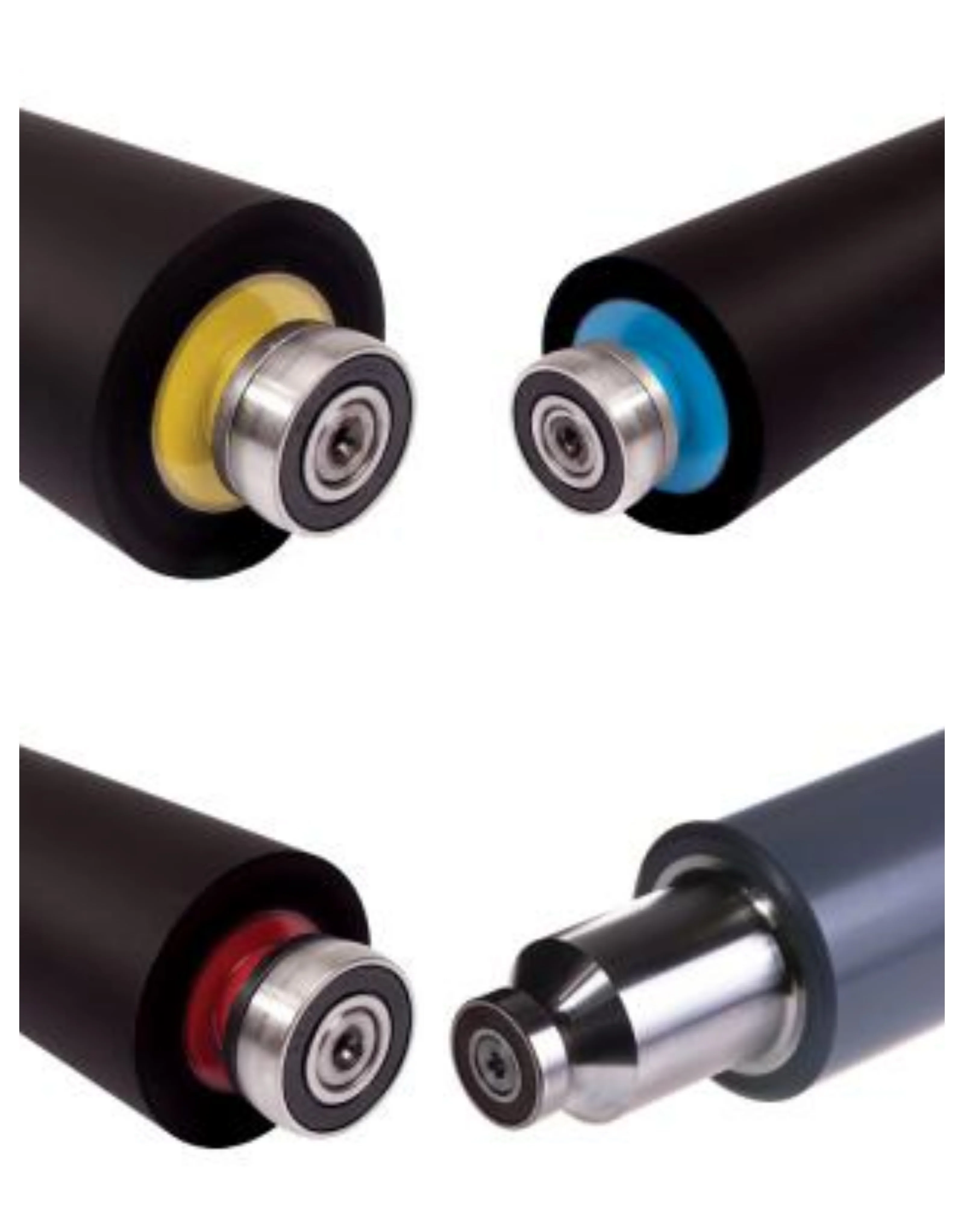

Набор 105 резиновых роликов Kba, офсетная печатная машина, набор резиновых роликов с чернильными и увлажняющими роликами
800,00 $ - 900,00 $
Пультрузионная смола для оптоволоконного кабеля, эпоксидная виниловая Эфирная смола
3,68 $ - 3,82 $
Корейский топливный автомобиль Kia k5 380T GT Line, обновленная версия, высокая скорость, высокая мощность, сверхпрочный седан, 5 сидений, популярный на русском языке
20 999,00 $ - 25 999,00 $

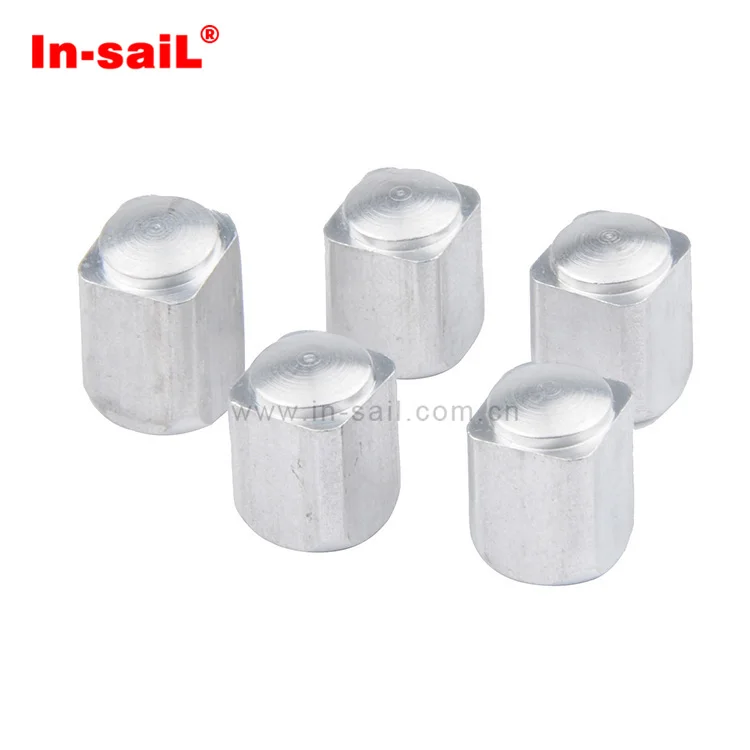

Алюминиевые фланцевые сварные штифты для автомобильной
