Лидер продаж измеритель уровня жидкости OEM по индивидуальному размеру индикатор
- Категория: >>>
- Поставщик: Qingdao Winton Industrial Glass Co. Ltd.
Сохранить в закладки 1600375121819:
Описание и отзывы
Характеристики
Product Details
Quick Details
Place of Origin: China
Brand Name: Winton
Model Number: Reflex
Material: Borosilicate Glass
Working temperature: 260 ~ 550 ℃
Size: A0-A9/B0-B9, or according to customer`s request
Brand Name: Winton
Model Number: Reflex
Material: Borosilicate Glass
Working temperature: 260 ~ 550 ℃
Size: A0-A9/B0-B9, or according to customer`s request
Application: For Level Gauge on steam boiler
Certification: ISO 9001:2000, CE,
Service: Printing, labels, gaskets, etc.
Thickness: 17mm
width: 30/34mm
MOQ: 10 pcs
Certification: ISO 9001:2000, CE,
Service: Printing, labels, gaskets, etc.
Thickness: 17mm
width: 30/34mm
MOQ: 10 pcs
Packaging & Delivery
Selling Units: Single item Single package size: 25X3.5X2 cm Single gross weight:0.2-0.5 kg
Package Type:White paper box for each piece, 50 pieces in one carton, or as customer`s requirements.
Lead Time:
Quantity(Pieces) | 1 - 100 | >100 |
Est. Time(days) | 7 | To be negotiated |
Product description

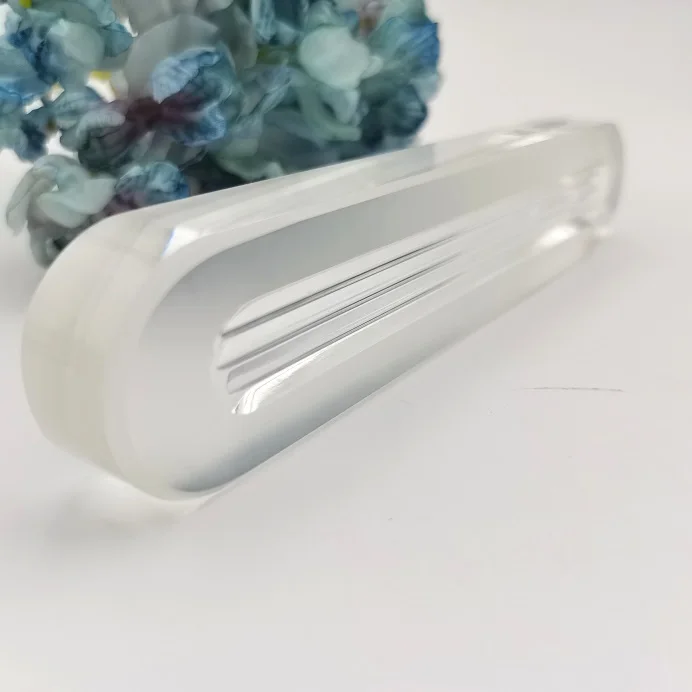

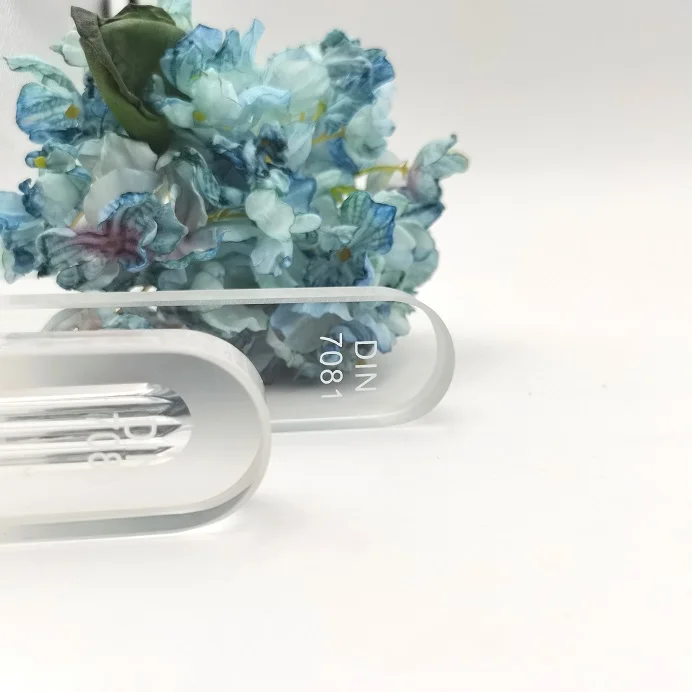

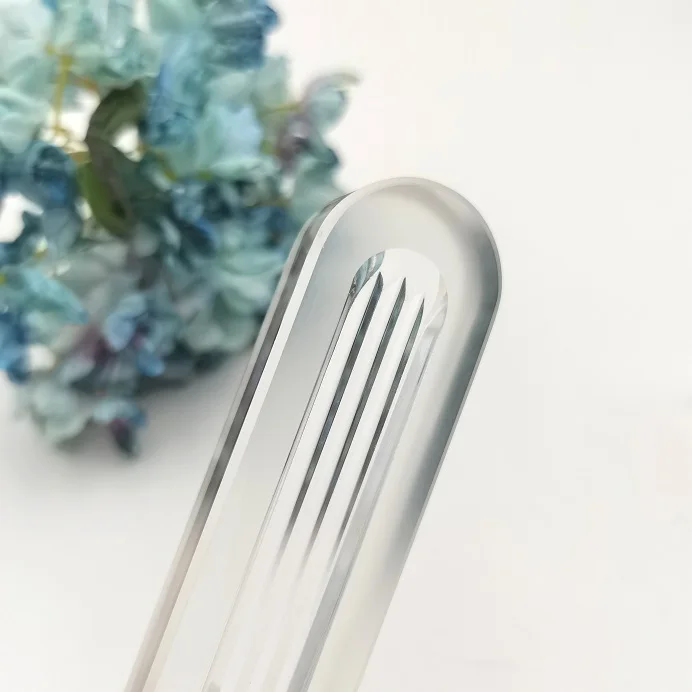

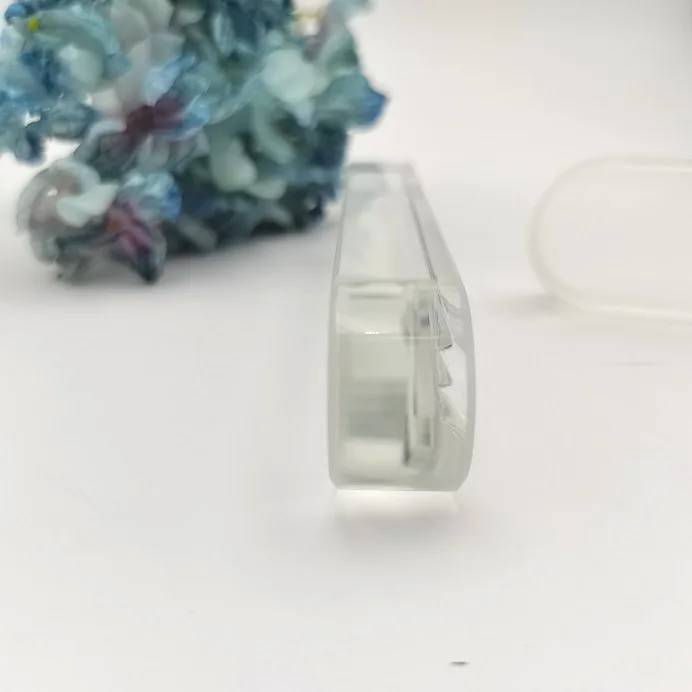

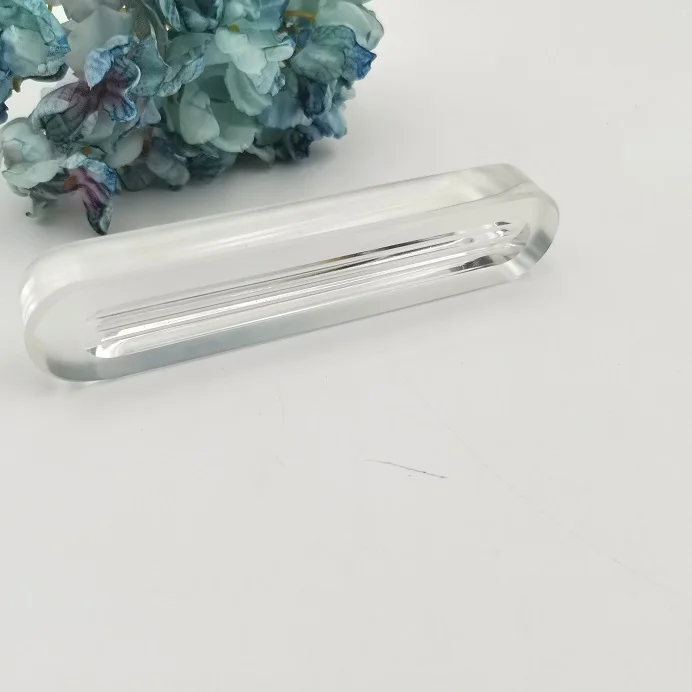

Borosilicate Reflex Gauge Glass
Reflex glasses is made from tempered borosilicate glass, it can be used with all media at service conditions up to 5MPa and temperature up to 430 °C.
The side facing the medium chamber is provided with molded grooves set at 90°angles. The moulding process increases the resistance of the glass grooves to wear; the skin which the glass attains during moulding gives it maximum smoothness and hardness.This makes
it extremely resistant to the attack of boiler water.
It is used on level gauge of boiler for water position. It is also named: Reflex Gauge Glass, Sight glass, Reflex Glasses, Reflex sight glass, Spares For level Gauge.
Reflex glasses is made from tempered borosilicate glass, it can be used with all media at service conditions up to 5MPa and temperature up to 430 °C.
The side facing the medium chamber is provided with molded grooves set at 90°angles. The moulding process increases the resistance of the glass grooves to wear; the skin which the glass attains during moulding gives it maximum smoothness and hardness.This makes
it extremely resistant to the attack of boiler water.
It is used on level gauge of boiler for water position. It is also named: Reflex Gauge Glass, Sight glass, Reflex Glasses, Reflex sight glass, Spares For level Gauge.
Detail images
Size Information
SIZE | Type A (B) | Weight | ||||
L | B | S | g/piece | |||
I | 115 | 30 (34) | 17 | 119 | ||
II | 140 | 30 (34) | 17 | 145 | ||
III | 165 | 30 (34) | 17 | 175 | ||
IV | 190 | 30 (34) | 17 | 201 | ||
V | 220 | 30 (34) | 17 | 238 | ||
VI | 250 | 30 (34) | 17 | 266 | ||
VII | 280 | 30 (34) | 17 | 304 | ||
VIII | 320 | 30 (34) | 17 | 335 | ||
IX | 340 | 30 (34) | 17 | 359 | ||
X | 370 | 30 (34) | 17 | 391 | ||
Related Products
Packing&Shipping
White paper box for each piece, 50 pieces in one carton, or as customer`s requirements
Company Introduction
Qingdao Winton Co., Ltd. is an industrial company with an integration of industrial production and trade.
Our company specializes in producing glass plates,level gauge glass,colorful glass tubes,rods,gaskets and other customized glass products.
Welcome your inquiry and visit our factory !
FAQ
Q1 How fast can i get the quotation?
A:We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the pricce, please call us or tell us
in your email so that we will regard your inquiry priority.
Q2 How can i get a sample to check your quality?
A:After price confirmation.you can require for samples to check our qulity.
If you need the samples, if our invetory stocks, and some products can supply free samples, but the freight is on your site.
Q3 Can you do the desigh for us?
A:Yes, we have a professional team having rich experience in drawing design and manufacturing. Iust tell us your ideas and we will
help to carry out your ideas.
Q4 What about the lead time for mass production?
A:Honestly, it depends on the season you place the order. The lead time of 500pcs is about 8 Working days.
Q5 What is your terms of delivery?
A:We accept EXW,FOB,CIF,ect. You can choose the one which is the most convenient or cost effective for you.
Q6 Do you accept the OEM?
A:We accept custom design OEM
We can produce most specifications of quartz products as customers's request,include clear and opaque Quartz Boat, Tube,Crucible,
Plate ,Rod, Instrument,Parts ,Heater, Sleeve,Tank ect.
A:We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the pricce, please call us or tell us
in your email so that we will regard your inquiry priority.
Q2 How can i get a sample to check your quality?
A:After price confirmation.you can require for samples to check our qulity.
If you need the samples, if our invetory stocks, and some products can supply free samples, but the freight is on your site.
Q3 Can you do the desigh for us?
A:Yes, we have a professional team having rich experience in drawing design and manufacturing. Iust tell us your ideas and we will
help to carry out your ideas.
Q4 What about the lead time for mass production?
A:Honestly, it depends on the season you place the order. The lead time of 500pcs is about 8 Working days.
Q5 What is your terms of delivery?
A:We accept EXW,FOB,CIF,ect. You can choose the one which is the most convenient or cost effective for you.
Q6 Do you accept the OEM?
A:We accept custom design OEM
We can produce most specifications of quartz products as customers's request,include clear and opaque Quartz Boat, Tube,Crucible,
Plate ,Rod, Instrument,Parts ,Heater, Sleeve,Tank ect.
