DESCRIPTION

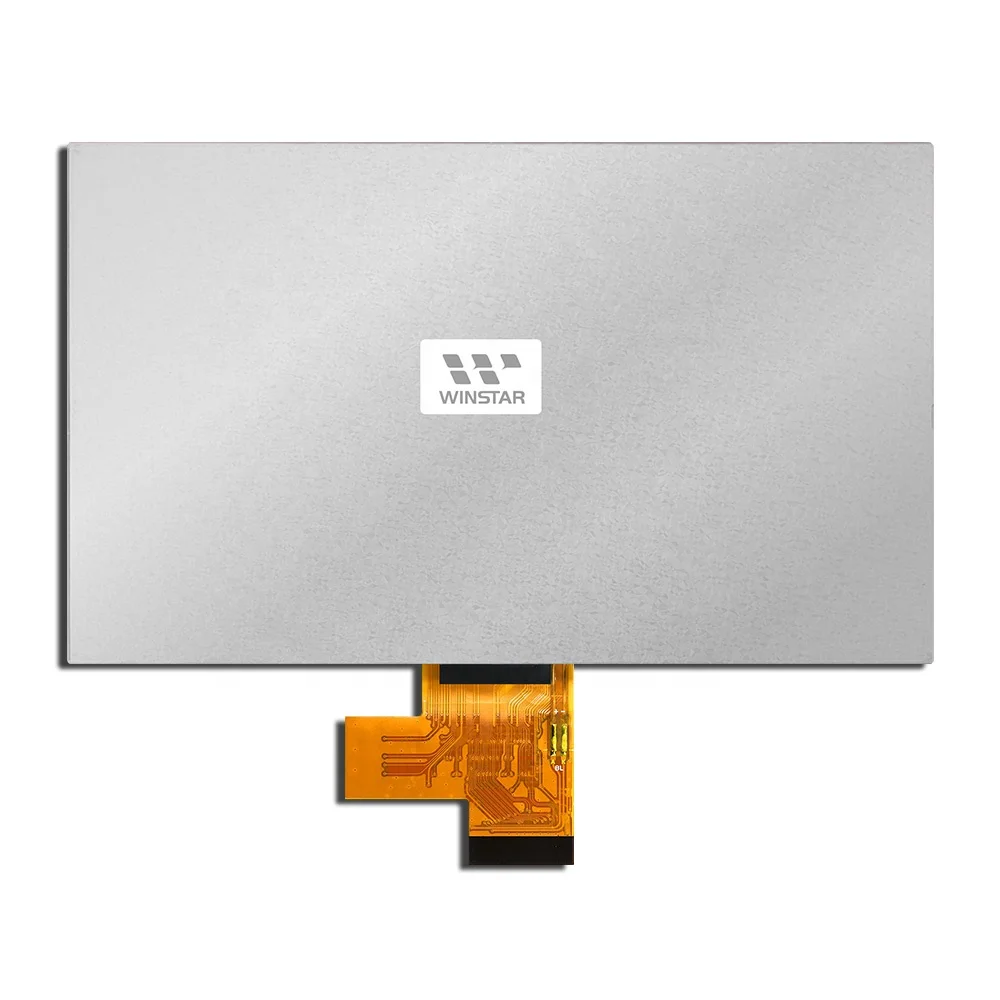

WF70A8TYAHLNN0 is a landscape 7 inch IPS TFT module, with resolution 1024x600 pixels. WF70A8 model is built in with ST5021 and ST5651 driver ICs, it supports LVDS interface, contrast ratio 800 (typical value), brightness 600 nits (typical value), aspect ratio 16:9, Anti-Glare surface glass, normally black, transmissive LCD type. This 7" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value).


The supply voltage (VDD) of WF70A8TYAHLNN0 is from 3.0V to 3.6V, typical value 3.3V. It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃. We also offer Resistive Touch Panels (RTP), Projected Capacitive Touch Panel (PCAP) optional for WF70A8 model.



DRAWING


WF70A8TYAHLNN0 (1).jpg



SPECIFICATIONS



Interface


LCM PIN Definition





























































































































































































































Pin No.SymbolI/OFunction
1VCOMPCommon Voltage
2VDDPDigital circuit
3VDDPDigital circuit
4NC---No connection
5RESETIGlobal reset pin
6STBYB  IStandby mode, Normally pulled high
STBYB = “1”, normal operation
STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
7GNDPGround
8RXIN0-INegative LVDS differential data input
9RXIN0+IPositive LVDS differential data input
10GNDPGround
11RXIN1-INegative LVDS differential data input
12RXIN1+IPositive LVDS differential data input
13GNDPGround
14RXIN2-INegative LVDS differential data input
15RXIN2+IPositive LVDS differential data input
16GNDPGround
17RXCLKIN-INegative LVDS differential clock input
18RXCLKIN+IPositive LVDS differential clock input
19GNDPGround
20RXIN3-INegative LVDS differential data input
21RXIN3+IPositive LVDS differential data input
22GNDPGround
23NC---No connection
24NC---No connection
25GNDPGround
26NC---No connection
27NC---No connection
28SELBI6bit/8bit mode select
H:6bit / L:8bit
29AVDDPPower for Analog Circuit
30GNDPGround
31LED-PLED Cathode
32LED-PLED Cathode
33L/RIHorizontal inversion
34U/DIVertical inversion


I:input ,O:output,P:power


General Specifications



































































ItemDimensionUnit
Size7inch
Dot Matrix1024 × RGB × 600(TFT)dots
Module dimension169.9(W) × 103.4(H) × 5.6(D)mm
Active area154.2144 × 85.92mm
Dot pitch0.1506 × 0.1432mm
LCD typeTFT, Normally Black, Transmissive
View Direction85/85/85/85
Aspect Ratio16:9
TFT Driver ICST5021 + ST5651 or equivalent
Backlight TypeLED, Normally White
Touch PanelWithout Touch Panel
TFT InterfaceLVDS
SurfaceAnti-Glare

Absolute Maximum Ratings





























ItemSymbolMinTypMaxUnit
Operating TemperatureTOP-20-+70
Storage TemperatureTST-30-+80
