Высокое качество 3 2 м краситель сублимации ткани струйный принтер для печатание передачи тепла
- Категория: >>>
- Поставщик: Zhengzhou New Century Digital Technology Co. Ltd.
Сохранить в закладки 1600375263418:
Описание и отзывы
Характеристики
Product Description
FD5328E
Sublimation Textile Printer
Printhead: 8*EPS I3200-A1
Printhead Resolution: 3200DPI
Printing Speed: 420 sqm/h
Print Width: 3200mm
Ink: Dye Sublimation Ink,Pigment Ink
Media:Transfer Paper ,Poster Paper
RIP Software: Maintop, Photoprint,Neostampa,Onyx,etc.
Printhead Resolution: 3200DPI
Printing Speed: 420 sqm/h
Print Width: 3200mm
Ink: Dye Sublimation Ink,Pigment Ink
Media:Transfer Paper ,Poster Paper
RIP Software: Maintop, Photoprint,Neostampa,Onyx,etc.
FD5328E Fedar Sublimation Transfer Paper Printing Printer | ||||||||
Printhead | Type:8pcs Epson3200 Micropiezo Printhead | |||||||
Resolution:3200DPI | ||||||||
Head Property:Auto-clean and moisturize | ||||||||
Speed Tested on linear print without feather | 1pass 420㎡/h | |||||||
2pass 210㎡/h | ||||||||
Printing Width | 3200mm | |||||||
Ink | Sublimation Ink Color:CMYK | |||||||
Moisture Mode:Auto-capping Pump Moisture | ||||||||
Media | Transfer Paper | |||||||
RIP Software | Maintop6.0,Photoprint,Onyx,Wasatch and NeoStampa and etc. | |||||||
Image Format | JPG,TIF,PDF,BMP and etc. | |||||||
Computer System | WIN7 64bit/WIN10 64bit | |||||||
Transmit Port | Gigabit LAN | |||||||
Dryer | Extra Heating System | |||||||
Media Transfer | Double Power Take up Media System | |||||||
Computer Hardware Configuration | Hard Disk. 500G (system disk more than 100G) | |||||||
CD-ROM:DVD ROM Memory:4G or more than 4G CPU:Intel i5 processor | ||||||||
Optional Device | Ink Level Alarm System Auto Tension Take-up Media System | |||||||
Work Environment | Temperature:25-35℃ Humidity:35-65% | |||||||
Power | 210-230VAC Frequency:50/60 HZ RC:16A Printer:1200W Dryer:9000W | |||||||
Machine Size | Machine Size:5140*1350*1850 mm Package Size:5280*1180*1770 mm | |||||||
FEATURE:
1. Fully enclosed ink stack, tighter sealing, lasting moisturizing, automatic cleaning, cleaner and simpler print.
2. 4.5L large-capacity ink cartridge, matched with 4 500ml secondary floating buffer ink cartridges; automatic alarm Main cartridge level detection.
3. Servo motor, 400W motor, large driving force, faster speed and more stable operation.
4. Anti-collision frame: the nozzle position can be adjusted according to different printing consumables,
Anti-collision devices are added at both ends to provide more comprehensive safety protection for the nozzle.
5. Expansion type self-locking synchronous wheel structure to ensure consistent step accuracy and smaller error.
2. 4.5L large-capacity ink cartridge, matched with 4 500ml secondary floating buffer ink cartridges; automatic alarm Main cartridge level detection.
3. Servo motor, 400W motor, large driving force, faster speed and more stable operation.
4. Anti-collision frame: the nozzle position can be adjusted according to different printing consumables,
Anti-collision devices are added at both ends to provide more comprehensive safety protection for the nozzle.
5. Expansion type self-locking synchronous wheel structure to ensure consistent step accuracy and smaller error.
Details Images

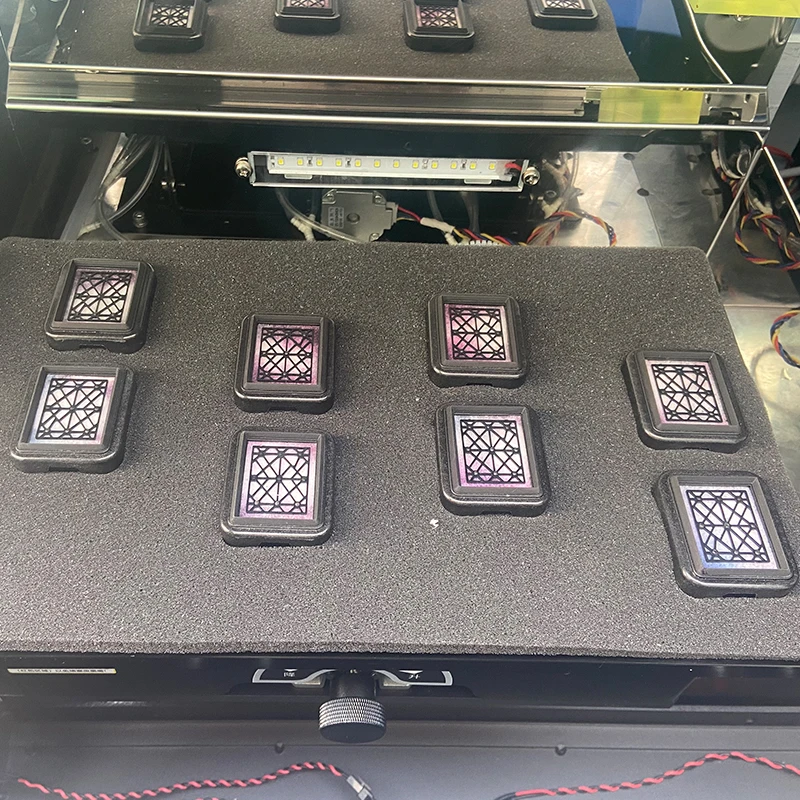

Capping Station:
Head maintenance can be done from printer directly without connecting computer.
Head maintenance can be done from printer directly without connecting computer.

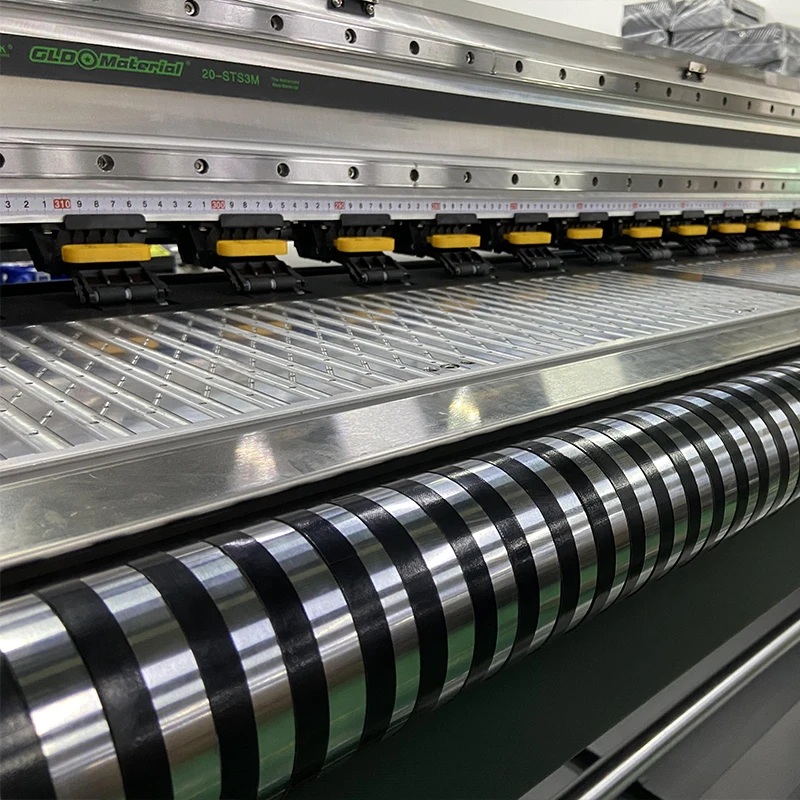

Pinch Rollers:
Special designed pinch roller,each one can be lifted respectively to eliminate the wrinkle caused by media.
Special designed pinch roller,each one can be lifted respectively to eliminate the wrinkle caused by media.
Leadshine Motor:
Leadshine server motor driver,quality assurance,high resolution and stable.
Leadshine server motor driver,quality assurance,high resolution and stable.

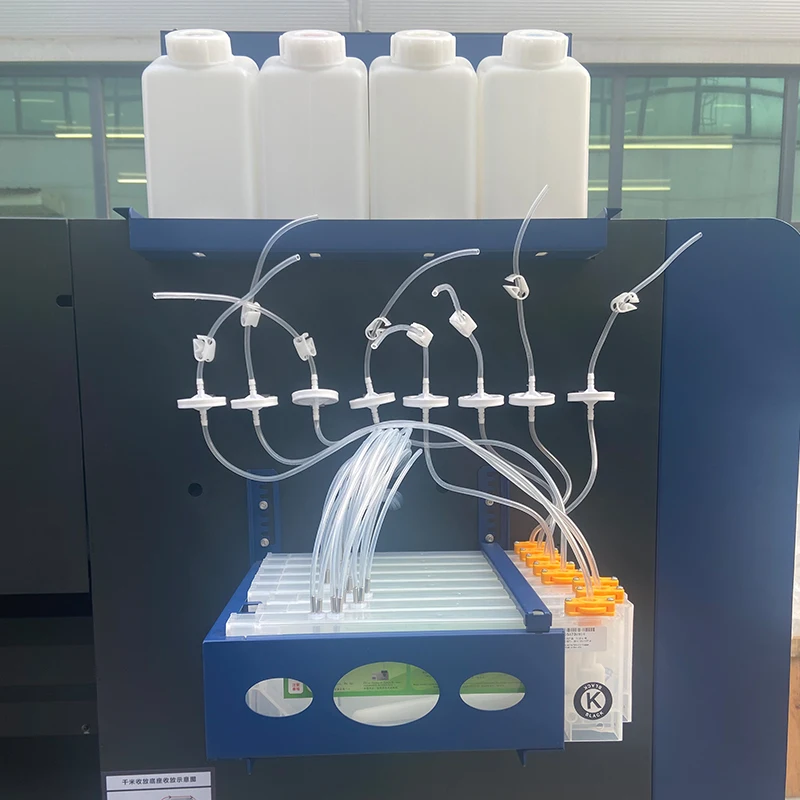

Ink Tank:
Four units of 3L super large capacity ink reservoirs provide ink independently and continuously, which guarantees the long-term continuity of ink output.
Four units of 3L super large capacity ink reservoirs provide ink independently and continuously, which guarantees the long-term continuity of ink output.

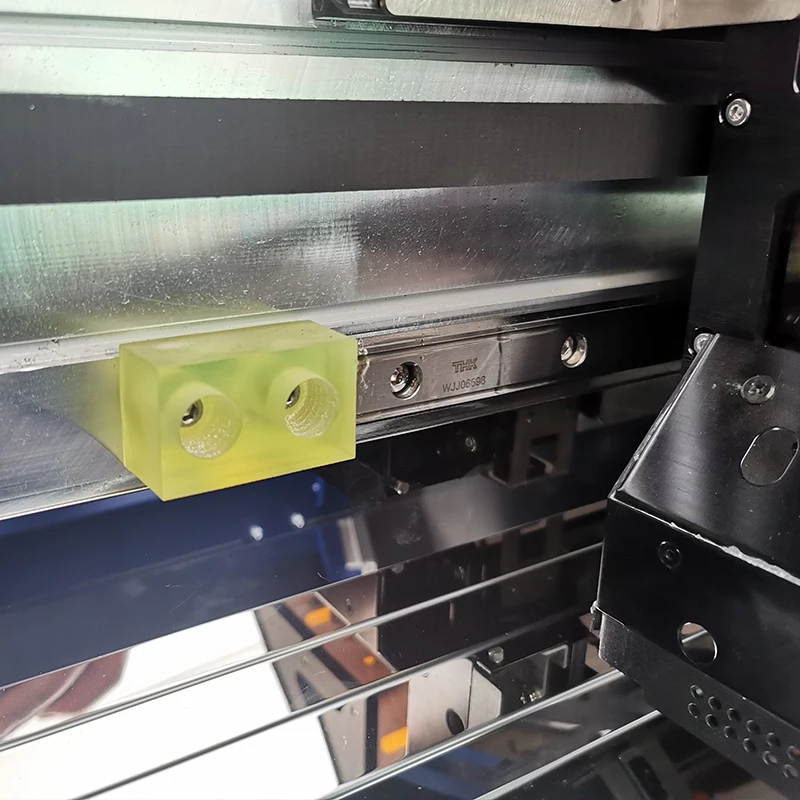

Carriage:
The position of the print head can be adjusted according to different printing medias, and anti-collision devices at both ends.
The position of the print head can be adjusted according to different printing medias, and anti-collision devices at both ends.
Ink Chain:
Imported Germany IGUS ink chain ,high quality, to ensure the good completion of printing work.
Imported Germany IGUS ink chain ,high quality, to ensure the good completion of printing work.
Product Usage
Application for Fedar FD5328E:
Dye Sublimation Textile Printer can support print different gsm transfer paper, 45 to 100 gsm, and transfer on
polyester(contton<30%) Sportswear, curtain, dress, shoes, carpet, silk, bed sheet, etc.
polyester(contton<30%) Sportswear, curtain, dress, shoes, carpet, silk, bed sheet, etc.
Related Products
Exhibition
2020 Guangzhou International Advertising Exhibition
2019 Huaqiao Exhibition
2018 Germany exhibition
2017 Foreign Exhibition
2018 Shanghai Exhibition
2018 Zhengzhou Advertising Exhibition
Company Introduction
Zhengzhou New Century team had won the reputation of TOP 20 exporters in Advertising Equipment in China and obtained more than 55 patents for the design & 3 patents for innovation.And have participated in many exhibitions at home and abroad.Such as the domestic Zhengzhou exhibition,Shanghai exhibition,Guangzhou exhibition and so on.Participating abroad is Colombia,New Delhi,Ukraine,Thailand,Italy etc.No matter you are individual or agent, welcome to join us !
Our Service
* One year warranty,lifetime maintenance beyond the warranty.
* Technical training and guidance will be provided by ten technicians who can fly to various countries at any time .
* More than 2 million yuan were invested on after-sales every year.
* Providing remote after-sales service support by online technical guidance.
* Two more QC is added on export machines to guarantee the quality.Strict controlling on leadtime.
* Technical training and guidance will be provided by ten technicians who can fly to various countries at any time .
* More than 2 million yuan were invested on after-sales every year.
* Providing remote after-sales service support by online technical guidance.
* Two more QC is added on export machines to guarantee the quality.Strict controlling on leadtime.
Похожие товары
Американские шлифовальные круги для гранита в форме турбо

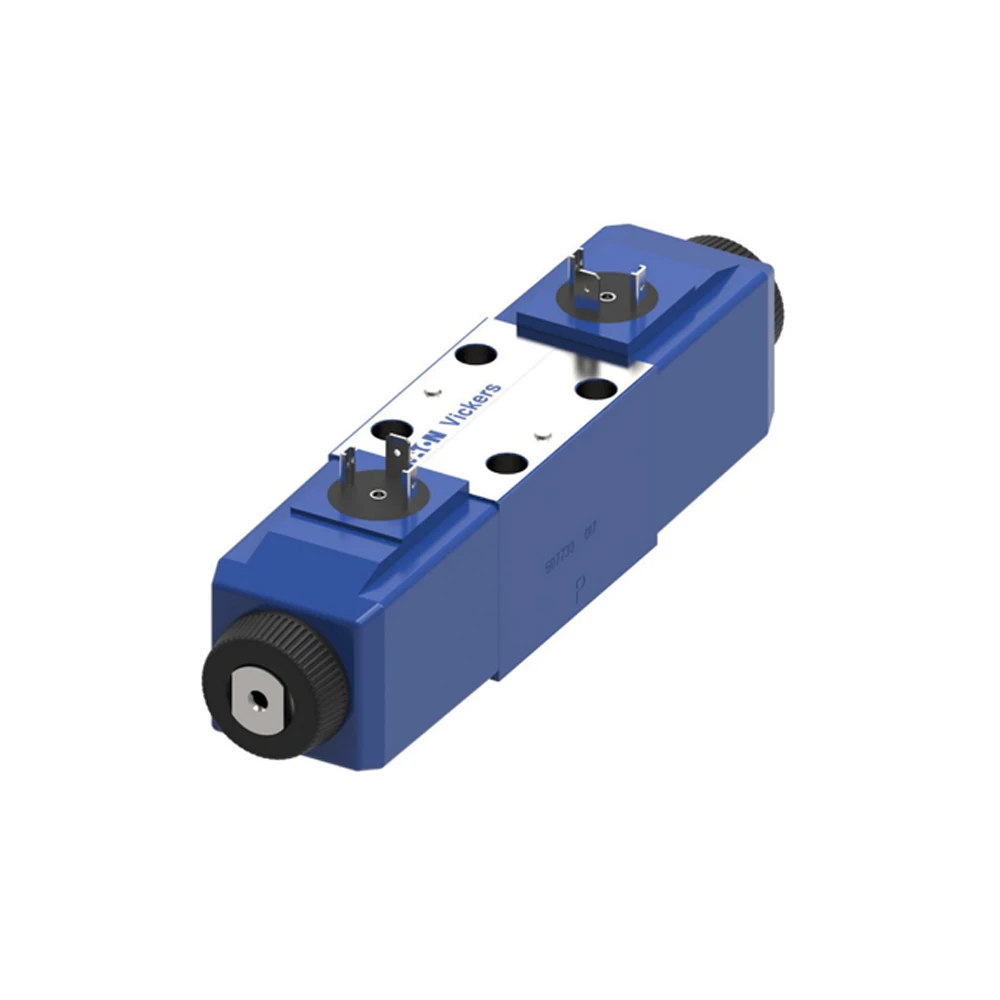

VICKERS, гидравлический направленный управляющий клапан DG4V-3-7C-M-U-B6-60 871126
88,99 $ - 100,00 $

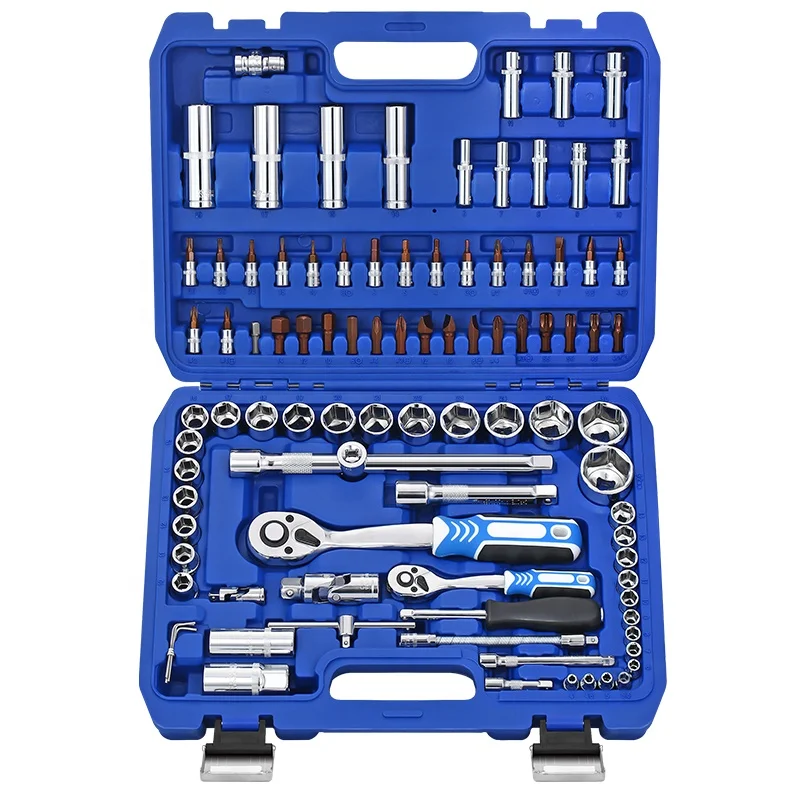

Srunv 94 шт. 1/2 дюйма 1/4 дюйма индивидуальный высококачественный набор головок с шестигранной головкой Набор глубоких головок и Трещоточный ключ

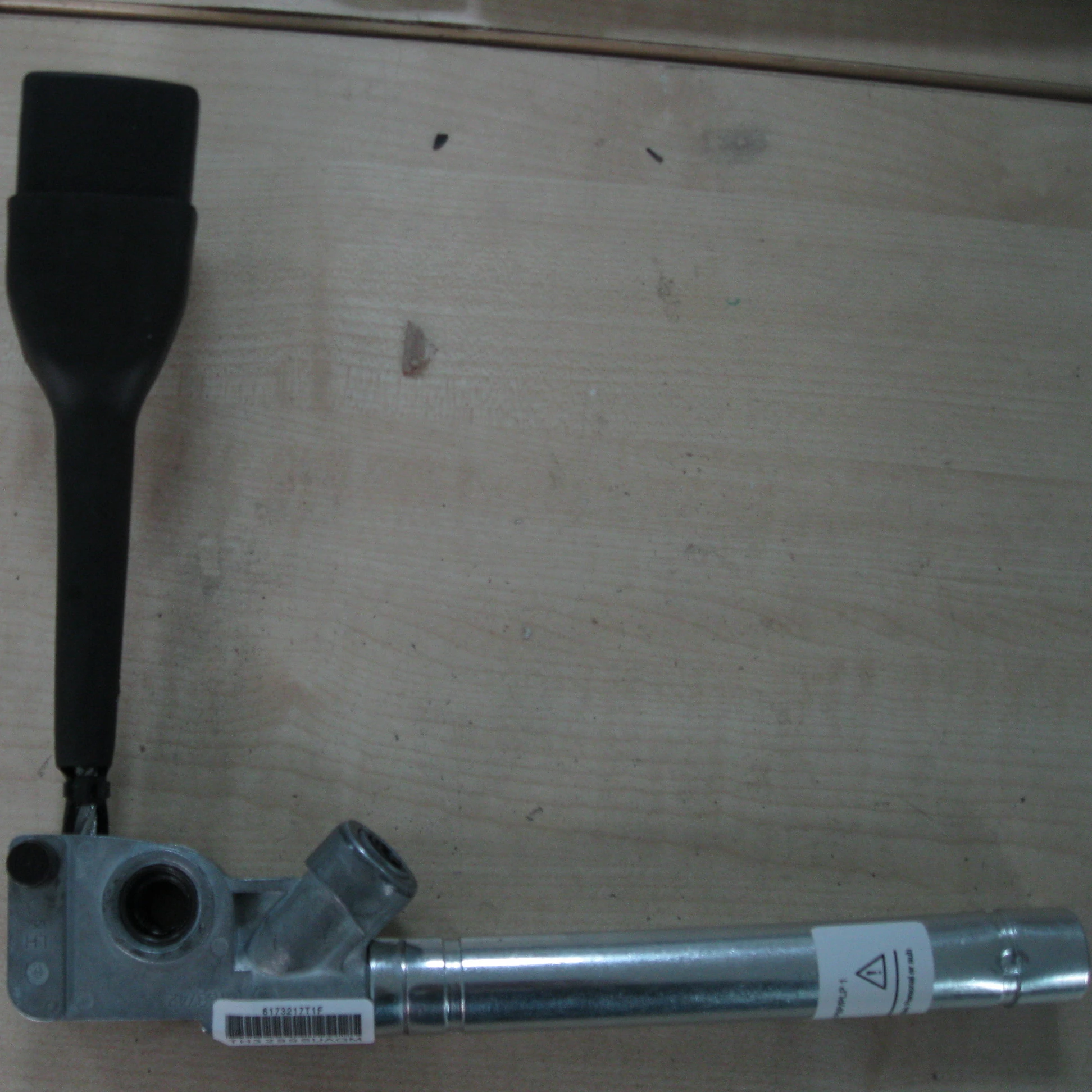

Оптовая продажа автозапчастей, аксессуар, преднатяжитель для автомобиля SRX для mazda cx5, газогенератор подушки безопасности
22,00 $ - 26,00 $

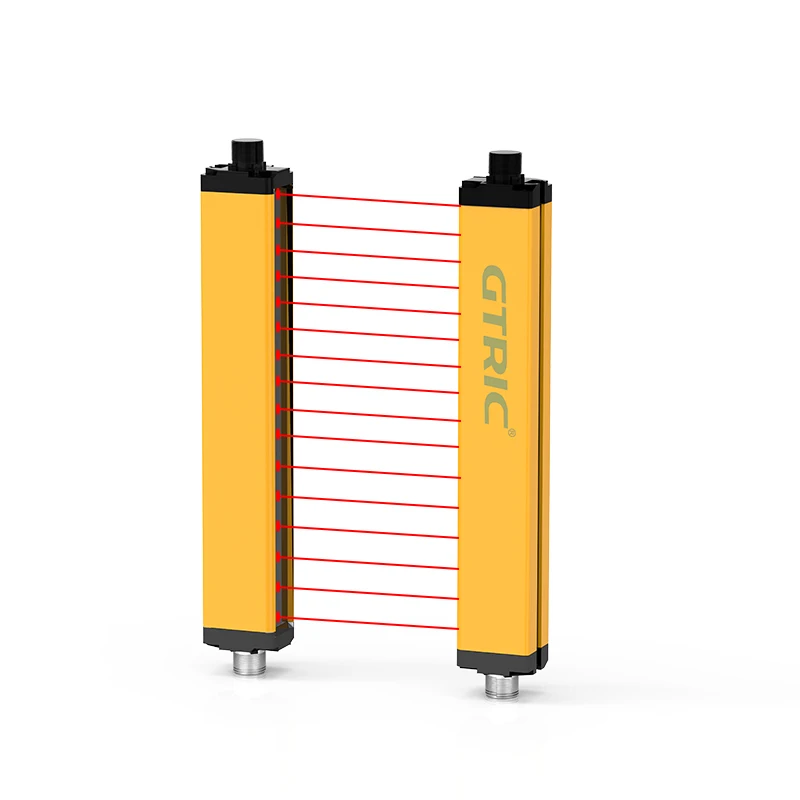

GTRIC световой барьер датчик безопасности 20 мм расстояние между лучами промышленная интеллектуальная зона фотоэлектрический датчик освещения штор
