Автоматическая система очистки печатных плат оборудование для завод по очистке в Китае
- Категория: >>>
- Поставщик: Guangzhou Minder-Hightech Co. Ltd.
Сохранить в закладки 1600376595641:
Описание и отзывы
Характеристики

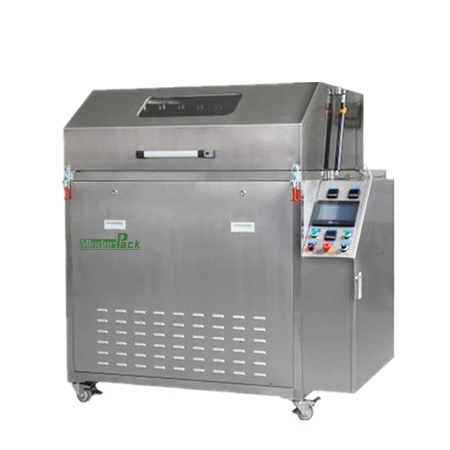

PCBA cleaning machine DEZ-C743
Product name: PCBA cleaner
Product Model: DEZ-C743
Function advantages: DEZ-C743 automatic water cleaning machine is an energy-saving, environmental protection, batch cleaning integrated comprehensive high-end cleaning machine, can automatically complete cleaning, rinsing, drying functions.
Type of work: Spray
Product specification: L1300*W1200*H1800(mm)
Scope of use: mainly used for cleaning PCBA board, can effectively clean SMT/THT PCBA soldering surface residual rosin-flux,water-soluble flux, non-cleaning flux/solder paste and other organic and inorganic pollutants
Product Model: DEZ-C743
Function advantages: DEZ-C743 automatic water cleaning machine is an energy-saving, environmental protection, batch cleaning integrated comprehensive high-end cleaning machine, can automatically complete cleaning, rinsing, drying functions.
Type of work: Spray
Product specification: L1300*W1200*H1800(mm)
Scope of use: mainly used for cleaning PCBA board, can effectively clean SMT/THT PCBA soldering surface residual rosin-flux,water-soluble flux, non-cleaning flux/solder paste and other organic and inorganic pollutants
DEZ-C743 PCBA cleaning machine (off-line) :
PCBA cleaning machine application field:
DEZ-C743 Automatic water cleaning machine is an energy saving, environmental protection, batch cleaning integrated comprehensive high-end cleaning machine, can automatically complete cleaning, rinsing, drying functions.
Mainly used for aviation, aerospace, electronics, medical, new energy, automotive and other military and high-end products of many varieties, small batch OF CLEANING PCBA board, can effectively clean SMT/THT PCBA soldering surface residual rosin-flux,water-soluble flux, non-cleaning flux/solder paste and other organic and inorganic pollutants
PCBA cleaning machine application field:
DEZ-C743 Automatic water cleaning machine is an energy saving, environmental protection, batch cleaning integrated comprehensive high-end cleaning machine, can automatically complete cleaning, rinsing, drying functions.
Mainly used for aviation, aerospace, electronics, medical, new energy, automotive and other military and high-end products of many varieties, small batch OF CLEANING PCBA board, can effectively clean SMT/THT PCBA soldering surface residual rosin-flux,water-soluble flux, non-cleaning flux/solder paste and other organic and inorganic pollutants
PCBA cleaning machine features:
* Whole process visualization: the cleaning room is equipped with a visual window, cleaning room equipped with lighting,
cleaning process at a glance;
* Automatic cleaning mode: in a cleaning room with spray automatic cleaning, rinsing, drying the whole process of small volume occupation area, compact structure;
* The most scientific nozzle design: the use of left and right incremental distribution -- improve the cleaning efficiency, up and down dislocation distribution -- completely solve the cleaning blind area;
* Nozzle pressure adjustable design: to solve the small size OF PCBA in cleaning by high pressure spray conditions of collision, splashing problems;
* Standard dilution tank heating system: greatly improve the cleaning efficiency. Shorten the cleaning time;
* Comprehensive cleaning system: for SMT; THT PCBA after welding surface residual rosin, water soluble flux, non-cleaning flux/solder paste and other organic and inorganic pollutants for thorough and effective cleaning;
* Convenient way to add cleaning agent: manually add, or automatically mix DI water and chemical liquid according to the set ratio (5%~25%);
* Special spray tank and auxiliary heating system: spray tank is in the cleaning and rinsing process to store the cleaning plate of the working tank, in the cleaning work, the solvent from the dilution tank injected into the spray tank and continued heating, after the high-pressure pump pressure from the spray, circulation filter use; During the rinsing process, the rinsing water can also be heated according to the need;
* Lower operating cost: the built-in filter device can realize the recycling of solvent, reduce the amount of solvent, at the end of the cleaning using compressed air blowing way: recovery of pipe and pump residual liquid, can effectively save 50% of the cleaning agent
* Whole process visualization: the cleaning room is equipped with a visual window, cleaning room equipped with lighting,
cleaning process at a glance;
* Automatic cleaning mode: in a cleaning room with spray automatic cleaning, rinsing, drying the whole process of small volume occupation area, compact structure;
* The most scientific nozzle design: the use of left and right incremental distribution -- improve the cleaning efficiency, up and down dislocation distribution -- completely solve the cleaning blind area;
* Nozzle pressure adjustable design: to solve the small size OF PCBA in cleaning by high pressure spray conditions of collision, splashing problems;
* Standard dilution tank heating system: greatly improve the cleaning efficiency. Shorten the cleaning time;
* Comprehensive cleaning system: for SMT; THT PCBA after welding surface residual rosin, water soluble flux, non-cleaning flux/solder paste and other organic and inorganic pollutants for thorough and effective cleaning;
* Convenient way to add cleaning agent: manually add, or automatically mix DI water and chemical liquid according to the set ratio (5%~25%);
* Special spray tank and auxiliary heating system: spray tank is in the cleaning and rinsing process to store the cleaning plate of the working tank, in the cleaning work, the solvent from the dilution tank injected into the spray tank and continued heating, after the high-pressure pump pressure from the spray, circulation filter use; During the rinsing process, the rinsing water can also be heated according to the need;
* Lower operating cost: the built-in filter device can realize the recycling of solvent, reduce the amount of solvent, at the end of the cleaning using compressed air blowing way: recovery of pipe and pump residual liquid, can effectively save 50% of the cleaning agent
PCBA cleaning machine DEZ-C743 technical parameters:
Product Model | DEZ-C743 |
Cleaning area size | 610mm(L)*560mm(W)*160mm(H) 2 layers |
Cleaning time | 0~99 minutes (adjustable) |
Cleaning temperature (liquid) | normal temperature -75 degrees /(adjustable) |
Rinsing time | min/time (1-59 times/adjustable) |
Rinsing temperature (DI water) | normal temperature -55 degrees /(adjustable) |
Heating and drying time | 0~99 minutes /(adjustable) |
Heating and drying temperature | normal temperature -99 degrees /(adjustable) |
Resistivity meter monitoring range | 0~18M ω |
Injection pressure | 30pSI-90psi /(adjustable) |
Exhaust port size | φ 100W)×20mm(H) |
Power supply/air source | AC380V 50HZ 65A / 0.45mpa -- 0.7MP |
Net weight | about 400Kg |
Machine size | 1300mm(L)*1200mm(W)*1800mm(H) |
Похожие товары

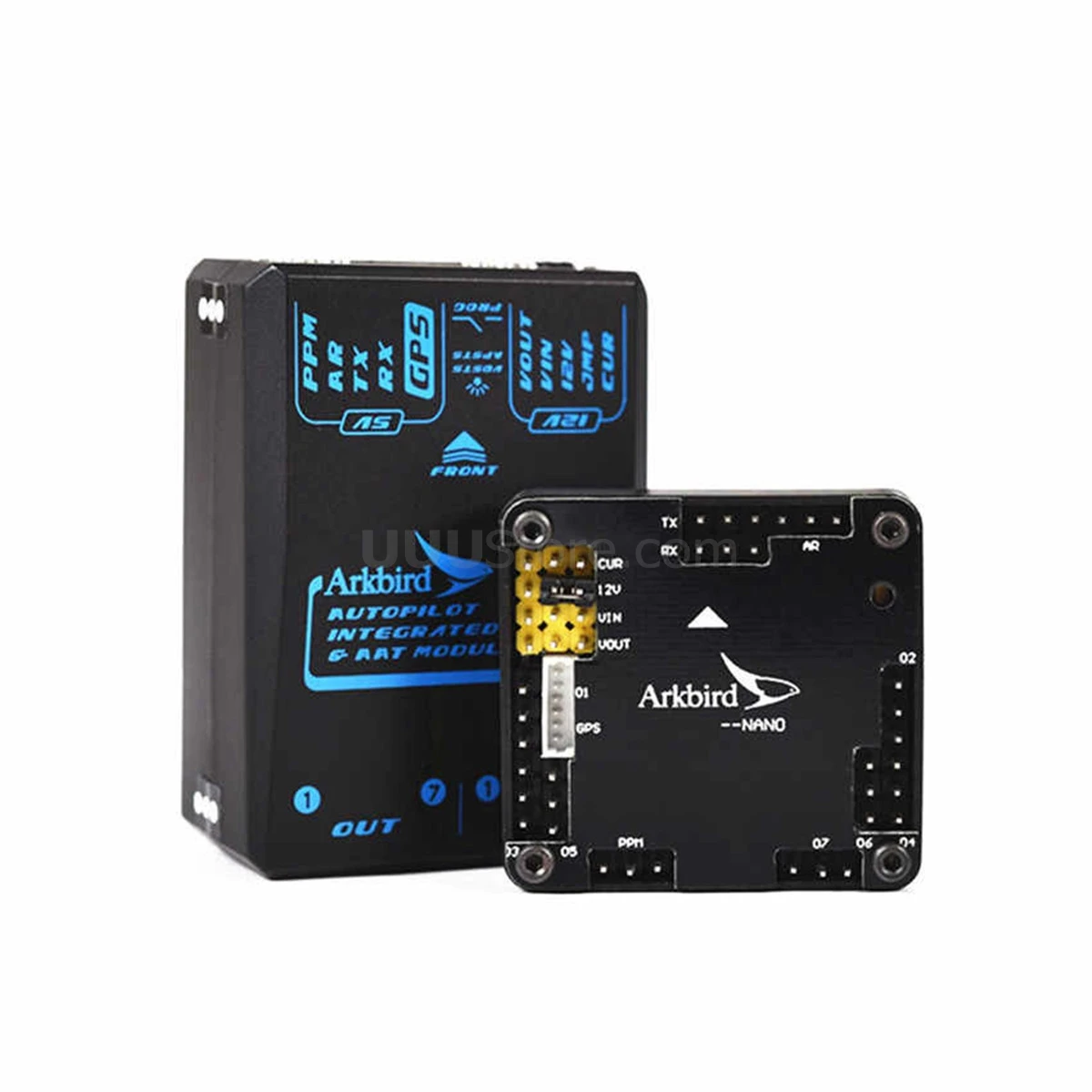

Контроллер полета нано автопилот Arkbird, небольшой объем, 15,2 г, OSD ATT для радиоуправляемых гоночных беспилотных летательных аппаратов Mini FPV

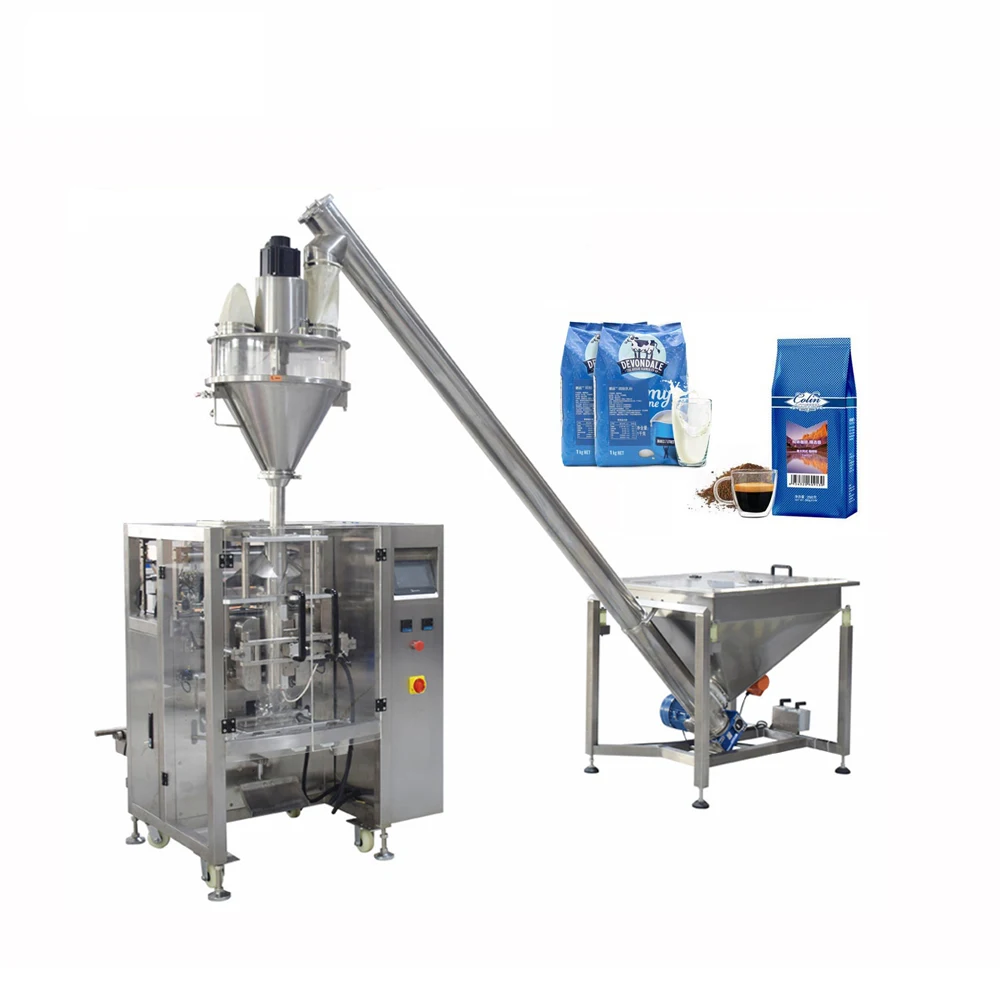

Полный автоматический 500G & 1KG порошок молока упаковочная машина с CE сертификация
Индивидуальный сервис, горячая Распродажа, частная торговая марка, витамин b, комплексные противоударные Пластыри для снятия питьевой воды
0,80 $ - 1,20 $

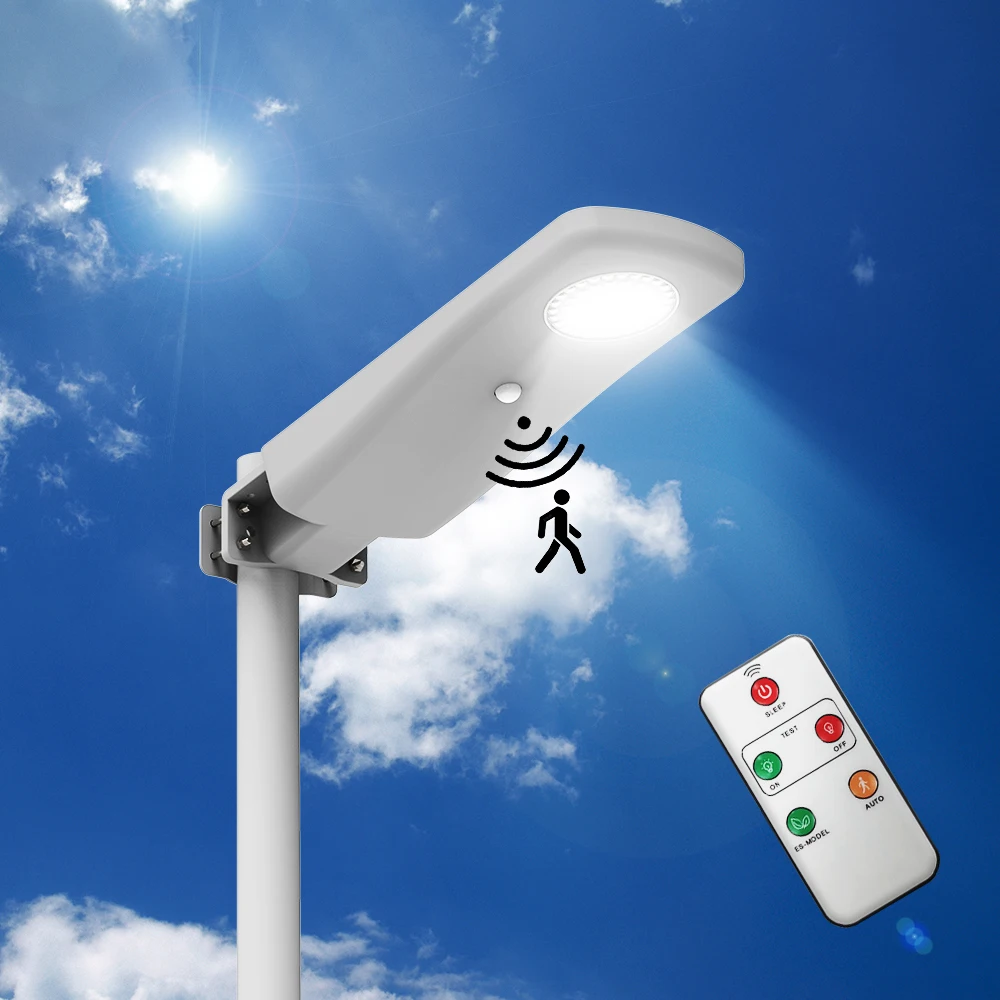

60 2000 Вт 200 Вт Светодиодный прожектор с питанием от кибердакса. 12 В 50ah батарея 800 Вт прочный высокий люмен с проигрывателем солнечный уличный свет
4,90 $ - 39,80 $

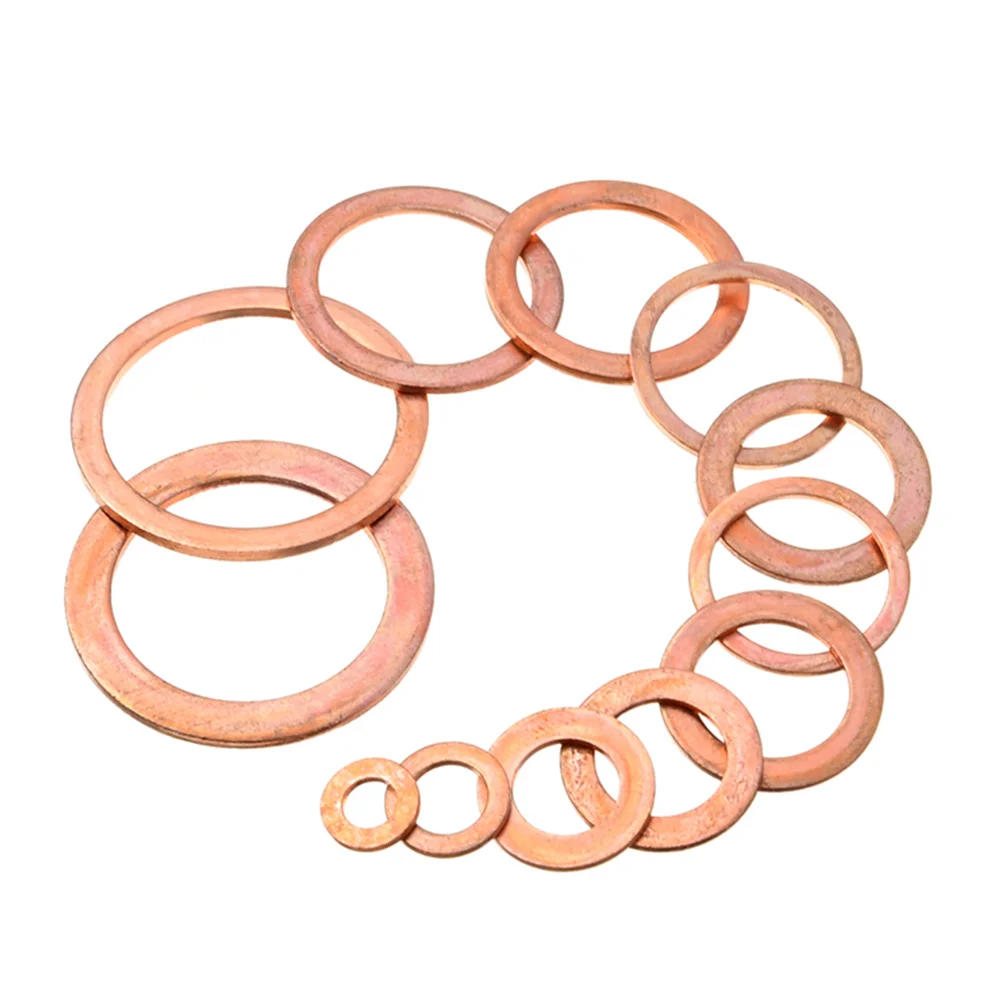

Оптовая продажа, медная Метрическая шайба, Метрическая шайба 27 мм x 34 мм x 1,5 мм, медная шайба с уплотнением для винтового болта, гайки
