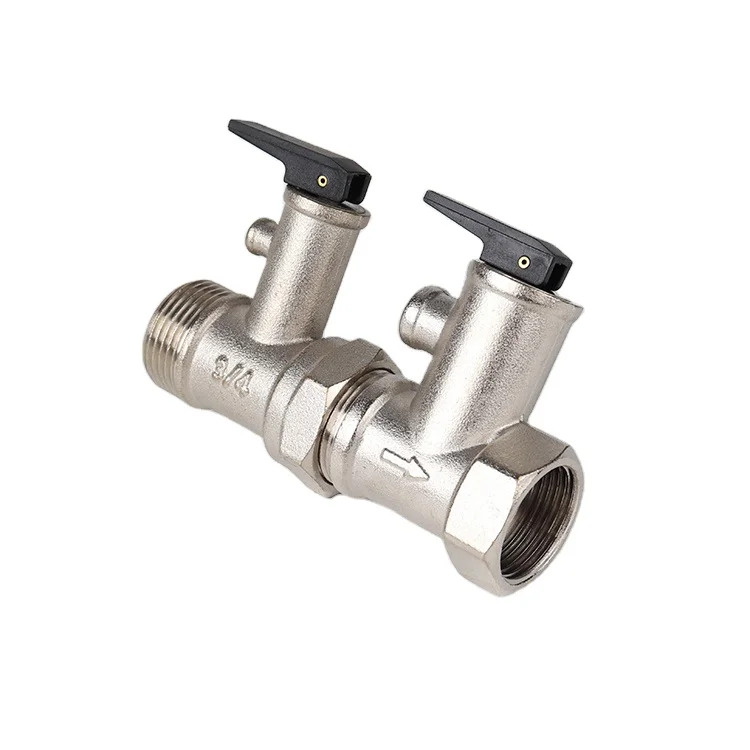

1/2 дюймов латунный предохранительный клапан гидравлического давления цена для электрического водонагревателя бака
53,95 ₽ - 107,90 ₽
Компактная система отопления с контролем печатной платы нагревателя и насосом
- Категория: >>>
- Поставщик: Xinxiang Jieda Precision Electronics Co. Ltd.
Сохранить в закладки 1600376760652:
Описание и отзывы
Характеристики
Product Description
Compact heating system with heater PCB control and pump
Advantages of thick film heating tube
The major advantage of thick film heating tube is high power density, high thermal transfer effiency and fast temperatuer rump up rate and long life span.
With its simple tubular structure, it can heat water flow inside the tube. Electric Circuit printed on tube surface, to heating the water flow inside. It can perfect replace traditional stainless steel electric heating tube.
The composition of thick film heating module

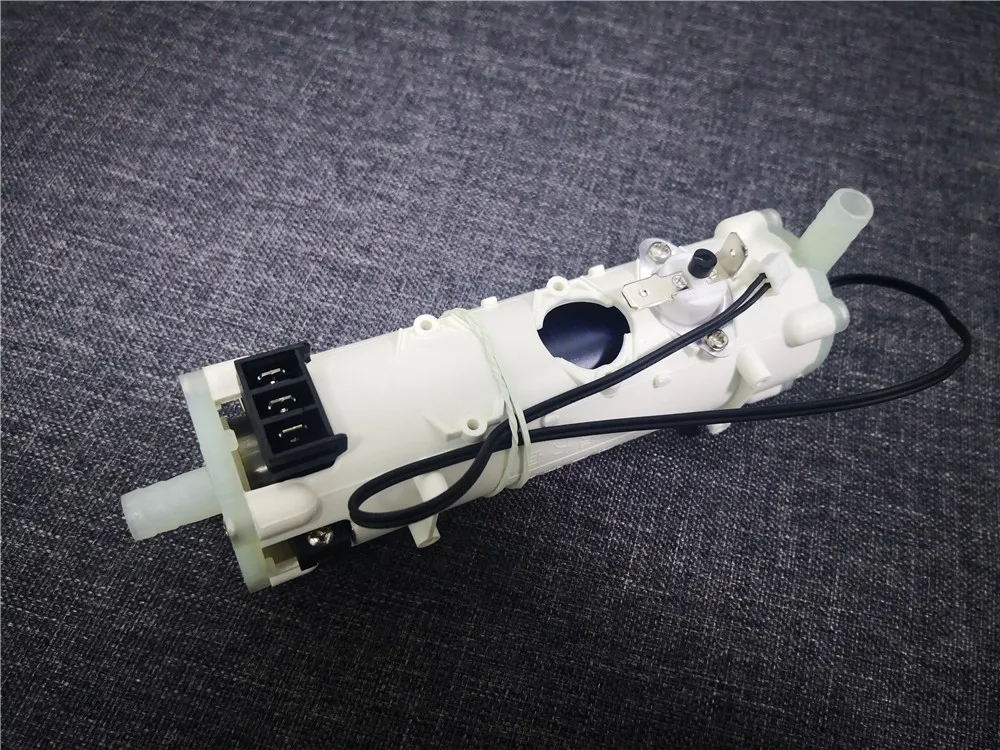

24 thick film instant water heater element is mainly applied in quick heating or fluid continuous heating. In order to get continuous hot water in target temperature, NTC temp sensors, water pump and electric control system are required to work with TF Heater Element.
24 thick film instant water heater element is mainly applied in quick heating or fluid continuous heating. In order to get continuous hot water in target temperature, NTC temp sensors, water pump and electric control system are required to work with TF Heater Element.
Grounding Type | Spot-Weld | Heat Density | >60W/cm² | |
Ramp-Up Rate | 80℃/s | Thermal Efficiency | >98% | |
Heating Power | 685w+1365w+2050w | Service Life | >10,000 hours | |
Rated Voltage | 220 | Certificate | CQC, RoHS | |
Dielectric Strength | 1500V/5mA/60s | Power Deviation | -10% - +5% | |
Leakage Current | ≤0.25mA | Insulation Resistance | ≥200MΩ | |
Thermistor Type | PTC | Dimension | 280mm(H)*180*mm(W)*125mm(T) |
Deatail Introduction

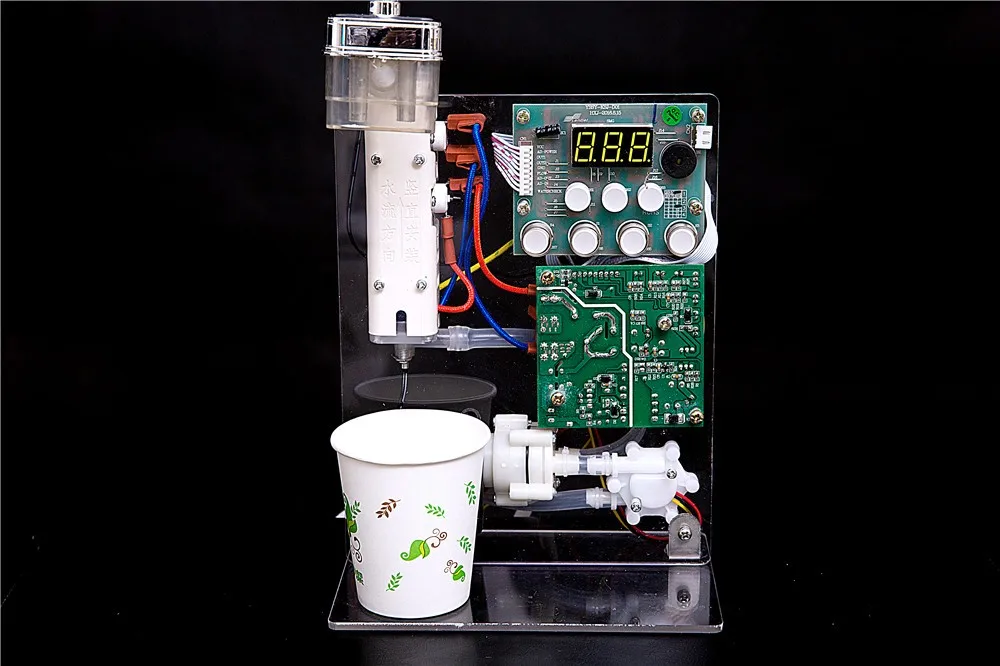

1)Since thick film heater element is new type water fluid heater parts for most home appliances manufacturers or other customers, we make this Electric Testing Kit as Mini Electric Instant Hot Water Dispenser Prototype, which can be set to supply target temperature hot water or water volume in each single heating process.

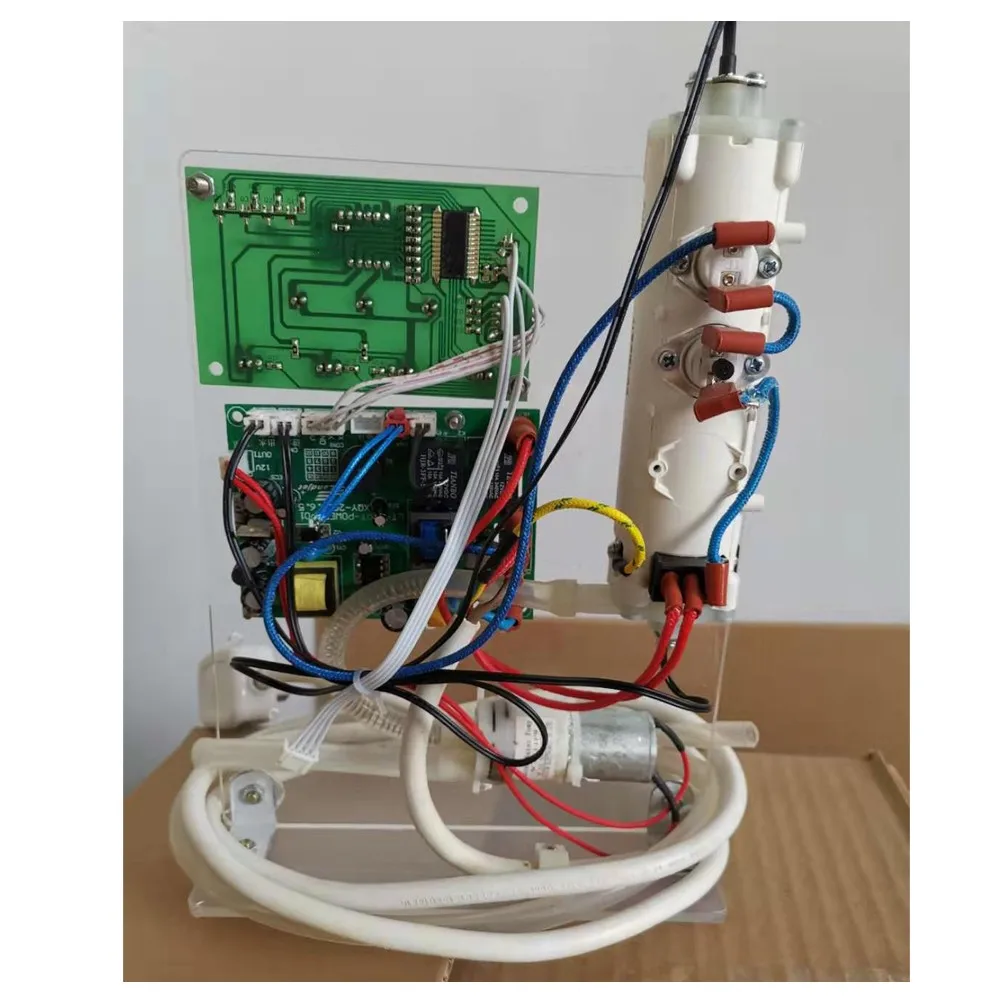

2)It'll help customers to understand how thick film heater works and to learn more thick film heater applications in new model R&D.The Electric Thick Film Instant Heating Testing Kit is assembled by Thick Film Heater Element, DC Membrane Pump, PCB control system, LCD Display, Touch Buttons etc.
3) It can realize three different power, such as 685w,136500w,2050w on one heating tube, which means you can connect the suitable power with your requirement.Power can be selected to provide a high-quality solution for achieving low-temperature effluent, and it can make sure the stability of water outflow with different temperature. We use wire socket to connect wires, which is different with old method welding, and it can make the connecter more stable and safety.
4)Target Temperature: 45℃, 50℃, 55℃, 60℃,65℃ 70℃, 75℃, 80℃,85℃, 90℃,95℃ 100℃
5)Volume in single heat process: 150ml, 500ml and 1000ml
4)Target Temperature: 45℃, 50℃, 55℃, 60℃,65℃ 70℃, 75℃, 80℃,85℃, 90℃,95℃ 100℃
5)Volume in single heat process: 150ml, 500ml and 1000ml
Related Products
Pre-heating high flowing rate thick film water heating model
1800w 120v electric heater testing kit for water purifier
CustomerApplications
The most compact instant type electric heating elements are the ideal heating element for novel and fashionable home appliances such as Water Dispenser, Water Purifier, Coffee Maker, Milk Machine, Water Kettle, etc.
Some of our Thick Film Electric Heating Tubes are individual customer solutions which are designed to match our customers' individual and specific requirements. During the development and application stages we work closely together with our customers in a partnership based on trust and mutual confidence.
Certifications
Company Profile
Jieda locates in Xinxiang’s Hi-Tech Development Park, which is 650km away from Qingdao. Jieda was founded in 2010, is a high-tech manufacturer that specializes in design, research, produce and sales rare-earth metal thick film electric heating tubes/elements.
What is Jieda advanced in?
1. More than 10 years experiences in thick film electric heating tubes.
2. Fully mastery of thick film tube surface screen printing and sintering.
3. Main Process Flow in 10000+ Grade Air Purification Workshop.
4. First manufacturer to mass produce Thick Film Electric Heating Tube/Element in China
5. Available various Solutions for fluid heating, especially for Instant Water Heating Home Appliances, House Floor Heating and Industrial water flow heating.
6. Monthly production capacity is up to 300,000 pcs.
What is Thick Film Heating Tube/Element advanced in?
1. The tubular structure makes it possible to instant heat water flow inside tube, by the Electric Heating Circuit printed and sintered on the tube surface.
2. It can work more than 10,000 hours, in case of no DRY HEATING.
3. The thermal transfer rate up to 96%.
4. Power Density is up to 60w/cm²
5. Temperature Ramp-Up Rate 150℃/S.
6. Boiling water(95℃) is available in 3 seconds around.
7. Simple & compact profile brings more possibility in new products research and design.
Those thick film heating tubes/elements are widely applied in Instant Water Boiling, Instant Water Heater, Water Dispensers, Coffee Makers, Instant Electric Heating Faucets, Steam Generator, Air-Flow Heater, Floor Heating, Industrial Water Flow Heating, etc.
It can successfully replace the Traditional Electric Heating Tubes/Elements, change their structures and performance completely, which can reduce energy consumption, increase energy utilization and save space.
What is Jieda advanced in?
1. More than 10 years experiences in thick film electric heating tubes.
2. Fully mastery of thick film tube surface screen printing and sintering.
3. Main Process Flow in 10000+ Grade Air Purification Workshop.
4. First manufacturer to mass produce Thick Film Electric Heating Tube/Element in China
5. Available various Solutions for fluid heating, especially for Instant Water Heating Home Appliances, House Floor Heating and Industrial water flow heating.
6. Monthly production capacity is up to 300,000 pcs.
What is Thick Film Heating Tube/Element advanced in?
1. The tubular structure makes it possible to instant heat water flow inside tube, by the Electric Heating Circuit printed and sintered on the tube surface.
2. It can work more than 10,000 hours, in case of no DRY HEATING.
3. The thermal transfer rate up to 96%.
4. Power Density is up to 60w/cm²
5. Temperature Ramp-Up Rate 150℃/S.
6. Boiling water(95℃) is available in 3 seconds around.
7. Simple & compact profile brings more possibility in new products research and design.
Those thick film heating tubes/elements are widely applied in Instant Water Boiling, Instant Water Heater, Water Dispensers, Coffee Makers, Instant Electric Heating Faucets, Steam Generator, Air-Flow Heater, Floor Heating, Industrial Water Flow Heating, etc.
It can successfully replace the Traditional Electric Heating Tubes/Elements, change their structures and performance completely, which can reduce energy consumption, increase energy utilization and save space.
FAQ
1)Can I DIY it for personal use by myself?
Xinxiang JIEDA Precision Electronics Co., Ltd.Our products are mainly used as heating elements for water heaters in mass production, not recommended for Personal DIY.
2).How to install Thick Film Heater Tube/Element?
Xinxiang JIEDA Precision Electronics Co., Ltd.Thick Film Heater Element is required to vertical mounted, and avoided to horizontal or inclined mount.
That's to prevent DRY HEATING in partial area caused by horizontal mounting, inclined mounting and vapor return.
3)How to get the suitable model for our application?
Xinxiang JIEDA Precision Electronics Co., Ltd.We need to know the water temperature in inlet and outlet port, the water flow rate, connection port requirements and other special requirements.
4)What's the operation attentions?
.①The temperature ramp-up above 80°C/s, please make sure the tube fulfilled with water before use.
② Please install it vertically, make sure water flow direction from bottom to top, to prevent dry heating in partial area of heating tube.
③ Set the minimum flow rate according to tubes' power watts, ensure smooth flowing of water, to prevent vaporizing and dry heating.
④. Make sure reliability grounding.
Похожие товары
WNC-1 бразильский популярный одиночный термостат стволовых для контроля температуры

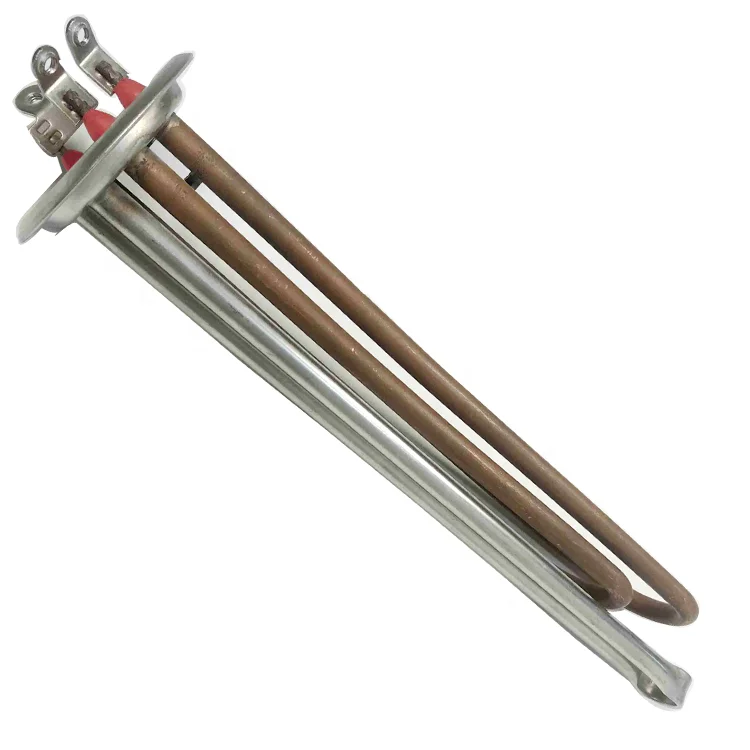

Строго проверенный высококачественный электрический нагревательный элемент 220 В 2 кВт медная трубка электрическая нагревательная труба
