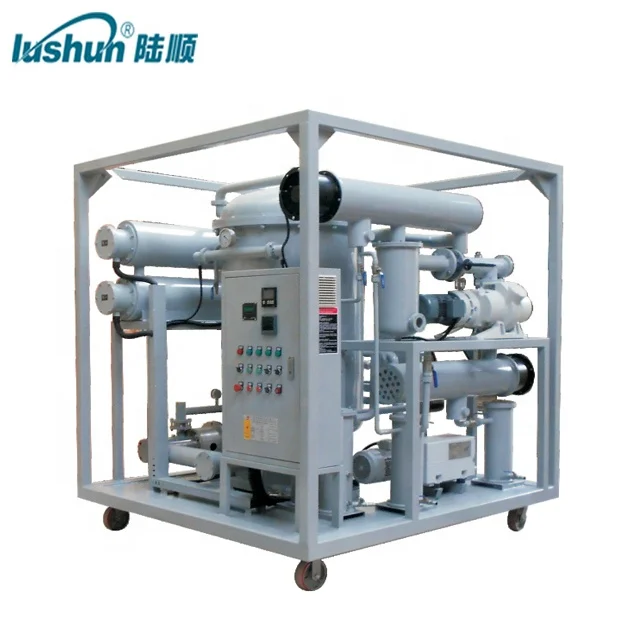

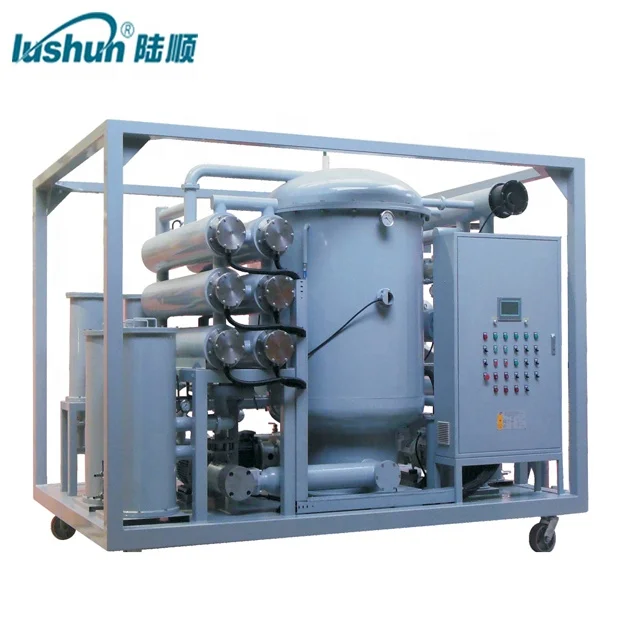

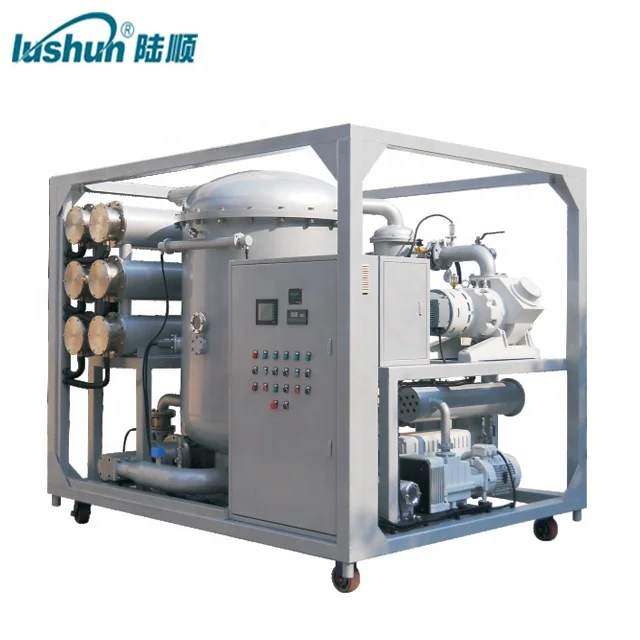

ZJA-T Series Double-Stage Vacuum Oil Purifier for Ultra-high Voltage Transformers

Application

ZJA-T series are especially applied to 500KV, 750KV and 1000KV AC power grid and ±660KV, ±800KV DC power grid for the insulating oil treatment and maintenance. ZJA-T machine is very powerful in abilities of vacuum degassing, dehydration and filtration for insulating oil or transformer oil. It applies to on-site transformer maintenance and deep purification of new transformer oil, imported transformer oil oil, mutual inductor oil and ultra high voltage transformer oil. It can also be used for transformer oil vacuum filling and vacuum drying operation.

Advantages

 Advanced double-stage large capacity dehydration and degassing system which adopts large area three-dimensional flash evaporation technique to remove harmful composition in the oil such as water, air,gas and hydrocarbon etc.

 It can be widely used for transformers on-site installation or maintenance to fill oil into transformers and circuit breakers under vacuum condition or conduct transformers evacuation operation.

 Precise filtration system, high-quality filtering elements and multi-stage filtration with gradual precision can help to remove mechanical impurities from the oil effectively. While the filters are with self-inspection function for the pollutant-containing conditions.

 Equipped with automatic temperature control system, liquid-level control system, defoaming control system, pressure protection system and high quality main components to ensure operation of the equipment with high reliability and perfect performance.

The machine supports on-line operation without supervision with indicators to show operation status.

The machine adopts humanization design with low noise, easy operation, long free-maintenance time and energy saving to lower the operation cost.

  With electrical control inter-lock design. Vacuum system, oil pump system and heating system are interlocked in control.

Equipped with indication for changing filters and automatic stop device for overloaded filters.

 Equipped with emergency stop for electric leakage and power overload to protect the motor.

With phase-sequence, phase lose protection function and safety control for sudden shut-down.

Equipped with vacuuming interface for transformer evacuation operation.

The outlet can inlet can be interchanged.

Optional Customized Design As Per Client’s Requirements:

PLC intelligent control with touch screen operation and operation status dynamic display.

Online moisture tester, online particle counter and online flow meter with adding-up function.

Frequency converter for free adjustment of flow rate

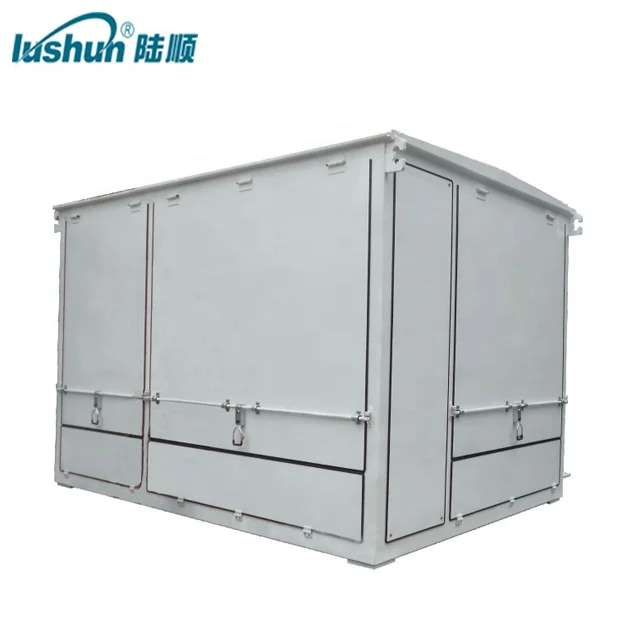

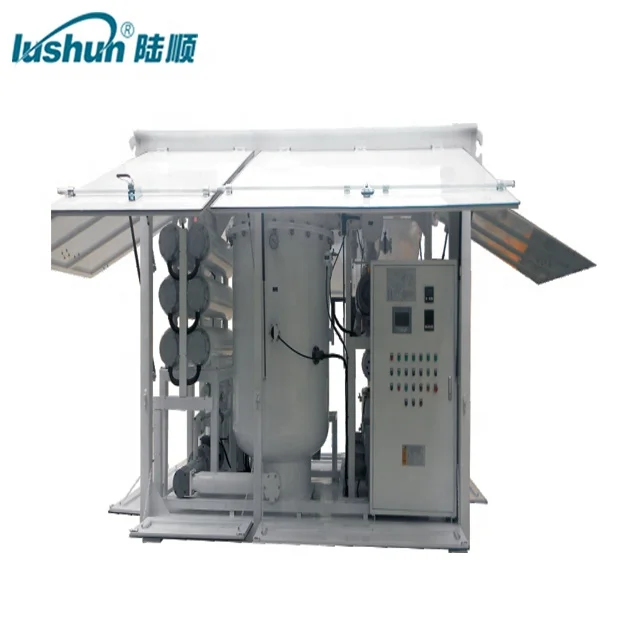

The whole structure of the machine: mobiles style with four wheels, fixed style, mobile style with trailer(double axles or single axle), fully enclosed style, conceal eaves type and open style of canvas etc.

Technical Specification

Application

 Worshop and facilities

^{Chongqing Lushun Scientific and Technological Development Co., Ltd was built in 2003, and mainly specialized in middle and high quality oil purifiers. Our registered capital is 10 million RMB (1.7 million U.S. Dollar). We have 122 employees, and 60% of them were good educated. We can produce more than 1,000 sets of oil purification equipment each year. We are one of the world competitive companies specializing in high-tech oil purifier research and manufacture.}
