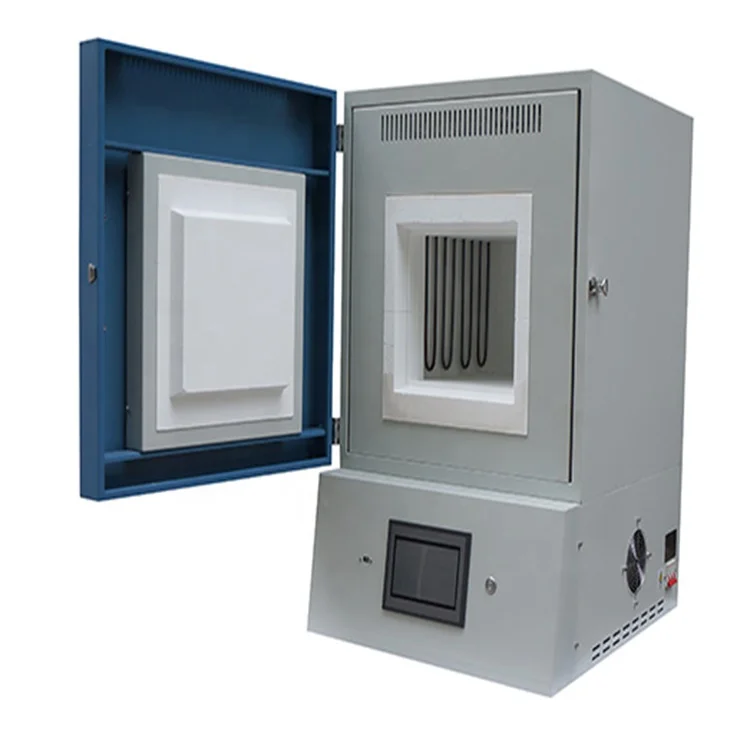

BIOMETER 1700C Muffle Furance
Specification
FEATURES
* The furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature, heat
capacity is small, energy saving above 50%.

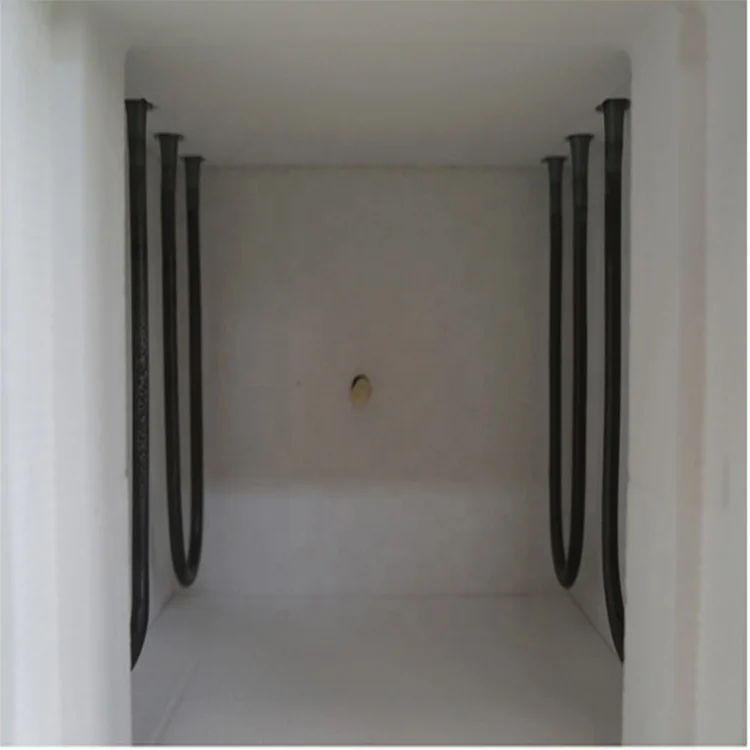

* The heating element is made of high-quality silicon molybdenum rod, which can bear large load, stable and long service life;
the silicon molybdenum rod is evenly arranged on both sides of the furnace, and the temperature field uniformity is good.
* Patented temperature control design, fast heating rate, good temperature uniformity, can be raised to 1600ºC within 150
minutes, more than 3 times higher than the same specification electric furnace sintering efficiency in the industry, safe and
efficient.
* High temperature control accuracy, small temperature compensation and temperature accuracy ± 1 °C.
* Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be
programmed 30 segments.
* Electronic components are used Schneider products, with leakage protection, safe and reliable.
* The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the
protection action.
* When the instrument program is set, just press the run button and the next work will be completed automatically.
* Optional large-screen paperless recorder or RS232 communication interface for real-time recording of temperature rise curves,
with memory card for analysis and printing of experimental data.
capacity is small, energy saving above 50%.
* The heating element is made of high-quality silicon molybdenum rod, which can bear large load, stable and long service life;
the silicon molybdenum rod is evenly arranged on both sides of the furnace, and the temperature field uniformity is good.
* Patented temperature control design, fast heating rate, good temperature uniformity, can be raised to 1600ºC within 150
minutes, more than 3 times higher than the same specification electric furnace sintering efficiency in the industry, safe and
efficient.
* High temperature control accuracy, small temperature compensation and temperature accuracy ± 1 °C.
* Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be
programmed 30 segments.
* Electronic components are used Schneider products, with leakage protection, safe and reliable.
* The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the
protection action.
* When the instrument program is set, just press the run button and the next work will be completed automatically.
* Optional large-screen paperless recorder or RS232 communication interface for real-time recording of temperature rise curves,
with memory card for analysis and printing of experimental data.
Product Overview
1700ºC STM series products are mainly for the daily application development of the
laboratory, high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental
data; the product uses high-purity alumina material as the furnace material, and the high-quality Silicon molybdenum rod is used
for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control
and constant temperature requirements.
laboratory, high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental
data; the product uses high-purity alumina material as the furnace material, and the high-quality Silicon molybdenum rod is used
for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control
and constant temperature requirements.
Parameter
Model | STM-1-17 | STM-3-17 | STM-8-17 | STM-12-17 | STM-20-17 | STM-36-17 | Customized | ||||||
Chamber Size（WxDxH）mm | 100x120x100 | 150x150x150 | 200x200x200 | 200x300x200 | 250x320x250 | 300x400x300 | Any size | ||||||
Type | Benchtop | ||||||||||||
Furnace Structure | Chamber Material, Temperature Controller System, Heating Element, Furnace Shell and Other assistant parts | ||||||||||||
Max Temperature | 1700℃ | ||||||||||||
Continue Operating Temp. | 1600℃ | ||||||||||||
Power Supply | 220V/2KW | 220V/4KW | 220V/5KW | 220V/6KW | 380V/7KW | 380V/13KW | Depends on size | ||||||
Heating Element | High Quality Molybdenum Disilicide (MoSi2 ) heater | ||||||||||||
Chamber Material | High temperature 1800 Grade polycrystal alumina ceramic fiber material | ||||||||||||
Temperature Precision | ±1℃ | ||||||||||||
Thermocouple | B type | ||||||||||||
Temperature Controller | YUDIAN brand 518P intelligent microcomputer PID controller can program 30 segments as standard or any other barnd as optional | ||||||||||||
Electronic Component | Schneider (France ) brand | ||||||||||||
Heating Rate | ≤ 15℃/min ( suggest 10℃/min for longer life using of furnace ) | ||||||||||||
Safety Protection | Overheat and thermocouple-break alarm | ||||||||||||
Certification | ISO9001 CE SGS | ||||||||||||
Furnace Shell | high quality cold-rolled steel sheets CNC processing | ||||||||||||
Insulation | High quality thermal insulation material to ensure a good uniformity | ||||||||||||
Accessories | One pair of high temperature furnace gloves One pair of crucible stongs | ||||||||||||
Optional | Stainless steel exhaust chimney Alumina crucible | ||||||||||||
Related Products
Company Profile
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1. Are you factory or trading company?
-We are a factory.
Q2. What's the MOQ ?
-Normally, MOQ is 1 piece. If there is no stock,the general MOQ are difference due to the different products. But the quantity still can be negotiated.
Q3. What is your principle for the samples ?
-We do not provide free sample.
Q4.Which payment can be acceptable ?
-Accept the payment by L/C, T/T, Paypal, Western Union,etc.
Q5. How about your delivery time?
-Generally, it will take 7 to 15 working days after receiving your advance payment.Depend on the quantity.
