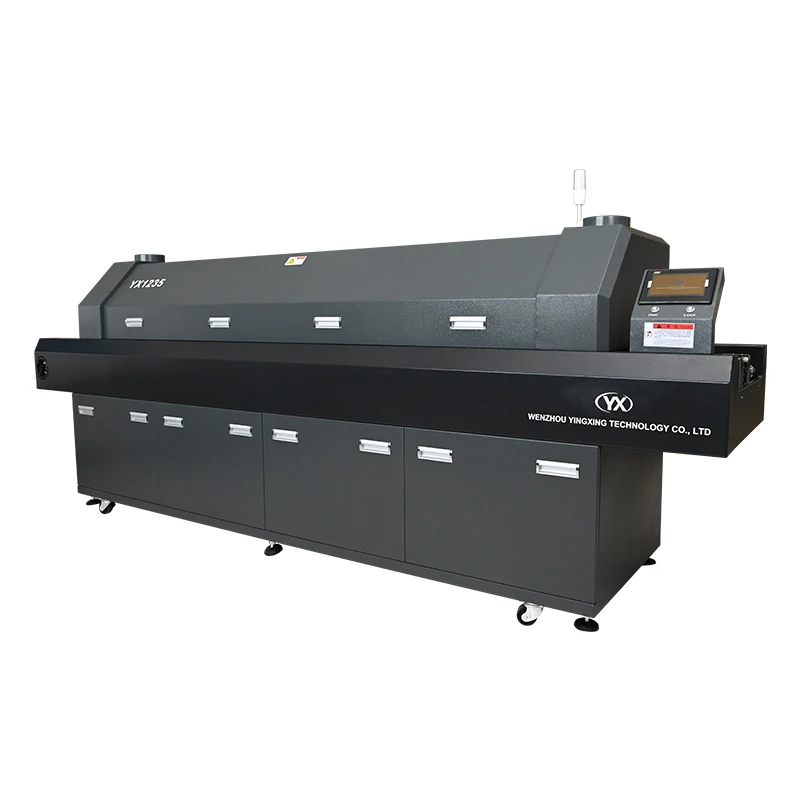

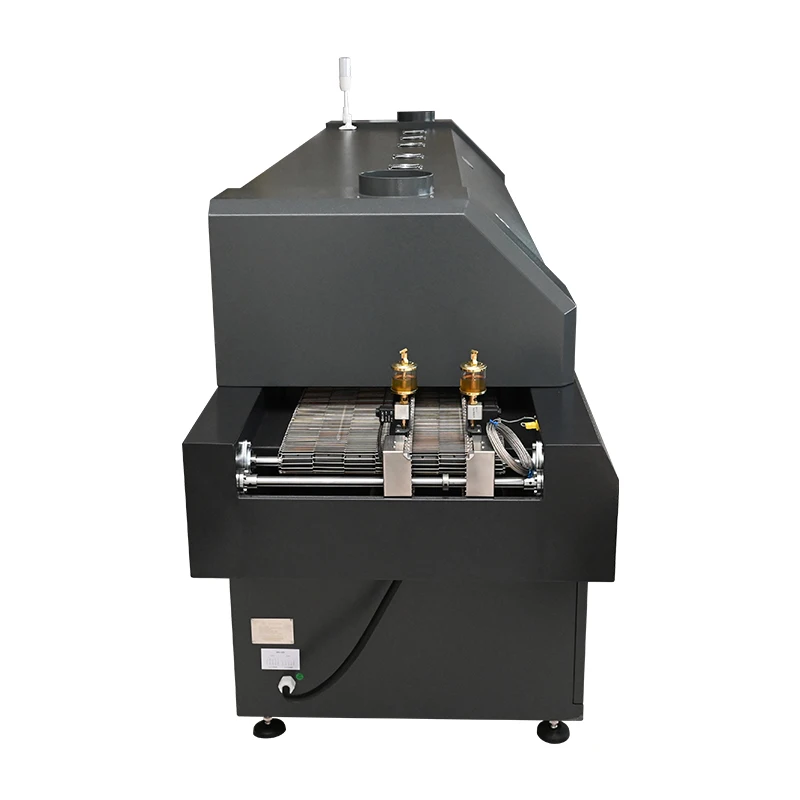

12 температурная зона YX1235 духовка для повторной пайки производственной линии SMT
- Категория: >>>
- Поставщик: Wenzhou Yingxing Import&Export Co. Ltd.
Сохранить в закладки 1600378839190:
Описание и отзывы
Характеристики
Product Description
Introduction
SMT Reflow Soldering Oven is mainly used to achieve the mechanical and electrical brazing between the solder end or pin of surface assembly components and the printed board solder pad by remelting the paste solder on the pre-distributed PCB. The working plate has wide versatility and convenient flexibility. And the equipment is equipped with closed cooling system, permanent filtration system and data collection function. The new energy-saving structure design, adding heat preservation performance, combined with the integrated module of wind and heat, greatly reduces energy consumption, thus making it convenient for customers to use. If you are looking for such product, our SMT Reflow Soldering Oven will not let you down!
The YX1235 software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
The YX1235 machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands)
Moder | YX1235 |
Number of Heating Zone | 12 Zone (Up 6 and Low 6) |
Heating Method | Hot Air |
Hot Air Method | Frequency Conversion Air Supply |
Number of Cooling Zones | 3 Ventilation Cooling |
Length of Heating Zones | 2060mm |
Width of Net Belt | 450mm |
Rail Width | 350mm |
Allowed PCB Width | Max. 350mm |
Allowed PCB Length | Unlimited |
Allowed PCB Width (Mesh Belt) | 50mm |
Allowed PCB Height (Guide Rail) | 25mm on PCB Board. 25mm Under PCB Board |
The Height of the Net Band from the Ground | 880 ± 20mm |
The Height of the Guide from the Ground | 900 ± 20mm |
Transport Speed | 160 - 1350 mm/min |
Transportation Way | Digital Display Speed Regulation |
Transport Direction | Left — Right |

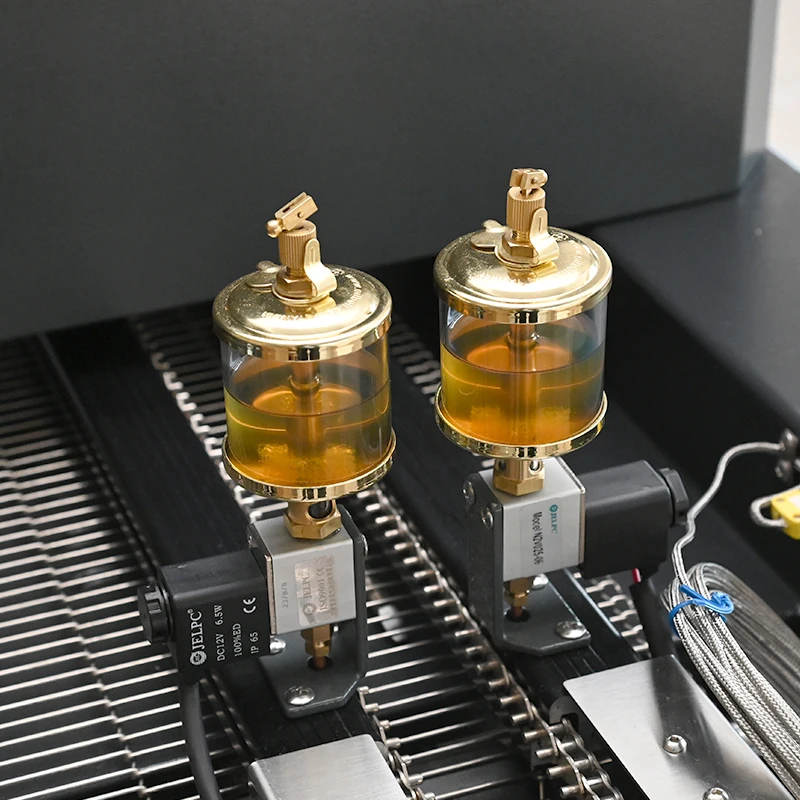

The Chain Drip | Timing Automatic Dripping |
Rated Power | AC 380 ± 10% 50Hz |
Heating up Time | About 25min |
Time of Passing Through the Machine | 3.5 - 5.5 min |
Temperature Control Range | Room Temperature to 400℃ |
Temperature Control Method | PID Closed-Loop Control |
Starting Power | 22KW |
Operating Power | 4.5KW |
Outline Size | L3380*W820*H1360 mm |
Weight | 560KG |
Product Details
Company Information
Exhibition
Certifications
Product packaging
FAQ
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
Похожие товары

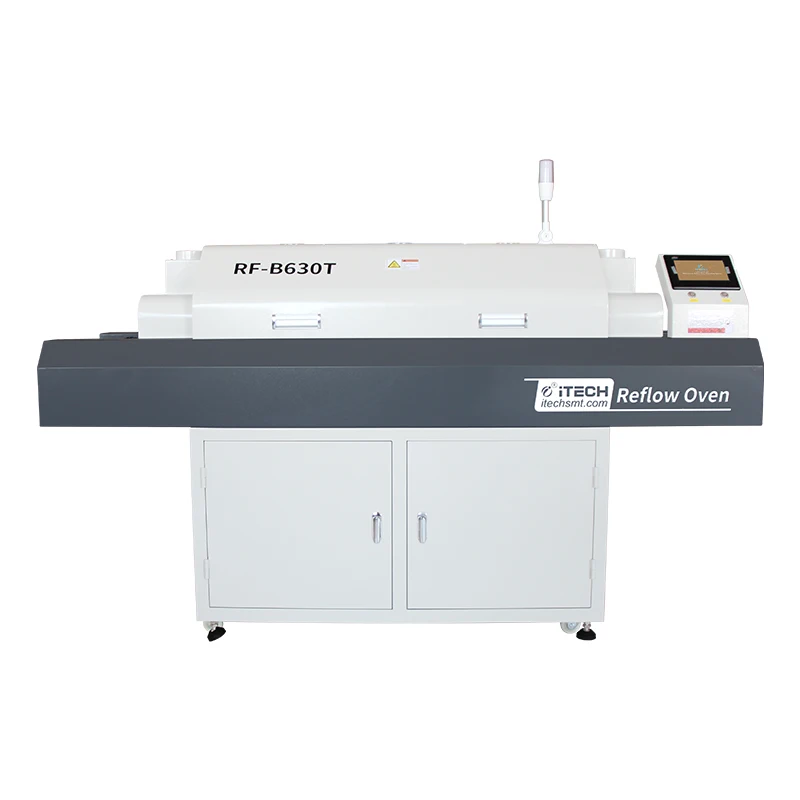

Настольная RF-B630T печь для оплавления 6 зон
168 508,65 ₽ - 176 223,24 ₽
3 зоны охлаждения оплавления для производственной линии SMT
2 314 376,40 ₽ - 2 534 793,20 ₽

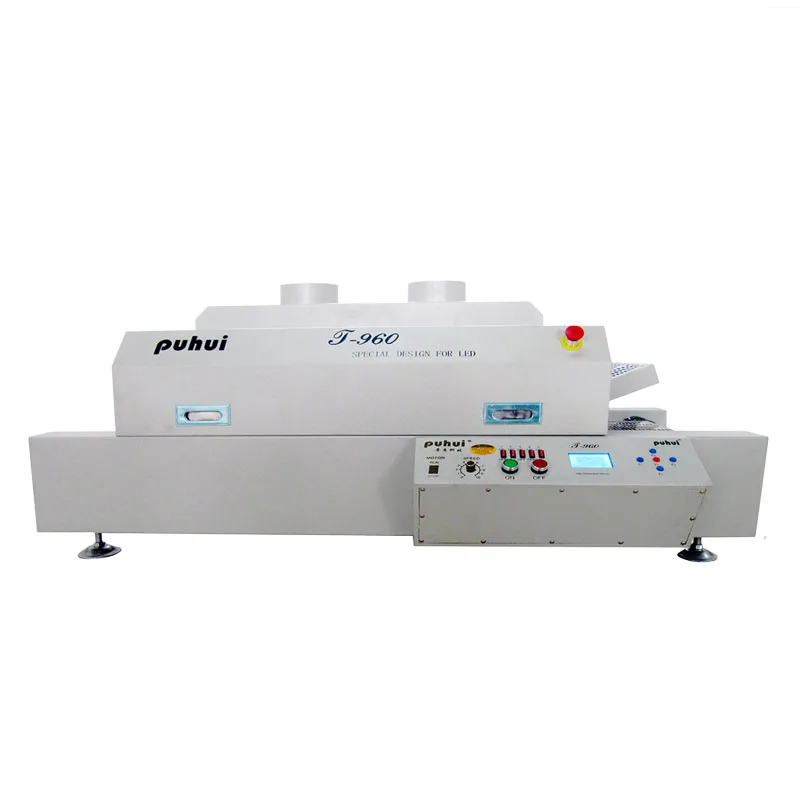

Духовка puhui t960 reflow

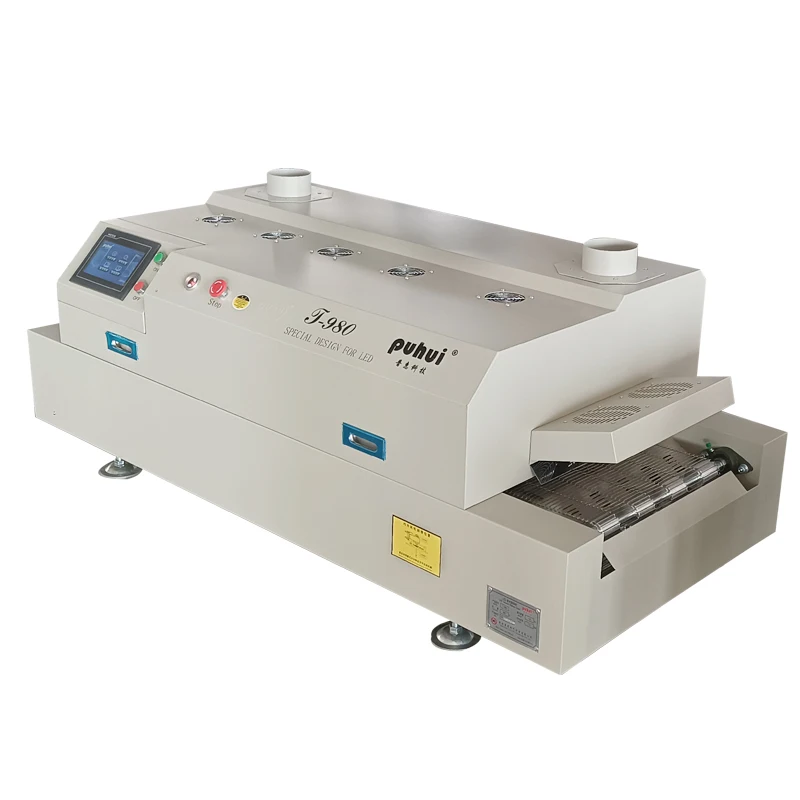

Программируемая печь с 8 нагревательными зонами Puhui T980 сенсорный экран smt для печатных плат BGA светодиодная Точная паяльная станция
165 312,60 ₽
Мини-паяльная печь PID control T-961 SMD светодиодная конвейерная паяльная для однократной двойной сварки печатных плат

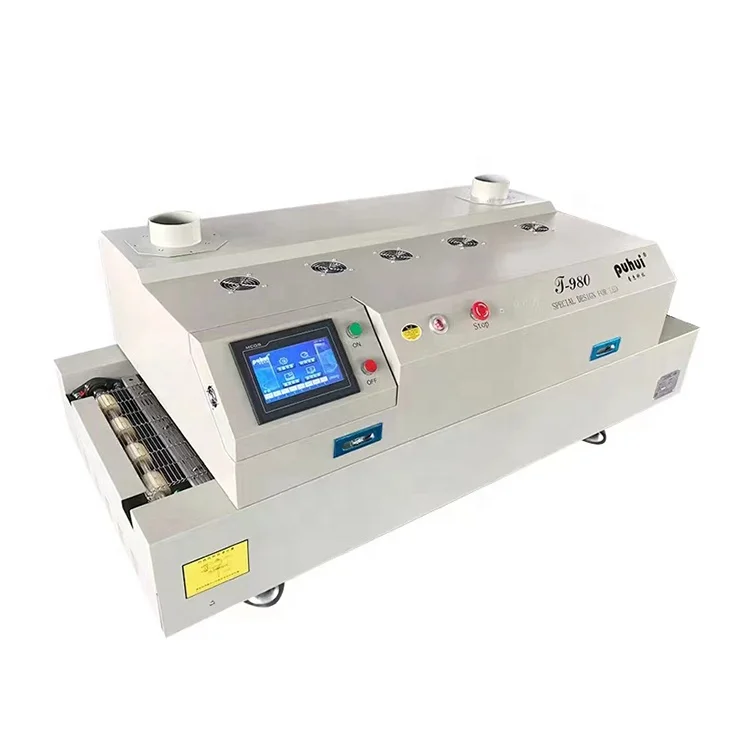

Puhui smt машина t980 печь с обратным течением воздуха восемь сварки зон t-980 паяльная
165 312,60 ₽

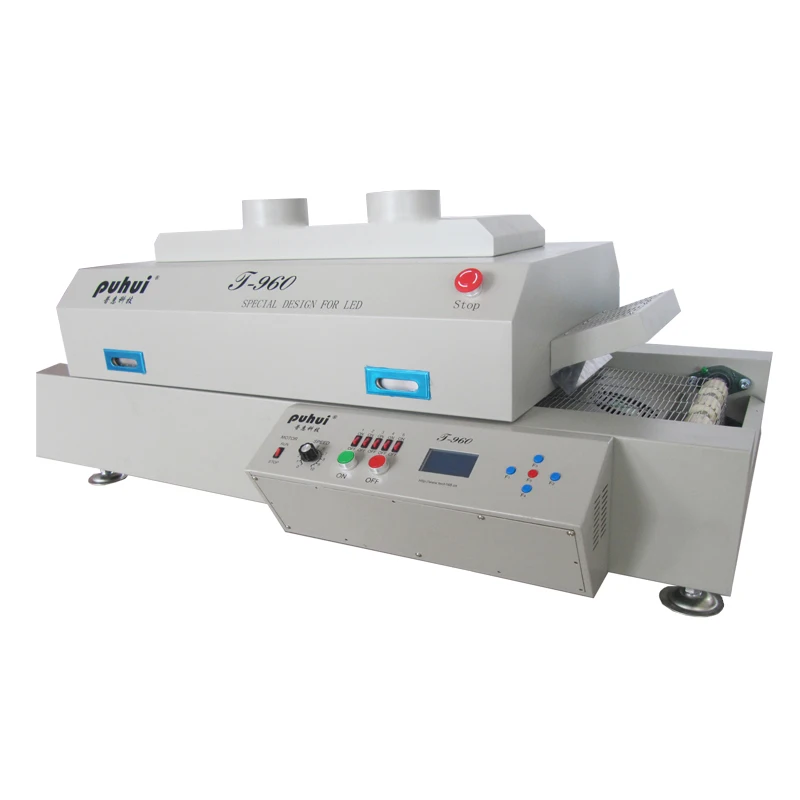

Pu t-960 печь с обратным течением воздуха 5 зонами нагрева настольная оплавления smt конвейерная
