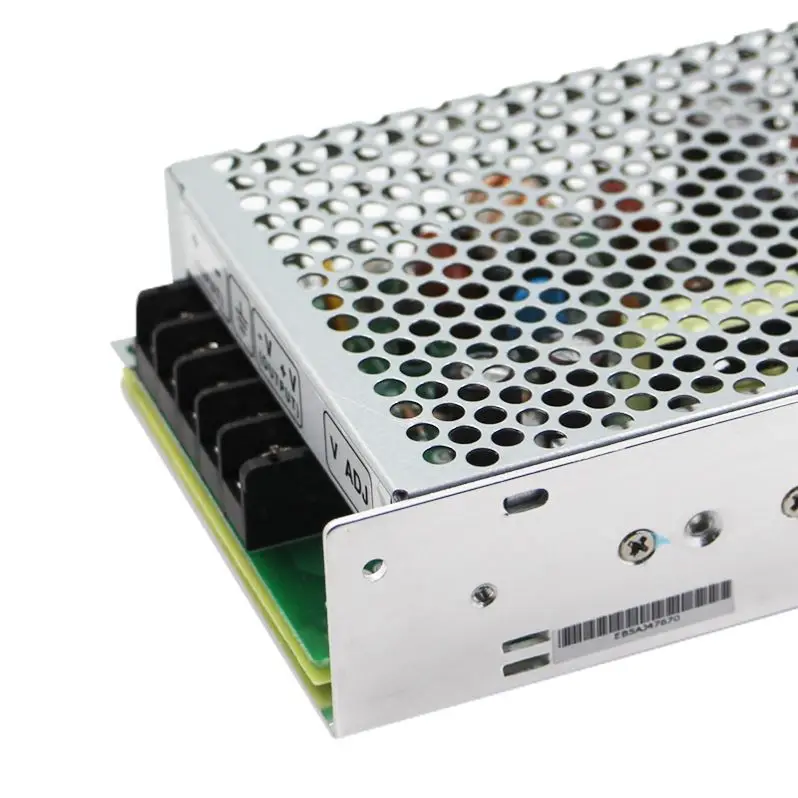

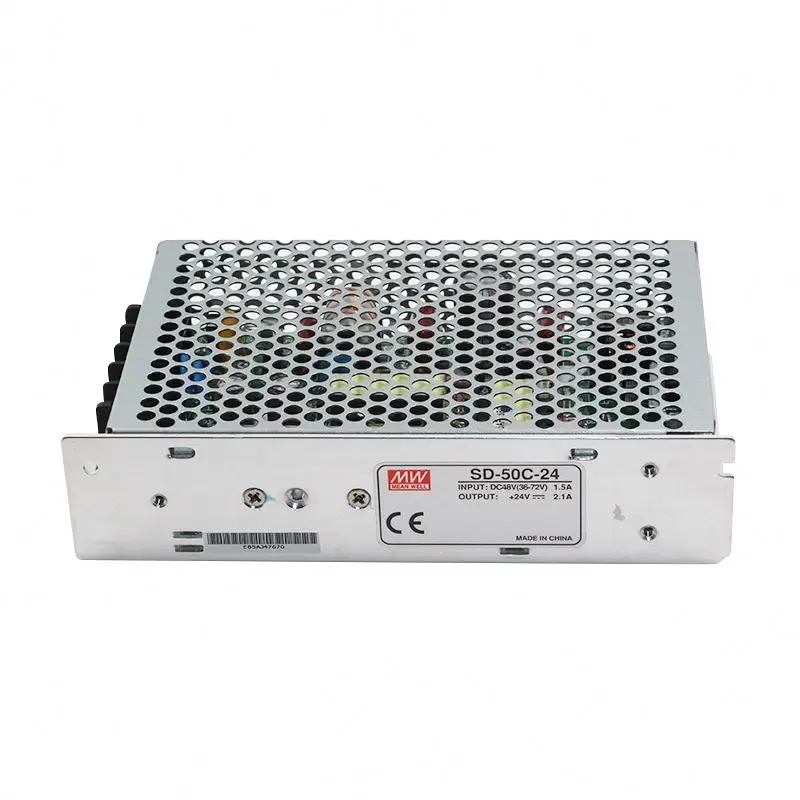

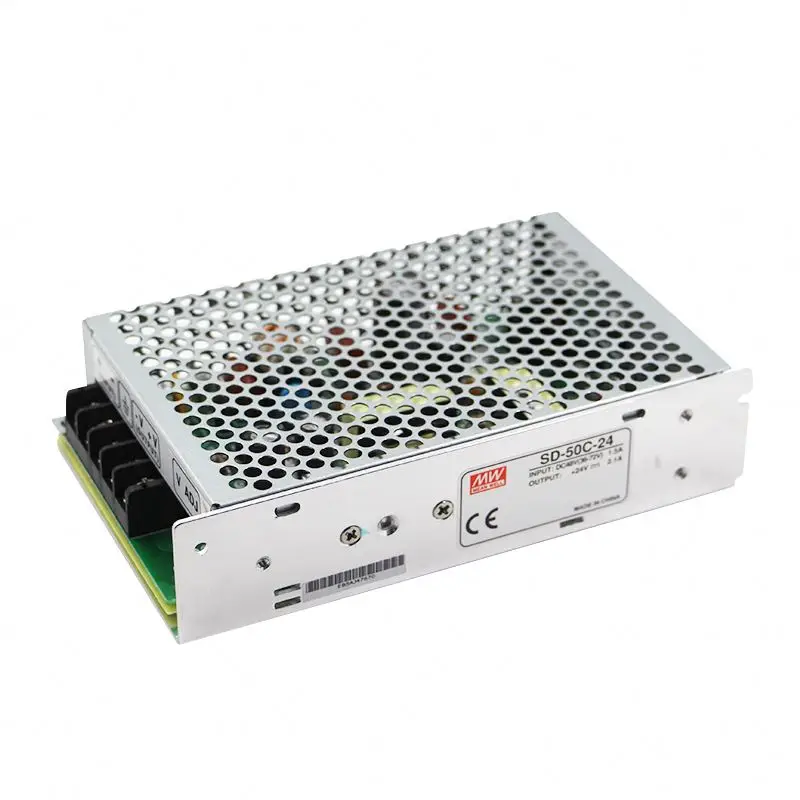

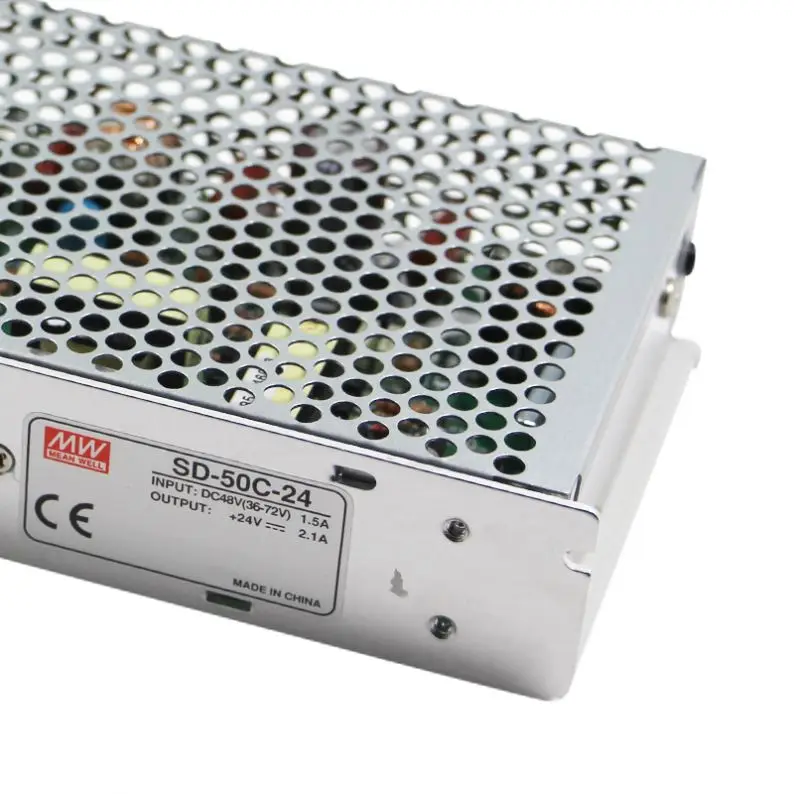

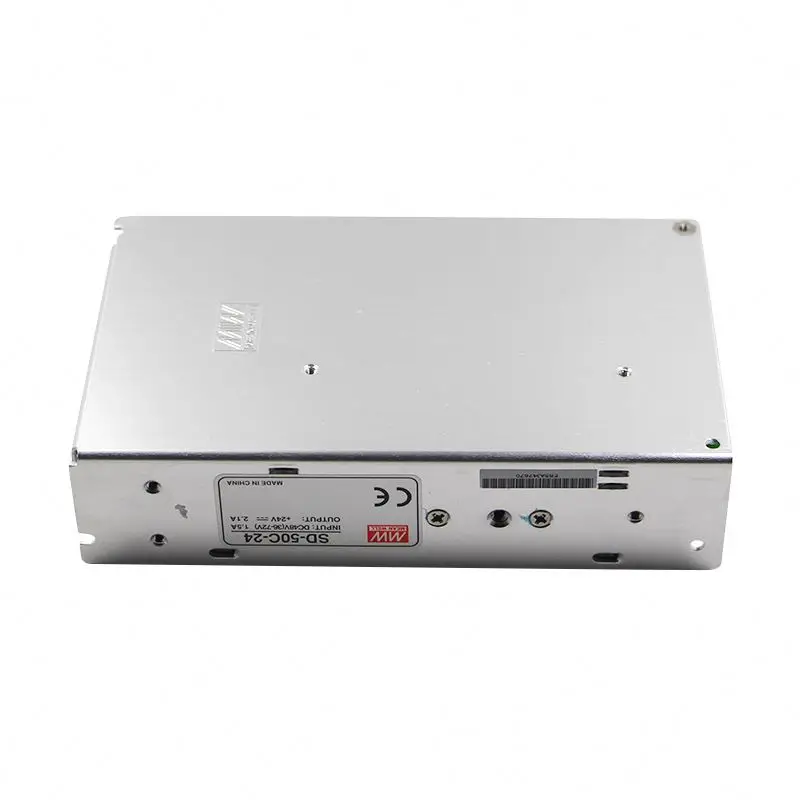

Meanwell SD 50C 24 50 Вт DC DC преобразователь Регулятор модуль с переключением между дальним и выход для автоматического вождения 24В Импульсный источник питания светодиодного табло
- Категория: >>>
- Поставщик: Hangzhou Jiang Technology Co. Ltd.
Сохранить в закладки 1600379017753:
Описание и отзывы
Характеристики
Product Details
Features:
* Meanwell DC-DC Converter 24V 5V
* 2:1 wide input range
* Protections: short circuit / over load / over voltage
* 1500VAC I/O isolation
* 100% full load burn-in test
* Low cost
* High reliability
* 2 years warranty
* 2:1 wide input range
* Protections: short circuit / over load / over voltage
* 1500VAC I/O isolation
* 100% full load burn-in test
* Low cost
* High reliability
* 2 years warranty
Applications:
* Bus, tram,metro or railway system
* Wireless network
* Telecom or datacom system
* Highly vibrating, highly dusty, extremely low or high temperature harsh enviroment
* Wireless network
* Telecom or datacom system
* Highly vibrating, highly dusty, extremely low or high temperature harsh enviroment
MODEL NO. | SD-50C-5 | SD-50C-12 | SD-50C-24 | ||
DC OUTPUT VOLTAGE | 5V | 12V | 24V | ||
CURRENT RANGE | 0 ~ 10A | 0 ~ 4.2A | 0 ~ 2.1A | ||
RATED POWER | 50W | 50.4W | 50.4W | ||
VOLTAGE ADJ. RANGE | 4.5 ~ 5.5VDC | 11 ~ 16VDC | 23 ~ 30VDC | ||
DC INPUT VOLTAGE RANGE | 36 ~ 72VDC | ||||
EFFICIENCY | 76% | 78% | 83% | ||
OVERLOAD | 105 ~ 150% rated output power | ||||
Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
OVER VOLTAGE | 5.75 ~ 6.75V | 16.8 ~ 20V | 31.5 ~ 37.5V | ||
Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
WORKING TEMP. | -10 ~ +60°C (Refer to "Derating Curve") | ||||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
STORAGE TEMP., HUMIDITY | -20 ~ +85°C , 10 ~ 95% RH | ||||
SAFETY STANDARDS | Design refer to LVD | ||||

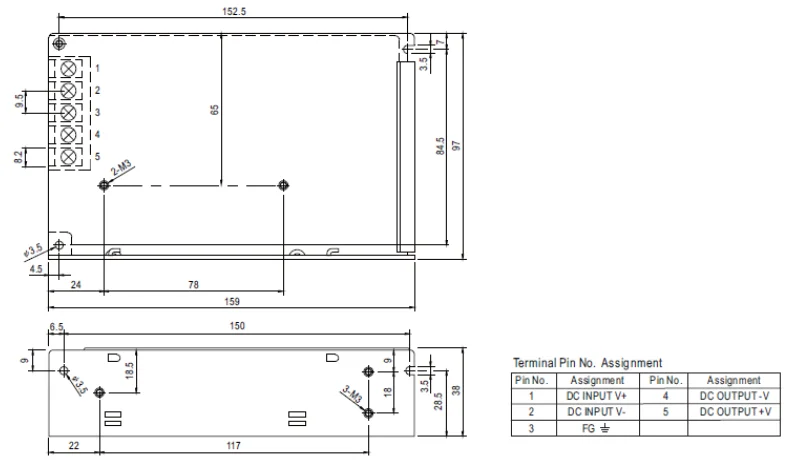

DIMENSION | 159*97*38mm (L*W*H) | ||||
PACKING | 0.48Kg; 24pcs/12.7Kg/0.75CUFT | ||||
Recommend Products
Company Profile
Certifications Display
Exhibition Photos
Product & Shipping
FAQ
Q1. Are you original Mean Well Power Supply?
A: Yes, We sell 100% Genuine Mean Well.
Each product has an unique Serial No. on it, which can be checked in Mean Well official website. (For more information,please contact our sales. )
Q2: Do you offer guarantee for the products?
A: Yes, we offer 2 ~ 7 years warranty. If the goods have quality problem during warranty period, we provide maintenance service. If you have using problem, welcome to contact us for help.
Q3. Can I have a sample order firstly? What is your MOQ limit?
A: Yes, sample order is acceptable. And we do not have MOQ limit. Welcome to inquiry.
Q4. What about the lead time and shippment?
A: For common type like LRS, RS, APV, LPV, ELG, XLG, HDR, EDR, series, we have enough stock. Sample Order can be delivered within 3 days, bulk Order can be delivered within 3~7 days after payment, not common type need 10~35 days after payment, for detail lead time, please contact our sales.
A: Yes, We sell 100% Genuine Mean Well.
Each product has an unique Serial No. on it, which can be checked in Mean Well official website. (For more information,please contact our sales. )
Q2: Do you offer guarantee for the products?
A: Yes, we offer 2 ~ 7 years warranty. If the goods have quality problem during warranty period, we provide maintenance service. If you have using problem, welcome to contact us for help.
Q3. Can I have a sample order firstly? What is your MOQ limit?
A: Yes, sample order is acceptable. And we do not have MOQ limit. Welcome to inquiry.
Q4. What about the lead time and shippment?
A: For common type like LRS, RS, APV, LPV, ELG, XLG, HDR, EDR, series, we have enough stock. Sample Order can be delivered within 3 days, bulk Order can be delivered within 3~7 days after payment, not common type need 10~35 days after payment, for detail lead time, please contact our sales.
For shipping, we often use DHL, FedEx, UPS, and TNT. And they take 3-5 days to arrive. For bulk order, we recommend to send goods by Air or by Sea to save your transportation cost.
Q5: What is your Payment Terms?
A: We accept pay via Bank Transfer, Paypal and Western Union.For bulk order, if the lead time is long, we also accept 30% in advance, and 70% balance before shipping.We also accept Trade Assurance online to get 100% guarantee for your orders.(For more details, please contact us)
Q6. How to proceed an order ?
A: 1. Inquiry: Tell us your requirements, such as model No, Quantity and delivery address...
2. Quotation: We will quote you soon according to your requirements.
3. Confirmation: If quotation is OK, we will send PI to you for payment.
4. Payment: After your payment, please give us your bank slip, then we can arrange goods for you soon.
5. Delivery: Once get your payment and goods all ready, we will delivery goods soon, and tell you the tracking number or Vessel No. then (For more details, please contact us.)
Q5: What is your Payment Terms?
A: We accept pay via Bank Transfer, Paypal and Western Union.For bulk order, if the lead time is long, we also accept 30% in advance, and 70% balance before shipping.We also accept Trade Assurance online to get 100% guarantee for your orders.(For more details, please contact us)
Q6. How to proceed an order ?
A: 1. Inquiry: Tell us your requirements, such as model No, Quantity and delivery address...
2. Quotation: We will quote you soon according to your requirements.
3. Confirmation: If quotation is OK, we will send PI to you for payment.
4. Payment: After your payment, please give us your bank slip, then we can arrange goods for you soon.
5. Delivery: Once get your payment and goods all ready, we will delivery goods soon, and tell you the tracking number or Vessel No. then (For more details, please contact us.)
Похожие товары
Лидер продаж, блок питания 2000 Вт, smps TOTIWO, 220 В переменного тока, 24 В, 30 в, 36 В, 48 В, 83, 66, 55, 41 А, одиночный выходной импульсный источник питания
99,99 $ - 116,00 $
HLK-20D2412C 20WDC DC 24v-12v 1600mA силовой модуль широкий woltage одноканальный регулируемый выход DC понижающий модуль

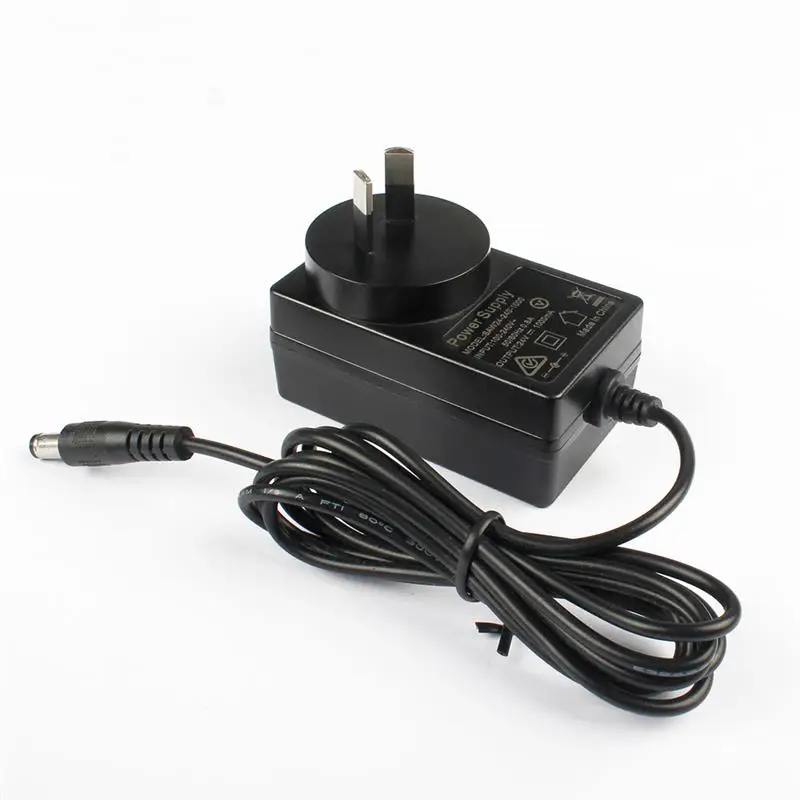

Штепсельная Вилка австралийского стандарта регулятор напряжения водонепроницаемый питающий кабель женский переключатель ноутбук адаптер Uk 5v 3a Usb зарядное устройство адаптер
2,43 $ - 2,45 $
5v 5.5v 15v 14.4v 12v 26v 24v 40v power adapter input 100 240v ac 50/60hz 24w ac/dc power adapter
25,00 $ - 29,00 $
Плата платы импульсного источника питания 110 в переменного тока в 24 в постоянного тока 180 вт 12 в 18 в 24 в 36 в 48 в
6,90 $ - 8,50 $

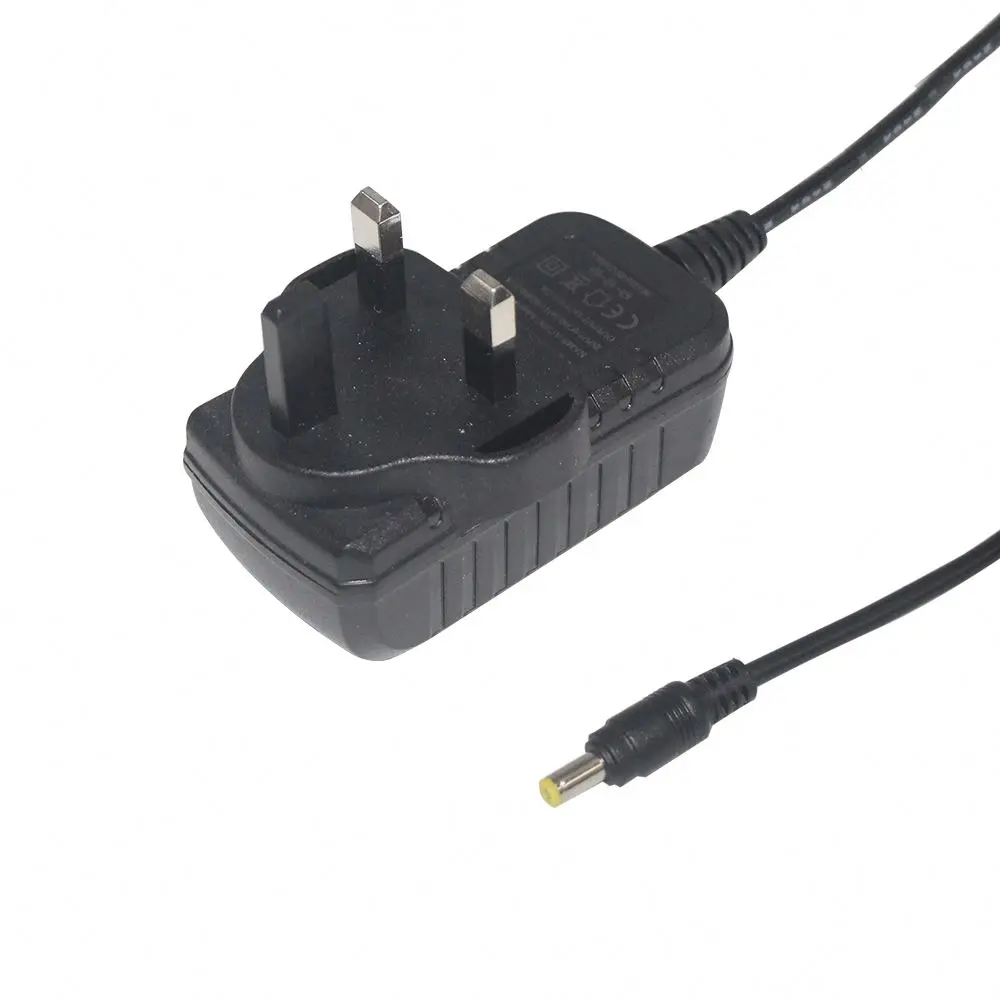

100 240 в штепсельная вилка стандарта Великобритании настенный Usb-регулятор 5 в 2 А выходной импульсный адаптер питания переменного тока в постоянный ток
1,68 $ - 2,01 $

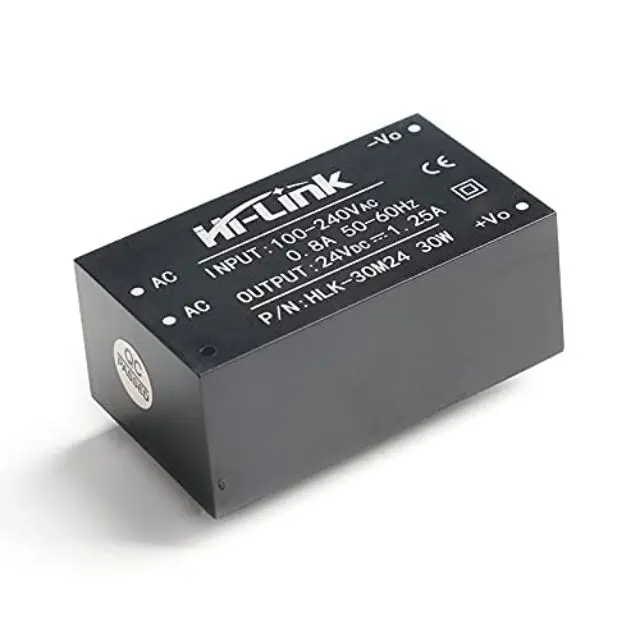

AC-DC Регулируемое напряжение изоляция рубильник силовой модуль HLK-30M24 220 для 24V1.25A30W в Ган материал
