Huawei OSN3500 34060475 BiDi трансивер eSFP Tx 1490 нм/Rx 1310 нм 1 25 Гбит/с 9 дБм 3 19 5 LC SM 10 км
- Категория: >>>
- Поставщик: Uonel Technology Co. Ltd. Sz
Сохранить в закладки 1600379027875:
Описание и отзывы
Характеристики
Description
This topic describes the BOM number, name, specifications, and supported boards of the SFP/eSFP optical modules.
Table 1 lists the BOM numbers and specifications of the SFP/eSFP optical modules.
Table 1 Mapping table of the BOM numbers and the types of the SFP/eSFP optical modules
| BOM Number | Name | Specifications (Name-Encapsulation Form-Operating Wavelength-Rate-Minimum Output Optical Power-Maximum Output Optical Power-Receiver Sensitivity-Optical Interface Type-Optical Fiber Type-Transmission Distance) | Compatible Board |
|---|---|---|---|
| 34060588 | 2 Mbit/s eSFP optical module | Optical transceiver, eSFP, 1310 nm, 2.048 Mb/s, 15 dBm, 8 dBm, 26 dBm, LC, SM, 2 km | N1PFL1 |
| 34060287 | 155 Mbit/s SFP optical module | Optical transceiver, SFP, 1310 nm, STM1, -19 to -14 dBm, -30 dBm, LC, MM, 2 km | N1ADQ1, N1EFF8, N1IDQ1, N1MST4, N1SLQ1, N1SLQ1A, N1IDQ1A, N1EFF8A, N1PEFF8, R1PEF4F |
| 34060276 | 155 Mbit/s eSFP optical module | Optical transceiver, eSFP, 1310 nm, STM1, -15 to -8 dBm, -31 dBm, LC, SM, 15 km | N1OU08, N1SL1, N2SL1, N1SLQ1, N2SLQ1, R1SLQ1, R1SL1, N1ADQ1, N1EFF8, N1IDQ1, N1SLT1, N2SLO1, N1SL1A, N1SLQ1A, N1IDQ1A, N3SLO1, R3SL1, N1EFF8A, R1PCXLN, N1CQ1, N1PEFF8, R1PEF4F, N1EDQ41, TNN1CO1, TNN1AFO1 |
| 34060281 | Optical transceiver, eSFP, 1310 nm, STM1, -5 to 0 dBm, -37 dBm, LC, SM, 40 km | N1SL1, N2SL1, N1SLQ1, N2SLQ1, N1ADQ1, N1IDQ1, N2SLO1, N1SL1A, N1SLQ1A, N3SLO1, R1SL1, R3SL1, R1SLQ1, N1SLT1, R1PCXLN, N1PEFF8, R1PEF4F, N1EDQ41, TNN1CO1, TNN1AFO1 | |
| 34060282 | Optical transceiver, eSFP, 1550 nm, STM1, -5 to 0 dBm, -37 dBm, LC, SM, 80 km | N1SL1, N2SL1, N1SLQ1, N2SLQ1, R1SLQ1, R1SL1, N1ADQ1, N1IDQ1, N1SL1A, N1SLQ1A, N3SLO1, R3SL1, N1SLT1, N1PEFF8, R1PEF4F, N1EDQ41, TNN1CO1, TNN1AFO1 | |
| 34060277 | 622 Mbit/s eSFP optical module | Optical transceiver, eSFP, 1310 nm, STM4, -15 to -8 dBm, -30 dBm, LC, SM, 15 km | N1SL4, N2SL4, N1SL4A, N1SLD4, N2SLD4, N1SLD4A, N1SLQ4, N2SLQ4, N1SLQ4A, R1PCXLN, N1EDQ41, R1SL4, R3SL4, R1SLD4, R3SLD4, MST4 |
| 34060280 | Optical transceiver, eSFP, 1310 nm, STM4, -3 to 2 dBm, -30 dBm, LC, SM, 40 km | N2SLQ4, N2SL4, N1SL4, N1SLD4, N2SLD4, N1SLQ4, N2SLQ4, R1SL4, R1SLD4, N1ADL4, N1IDL4, N1MST4, N1SL4A, N1SLD4A, N1SLQ4A, R3SL4, R3SLD4, R1PCXLN, N1EDQ41 | |
| 34060284 | Optical transceiver, eSFP, 1550 nm, STM4, -3 to 2dBm, -30 dBm, LC, SM, 80 km | N1SL4, N2SL4, N1SLD4, N2SLD4, N1SLQ4, N2SLQ4, R1SL4, R1SLD4, N1ADL4, N1IDL4, N1SL4A, N1SLD4A, N1SLQ4A, N1SL4A, N1SLD4A, N1SLQ4A, R3SL4, R3SLD4, R1PCXLN, N1EDQ41 | |
| 34060285 | Optical transceiver, eSFP, 1550 nm, STM4, -3 to +2 dBm, -36 dBm, LC, SM, 100 km | N1SL4, N2SL4, N1SL4A, N1SLD4, N2SLD4, N1SLD4A, N2SLQ4, N1SLQ4A, R1SL4, R3SL4, R1SLD4, R3SLD4 | |
| 34060473 | 1.25 Gbit/s eSFP optical module | Optical transceiver, eSFP, 1310 nm, 1.25 Gbit/s, -9 to -3 dBm, -20 dBm, LC, SM, 10 km | N2EGS2, N1EGT2, N2EGR2, N2EMR0, N1EGS4, N1EMS4, N3EGS4, N2EGT2, N3EGS2, N4EGS4, N1EMS2, N1PEG16, N1PEG8, R1PEGS1, Q1PEGS2, TNN1EG8 |
| 34060298 | Optical transceiver, eSFP, 1310 nm, 1.25 Gbit/s, -5 to -0 dBm, -23 dBm, LC, SM, 40 km | N2EGS2, N3EGS2, N1EGT2, N2EGT2, N2EGR2, N2EMR0, N1EGS4, N3EGS4, N4EGS4, N1EMS4, N1EMS2, N1PEG16, N1PEG8, R1PEGS1, Q1PEGS2, TNN1EG8 | |
| 34060360 | Optical transceiver, eSFP, 1550 nm, 1.25 Gbit/s, -2 to 5 dBm, -23 dBm, LC, SM, 80 km | N1EGT2, N3EGS2, N2EGT2, N4EGS4, N1PEG16, N1PEG8, R1PEGS1, Q1PEGS2, TNN1EG8 | |
| 34060487 | Optical transceiver, eSFP, 1310 nm, 1.25 Gbit/s, -9.5 to -3 dBm, -20 dBm, LC, SM, 10 km | TNN1EG16, N1EGSH | |
| 34060286 | 2.125 Gbit/s eSFP optical module | Optical transceiver, eSFP, 850 nm, 2.125 Gbit/s (multi rate), -9.5 to -2.5 dBm, -17dBm, LC, MM, 0.5 km | N2EGS2, N1EGT2, N2EMR0, N1EGS4, N1EMS4, N3EGS4, N2EGT2, N3EGS2, N4EGS4, N1EMS2, N1PEG16, N1PEG8, R1PEGS1, Q1PEGS2, TNN1EG8, N1EGSH |
| 34060317 | Optical transceiver, eSFP, 850 nm, 2.125 Gbit/s (multi rate), -9 to -3.5 dBm, -18dBm, LC, MM, 0.5 km | TNN1EG16 | |
| 34060278 | 2.5 Gbit/s eSFP optical module | Optical Transceiver, eSFP, 1310 nm, STM16, -5 to 0 dBm, -21 dBm, LC, SM, 15 km | N1SLD16, N2SLQ16 |
| 34060288 | Optical transceiver, eSFP, 1310 nm, STM16, -10 to -3 dBm, -21 dBm, LC, SM, 2 km | N1SLQ16, N2SLQ16, N1SLD16 | |
| 34060484 | Optical Transceiver, eSFP, 1310 nm, 155 Mbit/s to 2.67 Gbit/s, -10 to -3 dBm, -21 dBm, LC, SM, 2 km | N1SLO16, N4SLO16, N4SLQ16, N3SL16A | |
| 34060485 | Optical transceiver, eSFP, 1310 nm, 155 Mbit/s to 2.67 Gbit/s, -5 to 0 dBm, -21 dBm, LC, SM, 15 km | N2SL16A, N3SL16A, N1SLO16, N4SLO16, R1PCXLN | |
| 34060488 | Optical transceiver, eSFP, 1550 nm, STM16, -2 to 3 dBm, -30 dBm, LC, SM, 80 km | N1SLQ16, N2SLQ16, N2SL16A, N3SL16A, N1SLD16, N1SLO16, N4SLQ16, R1PCXLN | |
| 03030GGV | OptiX HPLAT, SSX2T1SA02, 2.5 Gbit/s ESFP transceiver (-30 dBm to -9 dBm, 1310 nm, 40 km, -2 dBm to +3 dBm, LC) | N1SLD16, N1SLO16, N4SLO16, N1SLQ16, N2SLQ16, N4SLQ16, N3SL16A | |
| 03030GBQ | OptiX HPLAT, SSX2T1SA01, 2.5 Gbit/s ESFP transceiver (-31 dBm to -9 dBm, 1550 nm, 1600 ps/nm, 80 km, -2 to +3 dBm, LC) | N4SLO16, N4SLQ16 |
SFP+
Table 2 lists the BOM numbers and specifications of the SFP+ optical modules.
Table 2 Mapping table of the BOM numbers and the types of the SFP+ optical modules
| BOM Number | Name | Specifications (Name-Encapsulation Form-Operating Wavelength-Rate-Minimum Output Optical Power-Maximum Output Optical Power-Receiver Sensitivity-Optical Interface Type-Optical Fiber Type-Transmission Distance) | Compatible Board |
|---|---|---|---|
| 34060495 | 10 Gbit/s SFP+ optical module | Optical transceiver, SFP+, 1310 nm, 10 Gbit/s, -8.2 to +0.5 dBm, -12.6 dBm, LC, SM, 10 km | N3EAS2 |
Single-Fiber Bidirectional Optical Module
Table 3 lists the BOM numbers and specifications of the single-fiber bidirectional eSFP optical modules.
Table 3 Mapping table of the BOM numbers and the types of the single-fiber bidirectional SFP/eSFP optical modules
| BOM Number | Name | (Name-Encapsulation Form-Operating Wavelength-Rate-Minimum Output Optical Power-Maximum Output Optical Power-Receiver Sensitivity-Optical Interface Type-Optical Fiber Type-Transmission Distance) | Compatible Board |
|---|---|---|---|
| 34060364 | 155 Mbit/s single-fiber bidirectional eSFP optical module | BiDi transceiver, eSFP, Tx 1550 nm/Rx 1310 nm, STM1, -15 dBm, -8 dBm, -32 dBm, LC/PC, SM, 15 km | N1SLQ1, N1SLT1, N1SLH1, R1SLQ1, N1SL1A, N1OU08, N3SLQ41, R1PEF4F, N1PEFF8, TNN1EFF8, N3SLH41 |
| 34060363 | BiDi transceiver, eSFP, Tx 1310 nm/Rx 1550 nm, 155M, -15 dBm, -8 dBm, -32 dBm, LC/PC, SM, 15 km | ||
| 34060329 | BiDi transceiver, eSFP, Tx 1550 nm/Rx 1310 nm, 155M, -5 dBm, -0 dBm, -32 dBm, LC/PC, SM, 40 km | N1SLQ1, N1SLT1, N1SLH1, R1SLQ1, N1SL1A, N1OU08, N3SLQ41 | |
| 34060328 | BiDi transceiver, eSFP, Tx 1310 nm/Rx 1550 nm, 155M, -5 dBm, -0 dBm, -32 dBm, LC/PC, SM, 40 km | ||
| 34060475 | 1.25 Gbit/s single-fiber bidirectional eSFP optical module | BiDi transceiver, eSFP, Tx 1490 nm/Rx 1310 nm, 1.25 Gbit/s, -9 dBm, -3 dBm, -19.5 dBm, LC, SM, 10 km | N1SLD4, N1SLQ4, N1SL4A, N3SLQ41, R1PEGS1, R1PEGS2, N1PEG8, TNN1EG8 |
| 34060470 | BiDi transceiver, eSFP, Tx 1310 nm/Rx 1490 nm, 1.25 Gbit/s, -9 dBm, -3 dBm, -19.5 dBm, LC, SM, 10 km | ||
| 34060639 | BiDi transceiver, eSFP, Tx 1550 nm/Rx 1310 nm, 0.1 to 1.25Gb/s, -3 dBm, -2 dBm, -25 dBm, LC, SM, 40 km | R1PEF4F, N1PEFF8, TNN1EFF8, N3SLH41 | |
| 34060638 | BiDi transceiver, eSFP, Tx 1310 nm/Rx 1550 nm, 0.1 to 1.25Gb/s, -3 dBm, -2 dBm, -25 dBm, LC, SM, 40 km | ||
| 34060539 | BiDi transceiver, eSFP, Tx 1310 nm/Rx 1490 nm, 1.25 Gbit/s, -2 dBm, -3 dBm, -23 dBm, LC, SM, 40 km | R1PEGS1, R1PEGS2, N1PEG8, TNN1EG8 | |
| 34060540 | BiDi transceiver, eSFP, Tx 1490 nm/Rx 1310 nm, 1.25 Gbit/s, -2 dBm, -3 dBm, -23 dBm, LC, SM, 40 km | ||
| 34060595 | BiDi transceiver, eSFP, Tx 1570 nm/Rx 1490 nm, 1.25 Gbit/s, -2 dBm, -4 dBm, -26 dBm, LC, SM, 80 km | ||
| 34060596 | BiDi transceiver, eSFP, Tx 1490 nm/Rx 1570 nm, 1.25 Gbit/s, -2 dBm, -4 dBm, -26 dBm, LC, SM, 80 km | ||
| 34060621 | 2.5 Gbit/s single-fiber bidirectional SFP optical module | BiDi transceiver, SFP, Tx 1490 nm/Rx 1310 nm, 2.5G, -5 dBm to 0 dBm, -18 dBm, LC, SMF, 15 km | N4SLQ16, N4SLO16 |
| 34060622 | BiDi transceiver, SFP, Tx 1310 nm/Rx 1490 nm, 2.5G, -5 dBm, 0 dBm, -18 dBm, LC, SMF, 15 km |
Contact Us
Delivery
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
| elivery Options | Estimated Delivery Time |
|---|---|
 DHL | 3-5 business days |
 Fedex | 3-5 business days |
 By Sea | 10-20 business days |
Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:
Deliver to port:
Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.
Deliver to door:
Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.
Authorization
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed product: 1 Year
The Support Contacts:
If your products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Company Profile
Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million products in stock.
Most of our technical engineers had work exprience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
Похожие товары

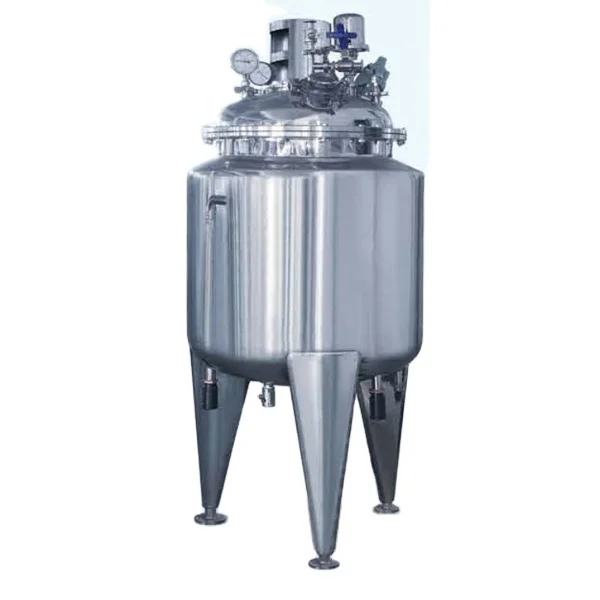

Высокоэффективный бак для плавления желатина 250 л/450 л/600 л, высококачественный смесительный станок, фармацевтический смеситель из нержавеющей стали
На открытом воздухе для детей, костюм на все тело, высотных страховочные ремни
13,39 $ - 16,54 $

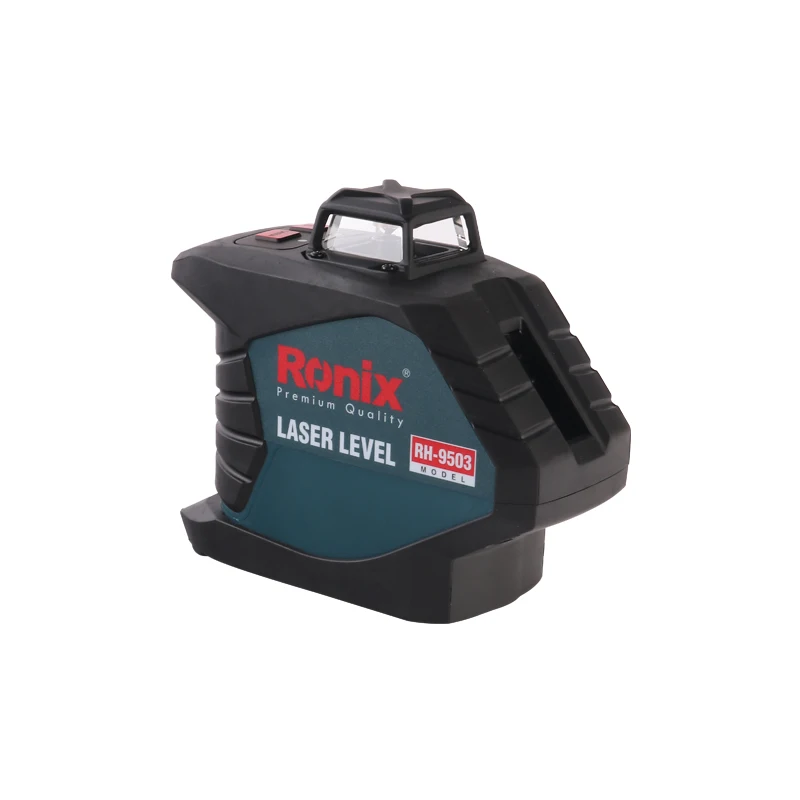

2022 роникс измерения лазерного нивелира RH-9503 Профессиональный Высокая точность 360 градусов красный лазерный луч перекрестный лазерный уровень

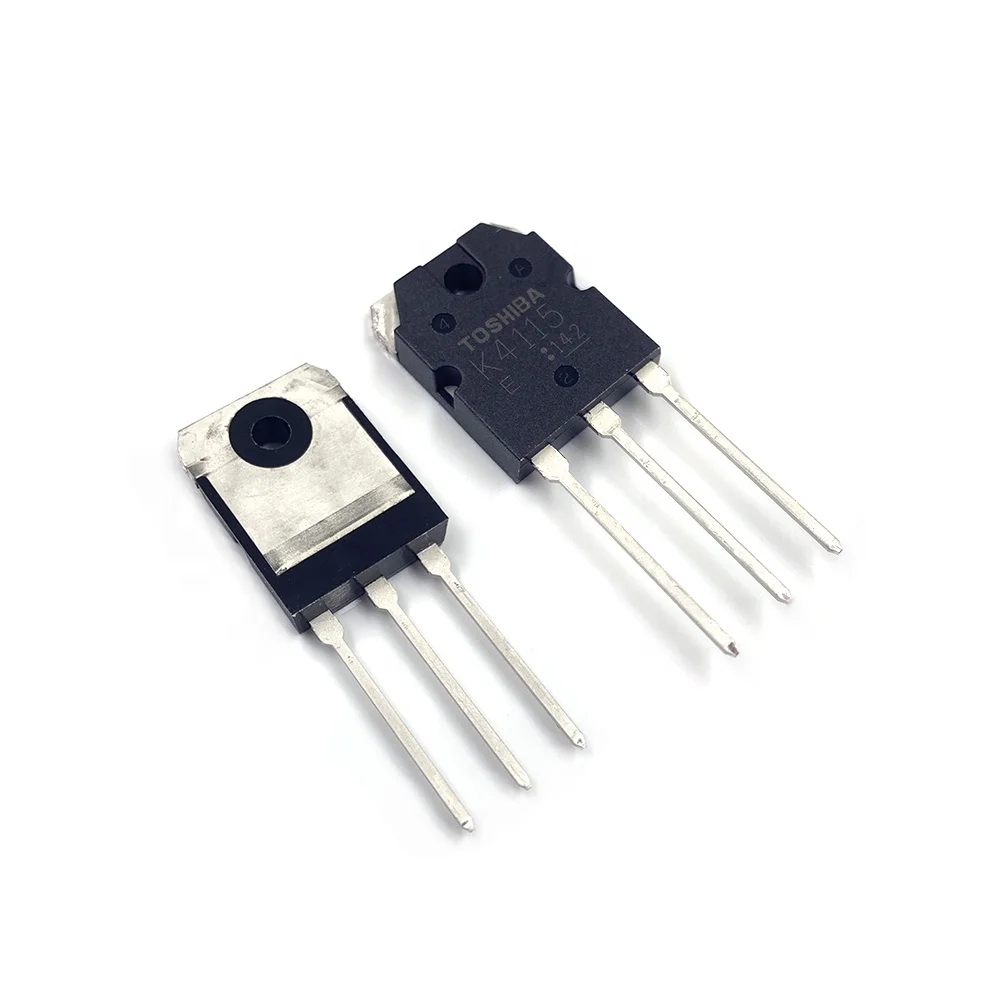

Новый оригинальный 2SK4115 TO-3P mosfet 7A 900 в полевых транзисторов N канал K4115
1,10 $ - 1,70 $

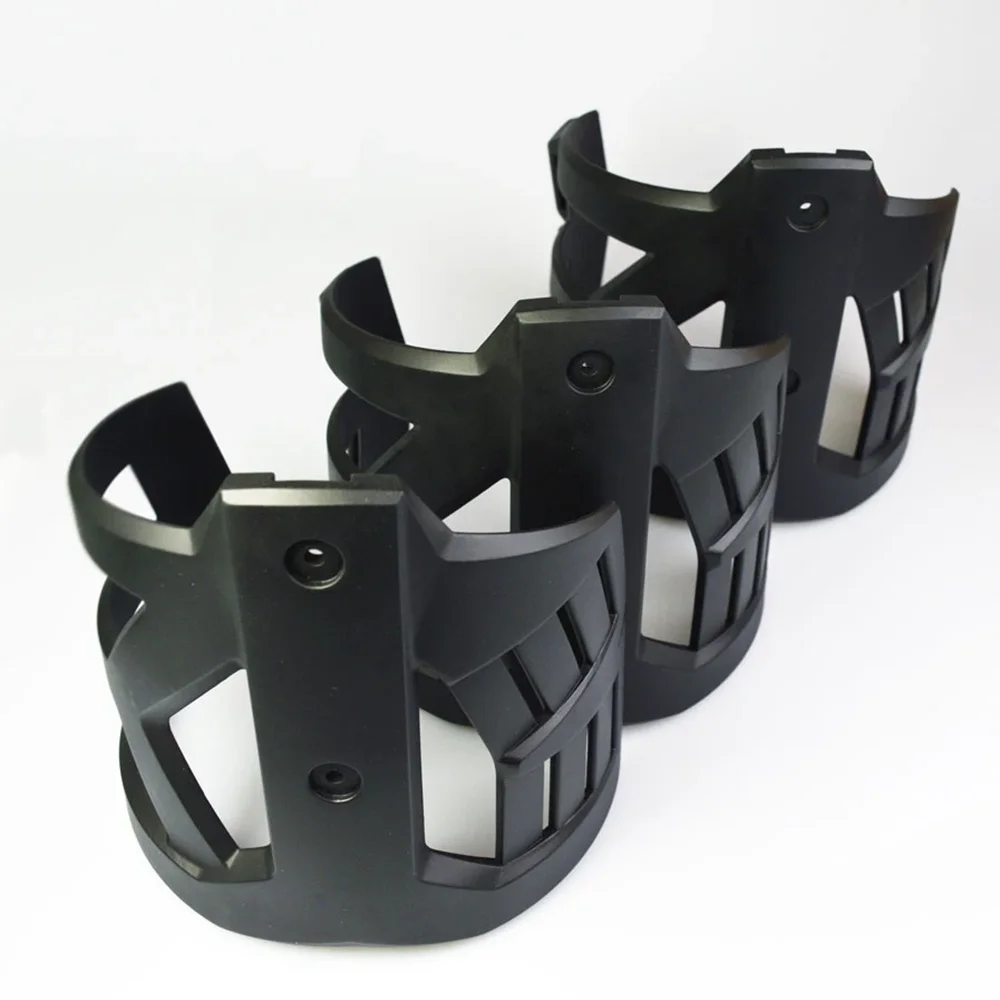

Бюджетный ABS резиноподобного смолы литейная производитель пластмассовых образцов быстрое прототипирование для вакуумного литья пластиковых станке с ЧПУ литейных
