Мгновенный Электрический нагревательный элемент для эспрессо кофе машина
17,90 $ - 18,50 $
Instant Electrical Water Heating Plate for Rice Cooker
- Категория: Water Heater Parts >>>
- Поставщик: Xinxiang Jieda Precision Electronics Co. Ltd.
Сохранить в закладки 1600379055360:
Описание и отзывы
Характеристики

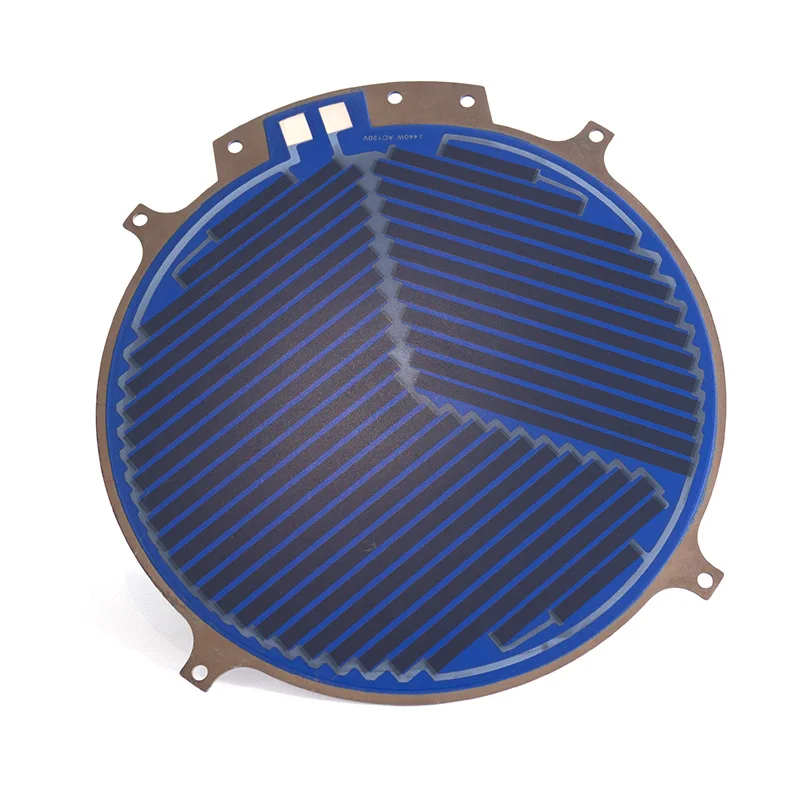

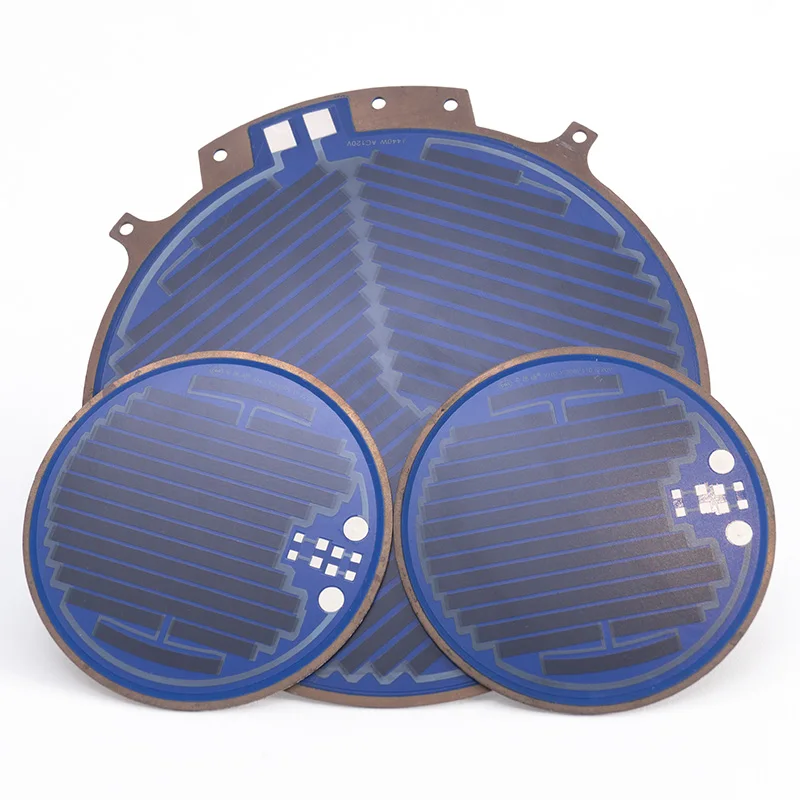

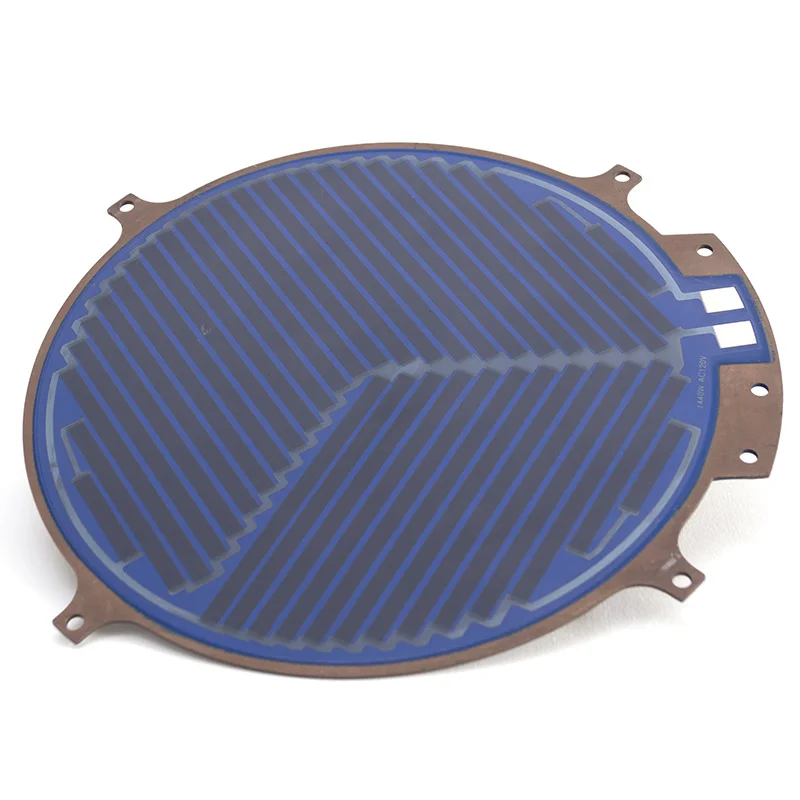

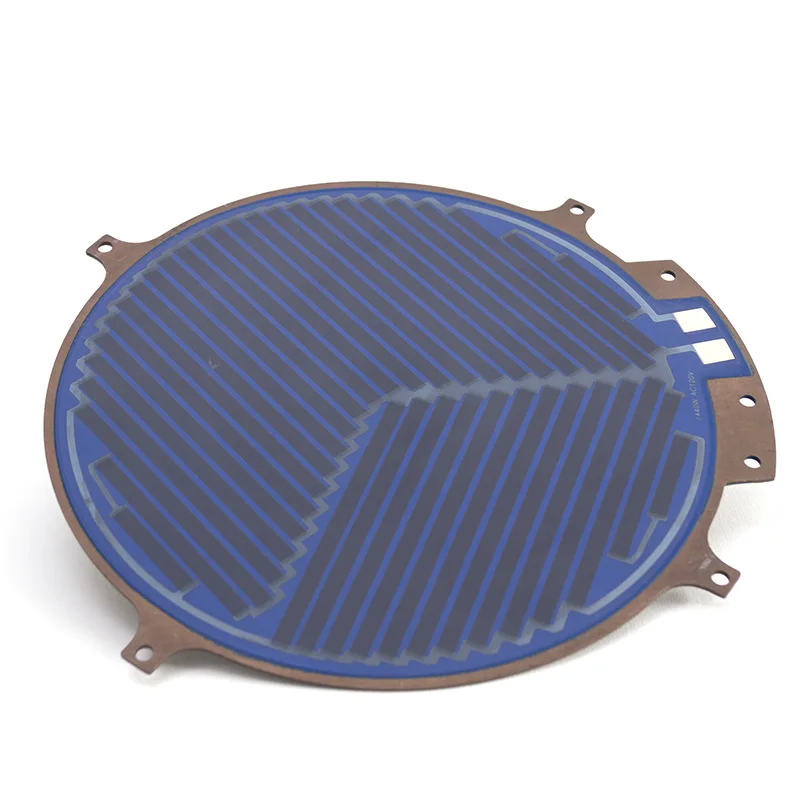

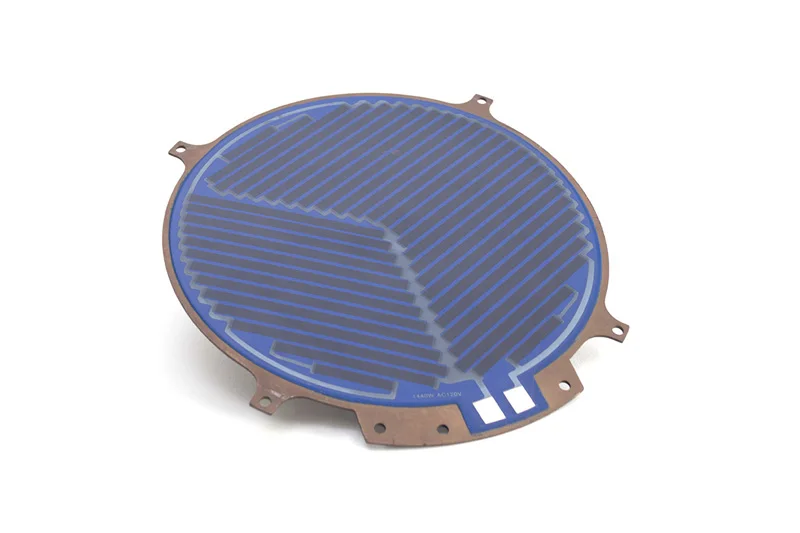

Instant Electrical Water Heating Plate for Rice Cooker
Water Quick Heating & Better Thermal Transfer
Descriptiom
Thick Film Electric Heating Circuit is sintered and covered by insulation layers on tube surface. It can heat stainless steel plate evenly and temperature ramp up to 150℃/S.
Compared with traditional electric instant water heating element, such as aluminium casting in heating plate and immersion coil heaters, thick film water heating element is advance in larger heating area (Heating Circuit uniform covered heating plate), higher power density(60w/cm²), faster temperature response (up to 150℃/S), longer service life (above 10,000 hours), lower thermal inertia and better heat transfer efficiency(≥97%).
For applications where space is limited, this simple profile heating element offers high thermal power density and fast response times to heat up or cool down (due to low thermal mass)
It's called "the most impact electric heating element", the ideal heating element to replace Aluminium Die Casting Water Heating Plate and Immersion Electric Kettle Teapot Heating Element.
Specification
| Dimension | Φ144mm | Heat Density | >60W/cm² |
| Ramp-Up Rate | 150℃/s | Thermal Efficiency | >97% |
| Heating Power | 2000W | Service Life | >10,000 hours |
| Rated Voltage | 220v | Certificate | CQC, RoHS |
| Dielectric Strength | 1,500V/5mA/60s | Power Deviation | -10% - +5% |
| Leakage Current | ≤0.25mA | Insulation Resistance | ≥200MΩ |
| Shield Thermistor | PTC | Grounding Type | Spot-Weld |
| Connection Type | Silver Conductor | Type | Thick Film Heating |
Related Products
Company Information
Jieda locates in Xinxiang, Henan Provience, is founded in 2010, is a high-tech manufacturer that specializes in design, research, produce and sales rare-earth metal thick film electric heating tubes/elements.
What is Jieda advanced in?
1. More than 10 years experiences in thick film electric heating tubes.
2. Fully mastery of thick film tube surface screen printing and sintering.
3. Main Process Flow in 10000+ Grade Air Purification Workshop.
4. First manufacturer to mass produce Thick Film Electric Heating Tube/Element in China
5. Available various Solutions for fluid heating, especially for Instant Water Heating Home Appliances, House Floor Heating and Industrial water flow heating.
6. Monthly production capacity is up to 300,000 pcs.
Our Customers
FAQ
Q: What's Thick Film Heating Element?
A: Thick Film Heater is a new technical art which is use screen printing technology and new thick film material.
It is printed with isolation dielectric, heating element and glass prevent on a substrate that is made by stainless steel, and through drying firing process with 800°C. Thick Film Heater has become a new type of heater.
Q: What’s the advantages of Jieda Thick Film Heating Element?
A: We fully master screen printing and sintering technology on curved surface stainless steel tubes, which makes it possible to heat continuous water flow without water tank. 40W/CM² POWER DENSITY >80℃/S TEMPERATURE RANP UP
Q: What's the service life of Thick Film Heating Tube / Thick Film Heating Element?
A: It can work more than 10,000 hours, in case of no DRY HEATING.
Q: What's the inlet and outlet diameter?
A: Thick Film Heating Tube : Ø18, Ø20, Ø30, Ø35, Ø40, Ø50mm.
Thick Film Heating Element : Available with Ø10mm, Ø16mm and G1/2 OD20.9mm
Q: Can I DIY it for personal use by myself?
A: Our Products are mainly used as heating spare parts for water heaters in mass production, not recommended for Personal DIY.
Q: Can the Thick Film be applied to Copper Pipe or Aluminum Pipe?
A: It can not be applied on Copper pipe, but can work on Aluminum pipe.
Q: How to get the suitable model for our application?
A: We need to know the water temperature in inlet and outlet port, water flow rate, connection port details and other special requirements, to recommend the suitable Thick Film Heating Elements
Q: What's the operation attentions?
A: 1. The temperature ramp-up above 80°C/s, please make sure the tube fulfilled with water before use.
2. Please install it vertically, make sure water flow direction from bottom to top, to prevent DRY HEATING in partial area of heating tube.
3. Set the minimum flow rate according to tubes' power watts, ensure smooth flowing of water, to prevent vaporizing and dry heating
4. Make sure reliablility grounding.
