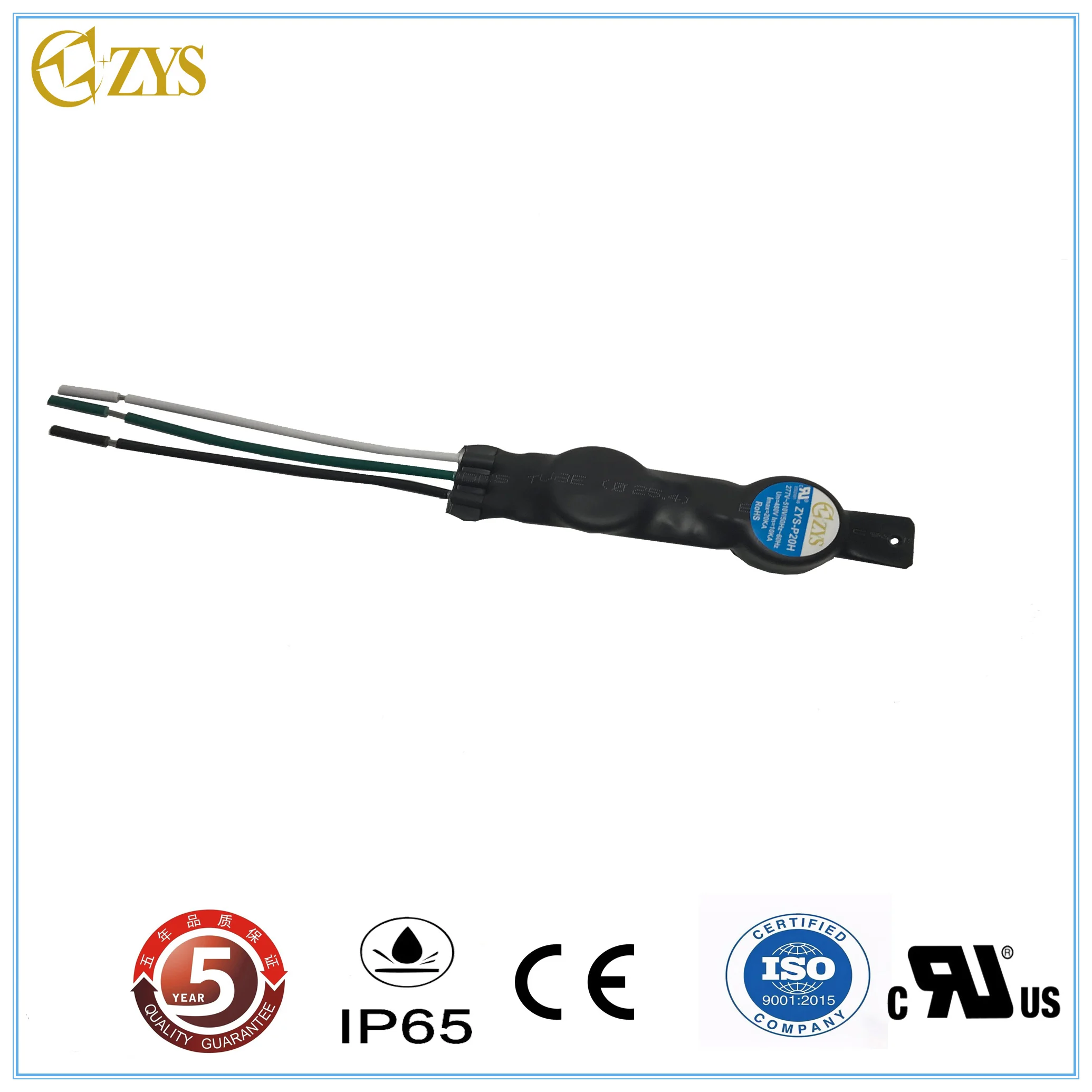

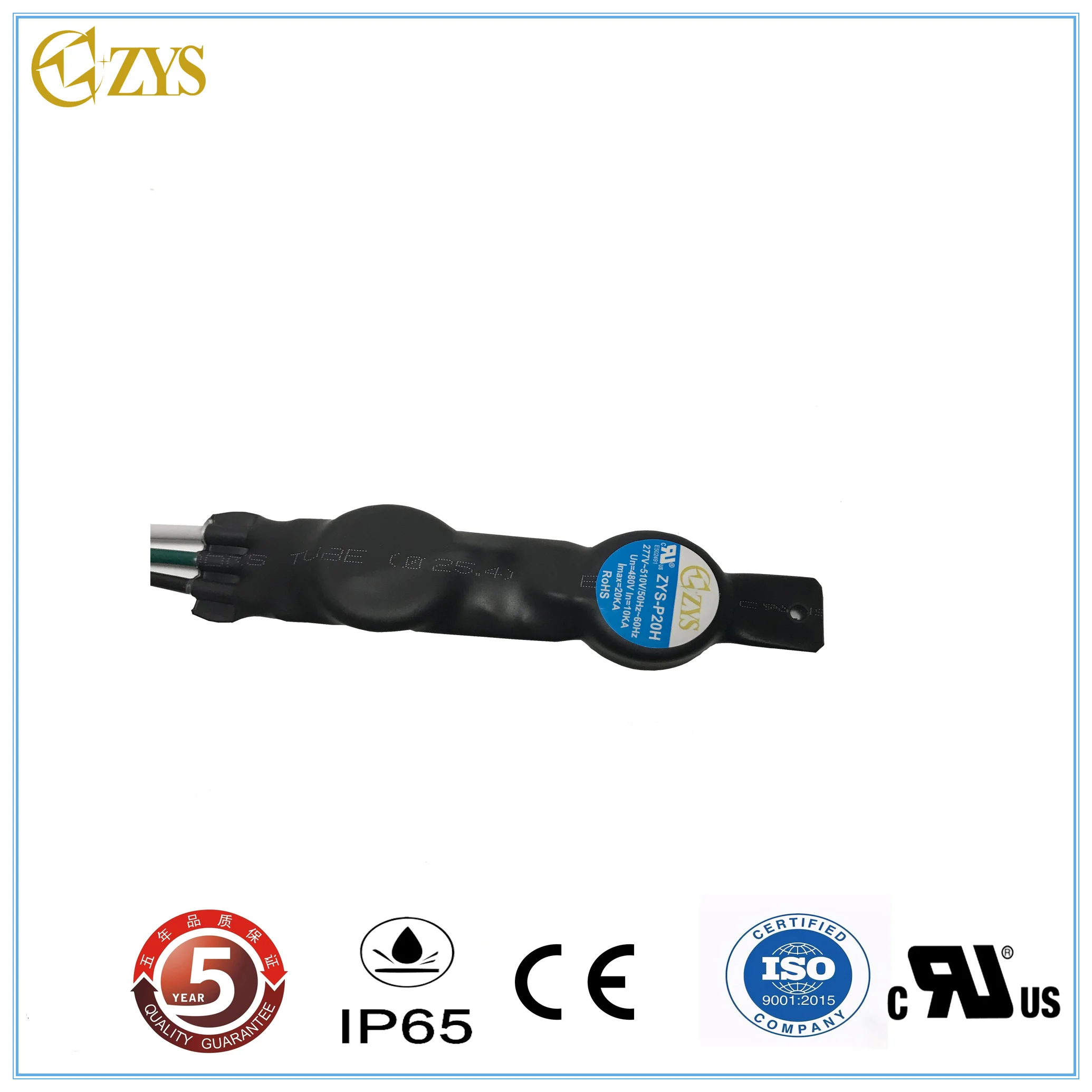

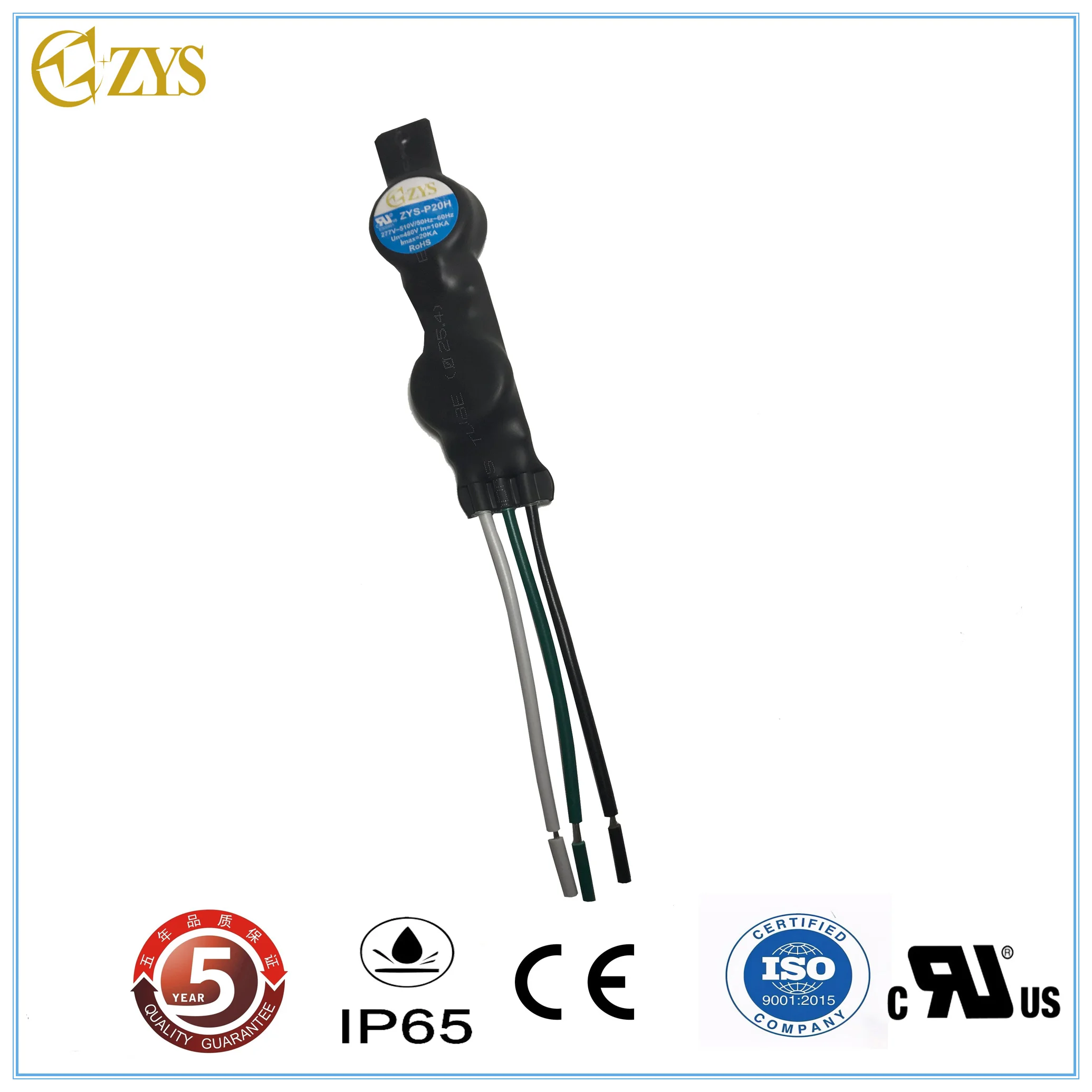

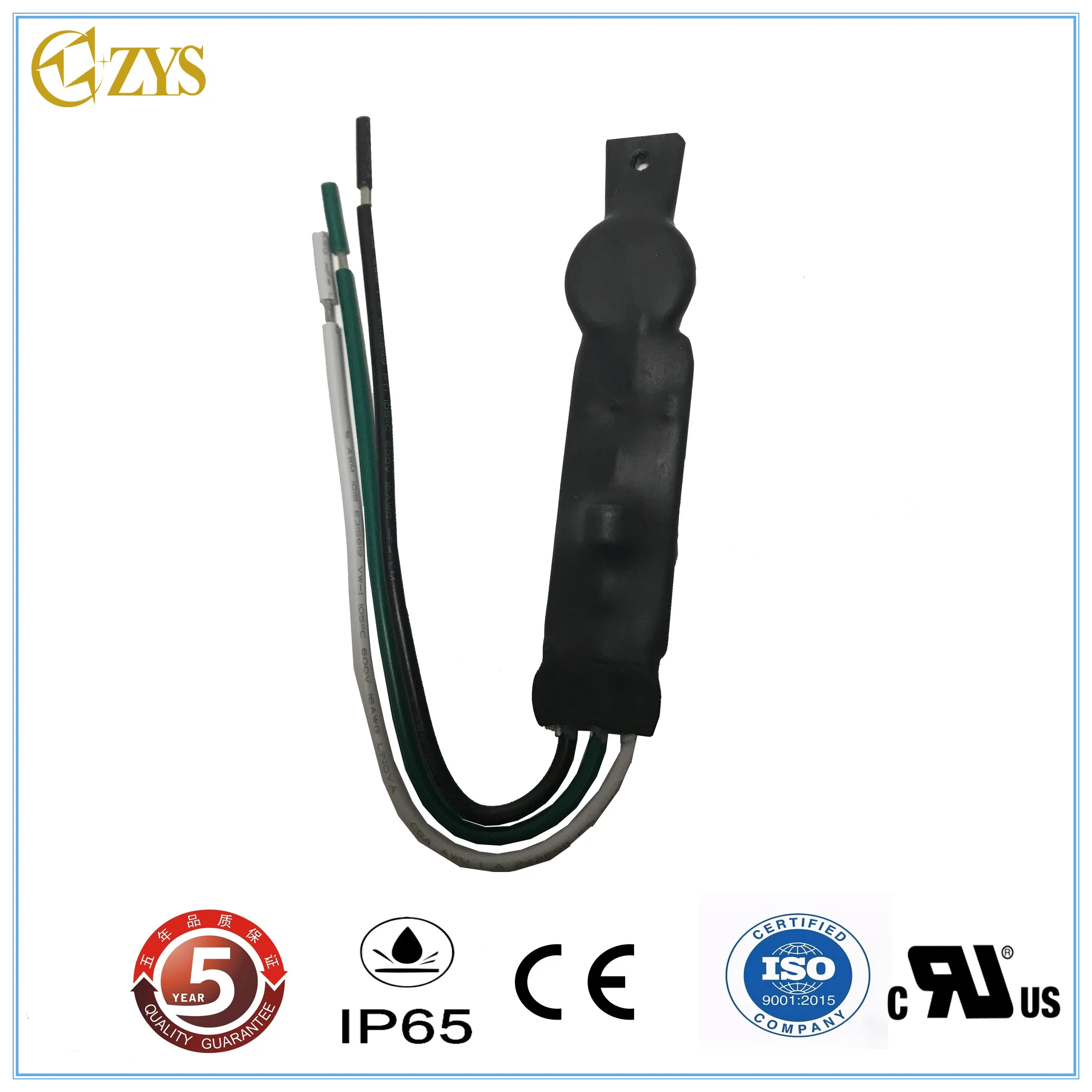

Светодиодный уличный фонарь источник питания SPD светодиодный молния устройство защиты от перенапряжения
- Категория: >>>
- Поставщик: Shenzhen Zhongyuan Technology Co. Ltd.
Сохранить в закладки 1600379103367:
Описание и отзывы
Характеристики
Product Description
Overview

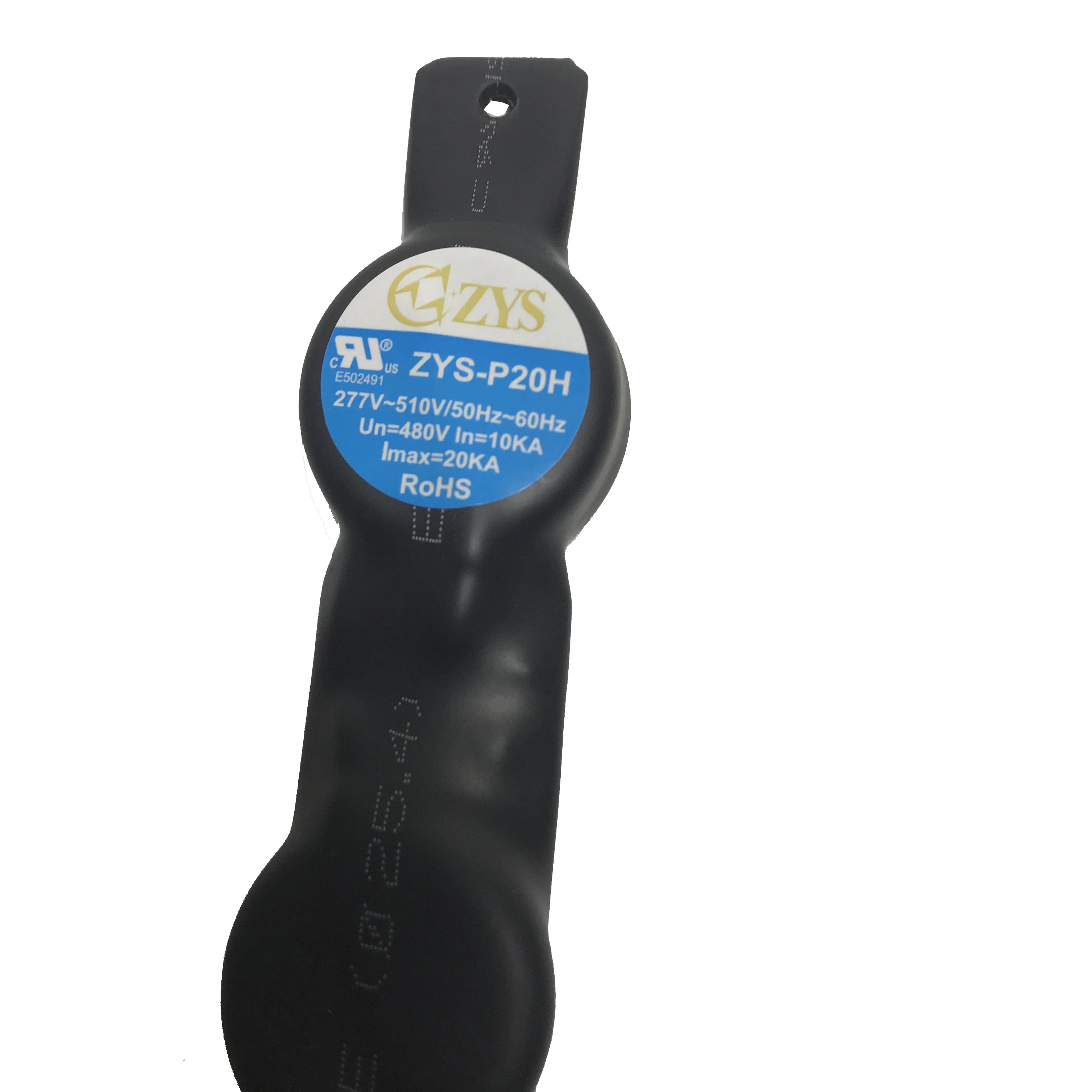

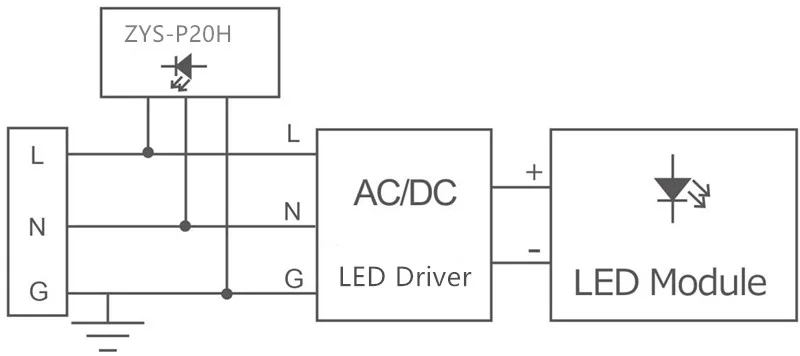

ZYS-P20H series surge protector is a transient over-voltage protection device specially used for outdoor LED lighting system. It is mainly composed of thermal protection varistor and gas discharge tube device. It can be installed in LED lamp or perpetual lamp and connected with LED power driver to provide reliable surge protection. It can effectively prolong the service life of lamps and improve the stability of lamps and lanterns.

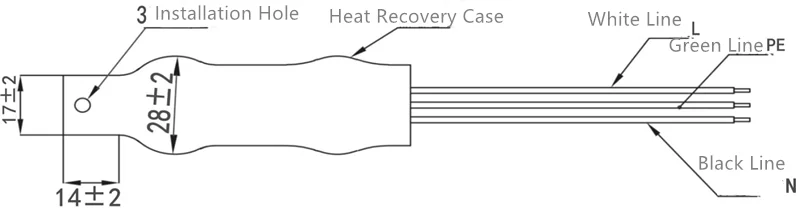

Product Paramenters
Features
* Applicable to class I or II lamps
* Built in protection mode: L-N, L-PE,N-PE
* Built in thermal separation function for higher security
* Parallel isolation design, excellent protection performance
* Excellent surge resistance and very low residual voltage
* Double green cable andwire
* The product is small and convenient for embedded installation
* IP62 dust proof and waterproof grade
* Built in protection mode: L-N, L-PE,N-PE
* Built in thermal separation function for higher security
* Parallel isolation design, excellent protection performance
* Excellent surge resistance and very low residual voltage
* Double green cable andwire
* The product is small and convenient for embedded installation
* IP62 dust proof and waterproof grade
Specification
Rated working voltage/Un（VAC） | 249-510V |
Maximum continuous working voltage/MCOV/Uc（VAC） | 510V |
Rated load current/IL(A) | 8A |
Nominal discharge current/In(kA)2 | 10KA |
Maximum discharge current/Imax（kA） | 20KA |
Surge impulse voltage/Uoc（KV） | 20KV |
Voltage protection level/Up(V) | L-N,L-G/PE,N-G/PE≥2.3KV |
power supply system | TN |
Waterproof grade | IP62 |
work environment | -40℃~+85℃ |
Recommend Products
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

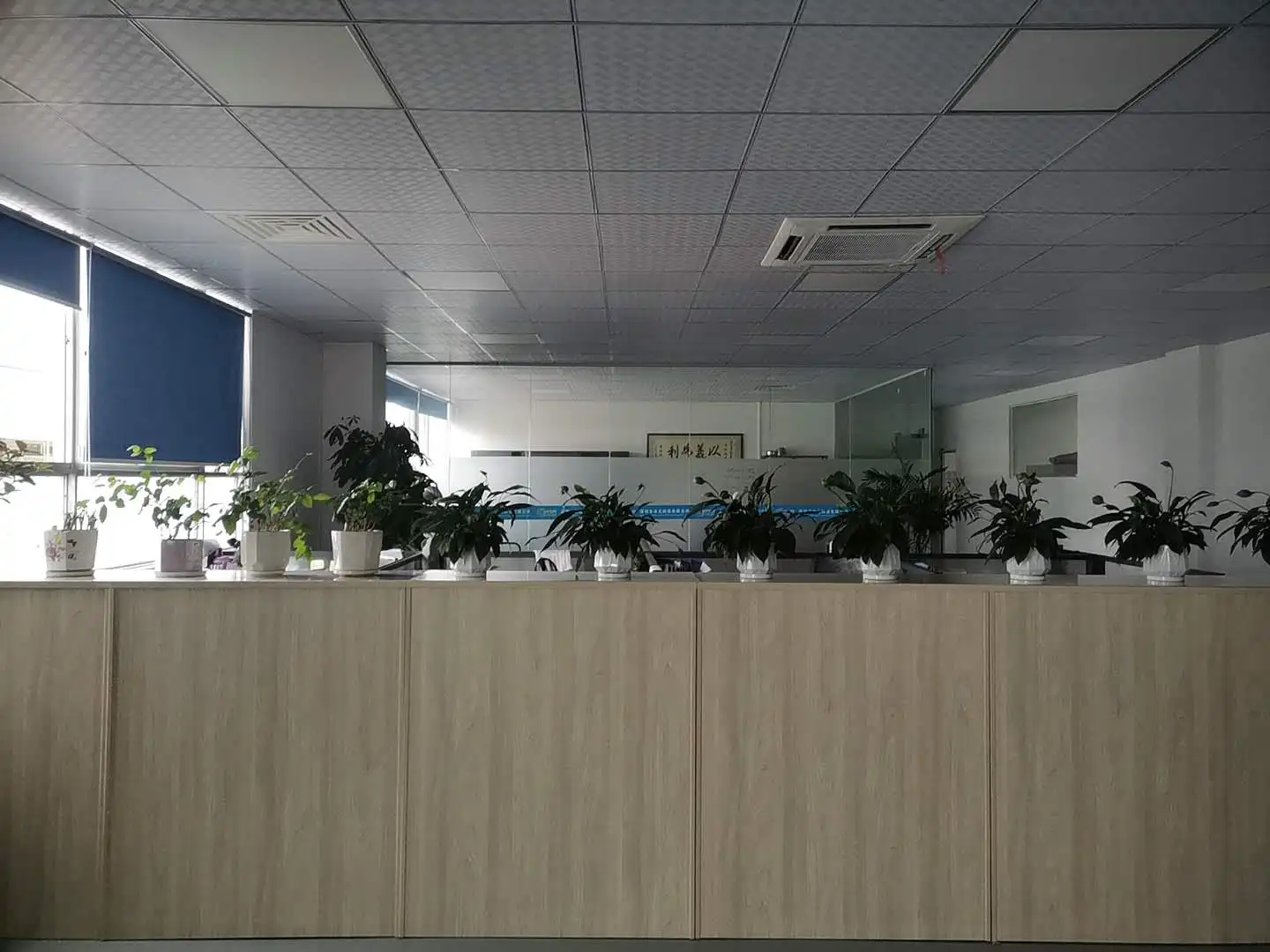

Company Profile
Established in 2015, Shenzhen Zhongyuan Technology Co.,Ltd. is a national high-tech enterprise, specializing in R&D, manufacturing and selling surge protector device with CE,TUV,UL certificates.

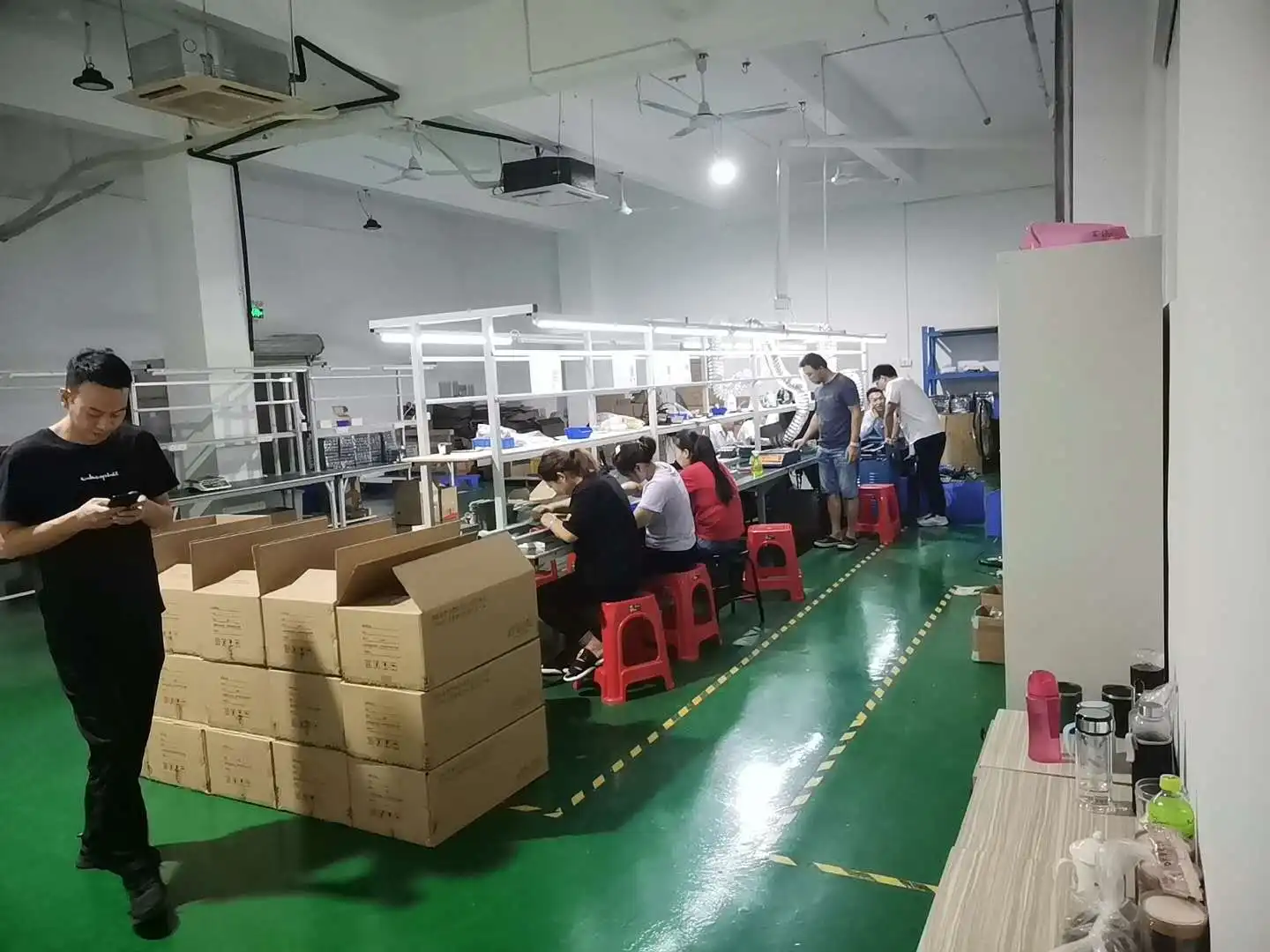

We are located in Shenzhen and has 1000㎡ manufacturing factory.Committed to the field of LED outdoor lighting protection,our SPD are widely used in digital signage,traffic lighting,floodlighting, tunnel lighting,street lighting, wall lamp, road lighting,parking lighting ,AC-LED lighting,etc.Our products can effectively reduce the loss of life and property caused by the occurrence of lightning strikes,can effectively reduce the damage caused by various surges in the customer terminal equipment,can effectively improve the reliability and safety of consumer electronics.
Gathered a group of experienced industry elites and marketing management talents,we are always on the way of pursuing and surpassing with the mission of providing stable, reliable and energy-efficient products and creating value for customers and the vision of creating an excellent SPD brand.
We are located in Shenzhen and has 1000㎡ manufacturing factory.Committed to the field of LED outdoor lighting protection,our SPD are widely used in digital signage,traffic lighting,floodlighting, tunnel lighting,street lighting, wall lamp, road lighting,parking lighting ,AC-LED lighting,etc.Our products can effectively reduce the loss of life and property caused by the occurrence of lightning strikes,can effectively reduce the damage caused by various surges in the customer terminal equipment,can effectively improve the reliability and safety of consumer electronics.
Gathered a group of experienced industry elites and marketing management talents,we are always on the way of pursuing and surpassing with the mission of providing stable, reliable and energy-efficient products and creating value for customers and the vision of creating an excellent SPD brand.
Certifications
FAQ
Q1: How to install?
Answer: the product can be installed inside the lamp or inside the lamppost. The product can reserve the screw mounting hole to facilitate the installation and fixation of the product.
Q2:Do you accept customized order?
Answer: we have a professional R & D team that can provide customized products and services to customers and provide OEM and ODM foundry.
Q3: What's the delievery time?
Answer: our product's production cycle is one week, and its monthly production capacity is about 150 thousand.
Q4:What are the terms of payment?
Answer: the payment method we can accept is payment to the delivery, or 50% deposit in advance, and the remaining 50% payment should be paid before delivery.
Q5:Quality warranty?
Answer: the product warranty period is three years, quality problems occur during the warranty period, and new products are replaced free of charge. The service can be extended to extend the warranty period.
Q6:What mode of transportation?
Answer: we can provide shipping and air transportation according to customer's requirements.
Answer: the product can be installed inside the lamp or inside the lamppost. The product can reserve the screw mounting hole to facilitate the installation and fixation of the product.
Q2:Do you accept customized order?
Answer: we have a professional R & D team that can provide customized products and services to customers and provide OEM and ODM foundry.
Q3: What's the delievery time?
Answer: our product's production cycle is one week, and its monthly production capacity is about 150 thousand.
Q4:What are the terms of payment?
Answer: the payment method we can accept is payment to the delivery, or 50% deposit in advance, and the remaining 50% payment should be paid before delivery.
Q5:Quality warranty?
Answer: the product warranty period is three years, quality problems occur during the warranty period, and new products are replaced free of charge. The service can be extended to extend the warranty period.
Q6:What mode of transportation?
Answer: we can provide shipping and air transportation according to customer's requirements.
Contact Me
Skype: smile1882095306
Mobile / Whatsapp: +86 18820953906
Mobile / Whatsapp: +86 18820953906
Похожие товары

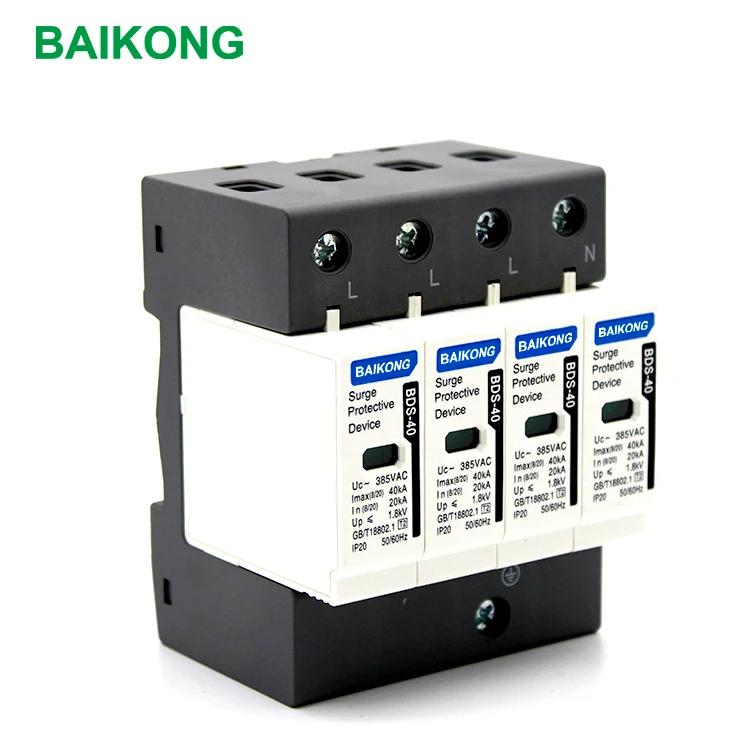

Прямая продажа с завода, ПВ система защиты от перенапряжения напряжения, китайское электрооборудование и поставки, устройство защиты от перенапряжения 60Ka
9,00 $ - 12,46 $
Линейный тип XGF 4-4-1 Автоматическая 5 л Наполняющая укупорочная машина 3 в 1 чистый минеральный Аква настилочная машина для воды
7 000,00 $ - 9 000,00 $

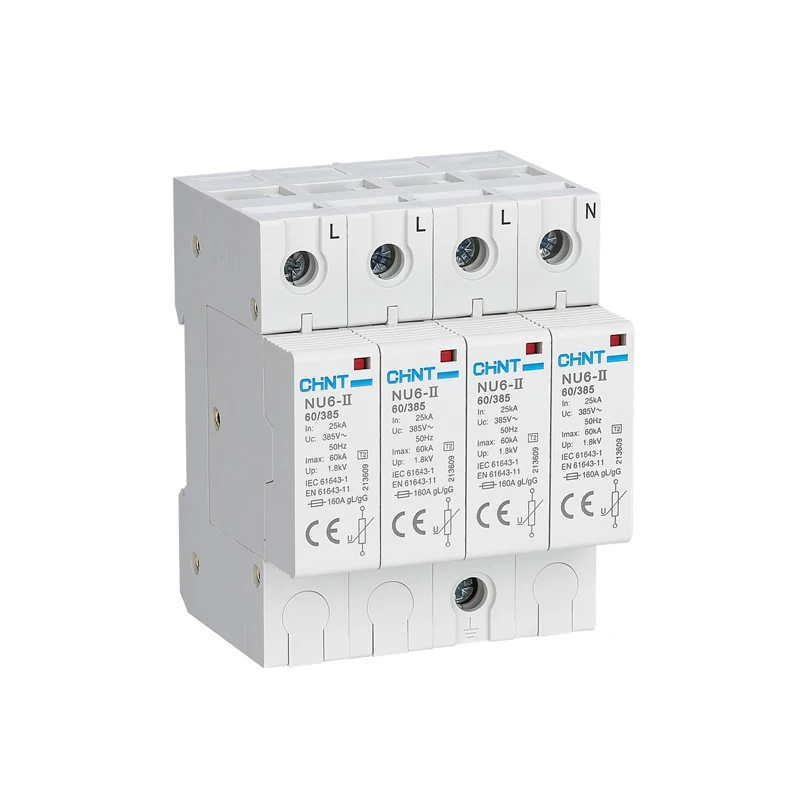

Сглаживатель перепадов напряжения переменного тока напряжением питания от перенапряжения переменного тока PDU-60 60ka 4-полюсный 385V/275V/220V защиты от перенапряжений устройства

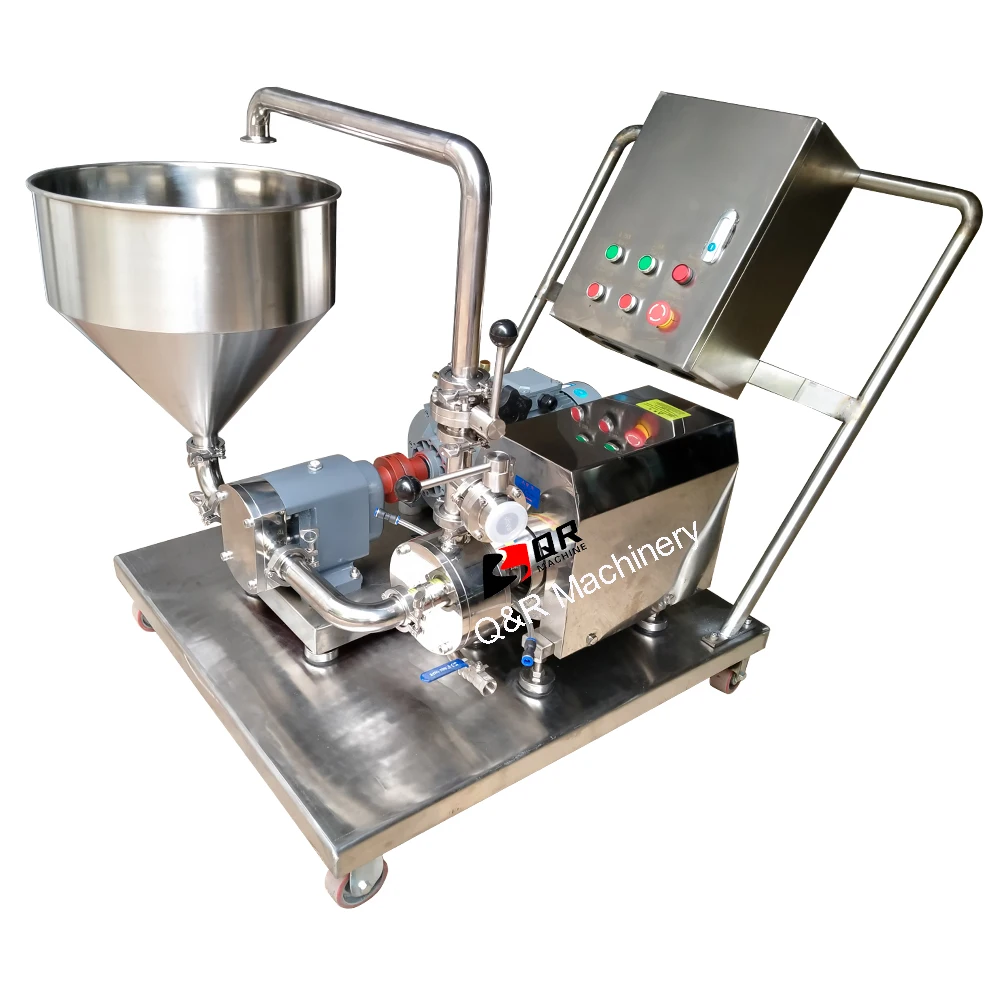

Cream dairy juice homogenizer for milk industry bean beater best food grinder circulation pump
Sevenstars ПВХ трубопровод, электрическая машина для экструдирования труб
39 000,00 $

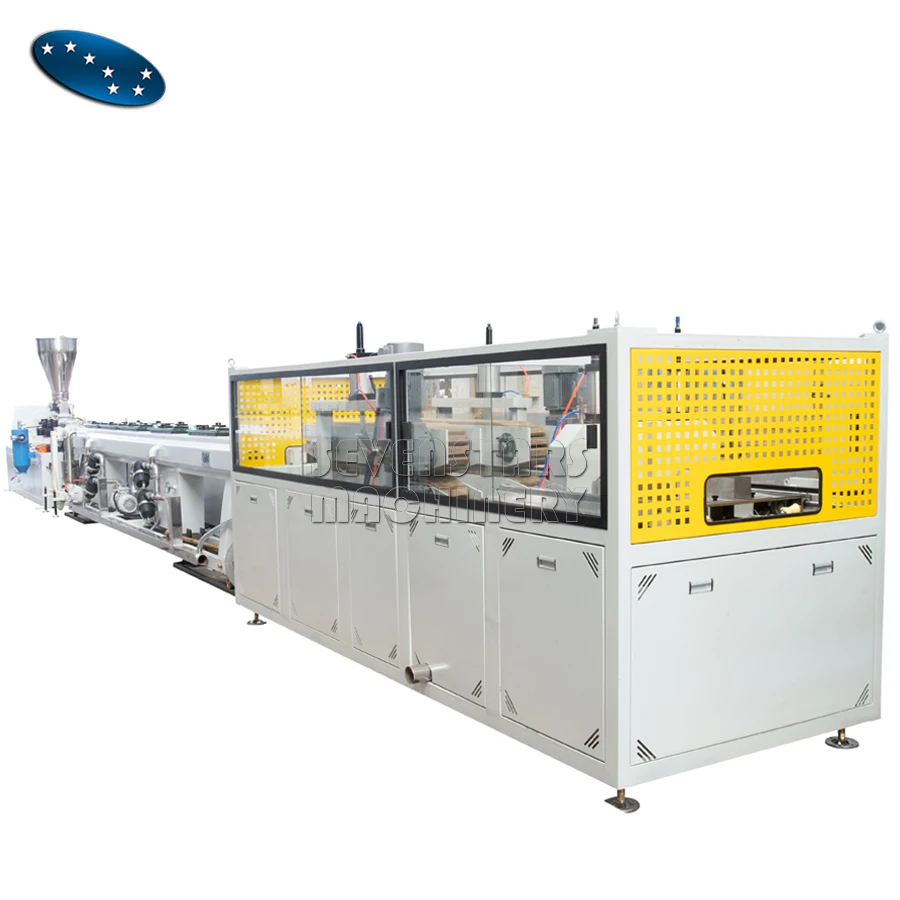

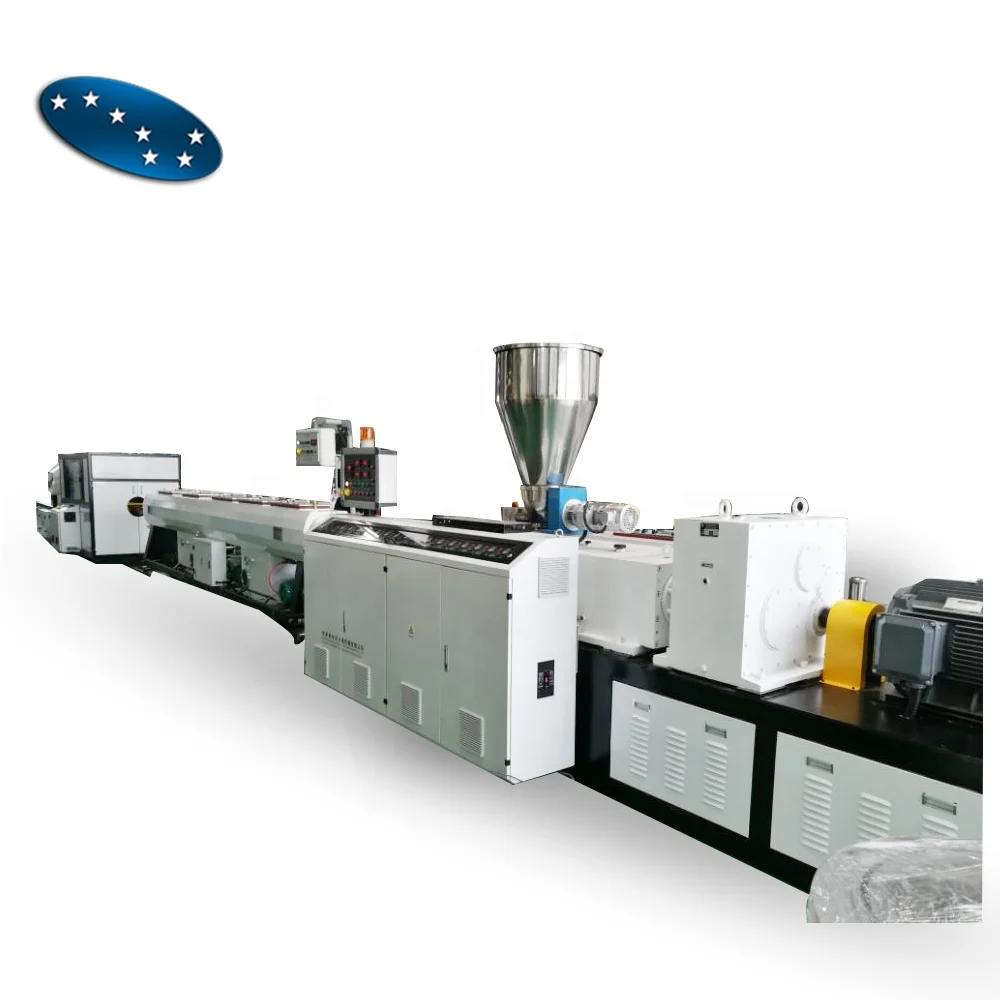

Машина для изготовления ПВХ электрических труб/Экструзионная линия с двойной трубой
34 000,00 $

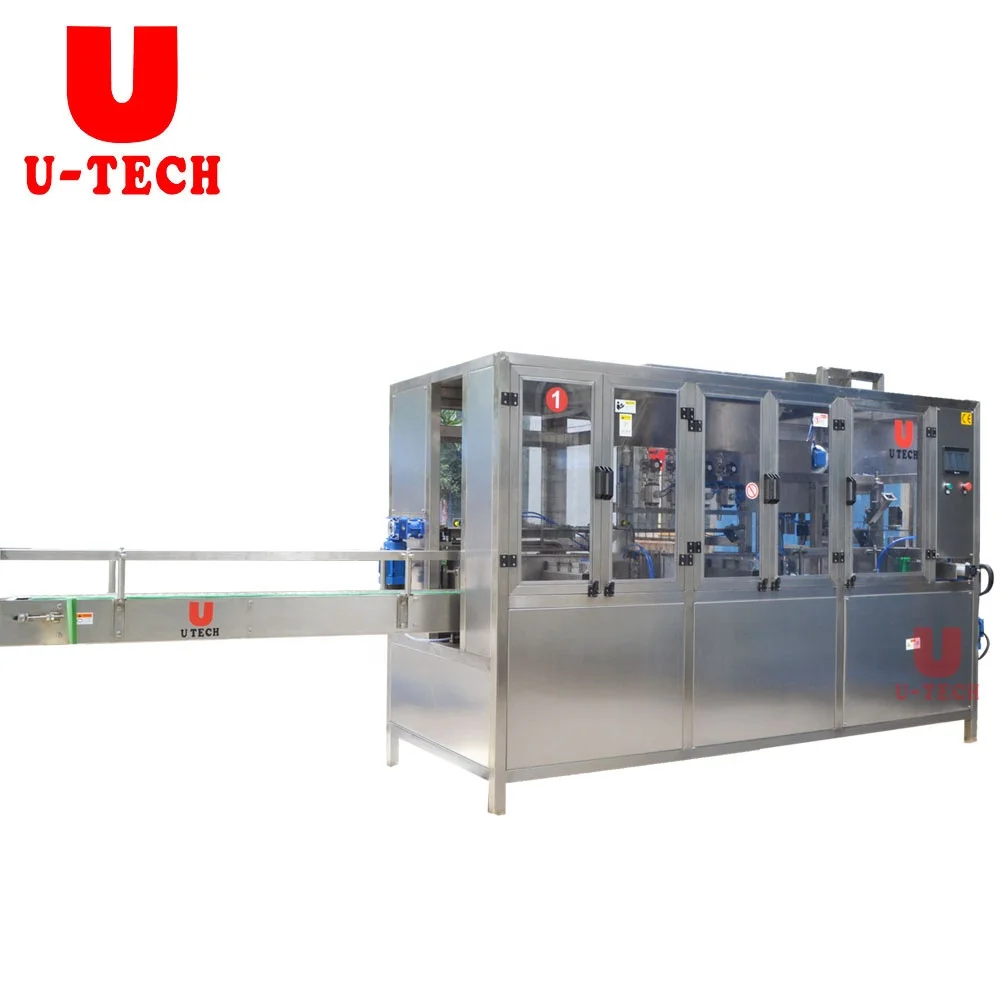

Линейный тип полностью автоматическая 3-5 галлонов бутылка цилиндр чистая вода заполнение укупорная машина
