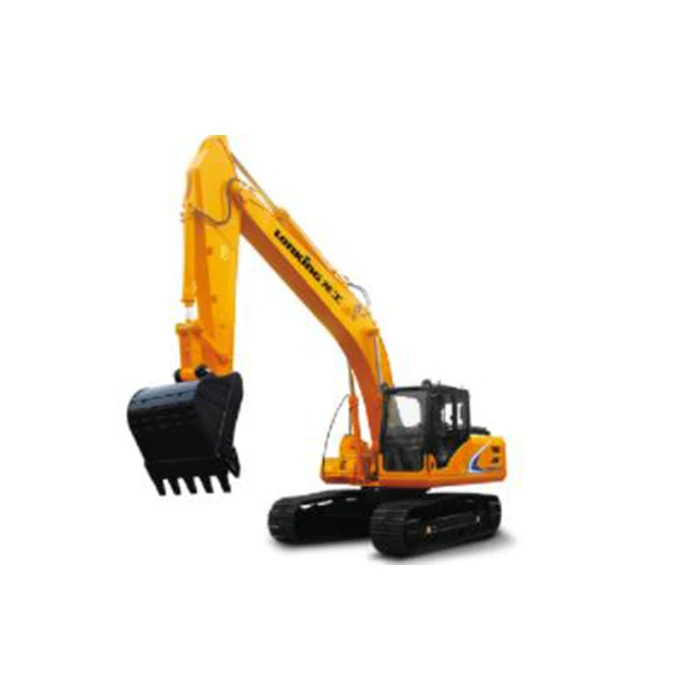

Splendid 48 ton digger Lonking LG6485H large mining crawler excavator with parts
1. It adopts Cummi ns QSM11 imported engine, which meets the national three emission standards, which is powerful, energy-saving and environmentally friendly;
2. The main hydraulic parts are imported from Germany/Japan to ensure the reliability and stability of the vehicle performance; the double-pump double-circuit positive flow control system with electro-hydraulic proportional intelligent control is adopted to reduce the neutral pressure loss and improve fuel economy and operation coordination. ;
3. The intelligent electronic control system independently programmed by Lonking enables the engine and hydraulic system to achieve better intelligent matching; it can perfectly exert the pump and engine power under heavy load conditions to realize high-efficiency mining.
4. In order to adapt to different working conditions, a variety of operating modes are set up, including the heavy-duty mode (H mode) with priority on efficiency, the economic mode with priority on fuel consumption (S mode), and the light-load mode (L mode) with fine operation. Can be switched freely;
5. Using electro-mechanical and hydraulic integration technology to realize intelligent control, self-diagnosis of faults, automatic alarm display, automatic idle speed, automatic protection of engine overheating, automatic reminder of maintenance information, automatic storage of historical fault records;
6. Comprehensively improve the strength of structural parts, high-standard automatic welding technology, and higher reliability of structural parts;
7. The new type of cab is equipped with a luxurious suspension seat, which optimizes the strength and structure of the control system through ergonomics, which greatly relieves the operator's fatigue in operation;
8. Multifunctional display screen, which can realize man-machine communication, can monitor engine speed, coolant temperature, oil pressure, fuel level, and remote diagnosis;


| LG6485H main operating dimensions and performance parameters | ||
| Overall quality | kg | 48200 |
| Bucket capacity | m³ | 2.2-2.5 |
| engine model | Model | Cummi ns QSM11 |
| Engine power | kw/rpm | 299/1800 |
| Fuel tank capacity | THE | 685 |
| Maximum flow of main pump | L / min | 2×405 |
| Work pressure | Mpa | 34.3/36.3 |
| Hydraulic oil tank capacity | THE | 450 |
| Maximum digging radius | mm | 11571 |
| Maximum digging height | mm | 10851 |
| Maximum digging depth | mm | 7198 |
| Maximum unloading height | mm | 7558 |
| Walking speed (high/low) | km/h | 5.7/3.2 |
| Swing speed | n / min | 9.7 |
| Radius of tail gyration | mm | R3750 |
| Track wheelbase | mm | 4400 |
| gauge | mm | 2750 |
| Maximum digging force of bucket | kN (ISO / SAE) | 263/229 |
| Maximum digging force of stick | kN (ISO / SAE) | 276/268 |
| Transport size length × width × height | mm | 12050×3490×3670 |


RISEN ConstructionMachinery (Shanghai) Co., Ltd is engaged in developing, manufacturing andexporting construction machines in the areas of building, mining, energy andlogistic engineering. Offering 8 major categories, 38 product line and morethan 1000 models, RISEN is able to provide complete equipment package to theclients from all walks of life.We are a wholesaler of many brands in China, a professional exporter of construction machinery and a one-stop solution provider. Our team has over 15 years of experience in this field.



From the factory to our customer's destination, we will conduct all-round supervision.We can also helpto sign purchase ordercontracts, test product quality, guarantee timelydelivery, and accomodate special orders.


What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.
What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.
