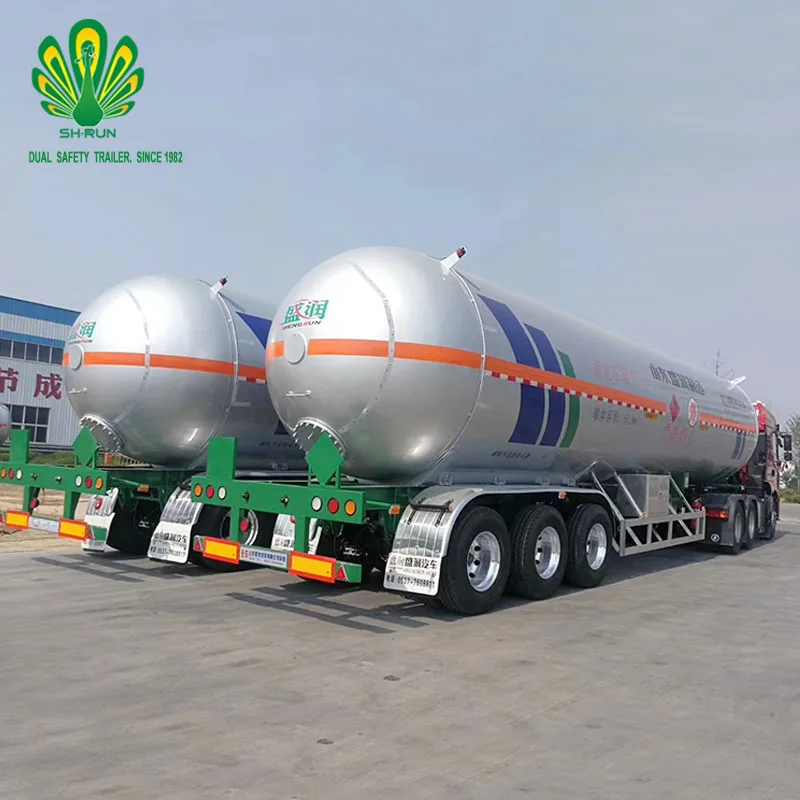

Цена по прейскуранту завода изготовителя 3 оси 12 шин газовый танкер полуприцеп на продажу
- Категория: >>>
- Поставщик: Shandong Shengrun Automobile Co. Ltd.
Сохранить в закладки 1600379127692:
Описание и отзывы
Характеристики

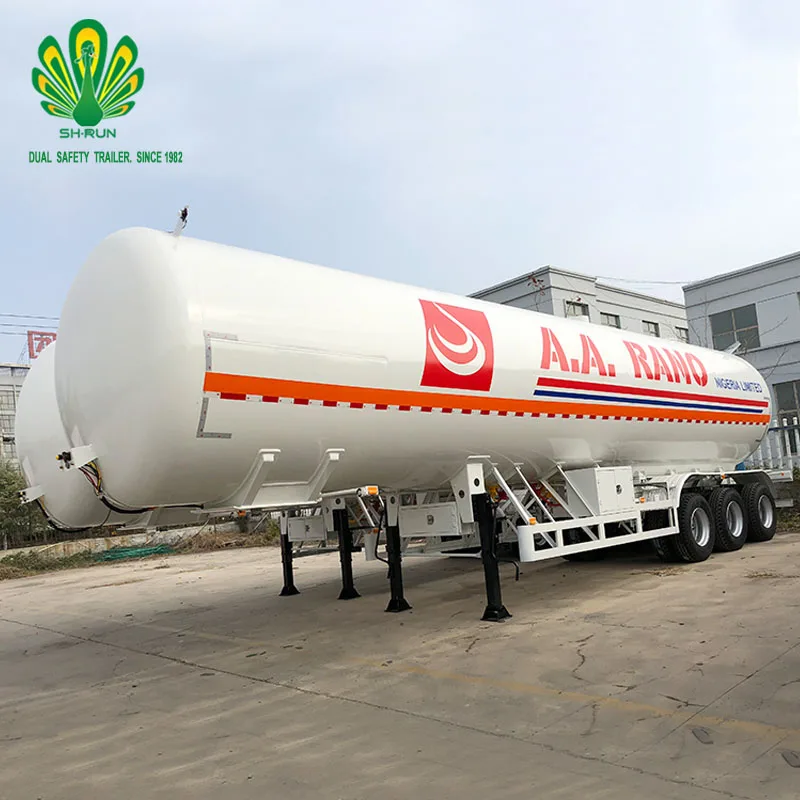

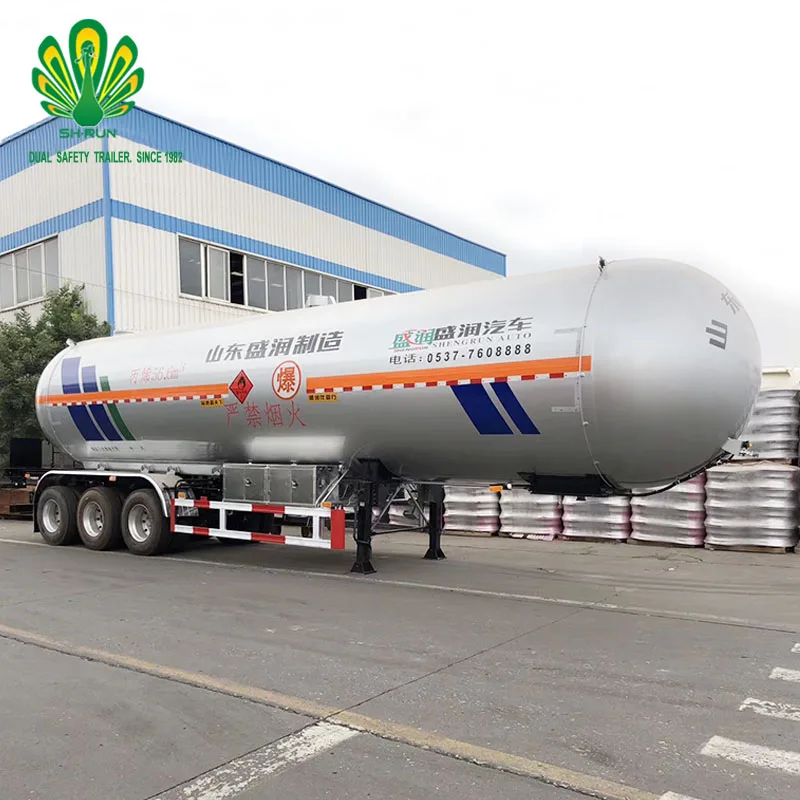

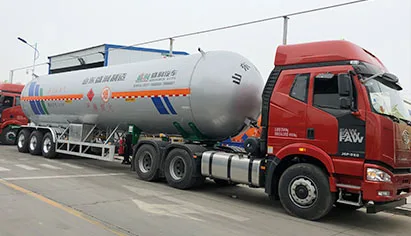

Factory price 3 Axles 12 tire gas tanker LPG tank semi trailer
Products Description
"Shengrun" brand Lpg propane tanker since 1982, rely on our professional design, quality parts fitting, provide higher performance, durable, stable.
Specification
General data | Tank body | |||||||||
Chassis model | -- | Medium | Liquefied Petroleum Gas | |||||||
Tractor model | -- | Filling medium | Propane of LPG | |||||||
Engine power KW | -- | Work temperature ℃ | -20～50 | |||||||
Kerb mass ㎏ | 14922 | Design temperature ℃ | -42～55 | |||||||
The maximum allowed filling weight kg | 25078 | Work pressure MPa | ≤1.61 | |||||||
Total mass ㎏ | 40000 | Design pressure MPa | 1.61 | |||||||
Distribution of axle load in full load | King pin ㎏ | 16300 | Corrosion allowance mm | 1.5 | ||||||
Rear axle ㎏ | 23700 | Joint efficiency | 1 | |||||||
Design speed limit Km/h | Straight road | 80 | Material | Shell | Q420R(Normalizing） | |||||
Turn | 20 | Head | Q420R(Normalizing） | |||||||
Front overhang/rear overhang mm | -/1650 | Capacity m³ | 61.9 | |||||||
Approach angle/departure angle° | -/20° | Filling weight per volume ㎏/m³ | 420 | |||||||
Maximum stable side-inclination in full load ° | ≥23° | Hydraulic horizontal test pressure MPa | 2.1 | |||||||

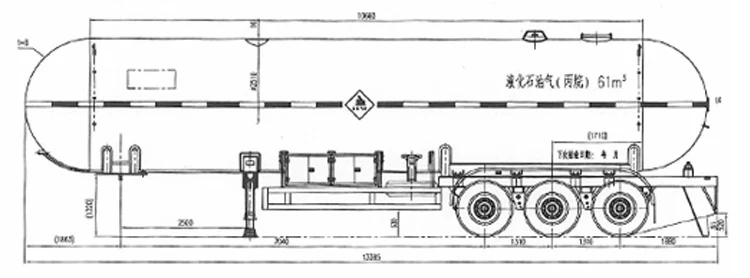

Overall dimension（L*W*H） mm | ～13590×2500×3990 | Air test pressure MPa | 1.61 | |||||||
Design working life Years | 10 | Thermally insulation thickness/material mm | -- | |||||||
Applicable mode of transportation | Road | Safety valve | ||||||||
Emergency valve | Type | A412F-25-22 | ||||||||
Type | Gas phase | QGJ43F-25-8 | Form | Interior and full lift | ||||||
Liquid phase | QGJ43F-25-7 | Norminal pressure MPa | 2.5 | |||||||
Specification | Gas phase | DN25 | Valve base size mm | 68 | ||||||
Liquid phase | DN50 | Self-pressure MPa | 1.73 | |||||||
Form | Emergency valve and excess flow cut off valve | Discharge-pressure MPa | ≤1.93 | |||||||
Operation mode | Manual | Return-pressure MPa | ≥1.56 | |||||||
Closed stop time | ≤5S | Diameter of rupture disk mm | -- | |||||||
Melt closed temperature ℃ | 75±5 | Burst pressure of rupture disk MPa | -- | |||||||
Level gauge | Handling device | |||||||||
Type | UQZ-25P | Type | Gas phase | YKAG-33-6 | ||||||
Form | Float | Liquid phase | YKAG-33-7 | |||||||
Nominal pressure MPa | 2.5 | Specification | Gas phase | DN25 | ||||||
Measurement range mm | 50～2478 | Liquid phase | DN50 | |||||||
Precision | 2.5 | Pattern | Quick tie-in | |||||||
Pressure gauge | YN-100T | Norminal pressure MPa | 3.3 | |||||||
Therm-ometer | WTQ-280 | Conducting electrostatic tape type | JD-2 | |||||||
Approvals | Supervision Regulations on Safety Technology for Transportable Pressure Vessel (TSG R0005-2011 ) | |||||||||
Design code | ASME sec viii div.2 edition 2017 | |||||||||
Product standard | The design/fabrication/testing and inspection, and acceptance of the tank must fully comply with GB/T19905-2005"Liquefied gas tanker". | |||||||||
Painting | Shot blast at Standard SA 2.5 prior to application of anti-corrosion primer, polyurethane top coat. Total coating thickness 300um. Color as per clients requirement | |||||||||
Trailer configuration | ||||||||||
1.King pin：2" bolted type | 9.ABS:Standard | |||||||||
2.Landing gear：York 28T two sped manual operation | 10.9Kg*2pcs fire extinguiser with boxes | |||||||||
3.Axle: York 13T*3pcs | 11.Aluminum side fender and mud guard | |||||||||
4.Suspension: Mechanical suspension for 3 axles with steel leaf springs | 12.One piece tool box | |||||||||
5.Tyre:Triangle 10.00R20,13pcs | 13.Aluminum valve box | |||||||||
6.Rim:Steel 10 holes 7.5-20 disc wheel, 13pcs | 14.24V electrical system, 7-pin ISO 1185 socket for the tractor | |||||||||
7.Dual line pneumatic brake system with 6 double air chamber | 15.LED light, heat insulation cable | |||||||||
8.Spare tyre carrier：1 sets | 16.Standard reflective sticker | |||||||||
More Types

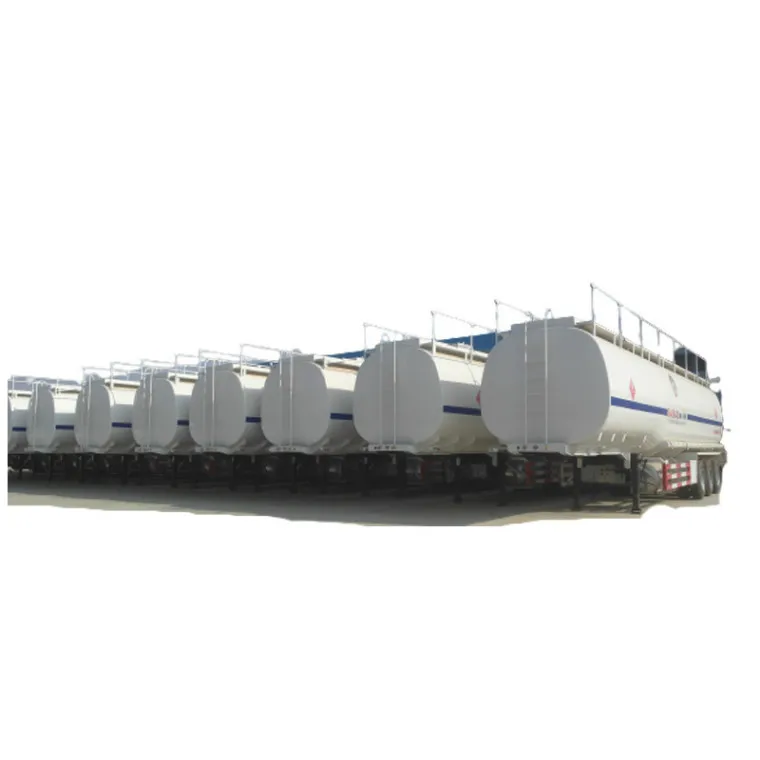

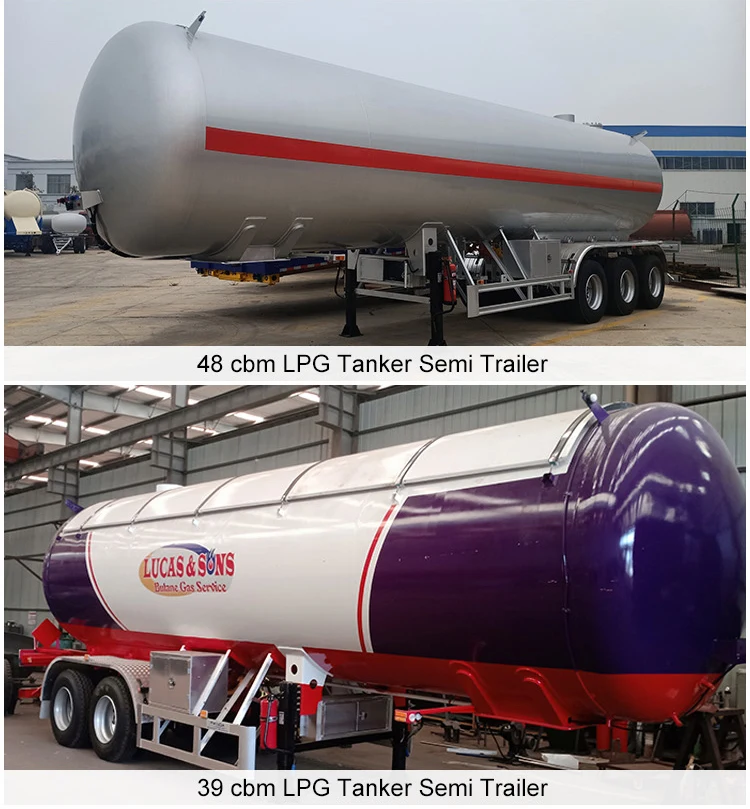

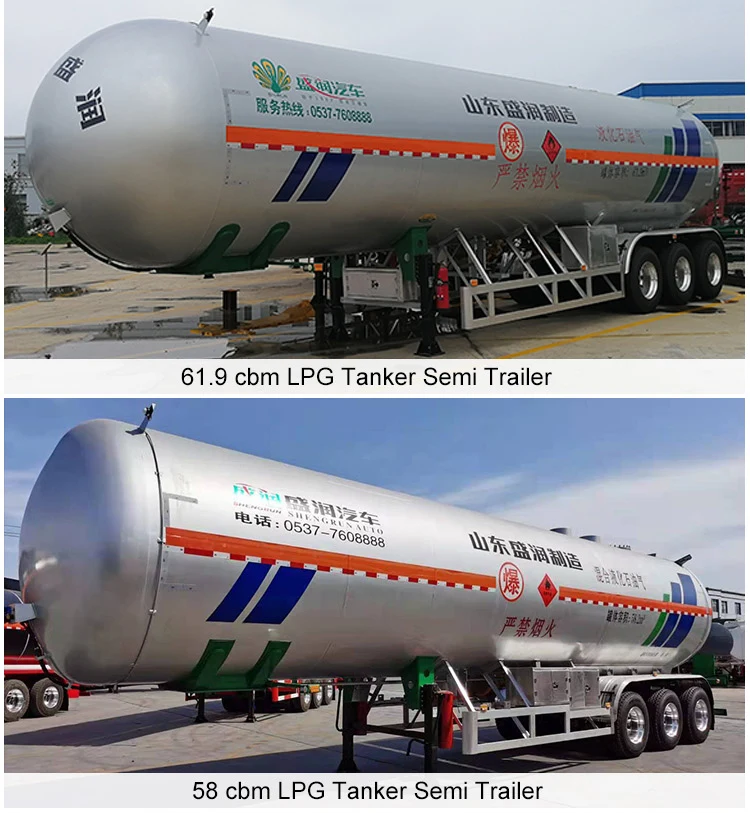

Shengrun have many models LPG Tank Trailer
Material: carbon steel
Volume: 27 - 70 cbm
Axles: 2-4 axles
Material: carbon steel
Volume: 27 - 70 cbm
Axles: 2-4 axles

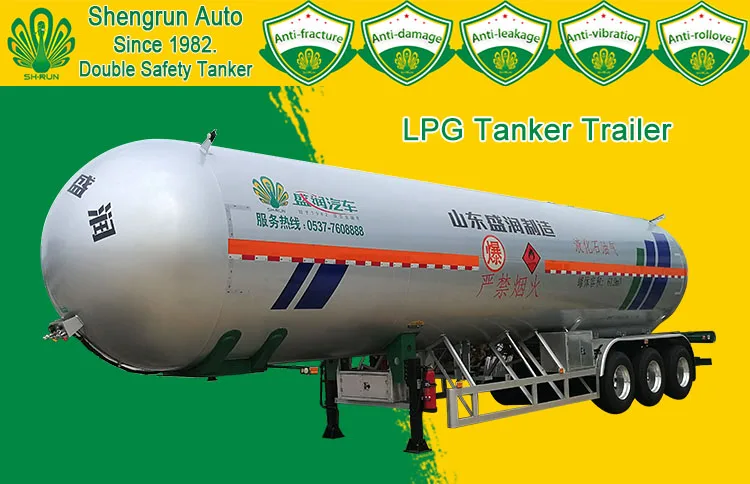

Product Advantages
Anti-fracture
National patented T-shaped beam, bearing capacity and torsion resistance are 3-5times that of traditional L-shaped longitudinal beam.
Anti-damage

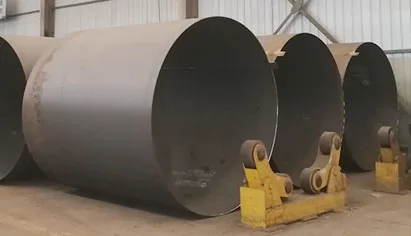

ASME standard carbon steel tank body, three prismatic reinforcement ring, stress absorption and impact resistance.
Anti-vibration

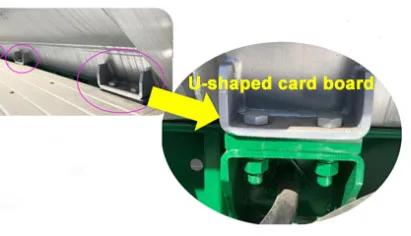

The tank body and the chassis are connected by a U-shaped card board, which is more stable and firmer than a direct bolt connection.
Anti-leakage
Robot welding+patented Tooling fixture, the quality and strength of the weld are higher than that of the cylinder plate.
Anti-rollover
The center of gravity of the body and chassis is 5-10cm lower than that of peer manufacturers, the tank is lighter, and the safety and anti-rollover ability is stronger.
Packing & Shipping
We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers and trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:20-30 working days after payment receipt confirmed (based on actual quantity).
Packing:Standard export packing, or customized packing as your request.
Professional goods shipping forwarder.
Packing:Standard export packing, or customized packing as your request.
Professional goods shipping forwarder.
Our Service
1.12months for main parts (engine, axle, body and beam, etc).
2. Technical Support by phone Whatsapp or email around the clock.
3. Lifelong Parts Supports.
4. Engineer available service oversea.
2. Technical Support by phone Whatsapp or email around the clock.
3. Lifelong Parts Supports.
4. Engineer available service oversea.
Advantage of Choose Us
Certificates
The company has passed ISO/ASME/EMARK/ADR certification, rated by state as high-tech enterprise. And obtained more than 60 national patents.
Factory scale
Shengrun company since 1983, covers an area of 530 acres, two major production areas of east and west,total assets of 460 million yuan, more than 1,300 employees, including more than 260 professional operation and technical personnel.
Qualification
Shandong Shengrun automobile Co.,Ltd. is a special vehicle and semi-trailer announcement management enterprise approved by the ministry of industry and information technology.
Equipment
With domestic and international advanced production lines and modern Tooling and inspection and testing equipment more than 1000 sets, thus ensuring quality products quality.
About Shengrun Auto
Shandong Shengrun Automobile Co., Ltd. is listed among appointed enterprises to produce and refit automobile approved by Development and Reform Commission of China(former Economy and Trade Commission of China), the first cooperation enterprise with its products listed in Public Notice on automobile refitting for management. We are the full-size Modified Truck enterprise which integrates the design of product, scientific research developing, production and sale together, possessing subsidiary companies of automobile production, automobile trade and automobile fittings production, etc. Our leading products include "Shengrun" brand semi-trailers, tipper, fuel tanker, particle material tanker, bulk cement tanker, concrete mixer truck, wrecker trucks, LNG, CNG, and other special vehicles.We have top-notch numerical control cutting machine, automatic welding machine, large-size bending machine and board press machine in China, tanker body automatic welding tipper, the greatest entire-car-passing type shot blasting machine in Shandong province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets test equipment which are advanced technology and Hi-Tech equipment. One hundred kinds of truck semi-trailers and tank trailers have passed our National Technical Appraisal and up to top class level in China, we have passed many certificates, such as ISO9001: 2008, CCC etc.Persisting in "the quality will cast on the brand, the good faith building future" as the enterprise
objective, the company's staff devote to the promotion of enterprise core competitive power, pursuing the sustainable development, the making strong trend brand, in order to serve all the clients.
objective, the company's staff devote to the promotion of enterprise core competitive power, pursuing the sustainable development, the making strong trend brand, in order to serve all the clients.
Certificate
ASME
E MARK
ISO
Classification Society
Design License of Special Equipment
ADR
Exhibition
Contact
Thank you for your visiting!
Contact us for more produces, latest promotion and ready shipping products information, etc.
Any questions about sales, maintain and repair whatever Panda or yourself vehicle, feel free to contact us, we will try our best to support you.
Contact us for more produces, latest promotion and ready shipping products information, etc.
Any questions about sales, maintain and repair whatever Panda or yourself vehicle, feel free to contact us, we will try our best to support you.
Похожие товары
Сверхмощный кабель питания PDU C20 к C13 удлинитель 14 AWG 15 а 100-250 В компьютерный кабель питания 6 футов черный
1,88 $ - 2,03 $
Горка для аквапарка, горка для аквапарка, взрослые бассейны, уличные детские
8,36 $ - 9,78 $
Надувная водная Плавающая Платформа, надувная платформа для плавания с навесом/палаткой
1 440,00 $ - 1 450,00 $
Золотая стальная рама из спеченного камня, Круглый боковой столик для кровати, угловой столик для спальни, мраморный журнальный столик для гостиной, мод
58,00 $ - 78,00 $
Intex 64758, оптовая продажа, высокое качество, под заказ, двойная надувная кровать Лило
9,27 $ - 10,26 $

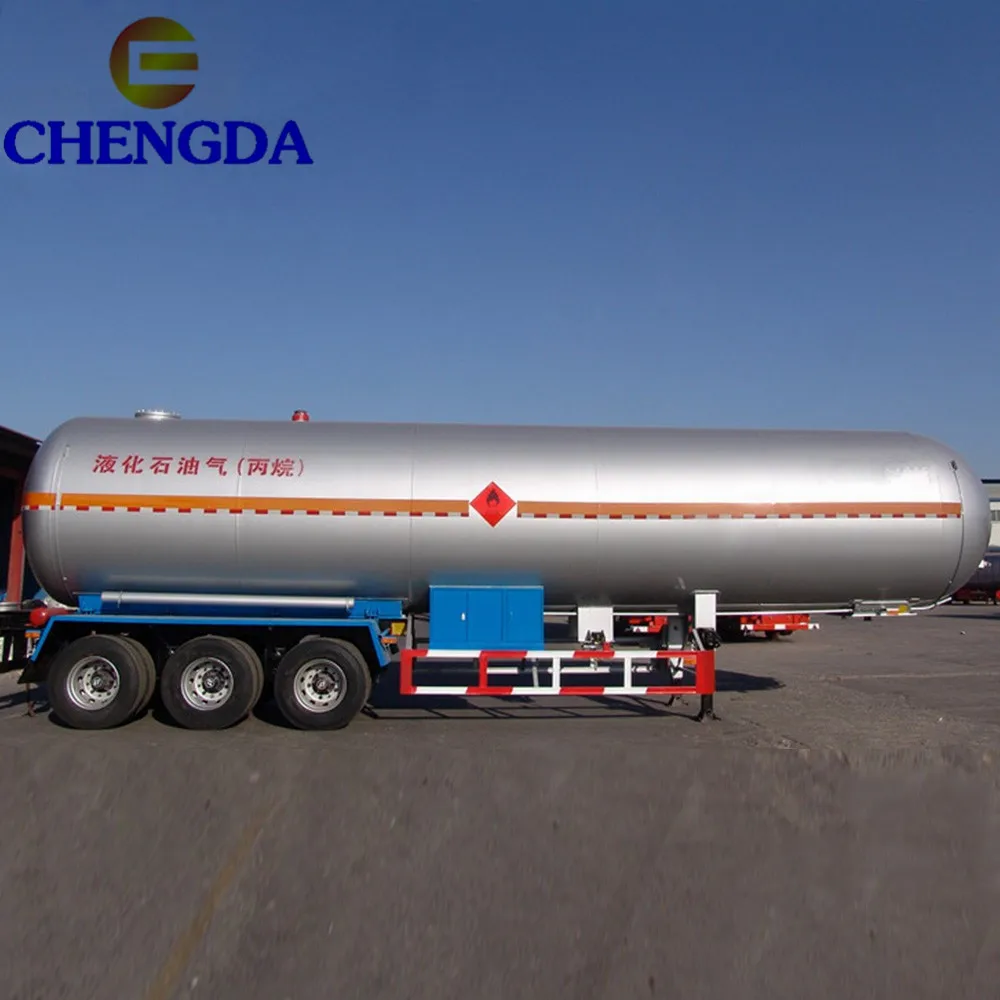

Резервуар для сжиженного нефтяного газа по конкурентоспособной цене, полуприцеп, полуприцеп, грузовик на продажу
