Product Description

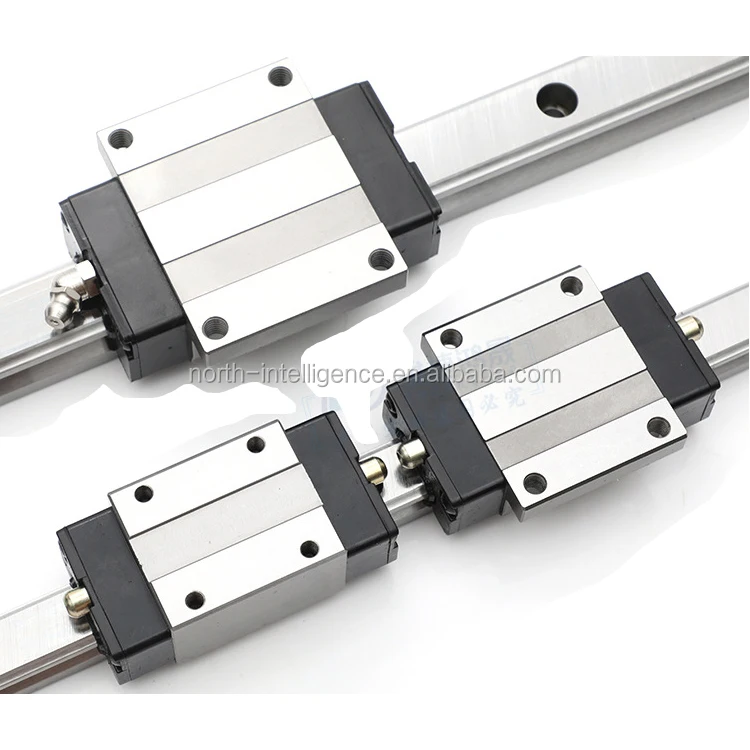

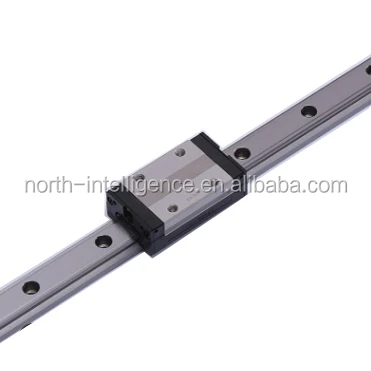

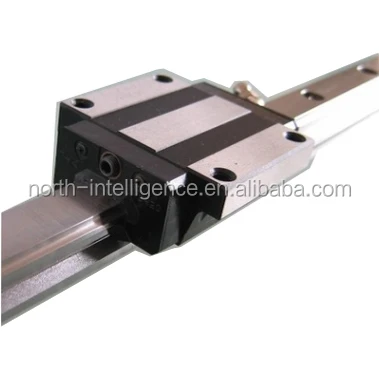

thk linear carriage thk linear guide hsr15 for sale
The accuracy of linear guides can be divided into three types: Running parallelism, Tolerance, and Difference of heights and widths. (As several blocks are used on one rail, or as several shafts are installed on the same surface, the Difference of heights and widths of each model are specified.)




Specification


Product Name
thk linear carriage thk linear guide hsr15 for sale
Model Number
hsr15
Rail Width
15 mm
Rail Length
0-4000mm


Product Feature


(1) Self-aligning capability
By design, the circular-arc groove has contact points at 45 degrees. SSR series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation.


(2) Interchangeability
Because of precision dimensional control, the dimensional tolerance of SSR series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.


(3) High rigidity in all four directions
Because of the four-row design, the SSR series linear guideway has equal load ratings in the radial, reverse radial and lateral directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.

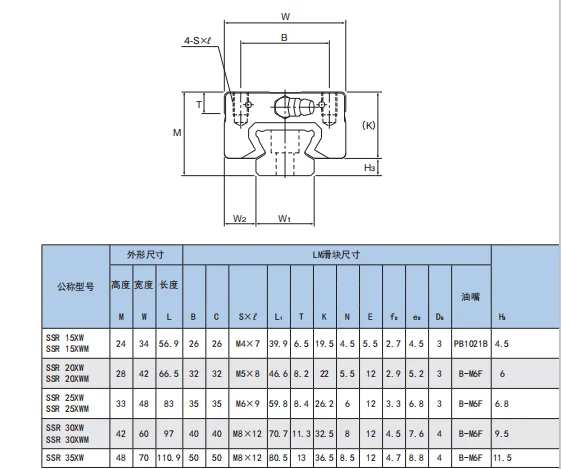

Model Number

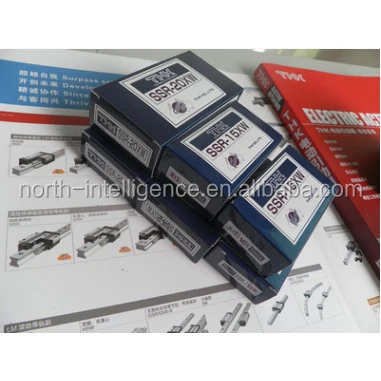

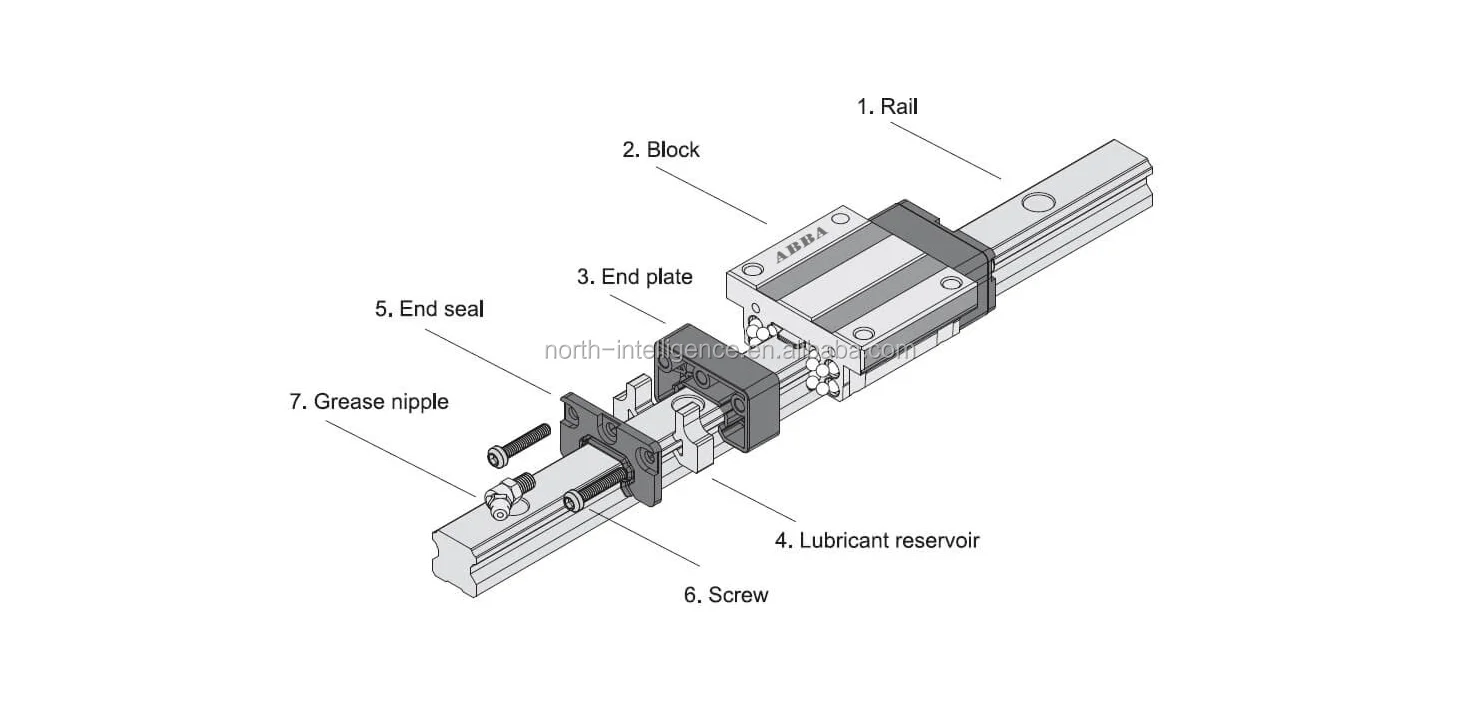

Details Images
