Product Overview
G7-MB\tWireless Modbus Sensor

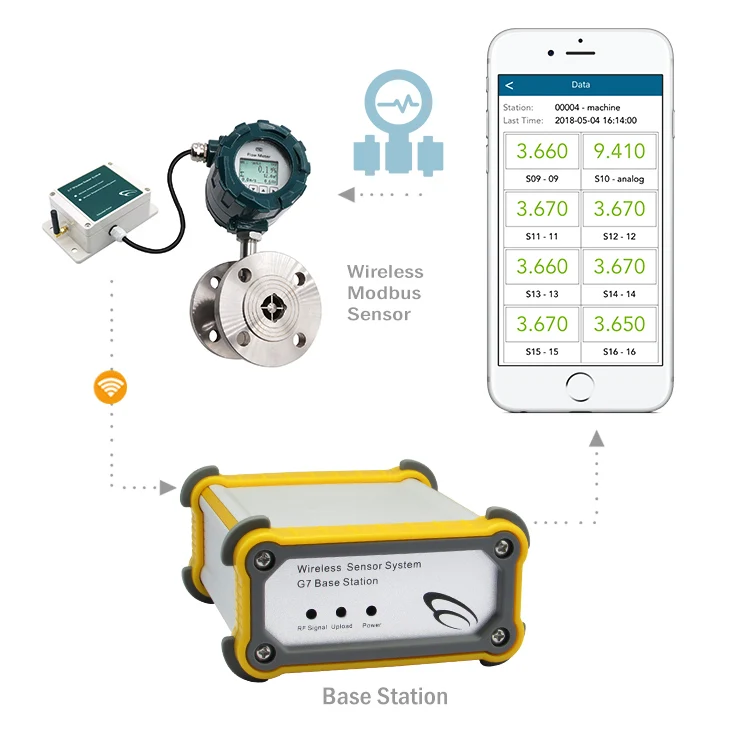

With G7 wireless Modbus sensor and Base Station, you can start monitoring Modbus meter or sensor measurement online remotely.

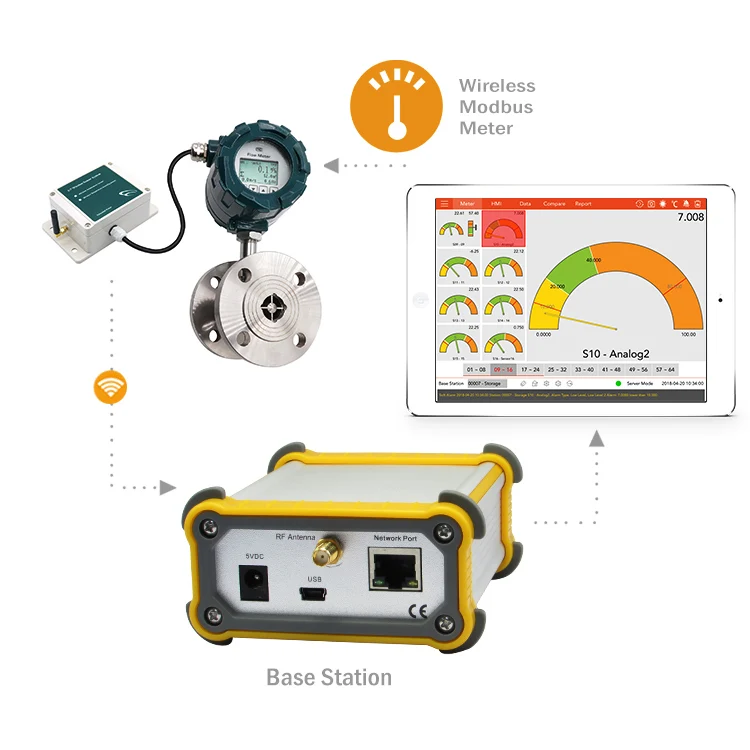

Wireless sensor G7 transmits measurement of any industrial Modbus sensor via RS485 port to Base Station via wireless signal. Base Station collects all the wireless sensors readings and uploads to central server in interval via Modbus TCP protocol.
G7-Centre App receives data from Base Station over Internet or LAN.
G7 Client App for Windows10, iOS, Android displays and stores all the incoming data in computer/tablet/smartphone for data analysis. By monitoring and understanding how measurement changes, user can be alerted by high or low level of sensor reading e.g. air pressure, water level, load cell or CO2.
Wireless sensor G7 transmits measurement of any industrial Modbus sensor via RS485 port to Base Station via wireless signal. Base Station collects all the wireless sensors readings and uploads to central server in interval via Modbus TCP protocol.
G7-Centre App receives data from Base Station over Internet or LAN.
G7 Client App for Windows10, iOS, Android displays and stores all the incoming data in computer/tablet/smartphone for data analysis. By monitoring and understanding how measurement changes, user can be alerted by high or low level of sensor reading e.g. air pressure, water level, load cell or CO2.
Model: G7-MB
[Product Name_1]\tWireless Transmitter for Modbus Meter
[Product Name_2]\tWireless Modbus Sensor
[Product Name_3]\tWireless Modbus Meter
[Product Name_4]\tIndustrial Wireless Flow Meter
[Product Name_5]\tRF Wireless Modbus Signal Sensor
[Product Name_6]\tRadio Wave Wireless Modbus Signal Sensor
[Product Name_7]\tWireless Modbus RS485
[Product Name_8]\tWireless Modbus Signal Sensor System
[Product Name_9]\t64 Channels Wireless Modbus Signal Sensor
[Product Name_10]\t1200m Wireless Modbus Signal Sensor
[Product Name_2]\tWireless Modbus Sensor
[Product Name_3]\tWireless Modbus Meter
[Product Name_4]\tIndustrial Wireless Flow Meter
[Product Name_5]\tRF Wireless Modbus Signal Sensor
[Product Name_6]\tRadio Wave Wireless Modbus Signal Sensor
[Product Name_7]\tWireless Modbus RS485
[Product Name_8]\tWireless Modbus Signal Sensor System
[Product Name_9]\t64 Channels Wireless Modbus Signal Sensor
[Product Name_10]\t1200m Wireless Modbus Signal Sensor
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
G7-MB | Wireless Analog Sensor | Base Station | |
Modbus Meter | RS485 port | Protocol: | Active TCP |
Data Registers | 1 x Floating Point | Modbus TCP | |
1 x Integer | Network Port: | 10/100M Ethernet | |
Transmission Interval: | User Programmable 5s ~ 4 hours | Data Packet: | Instant on incoming data of connected sensors |
Sensor ID: | Unique 8 digits | RF Wireless: | 433MHz, 4.8Kbit/s |
RF Wireless: | 433MHz, 4.8Kbit/s | RF Address/Band: | 255/15 |
RF Power: | 10dBm | Operating Voltage: | 5 ~ 20V DC |
Wireless Distance: | 1200 meter (unblock) | Rating: | < 130mA |
Operation Rating: | 80mA (data transmission) | Operating Temperature: | -35 ~ 75 °C |
Standby Rating: | ~3.0uA (sleep mode) | Dimension: | 70 x 65 x 35 mm |
Operating Voltage: | 7~10V DC | ||
Battery Life: | Average 1~2 year | ||
Dimension: | 115 x 90 x 55 mm |

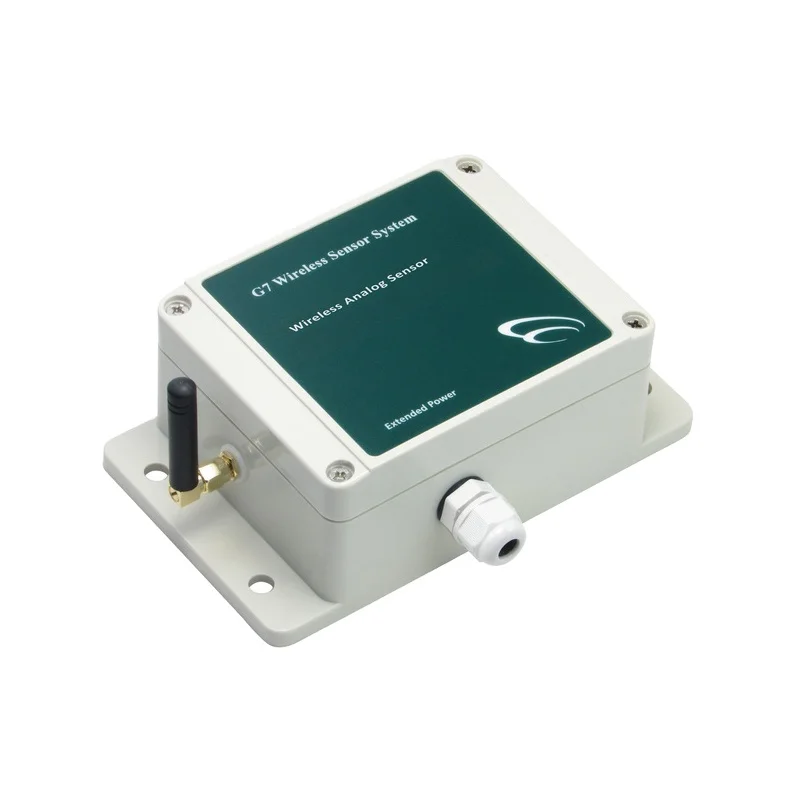

(1)Wireless Sensor
The sensor transmits the analog sensor reading to Base Station wireless over radio frequency up to 1200 meter unblocked. Its internal battery operates for average one year. All sensors are waterproof and internal/external antenna adjustable.
* G7-MB\t\t\tWireless Modbus Meter
* G7-AD\t\t\tWireless Analog Sensor
* G7-D2\t\t\tWireless Digital Alarm Input
* G7-T2/TX\t\tWireless Temperature Sensor
* G7-H2/H3\t\tWireless Temperature Humidity Sensor
* G7-T2/TX-Ex\t\tWireless Temperature Sensor [Extended Power]
* G7-H2/H3-Ex\t\tWireless Temperature Humidity Sensor [Extended Power]

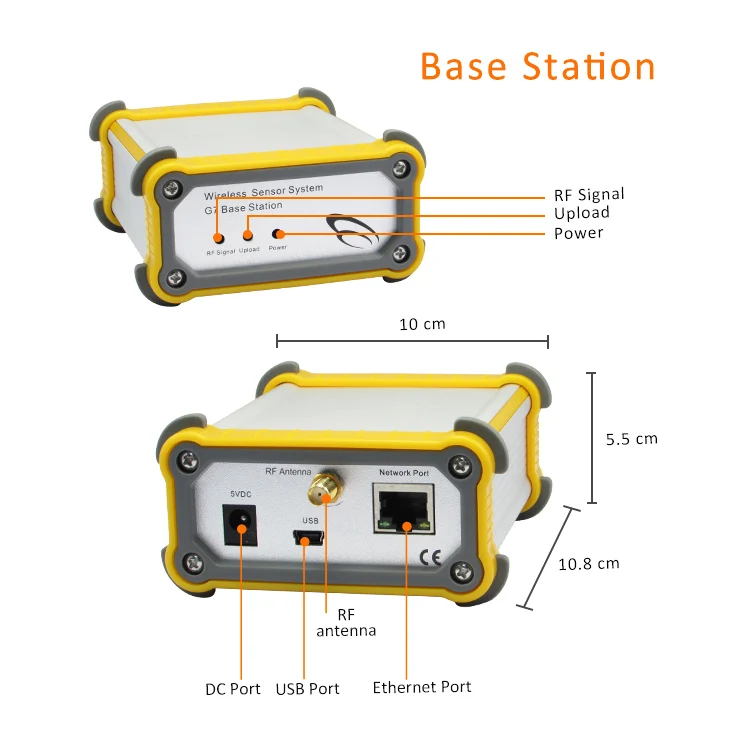

(2)Base Station
It is a gateway between user and sensors. Base Station receives reading from max. 64 wireless sensors in a range of 1200m. This station is connected to the Internet or LAN connection. Information of all sensors collected in one data record is then sent to the central computer over LAN or Internet in Modbus TCP protocol.

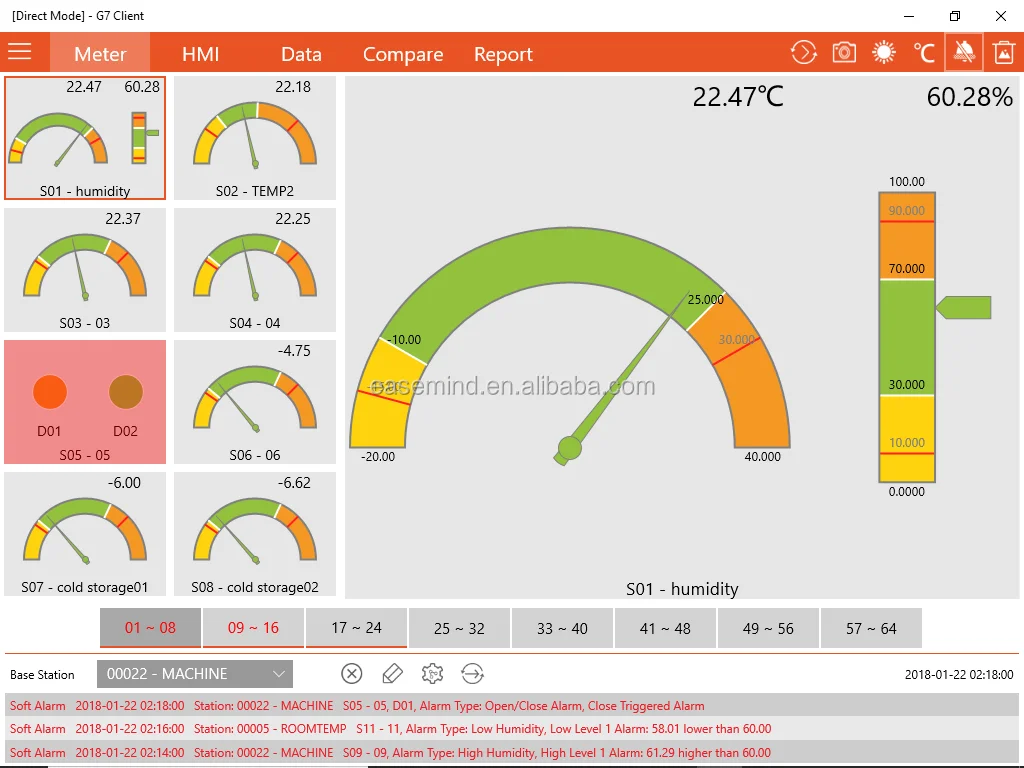

(3)G7 Client App for Windows, iPad, Android
By using free G7 Client Lite, users receive data from Base Station over LAN or Internet. Data will be saved into file for future analysis and displayed in graphics with live alarm alert.
Please contact our sales people sales@easemind.hk by email direclty.
thanks
[Applications]
* water pipes network real time monitoring – flow rate or pressure sensor
* oil/gas pipes network, pump stations – flow rate or level sensor
* underground water level real time monitoring
* environmental monitoring system - wind/CO2/pressure/light sensors
* remote Industrial equipment monitoring
* wide area equipment monitoring e.g. power plant, antenna tower
* measuring equipment data capture and report via Wi-Fi
* food chain, storage, transport industry, building management
* agricultural, farming, laboratory, medical industry – load cell, CO2, light sensors
Our Company
Easemind Technology Ltd. is established by a team of engineers and programmers specialized in industrial and telecommunication fields.
We have been in business of hardware and software development of wireless data logging devices and industrial telemetry equipment since 1989.
The business and marketing concept of the company consists of:
• Development according to the actual market needs and customer demands,
• Utilization of reliable, trust-worthy and right-to-the-edge technology,
• Turn-around product delivery and service fulfillment within time limits,
• Cost-effective solutions: the right price for the right product, and
• One Stop Solution of hardware, software and user applications
EASEMIND is now a group of companies specialized in RF wireless sensor & mobile data tracking devices for consumer and industrial sectors. Our sales offices are located in US, Hong Kong and China with manufacturing facilities in Zhejiang and Shenzhen, China.
