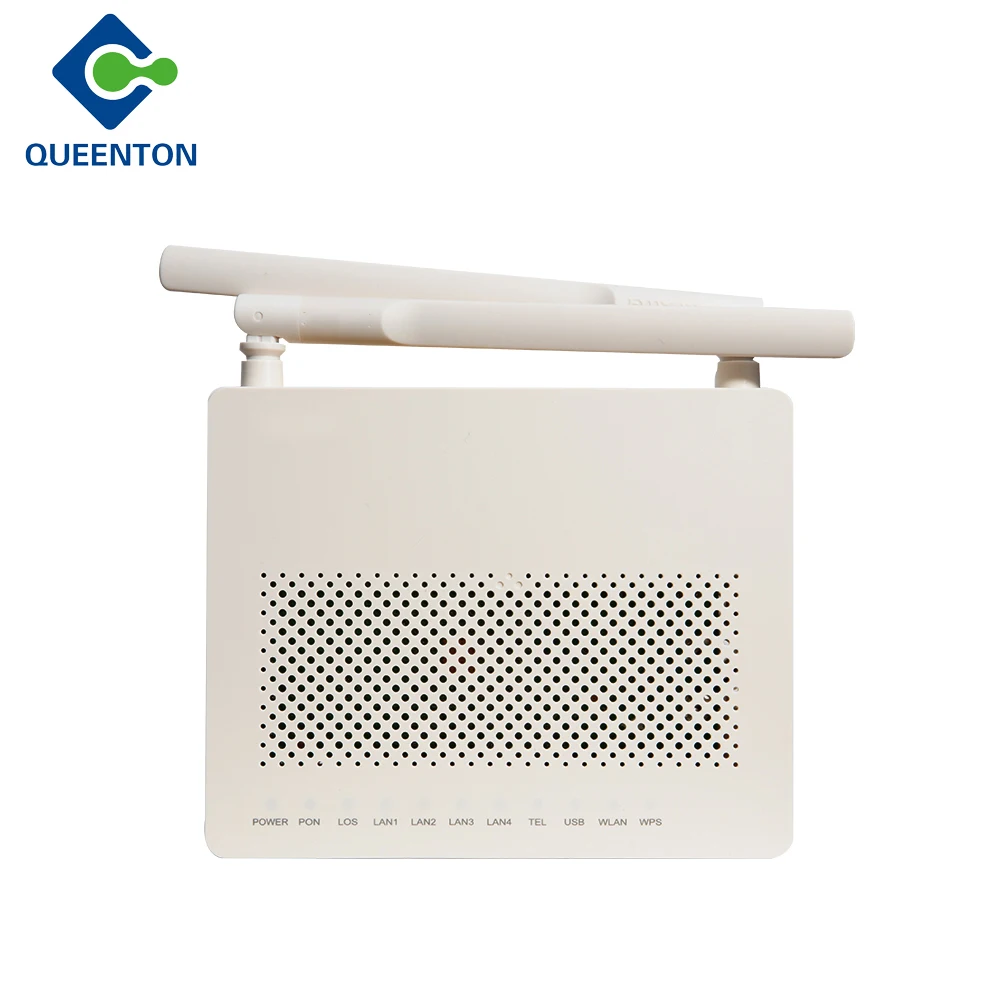

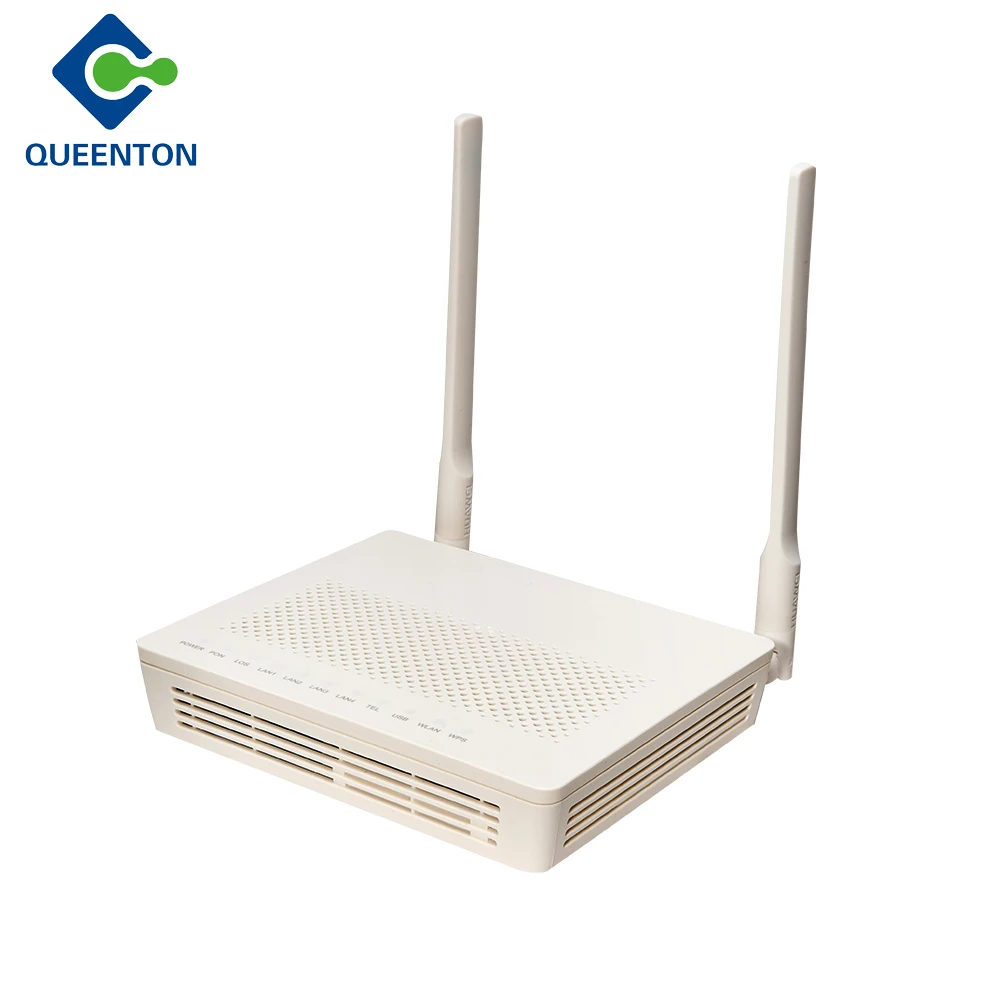

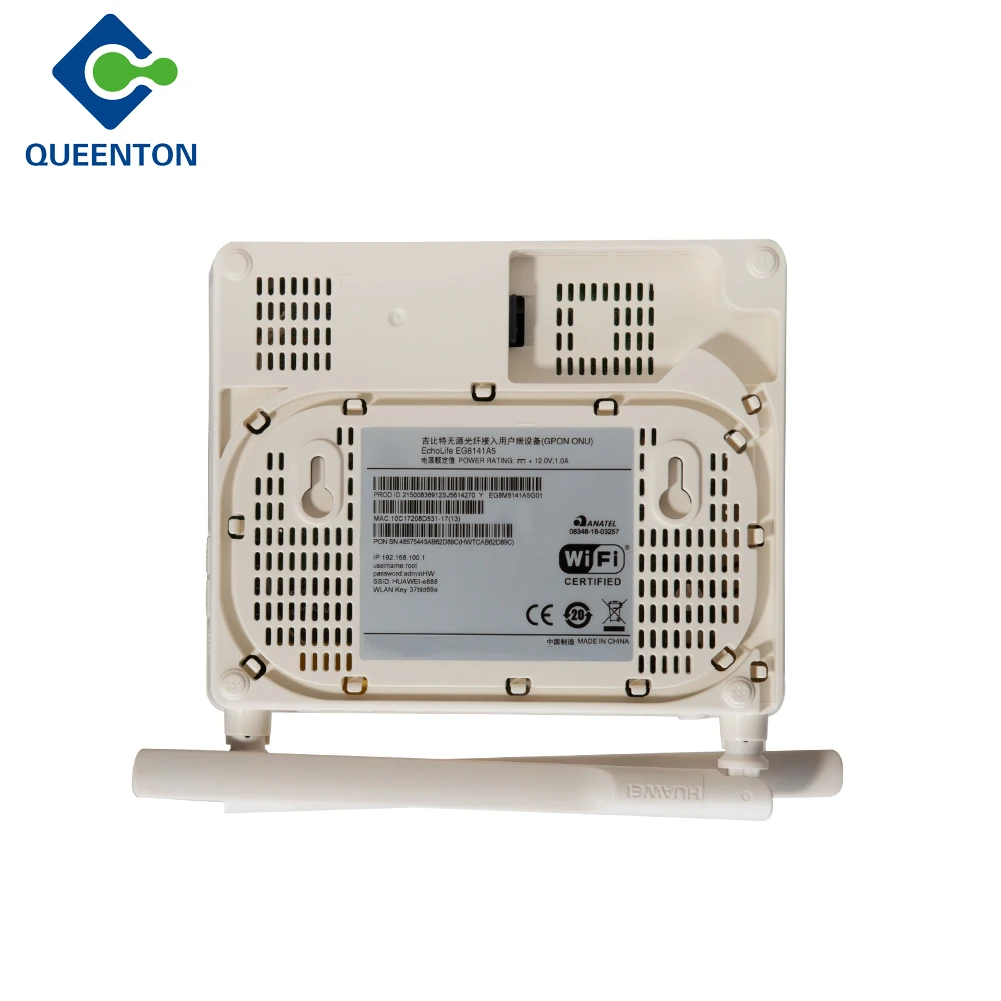

EG8141A5 5dBi WiFi ONU Queenton Ftth Wifi модемы QITON 8141A5 Gpon ONT маршрутизатор ontс антенной английская прошивка
- Категория: >>>
- Поставщик: Guangzhou Qiton Electronics Technology Co. Ltd.
Сохранить в закладки 1600379378840:
Описание и отзывы
Характеристики
EG8141A5 5dBi WiFi ONU Queenton Ftth Wifi Modems QITON 8141A5 ONU Gpon ONT Router EG8141A5 ONTwith 5dBi Antenna English Firmware
Product Description
Description:

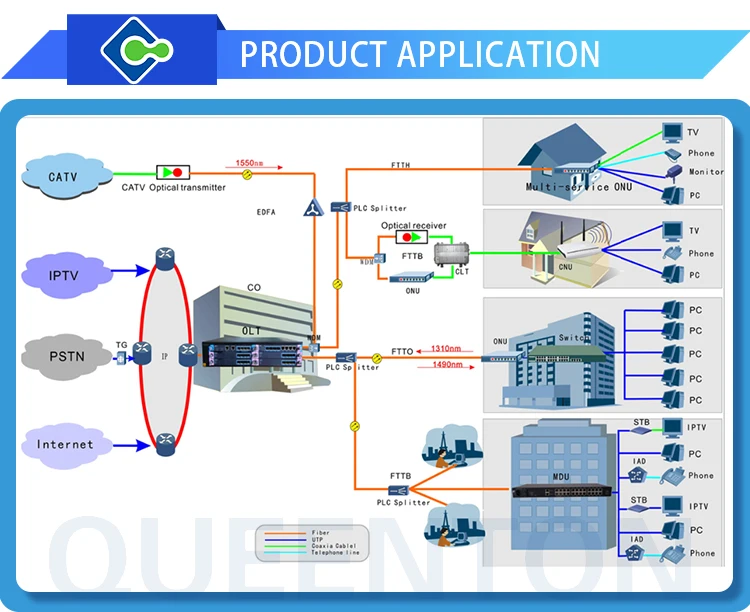

The EG8141A5 is a routing-type ONT in the all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users, and provides 1 GE port, 3 FE ports,1 POTS port and 1 2.4G WiFi port. The high forwarding performance ensures the user experience of data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.
From here,you can find the EG8141A5 user manuals and user guides, including the product description, configuration guide, and troubleshooting guide.
From here,you can find the EG8141A5 user manuals and user guides, including the product description, configuration guide, and troubleshooting guide.
Specification
Device Parameters | ||

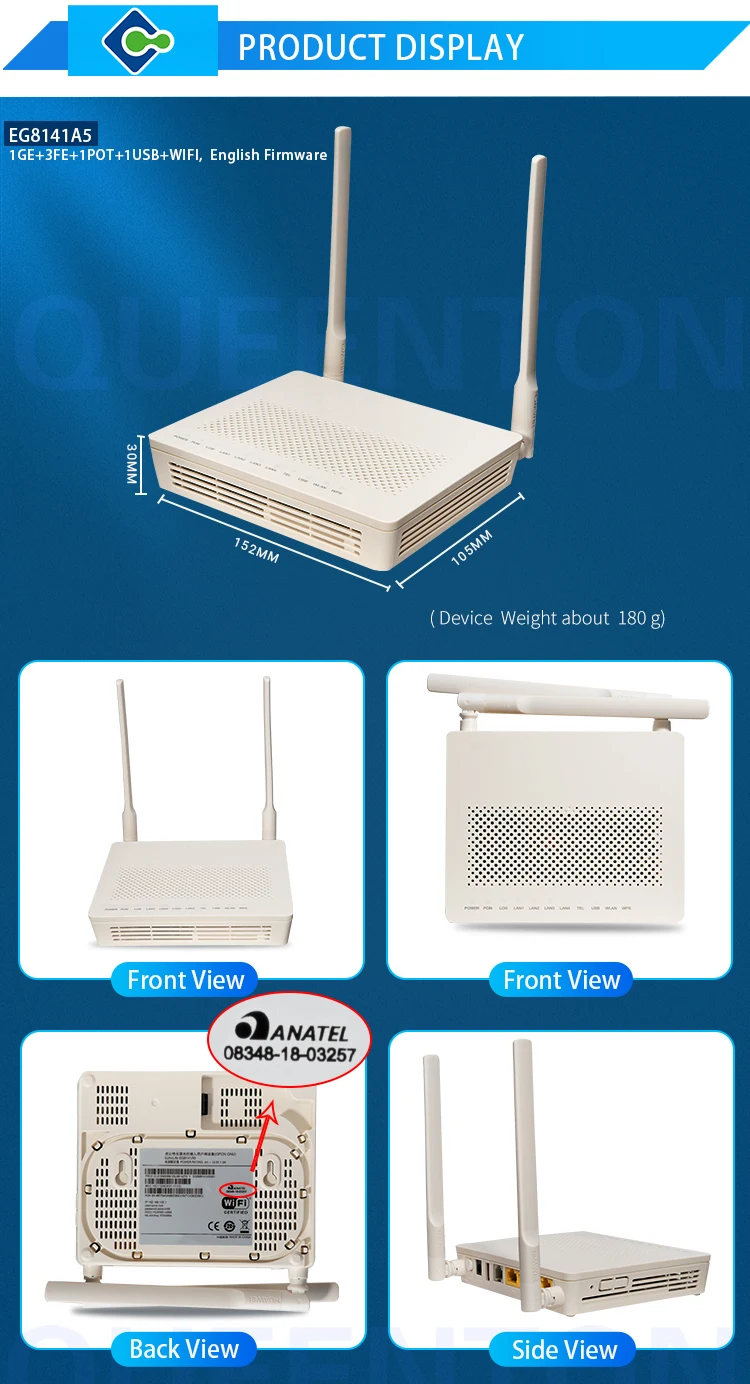

Dimensions (H x W x D) | 30 mm x 152 mm x 105 mm (without an external antenna and pads) | |
Weight | About 180 g | |
Operating temperature | 0°C to +40°C | |
Operating humidity | 5% RH to 95% RH (non-condensing) | |
Power adapter input | 100–240 V AC, 50/60 Hz | |
System power supply | 11–14 V DC, 1 A | |
Static power consumption | 3.1 W | |
Maximum power consumption | 7.15 W | |
NNI | GPON | |

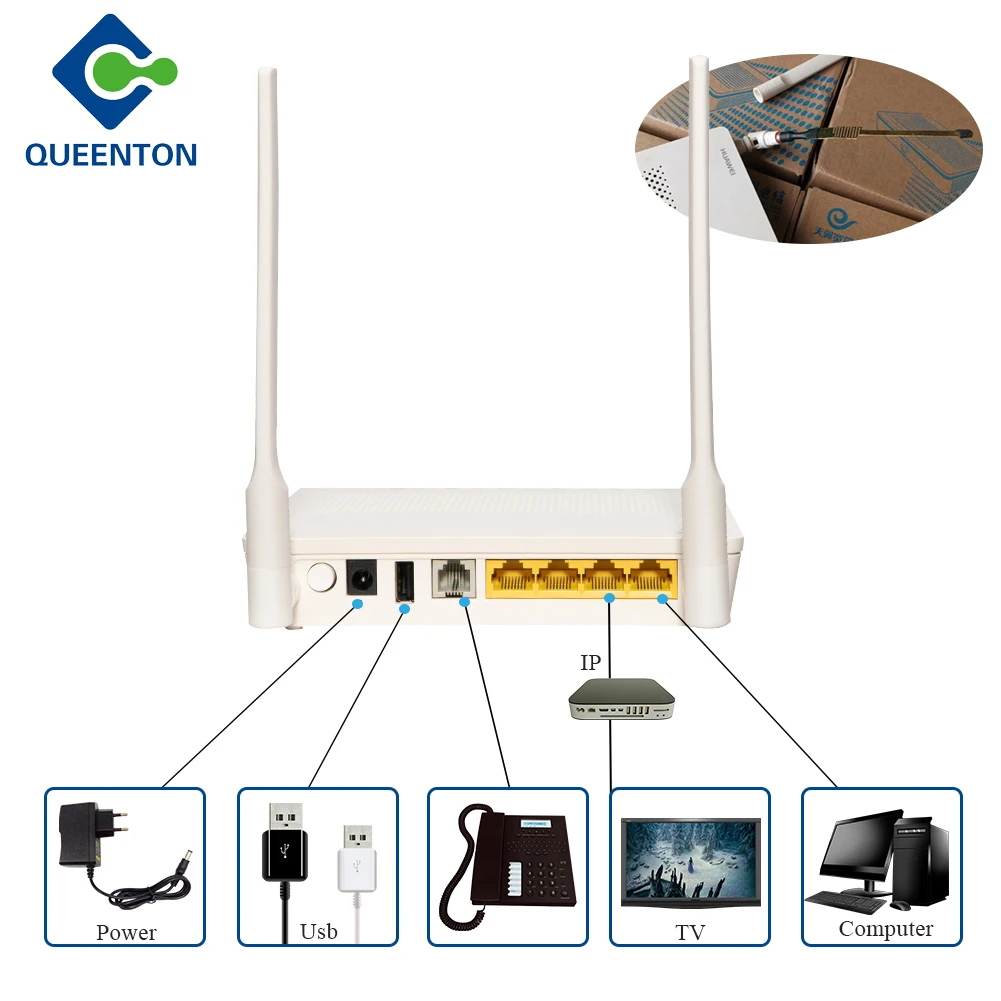

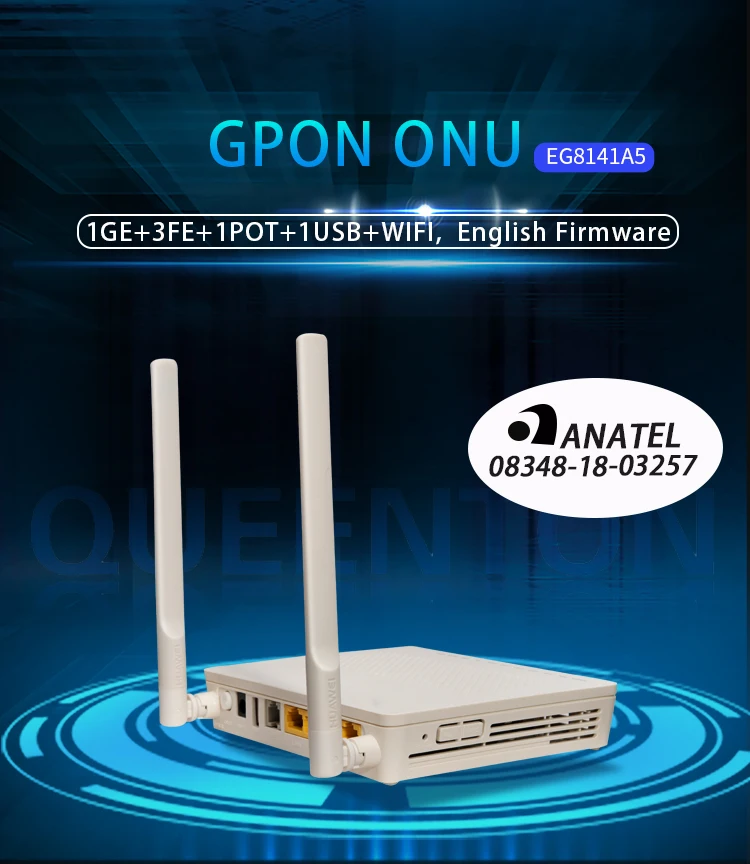

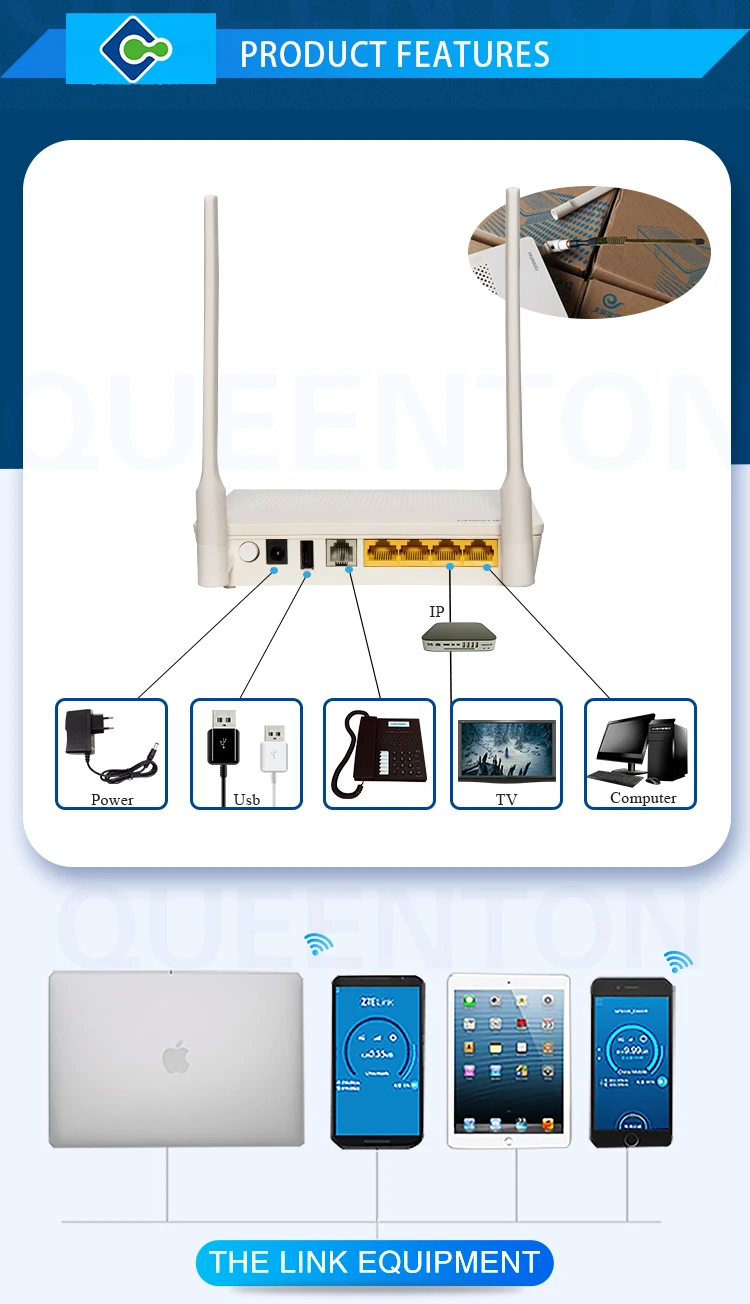

UNI | 1POTS + 1GE + 3 FE + 2.4G Wi-Fi | |
Optical Connector | SC/UPC or SC/APC | |
Indicators | POWER/PON/LOS/LAN/TEL/WLAN/WPS | |
Product Funtions
Product Function | ||
Smart interconnection | Smart Wi-Fi coverage | |
SIP/H.248 auto-negotiation | ||
Any port any service | ||
Parental control | ||
L2/L3(IPv4) forwarding: 1G uplink, 1.3G downlink | ||
Smart service | Smart Wi-Fi sharing: Portal/802.1x authentication Soft GRE - based sharing | |
Scheduled Wi-Fi shutdown | ||
Smart O&M | • IPTV video quality diagnosis | |
• Rogue ONT detection and isolation from the OLT | ||
• Call emulation, and circuit test and loop-line test | ||
• PPPoE/DHCP simulation testing | ||
• WLAN emulation | ||
Layer 3 Features | • PPPoE/Static IP/DHCP | |
• NAT/NAPT | ||
• Port forwarding | ||
• ALG, UPnP | ||
• DDNS/DNS server/DNS client | ||
• IPv6/IPv4 dual stack, and DS-Lite | ||
• Static/Default routes | ||
• Multiple services on one WAN port | ||
Multicast | • IGMP v2/v3 proxy/snooping | |
• MLD v1/v2 snooping | ||
QoS | • Ethernet port rate limitation | |
• 802.1p priority | ||
• SP/WRR/SP+WRR | ||
• Broadcast packet rate limitation | ||
Security | • SPI firewall | |
• Filtering based on MAC/IP/URL addresses | ||
Common O&M | • OMCI/Web UI/TR069 | |
• Variable-length OMCI messages | ||
• Dual-system software backup and rollback | ||
Power Saving | • Indicator power saving | |
Our Advantages
Contact Alice
Company Information
Packaging
FAQ
Q1:What is your main products?
A:Our company,Qitong supply ONUs,OLTs,Business Board,and fiber optic accessories,like fast connectors,adapters,splitters,drop cable,patch cord...
Q2. What is your payment terms?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the prepared photos of the products and packages before you pay the balance.
Q3. Can we get free samples?
A: Sorry,it is not available for initial order.
Q4:What is your terms of trade?
A:We offer EXW,FOB,CIF and CNF or as your request.
Q5:How long is the warranty?
A:ONUs and OLTs have 1 year warranty.
Q6. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your deposit. The specific delivery time depends on the items and the
quantity of your order.Large quantity will delivery faster.
Q7. Do you test all your goods before delivery?
A: Yes, we have professional engineer to test all devices before shipping.
Q8: How do you make our business long-term and good relationship?
A: 1. We keep good quality and steady price to ensure our customers benefit ;
A: 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A:Our company,Qitong supply ONUs,OLTs,Business Board,and fiber optic accessories,like fast connectors,adapters,splitters,drop cable,patch cord...
Q2. What is your payment terms?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the prepared photos of the products and packages before you pay the balance.
Q3. Can we get free samples?
A: Sorry,it is not available for initial order.
Q4:What is your terms of trade?
A:We offer EXW,FOB,CIF and CNF or as your request.
Q5:How long is the warranty?
A:ONUs and OLTs have 1 year warranty.
Q6. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your deposit. The specific delivery time depends on the items and the
quantity of your order.Large quantity will delivery faster.
Q7. Do you test all your goods before delivery?
A: Yes, we have professional engineer to test all devices before shipping.
Q8: How do you make our business long-term and good relationship?
A: 1. We keep good quality and steady price to ensure our customers benefit ;
A: 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
