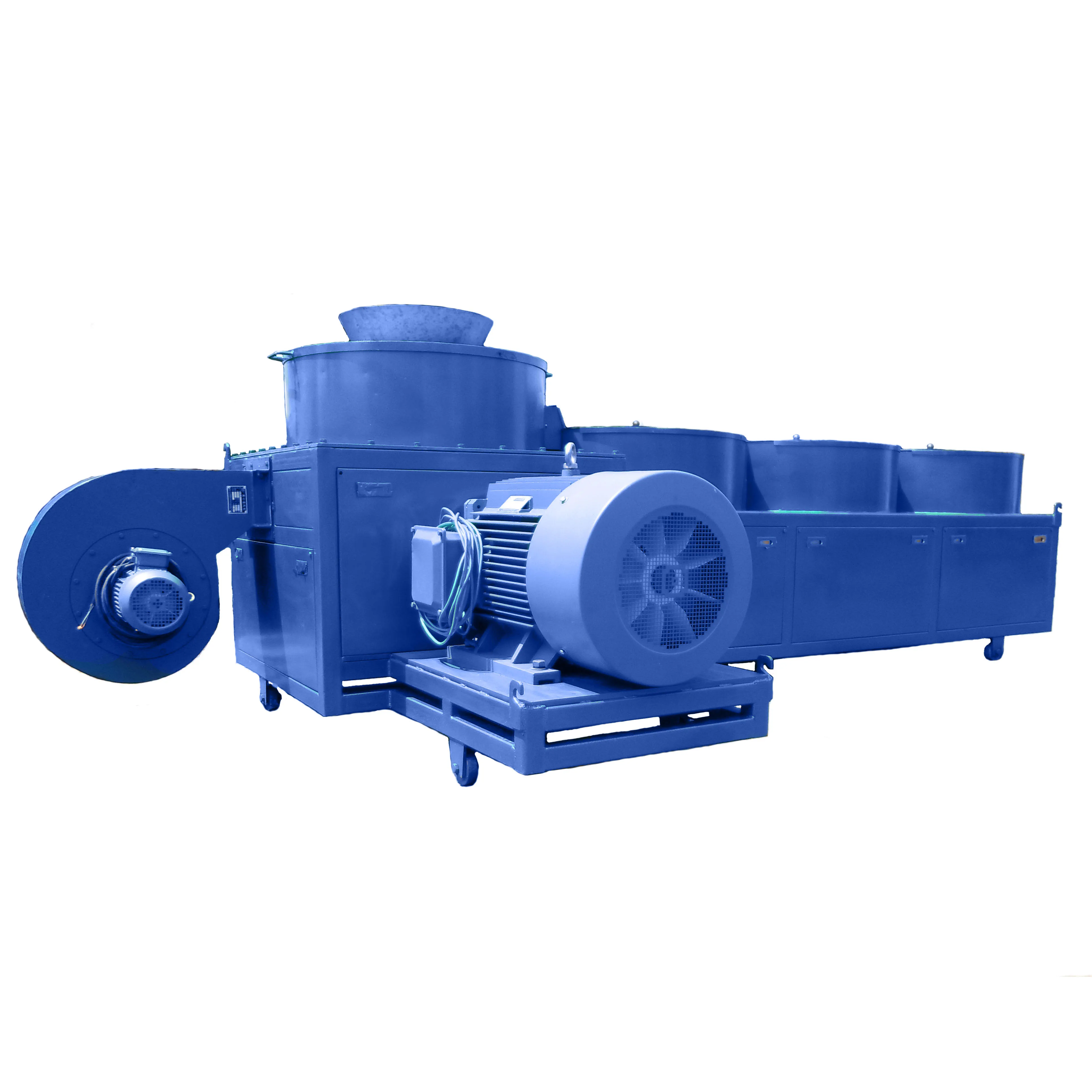

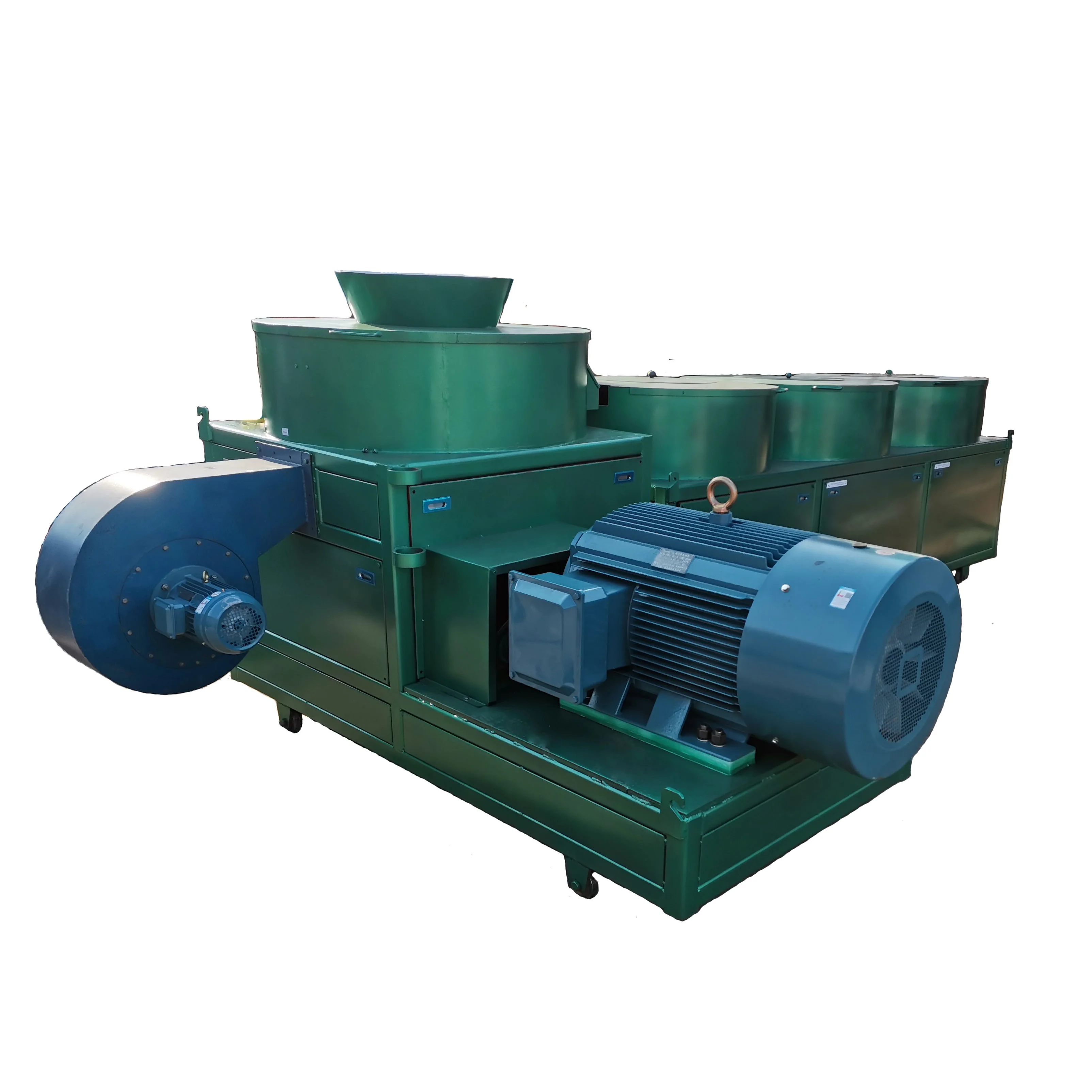

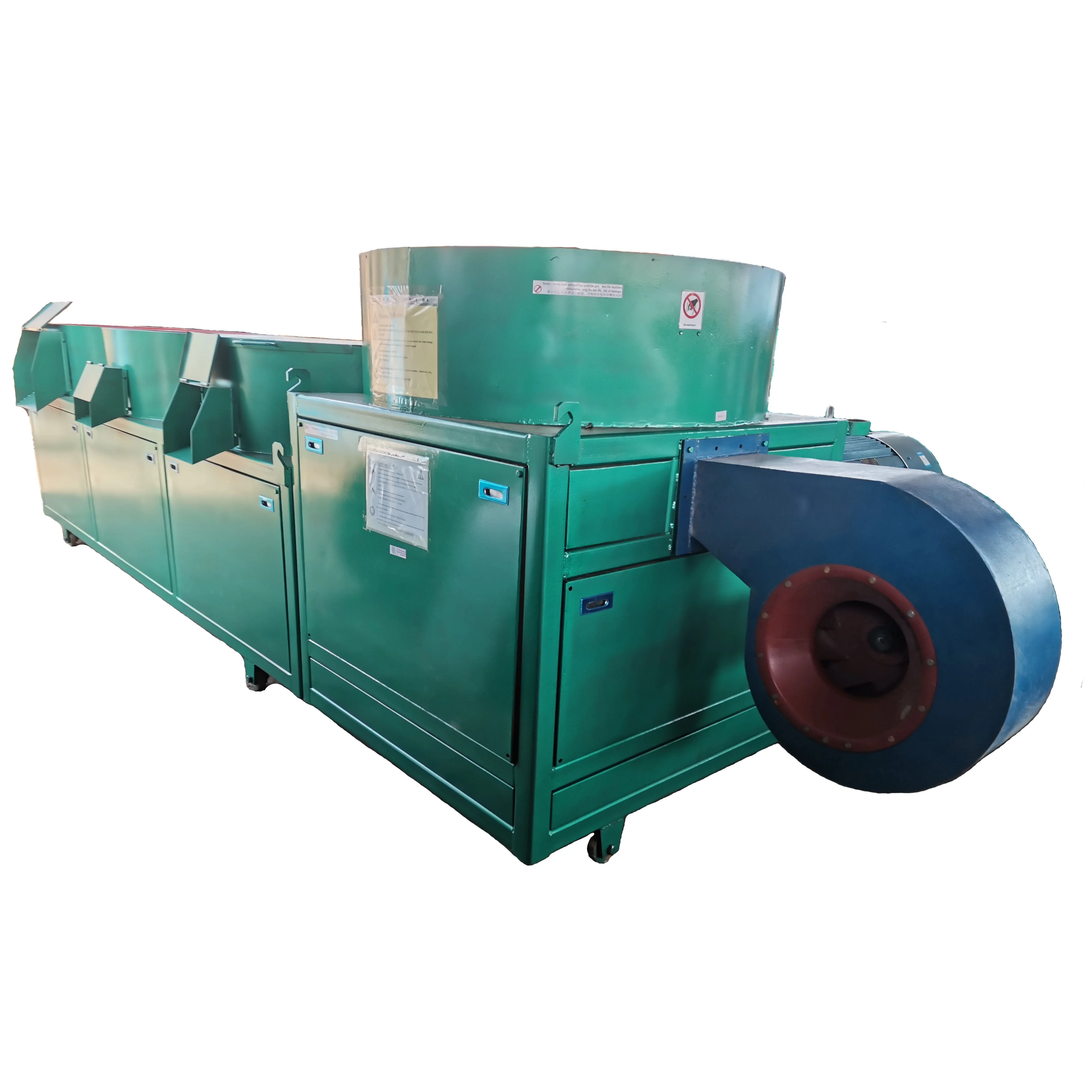

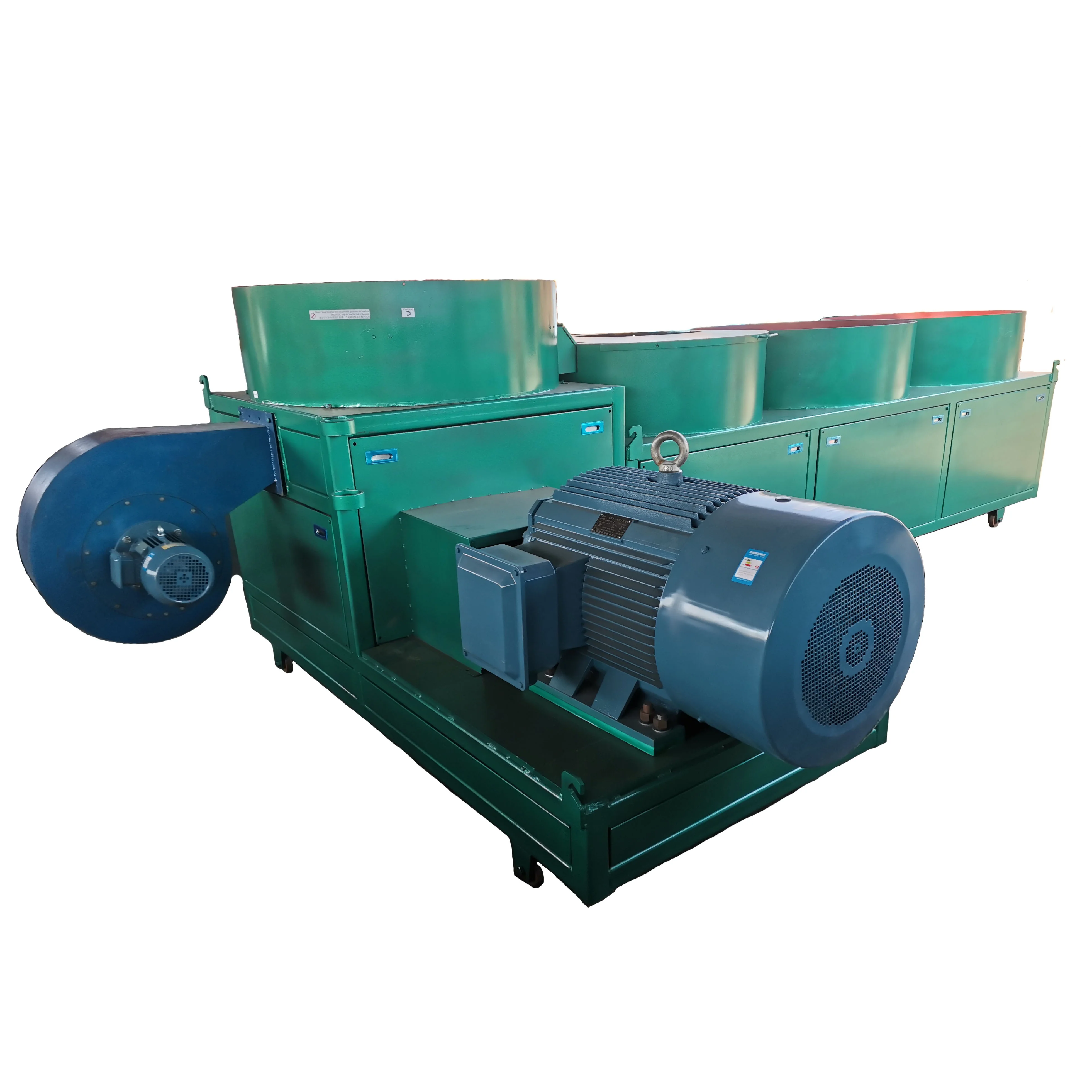

Organic fertilizer ball shape machine new organic granulator ring die for production li

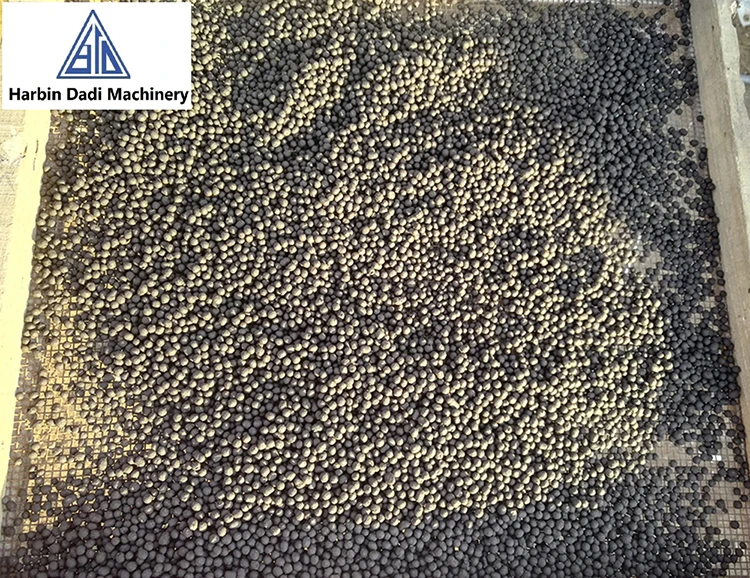

The following raw materials can be transformed into Uniform Round ball organic fertilizer granules by the organic fertilizer machine.

1) Agricultural waste: straw, rice bran, grass, dregs of beans, cotton dregs, etc.

2) Animal manure: poultry litter and animal waste, such as fish market, urine and dung of Cow, Pig, Sheep, Deer, Chicken, Duck, Geese, Goat, earthworm cast etc.

3) Industrial waste: biogas residue, palm oil residue, wine lees, vinegar residue, starch pulp, manioc waste, sugar scum, furfural residue, bean cakes, fruit residue, etc.

4) Home scrap: food waste, bones, the roots and leaves of vegetables, etc.

5) Sewage sludge, Pond sludge, Residues of urban rubbish, etc.

6) Bentonite, Diatomite, Zeolite, Lignite, Turfs/Peat, etc.

7) Organic materials mix with Mineral materials.

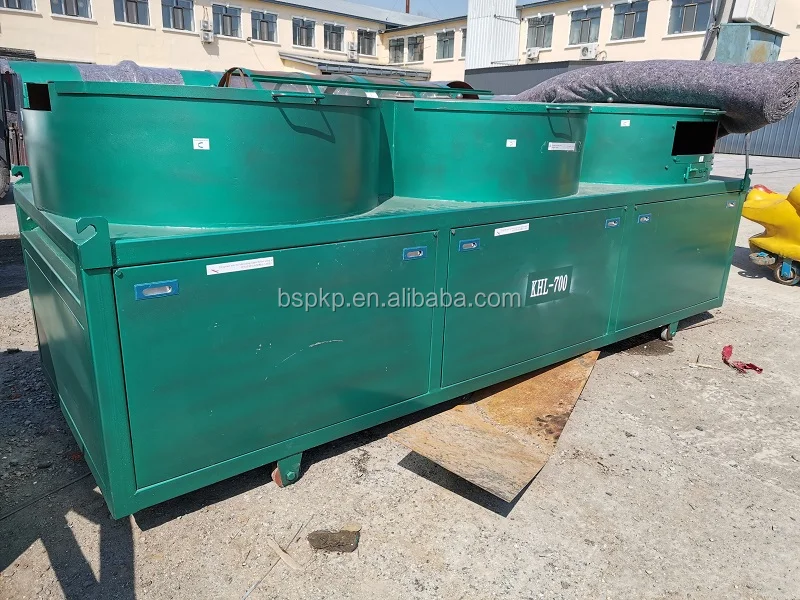

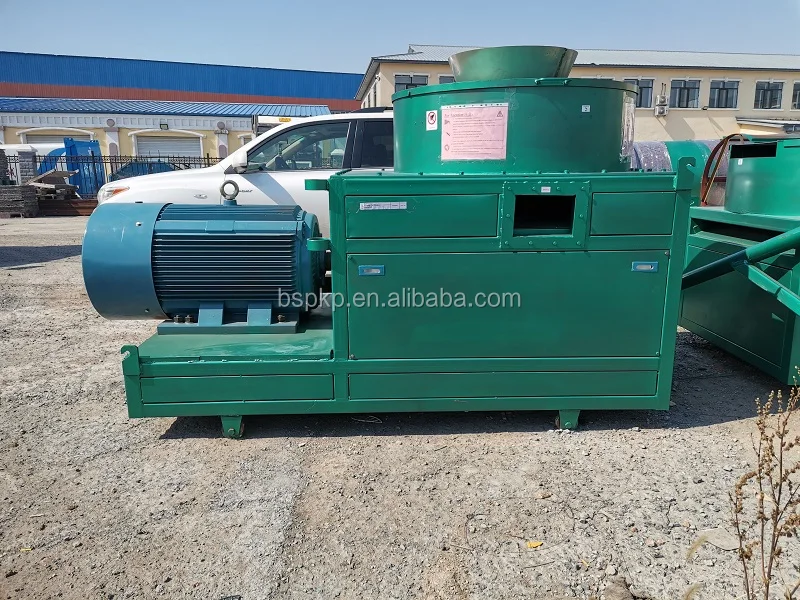

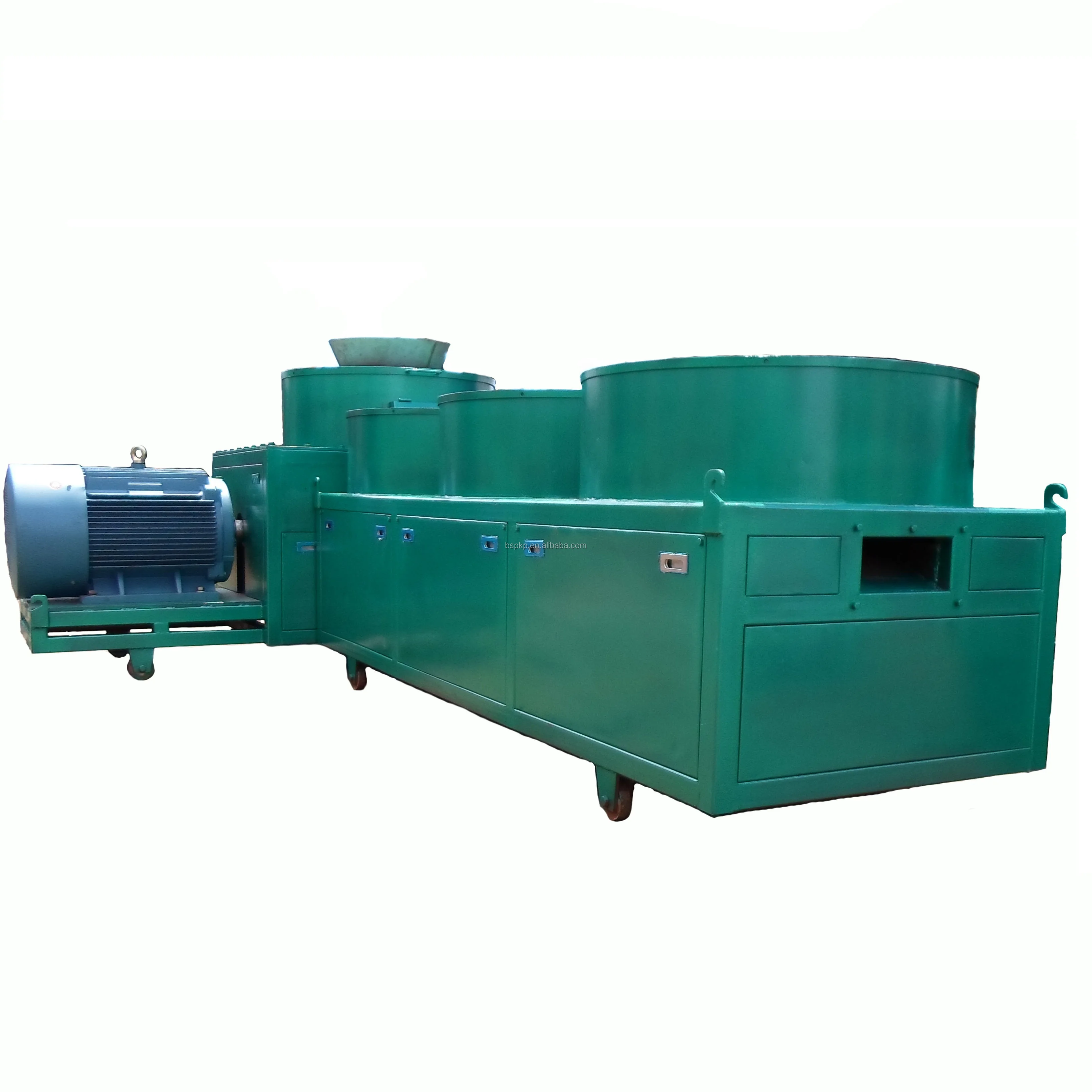

KHL-700 organic fertilizer granules making rounding machine

Features of organic fertilizer machine

There are many kinds of granulator to make organic fertilizer granules, such as Disc pan granulator, Rotary drum granulation machine, Double roller granulating machine, but Ring die system Granulator machine is becoming more and more popular. Why?

That’s because the Ring die fertilizer making machine has many advantages.

1) High rate of Finished product. More than 90%.

Granulation rate can reach as high as 100%, all the raw material can be made into round ball granules.

One-time production of uniform spherical granules, few returning materials.

2)  Uniform spherical granules, Narrow particle size distribution.

The diameter of granules can be controlled easily. Different sizes of granules can be produced to meet your own needs as long as you change the diameter of the ring die.

3) Good hardness, strong enough for packaging.

The granules will keep the round ball shape in the storage and transportation process, won't collapse, that's because the granulator machine has a good compressive capacity.

4) Easy operation and maintenance.

The labour do not need skill or experience. Just need to adjust the moisture content of raw material before granulation process.

5)Not need binder materials.

The organic content can reach to 100%, which is really pure organic material granulation.

6)Save energy consumption.

Not need to dry the raw material before granulating because the required moisture content is 30–35%.

Moisture content reduced during granulation process, so it can save drying cost.

7) Running stable, High efficiency, Large productivity.

Working Principle of organic fertilizer machine

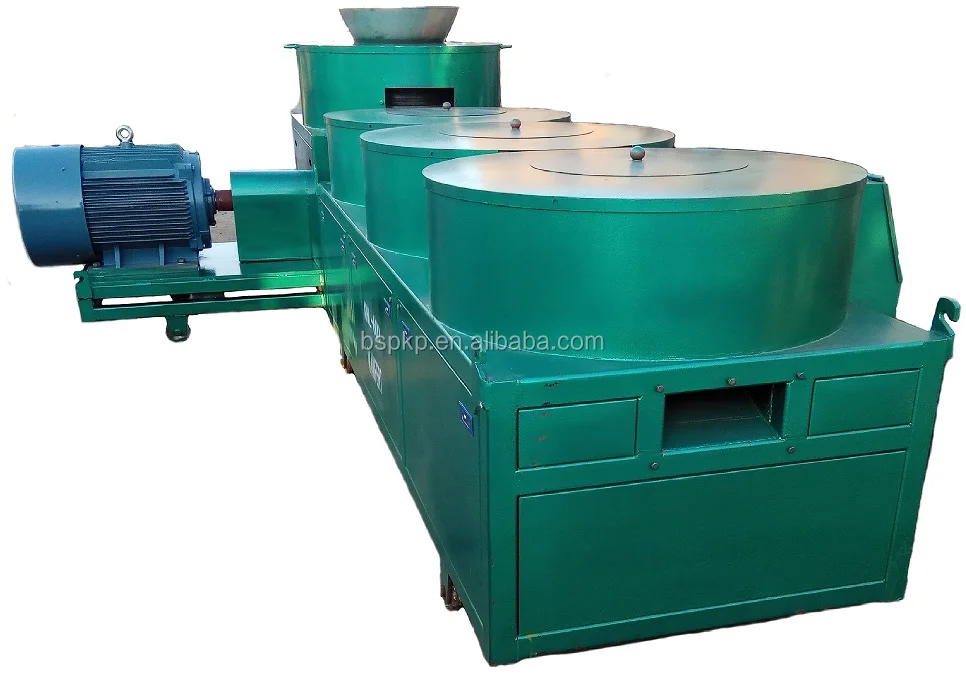

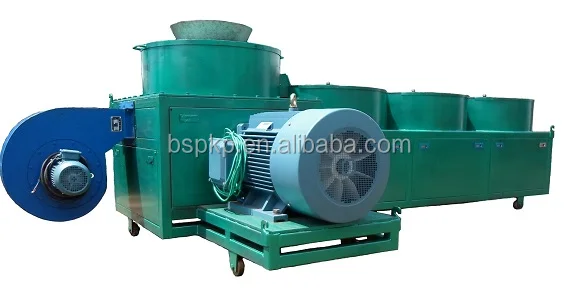

The organic fertilizer granulator includes two parts.

1) The Pellets part with Ring die and rollers system :

The raw material goes into working chamber and fall on the ‘dump tray’, the raw materials throw into the ring die by centrifugal effect ; The ring die and rollers system turning drive by reduction gears & transmission which energy from motor . The pressure come from ring die and rollers system running ,cylinder form are forced extrusion from ring die hole ,which cutting into small pellets as required by cutting line .

2) Balling Parts are three rotation disk :

The pellets fall onto the disk in the drum ,by high-speed rotating disk throw onto the wall of drum with circumferential movement , the granules in a circular motion at the same time also in radial rotation motion due to centrifugal effect. Mutual friction make the granules with edges and corners into balls gradually due to granules’ moving . At this moment , ball pellets gradually floating on the top , final granules overflow along with quantity of granules increased in the drum .

 Main products:

Organic fertilizer granulator machine

Complete organic fertilizer Production line

Animal feed pellet machine

Biomass fuel pellet machine

Rotary drum dryer

Rotary drum cooler

Crusher

Mixer

Grading screen machine

Weighing & Packaging machine

Our service

We provide the integrated customer service system.

1) Pre sales: Consulting, Designing, Equipment Selection, Technology Discussion.

2) During sales: Programs and Drawings Confirmed, Installation Guide, Equipment Debugging.

3) After sales: Testing Acceptance, Customer Training, Technical Exchanges, Regular Visits.

We promise

1) All the products purchased in our company are guaranteed to keep in good repair for one year.

2) If quality problems happen in guarantee period, our company will maintain for free. And provides technical support for life.

After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
