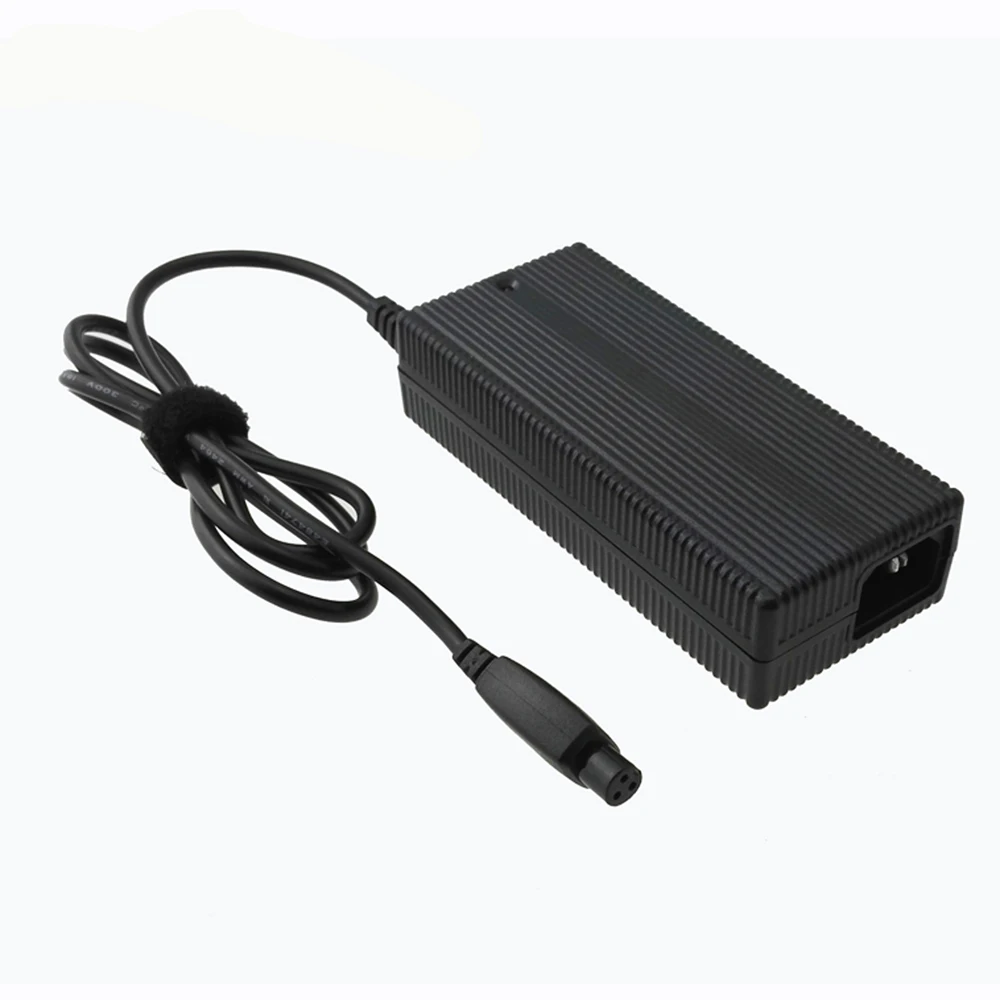

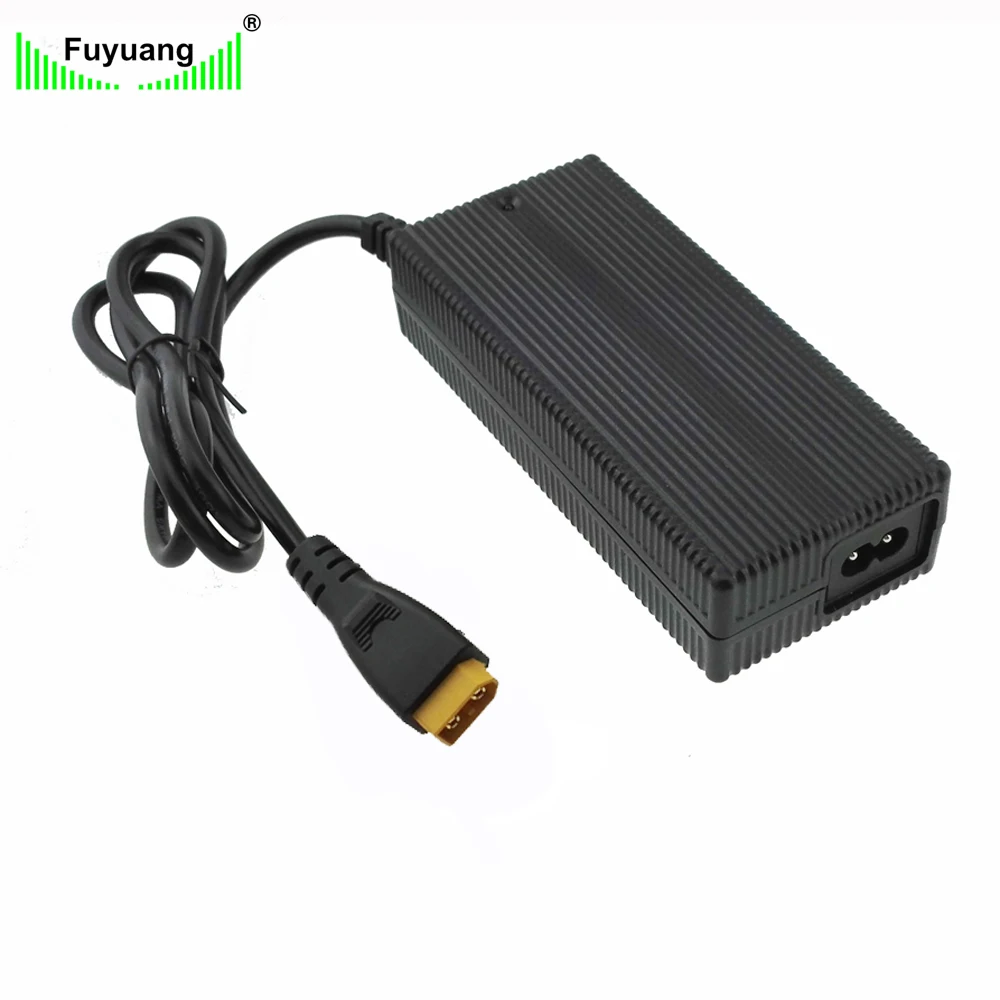

Профессиональное зарядное устройство Fuyuang UL ROHS av для dc ebike 42v литий ионный 10s 36 5 v 2a lifepo4

Сохранить в закладки 1600379667624:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики

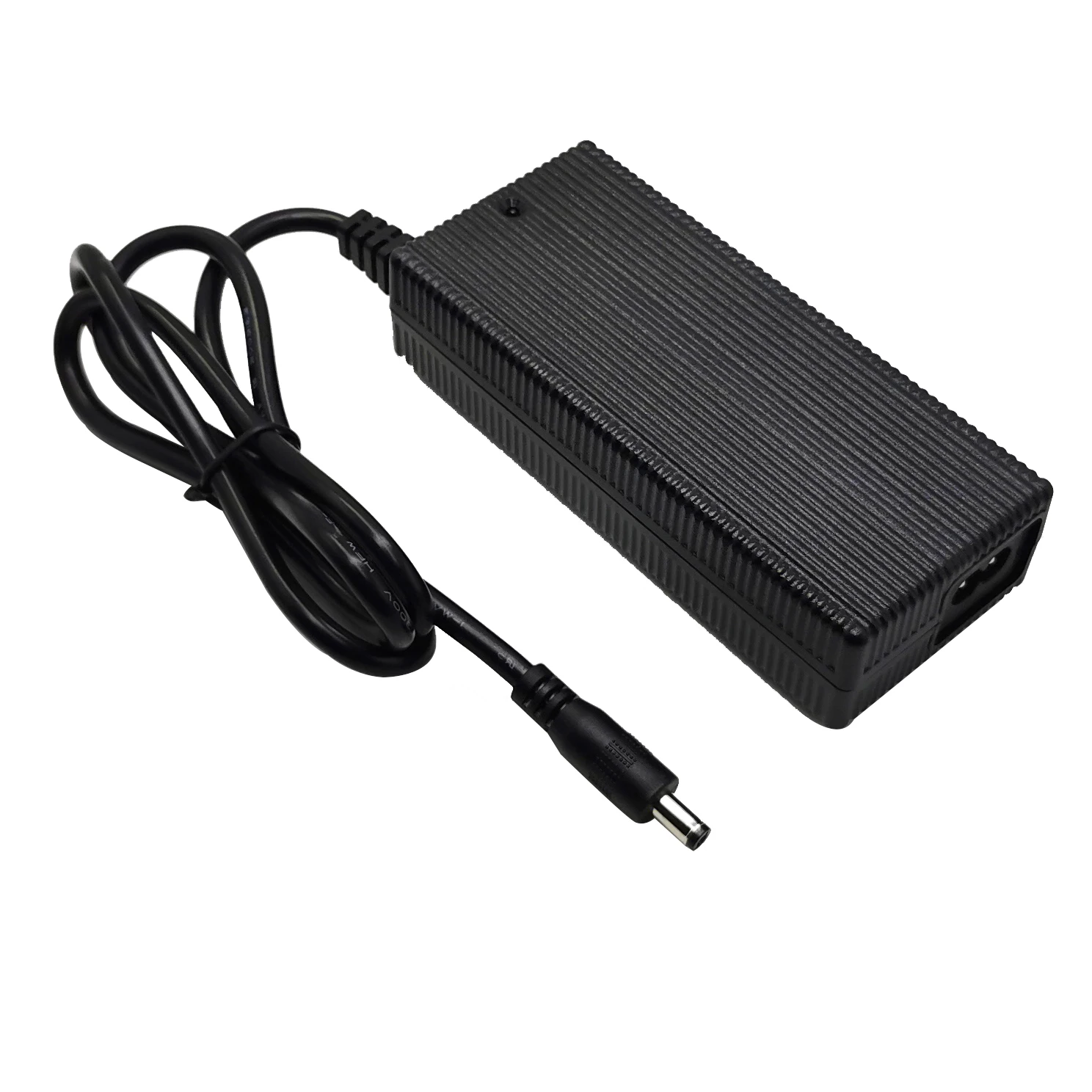

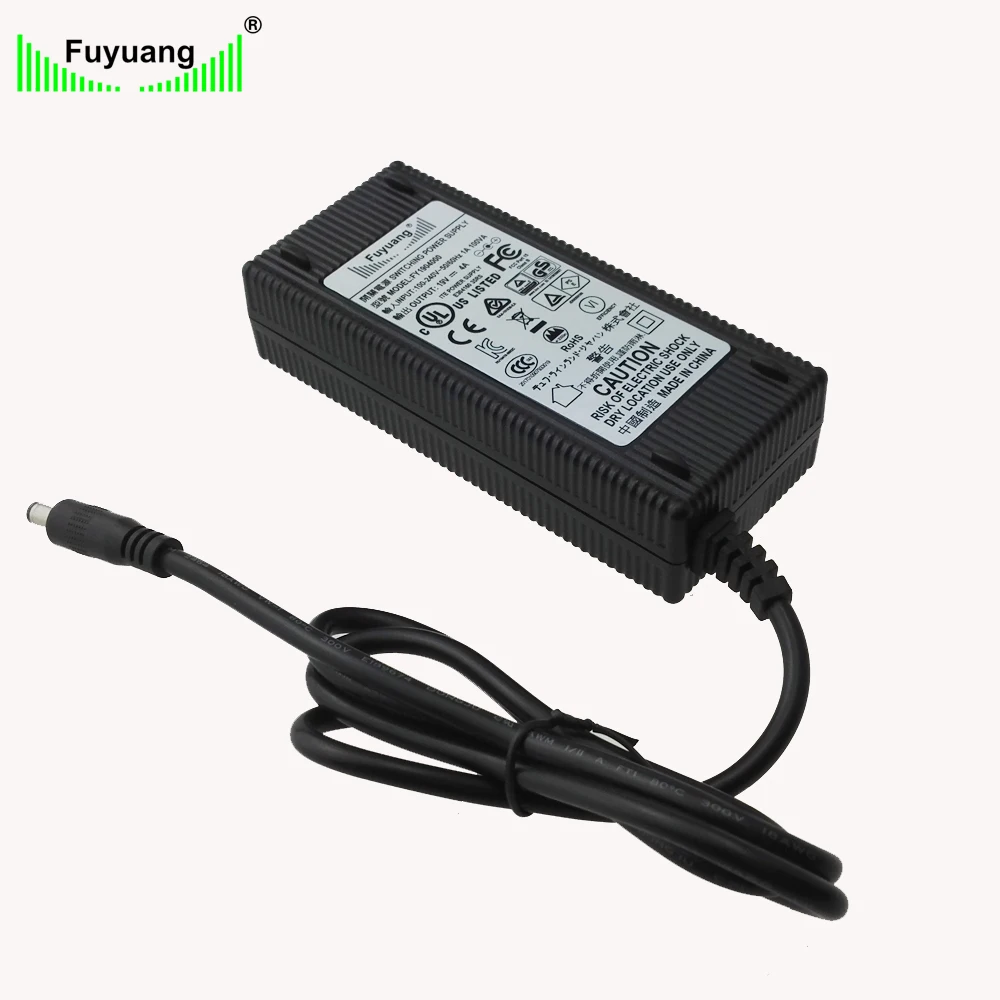

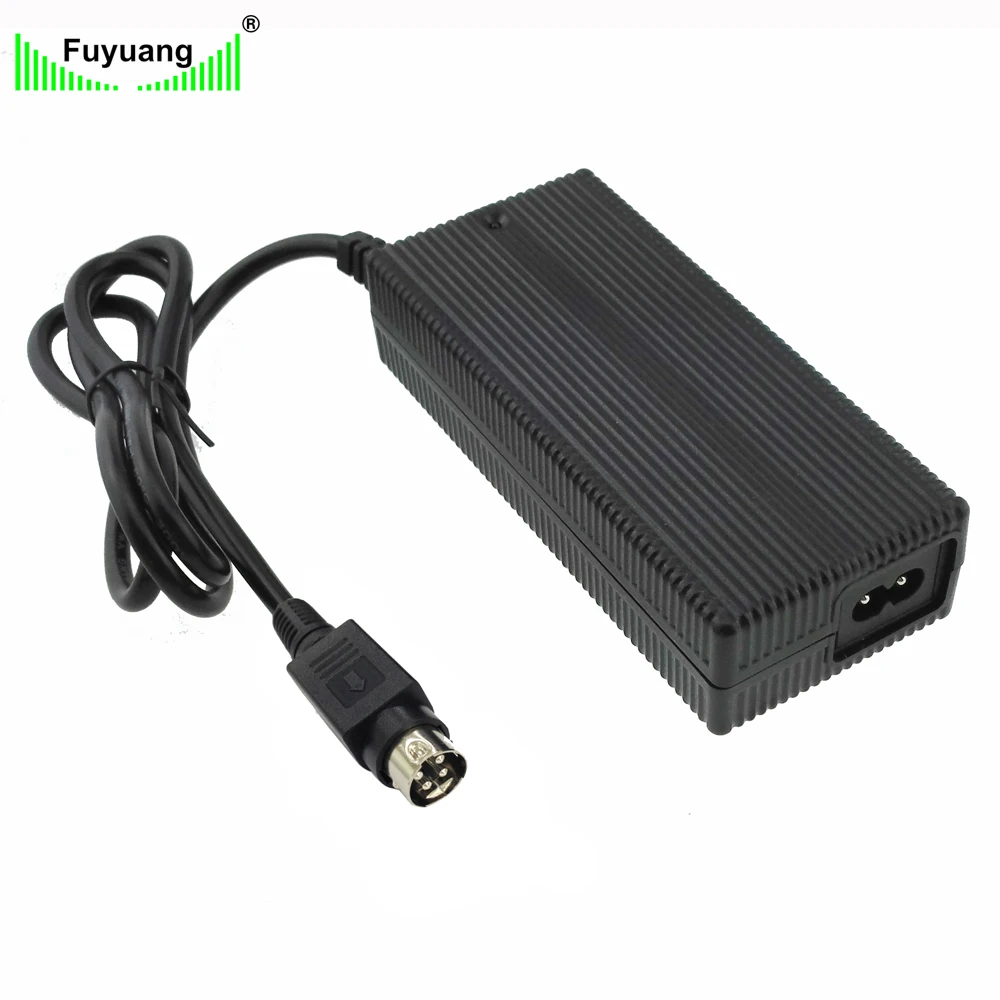

Fuyuang UL ROHS professional av to dc ebike 42v lithium ion 10s 36.5v 2a lifepo4 battery charger








Produce Description

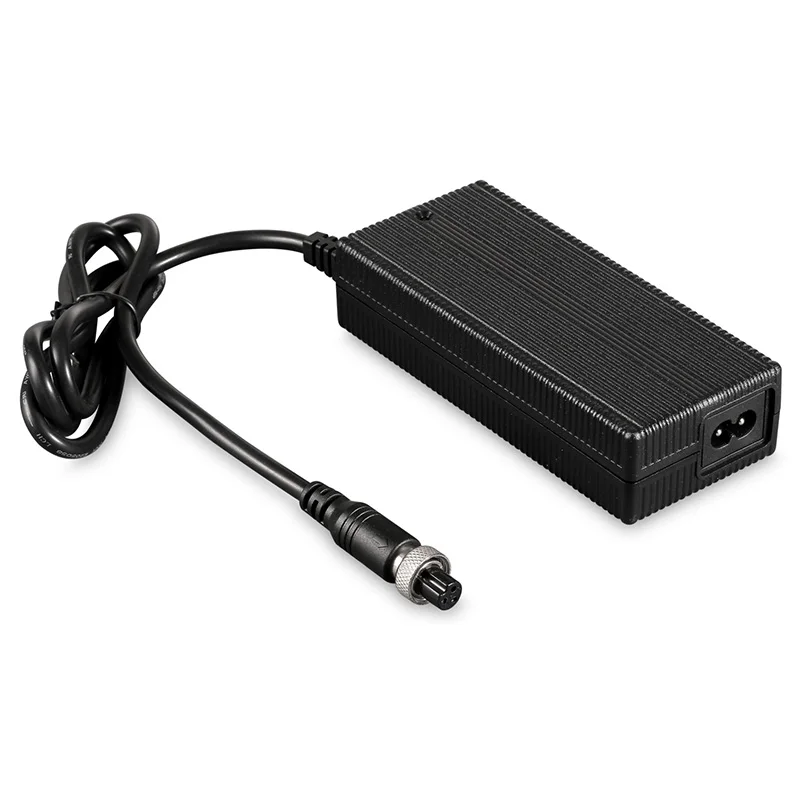

80W



Fuyuang UL ROHS professional av to dc ebike 42v lithium ion 10s 36.5v 2a lifepo4 battery charger



Features



·Universal AC input / Full range



·Plastic or metal case optional



·Cooling by free air convection



·MTBF:30000 hours



·Provide 3 years warranty



·Install fuses on both ends of the Input and Output for double safety

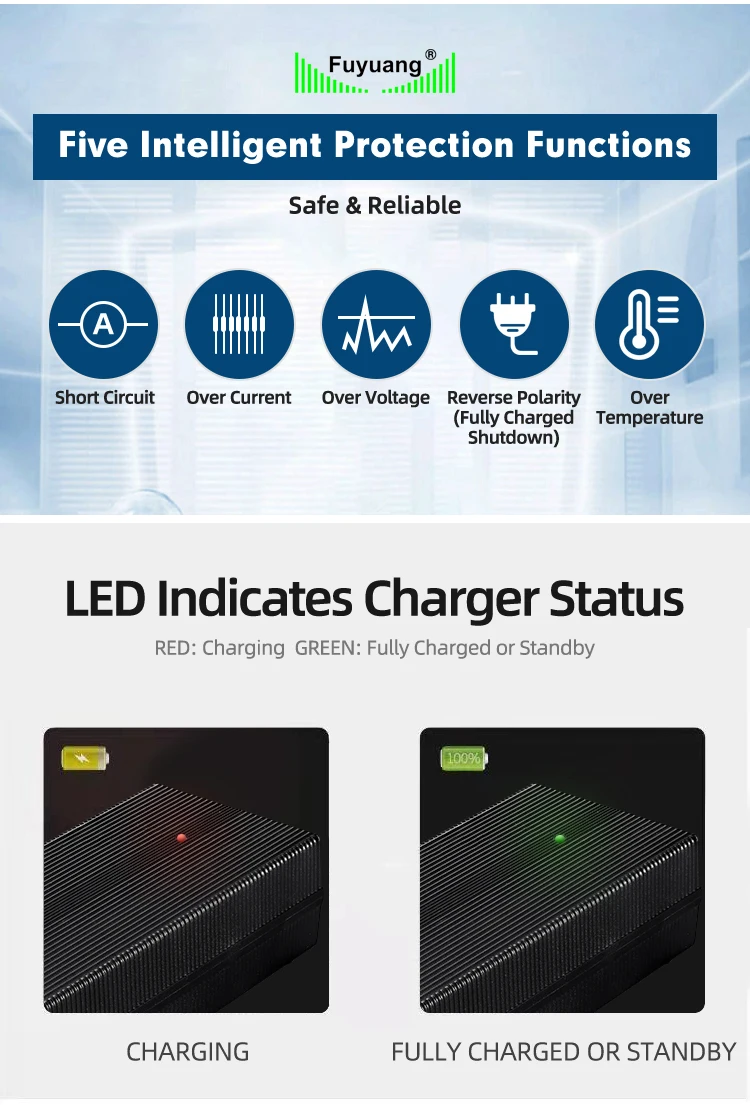

·Protections:Short circuit / Over load / Over voltage / Over temperature



·Certification:UL,ETL,CUL,GS,CE,BS,SAA,KC,PSE,CB,FCC,EMC,RoHS,REACH



SPECIFICATION



OUTPUT



MODEL NO.



FY3602000



OUTPUT VOLTAGE



42V



OUTPUT CURRENT



2A



OUTPUT POWER



84W



PFC (MIN.)



0.9



INPUT



VOLTAGE RANGE



100 ~ 240VAC



FREQUENCY RANGE



50 / 60Hz



TEMPERATURE RISING



CASE 75 ℃ MAX .℃ FOR RATED OUTPUT



EFFICIENCY (MIN)



88%



DIELECTRIC WITHSTAND TEST



5mA 3000VAC FOR 60 SECOND



PROTECTION



OVER LOAD



THE PRODCT INCLUDES CURRENT FUSE TYPE 48V 3A LOCATED WITHIN INPUT CIRCUIT



SHORT CIRCUIT:



CAPABLE OF WITHSTANDING CONTINUOUS SHORT CIRCUIT AND RECOVER AUTOMATICALLY



SAFETY          & EMC



SAFETY STANDARDS



UL62368  EN60335



EMI



CISPR22 CLASS



INSULATION



B



OTHERS



MTBF



THEVDESIGN AND CONSTRUCTION OF THIS PRODUCT EXHIBIT A MINIMUM MEAN TIME BETWEEN FAILURE OF 30000 HOURS FULL RATED LOAD OPERATION AT 25 ℃



CONNECTOR



PLUG



5521, 5525, RCA, XLR, XT60, M16, C14.



CABLE



UL2464 SPT-1, UL1015, SJT, UL2468, 1185 18# 1M length

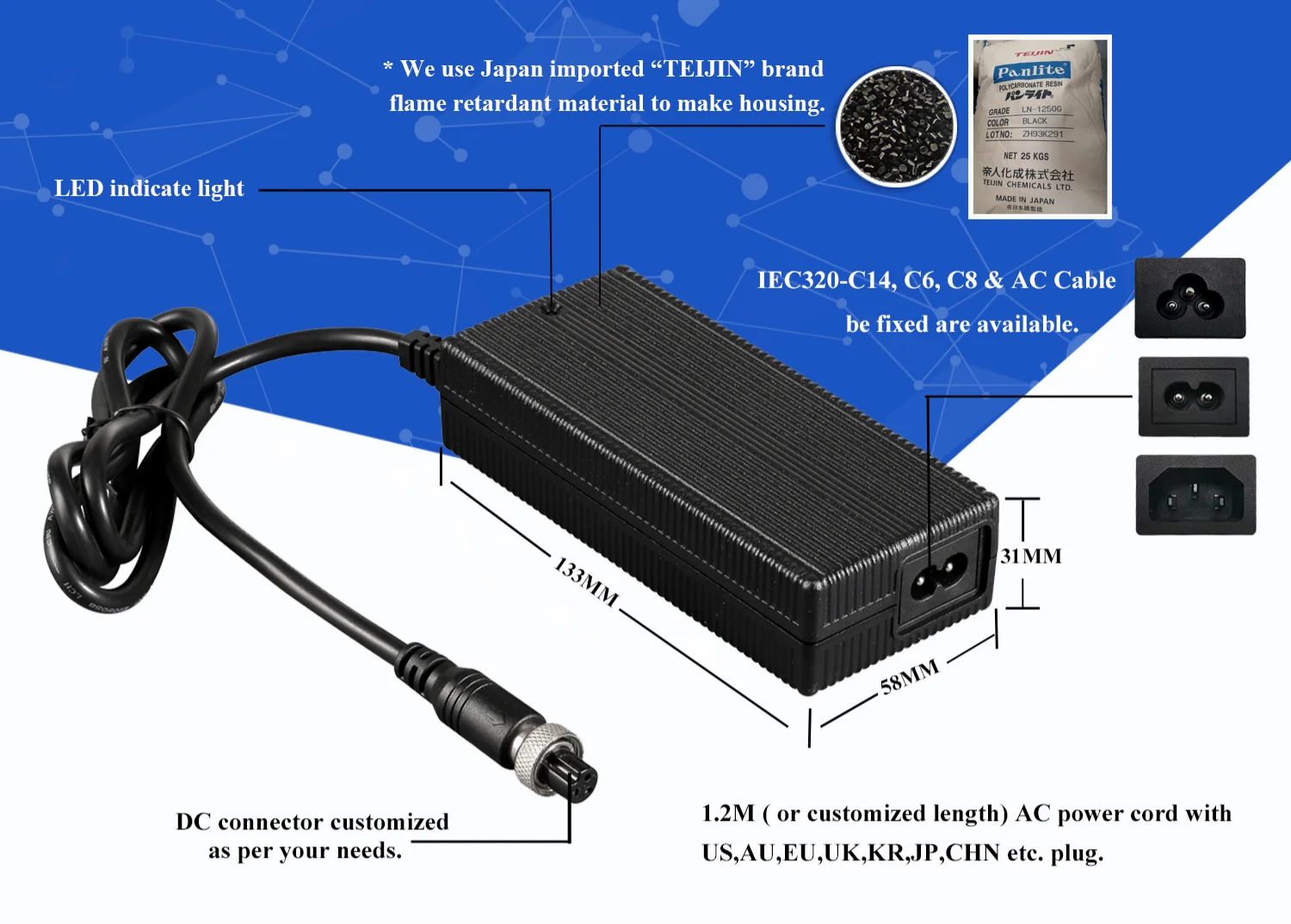

80W 3





23_06

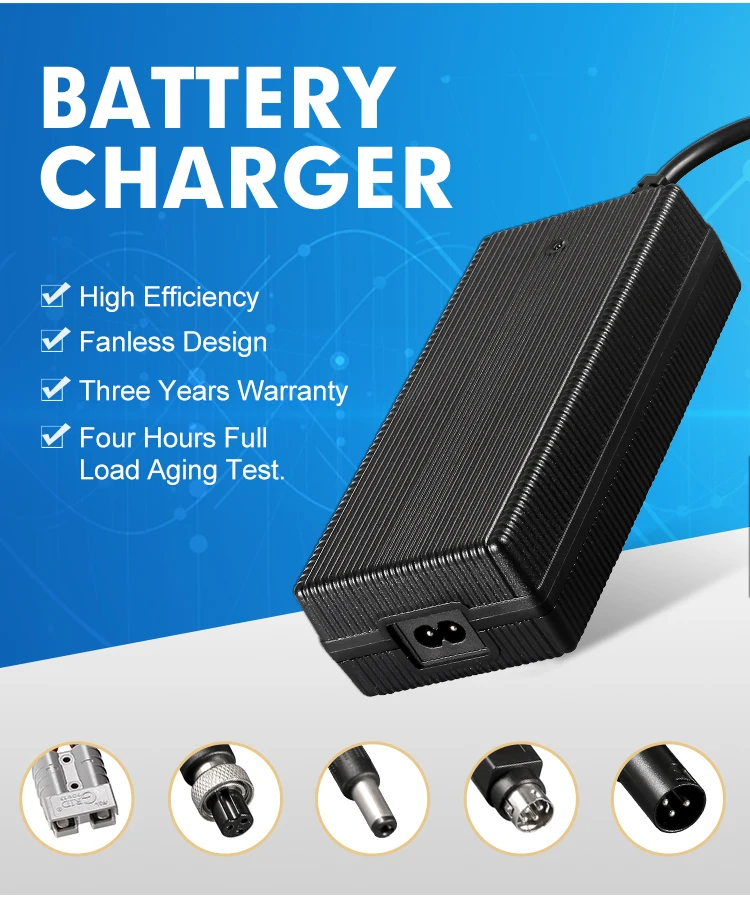

23_02

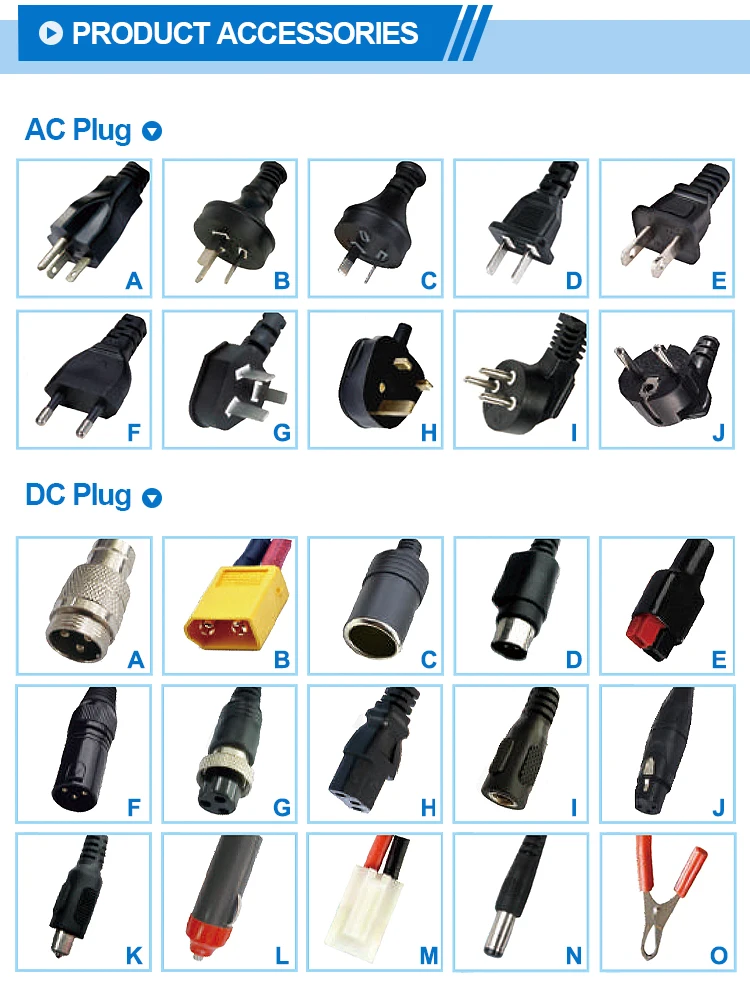

23_07





DC plug customized as per your demands


5.5*2.1mm / 5.5*2.5mm / 3.5*1.35mm / 4.0*1.7mm / 2.5*0.7mm / 7.9*5.0mm / 4 Pin / Cigarette Lighter, Anderson Connector, Canon Connector, XLR Connector, Inline Plug, XT60, TX40/60, M8/M12/M16, etc.



04



Fuyuan Certificates:




*Fuyuan Electronic Co.,Ltd is certified by ISO 9001, ISO 14001 and QC 080000.
* Fuyuang Battery Chargers are approved by UL1012 & IEC-60335: Include UL, FCC, cUL, CE, RoHs, CB, GS, SAA, RCM, PSE, CCC,KC Certificates.
* Fuyuang Power Adapter are approved by UL62368 & IEC 62368: Include UL, FCC, cUL, CE, RoHs, CB, GS, SAA, RCM, PSE, CCC,KC Certificates.


* Fuyuang LED Power Supply are approved by UL1310 & IEC-61347: Include UL, FCC, cUL, CE, RoHs, CB, GS, SAA, RCM, PSE, CCC,KC Certificates.







23_09

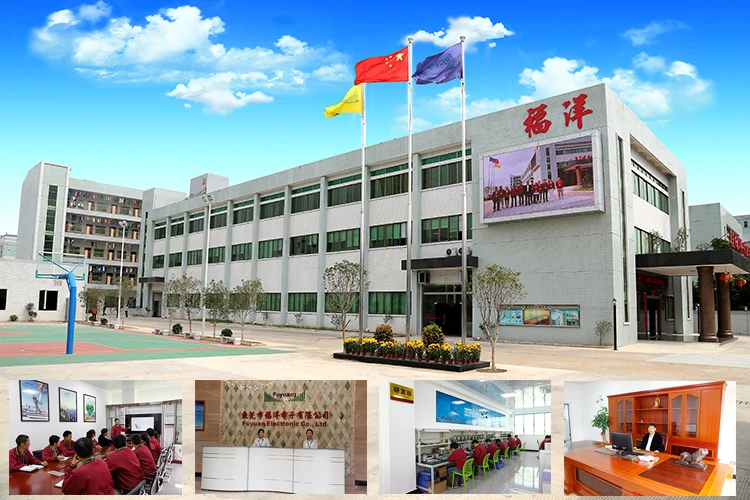

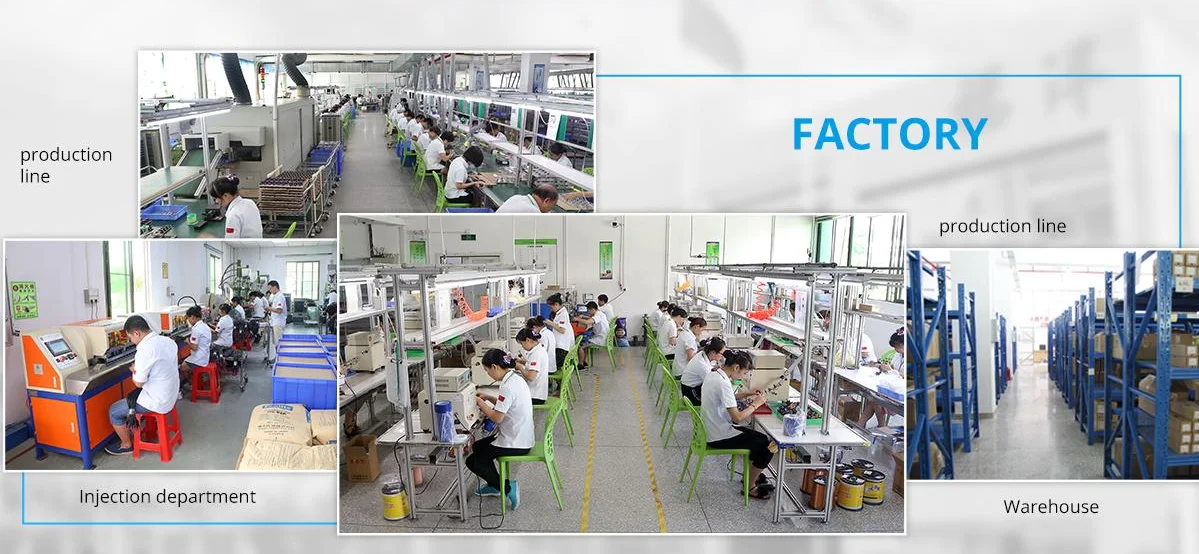

Company Information


Fuyuan Electronic Co.,Ltd, established in 2005, is a professional manufacturer of Battery Charger, Power Adapter and LED Power Supply.



  • Set up in 2005 .

  • Located in Guangdong China.

  • We have a self-built factory of 8000sqm ,existing staff 200 people.

  • Certified by ISO 9001: 2015, ISO14000: 2015 and QC080000: 2015.

  • With a 30-year senior engineer team, the company is integrated with product design, R&D and production as a whole, it only takes

  • 10 days to design and develop a brand-new product.









At present, Our 60 watt to 1000 Watt high power products take the leading position in the switching power supply industry, our company is the preferred supplier for Batteries, Electric Vehicles, LED Lights, Medical Equipment, Robots, Audio, Electrical Tools etc. Industries.





paste-pic-dp_uuid_h67xm


_02 (2)





Why Chooes us



  • Self-built factory, with 20 years of professional switching power supply production experience.

  • 30 Years Experience Senior Engineer Team, can provide excellent design customization services.

  • Currently, more than 20,000 samples have been producing for 5,000 companies around the world.

  • Focus on product quality and service, providing a 3-year warranty.

  • All products have passed global certification (UL,ETL, CUL, GS, CE,SAA,KC,PSE,CB,FCC,EMC,ROSH,REACH).

  • Fanless high-efficiency design, meet CEC, DoE Level VI, Energy Star, ErP stage 2, CoC Tier 2, NRCan & GEMS.

  • Passed ISO9001:2015. ISO 14001:2015 & QC080000:2015 system certification.


23_12


23_13





Packaging & Shipping




PACKING DETAILS:




1. Regular package.
2. Individual package.

3. Customized package is accepted.






SHIPPING WAY:




1. By express/courier(Door to Door): FedEx / DHL/UPS,etc.

2. By Air or by Sea shipment.

3. Customers specifying freight forwarders and negotiable shipping methods.

0



FAQ



Fuyuang FCC UL PSE KC 2a 36v lithium ion bottle battery pack charger for ebike


Q1: What is the warranty of your products?
A: We offer 3 years guarantee for our Battery Chargers, Power Adapters, and LED Power Supplies at the same time if the products were damaged undesigned, we are willing to replace them unconditionally.

Q2: What kind of battery charger you can offer?
A: We can manufacture Lithium Battery Charger, Lead-acid Battery charger, LifePo4 Battery Charger, and NiMH Battery Chargers within a range of 5w-500w.

Q3. Do you have some new products coming?
A: We have 30 years of experience in the production of switch power supply company, at present, the main goal is to high-power switching power supply design and production, 800W battery chargers and adapters have been applied for certification, can put into production soon.

Q4: Will each of your products tested before shipment?

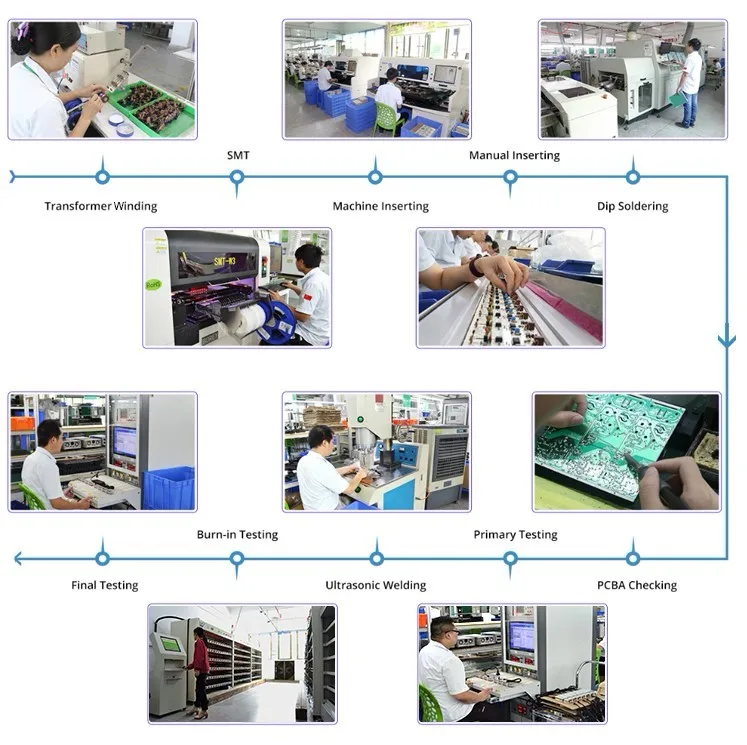

A: Yes, each of our Battery Chargers, Power Adapters and LED Power Supplies will be strictly tested before shipping. The last four processes of testing are Open Frame Performance Testing--- Plastic Housing Integrated 4-hour Aging Testing-- Drop Testing-- Final Performance Testing---Packaging.

Q5: What certifications you have?
A: Our company have been certified by ISO 9001:2015. ISO 14000:2015, QC 080000:2015; Our Battery Chargers. Power Adapters and LED Power Supplies are passed UL, FCC,CUL,CE,RoHs,CB,TUV/GS, SAA,RCM,PSE.KC,CCC.

Q6: What's the lead time?
A: Sample :3-5 days. Mass production: 15-20 days, depends on the order quantity.

Q7: How do you ship the goods and how long does it take?
A: We usually ship by DHL, UPS.FedEx, TNT, etc. It usually takes 4-5 days to arrive. By air, by sea are also acceptable.


Q8: Could you customize the electric bike battery charger for us?
A: Yes, we support both OEM & ODM.
