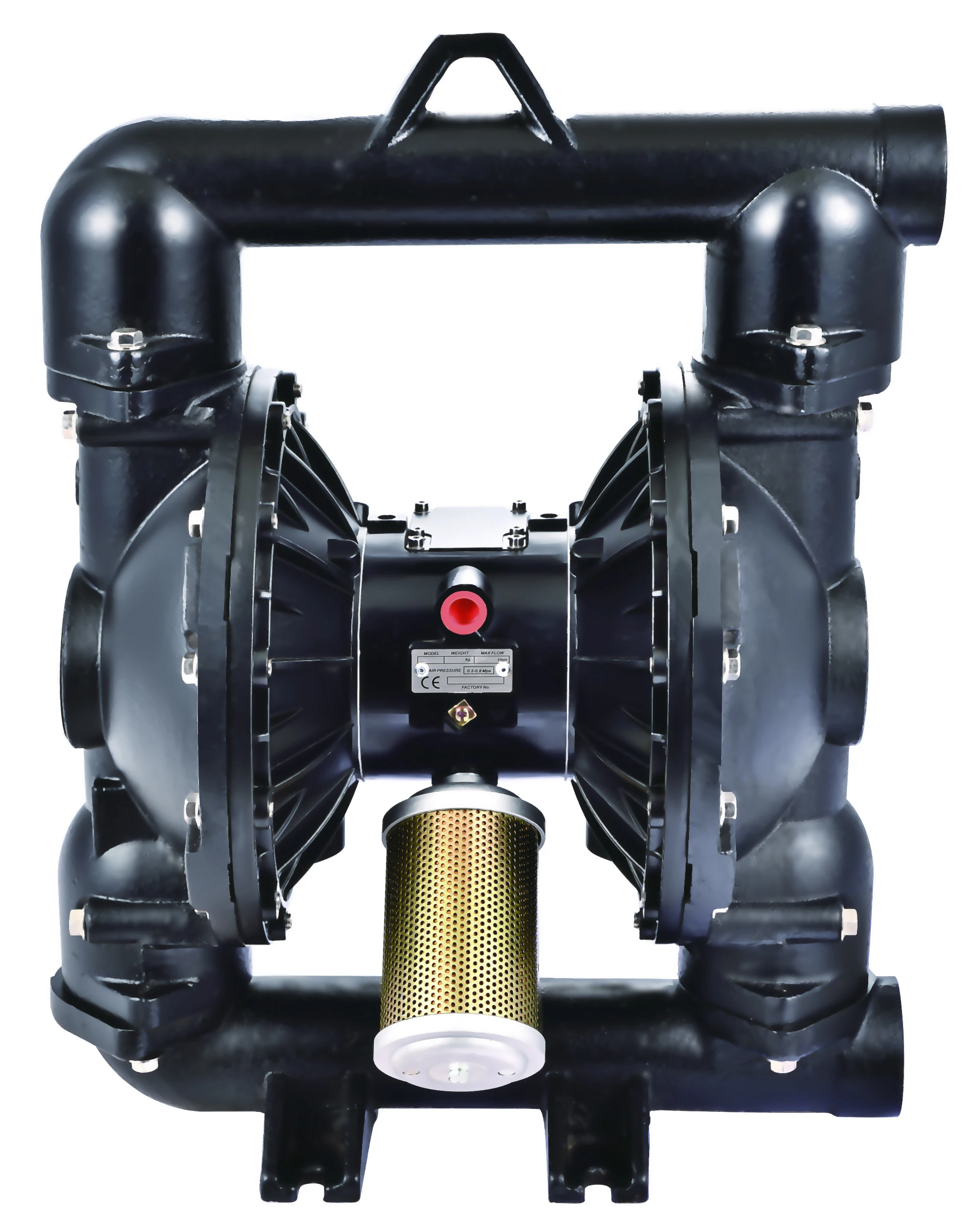

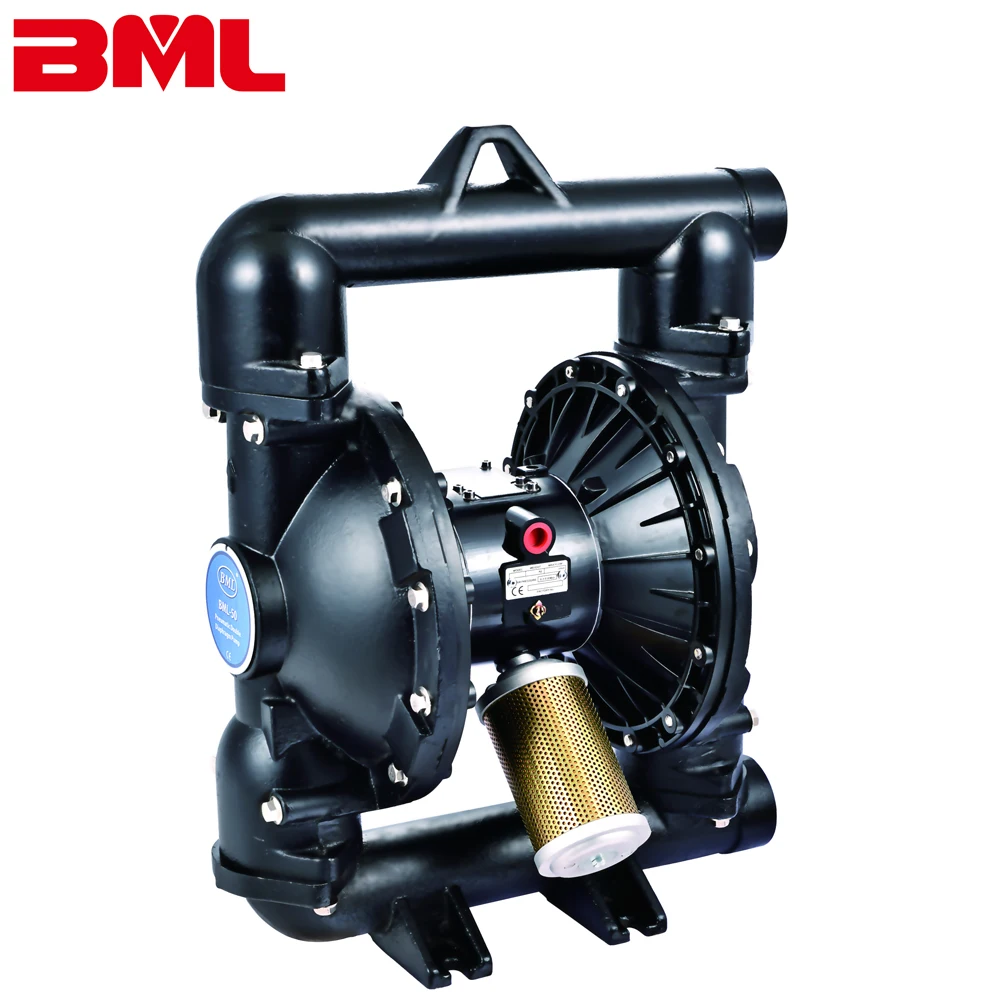

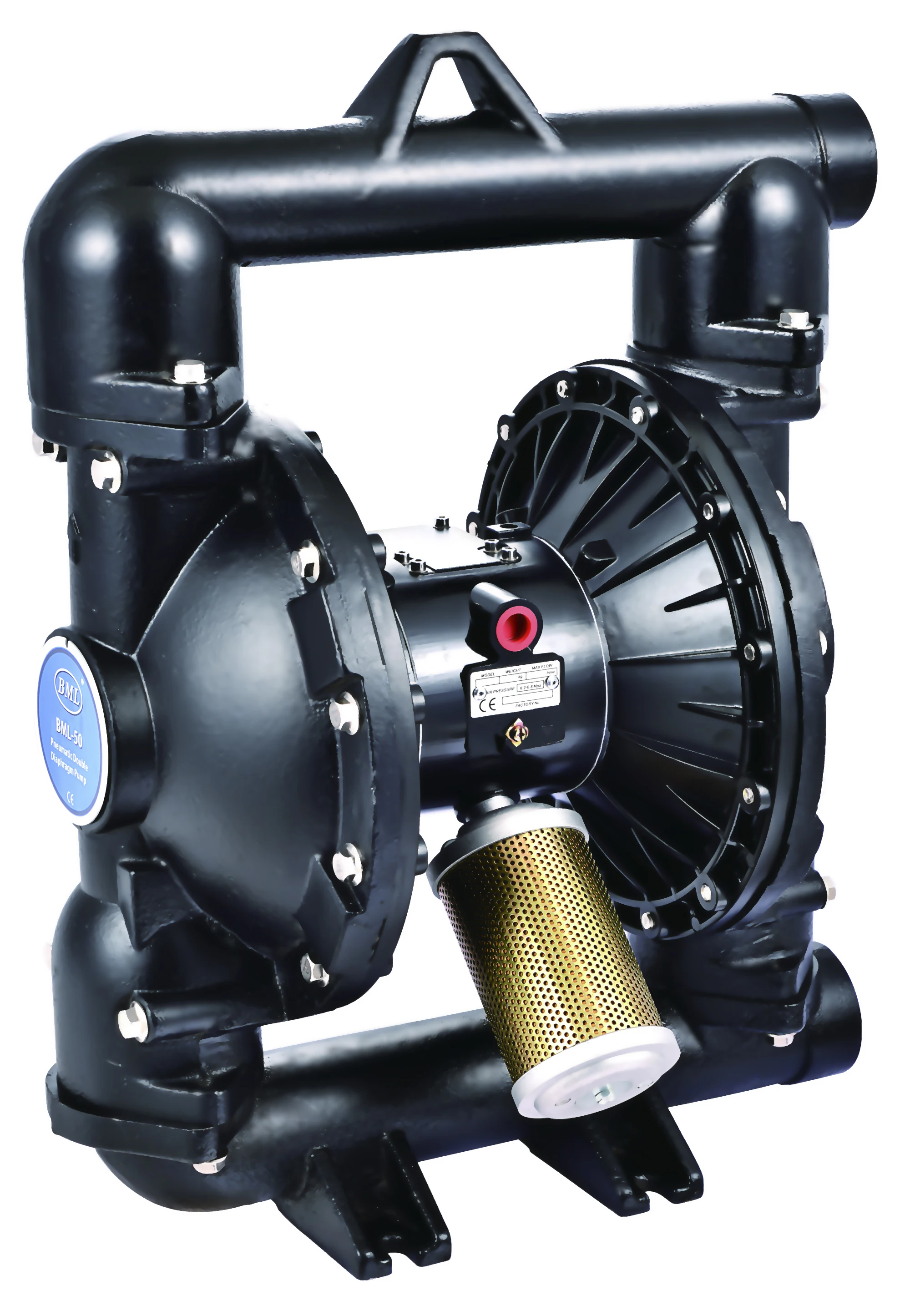

BML 50D пневматический двойной мембранный насос

If you want to know more about product information.

Pls click.

If you want to know more about product information.

Pls click.

//gdcolorsky.en.alibaba.com/

//www.colorsky.com

Q1. Fluid flowing from the exhaust outlet

A1. Check the diaphragm for any damage.

      Check the diaphragm screw for looseness.

Q2. Air bubbles in the outlet fluid

A2. Check the suction pipe connection for good sealing.

      Check the connection between the suction pipe and the intake manifold for good sealing.

      Check the O ring between the intake manifold and the fluid cap.

      Check the diaphragm screws for looseness.

Q3. Low pump output

A3. Check the air supply is stable.

      Check the inlet/ outlet for any blockage.

      Check connectors connecting the intake manifold for air tightness.

      Check that the ball is not stuck to the seat or the ball is not improperly seated.

Q4. Air flows from the side gap of the muffler cover when there is no reciprocating

      movement

A4. Check seal ring on slid valve.

      Check seal ring on trigger rod.

      Check seal ring on diaphragm link rod.

Q5. When the Teflon pump extracts paint, its diaphragm will wear due to long-term use.

      The flow of the pump will become small after the diaphragm is changed.

A5.  It is recommended to change the SANTOPRENE backup diaphragm beside the air chamber.

Q6. When the pump is used to draw the liquid containing a lot of sharp particles, the

      Teflon diaphragm is easy to wear. Teflon diaphragm is provided with the advantage

      of resistance to strong acid and alkali

A6.  If the PH value is neutral, it is better to make use of SANTOPRENE wear-resistant diaphragm.

Q7. When the stainless steel pump is used to extract copper chloride + hydrochloride

      solution, it will produce "pitting" effect under the function of chloride ions. This is

      the currently main killer endangering the service life of stainless steel.

A7.  It is suggested to make use of the pure PP pump.

Q8. The Y cup of air chamber in the pump easily wears, which causes the serious

      accumulation of dust.

A8.  It is recommended to increase three sources at the air inlet of pump.

Q9. If the outside diaphragm is damaged or the damaged diaphragm is not cleaned up

      after replaced by the new one, the long-term contact between the backup diaphragm

      and the paint will lead to deformation and shrinkage.

A9.  It is recommended to replace the SANTOPRENE backup diaphragm beside the air chamber.

Q10. Lifetime Technical Support

A10. For twenty years, BML has all along been committed to technological innovation. Much by its

       strong technical strength can it render global users with the complete technology solutions.

Q11. One-year Warranty

A11. BML innovative main-valve system can provide users with the perfect solutions because BML

       offers full-warranty service for the main-valve system under normal use.
